Product Details

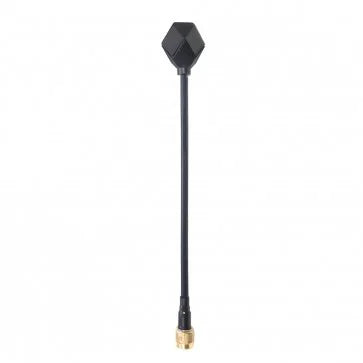

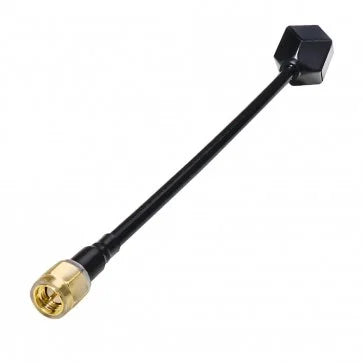

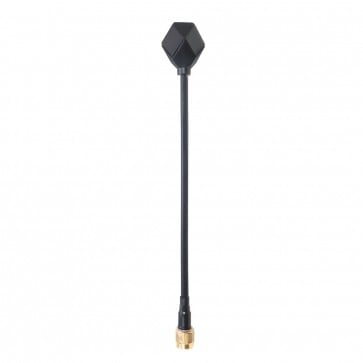

AKK 5.8GHz Diamond Antenna - 160mm, RHCP, SMA
Looking for a FPV antenna that won't roll over and play dead mid-flight? The AKK 5.8GHz Diamond Antenna is here to slice through interference like a hot knife through butter. With a gain of up to 6dBi and RHCP polarization, this sleek 160mm omnidirectional powerhouse is built for long-range FPV transmission without the drama.
Whether you're dodging trees or just flexing range, this antenna is engineered to perform in the 5.5-6GHz frequency range. It's tough, lightweight, and yes—ominously black, so it at least looks like it means business.
Key Features:
-
Frequency Range: 5.5-6GHz - perfect for 5.8GHz FPV setups
-
Impedance: 50Ω - because your signal deserves balance
-
VSWR: <1.8 - for efficient signal transfer
-
Gain: 4.5-6dBi - the FPV equivalent of a loudspeaker in a library
-
Polarization: RHCP - because matching polarization matters
-

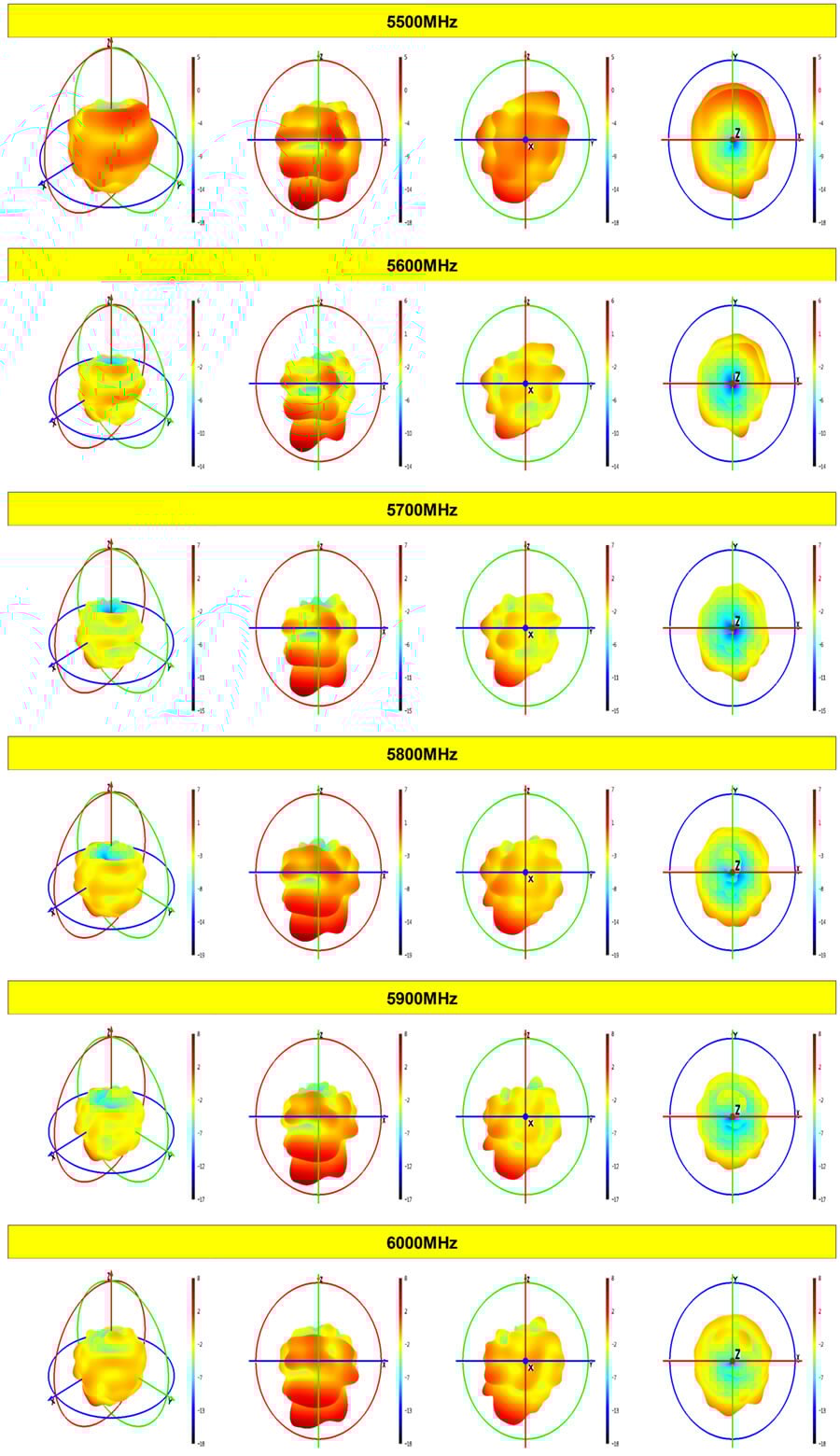

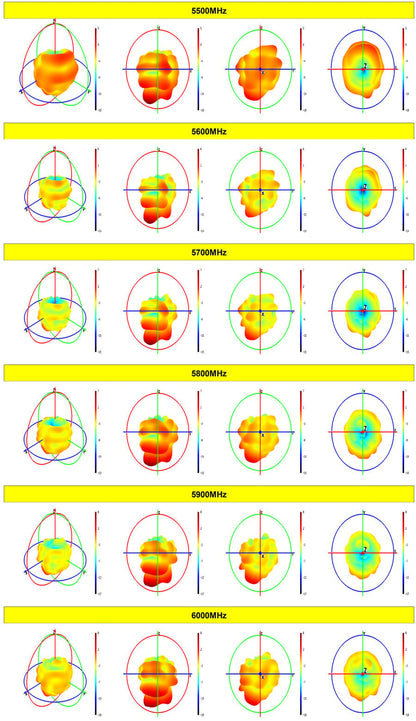

Radiation Pattern: Omnidirectional - for coverage in all directions
-
Max Power Handling: 50W - more than enough for your setup
-
Connector: SMA - standard and solid
-
Height: 160mm - tall, but not obnoxiously so
-
Color: Black - like your post-crash emotional state
In the Box:
-
1x AKK 5.8GHz Diamond Antenna (SMA)
Note: Accessories may vary slightly depending on supply availability. Don't worry, it won't come with a banana.
