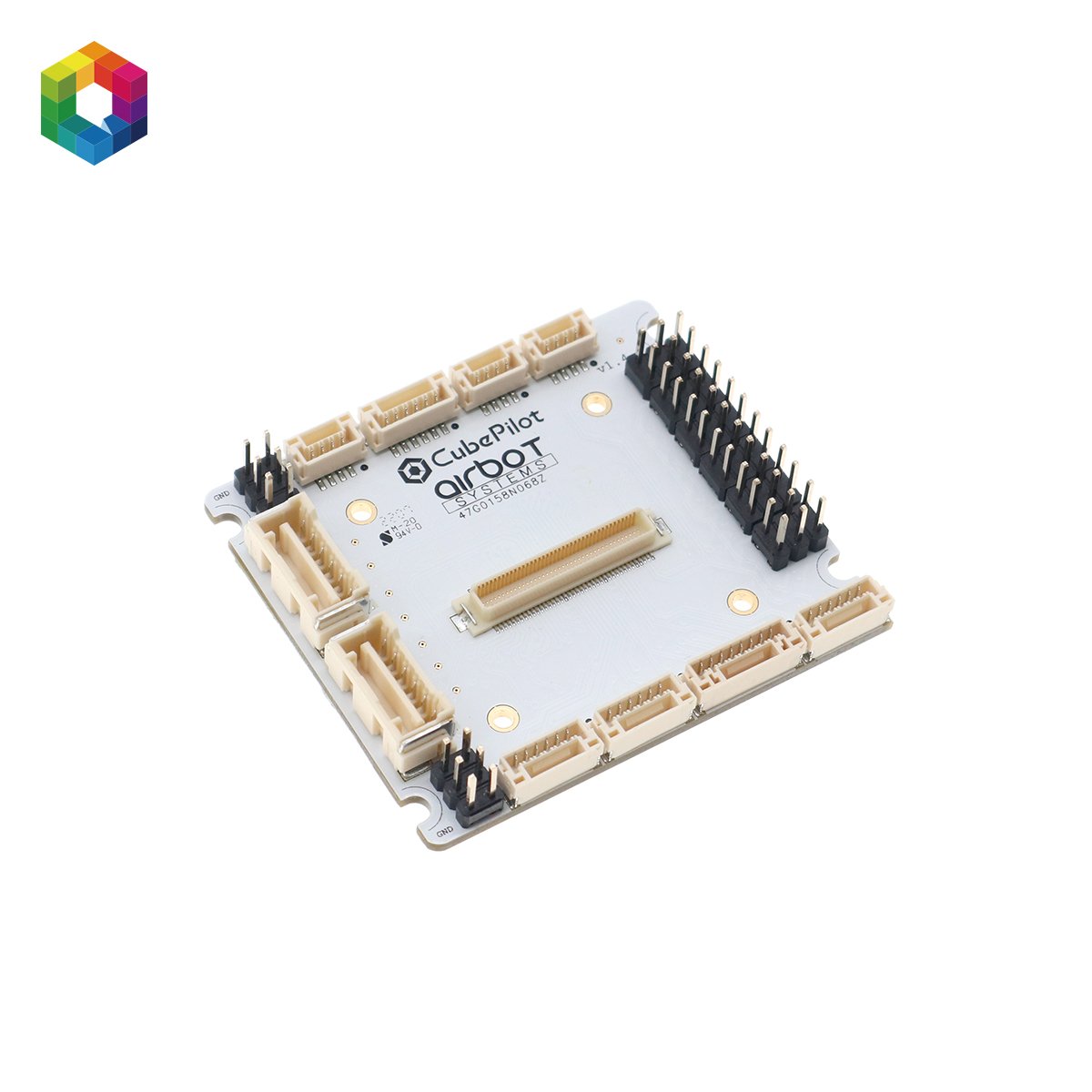

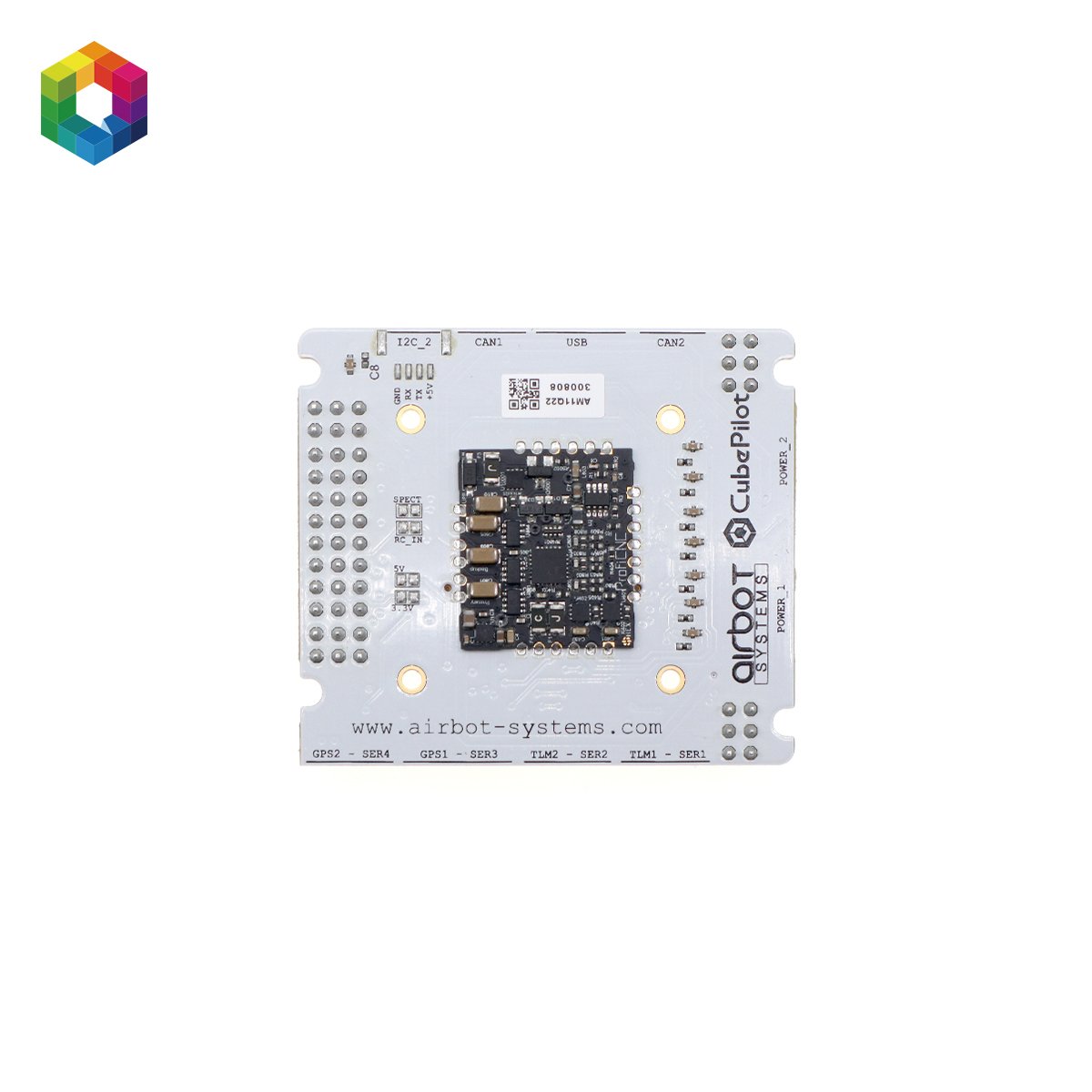

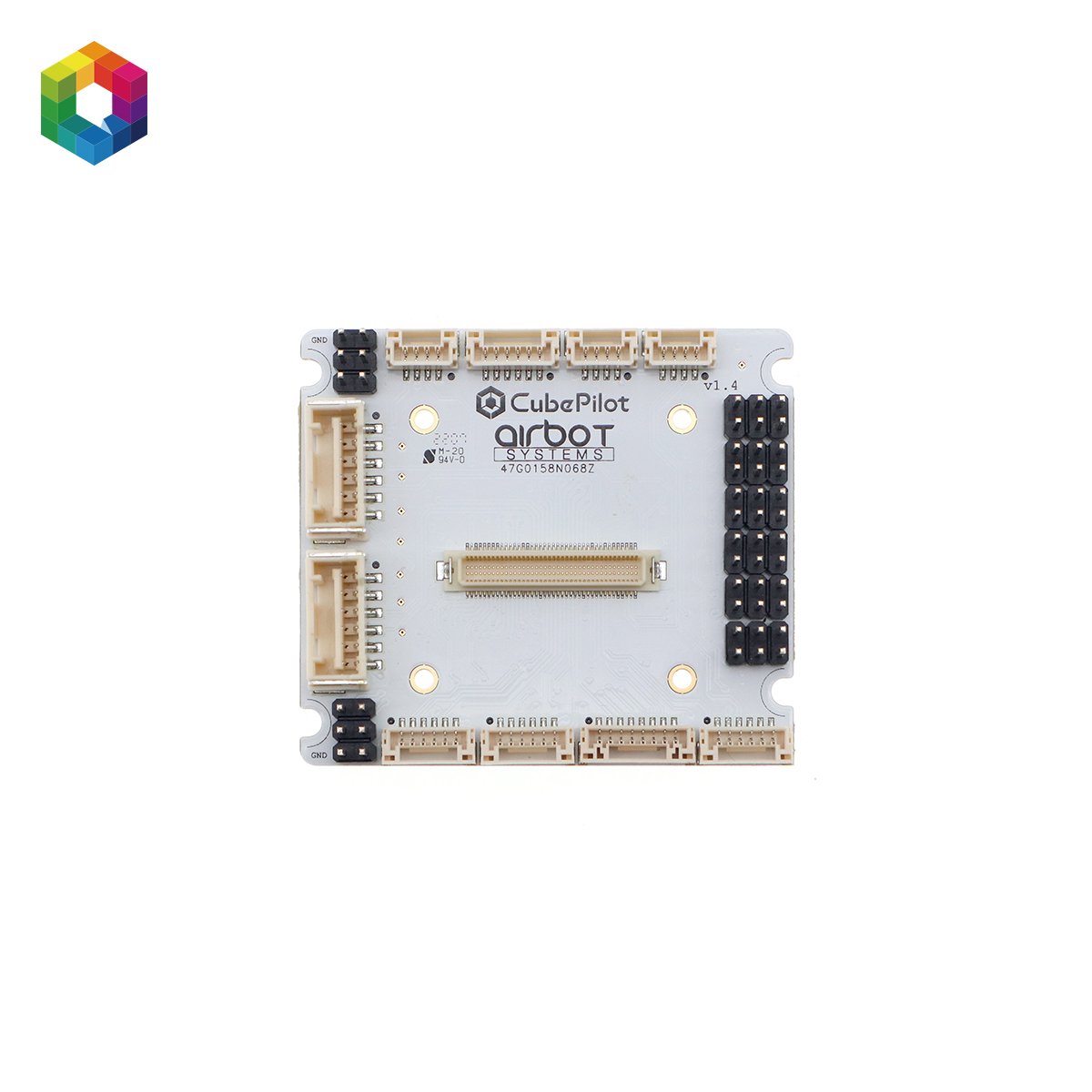

Airbot Mini Carrier Board for CubePilot

Airbot Mini Carrier Board for CubePilot

SKU:ASX-002

Regular price £87.50 GBP
Regular price £0.00 GBP Sale price £87.50 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Out of stock

View full details

Product Details

Features

  • Dual power inputs (redundant power with automatic switch to the second power source when first one fails)
  • Easy to install on drone (see the mounting pattern above)
  • Power distribution & voltage protection (providing current to each connector)

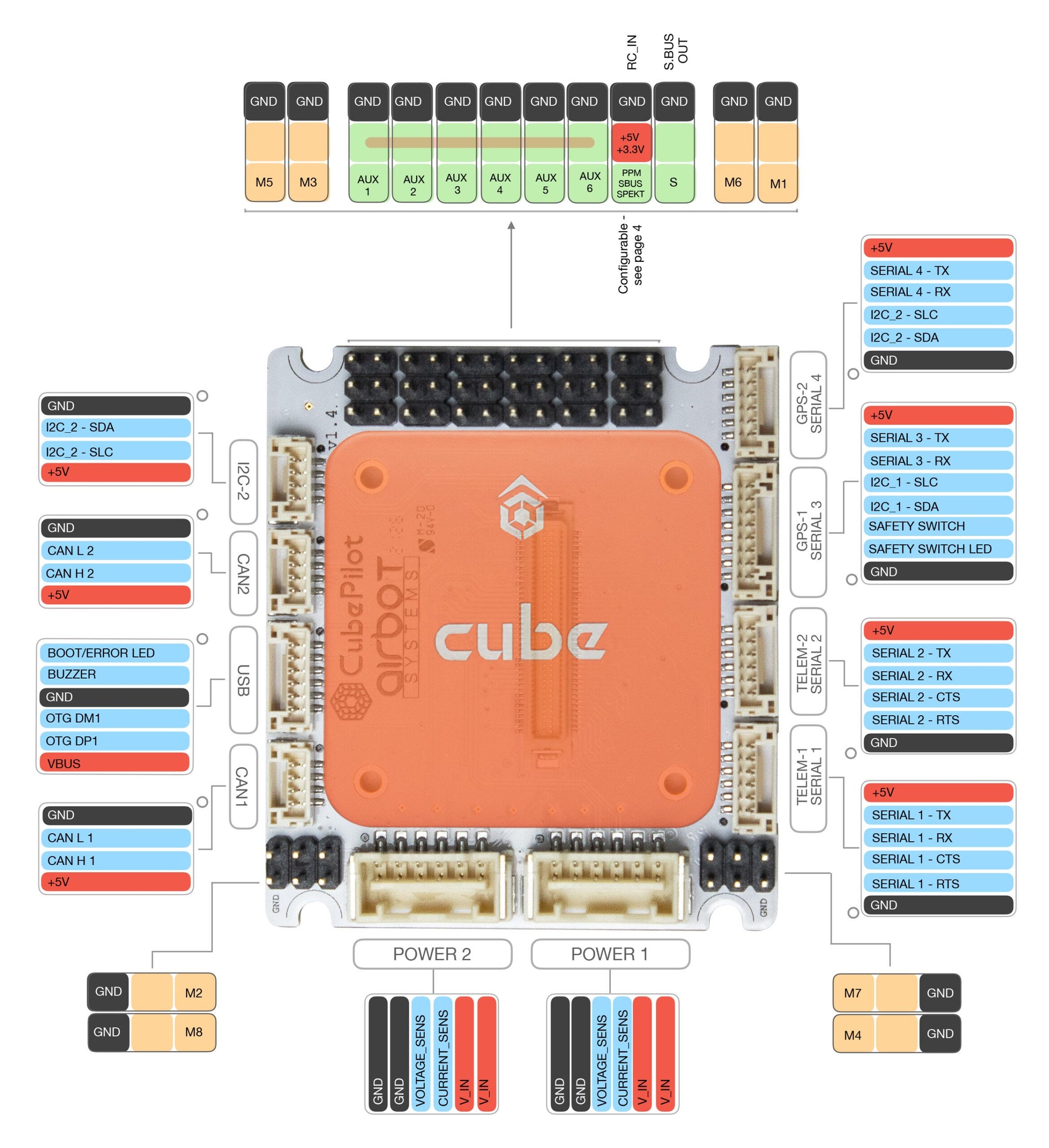

  • Motor PWM signal distribution (up to 8 motors - distributed on corners)

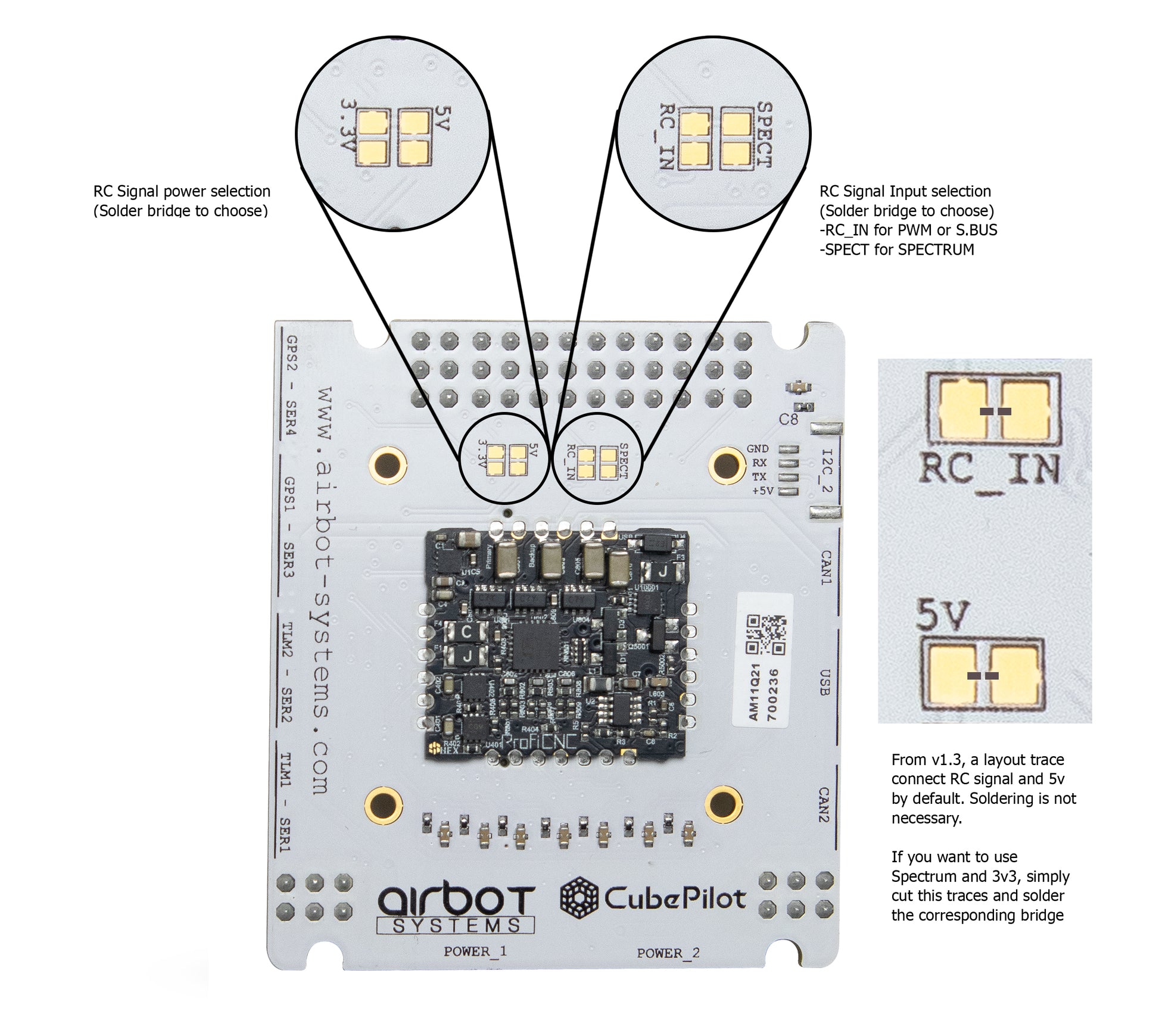

  • Standard 2.54mm servo PPM/S.BUS/Spectrum RC input (+5v/+3.3v selectable power from carrier board)
  • AUX VCC pins are connected. This allows powering the AUX rail externally.

Specifications

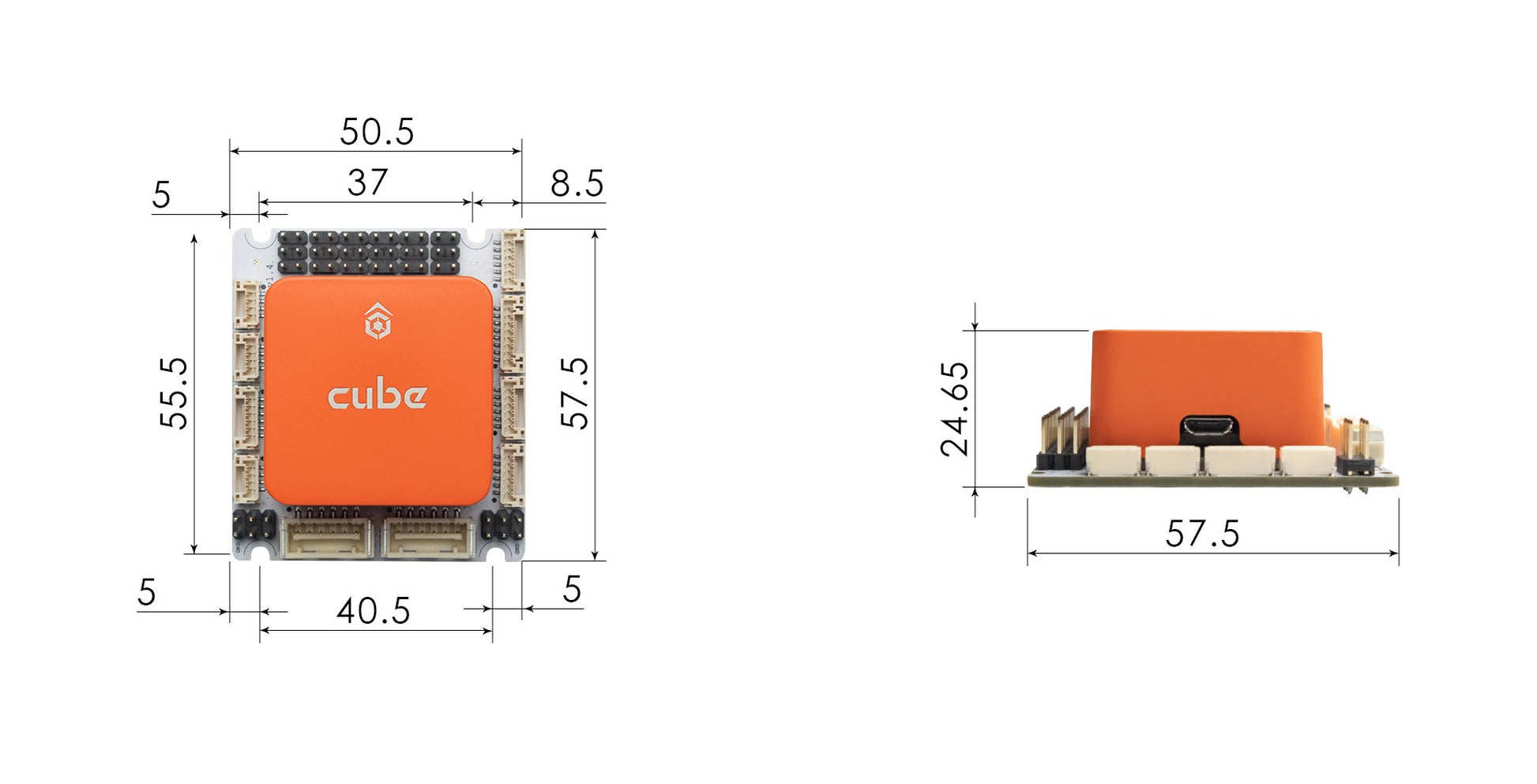

Dimensions : 50.5*57.5mm (1.98*2.26 inch)
Height with cube: 24.65 mm (EXCL. PSM + 2.75 mm approx)
Weight: 19gr (0.041 lb) (incl. connectors and PSM)

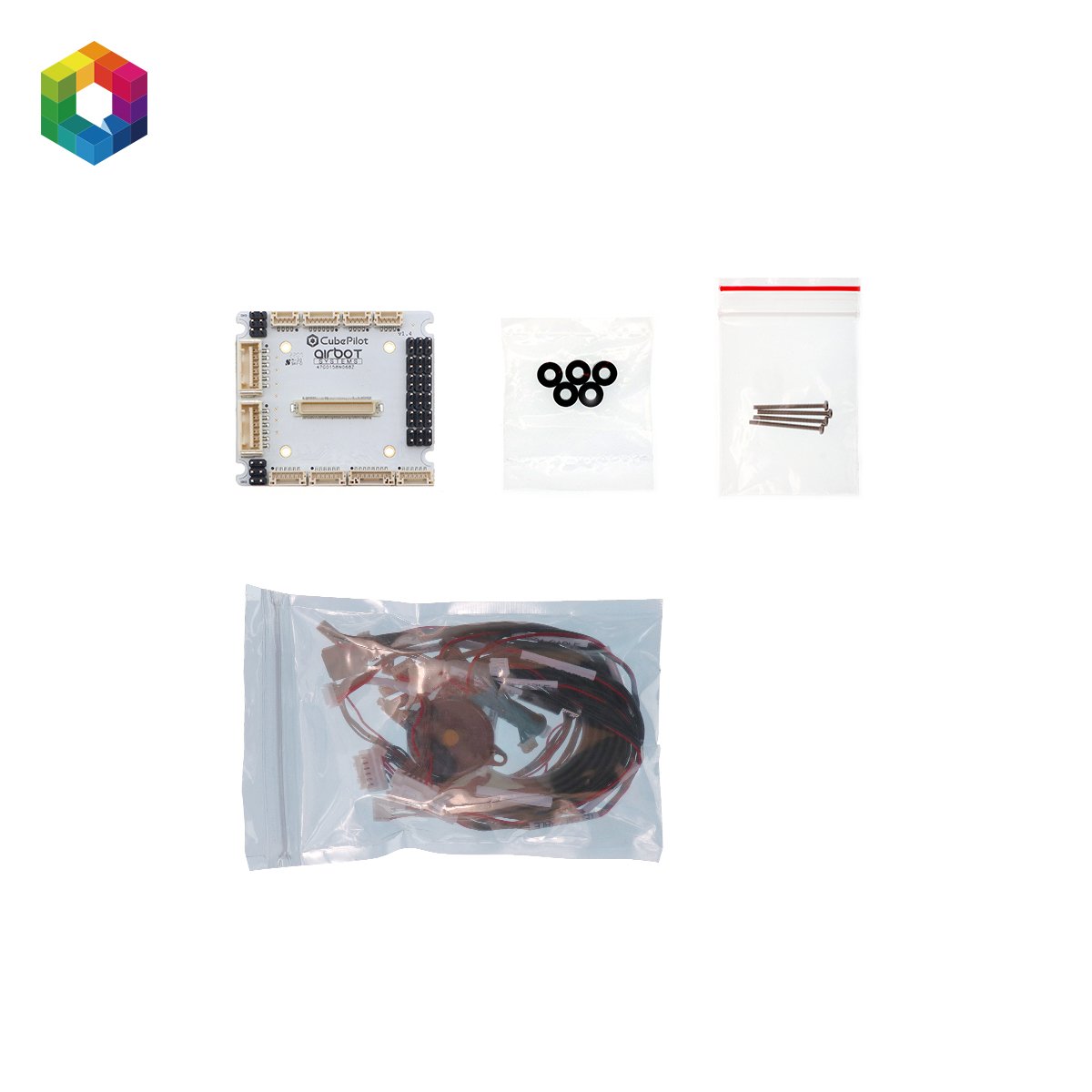

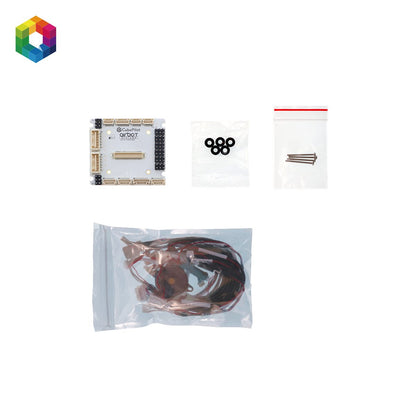

Included

  • 1x Airbot Systems Mini Carrier Board (PDB sold separately)
