Product Details

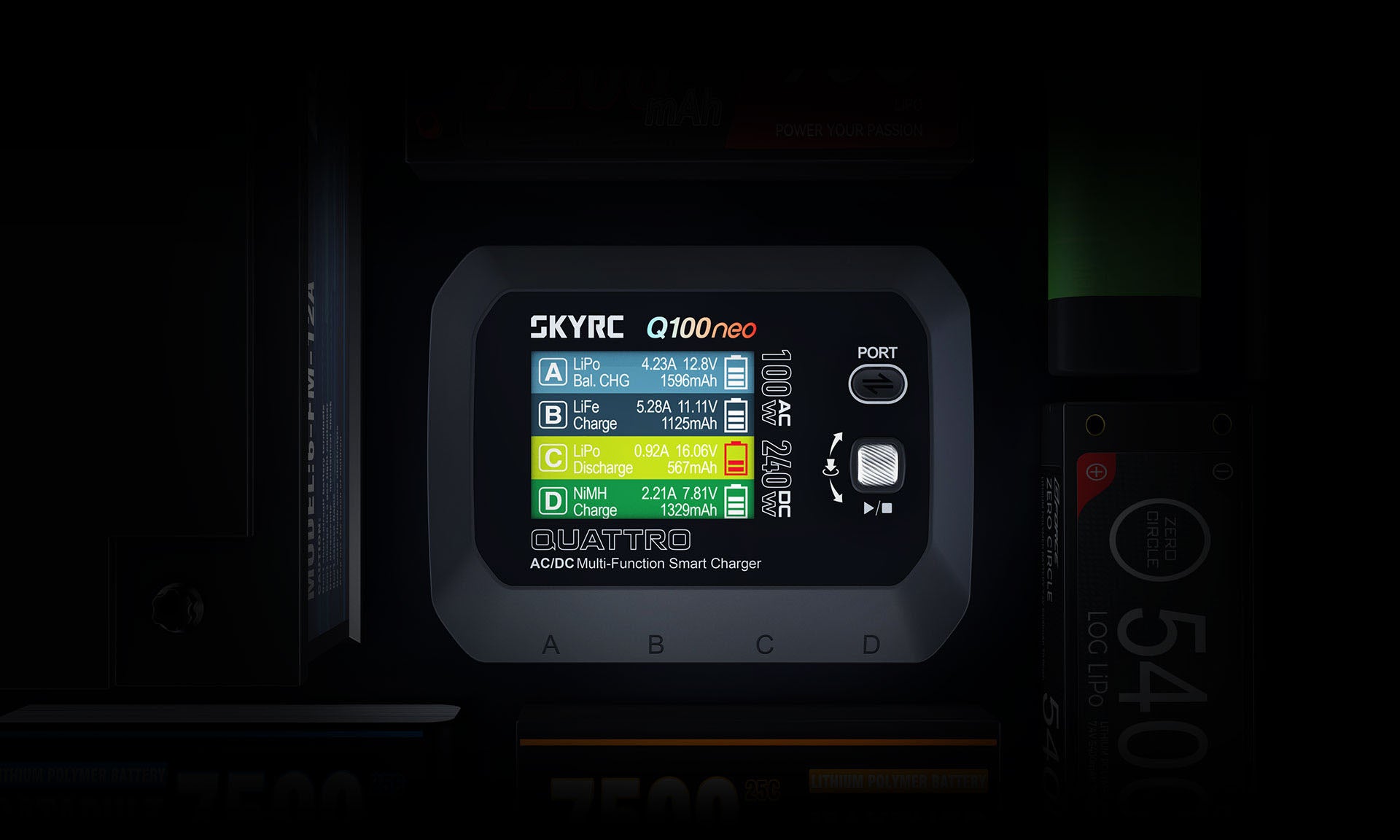

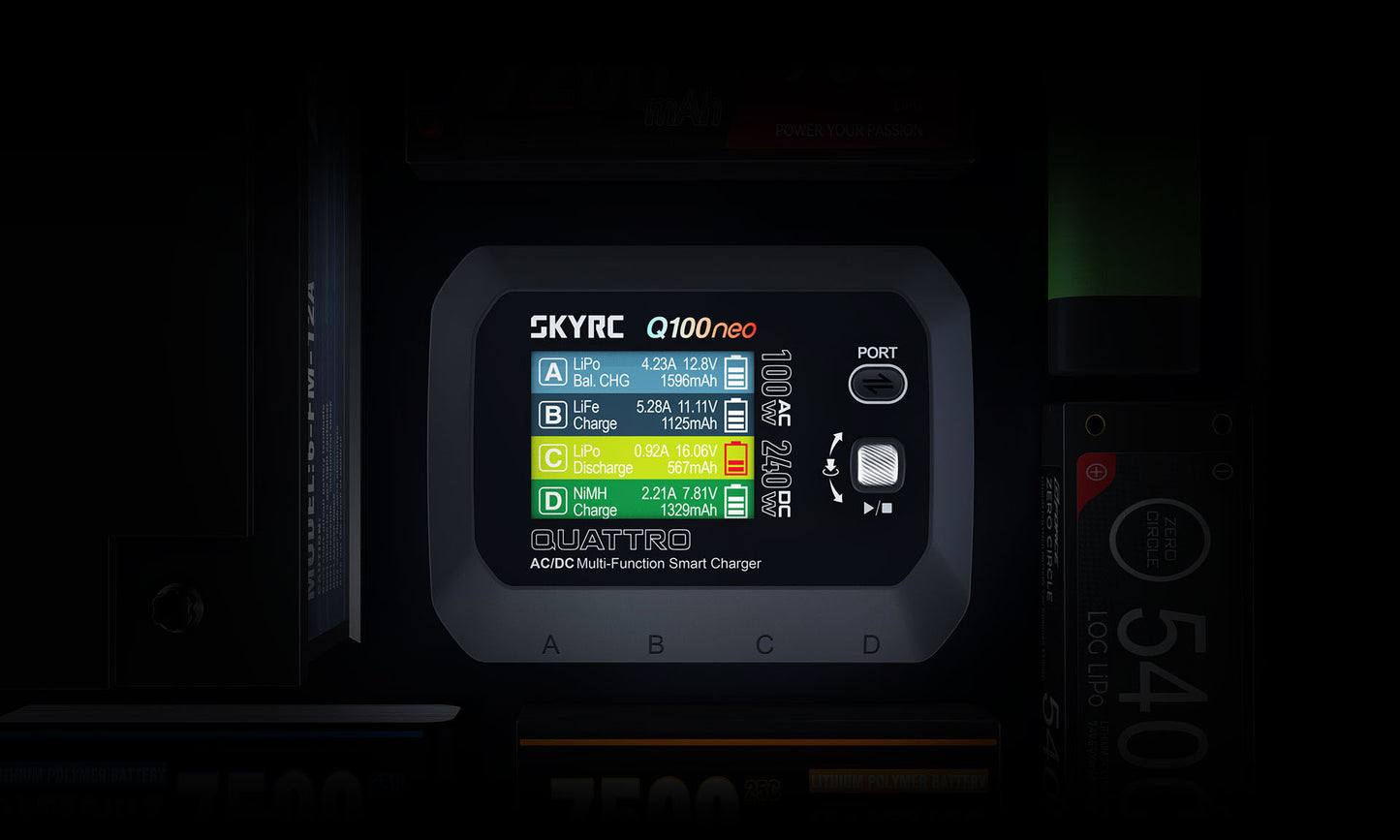

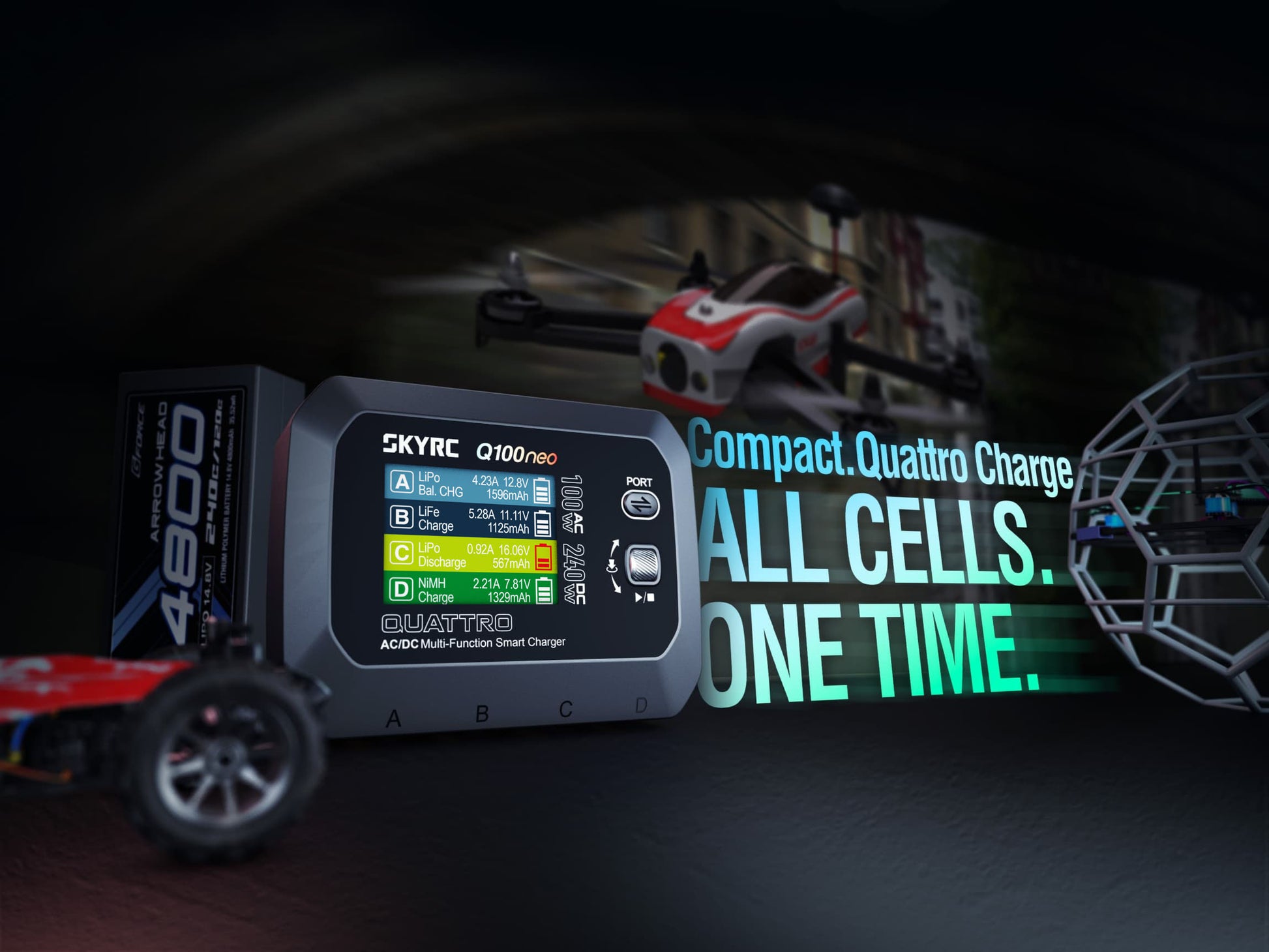

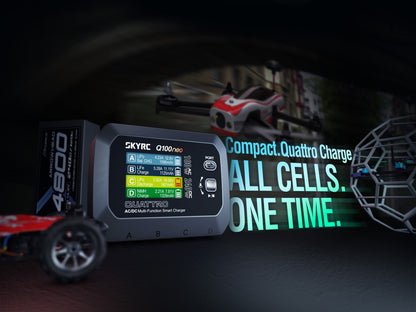

AC/DC Multi-Function Smart Charger
This is the AC/DC Multi-Function Smart Charger—the one box that charges everything while silently judging your cable management. SEO appeasement up front: AC/DC smart charger, multi-function LiPo charger, FPV battery charger. If you’re skimming (of course you are): it runs on wall power or DC input, charges basically every RC battery you own, and exists so you stop borrowing chargers at the field like a gremlin.
Why You Want It
Because juggling three chargers and a prayer is not a workflow. This smart charger handles LiPo, LiHV, LiIon, NiMH, and more with balance charging, storage mode, and safety features that keep your packs healthy and your house unburnt. AC for home, DC for the car, and a menu system that assumes you’re competent—but not perfect. It’s boring in the best possible way: it just works.
Specifications

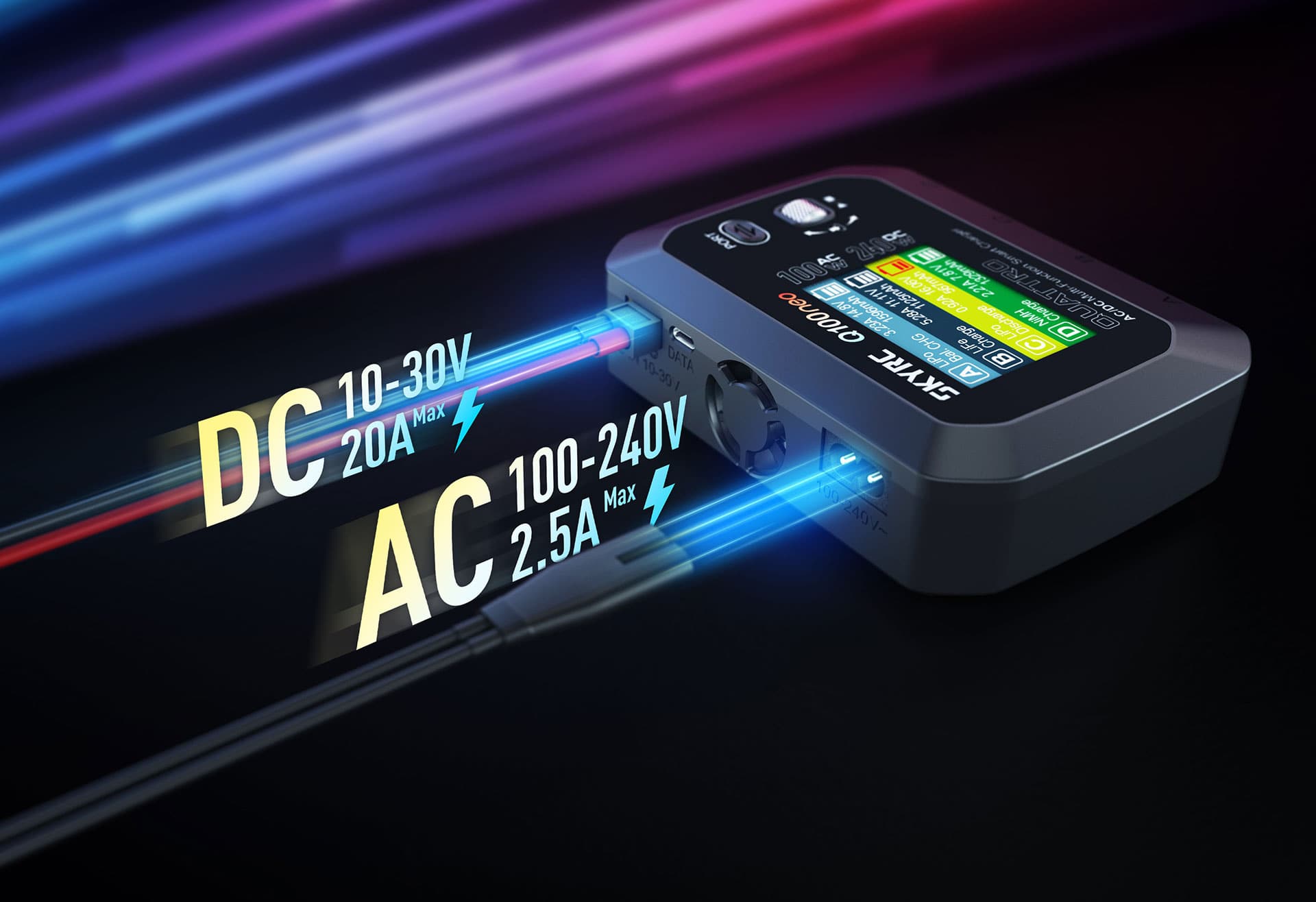

| Input Voltage: | AC: 100240 V DC: 1030 V |

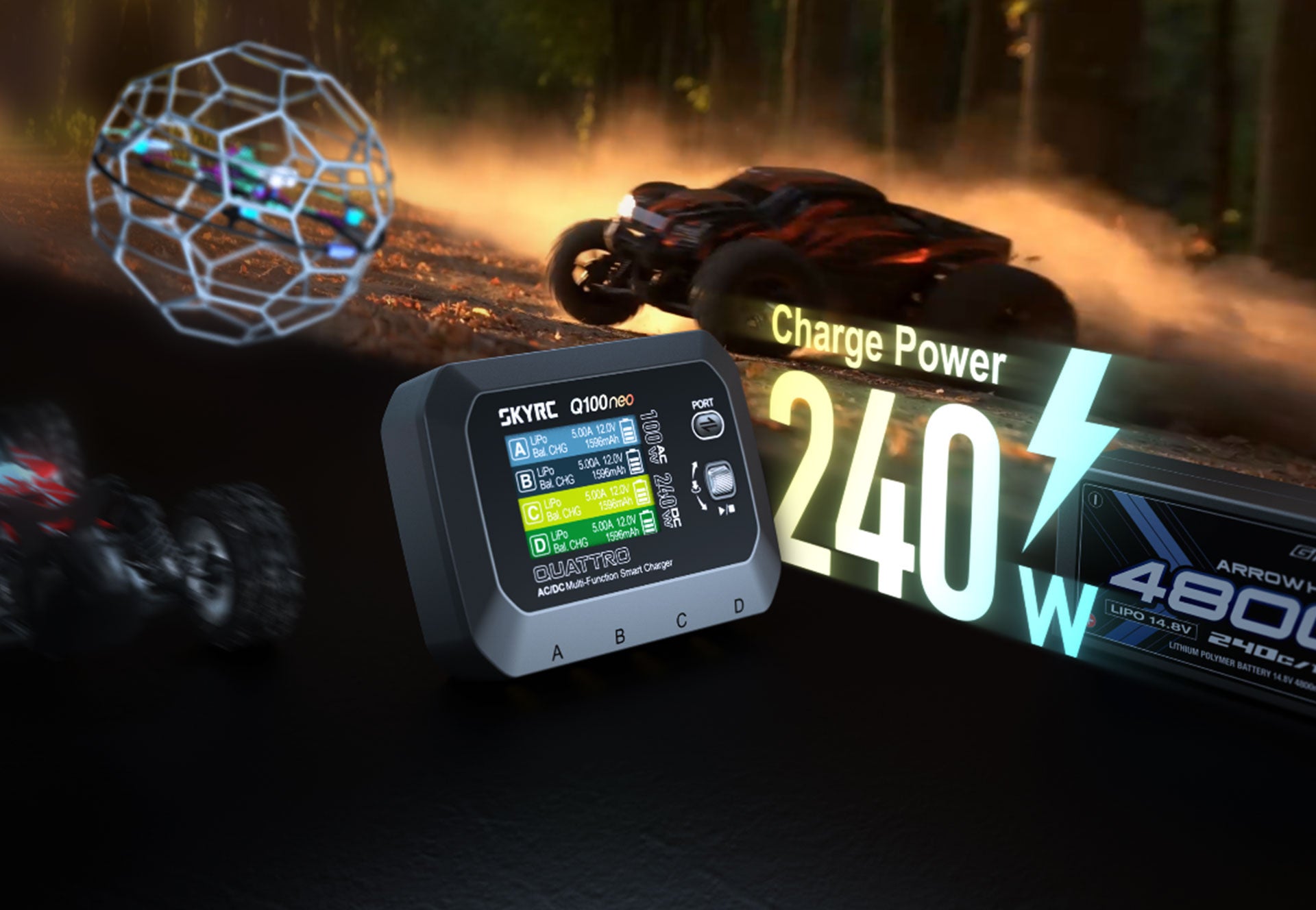

| Charging Power (DC): | max. 240 W (4 × 60 W, dynamically distributed) |
| Charging Power (AC): | max. 100 W |
| Charge Current: | 0.1 6.0 A |
| Balance Current: | max. 600 mA |

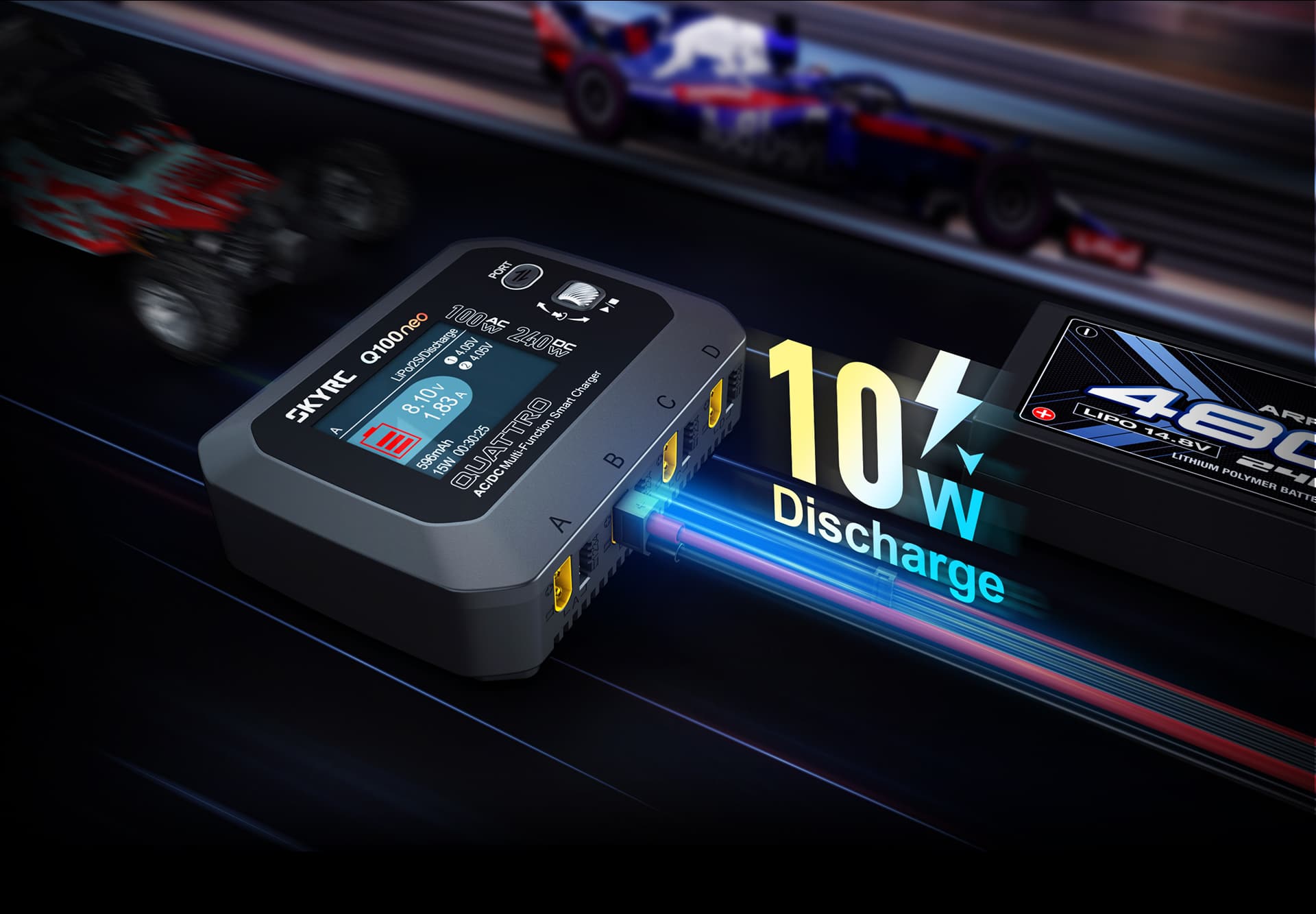

| Discharge Power: | 5 W (Main Port) 10 W (Balance Port, LiPo/4S) |
| Display: | 2.8'' color display, 240×320 px, 262k colors |
| Battery Types: | LiPo/LiFe/LiIon/LiHV: 1-4S NiMH/NiCd: 1-8S Pb: 3S / 6S |
| Dimensions: | 140 × 108 × 43.5 mm |
| Weight: | approx. 491 g |
Case Size: 140x108x43.5mm
Weight: 491g
Display
Display Type: TN
Size: 2.8 inch
Panel Active Area: 43.20*57.60mm
Resolution: 240x320 Pixel
Number of Colors: 262K
Power
AC Input: 100V ~ 240V（50Hz/60Hz）
DC Input: 10V~30V
Charge Power:
AC Input: 100W(±10%)

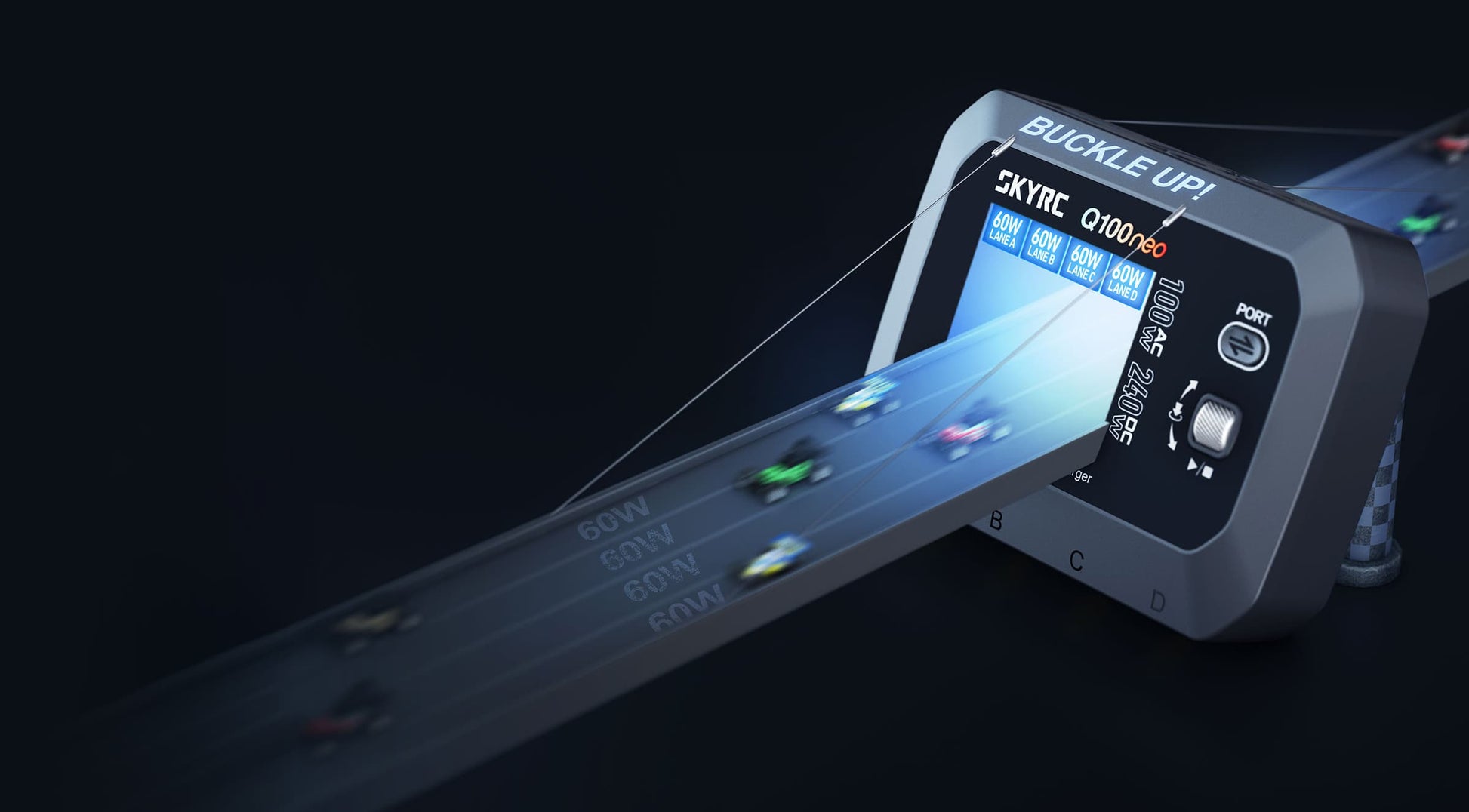

1 port: Max. 60W
2 ports: 50W + 50W
3 ports: 33W + 33W + 33W (Total power divided by 3)
4 ports: 25W × 4
DC Input: 240w(±10%) 60W *4
Discharge Power:
Main port: 5W
Balance port: Max. 10W（LiPo/4S）
Charge and Discharge
Charge Current: 0.1A~0.5A（±0.1A） 0.6A~6.0A（±10%）
Balance Current: Max. 600mA
Working Mode:
LiPo/LiFe/Li-ion/LiHV: Balance CHG, Charge, Discharge, Storage
NiMH/NiCd: Normal, Discharge, Repeak, CYCLE_D_C, CYCLE_C_D
Pb: Normal, AGM Charge, Cold Charge, Discharge
Battery Types/Cells:
LiPo/LiHV/LiFe/LiIon: 1-4S
NiMH/NiCd: 1-8S
Pb: 3S/6S
Working and Storage
Operating temperature: 0℃-40℃
Working humidity: 5% ~ 75% RH (Non-condensing)
Storage temperature: -10℃ ~ 70℃
Storage humidity: 5% ~ 75% RH (Non-condensing)
What’s in the Box*
- 1× AC/DC Multi-Function Smart Charger
- n× Charging leads (never the exact one you need)
Power lead: The manufacturer-packed mains lead may vary. A UK three-pin lead is not guaranteed; some units may include a European two-pin lead. This model uses an IEC C7 figure-eight inlet. If you need a UK lead, a matching UK figure-eight mains lead is available separately.
Q100neo_100223_Instruction Manual_V21
Disclaimer
*Accessories may vary with manufacturer stock. Always follow the battery and charger safety instructions. One charger. Wall or car. Charges everything. Stop living like it’s 2014.
