Product Details

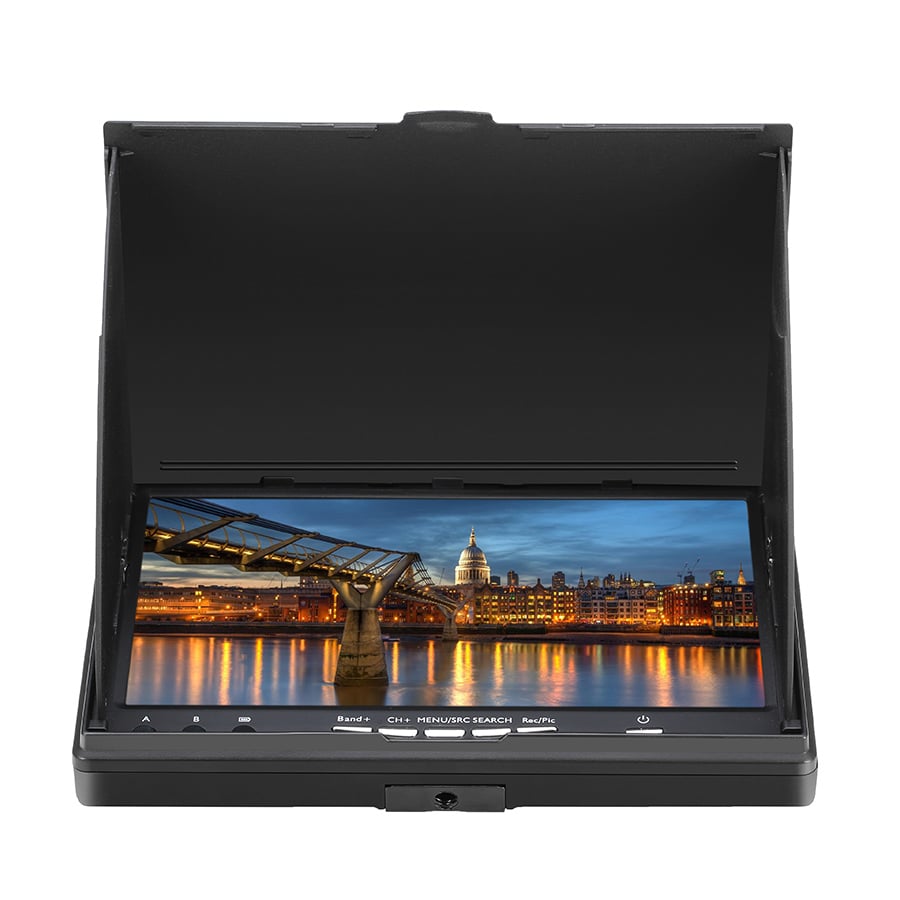

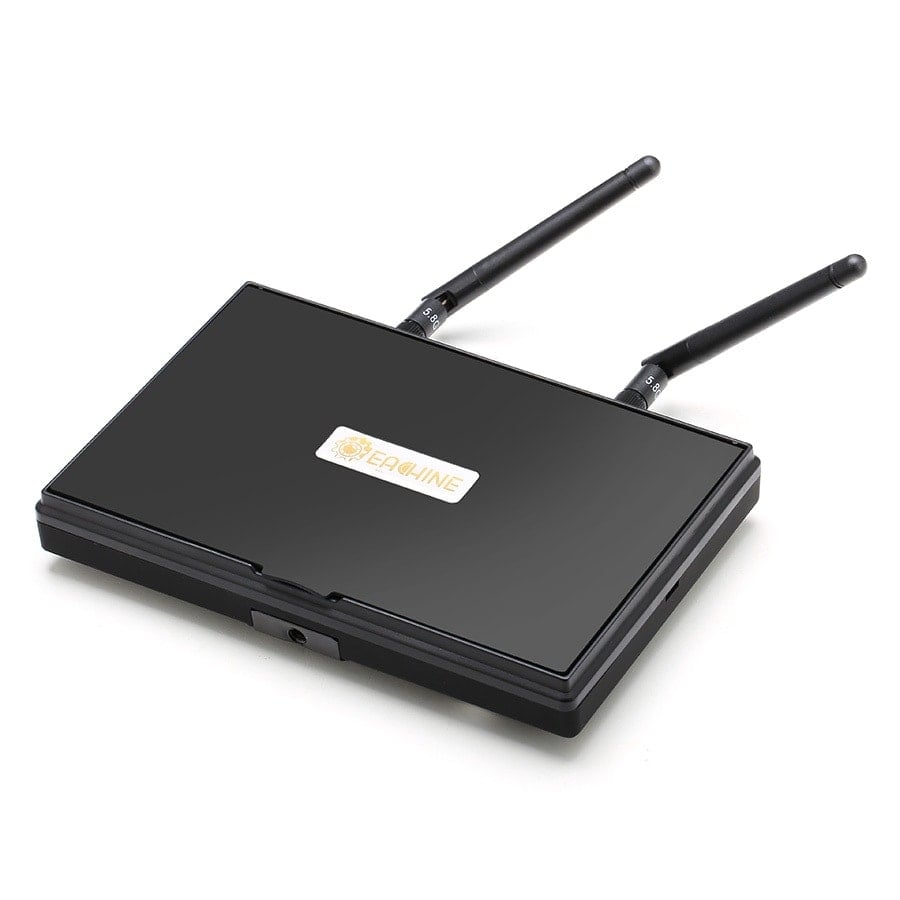

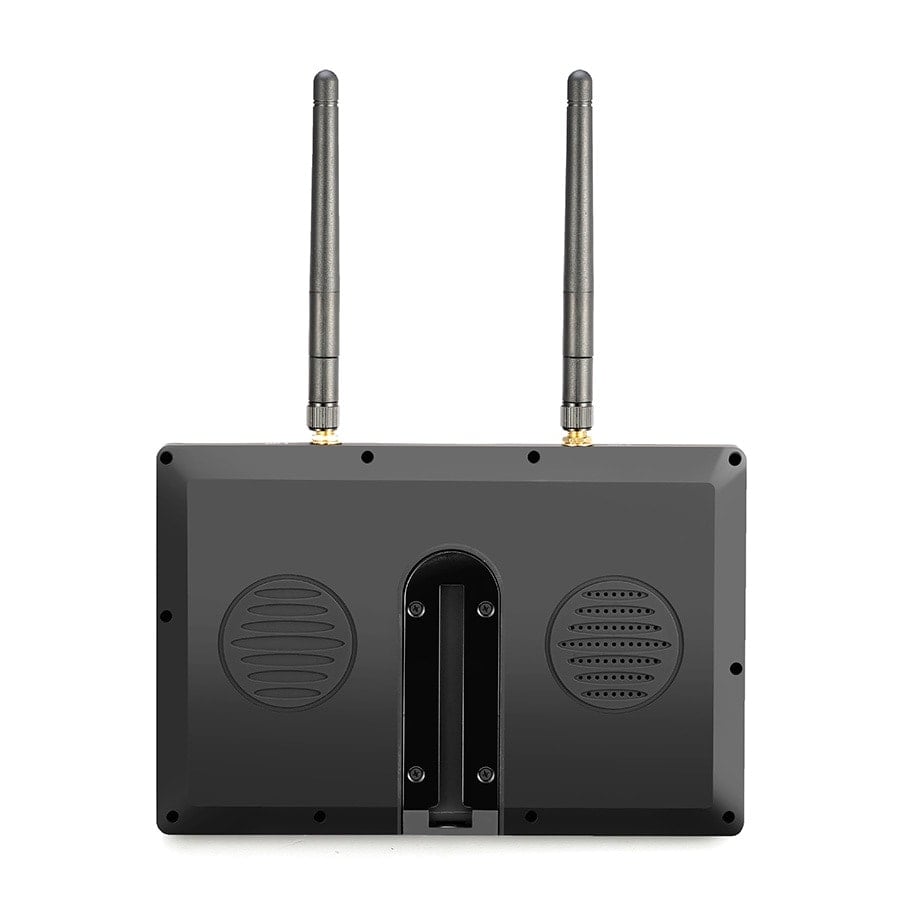

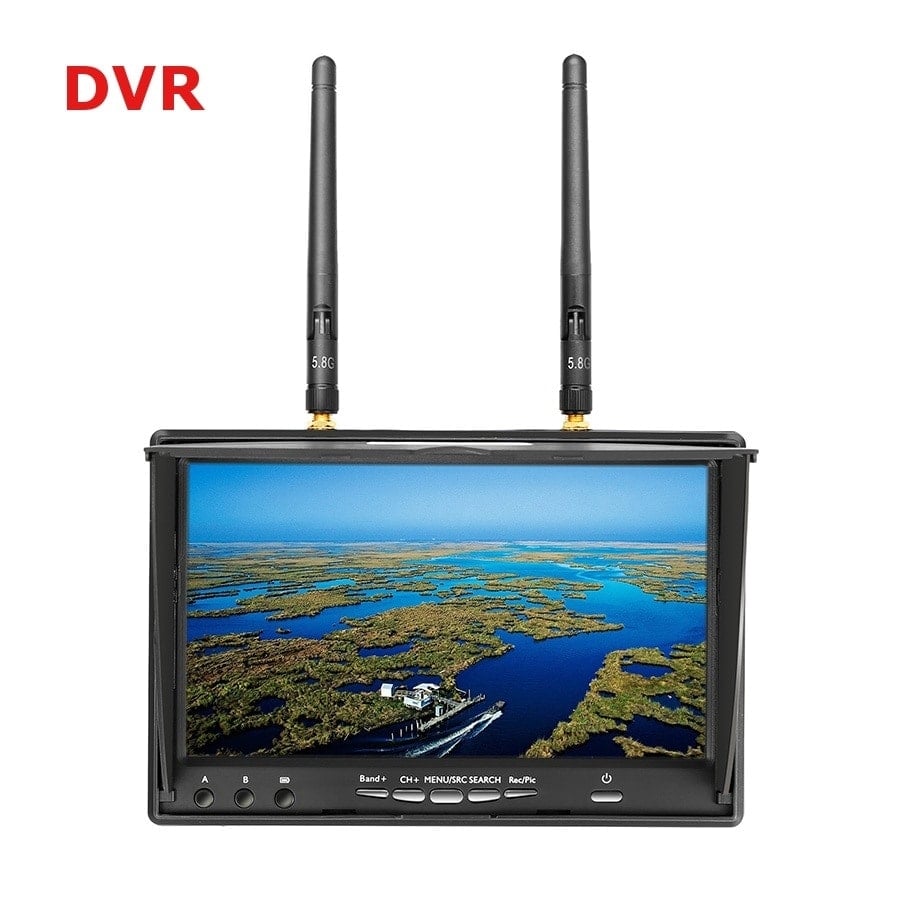

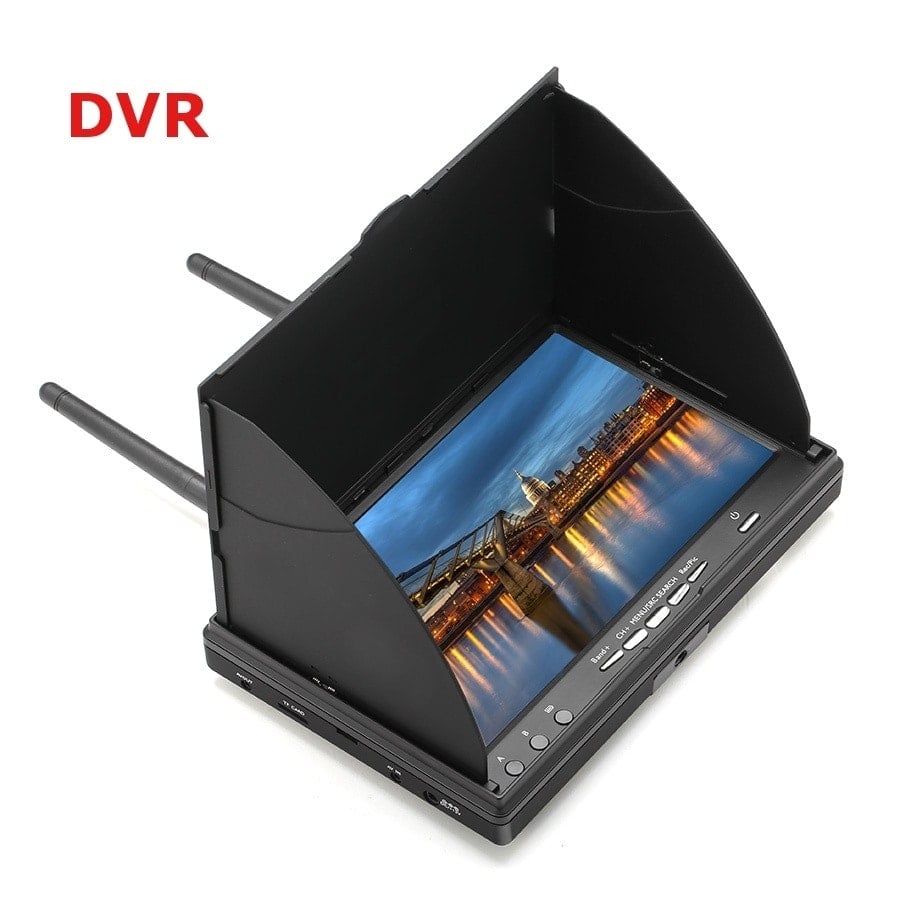

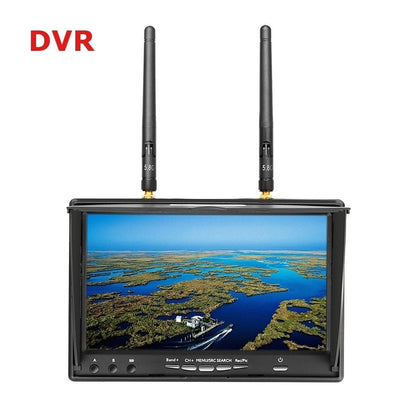

This is the LCD 5502D FPV monitor from Eachine. This is a great 7-inch monitor with a built-in 5.8GHz dual diversity receiver so that you receive the best reception. This monitor also has a built-in DVR function and a built-in, rechargeable battery making this monitor one of the most practical in the field. It has a 800*480 resolution with a brightness of 600cd/m2 so it can be easily viewed outside on the sun (if you're lucky enough to catch some sun in Britain...). A great monitor to view your FPV feats on!
Key Features:
- Built-in dual diverstiy receiver
- Built-in rechargeable battery
- 7-inch, 800*480 resolution monitor
- Built-in DVR function
- OSD display
Specifications:
- Format: JPEG, AVI
-
Screen size:7"
- Screen type:TFT LCD Screen/long life, LED backlight
- Resolution: 800*480
- Brightness: 600cd/m
-
View Angle:140/120degree (Horizontal/Vertical)

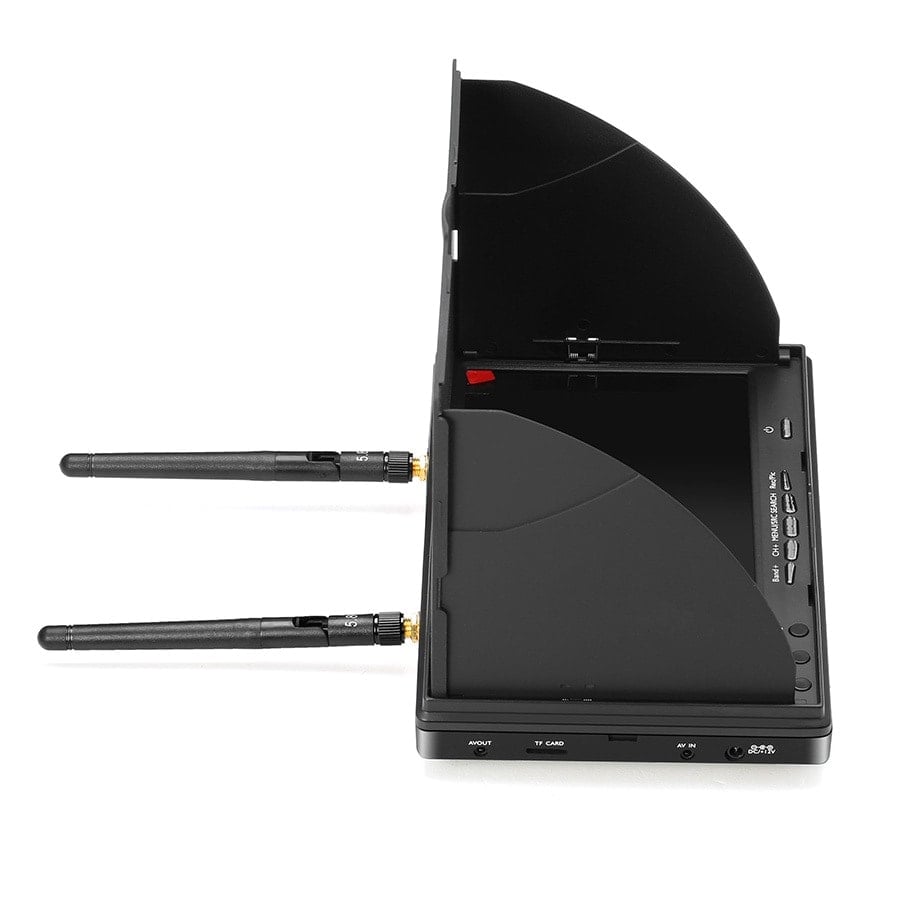

- Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)
- Working Voltage: DC 7~16V
- Power Consumption: max 650 mA @12V
- Battery charging current : 850mA @12V ( max )
- Working temperature: -10℃~+ 65 ℃

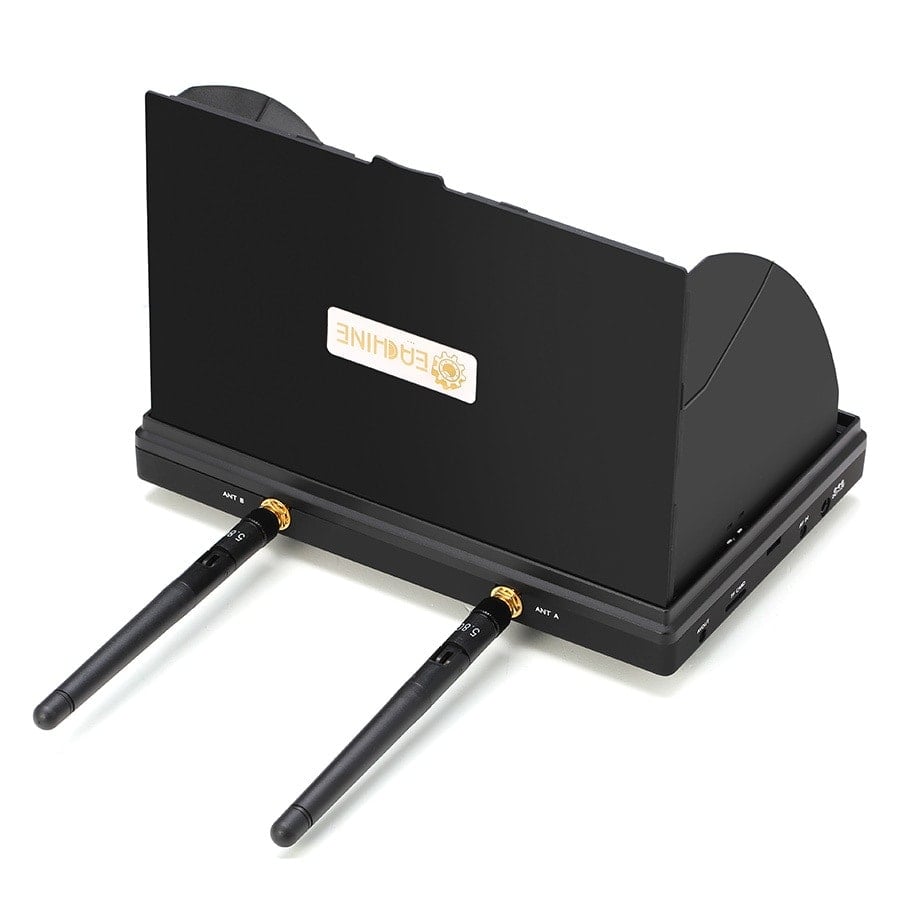

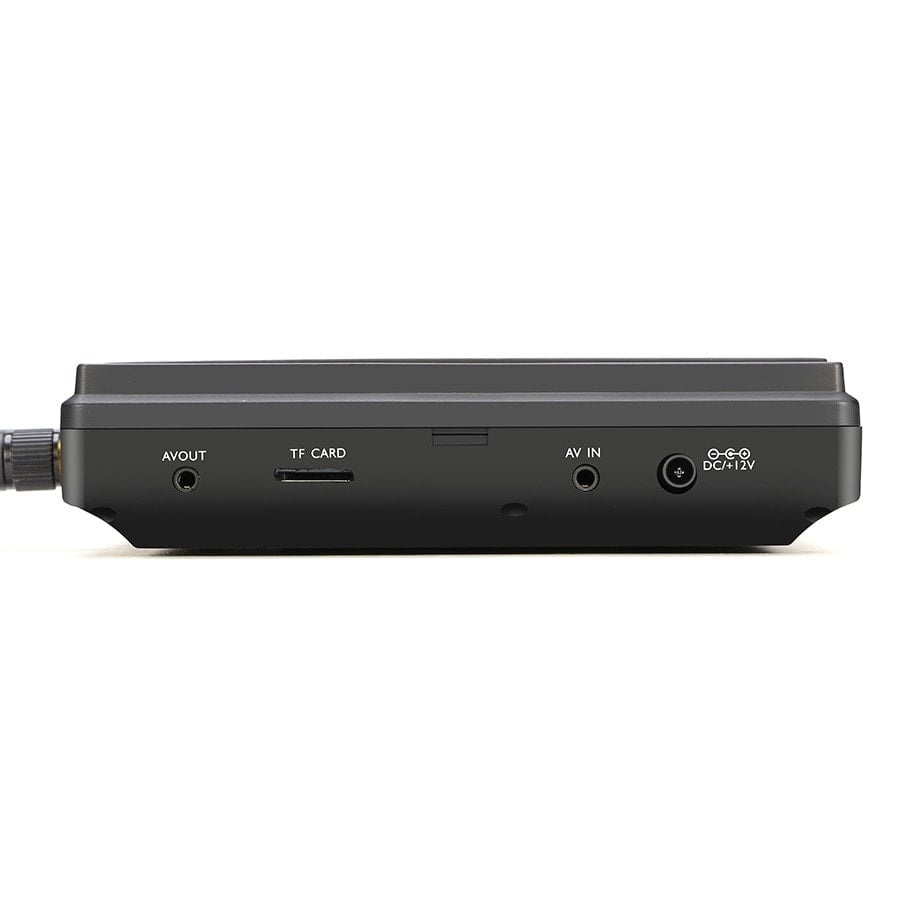

- Connectors: RP-SMA female(outer needle)
- Antennas Connectors:RP-SMA male (inner hole)
- Supports up to 32G , C10 SD Card

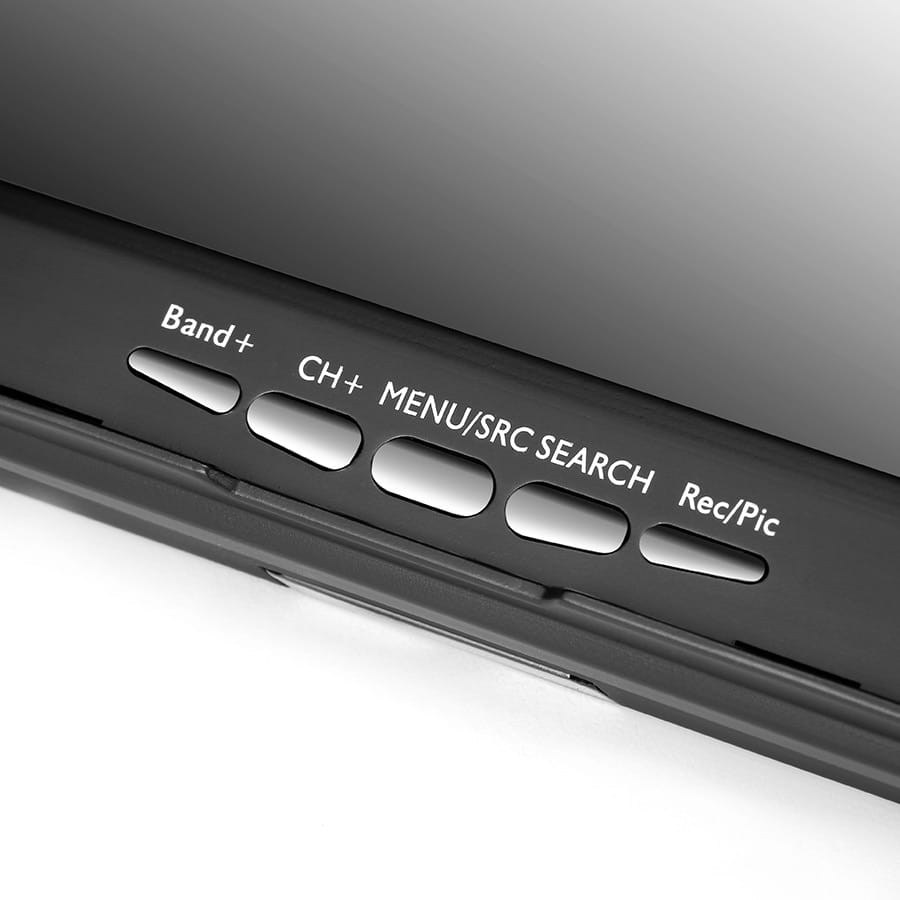

Band and Channel selection
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP | ||||||||
| A | 5865 MHZ | 5845 MHZ | 5825 MHZ | 5805 MHZ | 5785 MHZ | 5765 MHZ | 5745 MHZ | 5725 MHZ |
| B | 5733 MHZ | 5752 MHZ | 5771 MHZ | 5790 MHZ | 5809 MHZ | 5828 MHZ | 5847 MHZ | 5866 MHZ |
| C | 5705 MHZ | 5685 MHZ | 5665 MHZ | 5645 MHZ | 5885 MHZ | 5905 MHZ | 5925 MHZ | 5945 MHZ |
| D | 5740 MHZ | 5760 MHZ | 5780 MHZ | 5800 MHZ | 5820 MHZ | 5840 MHZ | 5860 MHZ | 5880 MHZ |
| R | 5658 MHZ | 5695 MHZ | 5732 MHZ | 5769 MHZ | 5806 MHZ | 5843 MHZ | 5880 MHZ | 5917 MHZ |

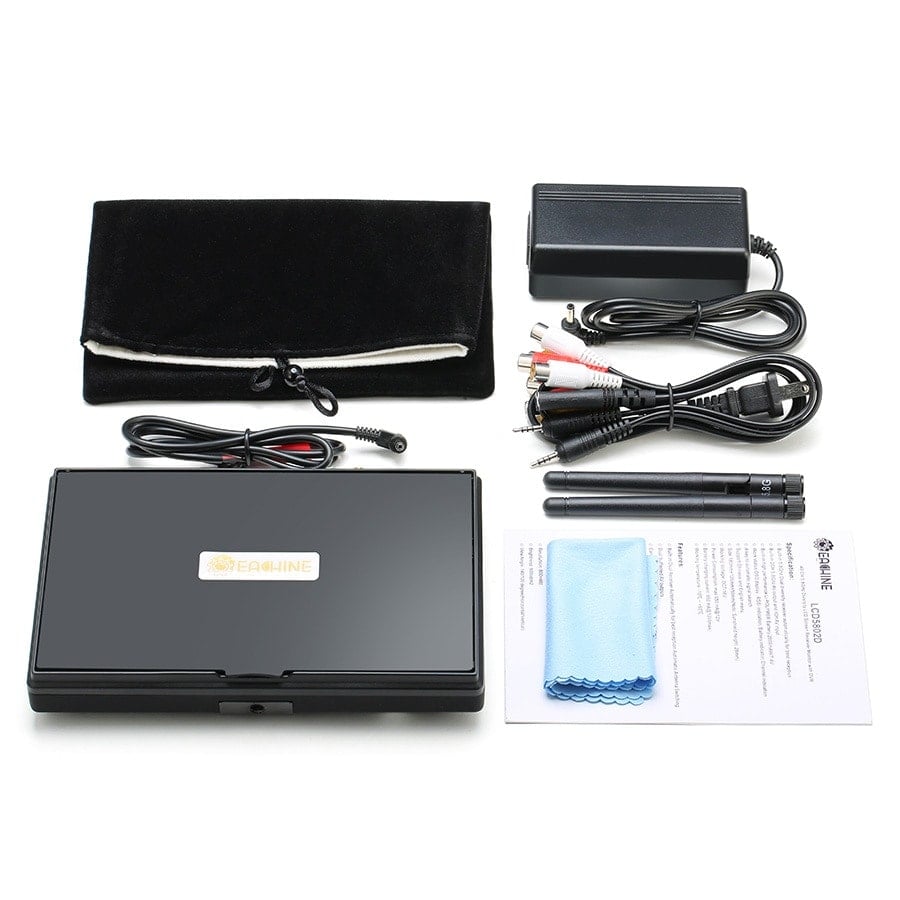

Package Includes:
- 1 x 7" LCD Screen Receiver Monitor with built in Rechargable Battery
- 2 x 5.8G Antenna
- 2 x AV Cable
- 1 x Charger
