3-Ch Relay Expansion Board Designed For Jetson Nano, Optocoupler Isolation

This three-channel relay expansion board lets a Jetson Nano switch external circuits through software-controlled relays. It connects through the 40-pin GPIO header and includes optocoupler isolation, relay-status indicators and configurable control-pin jumpers. The Jetson Nano is not included.

Features

• Standard 40PIN GPIO header, directly pluggable onto the Jetson Nano
• Incorporate quality relay component, max load: ≤5A 250V AC or ≤5A 30V DC
• Optocoupler isolation, prevent interference from the high voltage circuitry
• Indicators for monitoring the relay operating status

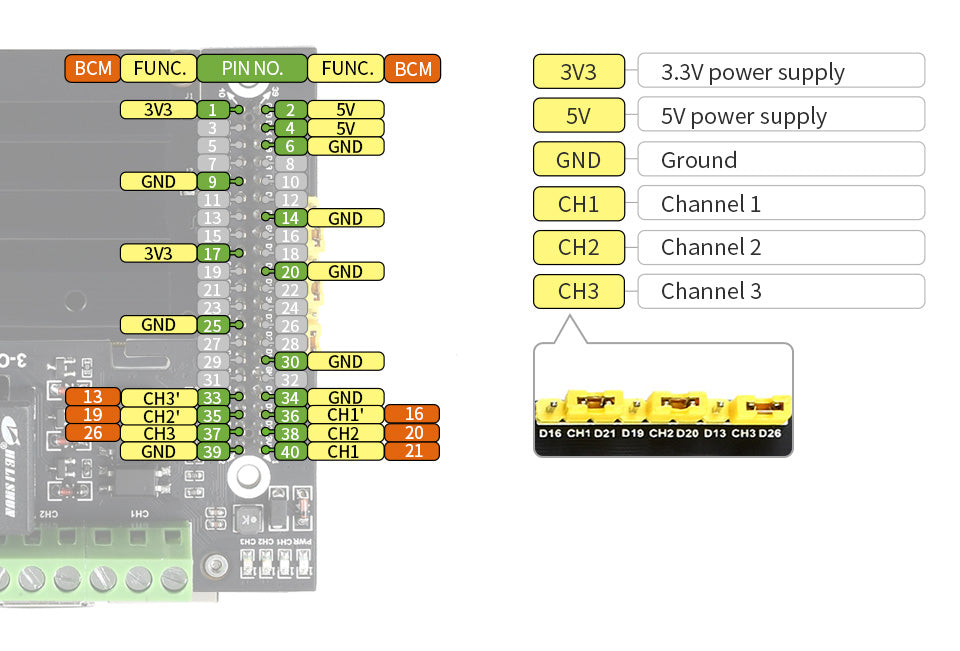

• Control pins of relays are configurable via jumpers

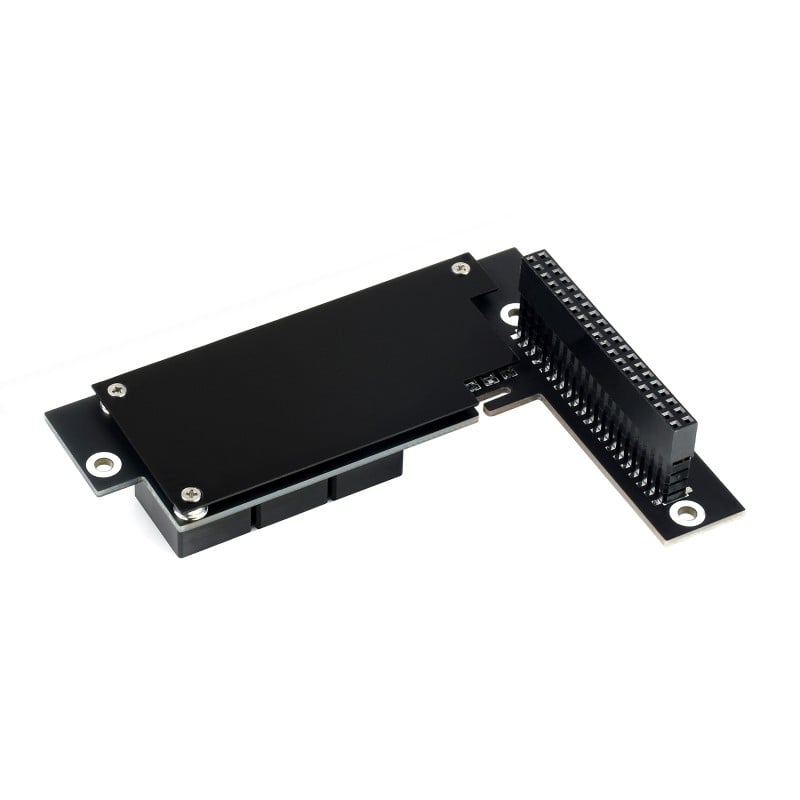

• Acrylic bottom panel, isolating the Jetson Nano from the relay expansion board
• Comes with development resources and user manual (python and python-bottle examples)

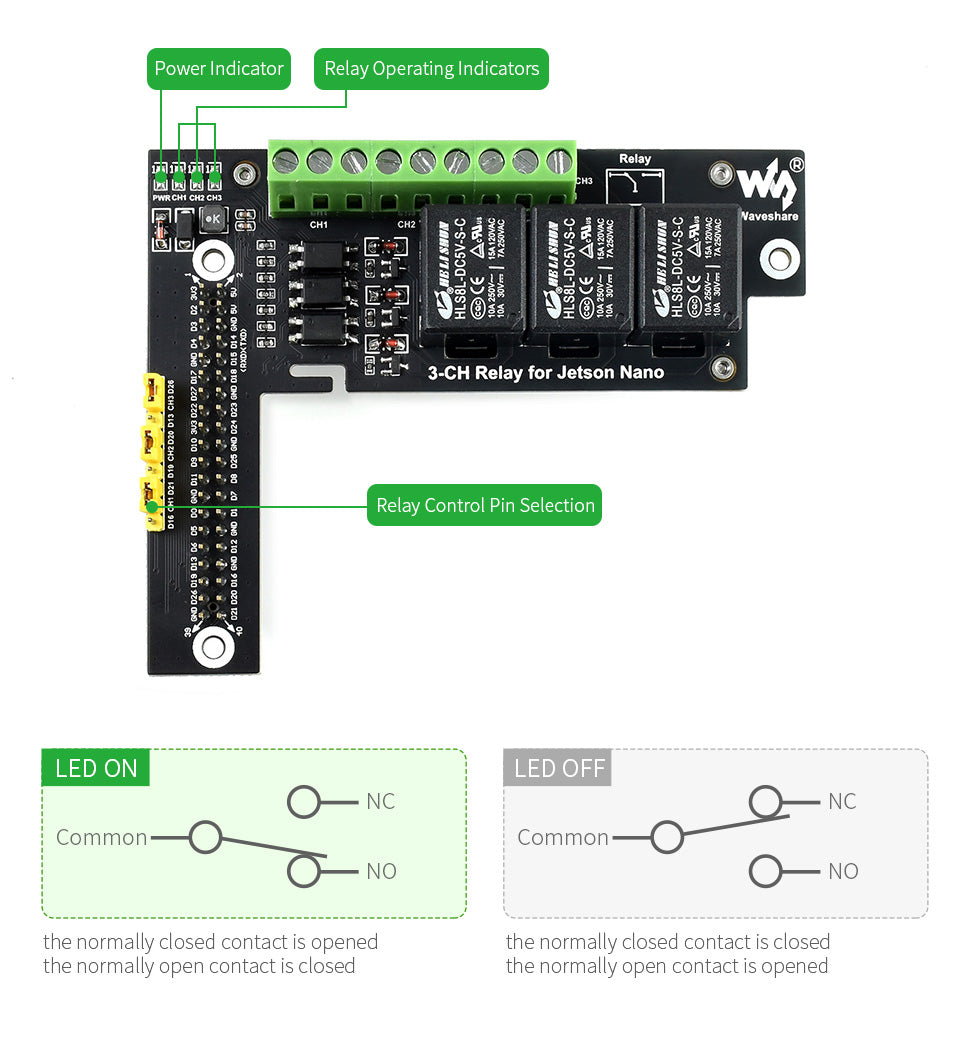

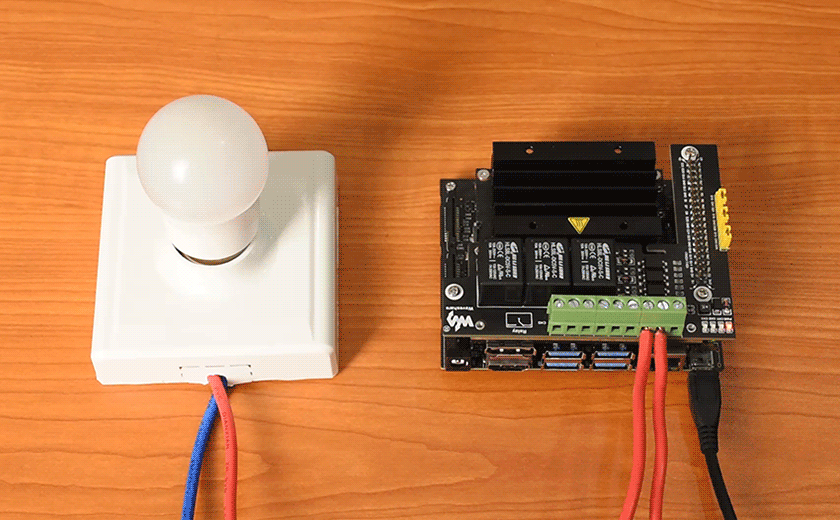

3-Ch Relay Control

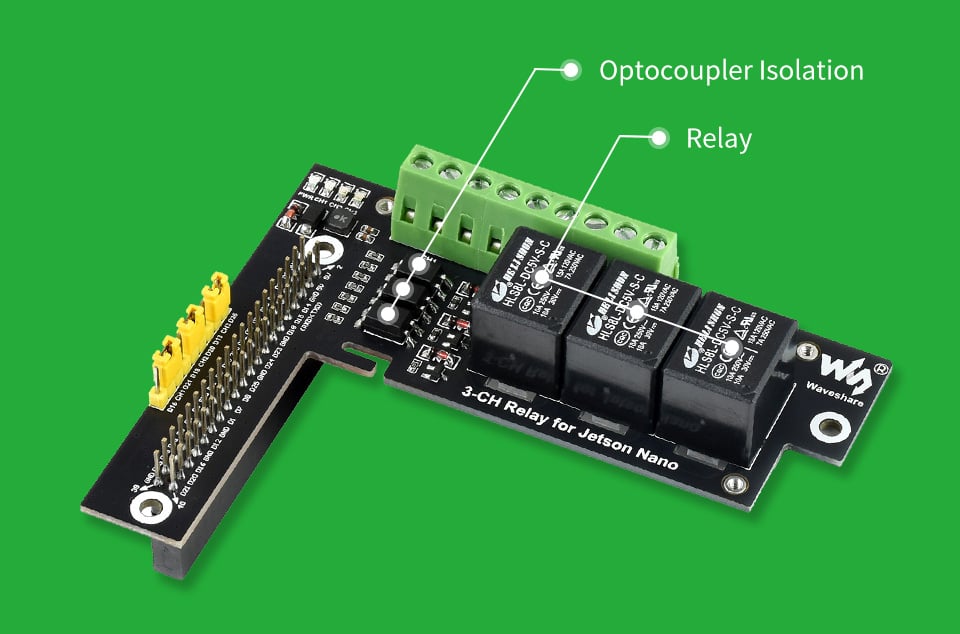

Quality Relay Component With Optocoupler Isolation

Includes

• 3-CH Relay for Jetson Nano x1
• Acrylic panel x1
• Screws pack x1

Note: Jetson Nano is NOT included.

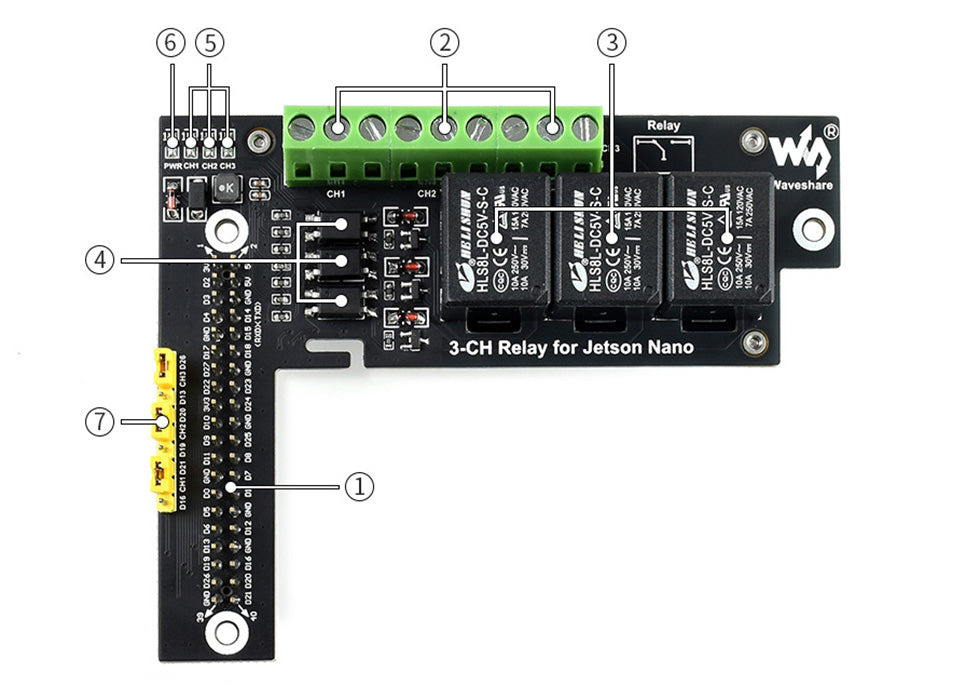

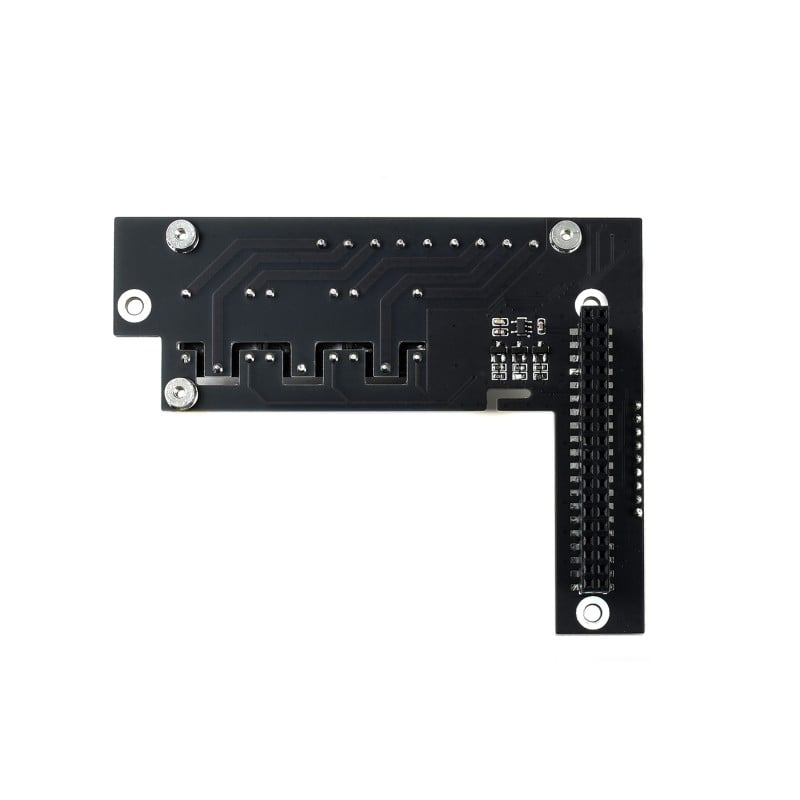

Board Overview

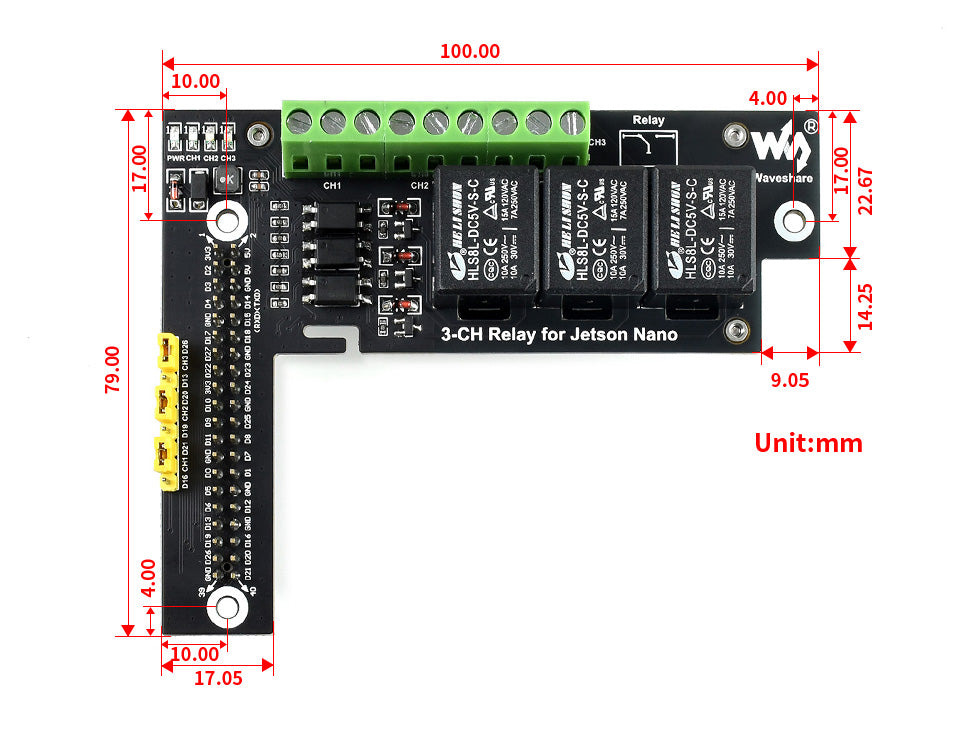

Dimension

Resources

• Product Wiki
