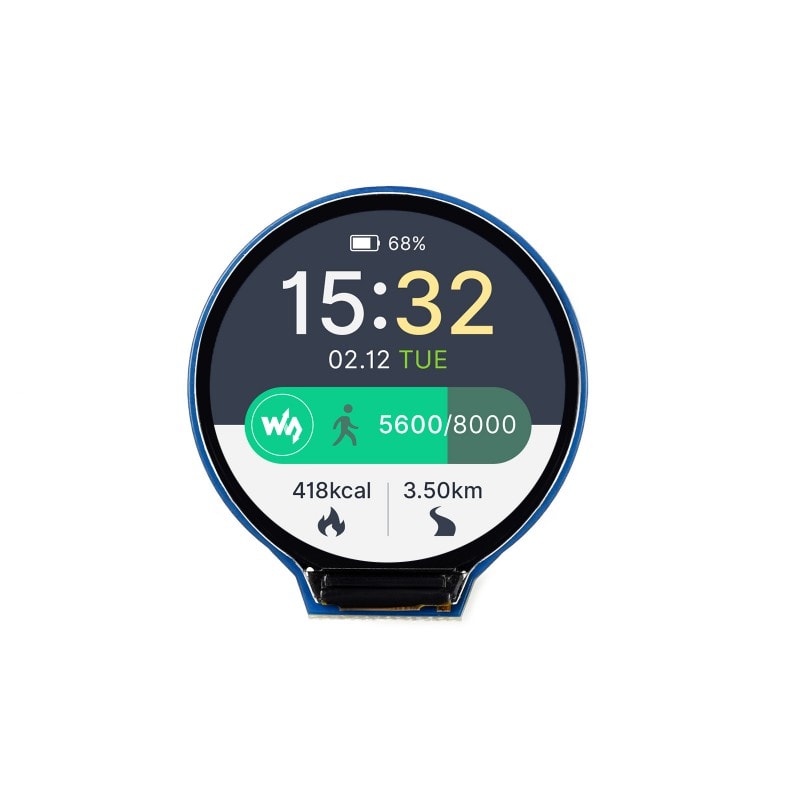

1.28inch Round LCD Display Module 240×240, 65K RGB

Features

• 240×240 resolution, 65K RGB colors, clear and colorful displaying effect

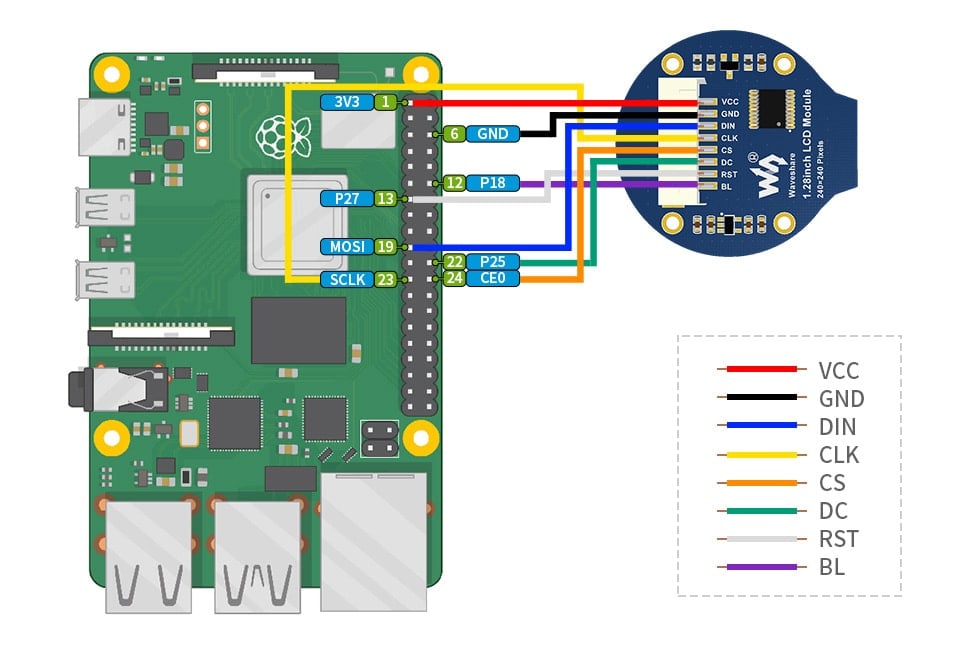

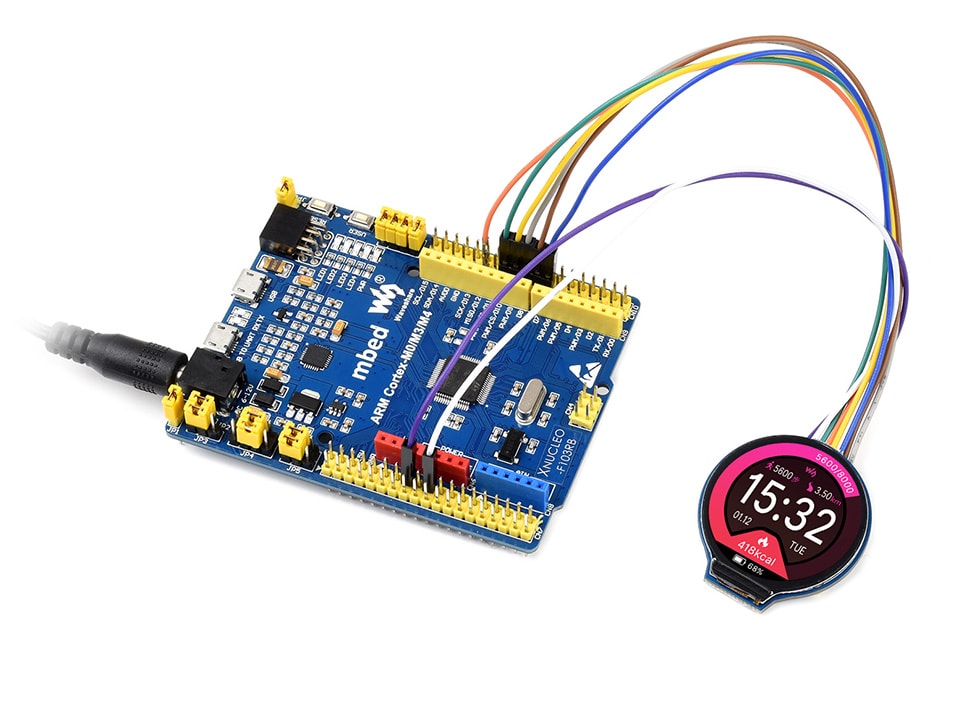

• SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32
• Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Specification

• Operating voltage: 3.3V/5V
• Interface: SPI
• LCD type: IPS
• Controller: GC9A01
• Resolution: 240(H)RGB x 240(V)
• Display size: Φ32.4mm
• Pixel size: 0.135（H）x0.135（V）mm

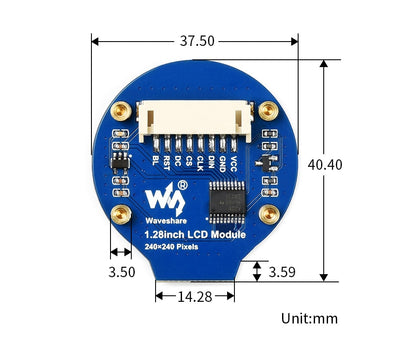

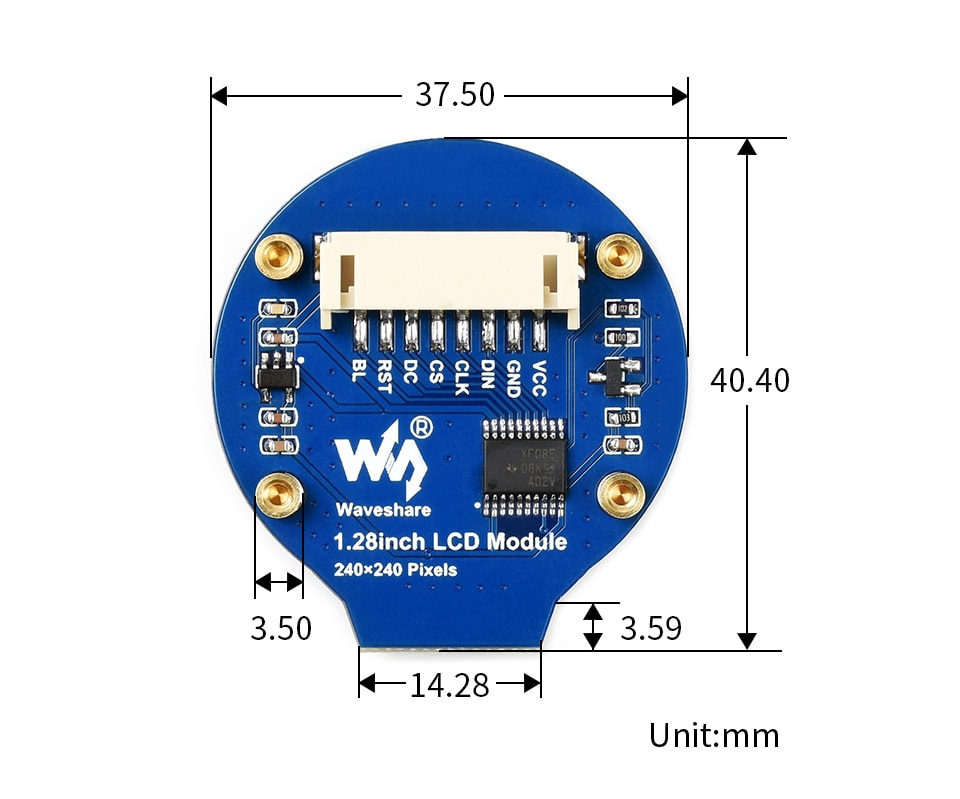

• Dimension: 40.4×37.5(mm) Φ37.5(mm)

User Manual

• 1.28inch LCD Module Wiki

Included
