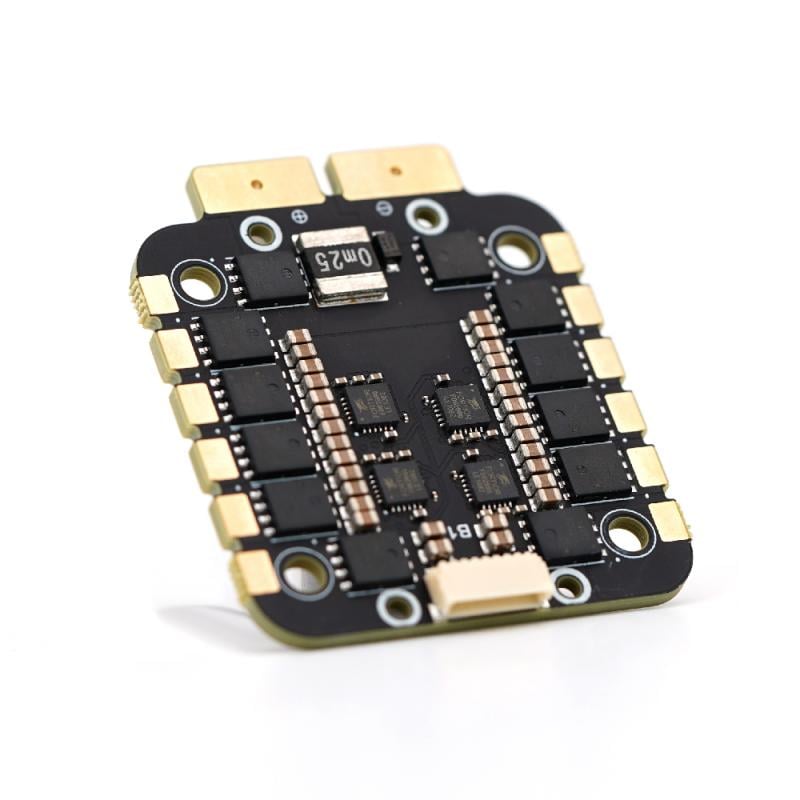

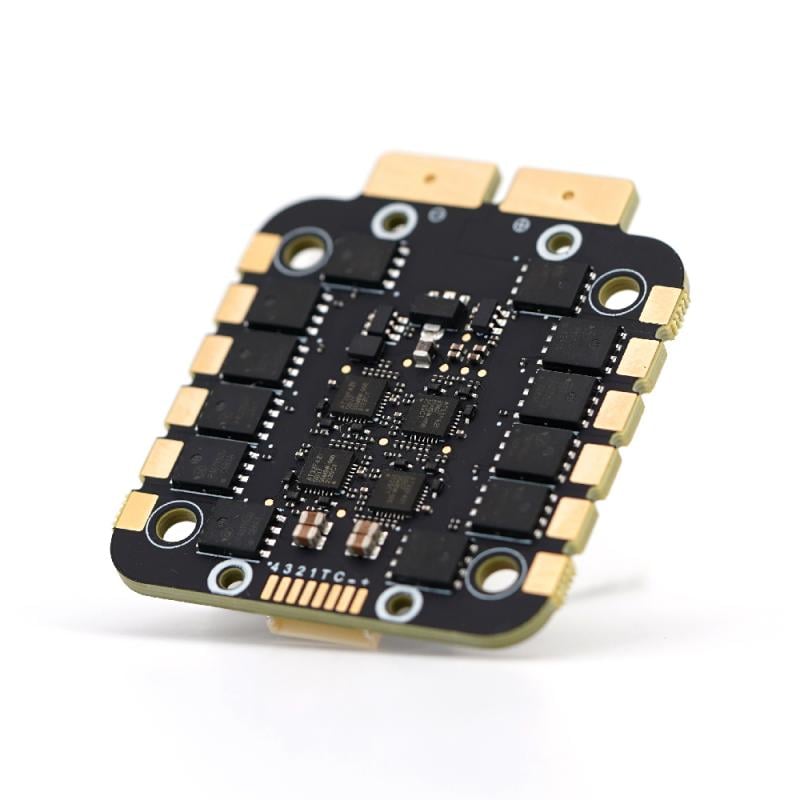

TBS Lucid 8S 55A 4-in-1 ESC

TBS Lucid 8S 55A 4-in-1 ESC: Peak Performance for FPV Racers and Freestylers

Meet the TBS Lucid 8S 55A 4-in-1 ESC, the cutting-edge powerhouse engineered for demanding FPV pilots who crave performance without compromise. Whether you’re ripping through race gates or executing jaw-dropping freestyle tricks, this ESC delivers relentless power and durability, thanks to its 8-layer high-density board and twice the market-average onboard capacitance.

Key Features

• Smooth and Powerful: Rated at 55A per motor for sustained power and 85A bursts for high-throttle maneuvers.
• Advanced Engineering: Thermal dissipation and power density optimized without bulky heat sinks.
• Bi-Directional Communication: Supports DShot 300/600 with telemetry and KISS ESC protocol.
• Durable Design: Built to withstand harsh conditions while maintaining smooth flight performance.
• Gorilla Mount: Innovative mounting system eliminates the need for center bolts, improving power delivery and simplifying installation.

Specifications

• ESC Software: AlkaMotors32 (AM32).
• Rated Current: 55A x 4 (60 seconds).
• Peak Current: 85A x 4 (10 seconds).
• Input Voltage: Compatible with 3-8S LiPo batteries.
• Propeller Size: Supports props up to 11″ (ensure proper airflow for sizes over 7″).
• BEC: Not included.
• Dimensions: 50mm x 42mm.
• Mounting:
  • Gorilla Mount (39.5mm x 16mm).
  • Standard 30.5mm x 30.5mm with adapters for 20mm x 20mm.
• Weight: 17.58g (22g with brackets).

What’s in the Box?

• 1x TBS Lucid 8S 4-in-1 ESC.
• 1x XT60 power connector.
• 1x 560uF 8S capacitor.
• 4x M2x12 screws.
• 4x M2x14 screws (for 30×30 mounts).
• 4x 2.2x4mm standoffs.
• 1x Aluminum top bracket for 20×20 FCs.

Note: Included accessories may vary depending on supply availability.

• Gorilla mounting pattern
• Frame developer pack for Gorilla mounting pattern
• AM32 Online Configurator
• AM32 Firmware
• TBS Lucid Manual
