iFlight Titan FH5 HD FPV Frame

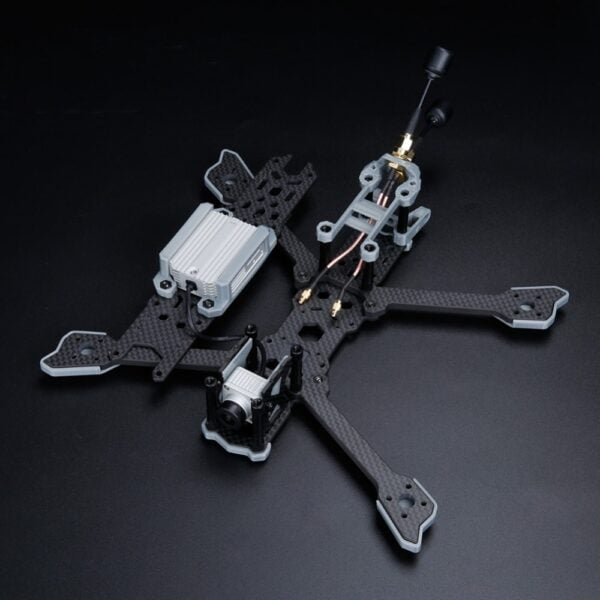

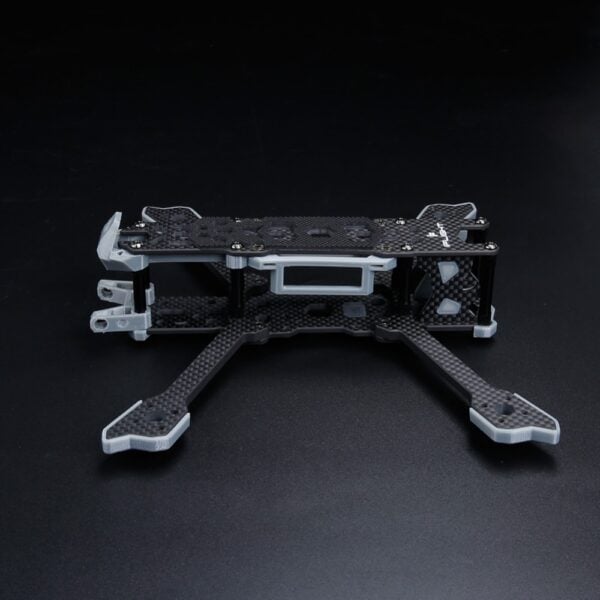

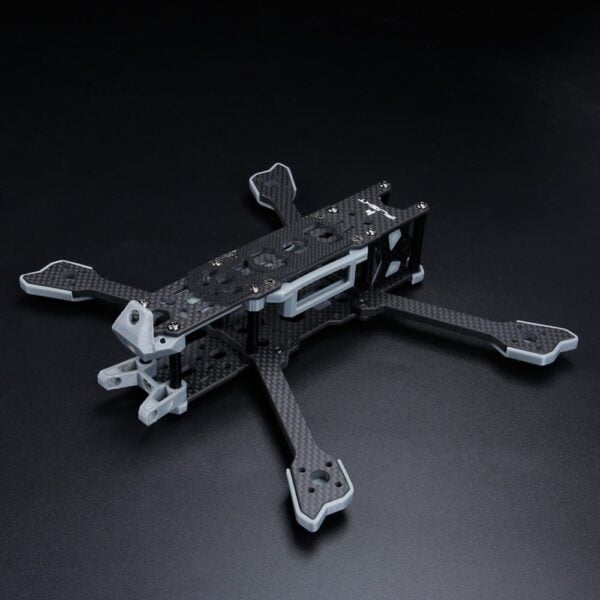

The Titan FH5 HD is a 5 inch freestyle quadcopter frame in a H quad configuration which is preferable by some freestyle pilots.  In addition this frame can also fit the DJI FPV system in the middle to maintain a neutral COG (DJI air unit and mounting brackets sold separately)

Assembly Guide

• TITAN FH5 HD Aseembly Manual

Features

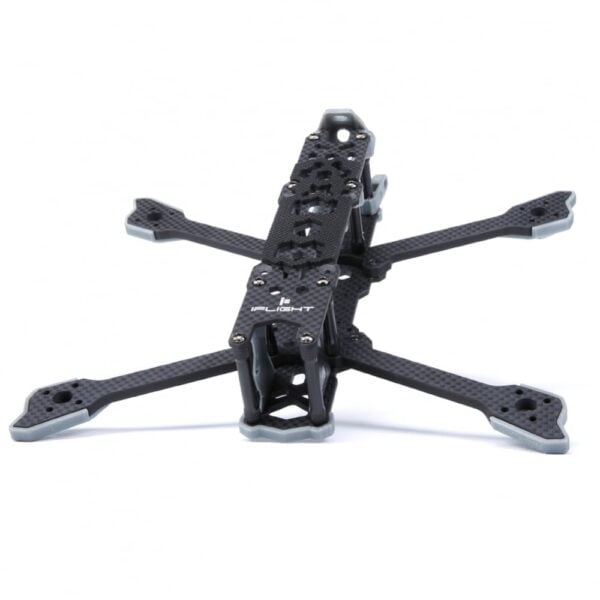

• Popular H style configuration, prop in View

• Boomerang arms

• Optimized weight distribution: DJI unit and Stack centered

• Fits both 30.5x and 20x stacks

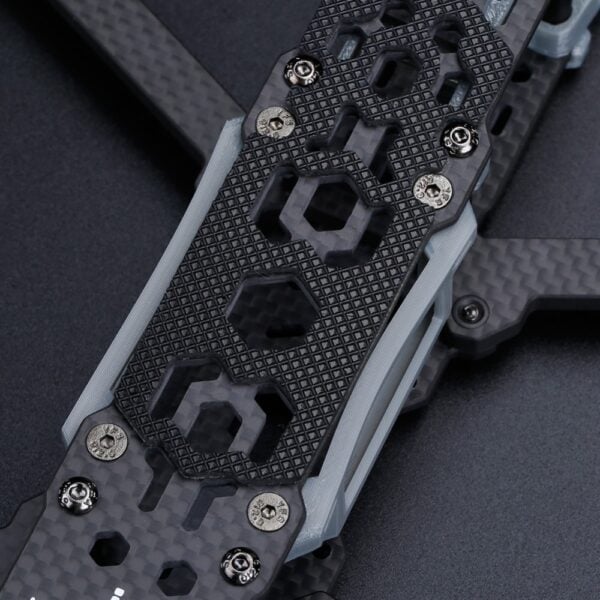

• Full 3K Carbon Fiber airframe with chamfered arm

• 223mm wheelbase, weight: 131.5g dry weight without TPU parts

Specifications

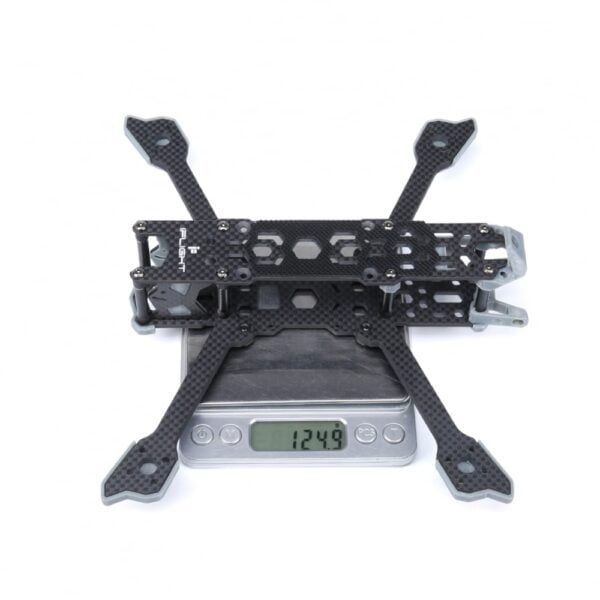

• Weight: 131.5 (with TPU parts, and battery anti-slip pads)

• Wheelbase: 223mm

• Main body dimension: 177*136mm

• Bottom to top distance: 35mm

• Arm thickness: 5mm

• Bottom plate thickness: 3mm

• Top plate thickness: 2.5mm

• Camera plate thickness: 1.5mm( 2.5mm included TPU inserts)

• Mounting Holes: 30.5*30.5mm

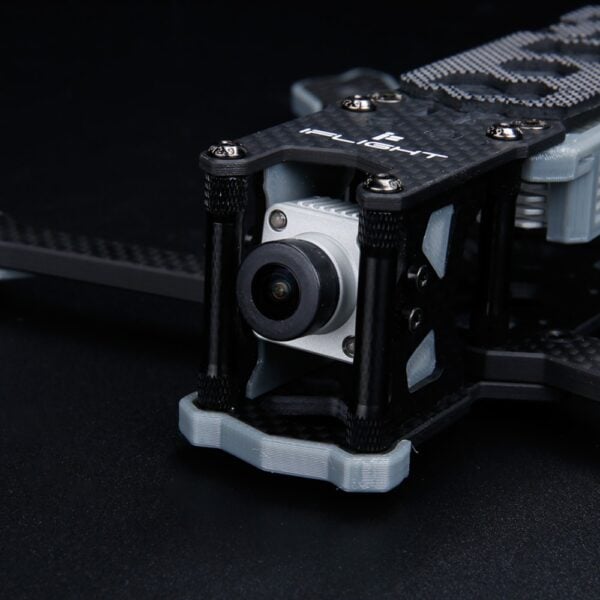

• Support camera size: 19*19mm 22*22mm

• Recommended motors: 22xx, 23xx

Included

• 1 x TITAN FH5 HD Frame

• 1 x Screw Bag

• 1 x TPU Camera mount adapters

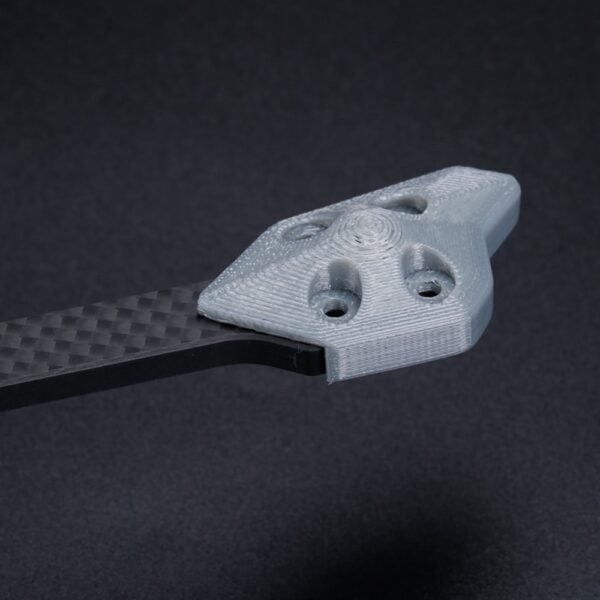

• 4 x Arm guard/Motor mount

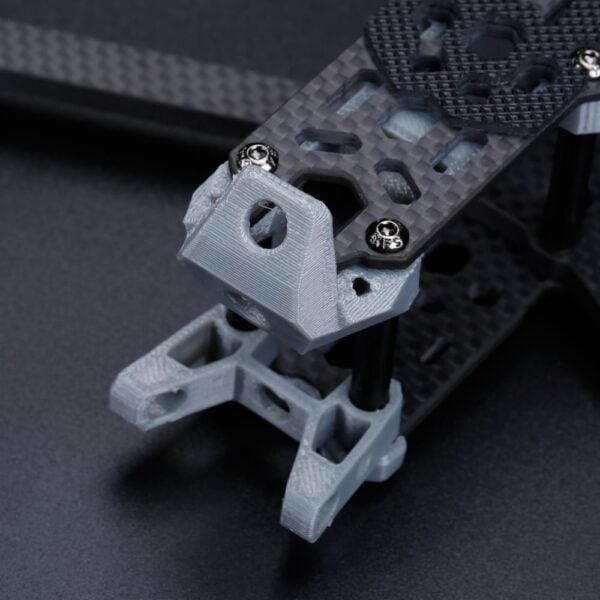

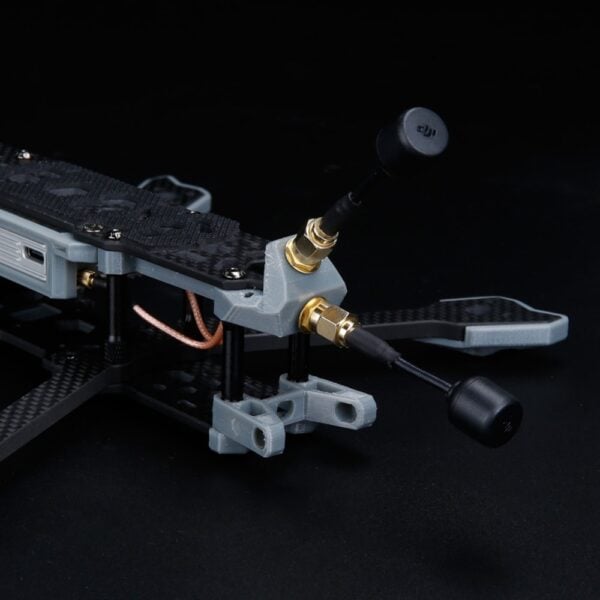

• 1 x TPU DJI Air Unit Antenna Mount

• 1 x TPU bottom plate front protective mount

• 1 x TPU bottom plate rear protective mount

• 1 x Battery Anti-slip Mat

• 2 x Battery Straps

  NOTE: This kti does not include any electronics, or the TPU DJI Air Unit Bracket Mount or antenna.
