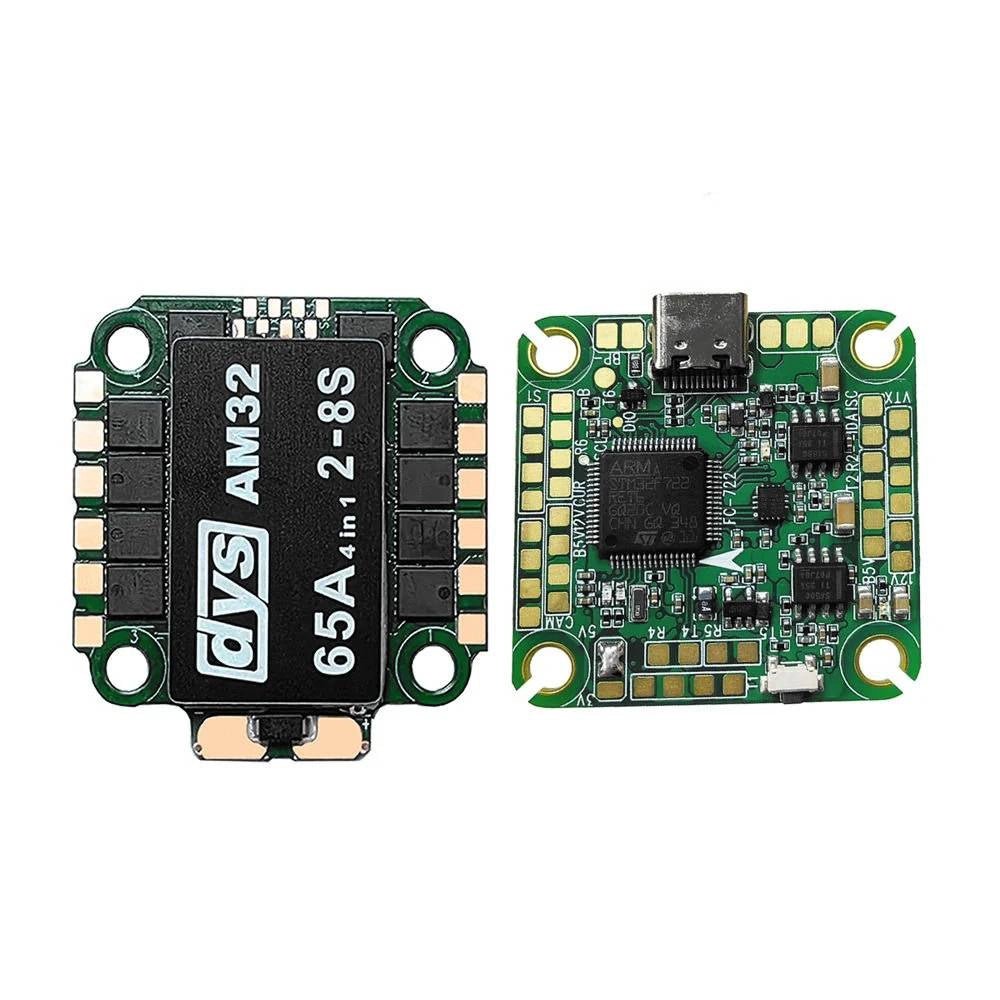

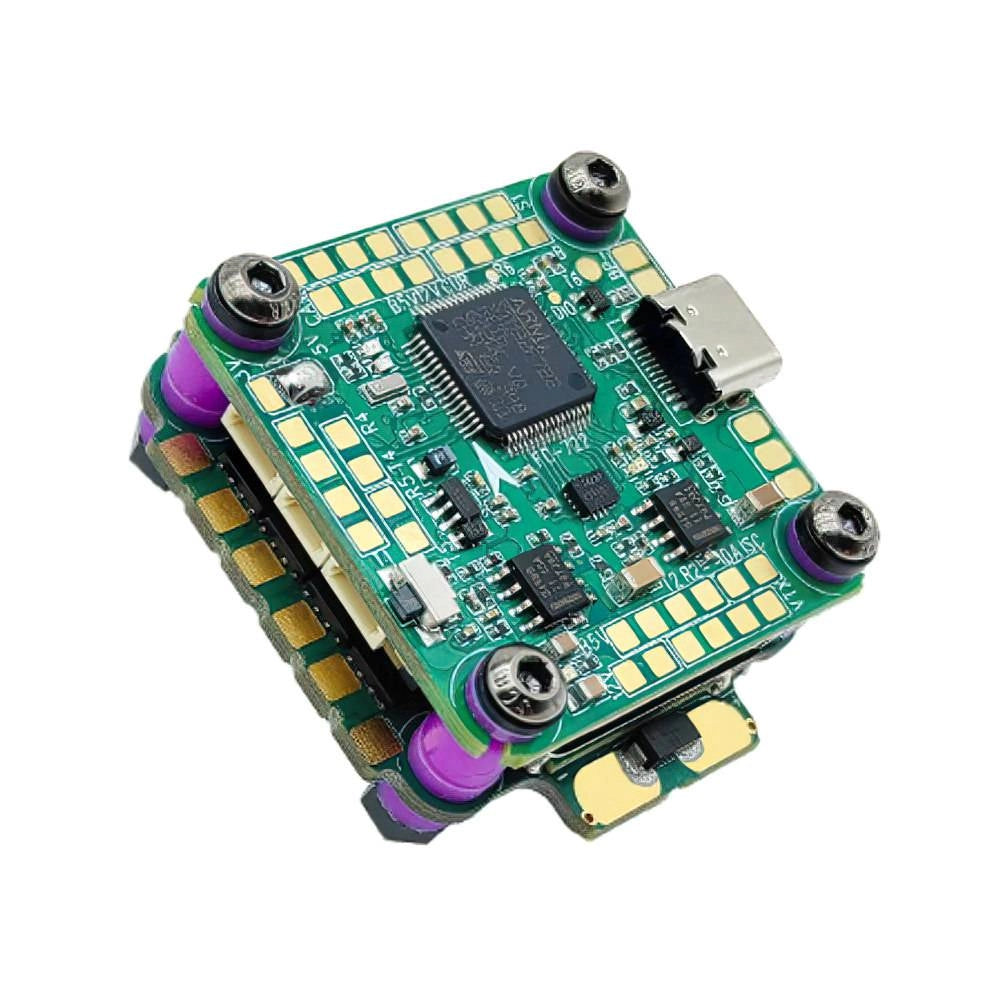

DYS F7 Stack F722 FC 65A 8S AM32 30×30

For drone enthusiasts looking to level up their setup, the DYS F7 Stack is a powerhouse combination. Integrating the precision-focused DYS F722 Flight Controller with the robust 65A AM32 4-in-1 ESC, this stack is built to handle the toughest aerial demands. Its high-performance specs—including an STM32F722 MCU, advanced ICM42688P gyroscope, and 2-8S Lipo support—promise responsive handling, stable power delivery, and the kind of durability that serious drone pilots crave.

Key Features:

• Upgradable Firmware for staying current with tech updates
• Precise Flight Control backed by an ICM42688P gyroscope
• Reliable, Lightweight Build at just 10g for the flight controller
• Versatile Power Support with 3.3V, 5V, and 12V BEC outputs
• High-Efficiency ESC with 65A continuous current and 80A burst capability

Detailed Specifications

Flight Controller (FC):

• MCU: STM32F722
• Gyroscope: ICM42688P
• Barometer: BMP280
• BEC Outputs: 3.3V/1A, 5V/3A, 12V/3A
• Input Voltage: Up to 6S Lipo
• Mounting Holes: 30.5mm x 30.5mm (M3)
• OSD Chip: AT7456E
• UART Ports: 6
• ESC Signal Support: Up to 8 Motors
• Black Box Storage: 16MB
• Size: 38mm x 38mm
• Weight: 10g

ESC:

• Firmware: AM32 with F4 MCU
• Continuous Current: 65A
• Burst Current: 80A
• Input Voltage: 2-8S Lipo
• Current Rate: 200
• Mounting Holes: 30.5mm x 30.5mm (M3)
• Weight: 15.3g

What’s in the Box:

• 1x DYS F7 Stack – F722 FC + 65A 2-8S AM_32 4-in-1 ESC with ICM42688P
  Note: Included accessories may vary based on supply.
