Product Details

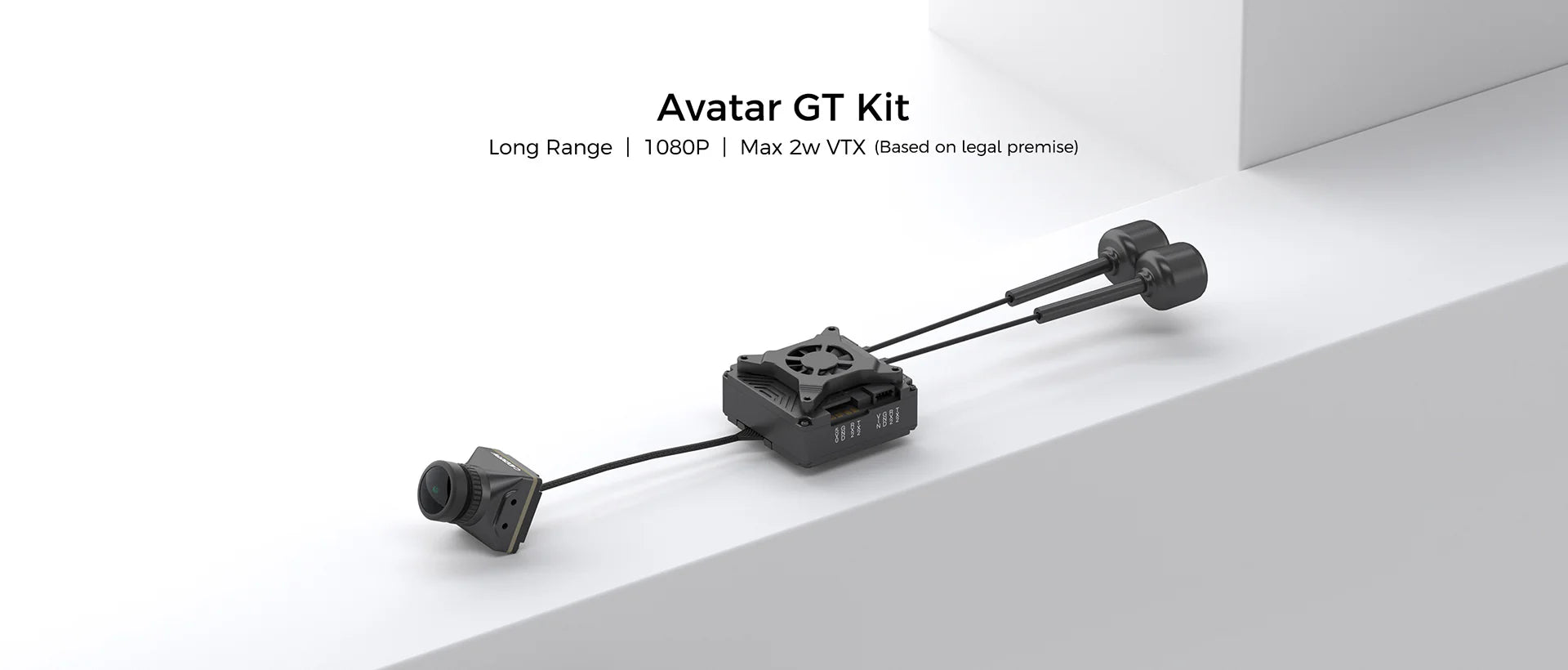

Walksnail Avatar GT FPV Kit - Extend Your Flight, Not Your Wires
Take your drone's video quality and signal range to pro-level with the Walksnail Avatar GT. Boasting up to 2 W output power (within legal limits), this kit delivers exceptional signal strength and extended flight range. Perfect for pilots who crave uninterrupted exploration and rock-solid FPV performance.
🔥 Key Features
-

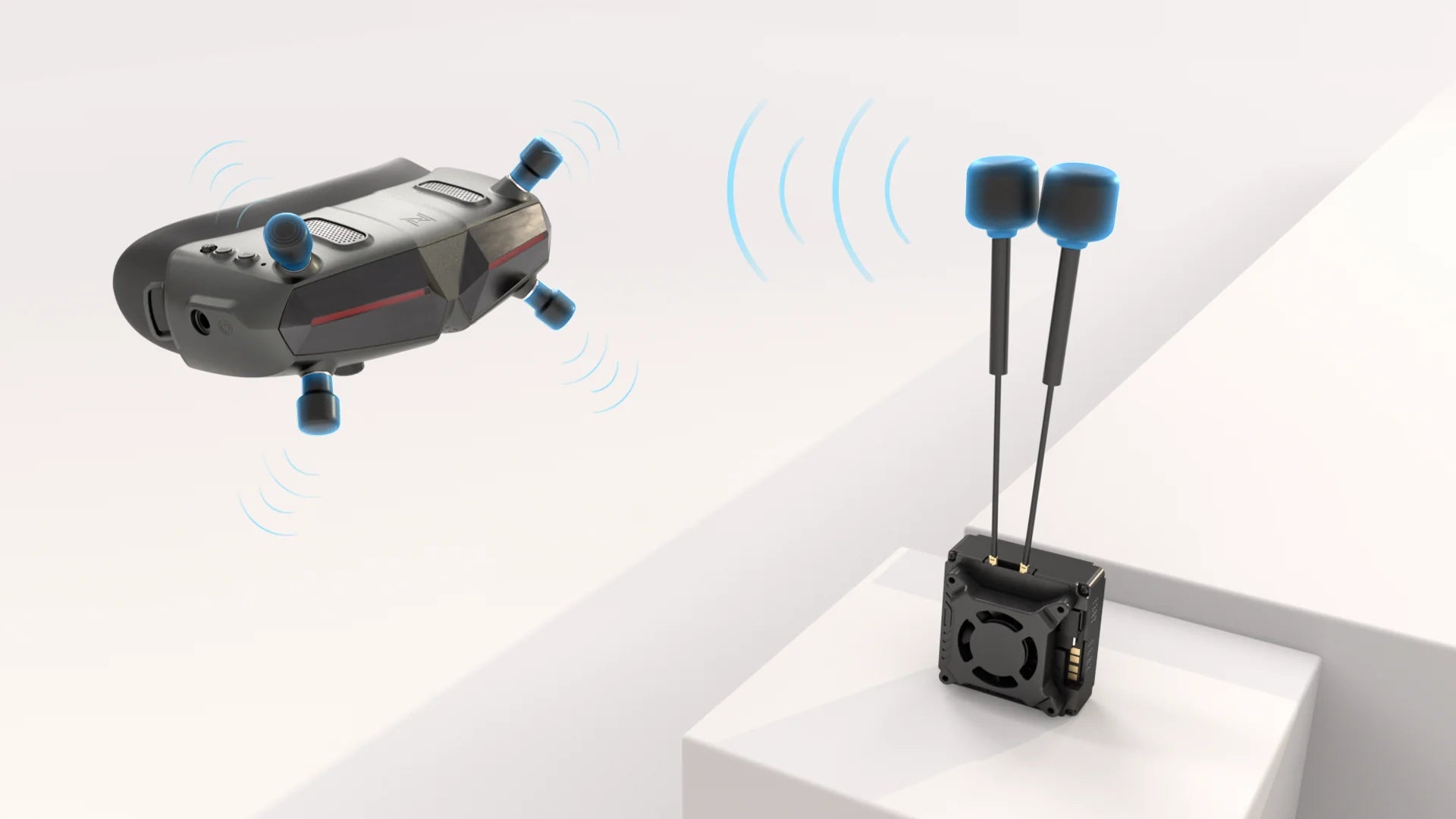

- High‑Power Signal: Reaches up to 2 W transmission for superior range and clarity
-

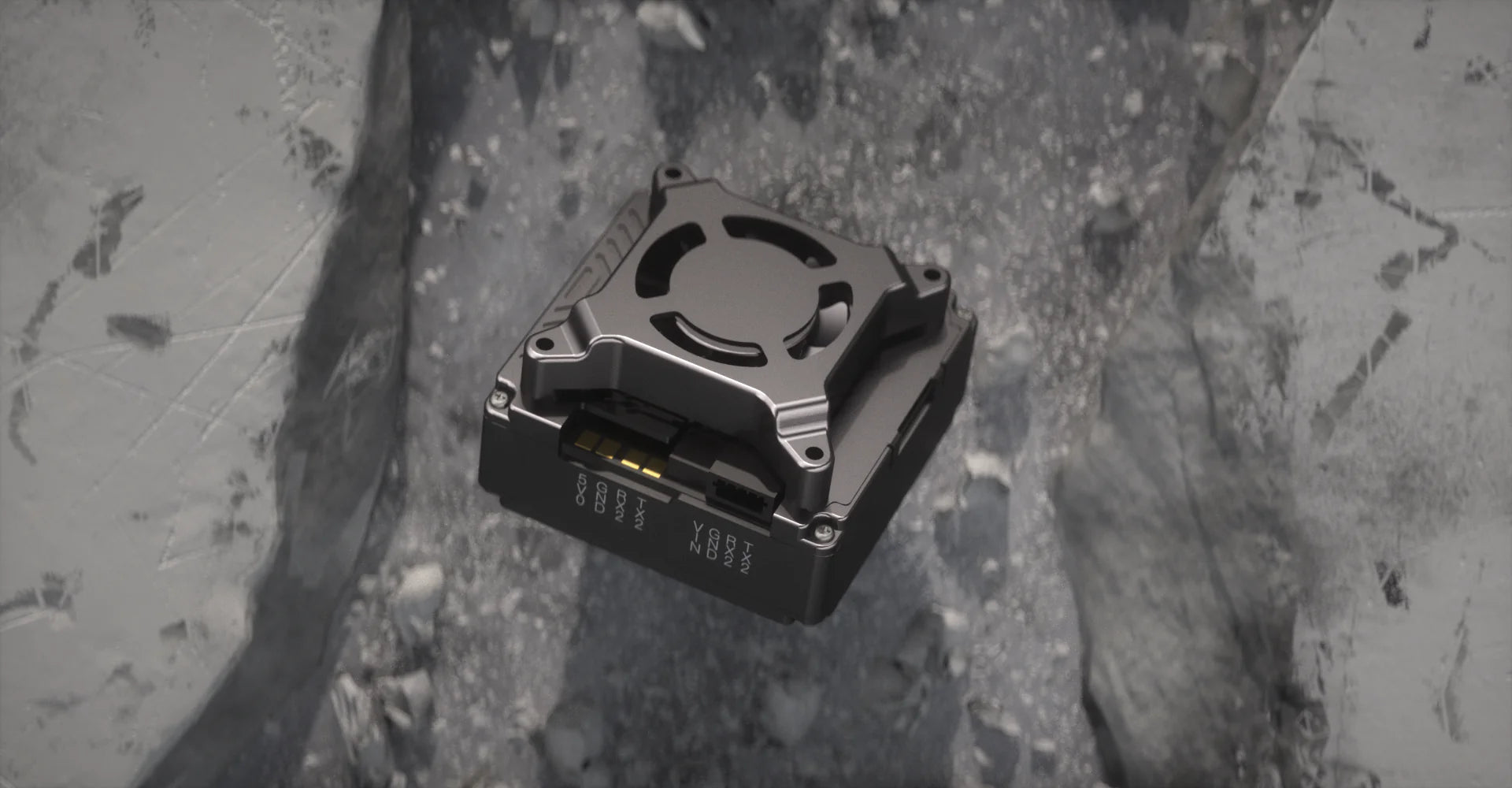

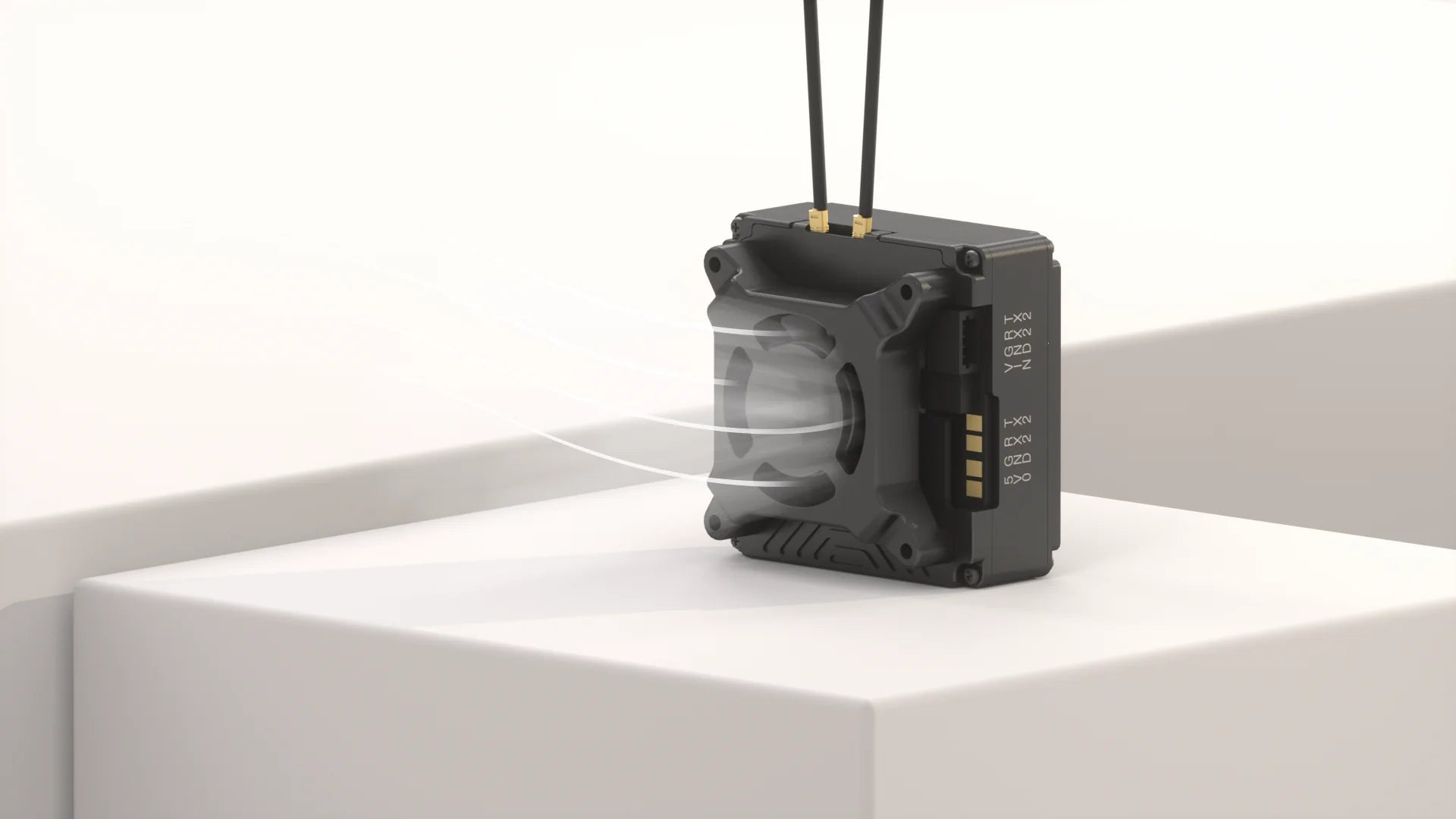

- Advanced Heatsink: Top‑mounted heatsink ensures cool operation even on marathon flights

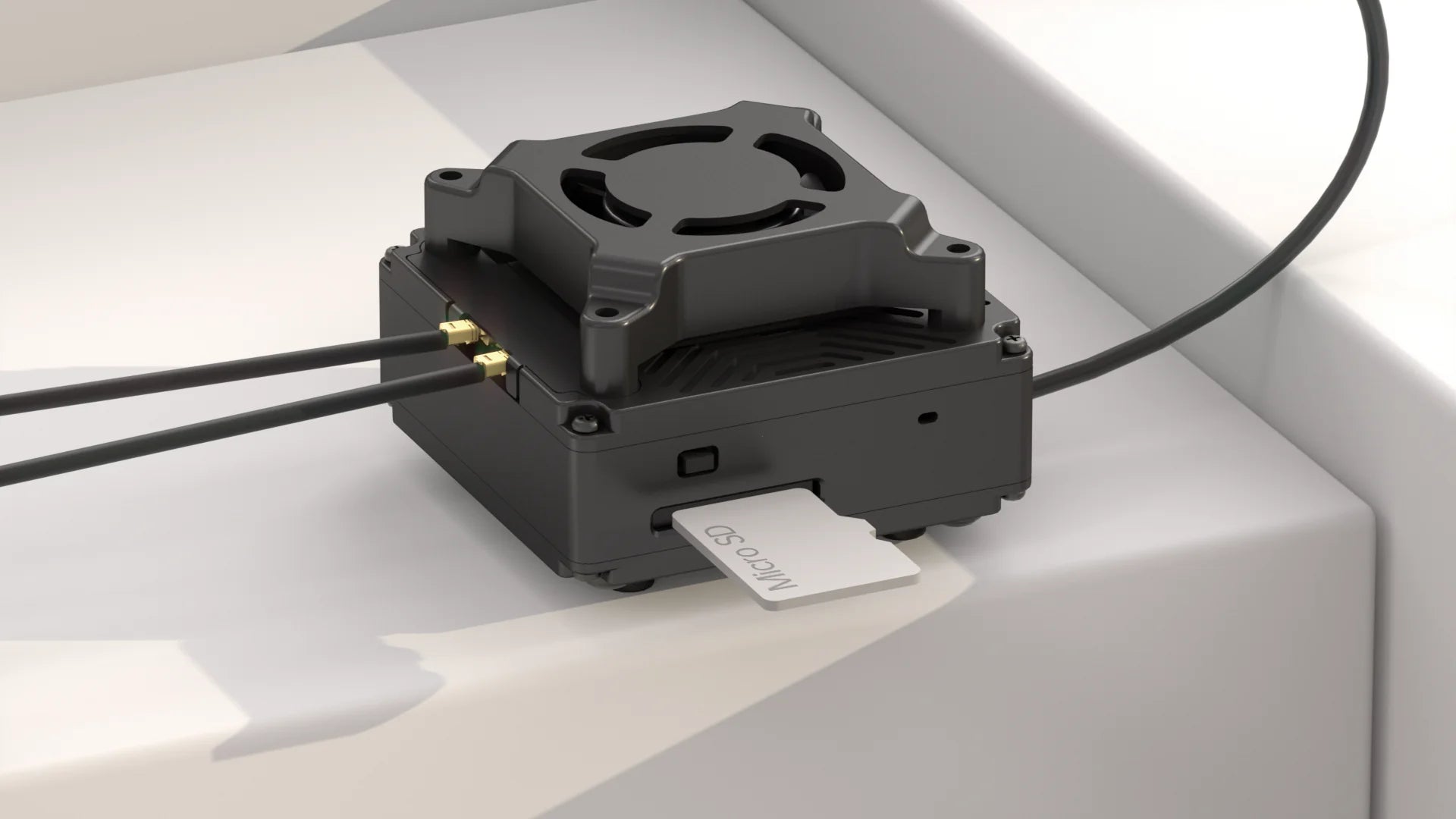

- Expandable Storage: Micro‑SD slot (up to 256 GB) supports 1080p/720p HD recording with no interruptions

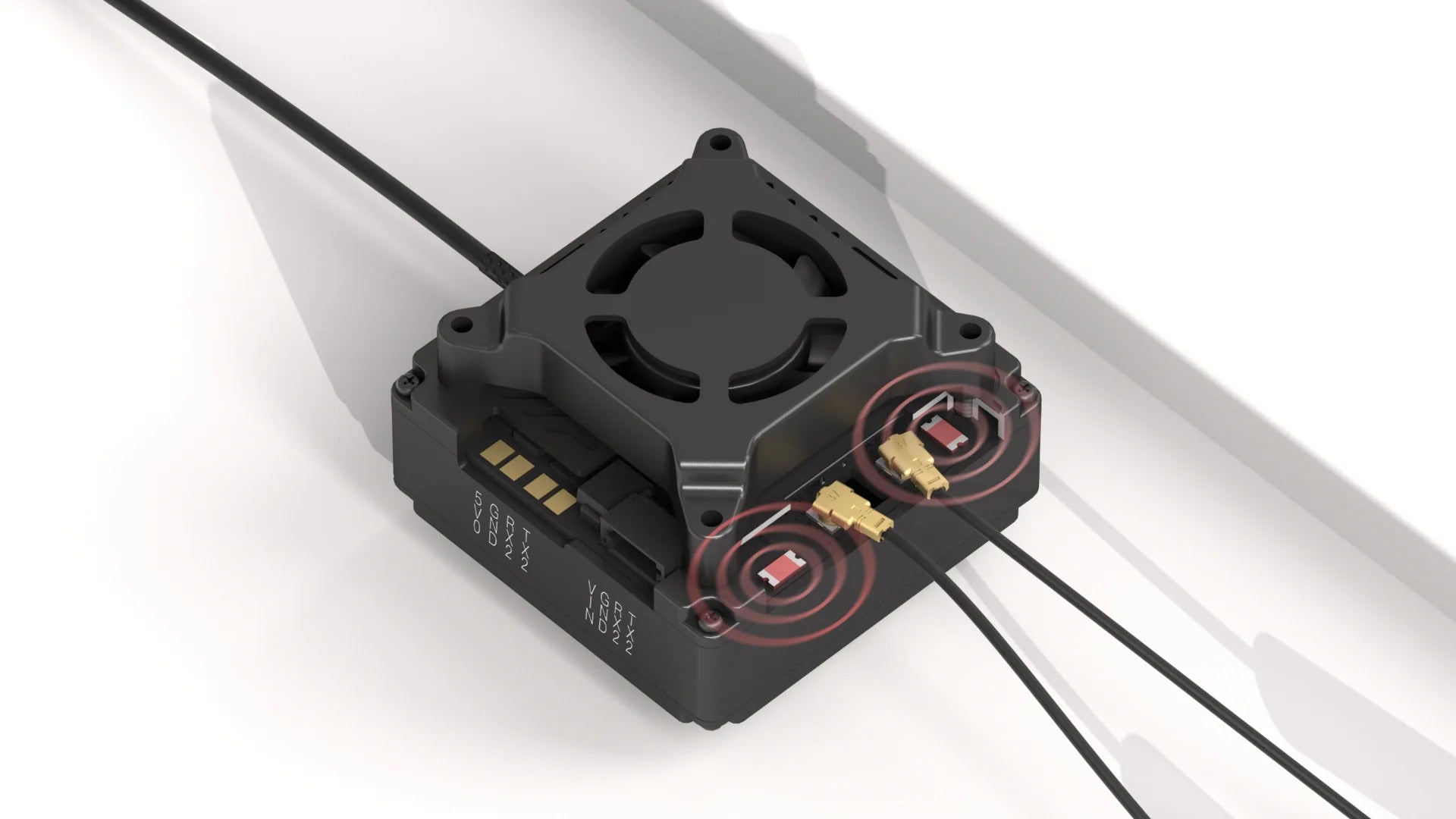

- Low‑Power Ceramic Antenna: Optimized for efficient, low‑heat signal during brief flights
- GPS‑Hardened: New shielding minimizes interference—excellent for challenging environments
- Nighttime Clarity: Pro camera with 1/1.8″ Sony Starvis II sensor gives crisp night vision rivaling daylight
- Ultra‑Smooth Footage: Gyroflow-compatible support ensures buttery stabilization
- Low Latency: High‑frame rate mode delivers ~22 ms delay for real-time responsiveness
Specifications
Camera
| Model | Avatar HD Pro Camera |
| Image Sensor | 1/1.8-Inch Sony Starvis II sensor |
| Resolution | 1080P/60fps; 1080P/100fps; 720P/120fps; 720P/60fps |
| Ratio | 16/9; 4/3 |
| Lens | 8Mp |
| FOV | 160° |
| Aperture | F1.6 |
| Shutter | Rolling shutter |
| Min. Illumination | 0.00001Lux |
| Weight | 9.5g |
| Dimensions | 19×19×24mm |
| Coaxial Cable | 140mm |
| Gyroflow | Supported |
VTX
| Model | Avatar GT |
| Communication Frequency | 5.725-5.850 GHz |
| Transmitter Power (EIRP) | FCC: <30dBm, MAX: 33dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm |
| I/O Interface | Micro SD card slot; JST1.0×4 (power cable) |
| Supported SD Cards | Micro SD (up to 256 GB) |
| Mounting Holes | 25.5×25.5mm; 20×20mm |
| Dimensions | 34×34×23mm |
| Recording | 1080p/720p |
| Weight | 41.6g (antenna included) |
| Operating Temperature | -10 to 40℃ |
| Channels | 8 |
| Wide Power Input | 11.1V-25.2V |
| Supported FC System | Betaflight, Inav, Fettec, Kiss, ArduPilot |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 2 (IPEX) |
📦 In the Box
- Avatar GT Pro camera (Sony Starvis II)
- Top-mounted heatsink (pre-installed)
- Micro-SD card slot assembly (card not included)
- Internal ceramic antenna + coaxial cable (140 mm)
- Dual‑antenna mount base (antennas sold separately)
- GPS interference protection shield
- Instruction manual & mounting hardware
Note: Contents and accessories may vary depending on supply.
