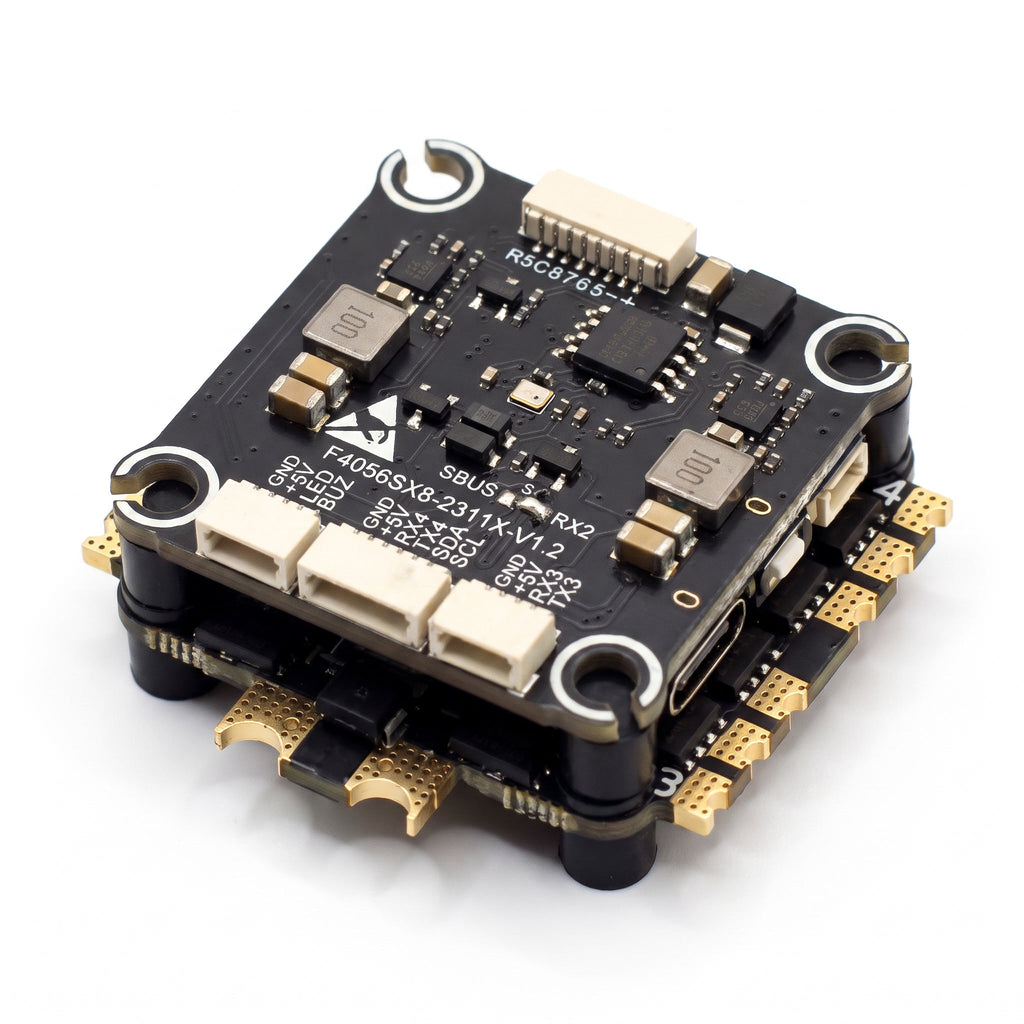

UMT F405 Flight Controller & 60A 4in1 ESC 6S Stack | AM32 with OEM Heatsink

A straightforward 30x30 FPV stack with the processing, connectivity and current capacity needed for powerful builds. It combines the UMT F405 flight controller with a 60A 4in1 AM32 ESC, giving you support for up to 6S LiPo power without charging extra for a fashionable logo.

The ESC's OEM heatsink helps manage heat when the motors start asking serious questions, while the included FC-to-ESC cable keeps the stack connection clean and simple.

Why You Want It

Buying the matched FC and ESC together means less time comparing pinouts and more time getting the quad off the bench. You get an STM32F405 processor, ICM-42688-P gyro, six UARTs and a 60A-per-channel ESC running AM32 firmware. In other words, plenty of capability for freestyle, long-range and other high-power FPV builds.

Specifications – Flight Controller

• MCU: STM32F405
• Gyro: ICM-42688-P
• Blackbox: 16MB
• Barometer: Yes
• BEC Outputs: 5V and switchable 10V
• UARTs: 6
• Input Voltage: 3-6S LiPo
• Firmware Target: FLAOF405X8
• Mounting Pattern: 30.5 x 30.5mm
• Board Dimensions: 36 x 36mm

Specifications – ESC

• Configuration: 4in1 ESC
• Firmware: AM32
• Input Voltage: 2-6S LiPo
• Continuous Current: 60A per channel
• Burst Current: 70A
• Mounting Pattern: 30.5 x 30.5mm
• ESC Weight: 20.2g
• Cooling: OEM heatsink

What's in the Box*

• 1 x UMT F405 Flight Controller
• 1 x UMT 60A 4in1 AM32 ESC with OEM heatsink
• 1 x FC cable pack
• 1 x FC-to-ESC cable
• 1 x XT60 pigtail with 12AWG wire
• 1 x 1500uF low-ESR capacitor
• FC and ESC silicone damping grommets

Disclaimer

Always check the supplied wiring and pinout before applying power, even when components arrive as a matched stack. Use the included capacitor, inspect your solder joints and bench-test the electronics without propellers fitted. Magic smoke remains a one-way firmware update.

Still Here?

If your build needs a capable F405 brain and an ESC that will not panic at the first proper 6S punch-out, this stack has both jobs covered. Add it to your basket and give that empty frame something useful to hold.
