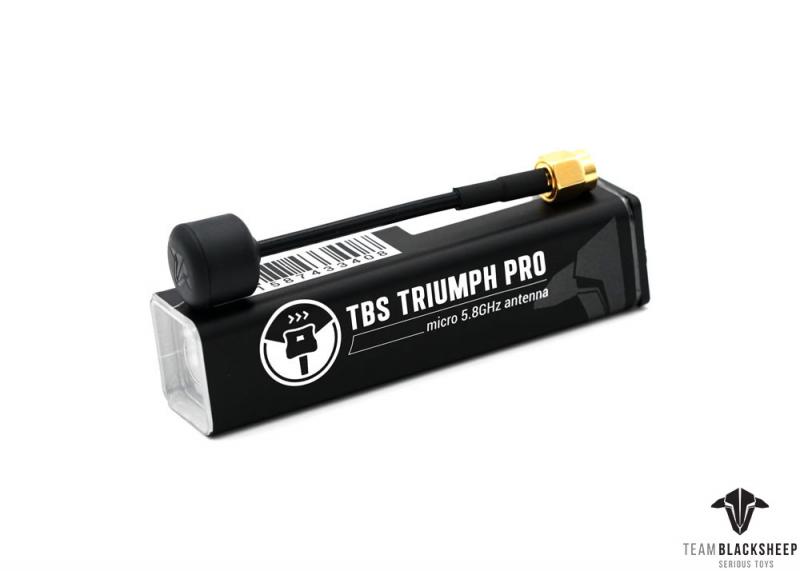

Product Details

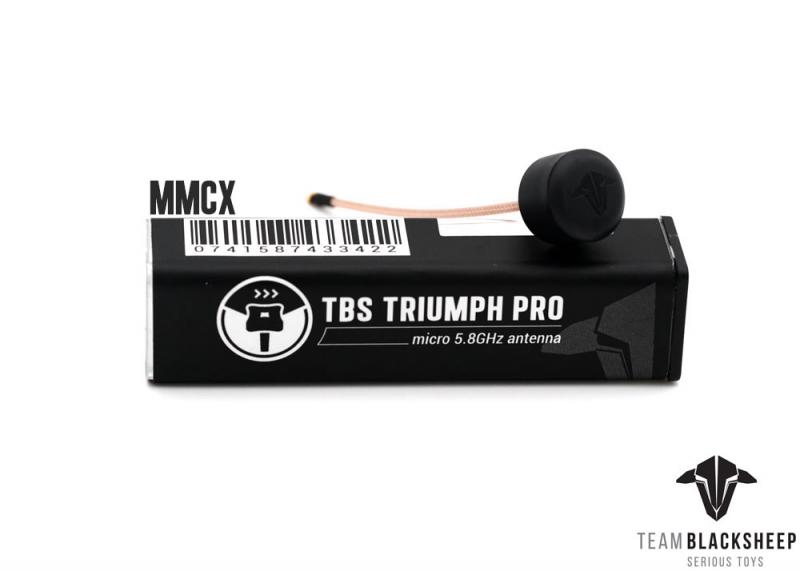

The next revolution in circular polarization technology, the Triumph Pro gives professional performance in a compact, durable package. Don't let the small size fool you, the Triumph Pro doesn't compromise on performance. Designed by IBCrazy and manufactured by TBS, the multi-phase elements use patent pending technology to create a precise circular pattern that is not distorted by proximity to your aircraft or other objects.

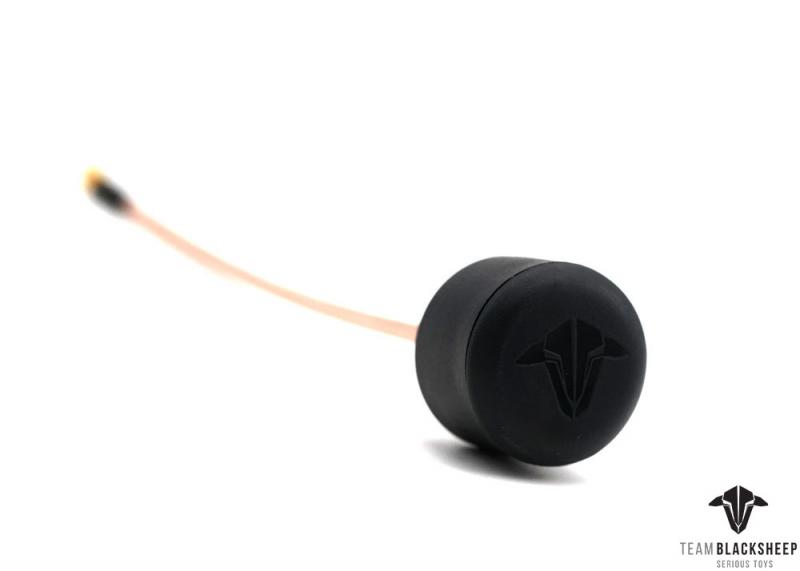

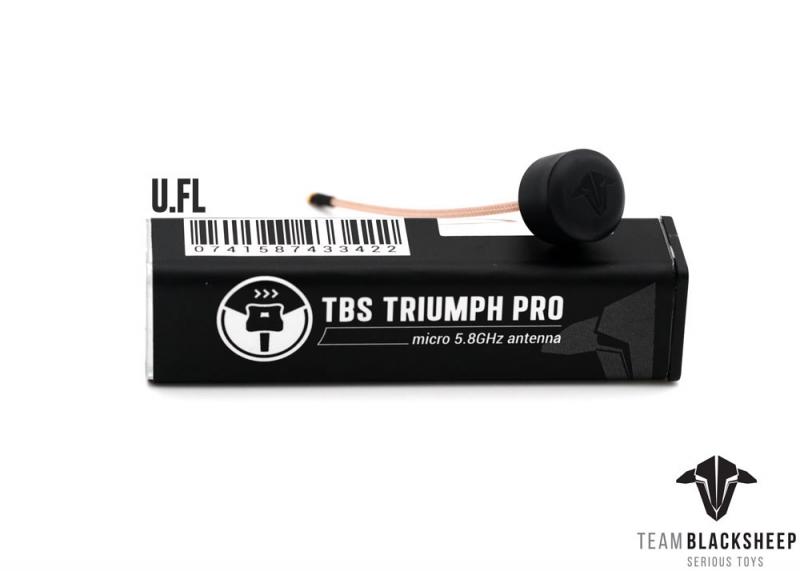

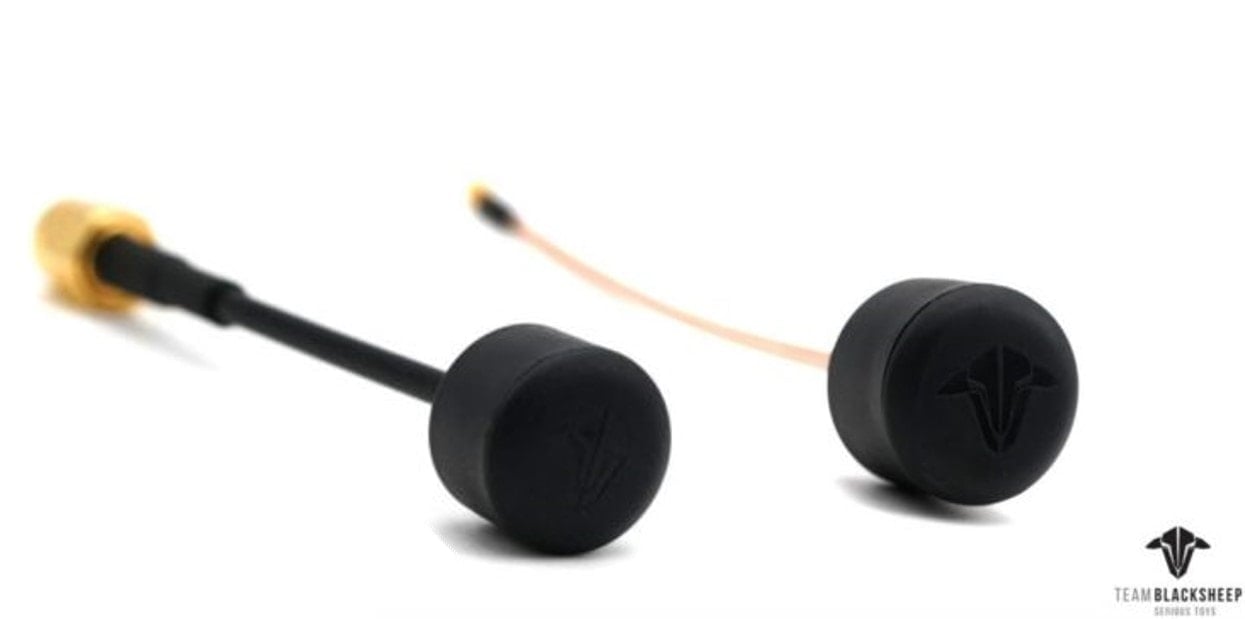

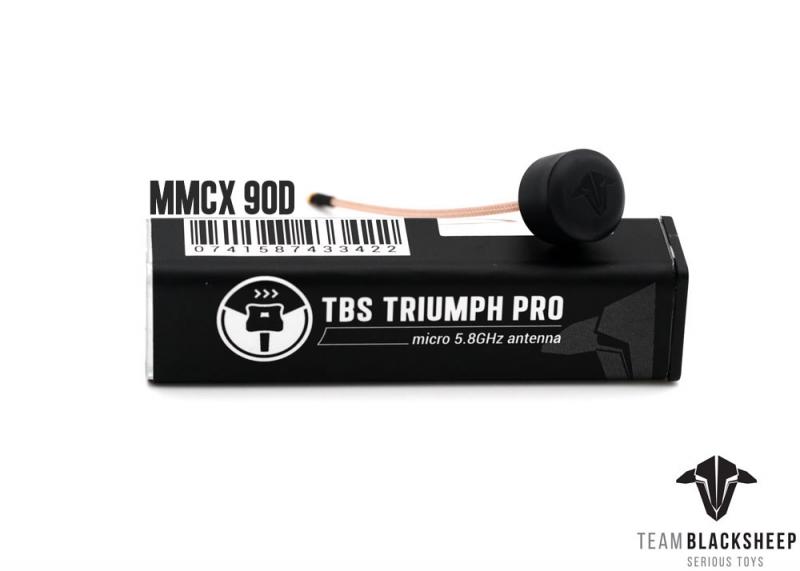

The microstrip antenna design together with a rigid and ultrasonic-welded enclosure allow mounting in exposed places, where signal propagates better. The antenna comes in 4 connector flavors: u.FL, MMCX, MMCX 90º and SMA.
FEATURES:
- Manufactured and tested to highest standards
- Best in class range and signal quality
- Incredibly small and low weight
- Ultrasonic welded and foam infused cover for ultimate crash-protection
- Double-jacket semi-rigid cable for heavy impact resistance

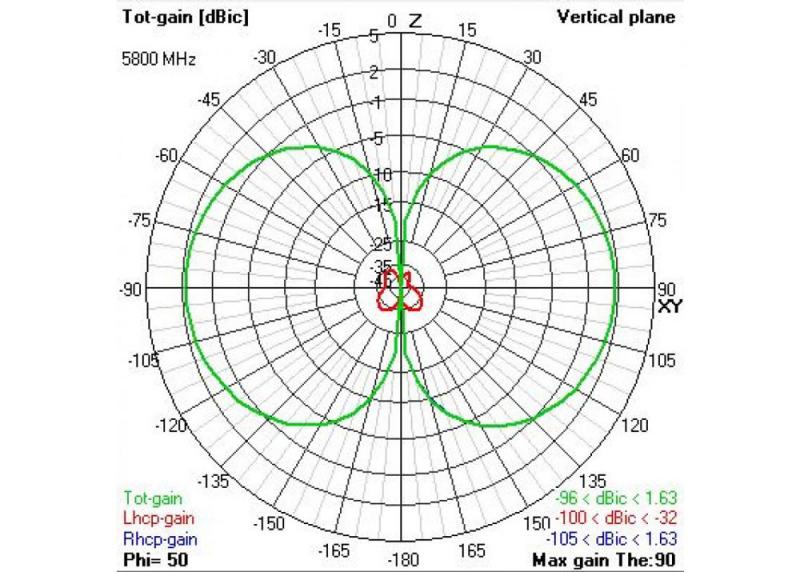

TECHNICAL SPECIFICATIONS:
- Frequency range: 5500-6000MHz

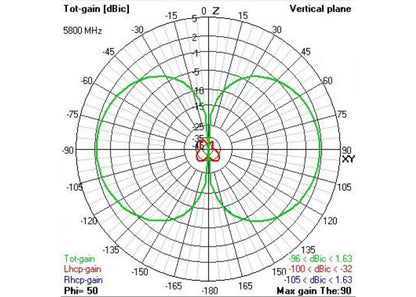

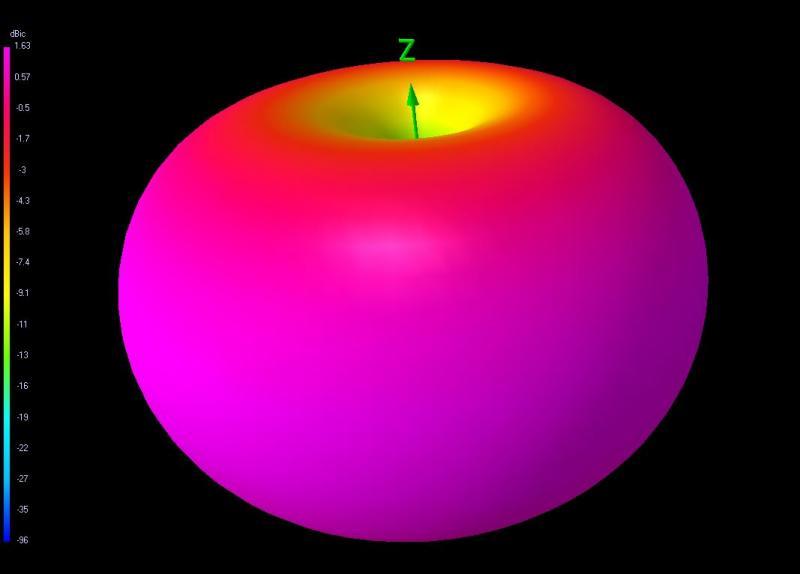

- Polarisation: RHCP
- Gain: 1.6dbic
- Axial Ratio: 0.99
- Cable: RG405/U
- Weight: 2-3g
- Height: 85mm, 3.3 in
- Connector: MMCX (90º angle), MMCX, U.FL, SMA
PACKAGE CONTENTS:
- 1x TBS Triumph Pro Antenna
