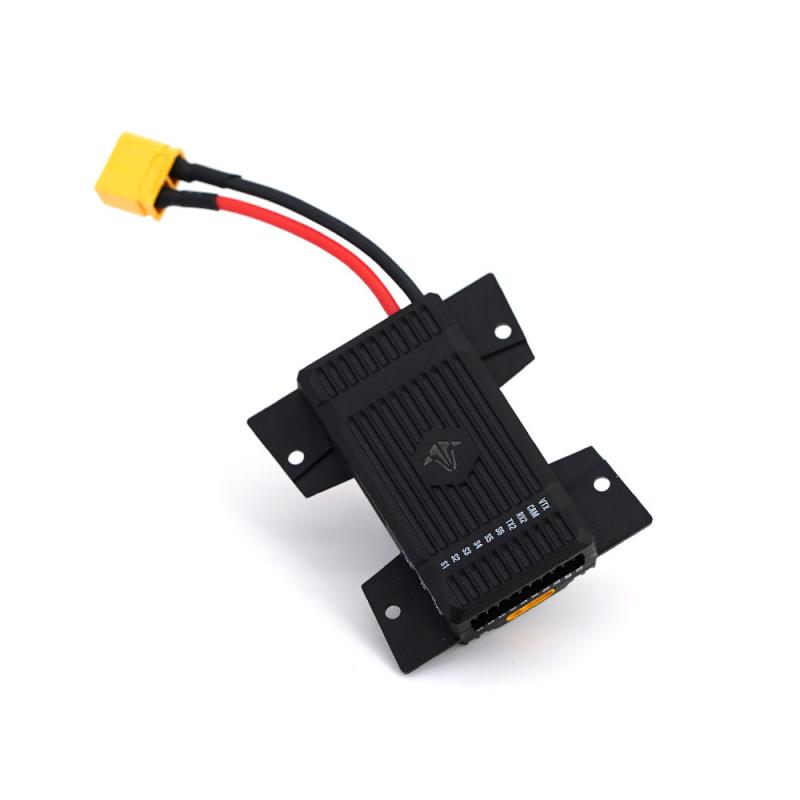

TBS Lucid Wing AIO: Your All-in-One Flying Wing Solution

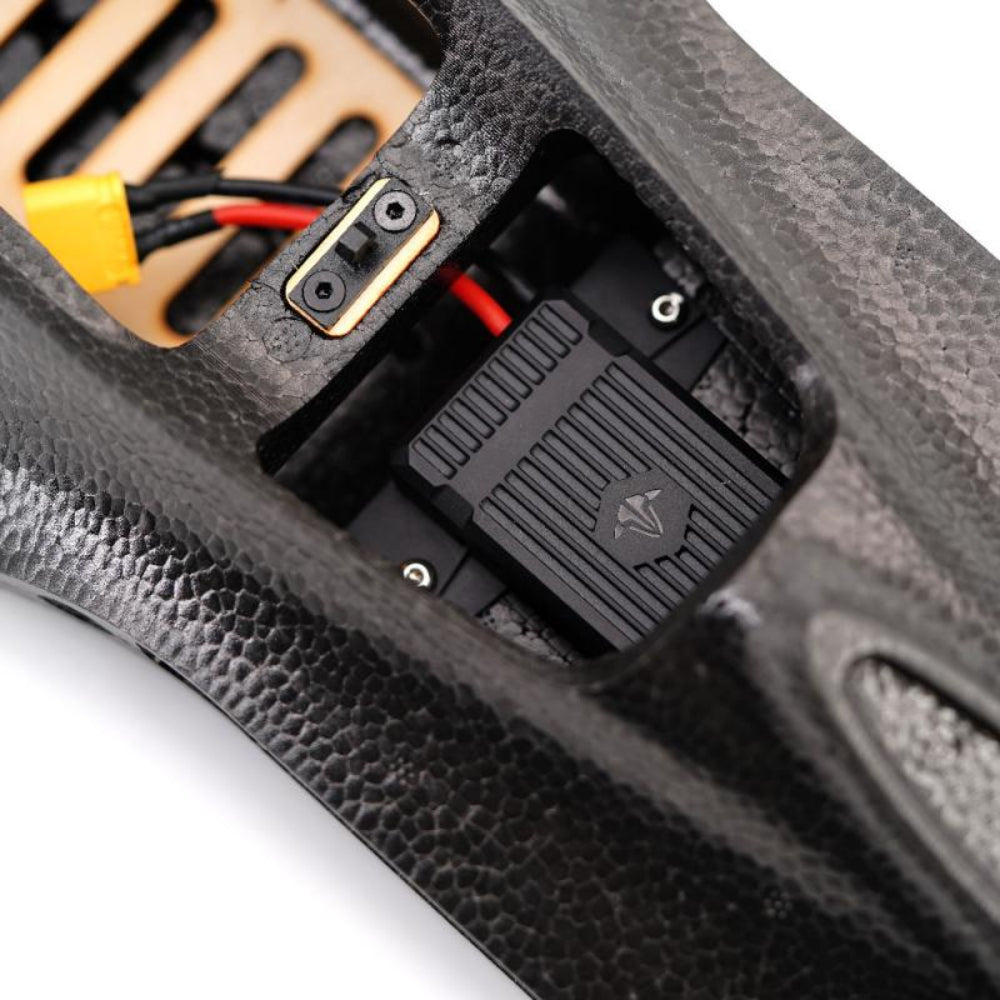

So, you fancy yourself a bit of a Maverick, eh? Strapping into FPV aircraft and wings, soaring through the digital skies? Well, buckle up, buttercup, because the TBS Lucid Wing AIO is about to become your new best friend. Designed for FPV aircraft and flying wings up to 1m wingspan, this little beauty packs a punch. It's an all-in-one solution that'll have you spending less time fiddling and more time flying... or crashing, we don't judge.

Why You Want It

Because who has time for a million different components? This AIO board keeps it simple, stupid (KISS principle, look it up). It's compact, efficient, and ready to handle your wildest FPV dreams... or at least the ones that fit within its voltage and current limits.

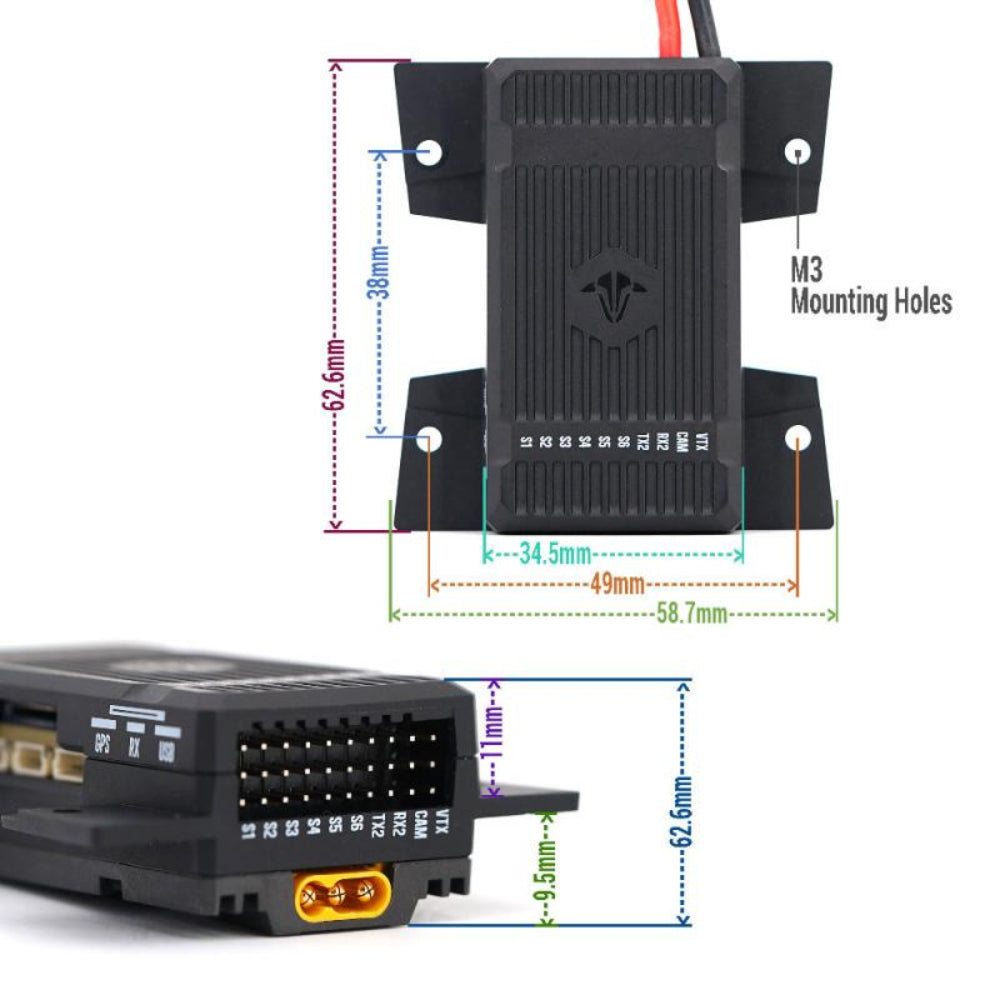

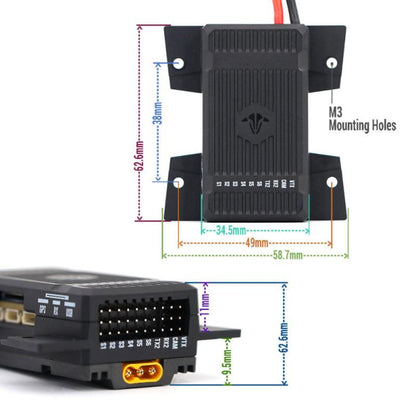

Specifications

• MCU: STM32H743VIH6 running at 480MHz, with 1MB RAM and 2MB Flash.
• Gyro: ICM42688 x 2 (duo gyro)
• OSD Chip: AT7456E (SPI2)
• Barometer: Infineon DPS310 connected via I2C2.

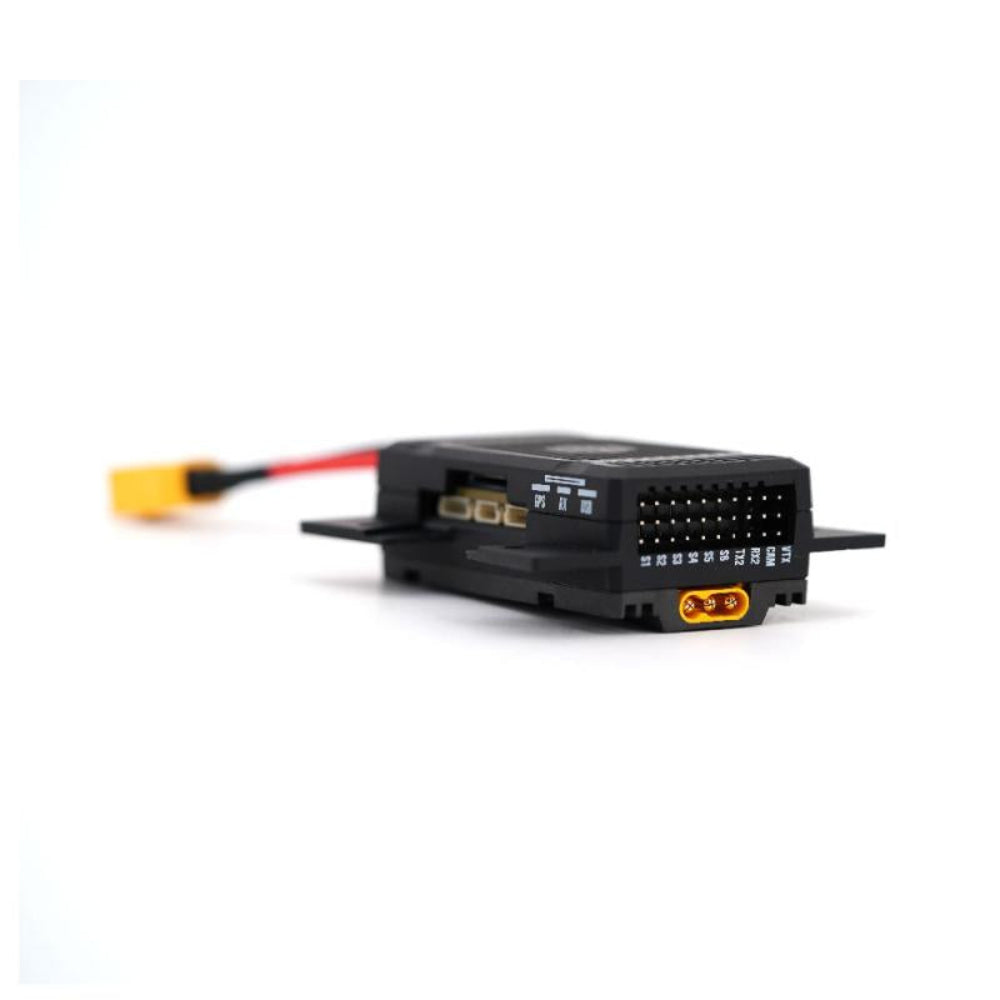

• PWM Outputs: 6 channels external, 1 internal for ESC
• Blackbox (BB): Data logging equipped with a MicroSD card slot (SDIO)
• UARTs: 5 ext, 2 int] UART1(RX only)/UART2/UART3/UART4/UART6/UART7(RX only, internal ESC)/UART8 (internal pads)
• I2C Buses: 2 (1x GPS, 1x barometer - internal).
• CAN Bus: 1x.
• Analog Inputs: 2 ADC internal channels (VBAT, Current).
• LED Indicators: 3 LEDs (not visible)
• USB Interface: Type-C connector (USB 2.0 standard).

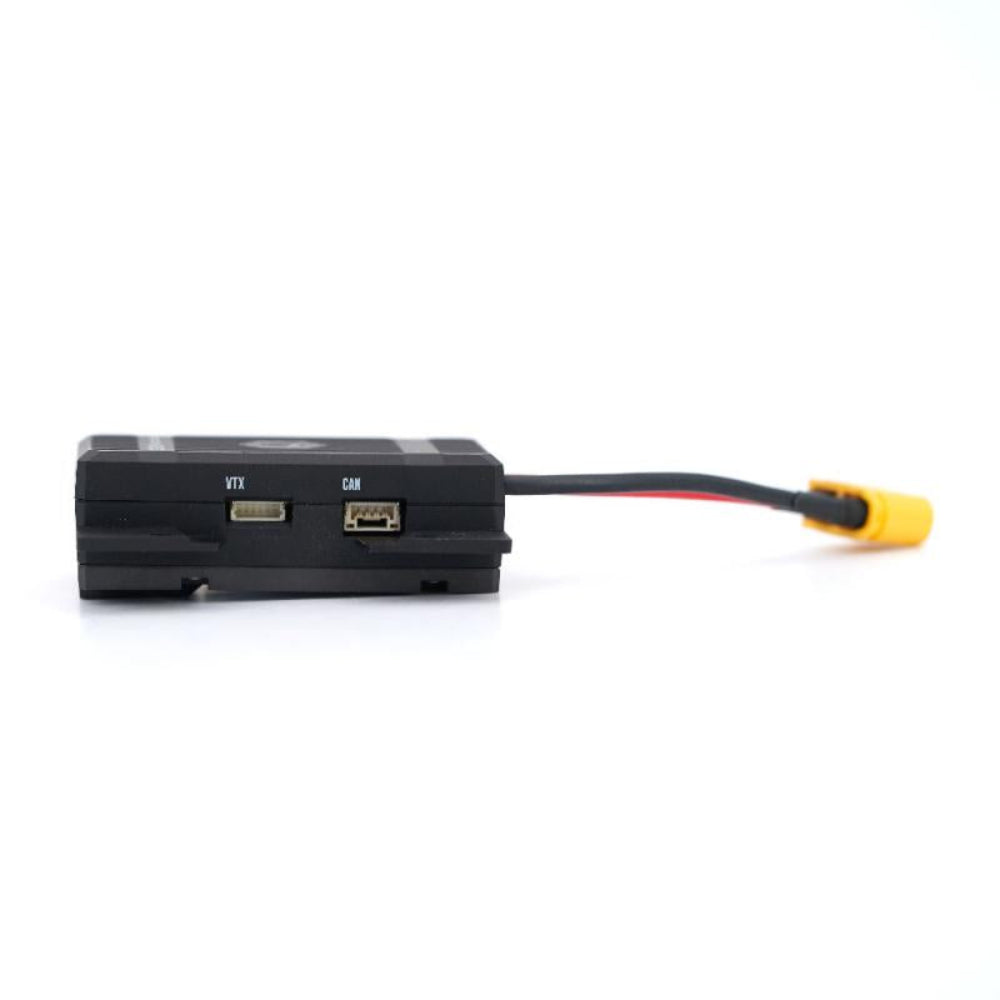

• JST Connectors:

  • 1x JST-SH1.0 4-pin (Receiver)
  • 3x JST-SH1.0 6-pin (USB extender, GPS, VTX)
  • 1x JST-GH1.25 4-pin (CAN bus)
• Power Control: Switch for filtered 5V/6.2V/7V/8.4V servo output power.
• DJI FPV OSD: Compatible via spare UART port.


Power Specifications

• Input Voltage: 6 - 26V (2 to 6S LiPo).
• BEC #1: 5V/6V/7.2V 5A (Servos, digital VTX, analog VTX, analog camera)
• BEC #2: 5V 1A (Receiver, GPS, CAN bus)
• Battery voltage sensor: 1K:20K (Scale 2100 in INAV,  BATT_VOLT_MULT 21.0 in ArduPilot)
• Current sense ADC: 3.2V @ 160A
• Power Consumption: 200mA @ 5V with Betaflight, 150mA @ 5V with ArduPilot.

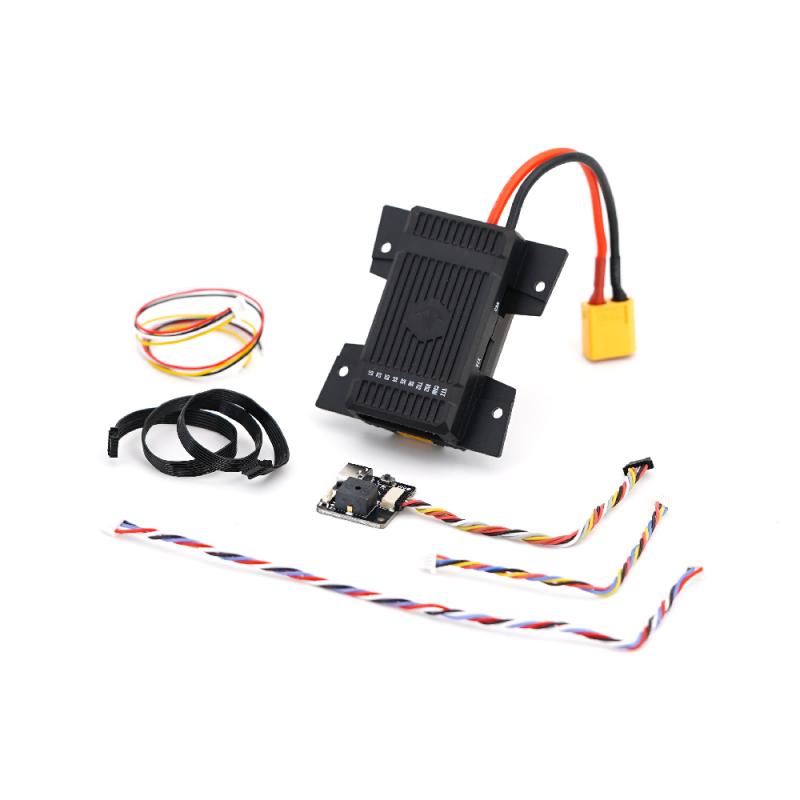

In Box

• TBS Lucid AIO Wing FC
• FC-to-USB board & cable
• FC-to-VTX cable
• DroneCAN Cable
• DJI O3 cable (plug & play)


Download

• STEP file for design / prototyping - [DOWNLOAD]
