TBS Lucid 8S 60A FC ESC Pro Stack MPU6000

The TBS Lucid 8S 60A FC ESC Pro Stack combines an AT32F435 flight controller with an AM32 4-in-1 ESC into a versatile 8S FPV stack. Purpose-built for 3-inch to 11-inch cinematic rigs, freestyle bashers, and long-range drones, this flight stack eliminates desync headaches and magic smoke risks. Featuring the legendary MPU-6000 gyro alongside dual BECs, 6 UARTs, and native Gorilla mounting adapter brackets, it delivers smooth PID tuning for both digital and analog video systems. Backed by 10 years of experience in manufacturing and delivery of commercial FPV systems, Unmanned Tech delivers this 8S stack to UK pilots ready to push maximum voltage.

Key Highlights

• AT32F435 & MPU-6000 Precision: Powered by a 288MHz AT32 MCU and the gold-standard low-noise MPU-6000 gyro for optimal filtering and Betaflight performance.

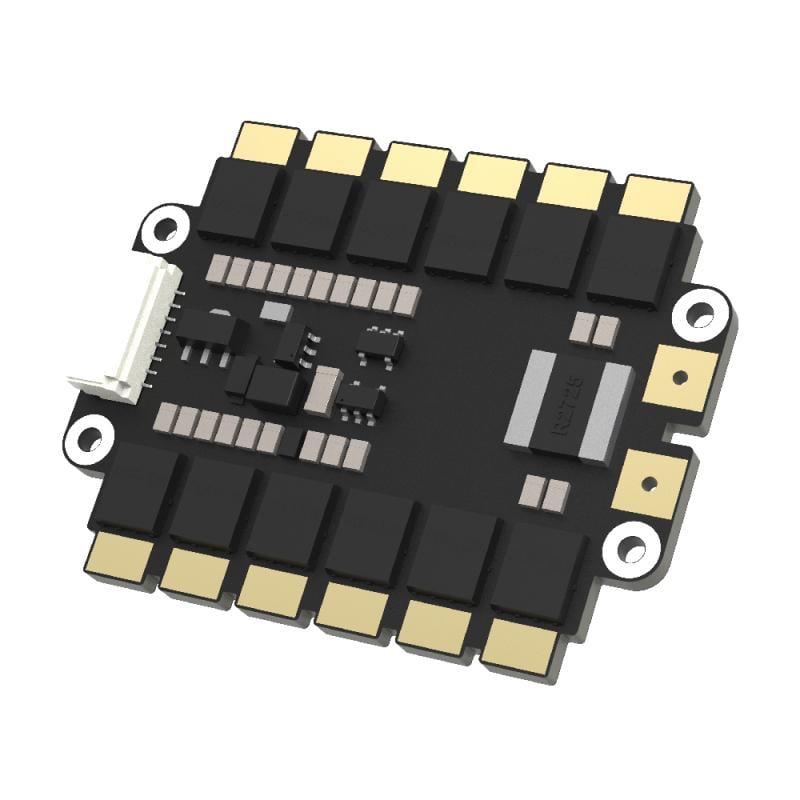

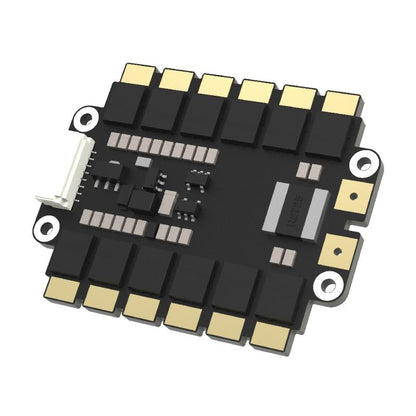

• 8S LiPo AM32 Speed Controller: Runs AlkaMotors32 firmware (target: tbslu8s4in1) handling 70A continuous (60s) and 85A burst (30s) currents with bi-directional DShot support.

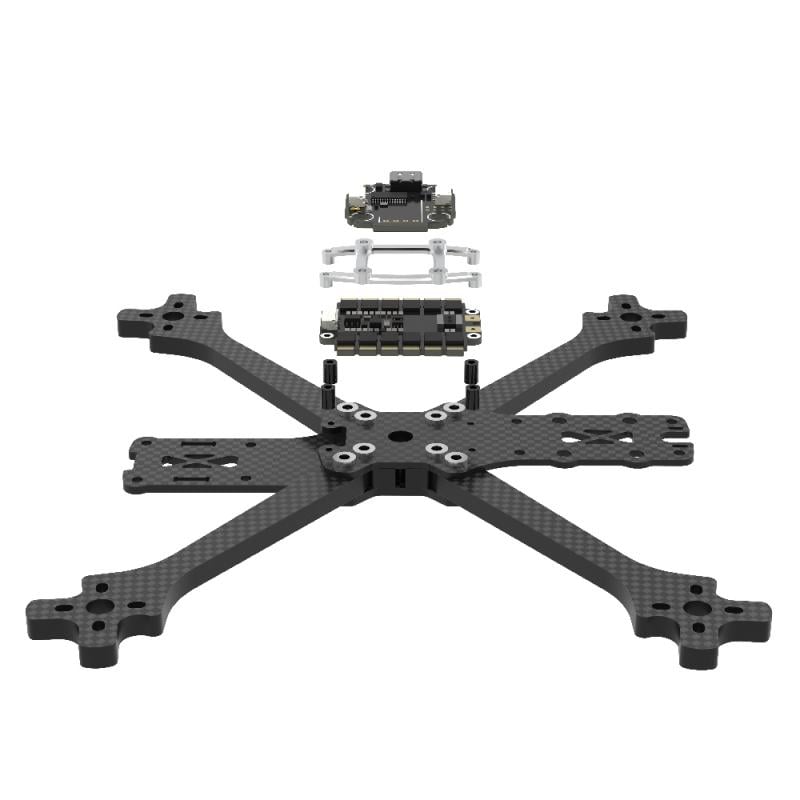

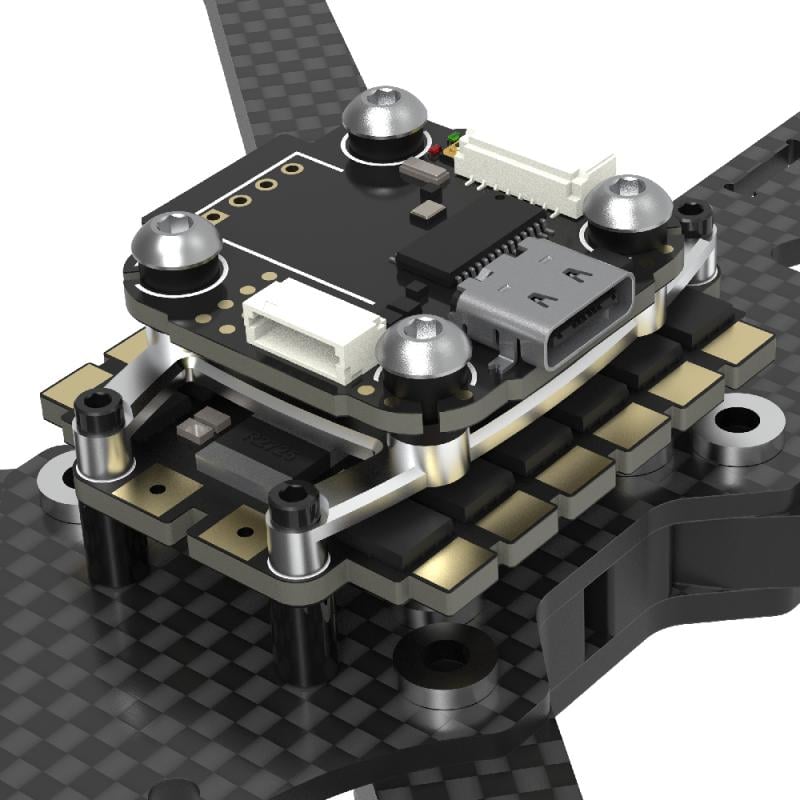

• Gorilla Mount Architecture: Eliminates central mounting bolts through the ESC (39.5 x 16.0mm pattern), featuring included brackets for standard 30.5x30.5mm and 20x20mm frame layouts.

Why You Want It

If you are tired of cooking standard 6S stacks when swinging 7-inch to 11-inch props or chasing clean gyro traces through noisy frames, the Lucid Pro Stack is built for you. TBS paired an AT32 MCU with the beloved MPU-6000 gyro and paired it with a high-current 8S AM32 ESC. You get 6 hardware UARTs for your HD VTX, GPS, and Crossfire receiver, onboard dual BECs (9V 2.5A and 5V 2A), and clean telemetry routing without resorting to messy wiring harness hacks.

Specifications

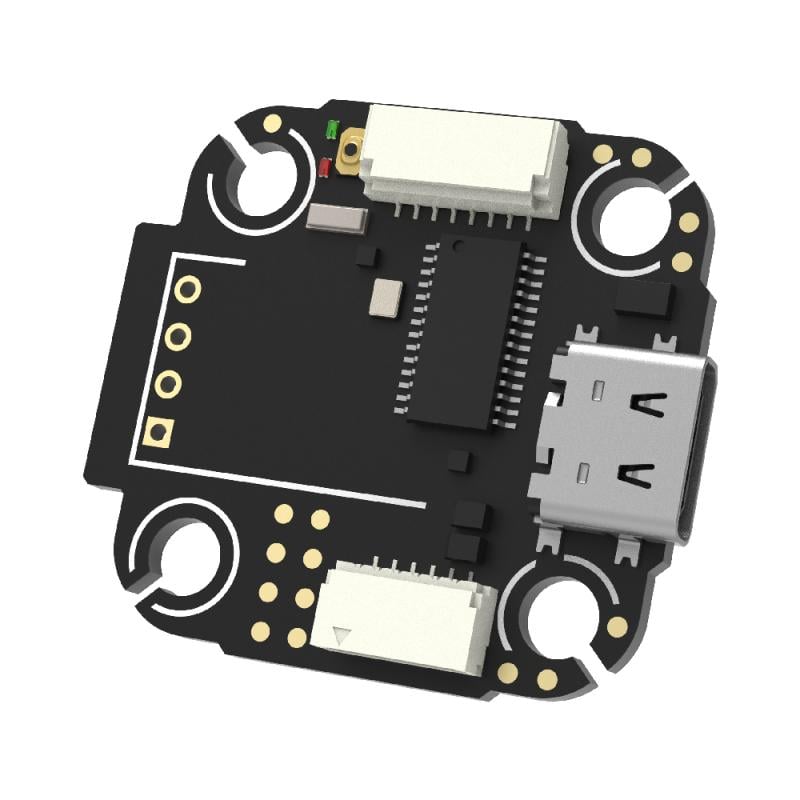

• Flight Controller MCU: AT32F435RMT7 (288MHz)
• Gyro: MPU-6000
• Blackbox Flash: 8MB
• Analog OSD: AT7456E
• Onboard BECs: 9V/2.5A and 5V/2A
• UART Count: 6 (UART1, UART3, UART4, UART5, UART7, UART8)
• FC Input Voltage: 3S - 6S
• FC Dimensions & Weight: 31mm × 29mm, 4.51g (20x20mm mounting)
• ESC Software & Target: AM32 (AlkaMotors32), tbslu8s4in1
• ESC Continuous Current: 70A × 4 (60 seconds)
• ESC Peak Current: 85A × 4 (30 seconds)
• ESC Input Voltage: 3S - 8S LiPo
• ESC Protocols: Bi-directional DShot (300/600), KISS ESC Telemetry
• Propeller Compatibility: Up to 11 inches (airflow required over 7 inches)
• ESC Dimensions & Weight: 50mm × 42mm, 17.58g (22g with brackets)
• Mounting Patterns: Gorilla-mount (39.5 × 16.0mm), 30.5 × 30.5mm, 20 × 20mm

FAQ

Can I power a high-power digital VTX directly from this stack?

Yes. The flight controller features a dedicated onboard 9V BEC capable of delivering up to 2.5A, providing stable power for digital HD video transmitters without requiring an external BEC.

What’s in the Box*

• 1× TBS Lucid Flight Controller (MPU-6000)
• 1× TBS Lucid 8S 60A 4in1 ESC
• 4× 2.2x4mm standoffs
• 1× Aluminum top bracket for 20x20 FCs
• 1× XT60 power connector
• 1× 560uF 8S Low ESR Capacitor
• 4× M2x12 screws
• 4× M2x14 screws (for 30x30 mount)

Disclaimer

Note that while the ESC handles 3S–8S LiPo input, the FC onboard voltage input is specified for 3S–6S; ensure proper power routing via the stack harness or BEC when supplying power. Good airflow across the ESC is strictly required for propeller sizes larger than 7 inches.
