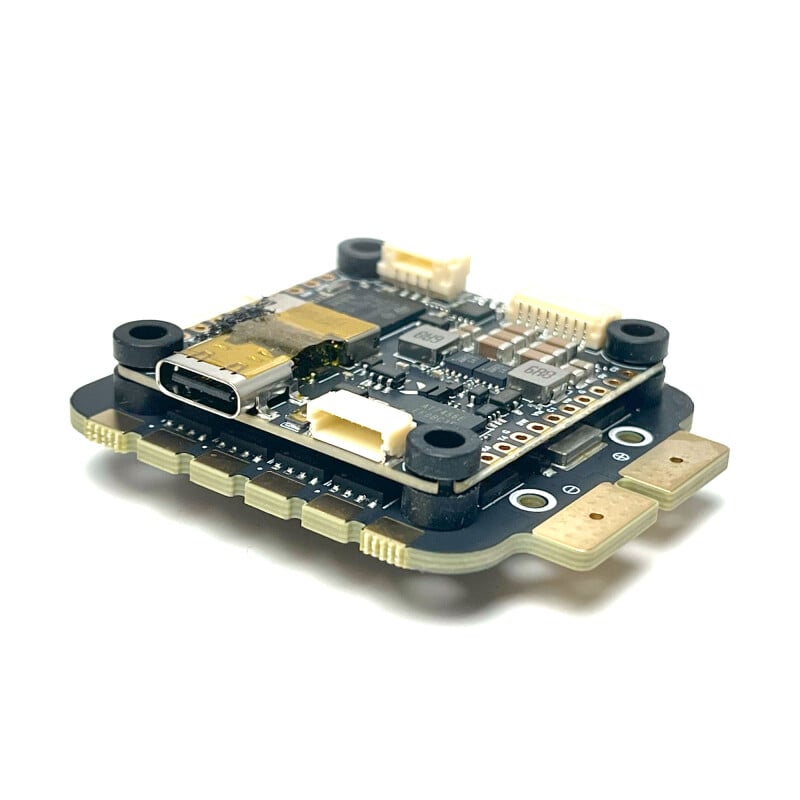

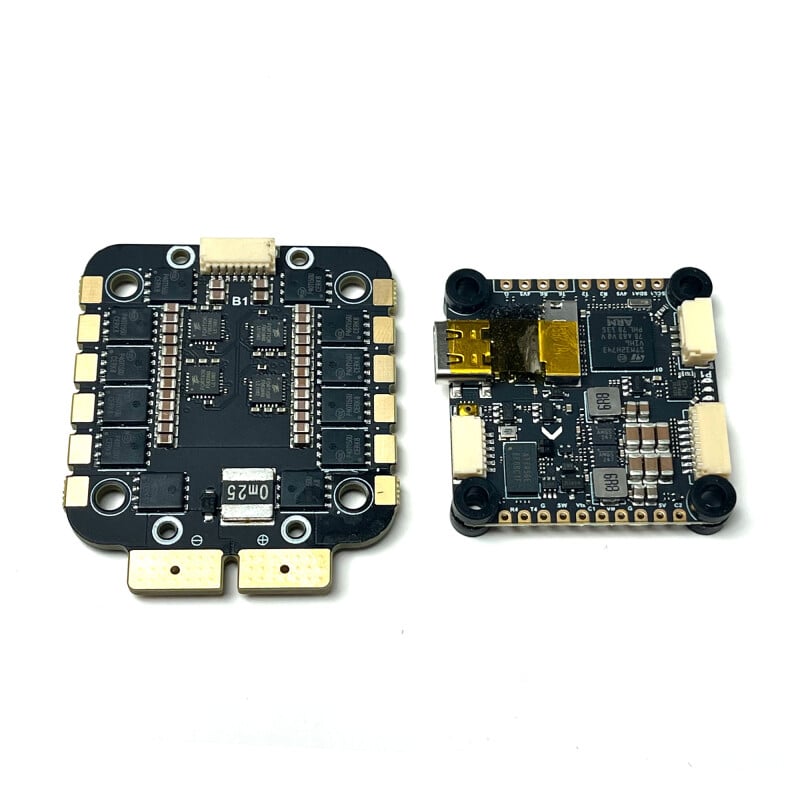

TBS Lucid H7 Stack 8S 60A: The Ultimate FPV Flight Control and ESC System
Take your drone builds to the next level with the TBS Lucid H7 Stack , a powerful combination of a lightning-fast STM32H743VIH6 flight controller and a durable 8S ESC system. Designed for demanding pilots, this stack delivers unmatched control, stability, and efficiency, even in high-performance FPV racing and freestyle environments.
Flight Controller (FC) Features
- Processor: STM32H743VIH6 running at a blazing 480MHz.
- Dual Gyros: Equipped with 2x ICM42688 for unparalleled precision.
- OSD: AT7456E chip for clean, crisp visuals.
- Barometer: Infineon DPS310 for accurate altitude readings.
- PWM Outputs: 13 channels, including a dedicated LED pad for RGB magic.
- Blackbox: MicroSD slot for detailed flight data logging.
-
Connectivity:
- UARTs: 7 ports ready for signal inversion.
- I2C Buses: 2 available.
- CAN Bus: Fully supported.
- Camera Input: Switchable dual-camera support.
- Power Control: Filtered 5V/Vbat switch ensures stable power output.
- Indicators: Tri-color LED feedback for quick diagnostics.
- USB Port: Type-C for easy configuration.
Electronic Speed Controller (ESC) Specifications
- Rated Current: 70A per motor for 60 seconds.
- Peak Current: 85A bursts for 30 seconds.
- ESC Software: Runs on AlkaMotors32 (AM32).
- Input Power: 3-8S LiPo compatibility.
- Protocol: Bi-directional DShot 300/600 with KISS ESC Telemetry.
- Propeller Compatibility: Supports up to 11" props (ensure good airflow for sizes over 7").
-
Mounting Options:
- Gorilla Mount (39.5 x 16.0mm).
- Standard 30.5x30.5mm with adapters for 20x20mm frames.
- Weight: Just 17.58g (22g with brackets).

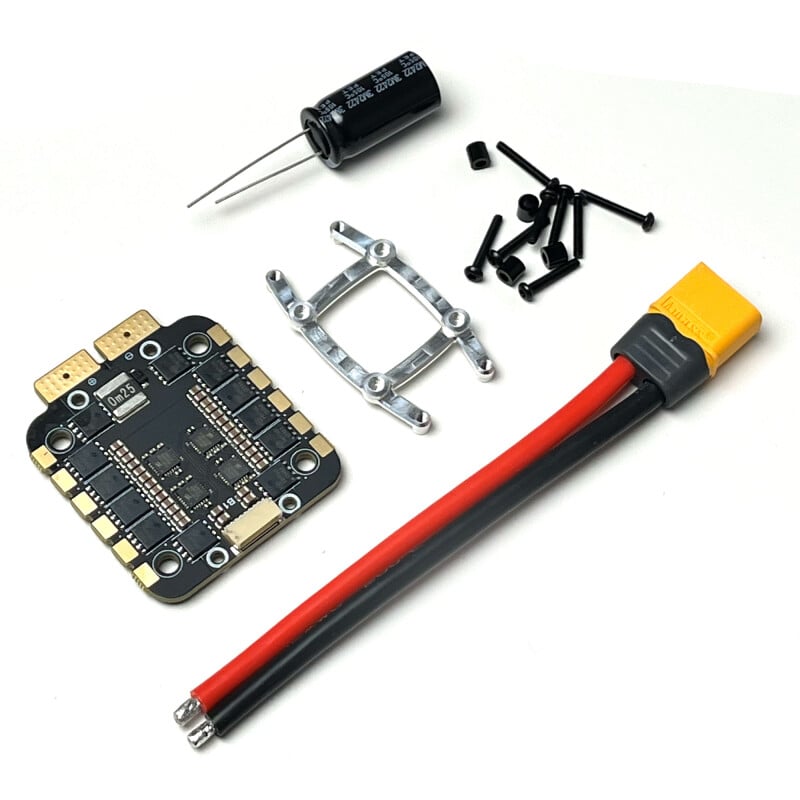

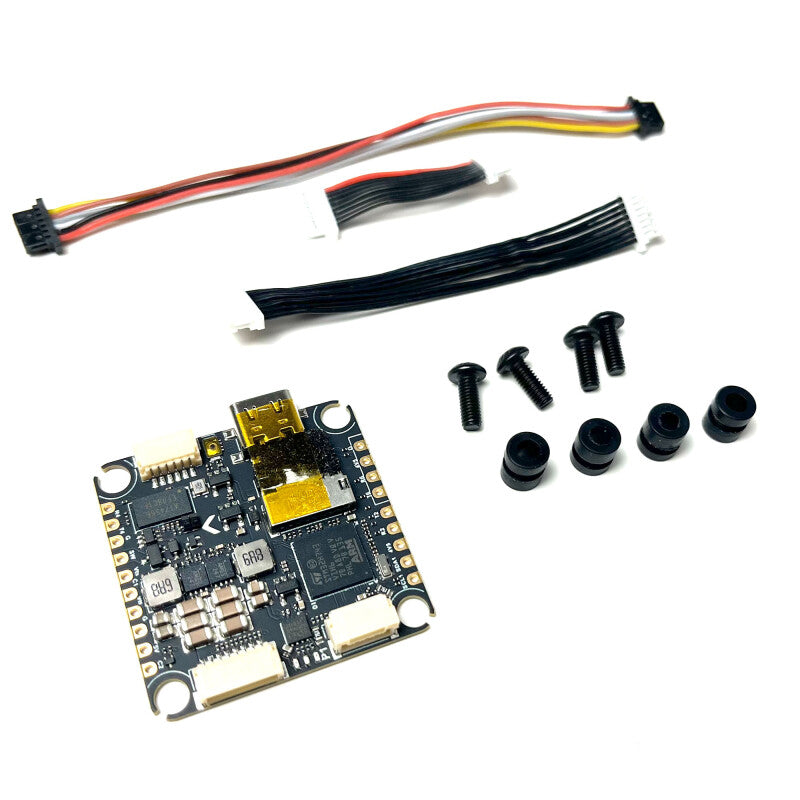

What's in the Box?
- 1x TBS Lucid H7 Flight Controller.
- 1x 8S 4-in-1 ESC.
- Mounting hardware including Gorilla brackets for frame compatibility.
- Cables and connectors for installation.
Note: Accessories may vary based on supply.
