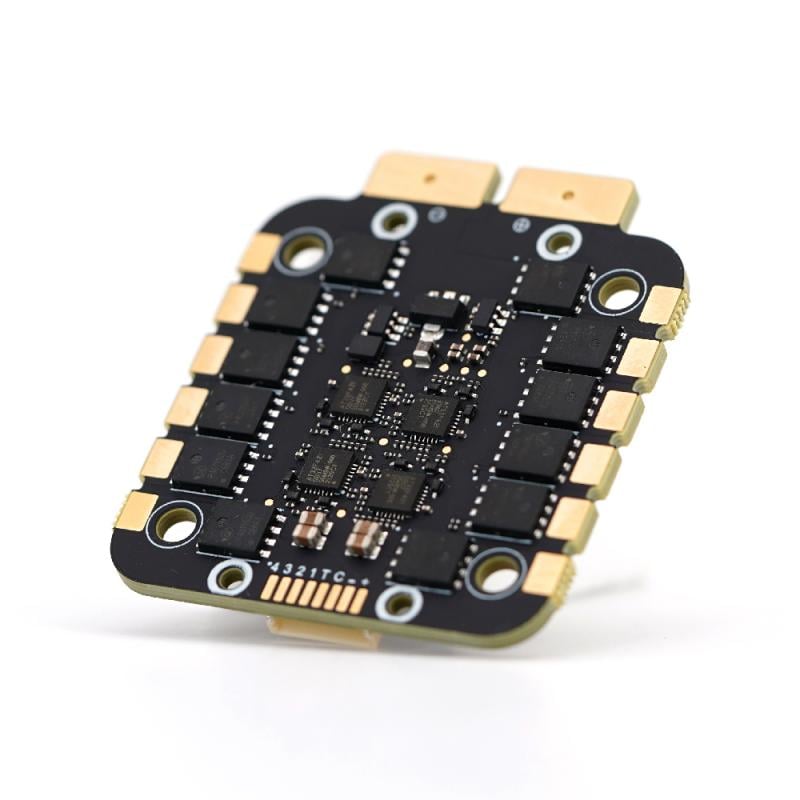

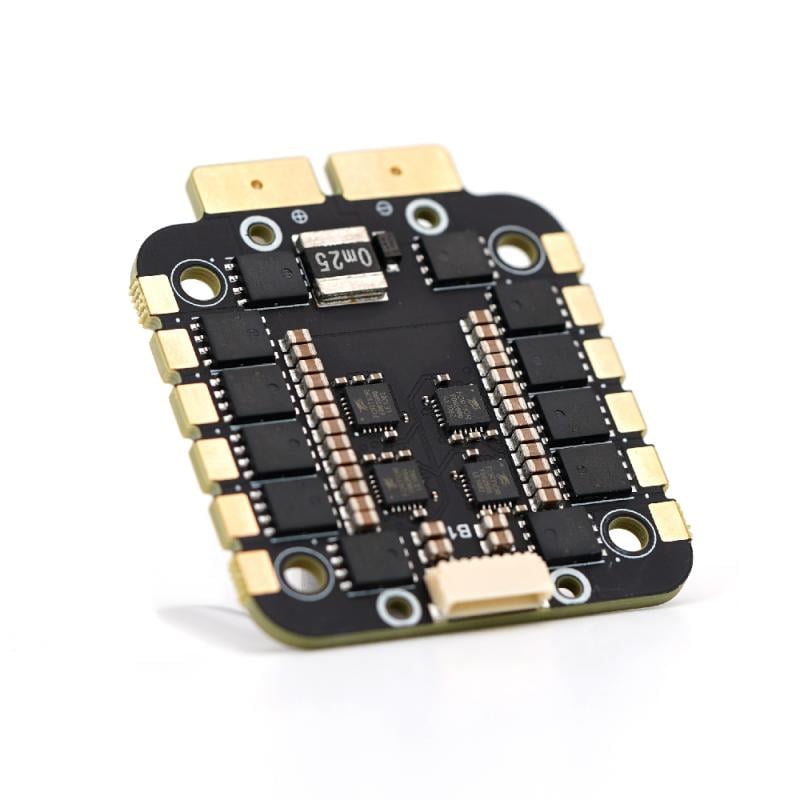

TBS Lucid 8S 55A 4-in-1 ESC: Peak Performance for FPV Racers and Freestylers
Meet the TBS Lucid 8S 55A 4-in-1 ESC , the cutting-edge powerhouse engineered for demanding FPV pilots who crave performance without compromise. Whether you're ripping through race gates or executing jaw-dropping freestyle tricks, this ESC delivers relentless power and durability, thanks to its 8-layer high-density board and twice the market-average onboard capacitance .
Key Features
- Smooth and Powerful: Rated at 55A per motor for sustained power and 85A bursts for high-throttle maneuvers.
- Advanced Engineering: Thermal dissipation and power density optimized without bulky heat sinks.
- Bi-Directional Communication: Supports DShot 300/600 with telemetry and KISS ESC protocol.
- Durable Design: Built to withstand harsh conditions while maintaining smooth flight performance.
- Gorilla Mount: Innovative mounting system eliminates the need for center bolts, improving power delivery and simplifying installation.
Specifications
- ESC Software: AlkaMotors32 (AM32).
- Rated Current: 55A x 4 (60 seconds).
- Peak Current: 85A x 4 (10 seconds).
- Input Voltage: Compatible with 3-8S LiPo batteries.
- Propeller Size: Supports props up to 11" (ensure proper airflow for sizes over 7").
- BEC: Not included.
- Dimensions: 50mm x 42mm.
-
Mounting:
- Gorilla Mount (39.5mm x 16mm).
- Standard 30.5mm x 30.5mm with adapters for 20mm x 20mm.
- Weight: 17.58g (22g with brackets).
What's in the Box?
- 1x TBS Lucid 8S 4-in-1 ESC.
- 1x XT60 power connector.
- 1x 560uF 8S capacitor.
- 4x M2x12 screws.
- 4x M2x14 screws (for 30x30 mounts).
- 4x 2.2x4mm standoffs.
- 1x Aluminum top bracket for 20x20 FCs.
Note: Included accessories may vary depending on supply availability.
