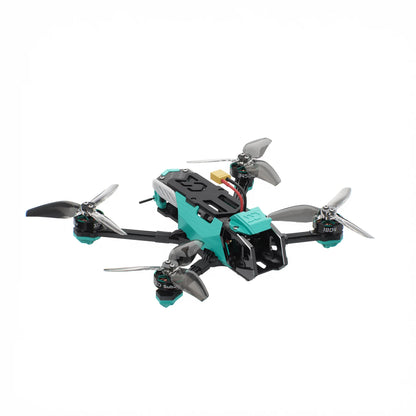

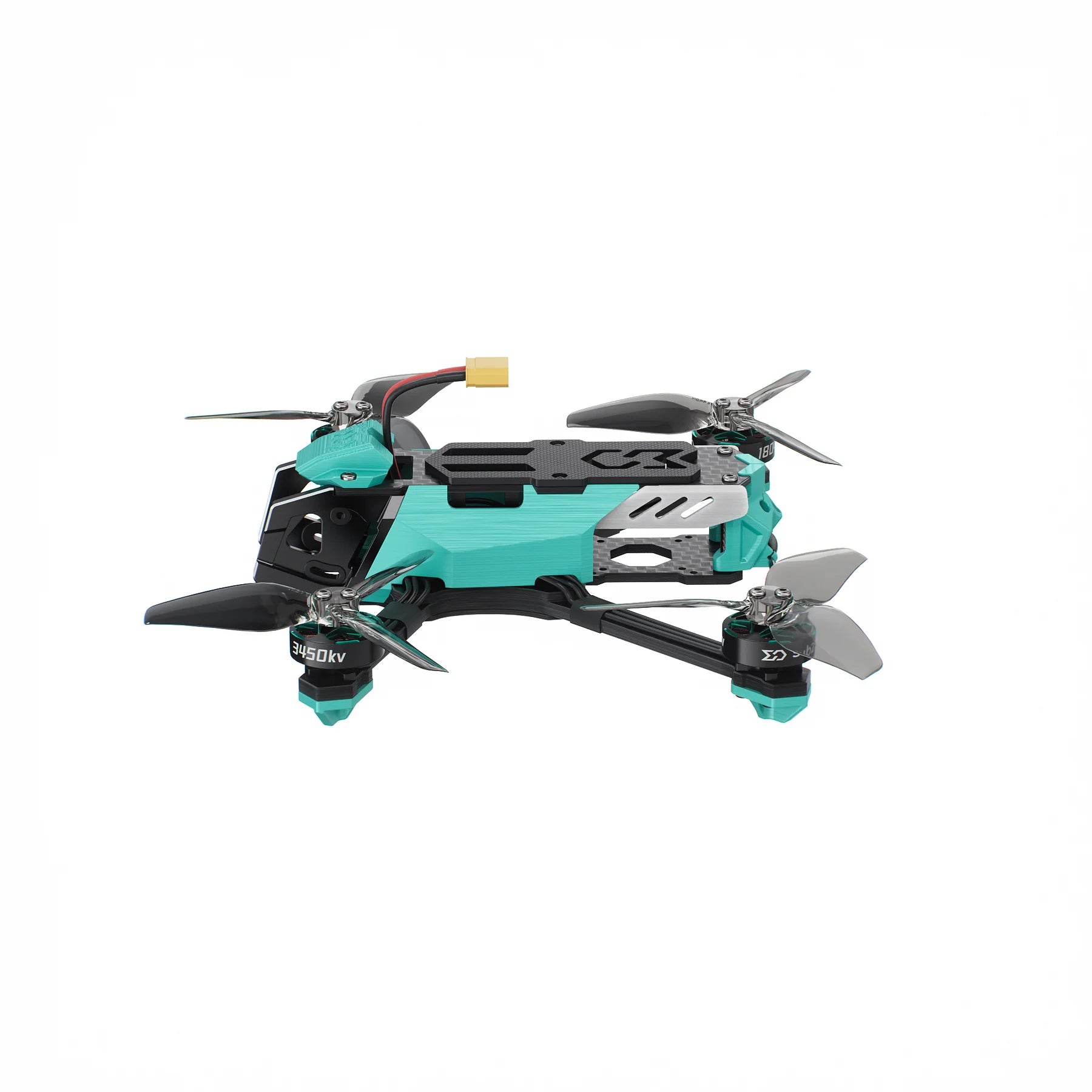

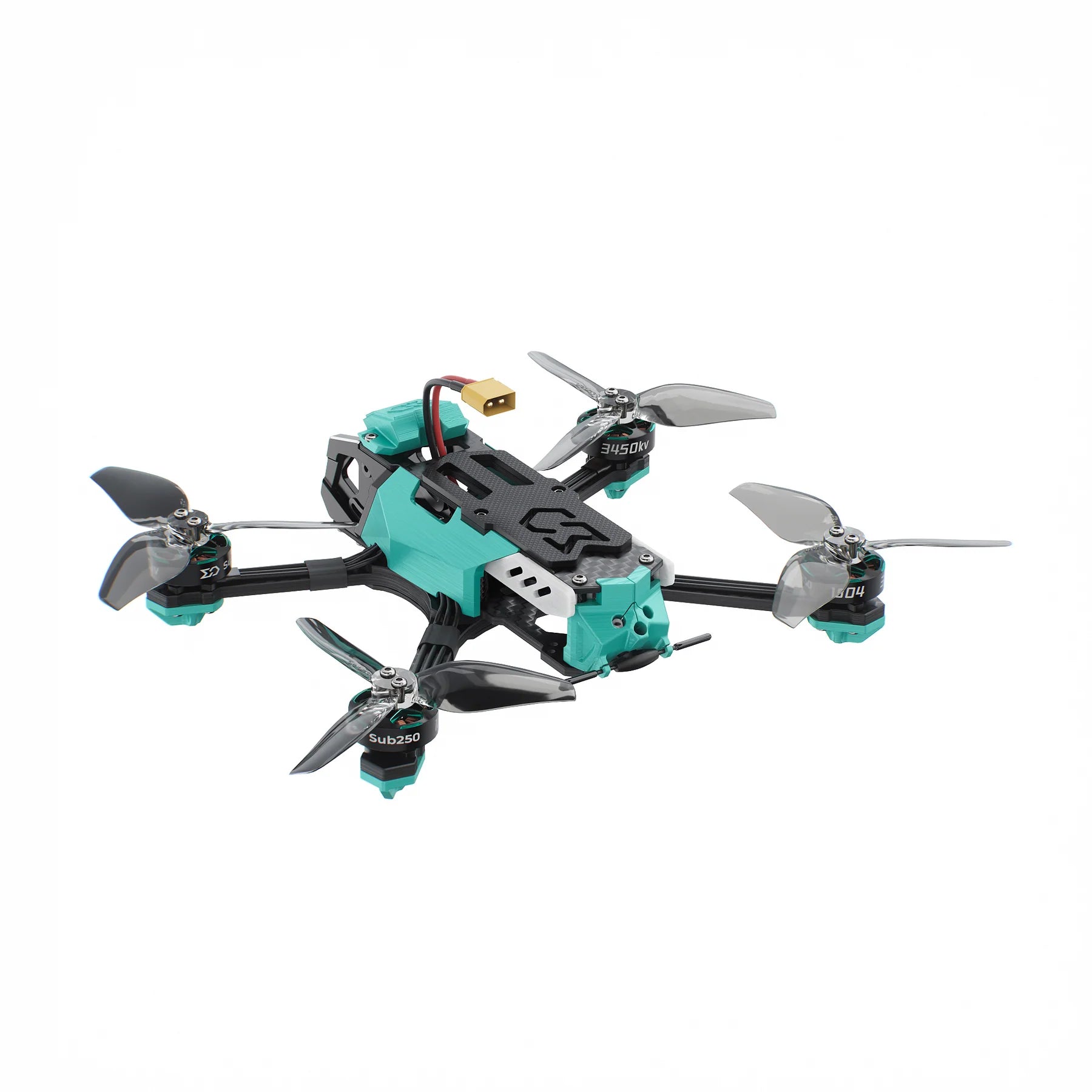

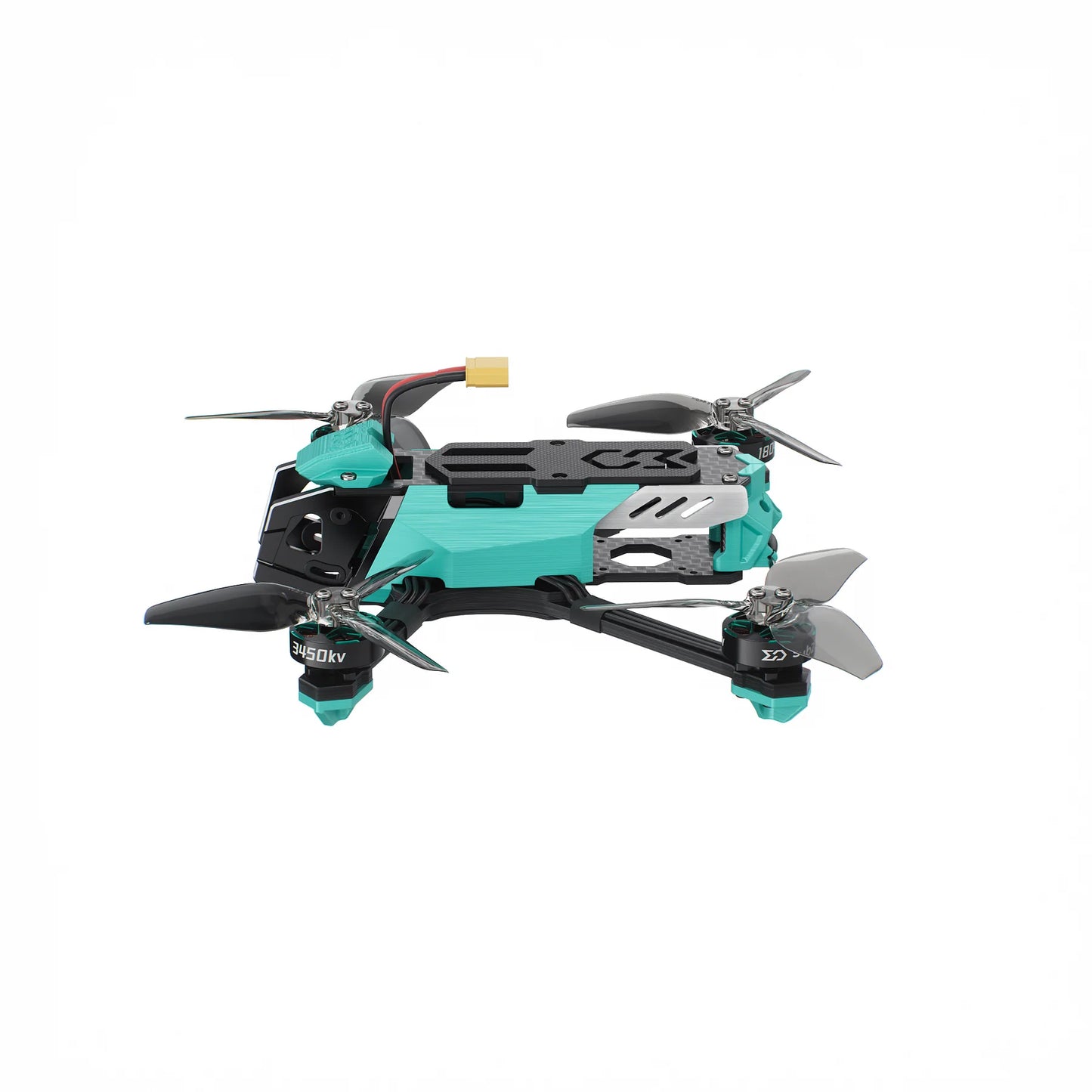

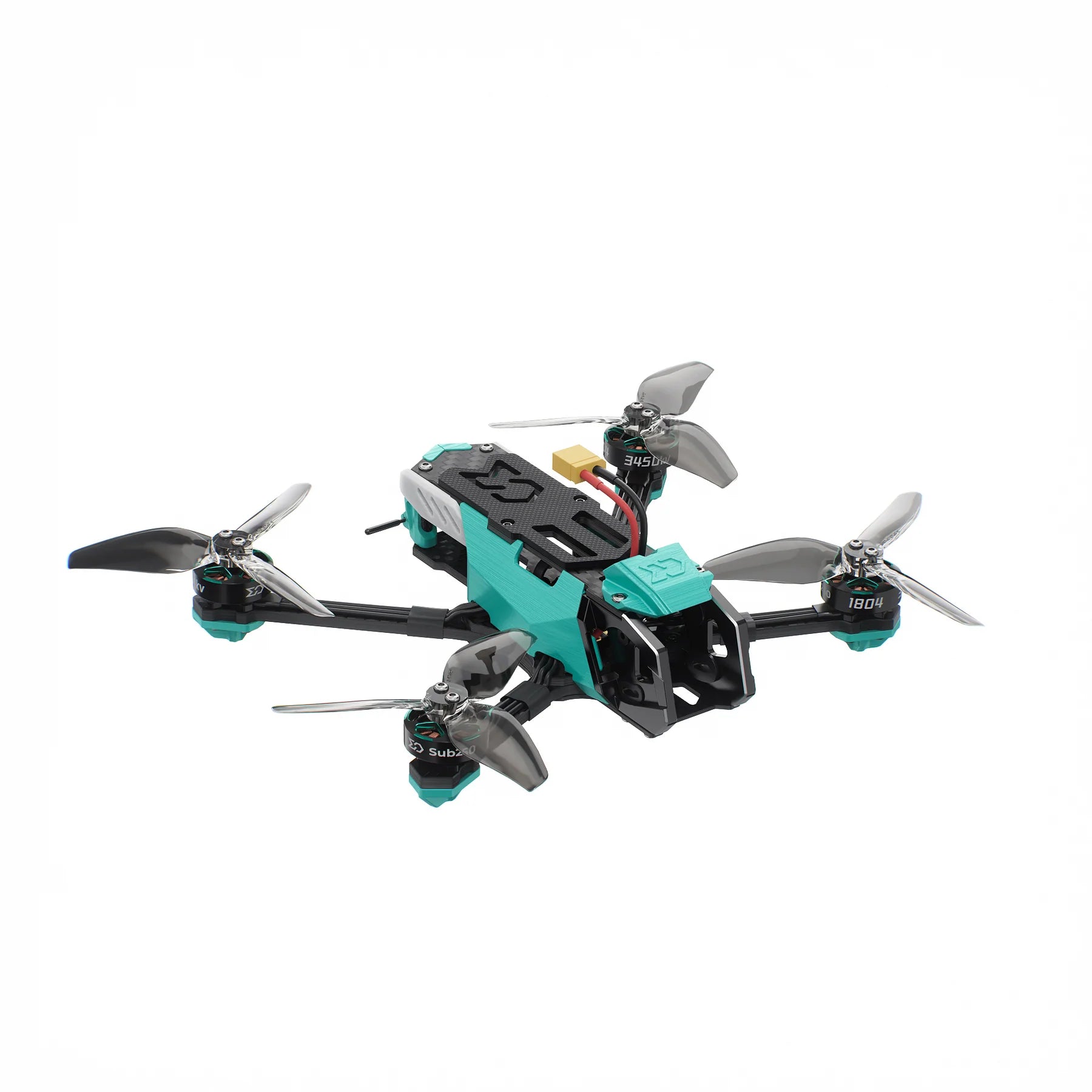

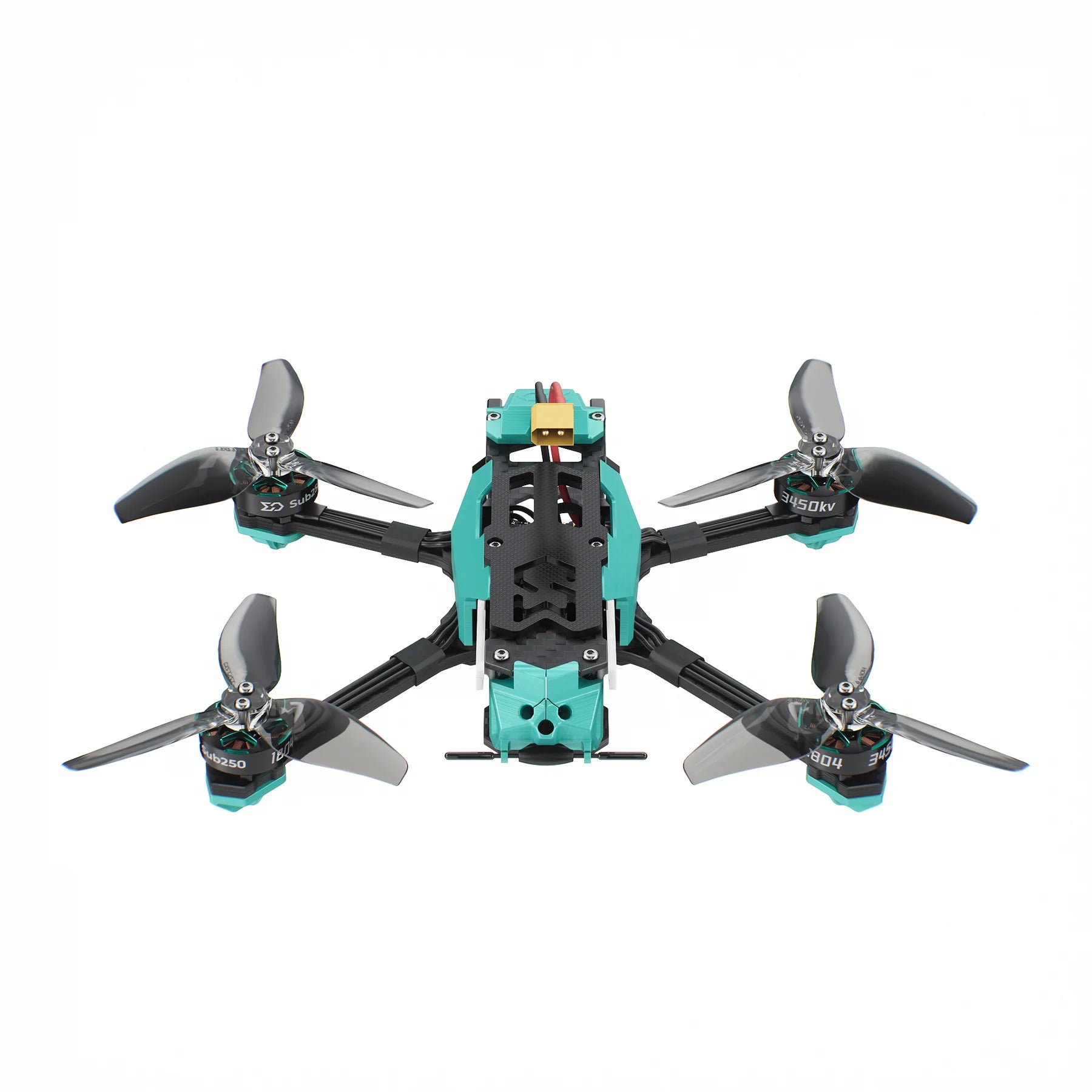

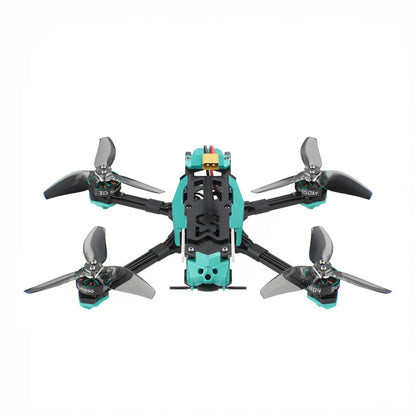

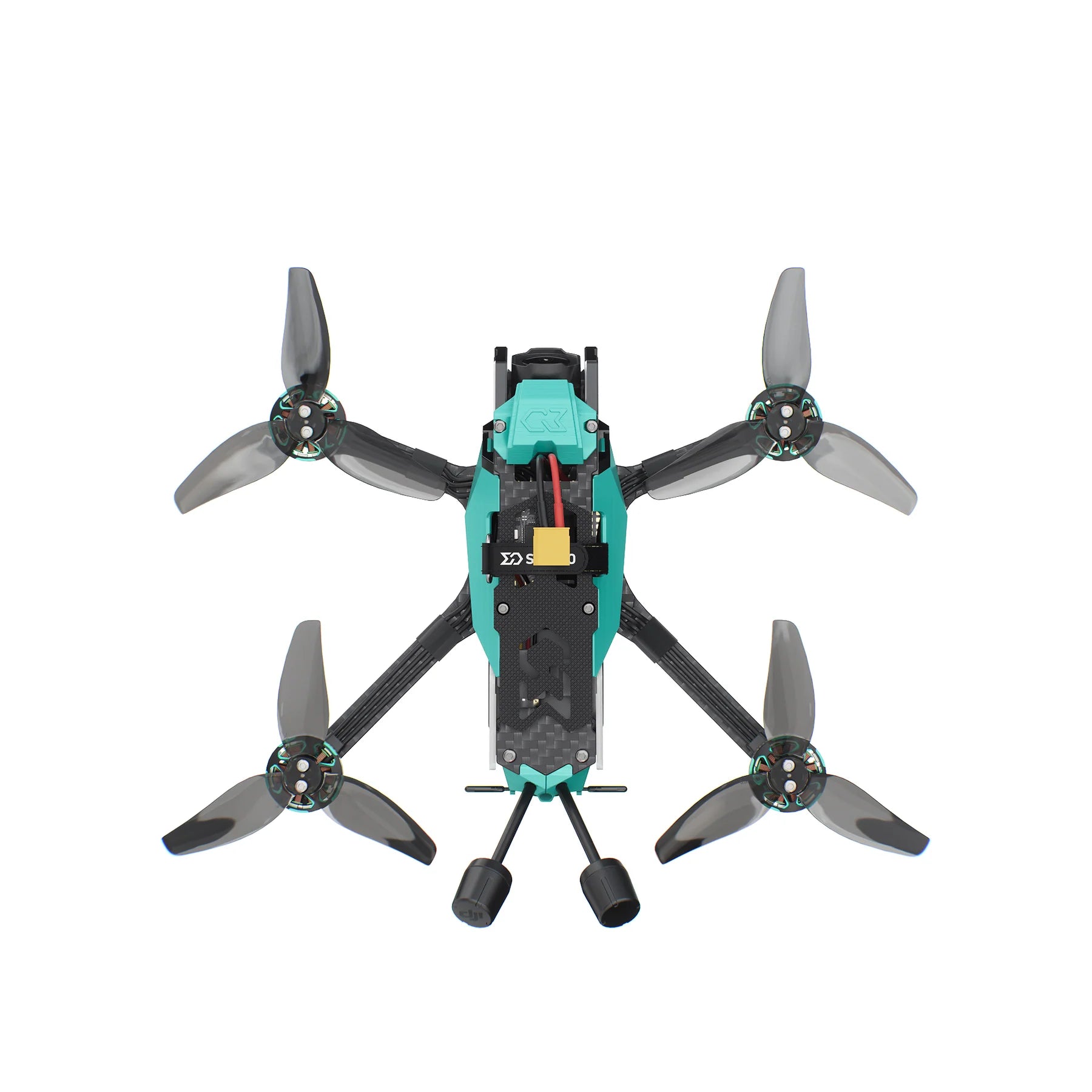

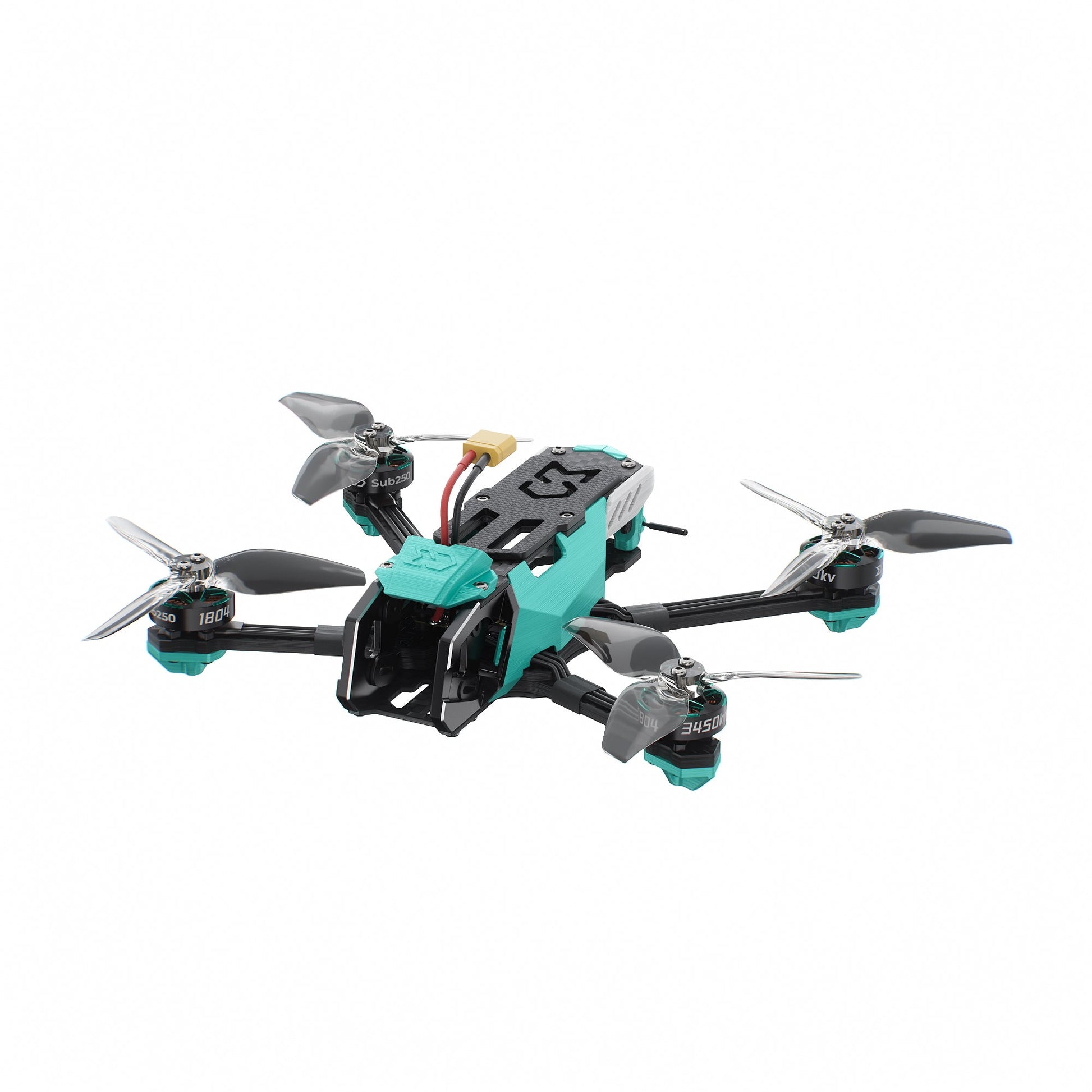

Sub250 OasisFly35 DC WTFPV GPS (Without O4 Pro)

The OasisFly35 DC WTFPV is the 3.5-inch airframe for pilots who already have a video system in mind. Motors, Redfox A3 45A AIO and SUB-M10 GPS are installed; the camera and VTX are not.

Why You Want It

• The 175mm dead-cat frame keeps propellers out of the camera view.
• Available as PNP or with ELRS 2.4GHz installed.
• Compatible with analogue, DJI O3 and DJI O4 Pro installations according to Sub250.

Specifications

• Wheelbase: 175mm
• Arm thickness: 3.5mm
• Video system: Not included
• Motors: 1804 3450KV
• Flight controller and ESC: Redfox A3 F722 45A AIO
• ESC firmware: BLHeli_32
• Gyro: ICM42688-P
• Propellers: HQProp T3.5 x 3.5 x 3
• Receiver options: PNP or ELRS 2.4GHz
• GPS: SUB-M10
• Recommended battery: 4S 530mAh
• Connector: XT30
• Manufacturer-listed body weight: 162g
• Manufacturer-listed takeoff weight: 213g with 4S 530mAh

What's Included

• 1 x OasisFly35 DC WTFPV drone in the selected receiver configuration
• Propellers, manuals, USB-C adapter, battery pad, straps and manufacturer hardware/accessory pack

Please note: Battery, camera and video transmitter are not included. Finished weight depends on the equipment and battery you install.
