Product Details
Specifications
- Brand: Speedybee
- Item Name: TX800 VTX
- Frequency Channel: 5.8GHz 48CH

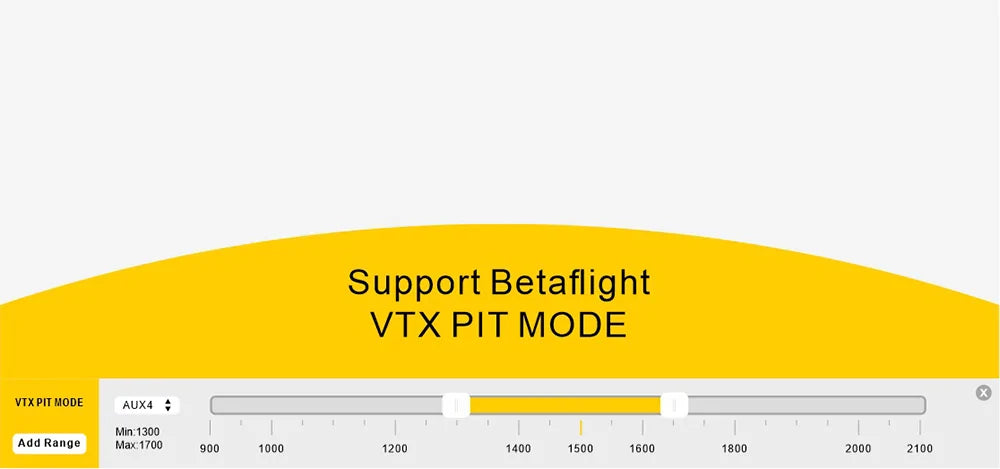

- Output Power: PIT/25mW/200mW/400mW/800mW
- Working Current: 5V@250~750mA
- Voltage out: 5V@max 250mA
- Voltage in: 3.7-5.5V
- Video input impedance: 75 Ohm
- Antenna Connector: MMCX
- Weight: 5.6g (without antenna)
- PCB Size: 28mm*28mm@20*20 M2

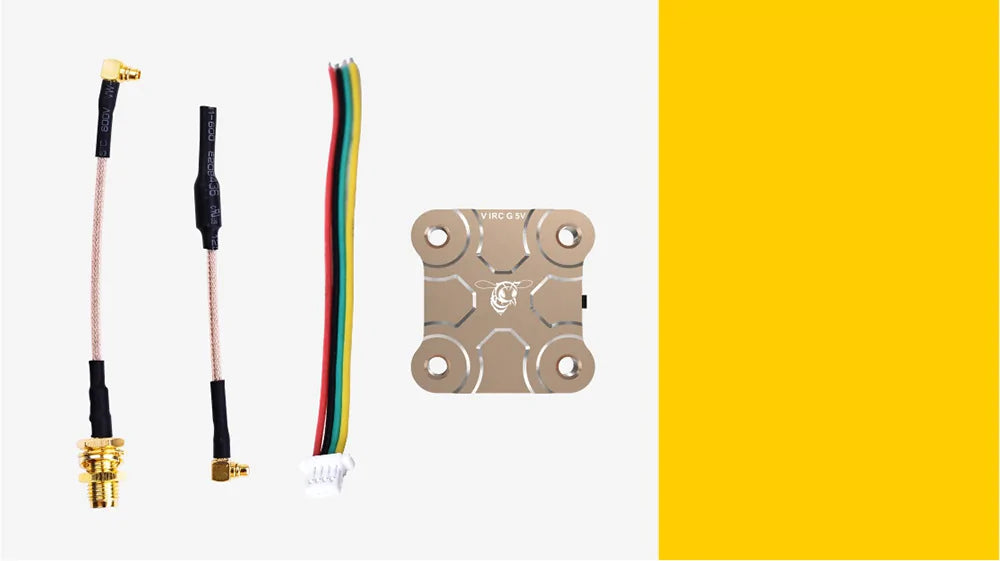

Included
- 1x TX800
- 1x MMCX antenna
- 1x MMCX to SMA Cable
- 1x 1.0MM 4pin Cable
