Product Details
Specs
Overall
| Max Transmission Range |
15 km
(Unobstructed, free of interference) |
| Channels |
13 physical channels
16 communication channels |
| Datalink Compatible Flight Controllers |
PX4 / Ardupilot Open-source Flight Controllers:
SIYI N7, etc. |
| Video Stream Compatible Android App |
SIYI Original App:
SIYI FPV Open-source GCS: QGroundControl Mission Planner |
| Video Stream Compatible Windows GCS |
Open-source GCS:
QGroundControl Mission Planner (H264 only) |
| Monitor | 5.5-inch High Definition and High Brightness LCD Touchscreen |
| System |
Android 9.0 OS
2G RAM, 16G ROM |
| Battery Capacity & Type | 10200 mAh 7.4V 2S Li-ion, 75.48 Wh |
| Fast Charging Protocol | PD 20W |
| Charging Tme | 5 hours (PD 20W) |
| Battery Life | 13 hours |
| Antenna Gain |
Omni Antenna: 5 dBi
Long Range Antenna: 11 dBi (included in enterprise edition) Lollipop Antenna: 5 dBi (optional) |

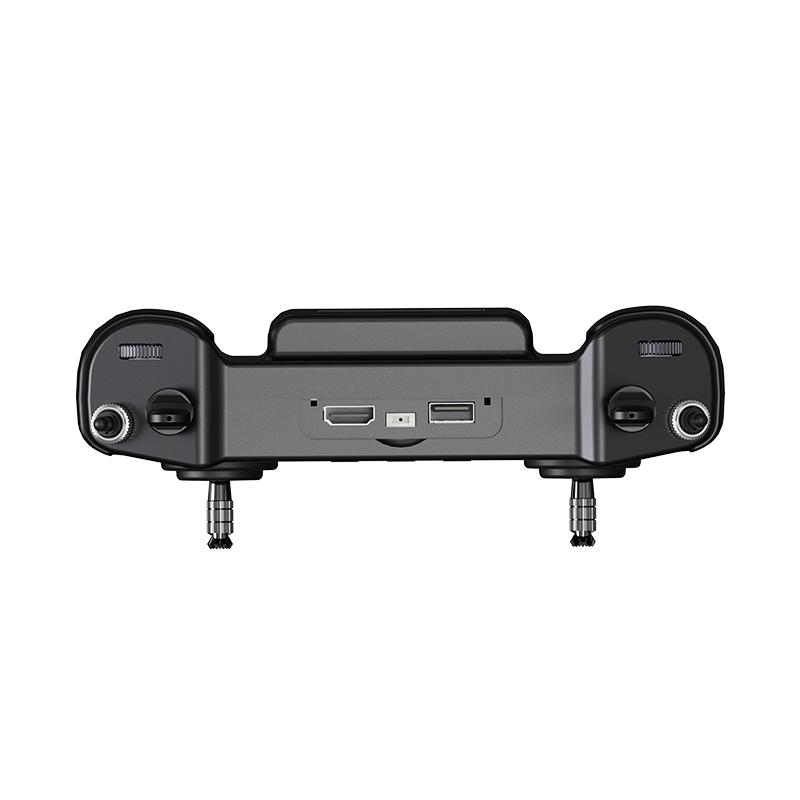

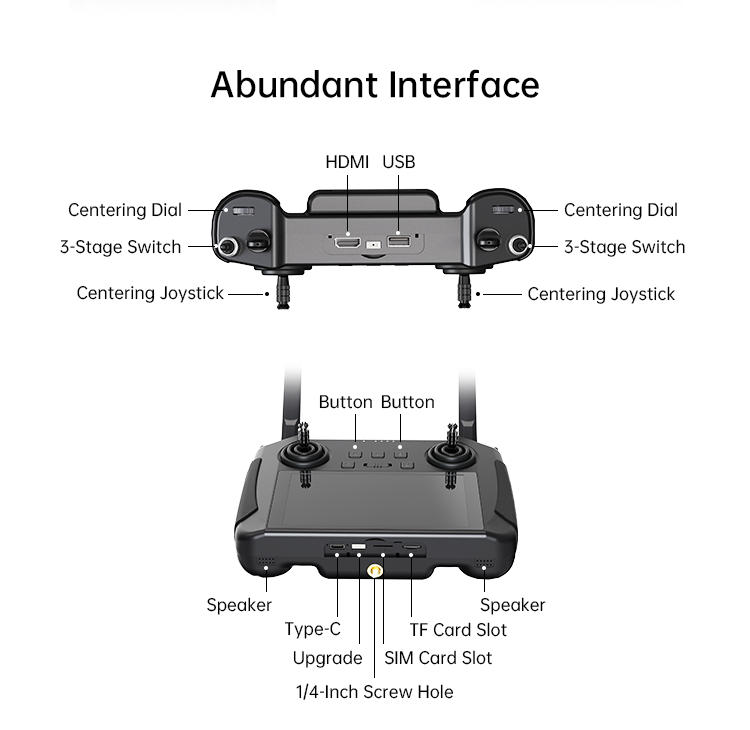

| Interface & Ports |
Video Output: Standard HDMI *Enterprise edition only
External Device (Mouse, USB Disk): USB-A Charging: Type-C Firmware Upgrade: Upgrade Port (Bottom GH1.25 4Pin) File Transfer: Type-C / USB-A Mobile Network: SIM Card Slot External Storage: TF Card Slot Tripod Mount: 1/4-inch Standard Screw Hole |
| Dimensions (Antenna Overlapped) | 189 x 138 x 41 mm |
| Weight (Antenna Overlapped) | 850 g |
| Waterproof Level | IP53 |
| Working Temperature | -10℃ ~ 50℃ |
| Signal Output |
16 channels of SBUS
5 channels of PWM |

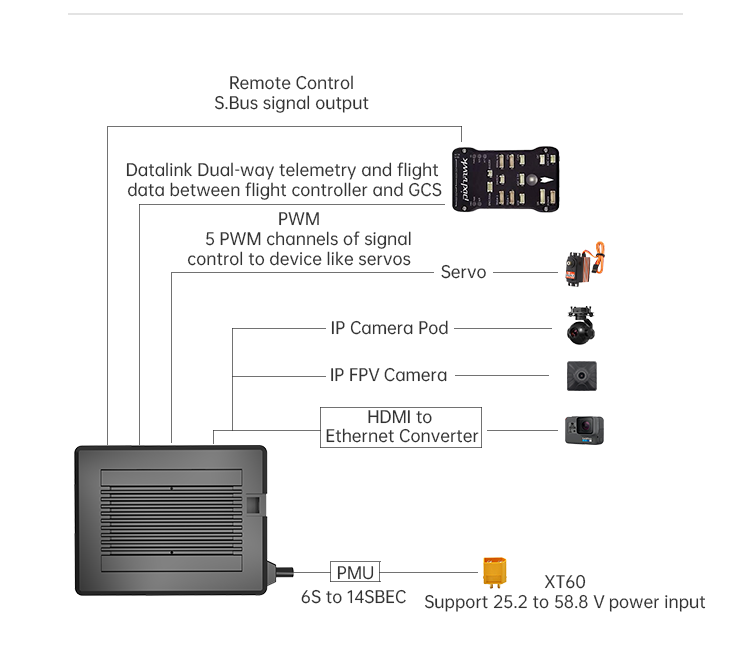

| Interface & Ports |
S.Bus RC Signal Output: RC (GH1.25 3-Pin)
Datalink (to FC): UART (GH1.25 4-Pin) PWM Channel 1 to 5: PWM (GH1.25 6-Pin) Video Input / Network Communication: LAN (GH1.25 8-Pin) Firmware Upgrade: Type-C |
| Antenna Gain |
Omni Antenna: 5 dBi
Lollipop Antenna: 5 dBi (optional) |
| Working Voltage |
MK15 Air Unit (included in MK15 agriculture edition):
4S ~ 18S / 16.8 ~ 75.6 V (Early manufacturing lots support only 6S to 14S, please carefully confirm) HM30 Air Unit (included in MK15 enterprise edition and MK32): 3S ~ 6S / 12.6 ~ 25.2 V (Early manufacturing lots of MK15 enterprise edition came with MK15 air unit) (Early manufacturing lots of HM30 air unit support only 3S to 4S, please carefully confirm) 4S to 18S Power Module (included in MK15 enterprise edition and MK32): 16.8 ~ 75.6 V |
| Power Consumption |
MK15 Air Unit (included in agriculture edition):
- Average: 3.2 W - Summit: 12 W HM30 Air Unit: - Average: 2.8 W - Summit: 12 W HM30 Air Unit + 4S to 18S Power Module: - Average: 3.2 W - Summit: 12 W |
| Dimensions (Antenna excluded) | 70 x 55 x 16 mm (fan included) |
| Weight (Antenna excluded) |
MK15 Air Unit (included in agriculture edition):
100 g HM30 Air Unit: 74 g HM30 Air Unit + 4S to 18S Power Module: 109 g |
| Working Temperature | -10℃ ~ 50℃ |
| Video Input | Micro HDMI |
| Video Output | Ethernet |
| Working Voltage | 12 V |
| Power Consumption | 3 W |
| Video Recording Resolution |
1080p (1920 × 1080) @ 30 fps
720p (1080 × 720) @ 30 fps |
| Video Storage Birate | 12 Mbps (H265 codec) |
| File Storage Format | FAT32 |
| Video Recording Format | H265 |
| Supported TF / SD Card Type | MicroSD Class10, Less than 32GB |
| Dimensions | 42*41*11 mm |
| Weight | 26 g |
| Working Temperature | -10℃ ~ 50℃ |
| Video Output Port | Ethernet |
| Image Sensor | 1/2.9 Inch, 2 MP |
| FOV |
Diagonal: 90°
Horizontal: 80° |
| Working Voltage | 12 V |
| Power Consumption | 2.5 W |
| Video Recording Resolution |
1080p (1920*1080) @ 30 fps
720p (1280*720) @ 30 fps |
| Recording Bitrate | 12 Mbps |
| Video Recording Format | MP4 |
| Supported TF / SD Card Type |
MicroSD Class10
Less than 32GB |
| File Storage Format | FAT32 |
| Dimensions | 42 x 42 x 25 mm |
| Weight | 23 g |
| Working Temperature | -10℃ ~ 50℃ |
Downloads
For all the latest firmware downloads and manuals please consult the official Siyi downloads page here:
MK15 Handheld Ground Station Downloads
FAQ
Siyi has compiled a comprehensive list of frequently asked questions with their respective answers here:
Video and Review of the MK15
https://youtu.be/tbcqIrkkukY
https://youtu.be/sqVFtMFgGbI
https://youtu.be/1v2ylJmMhbc
https://youtu.be/Ikx32zlc9RU
https://youtu.be/tO662KMkw0s
https://youtu.be/8dzhl803zbI

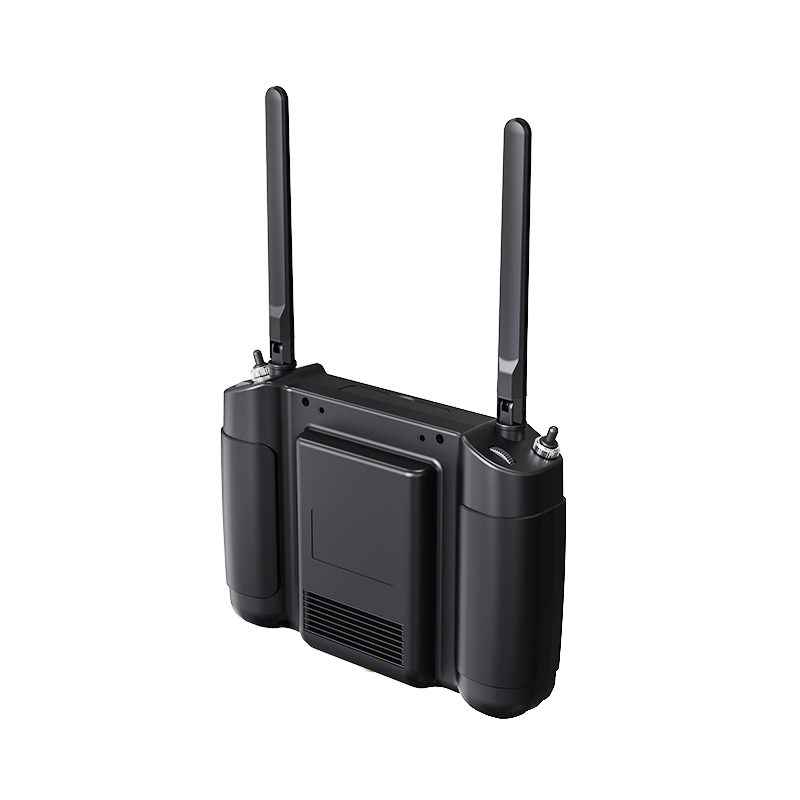

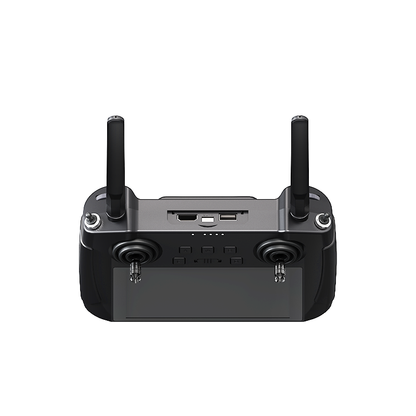

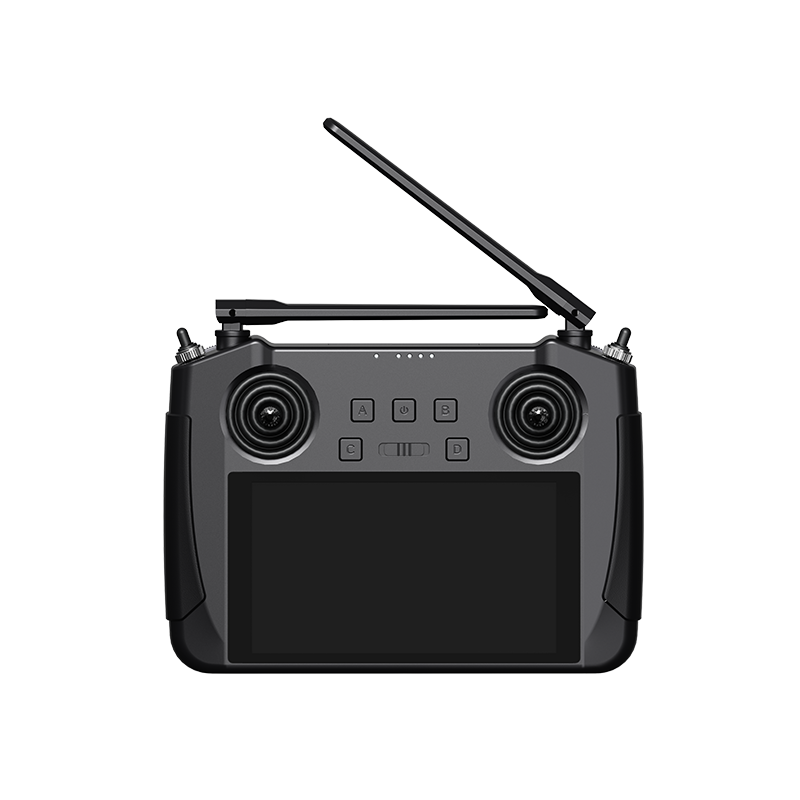

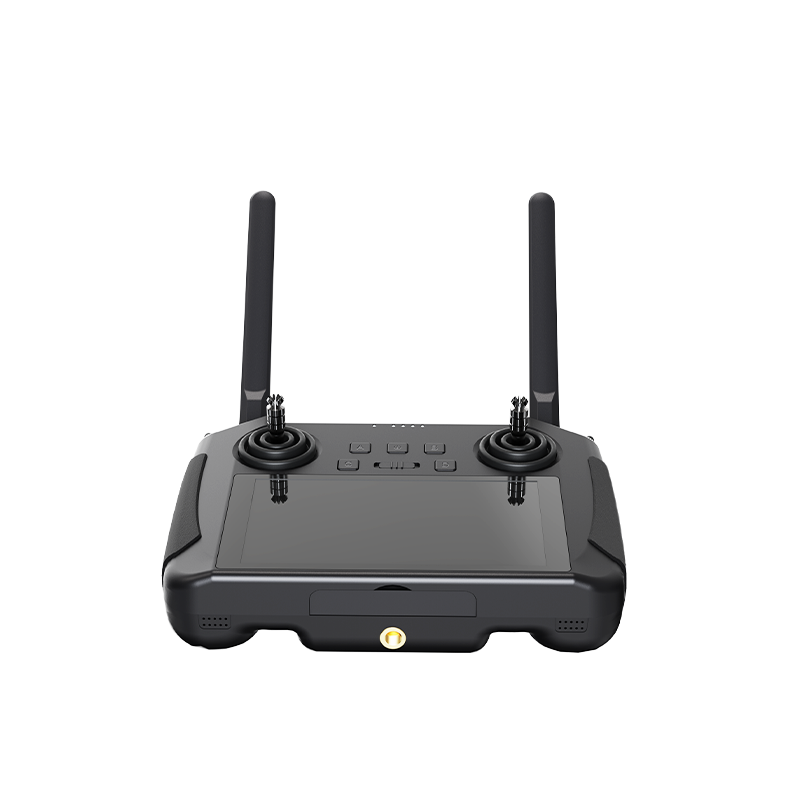

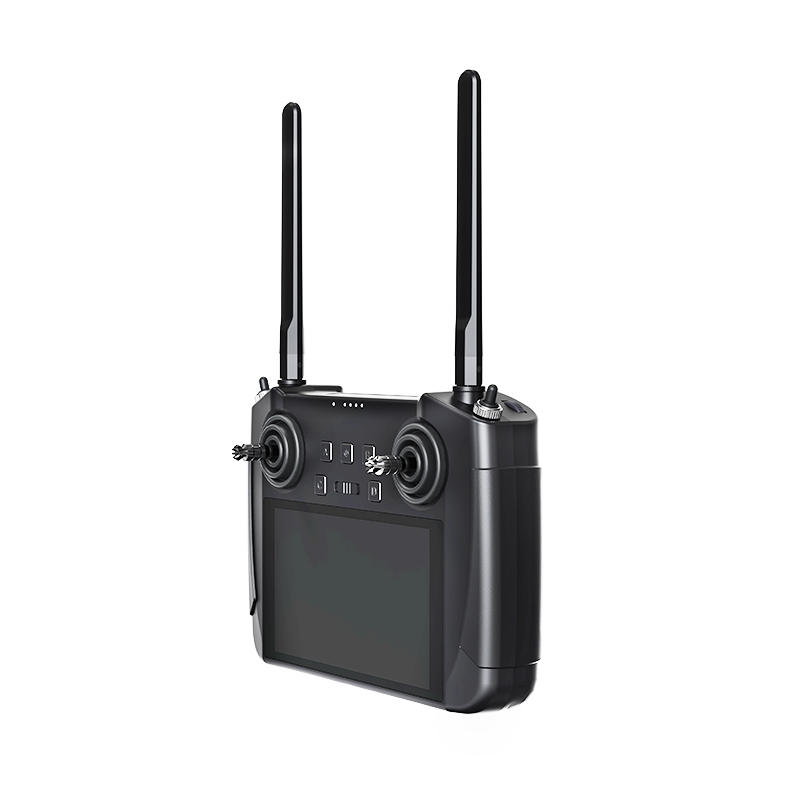

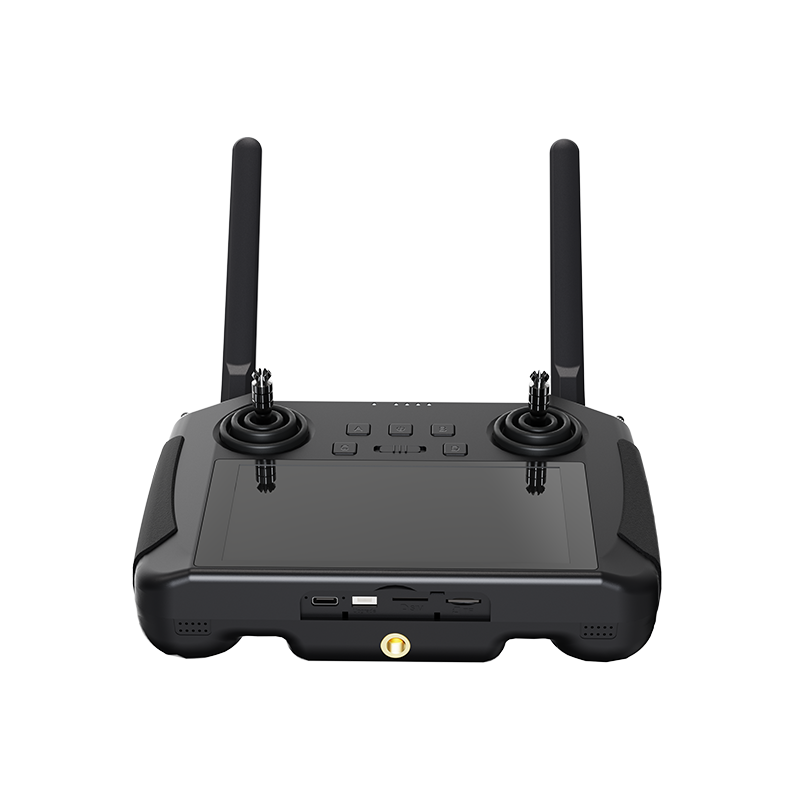

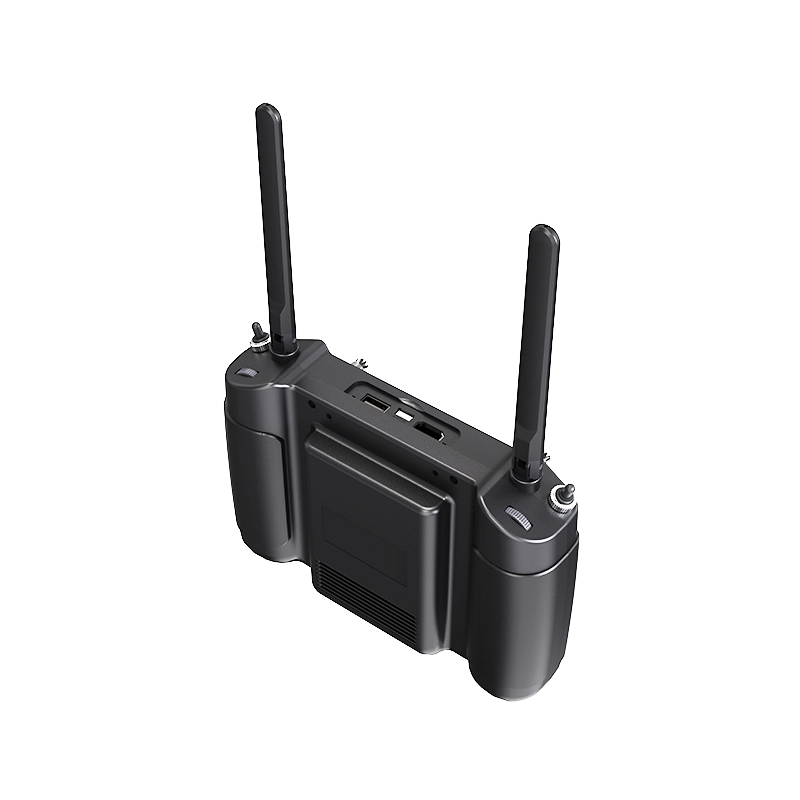

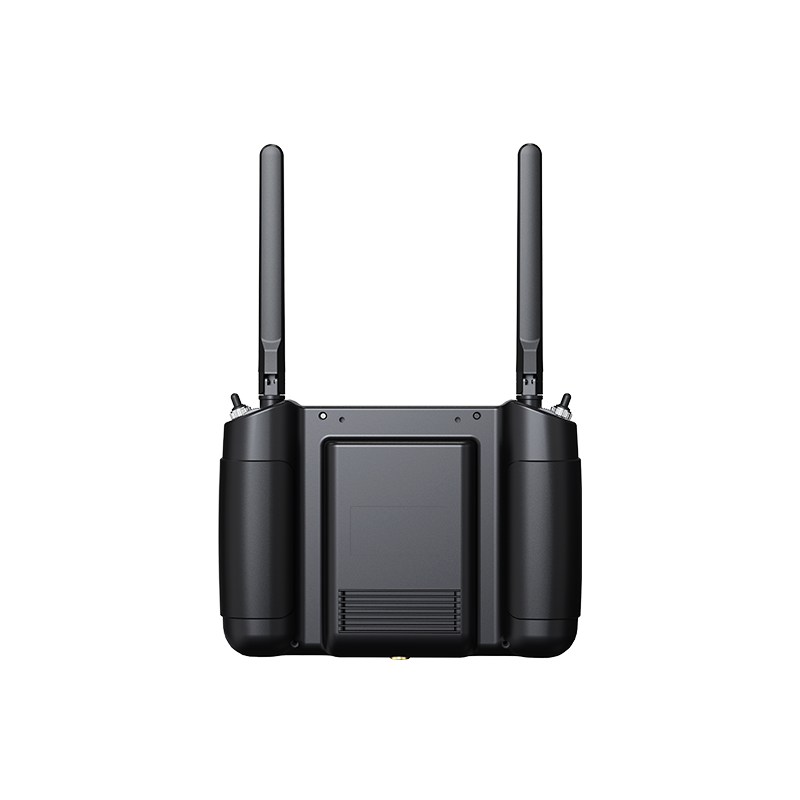

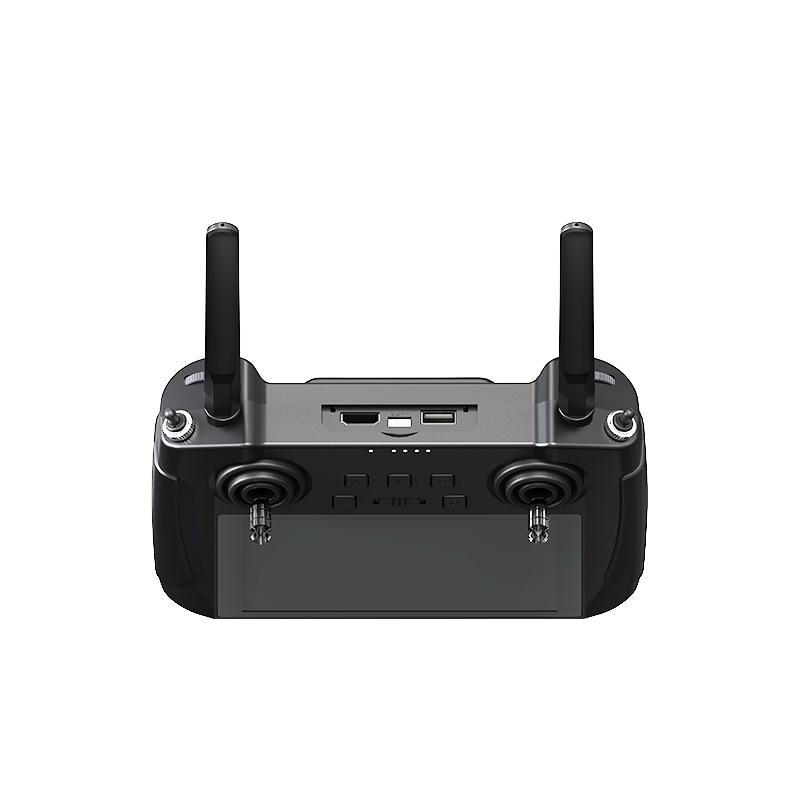

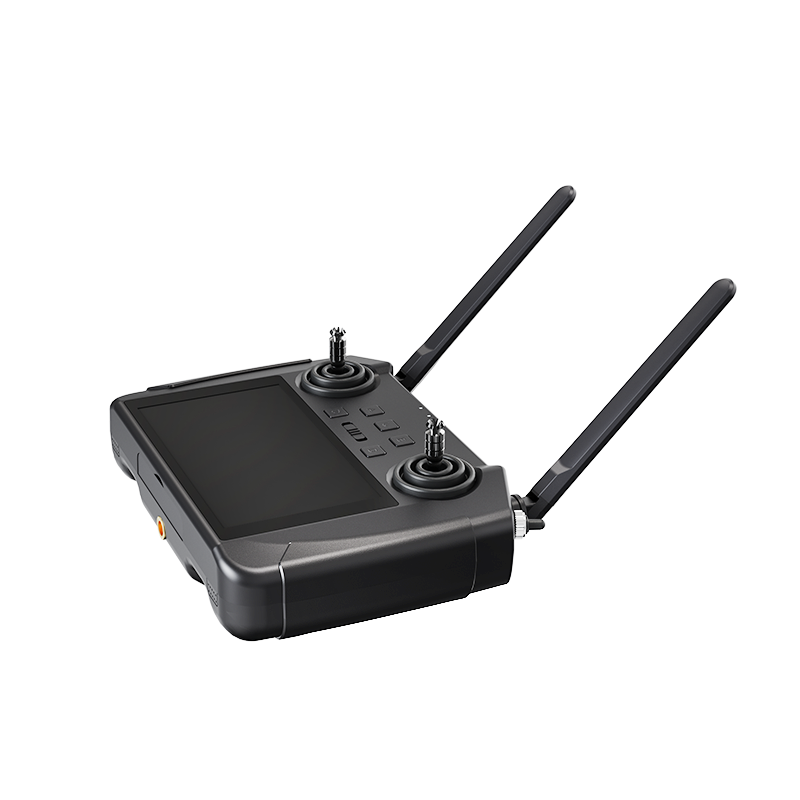

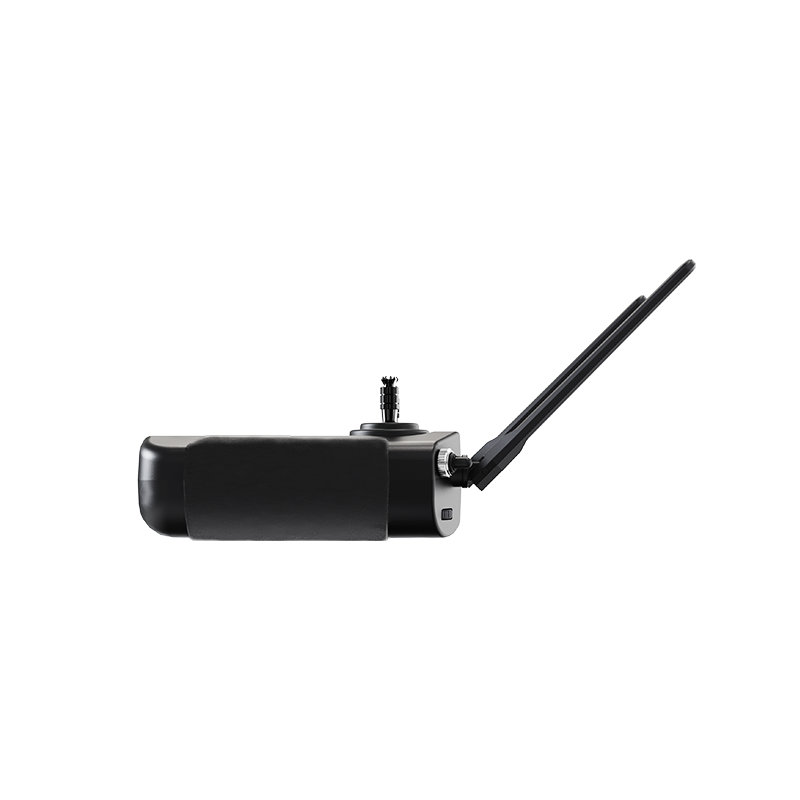

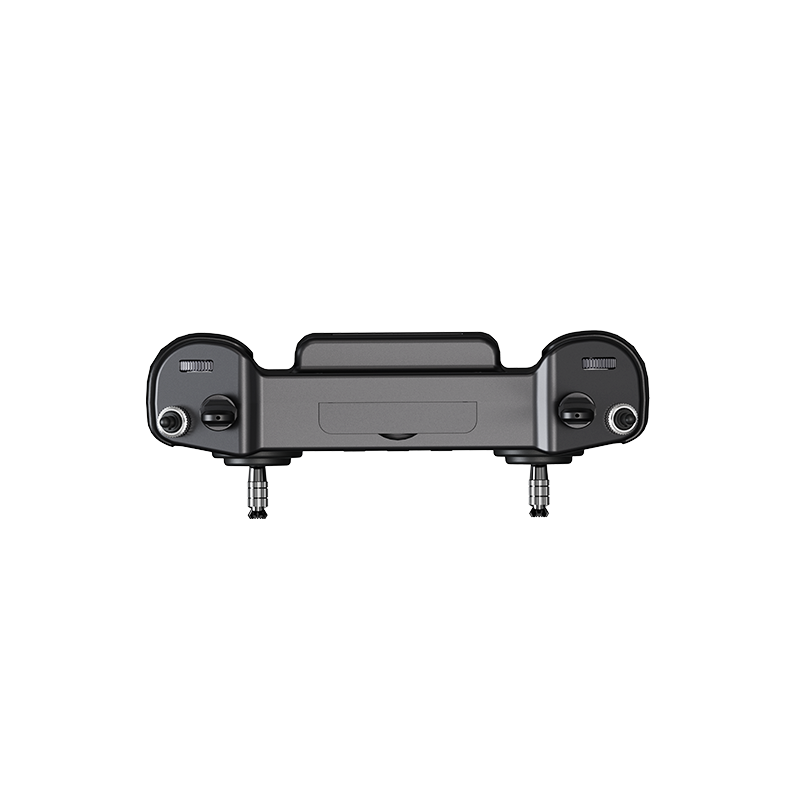

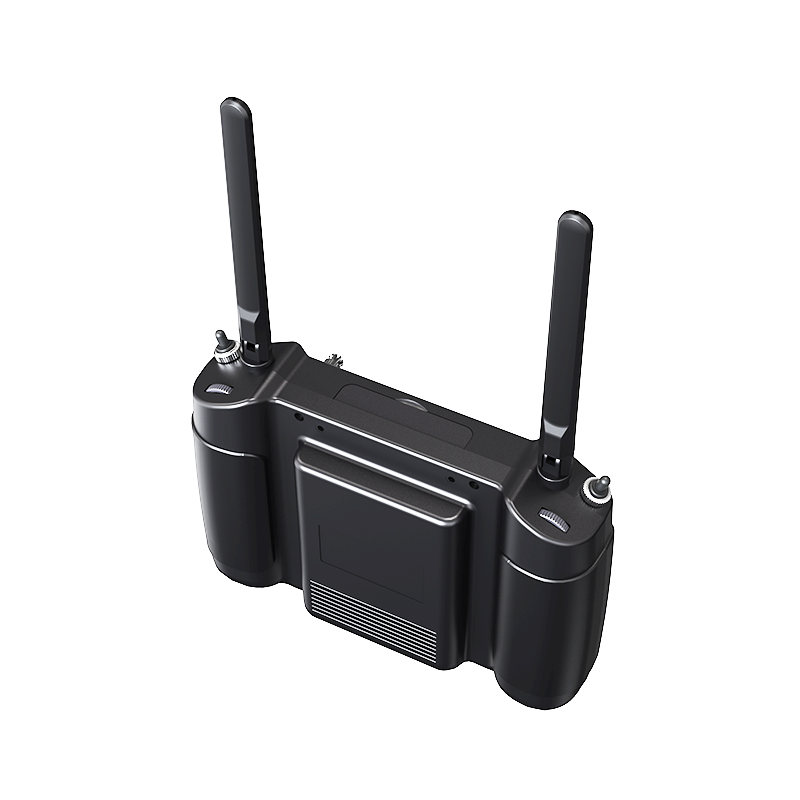

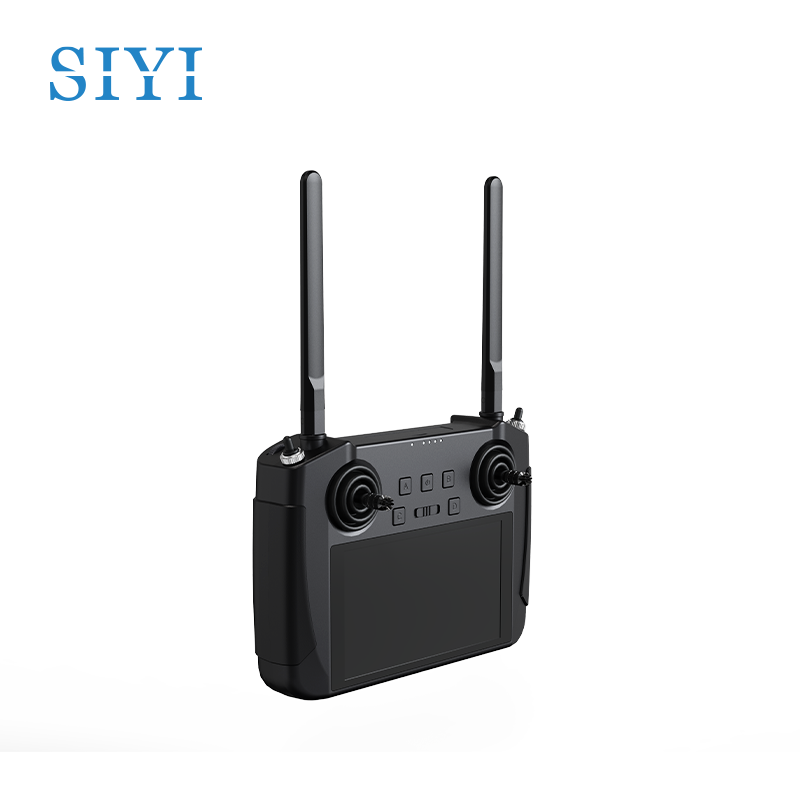

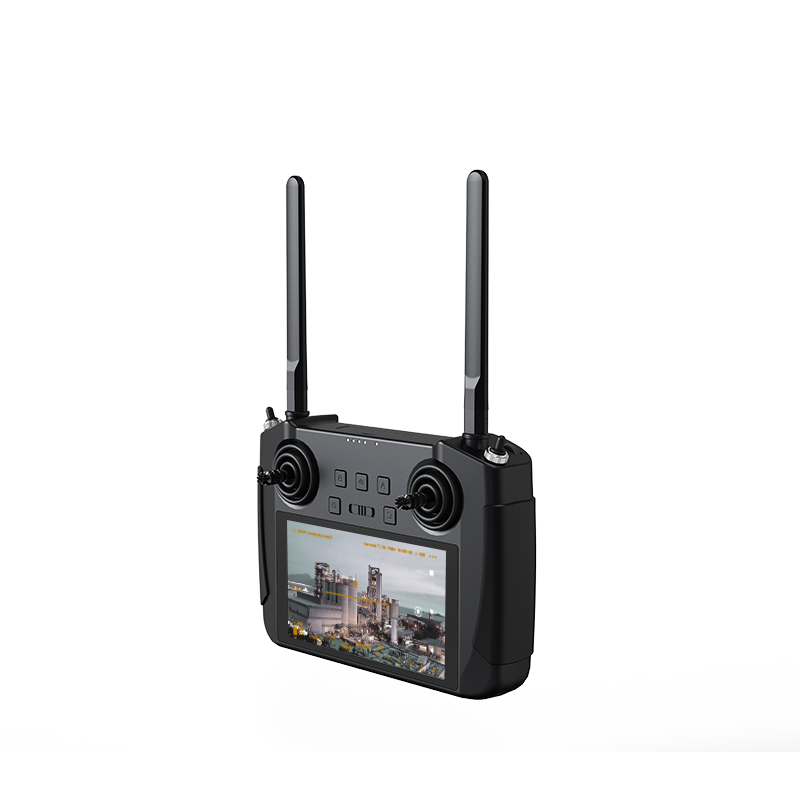

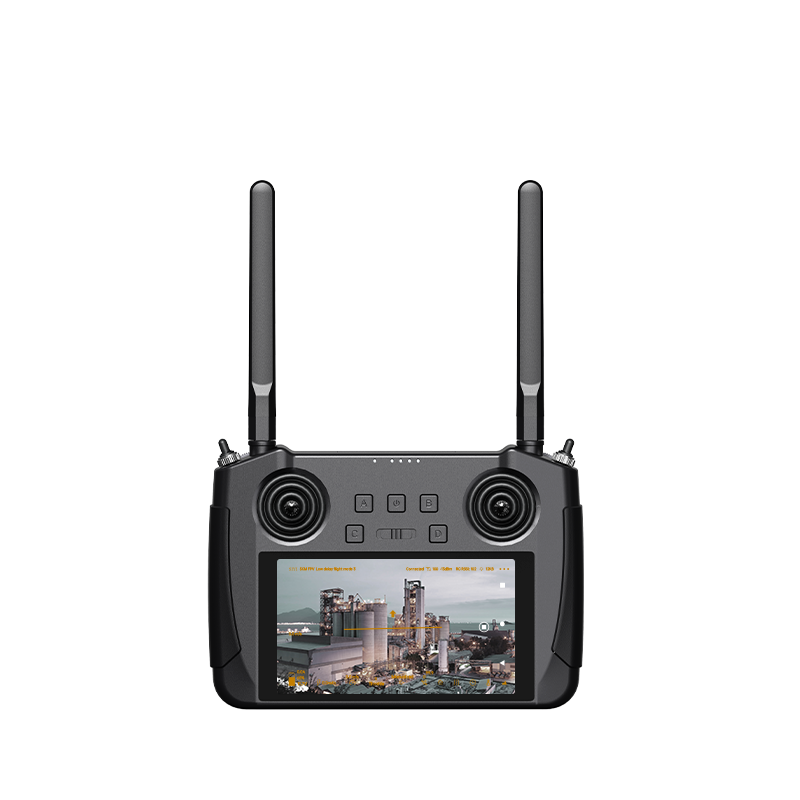

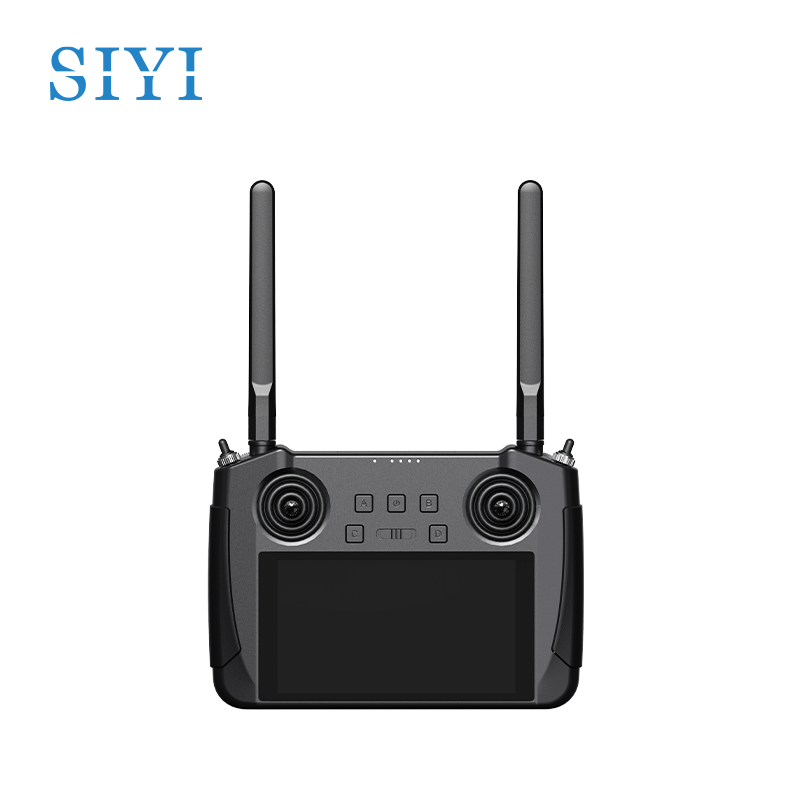

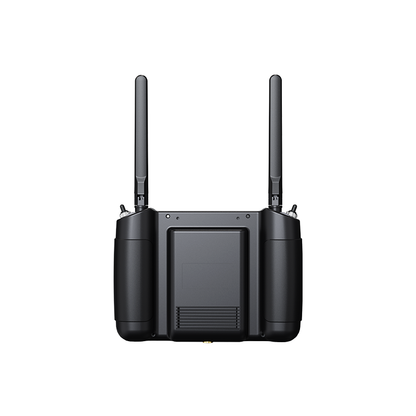

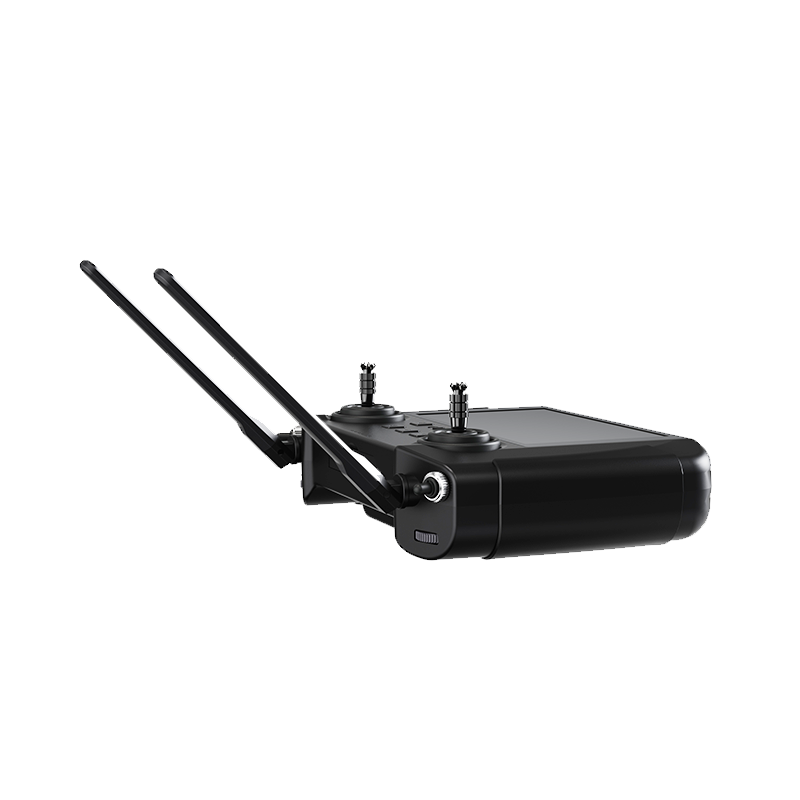

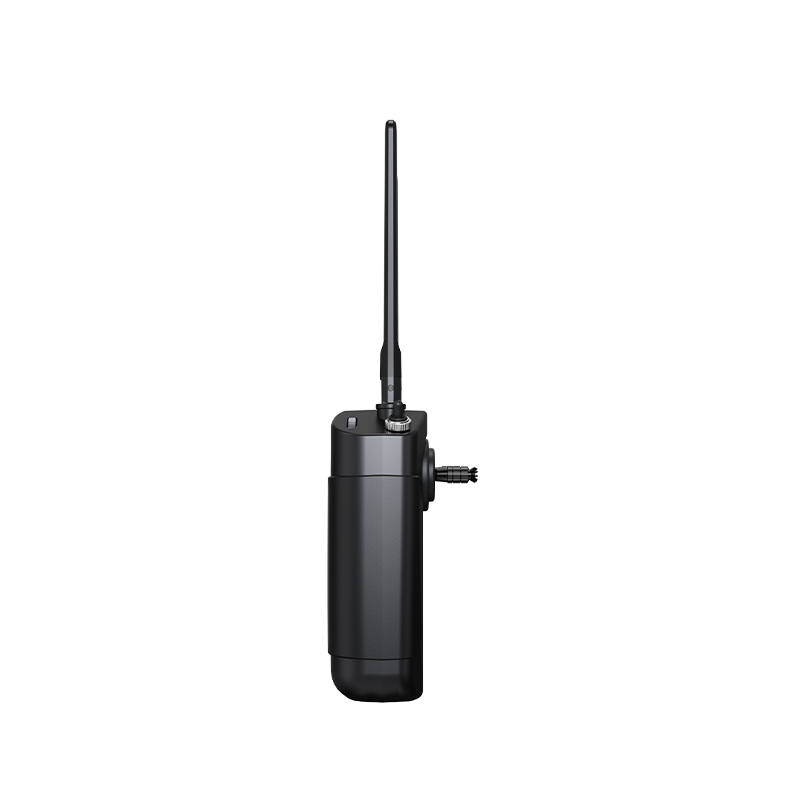

SIYI MK15 Mini HD Handheld Ground Station / Smart Controller
Ready to ditch the tangle of separate transmitters, FPV monitors, video receivers, and questionable control links? Step into the future of UAV and UGV control with the SIYI MK15 Mini HD Handheld Ground Station . This isn't just a transmitter; it's a fully integrated smart controller designed for serious hobbyists and enterprise users who demand long range, crystal-clear video, and robust control.

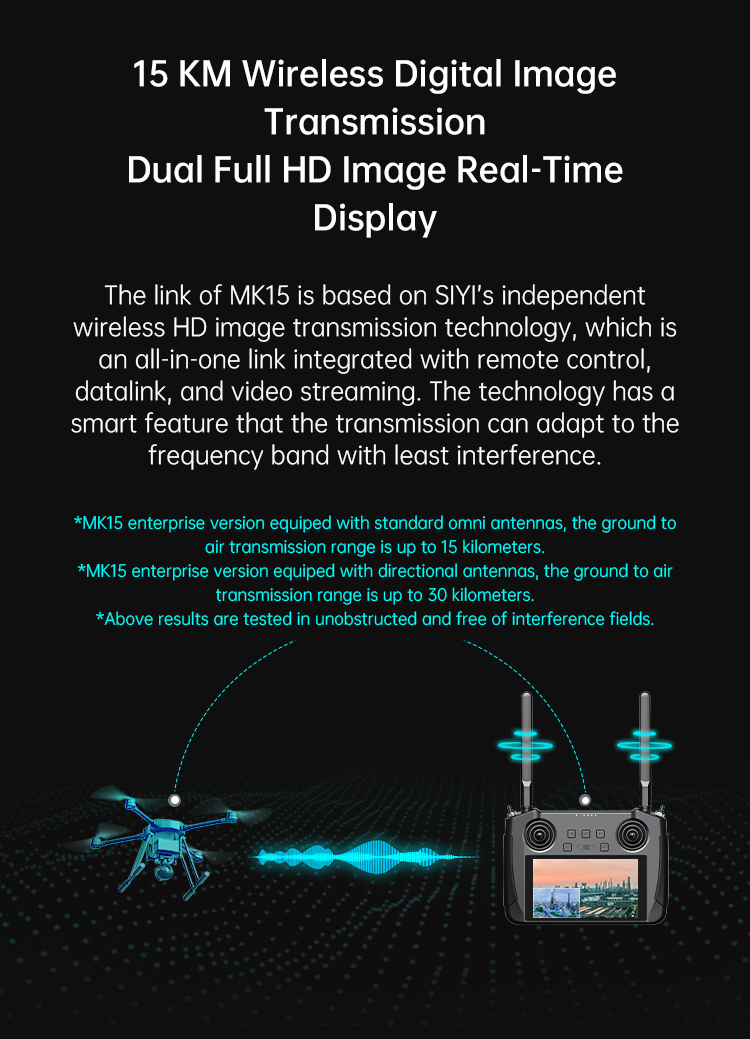

Imagine flying your Pixhawk or ArduPilot-powered drone or driving your UGV up to 15 kilometers away while receiving stunning 1080p HD video directly on the built-in, ultra-bright screen - all with a remarkably low latency of around 180ms . The MK15 makes it possible. Its powerful video processing handles H.264/H.265 decoding at 60fps, ensuring smooth, high-fidelity visuals even at range.

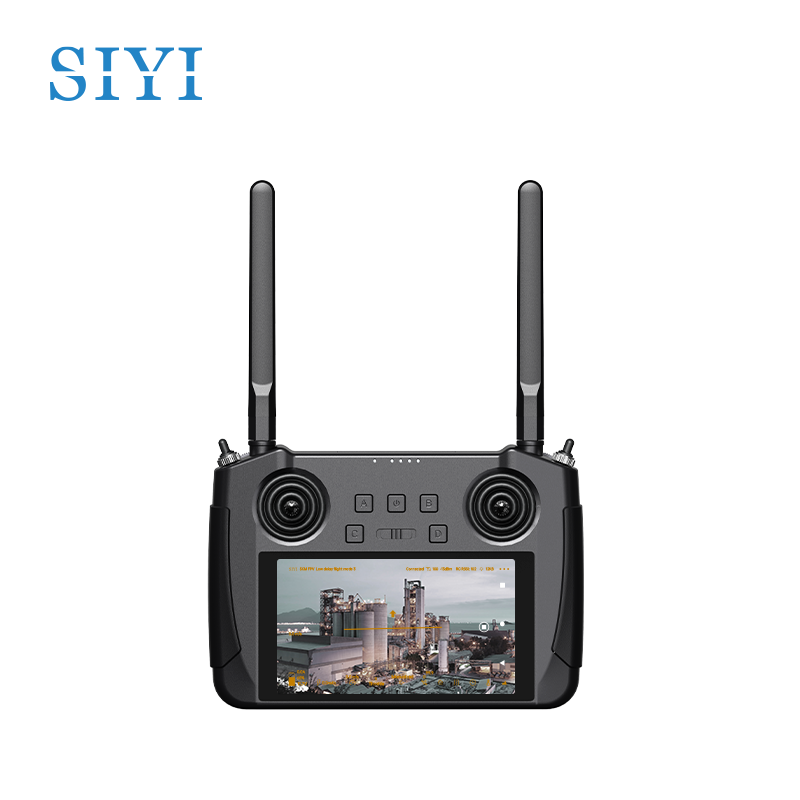

The integrated 5.5-inch 1080p touchscreen boasts a blinding 1000 cd/m² brightness , making it easily viewable even in direct sunlight (goodbye, sun hoods!). Running on an Android OS, it natively supports QGroundControl (QGC) and other compatible GCS applications. With a marathon 12-hour battery life and quick 3.5-hour PD fast charging, you'll spend more time operating and less time tethered to a wall. It's the compact, powerful, all-in-one solution for demanding long-range FPV and control applications.
Search Terms You Might Have Used (You've arrived!): SIYI MK15, Drone Controller, Ground Station, Smart Controller, Long Range RC Transmitter, HD FPV System, Low Latency FPV, 15km Drone Controller, Pixhawk Controller, QGroundControl Controller, UAV Ground Station, UGV Controller, Enterprise Drone Controller, 1080p FPV System, Bright Screen RC Controller, Handheld Ground Station, SIYI Radio.
Key Features:
- Long Range Operation: Up to 15km control and HD video transmission range.
- Dual HD Video: Transmits 1080p video streams.
- Low Latency: Approximately 180ms video latency.
- High-Quality Display: 5.5" Full HD (1080p) touchscreen with 1000 cd/m² brightness.
- Efficient Video Decoding: Supports H.264/H.265 at 1080p@60fps.
- Extended Battery Life: Operates for up to 12 hours on a single charge.
- Fast Charging: Supports PD fast charging (approx. 3.5 hours).
- Platform Compatibility: Seamless integration with Pixhawk/ArduPilot flight controllers via QGroundControl (QGC) and other MAVLink applications.
- Android Based: Flexible operating system allows running various compatible apps.
- Enterprise Ready: Robust build and features suitable for professional use cases (CE/FCC/KC certified).
Specifications:
-
- Model: SIYI MK15 Mini HD Handheld Ground Station
- Max Transmission Range (Unobstructed, FCC): 15 km
- Video Transmission: 1080p @ 60fps
- Video Latency: Approx. 180 ms
- Video Decoding: H.264 / H.265
- Screen: 5.5-inch LCD Touchscreen
- Screen Resolution: 1920 x 1080 pixels
- Screen Brightness: 1000 cd/m²
- Operating System: Android (specific version may vary)
- Battery Life: Up to 12 hours
- Charging: PD Fast Charging (approx. 3.5 hours)
- Compatibility: Pixhawk / ArduPilot based flight controllers, QGroundControl (QGC)
- Antennas: High-gain long-range antennas (included)
- Frequency Bands: Typically 2.4 GHz and/or 5.8 GHz (confirm specific model variant)
- Certifications: CE, FCC, KC

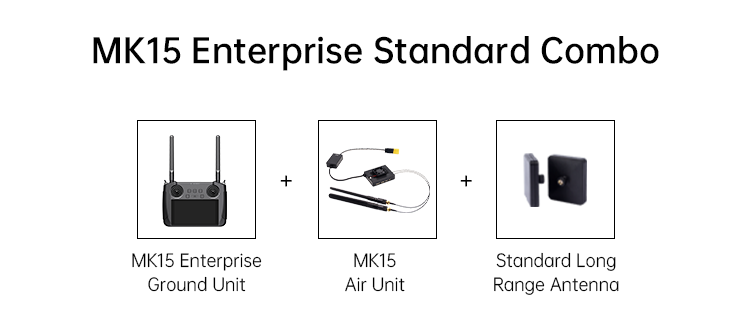

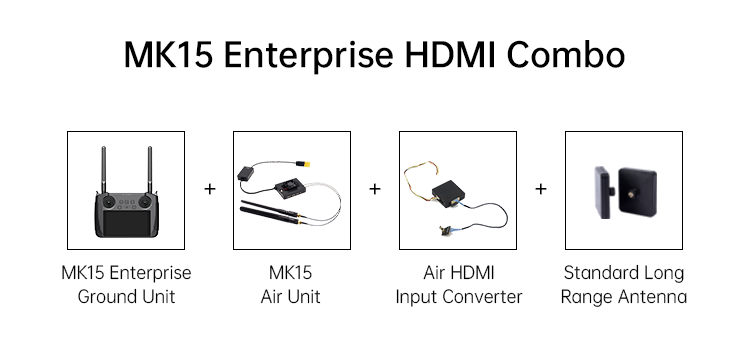

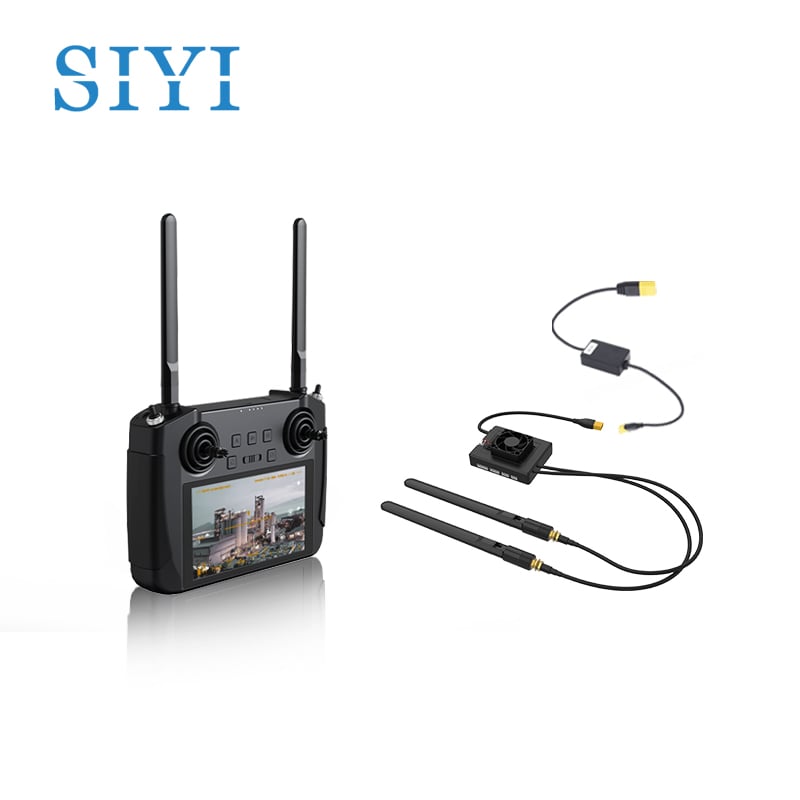

What's In The Box:
- 1 x SIYI MK15 Mini HD Handheld Ground Station Controller
- 1 x Air Unit (Receiver / Video Transmitter)
- Controller Antennas
- Air Unit Antennas
- Various Connection Cables (for Flight Controller, Charging, etc.)
- PD Fast Charger (potentially, or recommended)
- Carrying Case / Protective Pouch (often included with enterprise gear)
- Neck Strap (potentially)
Disclaimer: Exact included accessories, such as specific cable types, charger model, case style, or antenna versions, can vary based on supply batches and regional requirements from SIYI. Please refer to the specific package contents list upon receipt.
