Product Details
Please Note that this product is sold as a registered software product and as per your statutory rights for such products, no returns will be accepted if either the product/packaging seal has been opened, or the device has been activated/registered on the Helium network. We will not refund any registration and asserting fees on the network.
The Sensecap M1 does include a 12 month manufacturer warranty, please see terms and scope of this warranty here.

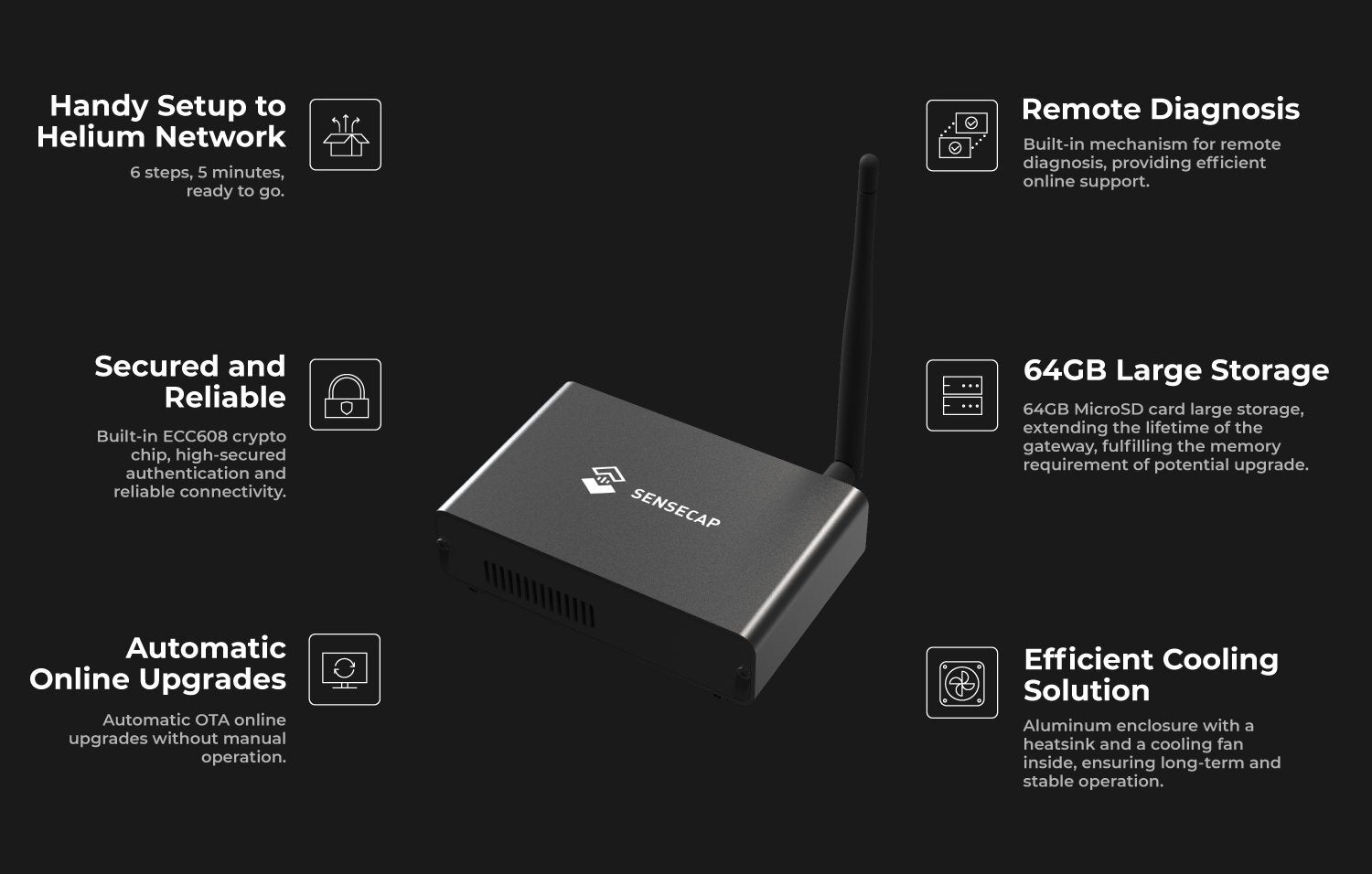

Features
- Handy Setup to Helium Network. 6 steps, 5 minutes, ready to go.
- Powered by Mature Hardware Solutions. Raspberry Pi 4(2G/4G/8G RAM) and WM1302/WM1303 (Semtech SX1302/SX1303) baseband LoRa chip.
- Secured and Reliable. Built-in ECC608 crypto chip, high-security authentication, and reliable connectivity.
- Automatic Online Upgrades. Automatic OTA upgrades, without manual operation.
- Remote Diagnosis. Built-in remote diagnostics mechanism, efficient online support.
- 64GB Large Storage. 64GB MicroSD card large storage, extending the lifetime of the gateway, fulfilling the memory requirement of potential upgrade.
- Efficient Cooling Solution. Aluminium enclosure with a heatsink and cooling fan inside, ensuring long-term and stable operation.

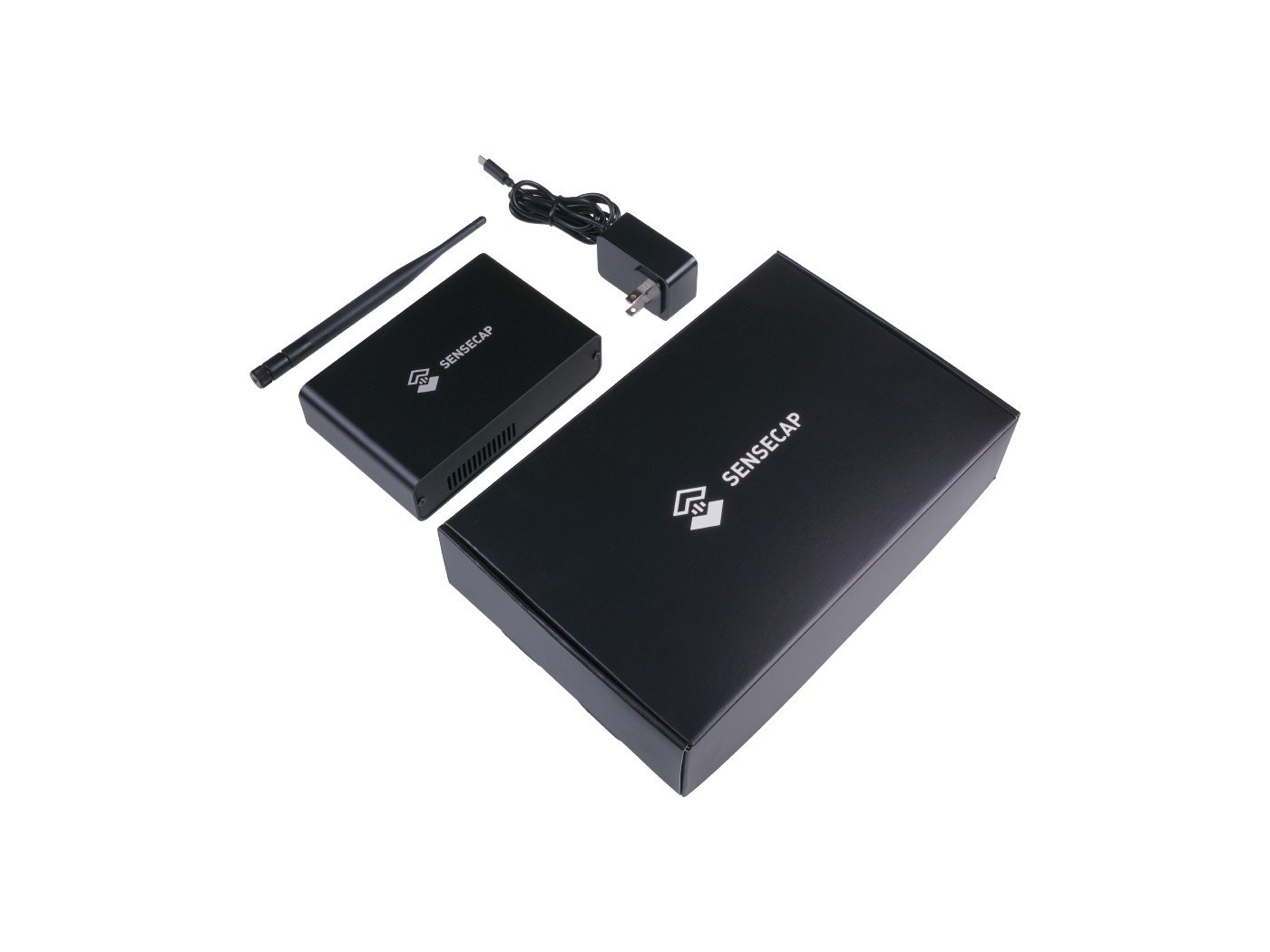

- Multiple Accessories. Fiberglass antenna, slider pad for sliding rod installation, and upcoming outdoor enclosure, etc.
- FCC and CE Certificated. Available for personal and commercial use.

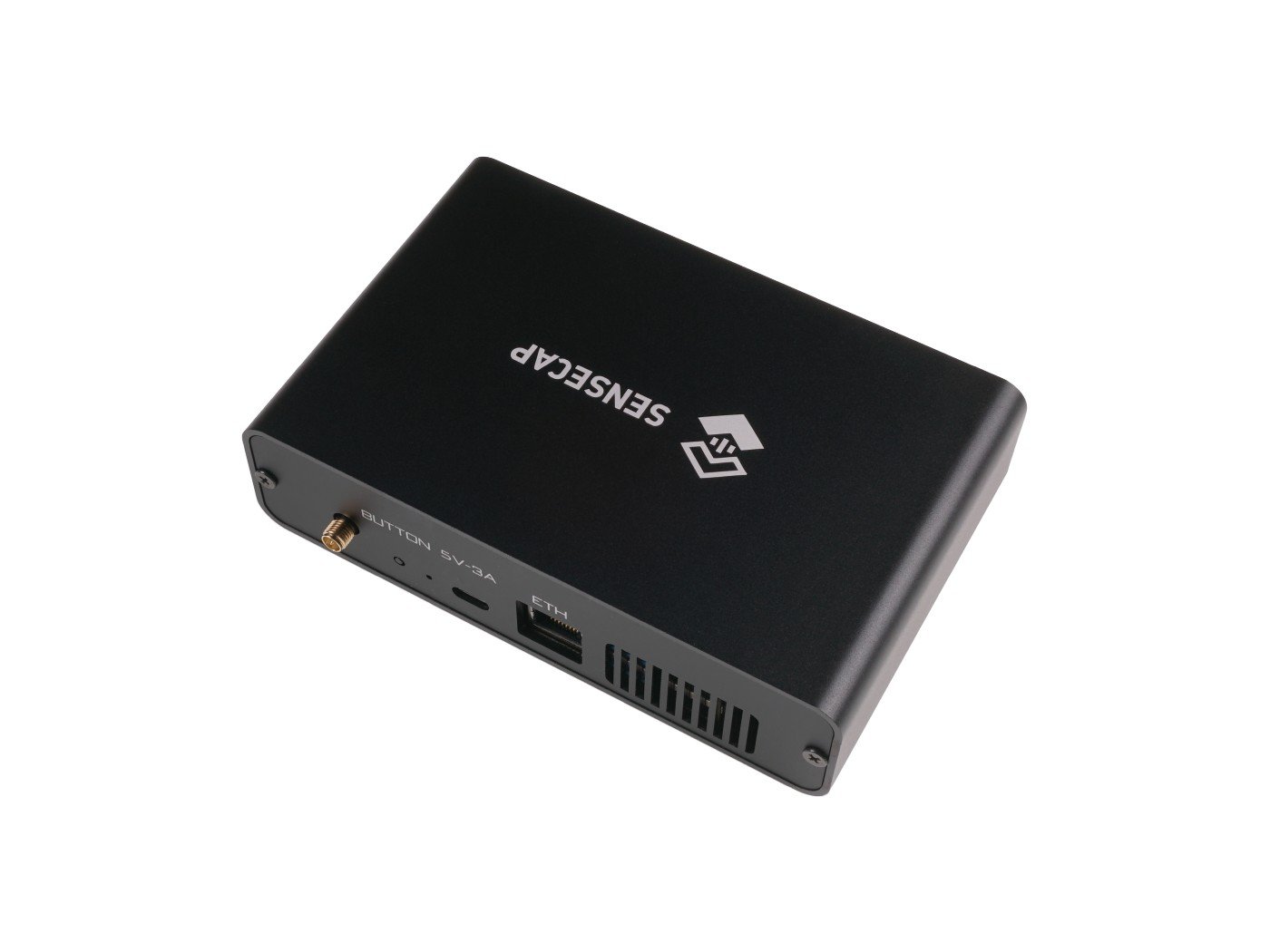

Hardware Overview
FAQ
Please see the SenseCAP M1 FAQ for answers to the most common questions
Specifications
| Processor | Raspberry Pi 4 (Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz) |
| RAM | 2GB / 4GB / 8GB |
| Storage | 64GB MicroSD Card |
| Frequency |
EU868 Version: 863MHz ~ 870MHz
US915 Version: 902MHz ~ 928MHz |
| Sensitivity | -125dBm @125KHz/SF7 |
| -139dBm @125KHz/SF12 | |
| TX Power | Up to 26 dBm |
| Antenna Gain |
US915: 2.6 dBi
EU868: 2.8 dBi |
| Antenna Impedance | 50 Ohm |
| Antenna Radiation Pattern | Omni-Directional |
| Wi-Fi | 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless |
| Bluetooth | Bluetooth 5.0, BLE |
| LoRaWAN | Supports Class A, C |
| Input Voltage | DC 5V - 3A |
| Interfaces |
USB Type-C (Power Supply) * 1
Ethernet RJ45 * 1 RP-SMA Female Antenna Connector* 1 |
| Operating Temperature | 0°C to 50°C |
| Relative Humidity | 0% - 90% (non-condensing) |
| Heat Dissipation | Aluminum enclosure, a heatsink, and a cooling fan |
| IP Grade | IP20 |
| Certification | FCC / CE |
