RushFPV Tank Tiny 200mW Nano VTX

RushFPV Tank Tiny 200mW Nano VTX

066-CC3-EA3

£19.32 GBP
£0.00 GBP £19.32 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

🇬🇧

Compliance Requirement

This product is capable of operating at power levels or on frequencies that require a specific licence or exemption to operate legally in the UK. As such, it is legally classified as Restricted / Amateur Radio Apparatus.

To purchase this item, you must confirm:

  • You understand this is not a standard consumer device.
  • You hold the necessary authorization (e.g. Amateur Radio Licence) to operate it.
View full details

Product Details

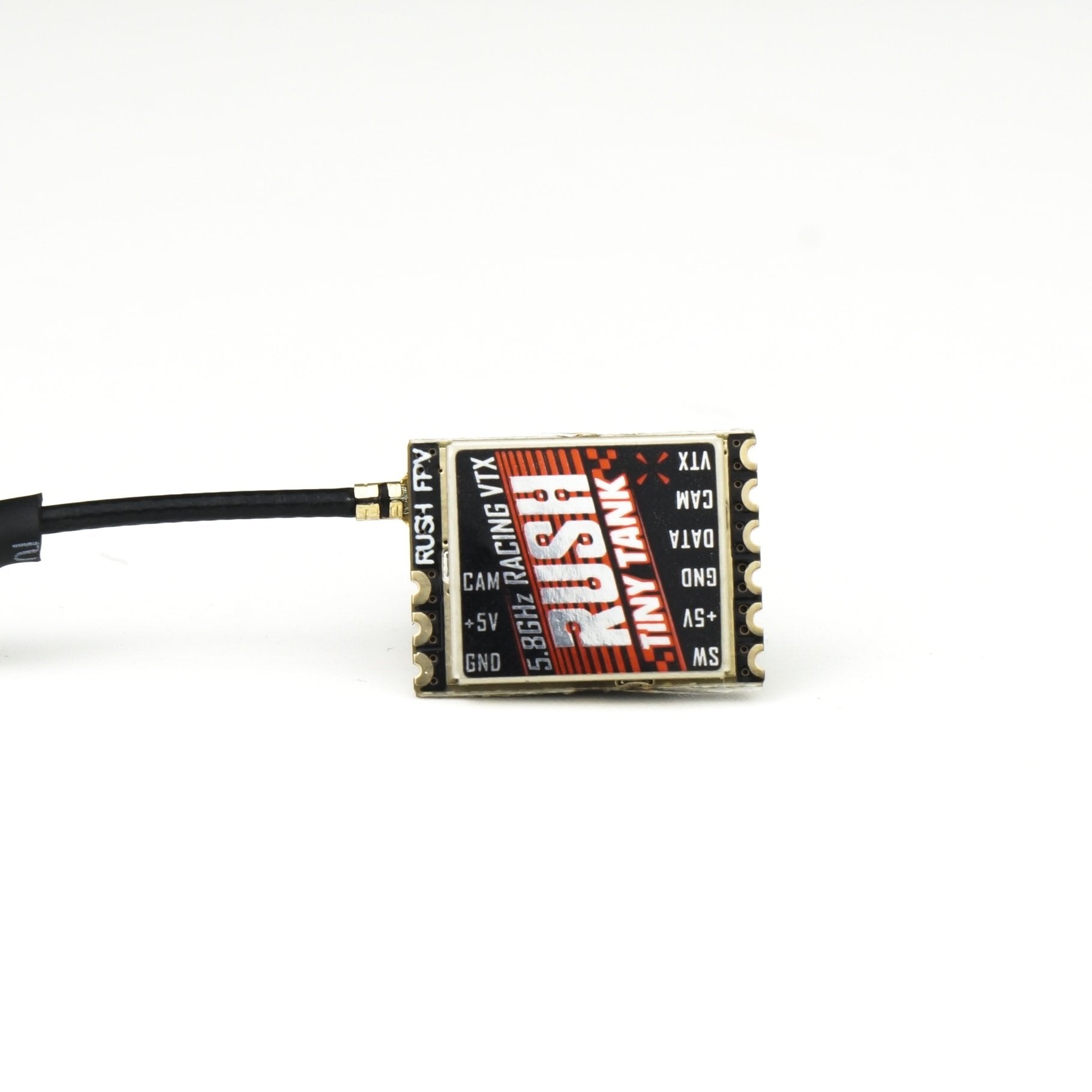

The Rush Tank Tany is a nano VTX build by one of the leaders when it comes to FPV VTX units. Its a tiny 48 channel VTX that supports TBS smart audio protocol and is power switchable up to 200mW. This makes it one of the best VTX units to run on your micro drone or tiny whoops, particularly with the sled adaptor board.

Features

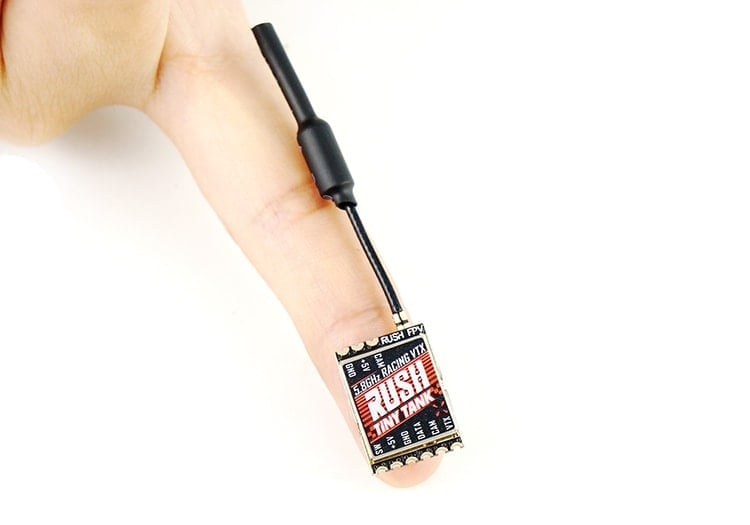

  • Ridiculously Tiny
  • Compact Robust Design
  • Variable Output from 25 to 200mW
  • Pit Mode
  • Officially Licensed Smart Audio from TBS

Specifications

  • Item Name: Rush Tank Tiny
  • Input Voltage: 5V
  • Output Voltage: 5V
  • Channels: 48CH RaceBand / LowRace
  • Power: PIT/25/100/200/350 mW

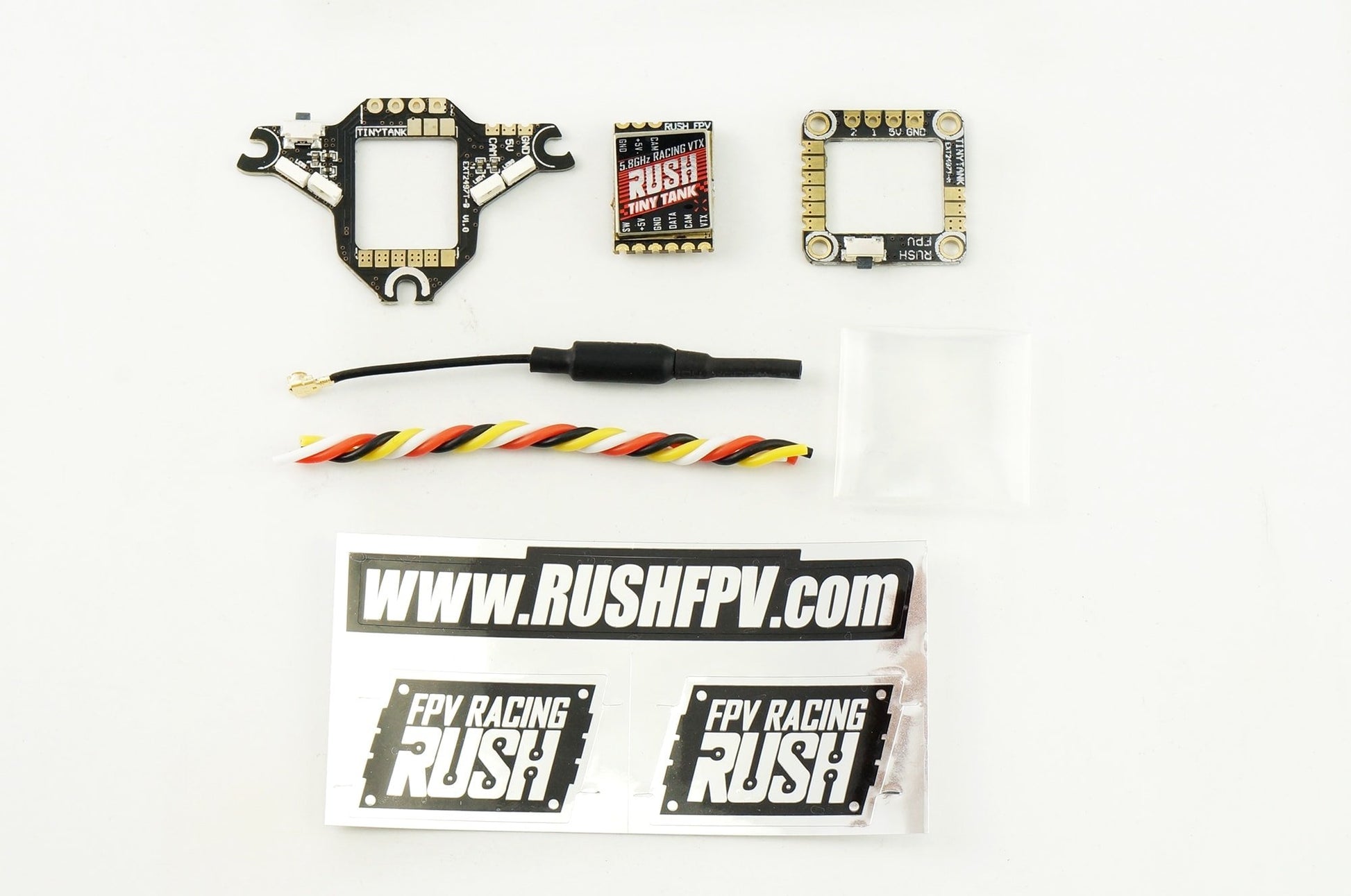

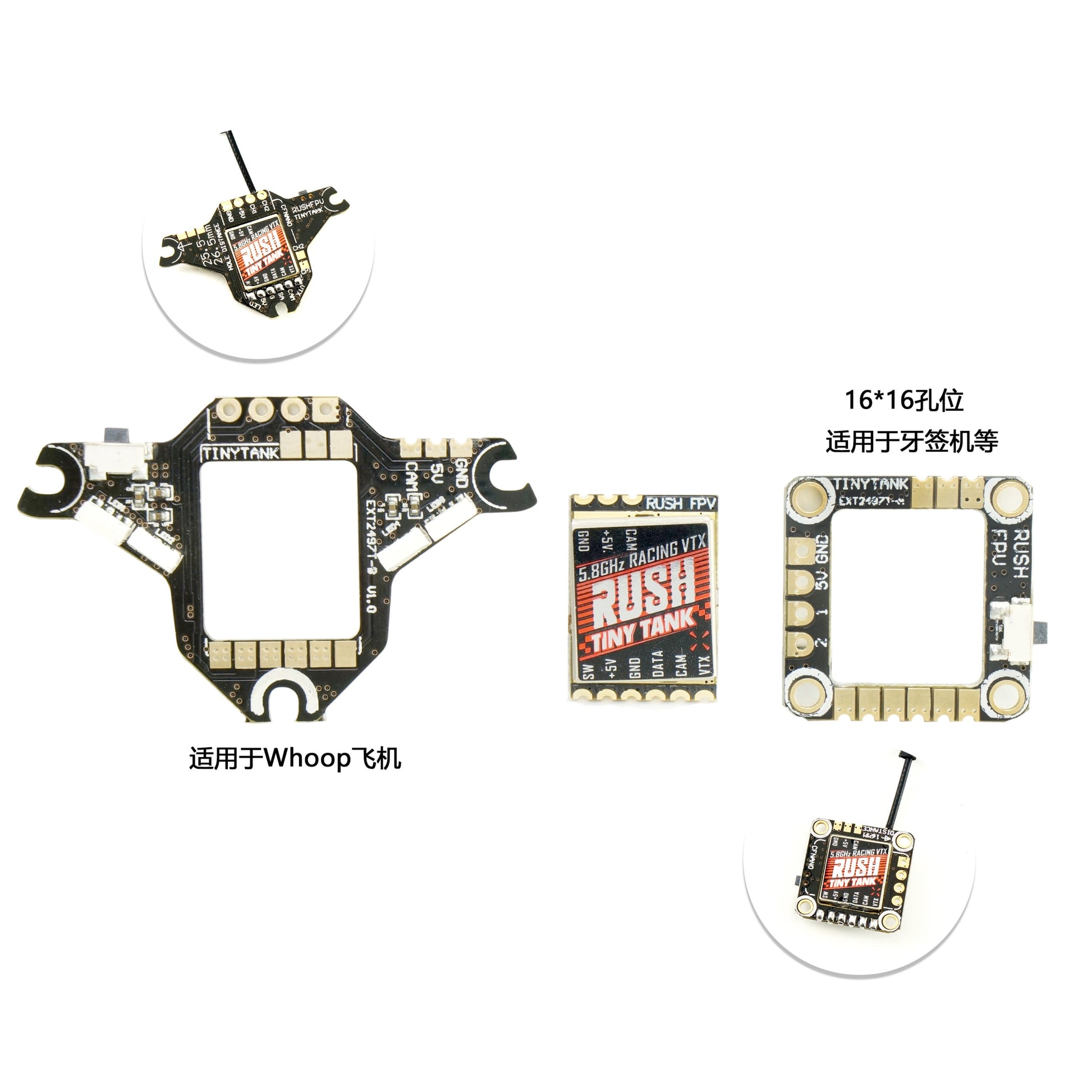

Includes

  • 1x Rush Tiny Tank FPV VTX
  • 1x 16x16 stack adaptor board
  • whoop mount adaptor board

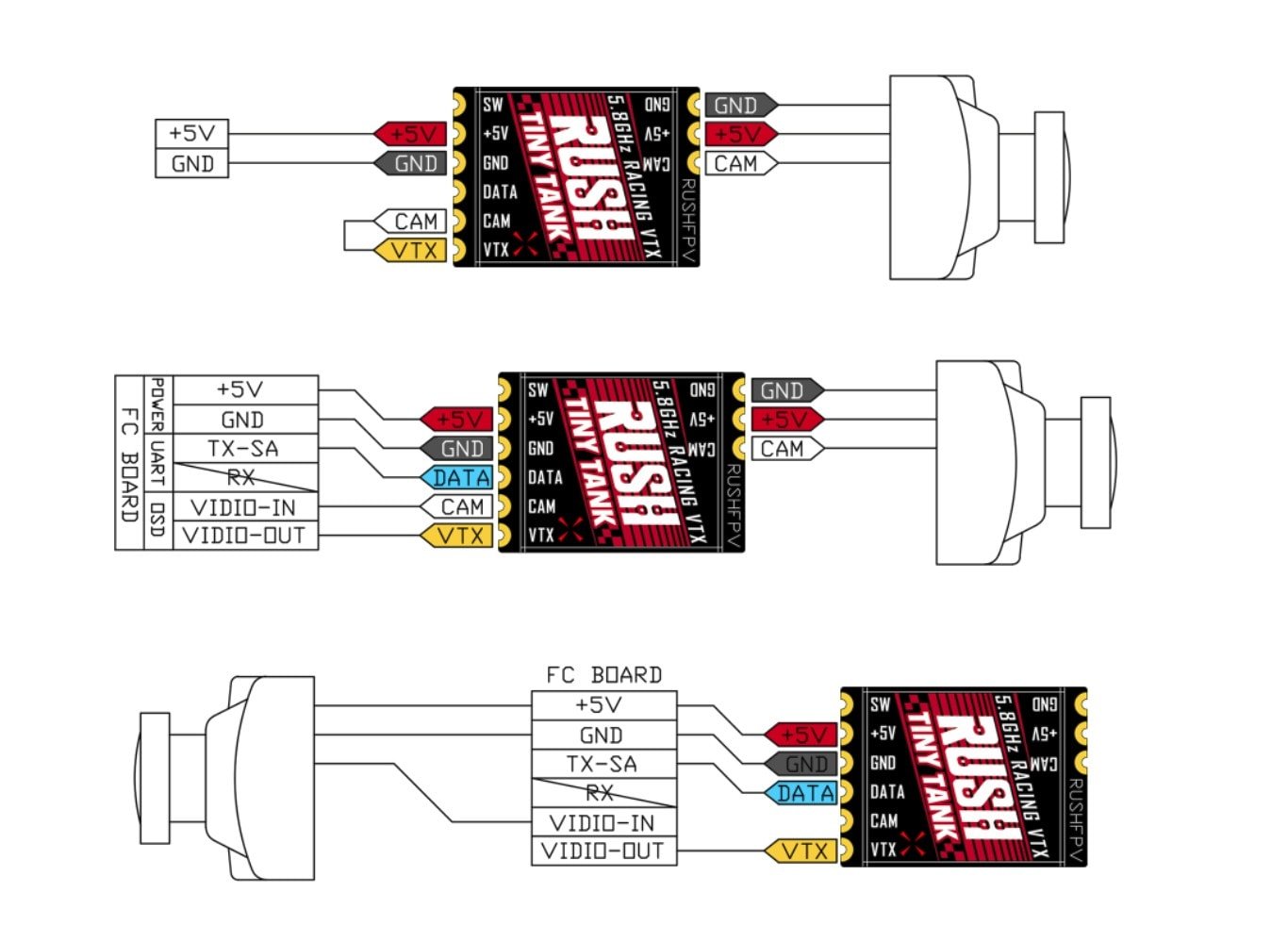

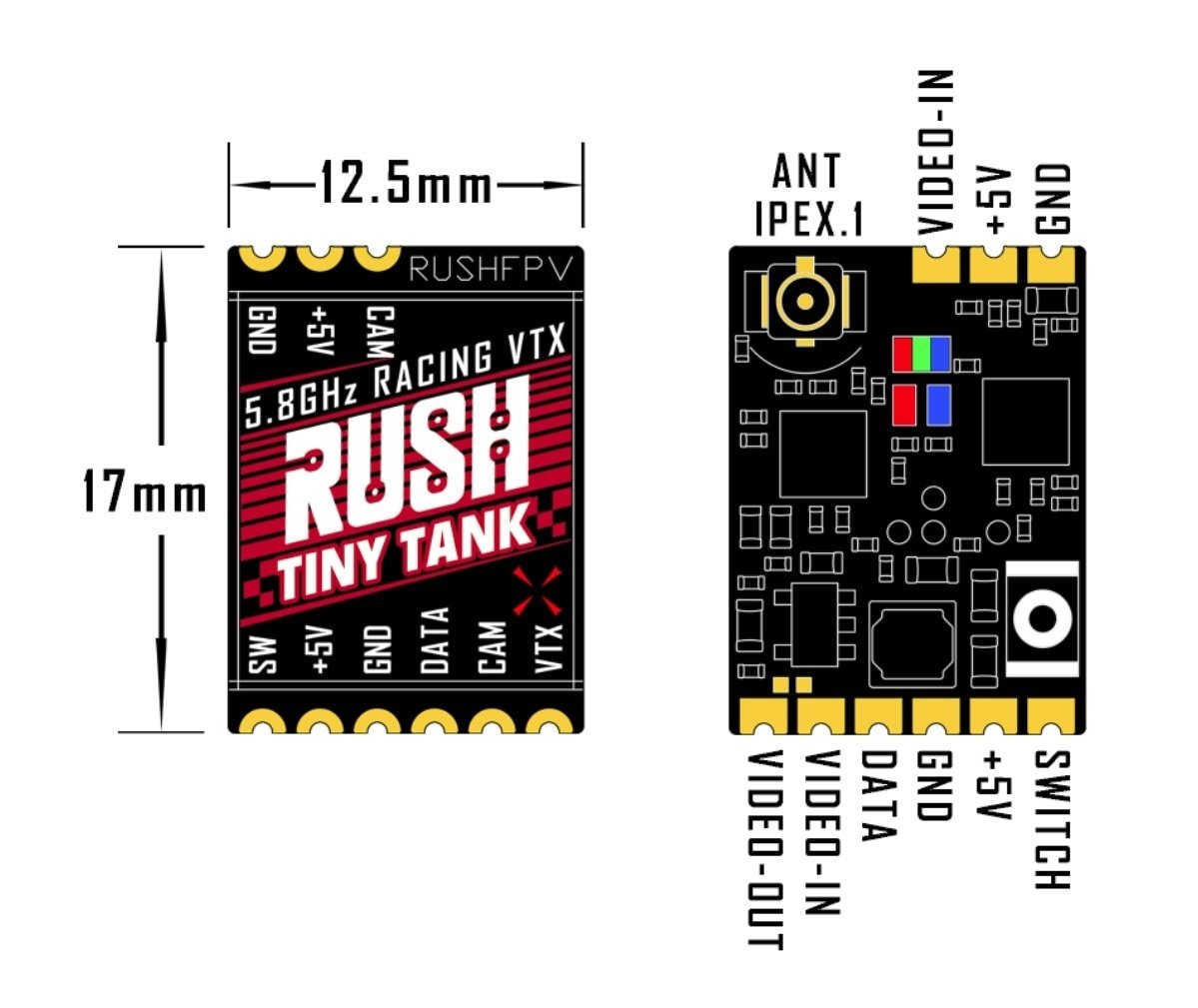

Rush Tank Tany Pinout / Connection Guide

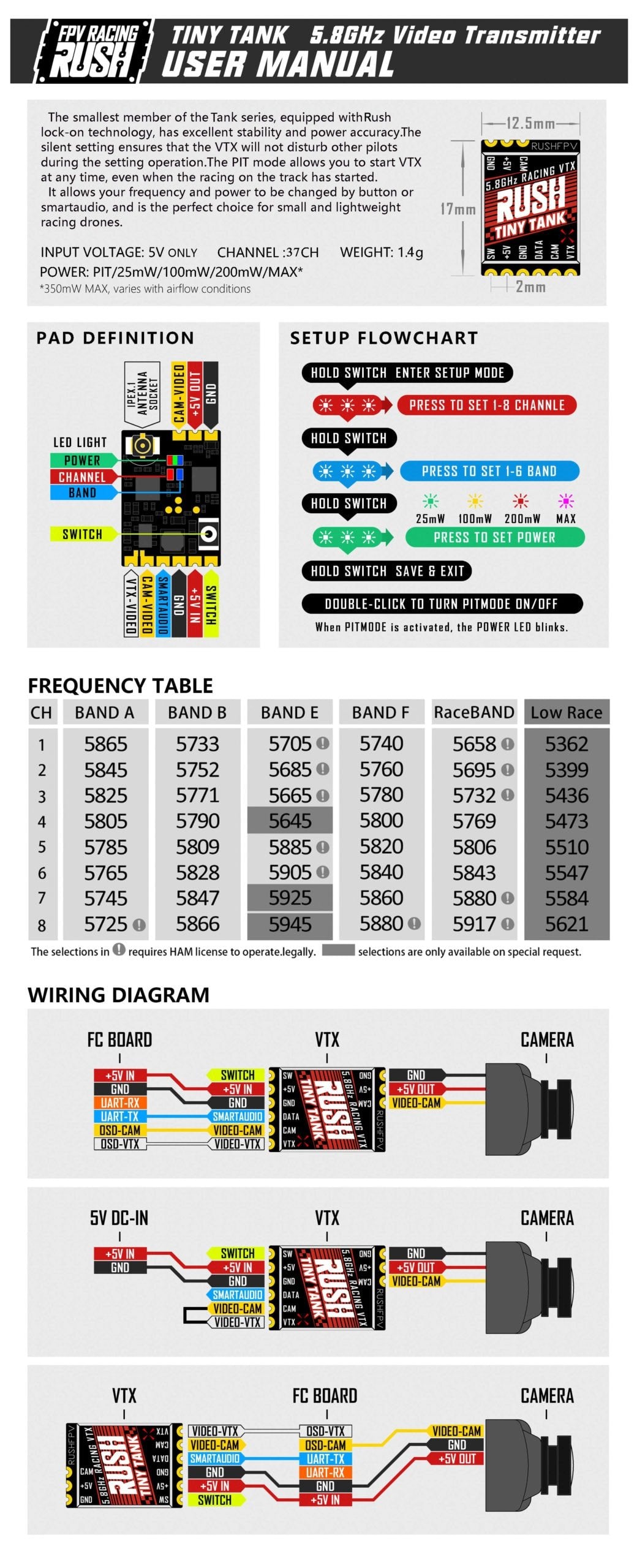

Rush Tank Mini User Manual
