Product Details

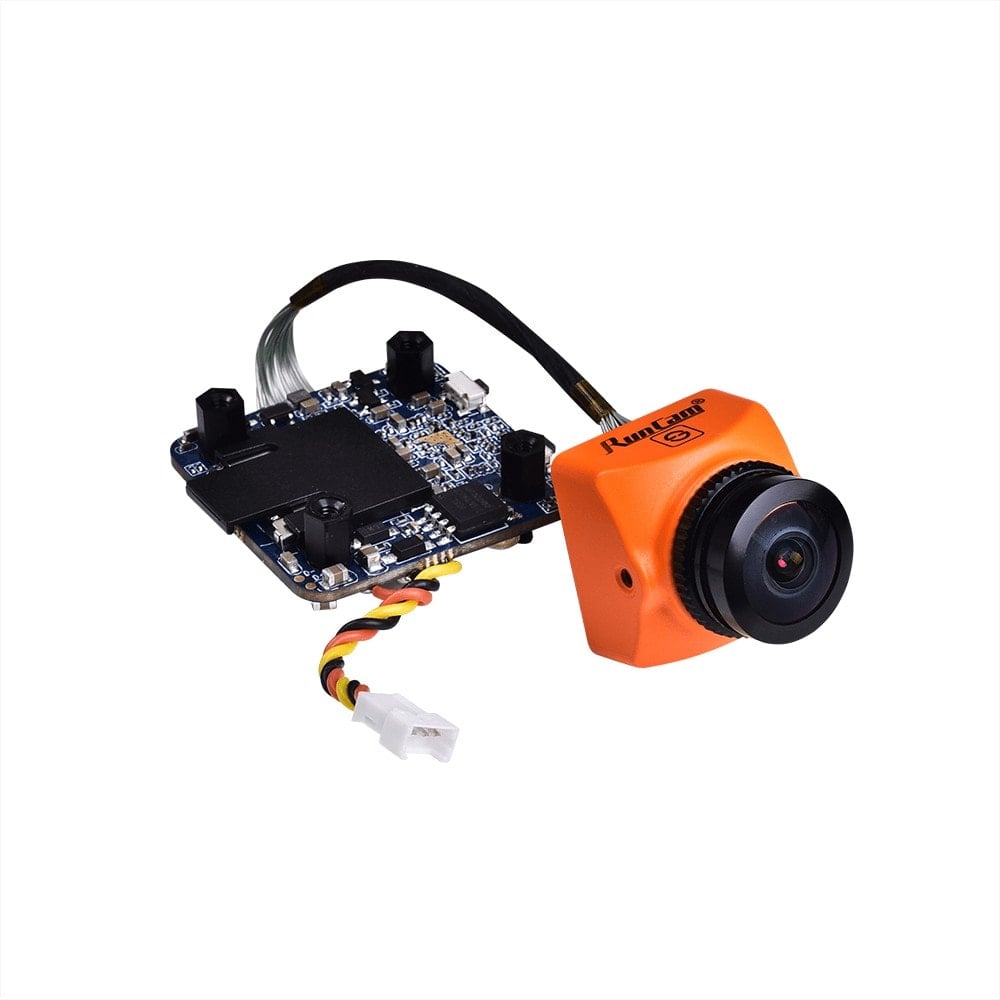

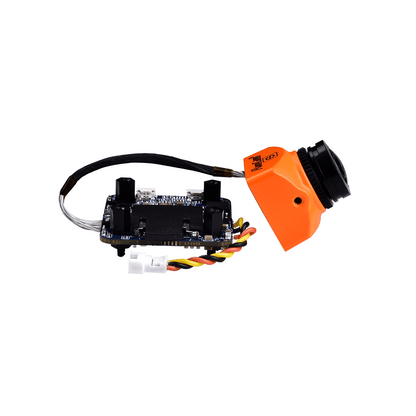

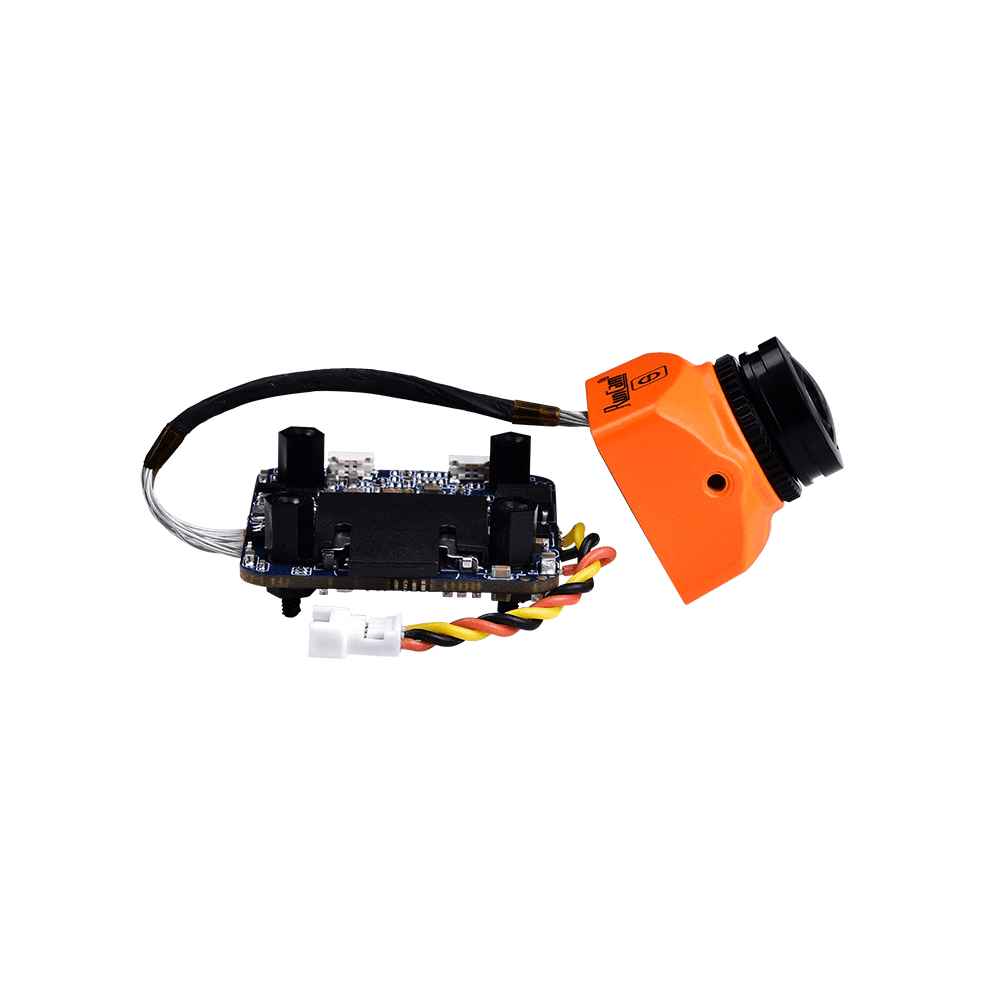

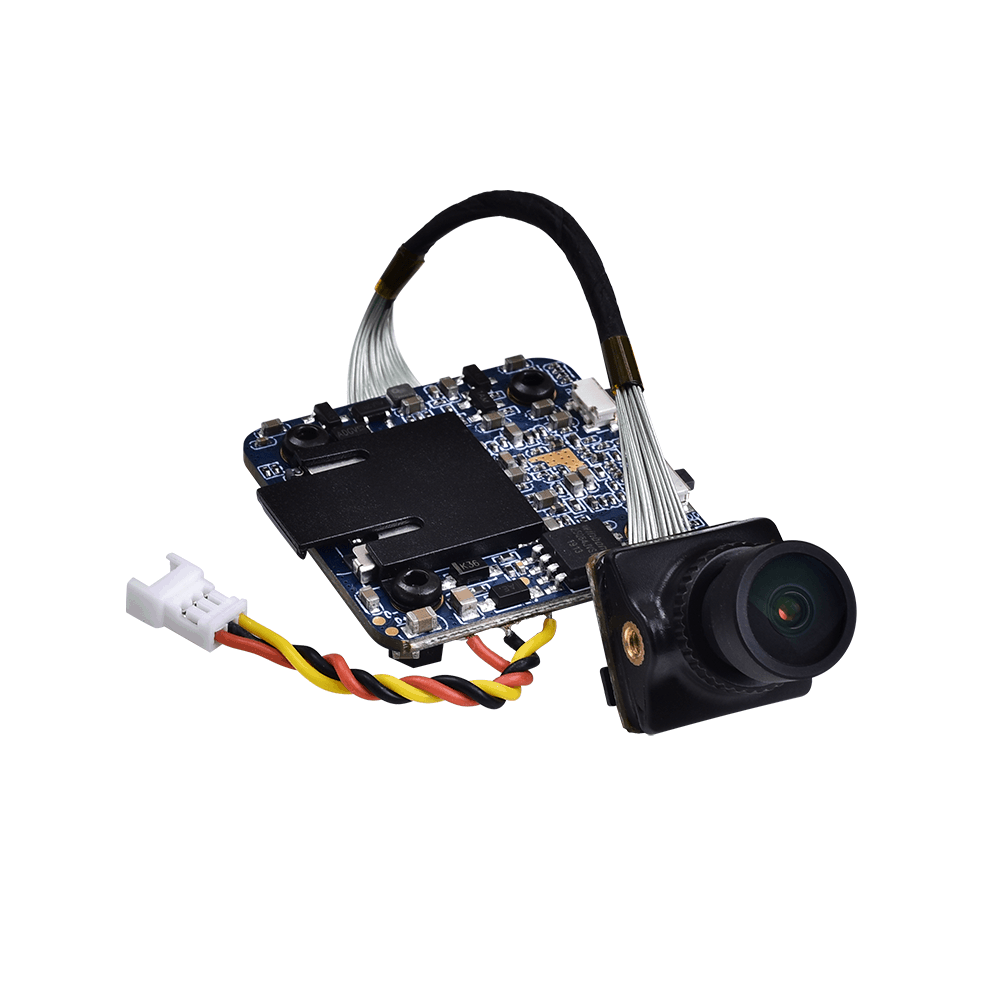

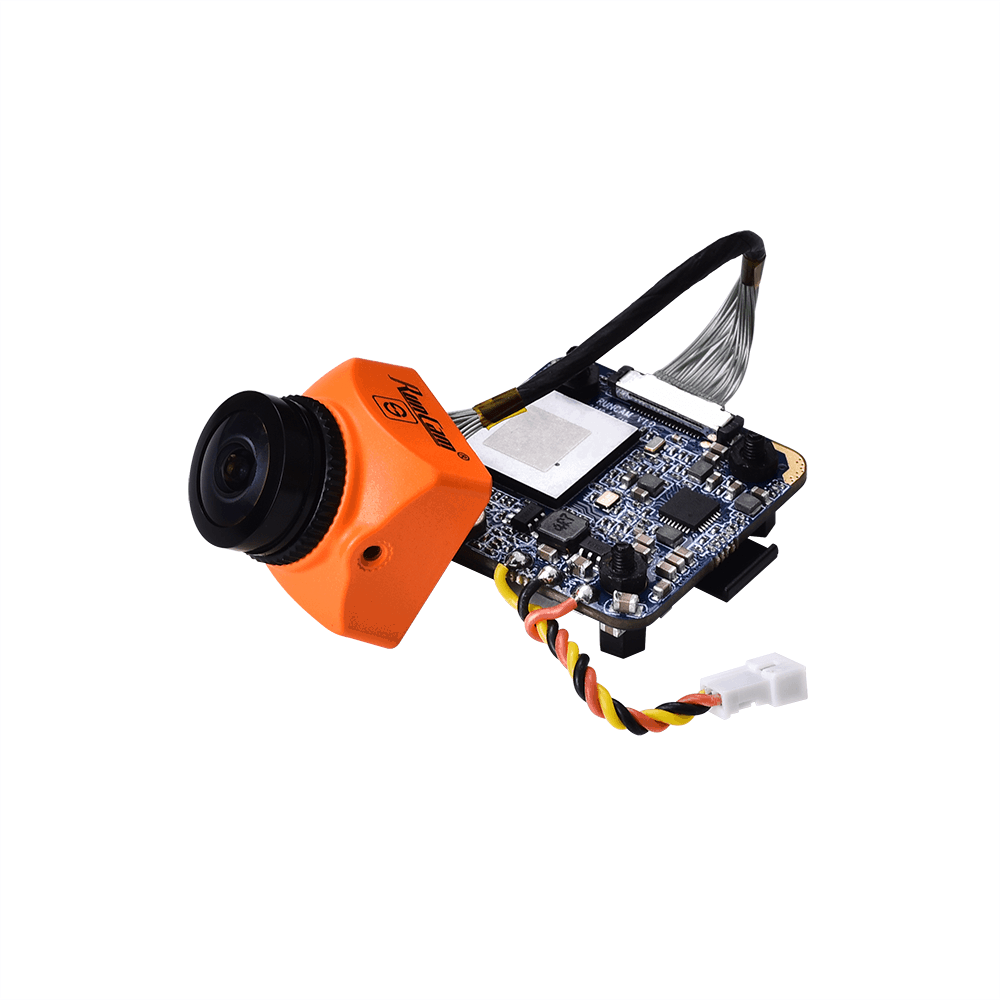

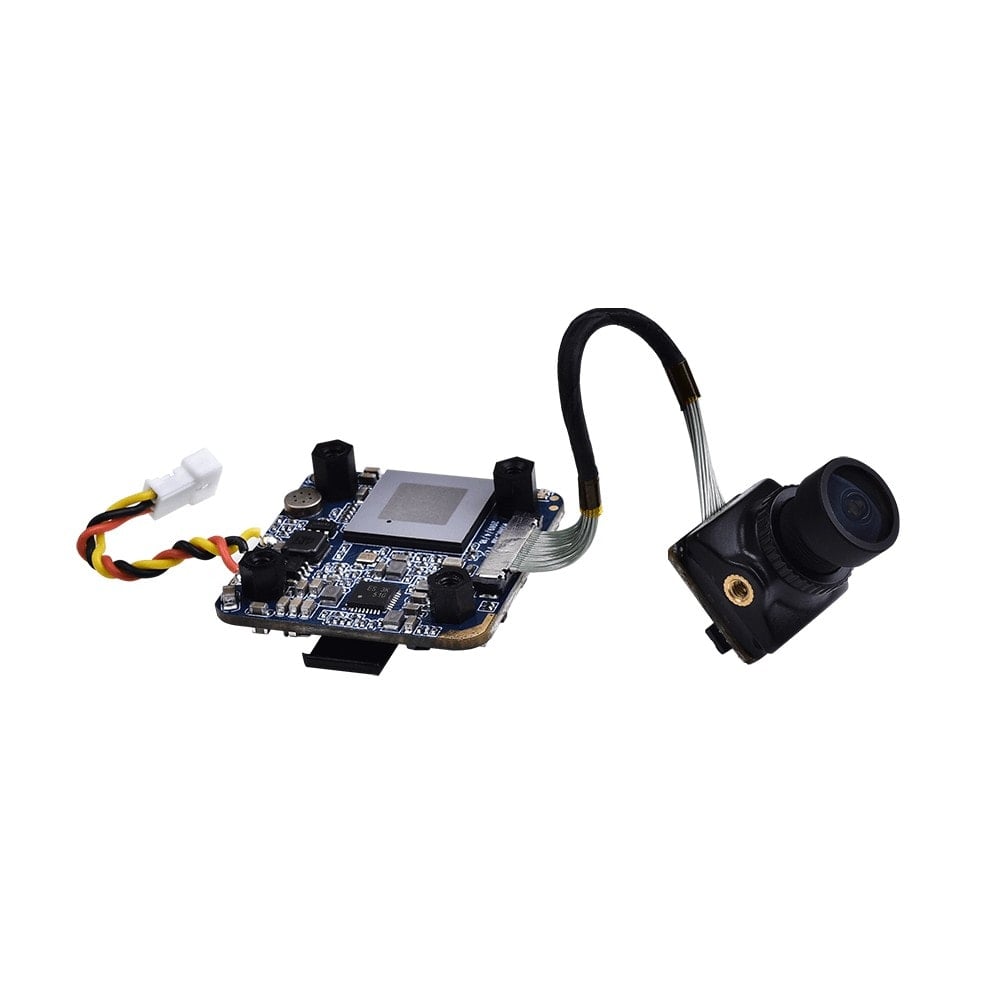

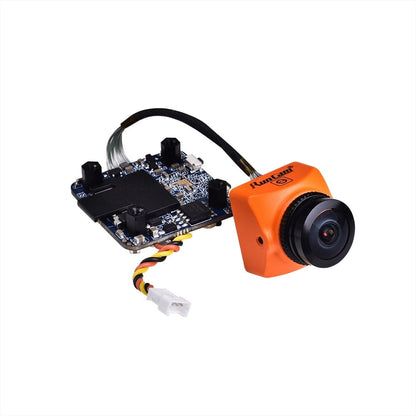

The new runcam split, takes everything you love from the previous 2 versions and squashes it down into a smaller stack size (20x20) and includes an option of two camera sizes (Nano/Micro) to fit a wider variety of frames. Making this a much more versatile all in one HD FPV camera compared to the other options out there.
Key Features
- 1080P/60fps HD recording & WDR FPV camera
- Low latency TV-OUT (40MS)
- Anti-drop SD card
- Power-off protection for video files
- Wide voltage (5-20V)
- FPV aspect ratio 16:9/4:3 switchable
- Stronger flexible ribbon cable
- Optimise TV-OUT interference to reduce ripple
- Replaceable lens manual focus supported
- Standard mounting bracket, easy to install
Specifications
- Brand Name: Runcam

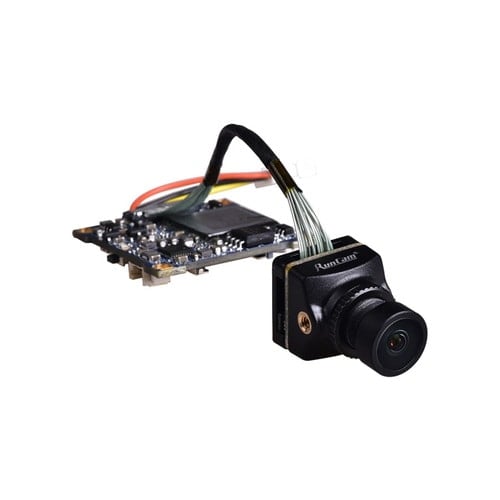

- Item Name: Split 3 Nano / Micro / Nano Whoop Edition
- Color: Black
- Field of View(FOV) : Recording FOV: 165°; FPV FOV: 165°@16:9, 130°@4:3
- Video Resolution: 1080@60fps / 1080@50fps / 1080@30fps / 720@60fps
- Video File Format: MOV
- Image Resolution: 2 MP
- TV Mode: NTSC (720*480) / PAL (720*576) Switchable
- Interface: JST 1.25mm / UART
- Max Micro SD Card Supported: 64G(need Class 6 or above, recommend Class 10 / UHS-I / UHS-II / UHS-III)
- Hole Distance of Installation: 20*20mm
- Dimensions: PCB 29*29mm / Lens Module 14*14mm
- Power Input: DC 5-20V(Non-direct power supply from battery. Powered direcly with battery will generate surges and burn the camera.)
-
Working Current: 650mA @5V / 270mA @12V
Weight: 10.5g
Included
- 1x Runcam Split 3 Nano FPV Camera
- 1x 14 to 19 Bracket
- 1x Plastic Cover
- 1x 3PIN 1.25 JST Silicone Cable
- 1x Set of M2 Screws
- 1x Manual
