Product Details
This updated design includes an easily removable battery cover, raised and flat grips for better ergonomics, and improved S1/S2 knobs with center detents. The 4.3" IPS color dispay provides easy programming with touch panel precison and the brand new 3.5mm audio headphone jack and built-in dual speakers provide great audio options for pilots! These Max Editon radios have carbon-look faceplates and CNC finishing components and buttons.
Features
- Max Editon with carbon-look faceplates and CNC finishing components and buttons
- Optimized charge IC now allows up to 2.2A internal USB-C charge current.
- New charge circuitry with integrated reverse-polarity protection
- Optional high/low rear grips included for improved ergonomics

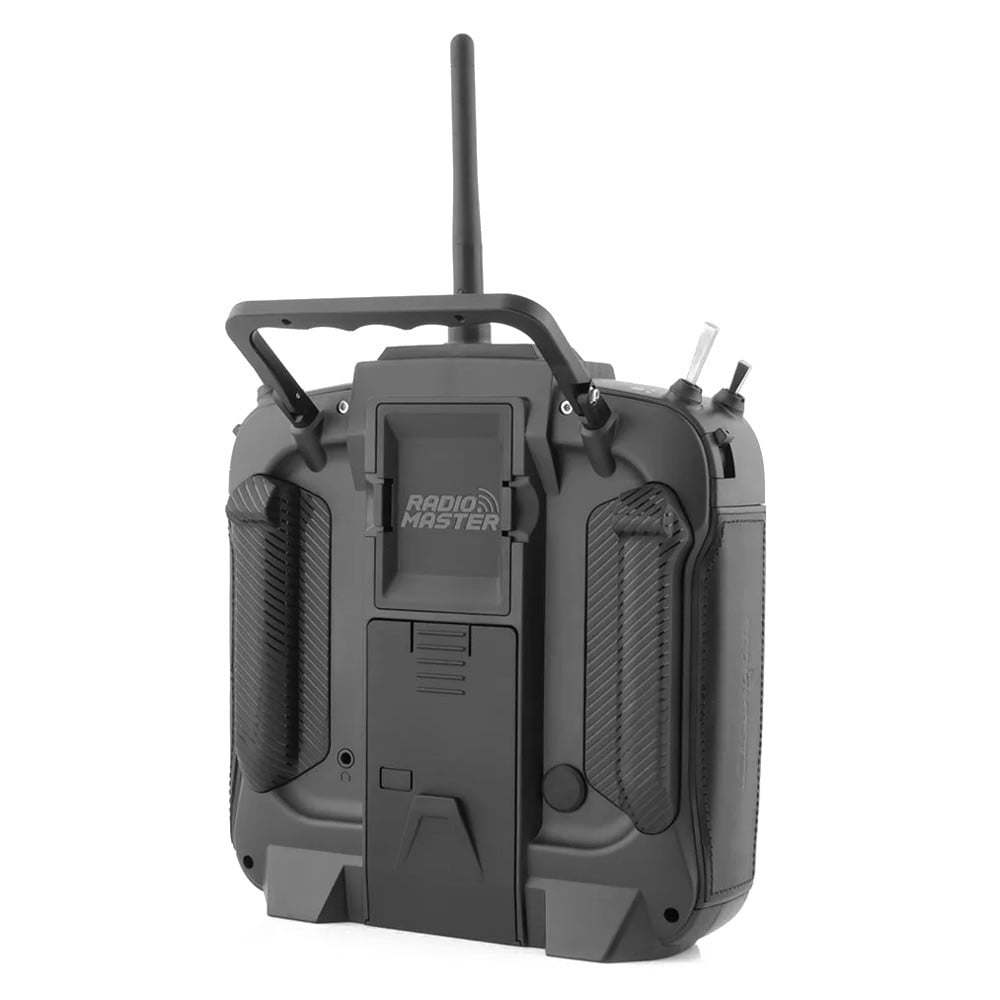

- Redesigned battery cover for improved battery access
- Improved internal circuity and optimized power supply
- Rear mounted audio jack provided headphone output
- Improved S1/S2 knobs with clear center-detents
- Retooled body shell with improved fit and finish
- Multi-Protocol 4-in-1 or ELRS versions
- Hall Gimbals V4.0
Specifications
- Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
- Upgrade method: Supports USB-C online / SD card offline upgrade
- Antenna gain: 2db (transmit power adjustable)
-
Transmitter module:
- Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401)
- Option 2: Internal ELRS (SX1280)
-
Transmitting power: (module dependent)
- Option 1 Internal 4-in-1 multi-protocol module : Max 100mw
- Option 2 Internal ELRS: Max 250mw
- Channels: Up to 16 channels (depending on the receiver)
- Module Firmware: Multiprotocol Module (41N1)
- Transmission frequency: 2.400GHz-2.480GHz
- Remote control distance:> 2km @ 22dbm
-
Gimbal:
- Option 1: V4.0 Hall sensor with Aluminium facia.
- Module Bay: JR compatible module bay
- Weight: 750g (without battery)
- Working voltage: 6.6-8.4V DC

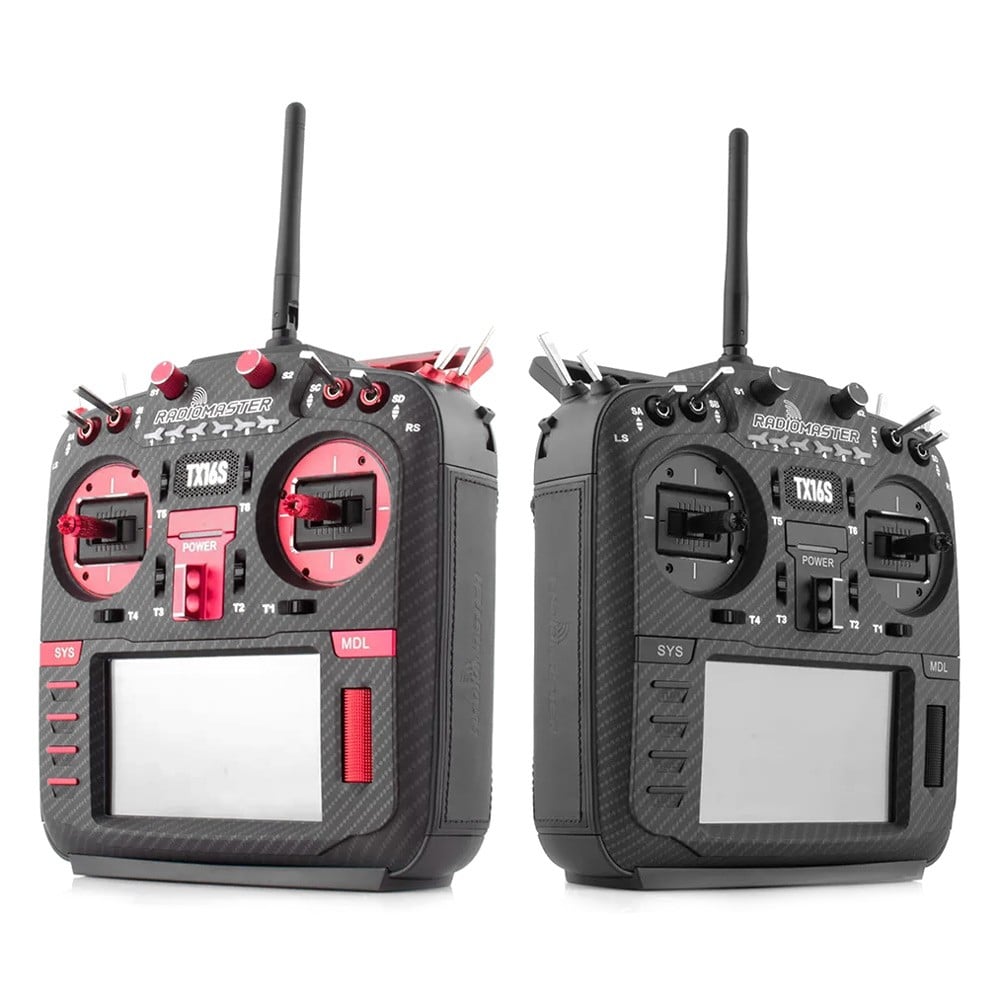

- Color Options: Black or Red
- Radio firmware: EdgeTX
- Working current: 400mA
- Size: 287x129x184mm
Includes
- 1x RadioMaster TX16S MKII MAX 2.4GHz 16CH Radio Transmitter
- 1x 18650 BatteryTray (Battery Not Included)
- 1x Raised Grips (Set of 2)
- 1x Flat Grips (Set of 2)
- 1x TX16S Key Chain
- 1x Screen Protector
- 1x USB-C Cable
