Moblite7 HDZERO FrSky: 1S Digital Mayhem
Finally, a 1S digital FPV drone that doesn't weigh more than your car keys. Meet the Happymodel Moblite7 HDZERO FrSky, the featherweight champion of the HDZERO whoop world. It packs a crystal-clear, low-latency video feed into a mind-boggling 29.5-gram package, all while playing nice with your trusty old FrSky transmitter. No firmware flashing nightmares, just pure, unadulterated indoor ripping.
Why You Want It
Because you crave that glass-clear HDZERO feed but don't want to register your whoop with the CAA. At a scant 29.5 grams, the Moblite7 ducks under the 250g limit with room for a battery and a smug sense of superiority. The built-in SPI FrSky receiver means you can bind your D8/D16 radio in seconds without wrestling with ACCESS protocols or buying another module. We're selling you a drone, not a new hobby in firmware management.
Features and Highlights
- HDZERO Digital Video: Get the ultra-low latency of the HDZero Nano Lite camera and Whoop Lite VTX, with up to 200mW of output power. See the gap before you hit it.
- Featherlight 29.5g Weight: It's so light, you'll question if we put anything in the box. This translates to insane agility and impressive flight times on a single 1S battery.
- FrSky SPI D8/D16 Receiver: No external receiver, no soldering, no fuss. Binds directly to your existing FrSky transmitter so you can get airborne faster.
- Efficient 20000KV Motors: The EX1002 motors provide the perfect blend of power and efficiency for 1S flight, giving you that 'locked-in' feeling without draining your battery in 60 seconds.
- GNB27 Battery Connector: Say goodbye to the power-sapping PH2.0. The GNB27 connector delivers every last drop of voltage from your battery to the motors.
Specifications
- Frame Wheelbase: 75mm (The gold standard for indoor chaos)
- Weight: 29.5 grams (without battery, obviously)
- Flight Controller: SuperbeeF4 Lite (Firmware Target: CrazybeeF4FR)
- Motors: EX1002 20000KV Brushless
- Video System: HDZero Nano Lite Camera + HDZero Whoop Lite VTX
- Receiver: Onboard SPI FrSky D8/D16 Compatible
- Battery Plug: GNB27 (The superior 1S connector)

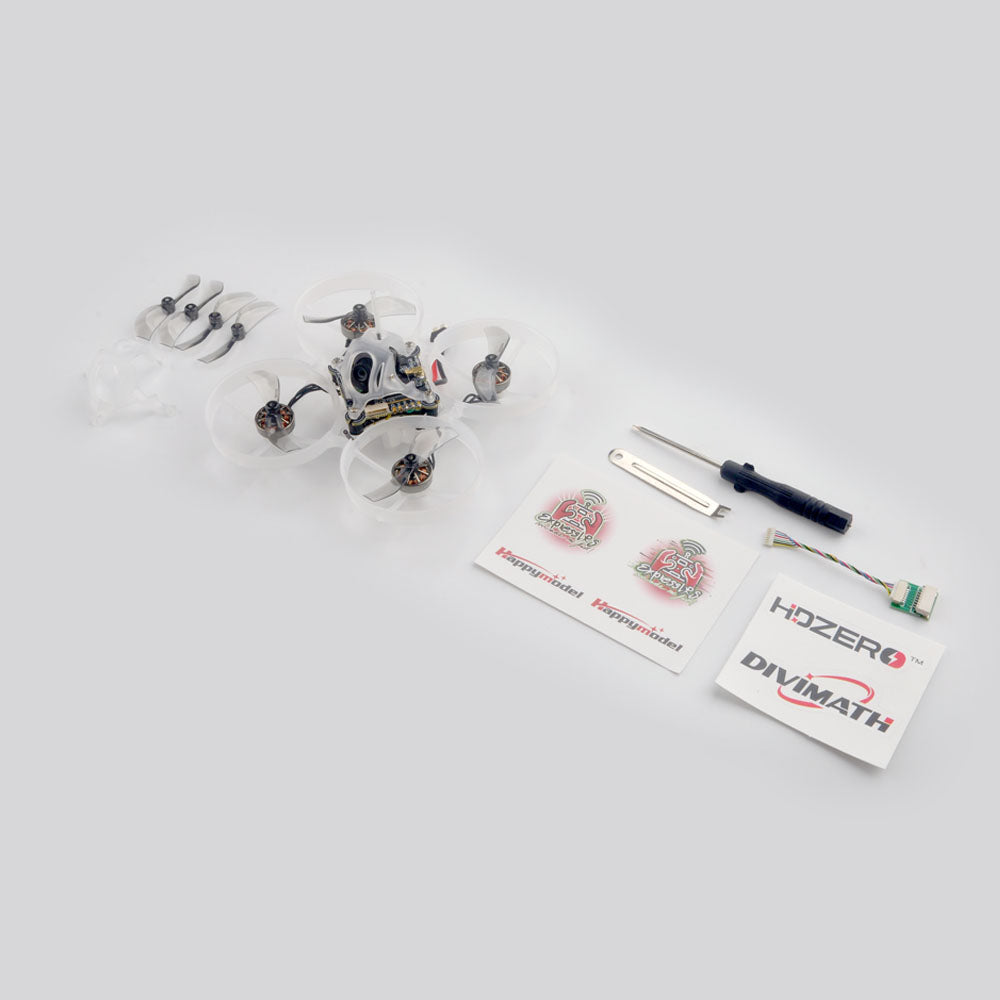

What’s in the Box*
- 1x Moblite7 HDZERO Drone (FrSky SPI Version)
- 1x Spare Canopy (For when you test its 'durability')
- 8x Gemfan 1610-2 Propellers (4cw, 4ccw)
- 1x Propeller Disassembly Tool
- 1x Screwdriver
Moblite7 HDZERO FrSky Disclaimer
Happymodel sometimes swaps accessories, but the core drone and its glorious low-latency digital video system are absolutely guaranteed.
Flight controller SuperbeeF4 Lite ELRS/FRSKY |
SPI ELRS version Firmware target: CrazybeeF4SX1280 SPI FRSKY version Firmware target: CrazybeeF4FR MCU:STM32F411CEU6 (100MHz, 512K FLASH) Sensor: ICM20689 or ICM42688P or BMI270(SPI connection) Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in SPI Frsky/ExpressLRS receiver Built-in 5V 1A BEC Built-in voltage detection |
Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV (2.8v~4.35v) Currents: 5A continuous peak 6A (5 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_8.HEX Default protocol: DSHOT150/DSHOT300/DSHOT600 |
Onboard SPI ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Could bind with ELRS V2.0 firmware TX module |
Onboard Frsky SPI D8 /D16 2.4GHz Receiver | SPI BUS receiver Frsky D8/D16 compatible Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt) Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol |
Motor | Model: EX1002 20000KV Configu-ration:9N12P Stator Diameter:10mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm Weight(g):2.5g No.of Cells(Lipo):1S only |
Propeller Gemfan 1610-2 Bi-blades | Weight:0.24g Material: PC Pitch:1 inchProps Dia:40mm Center Hole Dia:1.5mm |
HDZero Nano Lite Camera | 14x16x11 mm 1.5gram 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor Excellent low light performance Fov: 4:3: D:130° H:108° v:84° 16:9:D:122° H:108° V:65° |
HDZero Whoop Lite VTX | 1S Input 25mW/200mW RF Output-SmartAudio Support 25.5×25.5 M2 Soft Mounting- Antenna Retention Removable Shielding Box- 32.5×32.5mm(29x29mm inner) 4.5grams/4mm Thickness (without shielding) |
Still Here?
Deep in the spec sheet, are we? You're our kind of people. You probably clocked the ICM series gyro and have strong opinions on GNB27 vs BT2.0. Look, this is probably the best indoor digital FPV drone for pilots who value latency over cinematic fluff. It’s a tool for precision, not for posting landscape videos on Instagram. Add it to your cart and go buzz the cat in glorious HD.
