Matek Systems

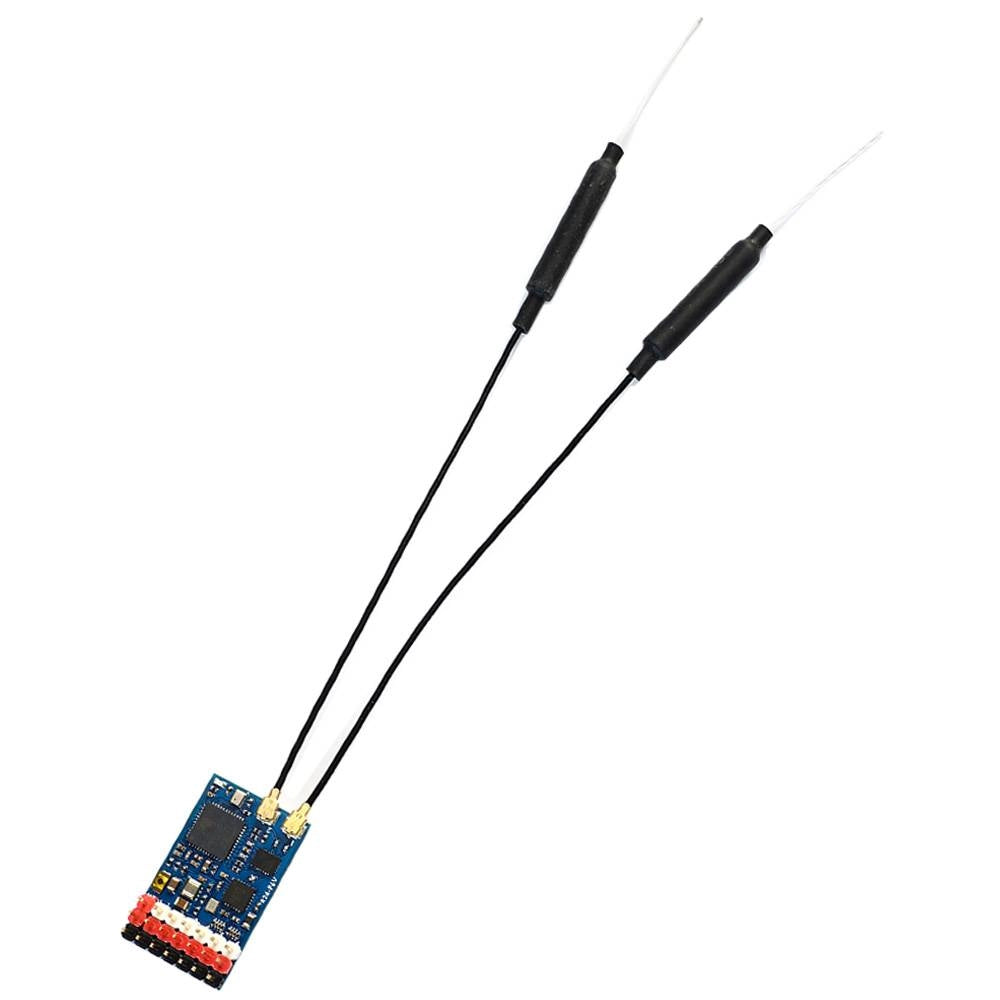

MATEKSYS ExpressLRS 2.4GHz PWM Vario Receiver - ELRS R24-P6V

MATEKSYS ExpressLRS 2.4GHz PWM Vario Receiver - ELRS R24-P6V

M-R24-P6V

£19.49 GBP
£0.00 GBP £19.49 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock
View full details

Product Details

Take command of the skies with the MATEKSYS ExpressLRS 2.4GHz PWM Vario Receiver - ELRS R24-P6V, engineered for peak performance in remote control aviation. This compact, powerhouse receiver is your ideal partner for achieving precision flight, thanks to its advanced PWM Vario capability and robust signal stability. Experience seamless compatibility with ExpressLRS systems and revel in the confidence that your RC adventures will be smooth and interference-free.

Key Features:

  • High-Performance Signal Reception: Locks in your control inputs with ironclad stability for maneuvering that feels like an extension of your own reflexes.
  • Versatile Compatibility: Integrates effortlessly with ExpressLRS systems, ensuring a setup that's as straightforward as it is efficient.
  • Customizable PWM Vario Control: Tailor your flight control experience with adjustable parameters, making your aircraft respond just the way you like.
  • Durable Build Quality: Constructed to endure the rigors of frequent flying, keeping you airborne longer.
  • Compact and Lightweight Design: At just 4 grams and 30mm x 18mm in size, it fits into virtually any setup without adding bulk.

Enhanced Connectivity:

  • Easy Firmware Updates: Preloaded with ExpressLRS 3.3.2, this receiver is future-proof. Update it with your personalized binding phrase either via Wi-Fi through WebUI or UART connection.
  • Comprehensive Connectivity Options: Includes essential ports and connections for easy setup, including PWM outputs and IPEX antenna connectors.

FIRMWARES

  • Receiver Target: Generic ESP32 PWM Vario 2.4GHz RX, or RadioMaster ER6-GV, or RadioMaster ER6-G.
  • The receiver comes preloaded with ExpressLRS 3.3.2 and a binding phrase "123456". It will never enter binding mode if using the traditional binding procedure.
  • You need to reflash it with your binding phrase OR connect it to your PC/phone via WiFi and set your binding phrase in WebUI.

FLASHING VIA UART

  1. Disconnect ESC and servos from the receiver first.

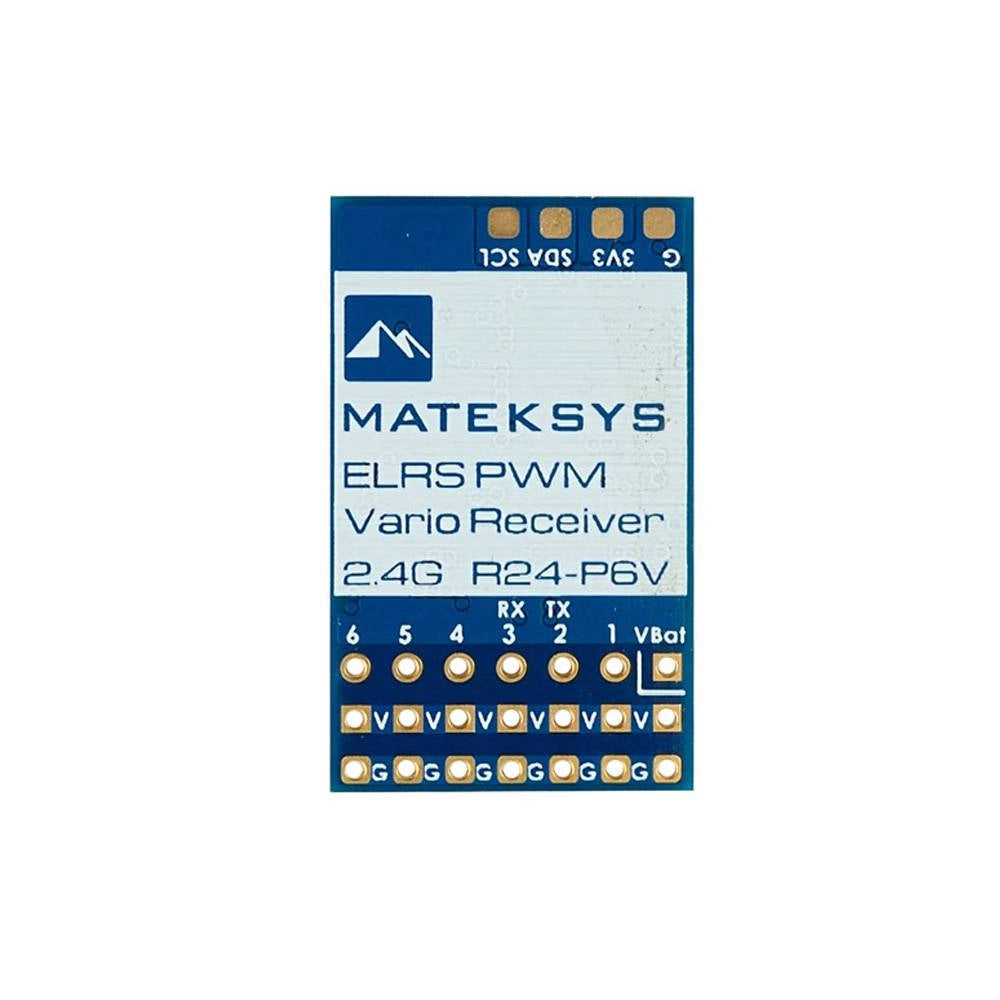

  2. Wire the receiver into the USB-TTL adapter, with TX (PWM 2 pin) on the receiver connected to the Rx on the USB-TTL, and RX (PWM 3 pin) on the receiver connected to the Tx of the USB-TTL. Wire 5V and GND of the USB-TTL to "V" and GND of the Receiver.
  3. Press the boot button while powering on the receiver, then release - the Red LED on the receiver should now be solid.
  4. In the configurator, select the target Generic ESP32 PWM Vario 2.4GHz RX, RadioMaster ER6-GV, and "UART" for the Flashing Method. Set your bind phrase and Firmware Options. Check "erase before flash" and "Force Flash".

Specifications

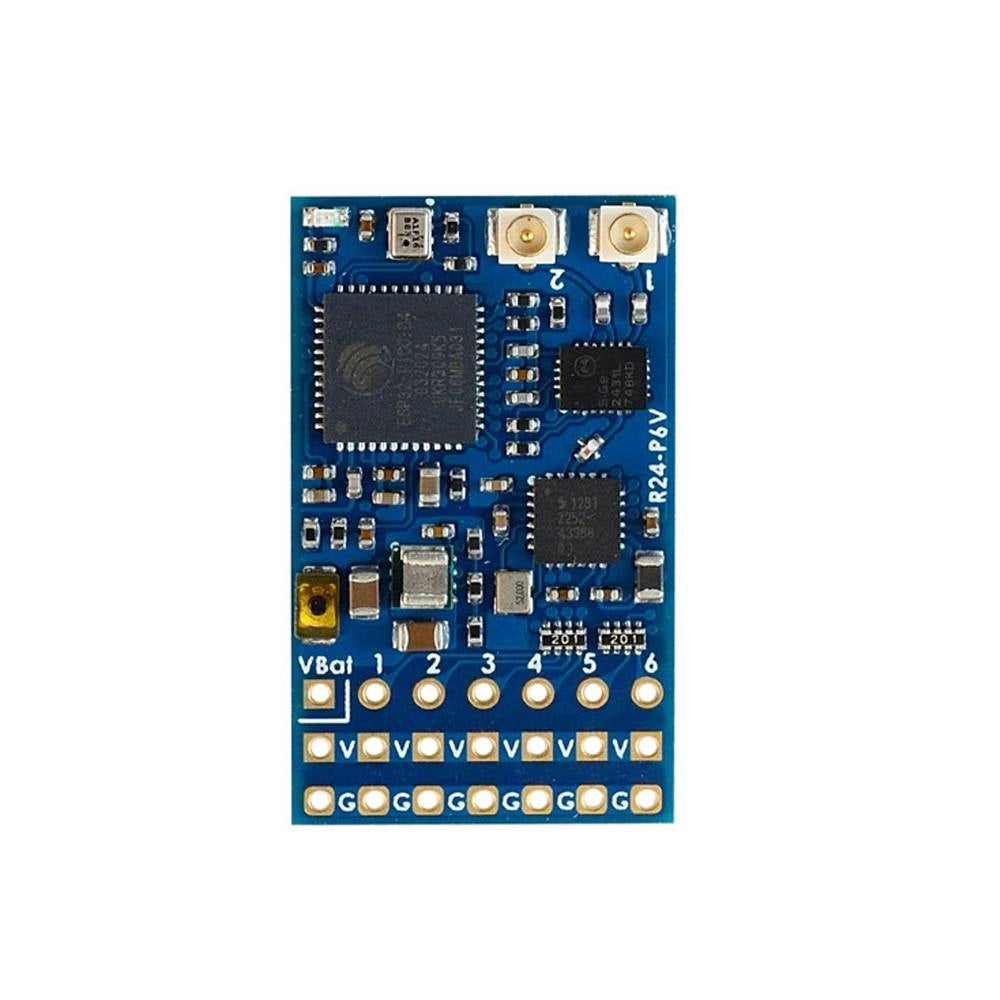

  • ExpressLRS Firmware: ESP32-PICO-D4, SX1281
  • Diversity: Antenna-switching, default ANT1
  • Power dissipation: 60mA~80mA @ 5V IN
  • Telemetry power: 22.5dBm (180mW)
  • Power supply: 4-13V DC @ "V" Pad
  • Antenna connector: IPEX MHF-1
  • Barometer: SPL06-001 (Vario)
  • Receiver output: 6x PWM CH
  • VBAT voltage sense: 0~25.5V
  • RF Frequency: 2.4GHz ISM
  • PCB size: 30mm x 18mm
  • Weight: 4g with antenna
  • PA/LNA: SE2431L

IMPORTANT NOTES

  • Powering the receiver with Reverse Voltage will damage the regulator chip. Double-check the power wires connected to the receiver.

What's Included:

  • 1x MATEKSYS ExpressLRS 2.4GHz PWM Vario Receiver
  • 3x Dunpoint 2.54 pin lines (Note: Board is shipped unsoldered.)
  • 2x IPEX MHF1 Antennas (15cm each)

Elevate your remote control experience with the MATEKSYS ExpressLRS R24-P6V Receiver. Whether you're a hobbyist or a professional, this receiver offers the reliability, flexibility, and precision you need to take full control of your aerial adventures.
