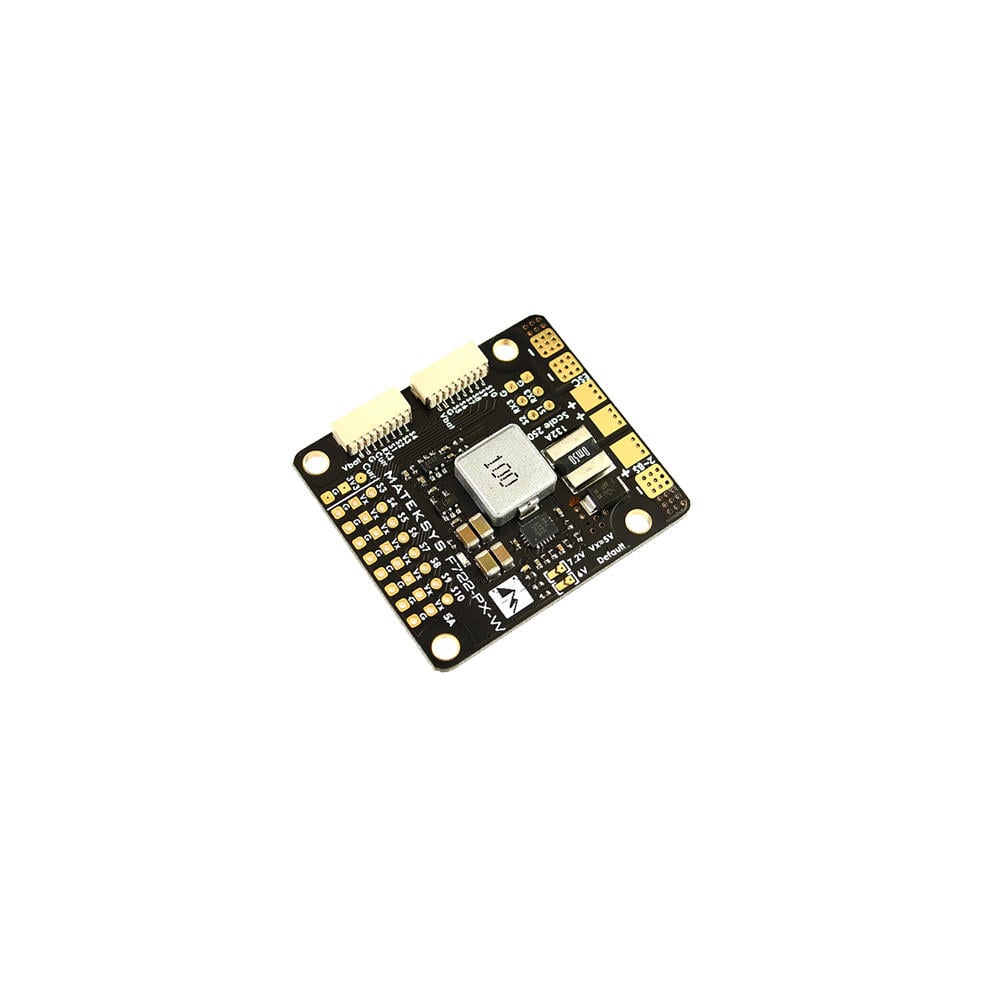

Product Details
This is a PDB desgined for the Matek F722-PX flight controller for fixed wing platforms. Features 2-8S input along with general PDB for your servos, motors etc..
Specifications

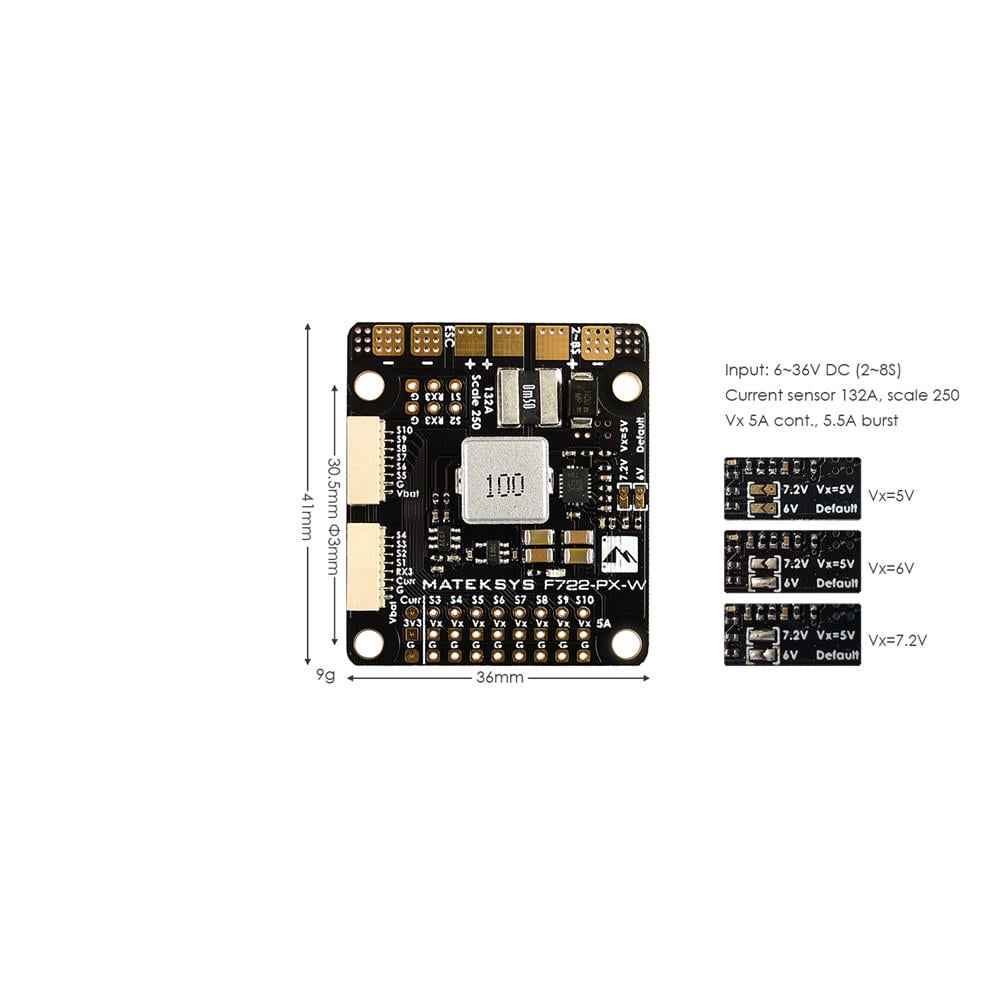

PDB
Input voltage range: 6~36V (2~8S LiPo) w/TVS protection
2x ESC power pads
High precision current Senor: 132A, 3.3V ADC, Scale 250
BEC 5A, 5V/6V/7.2V Adj
Soldering Holes & Pads
+ & - : Bettery & ESC power pads
Curr: Current sensor output
Vbat: Bettery voltage
G: Ground
3V3: LDO 3.3V 500mA
Vx: BEC 5V/6V/7.2V ADJ

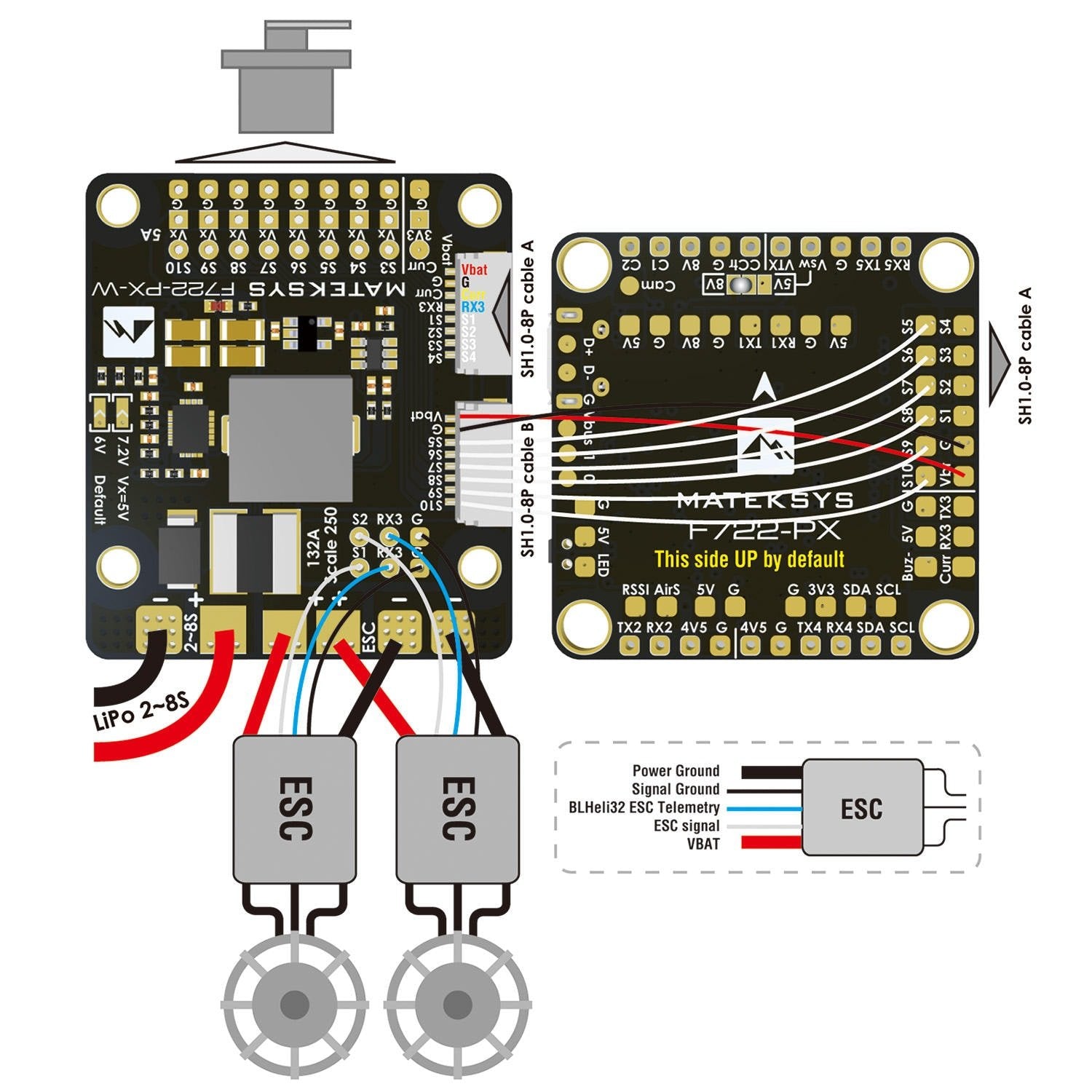

SH1.0-8P connection
RX3 and S1~S10 are compatible with MATEKSYS Flight controller F722-PX
BEC Vx output
Designed for Servos
DC/DC synchronous buck regulator
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current: 5 Amps, Max.5.5A
Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)
Short-circuit tolerant (2 seconds)
Physical
Mounting: 30.5 x 30.5mm, Φ3mm
Dimensions: 41 x 36 mm
Weight: 9g

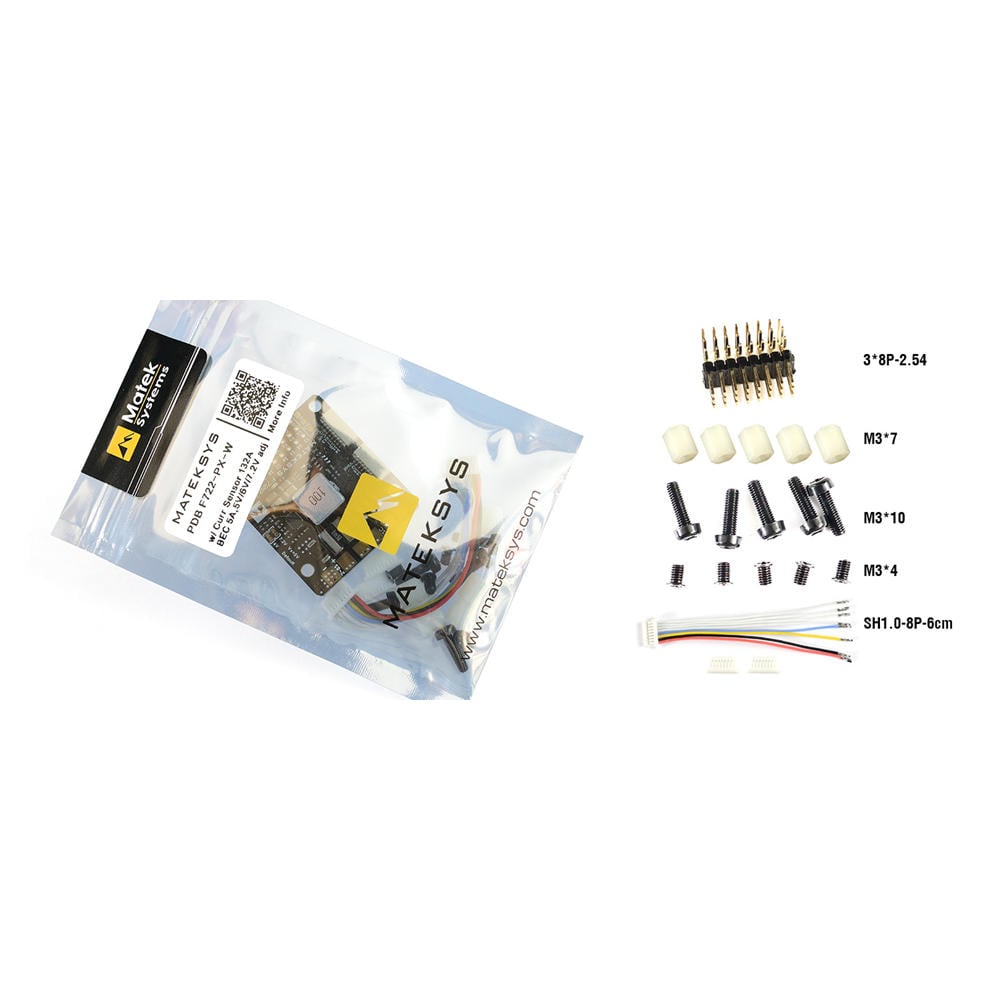

Included
- 1 x PDB
- 1 x JST-SH 1.0MM 8p 6cm
- 7 x M3 nut
- 10 x M3 crew
- 4 x M3 screw
- 1 x 8p 2.54 Pin
