Product Details
Specifications
- 40CH(A/B/E/F/R Band)
- Any Freq/band can be disabled or enabled by CLI command
- Variable Output Power: PIT, 25, 200, 400, 800mW
- Button control and LED indicators
- CMS control(Tramp protocol) via FC Uart _Tx
- Switchable VTX input power via FC PINIO
- Constant full frequency band power
- Clean powerup and frequency switching
- Built-in microphone
- Upgradeable firmware
- Convertible 20 to 30mm mounting
- Input voltage: 6~36V(2~8S LiPo)
- 5V Output: 1A for Camera or FC
- Power Consumption: 3.5W@ 800mW
- Video Input Impedance: 75 Ohm
- Audio Subcarrier Frequency: 6.5 MHz
- RF Connector: MMCX
- Video Format: NTSC/PAL
- Weight: 4.5g (VTX-mini only, w/o antanna)
- Size1: 28*28*4mm w/20mm_Φ3mm mounting
- Size2: 36*36*5mm w/30.5mm_Φ3mm mounting

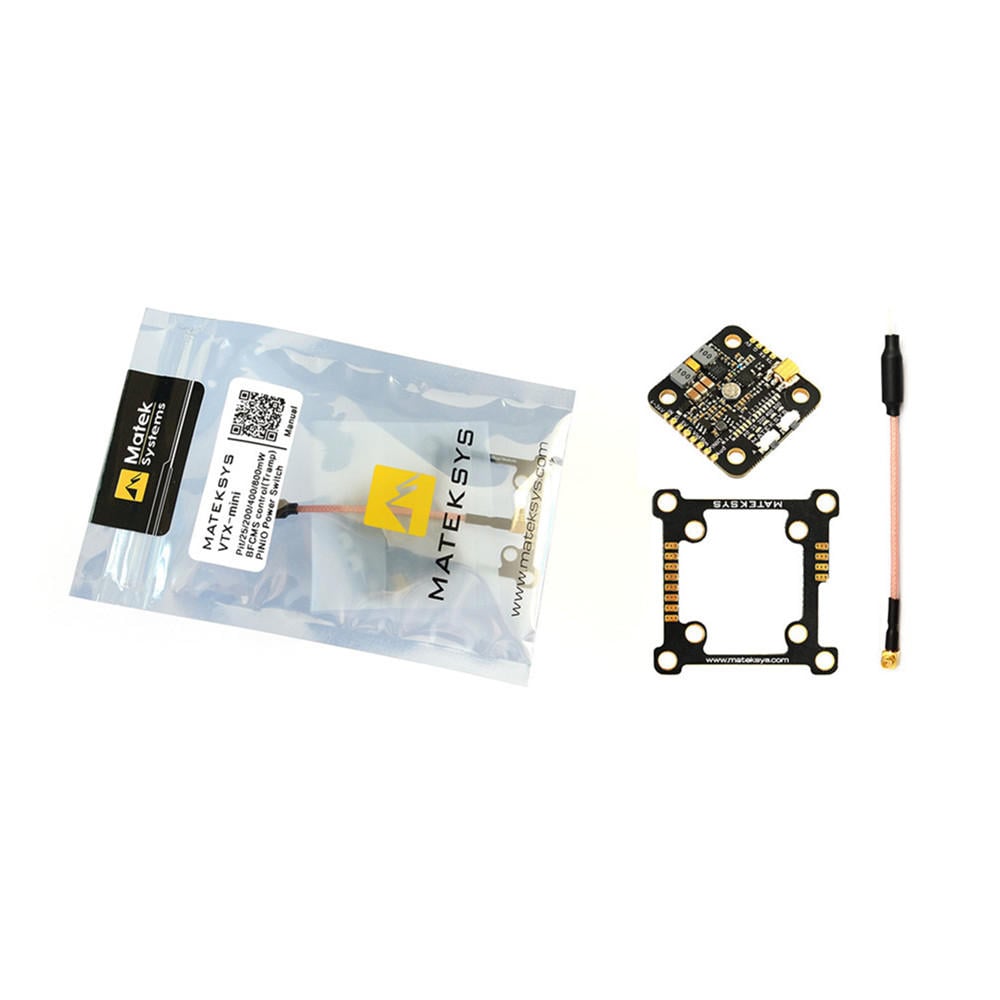

Included

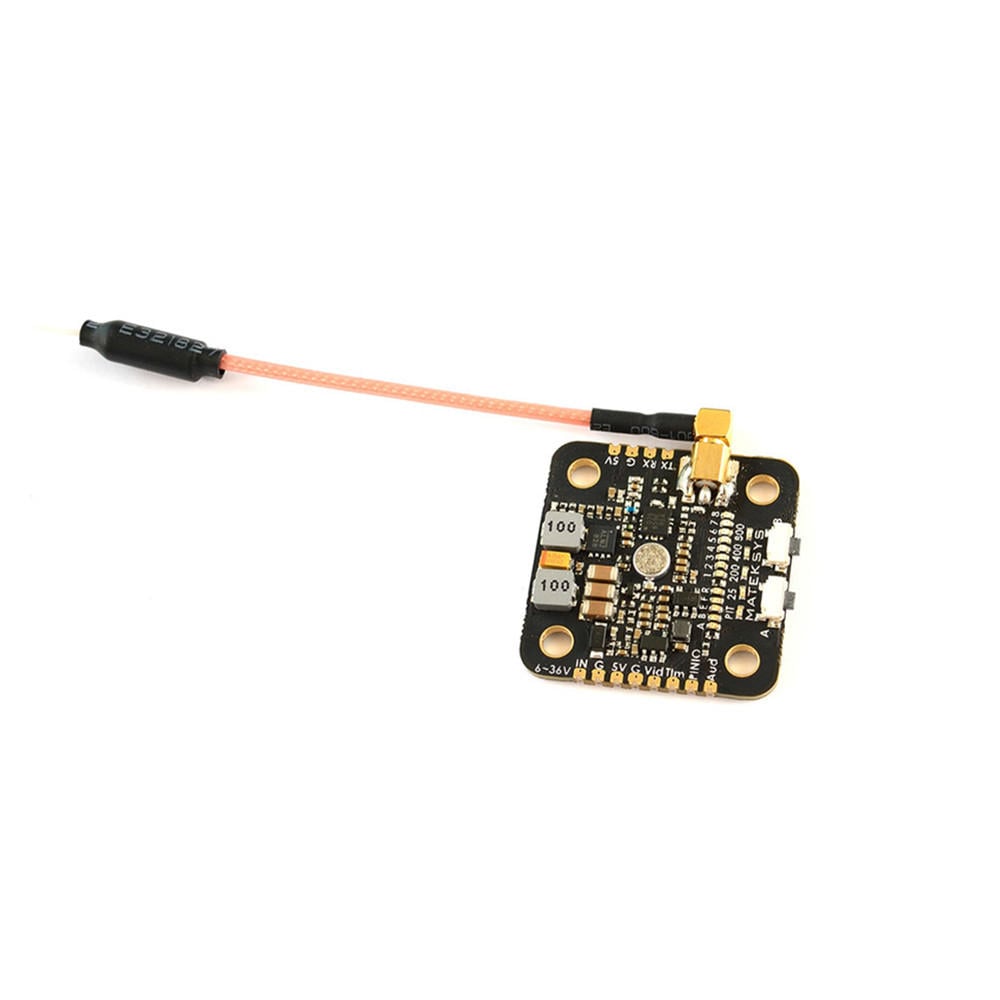

- 1x 5.8G Video transmitter VTX-mini
- 1x MMCX 5.8G whip antenna, 8cm

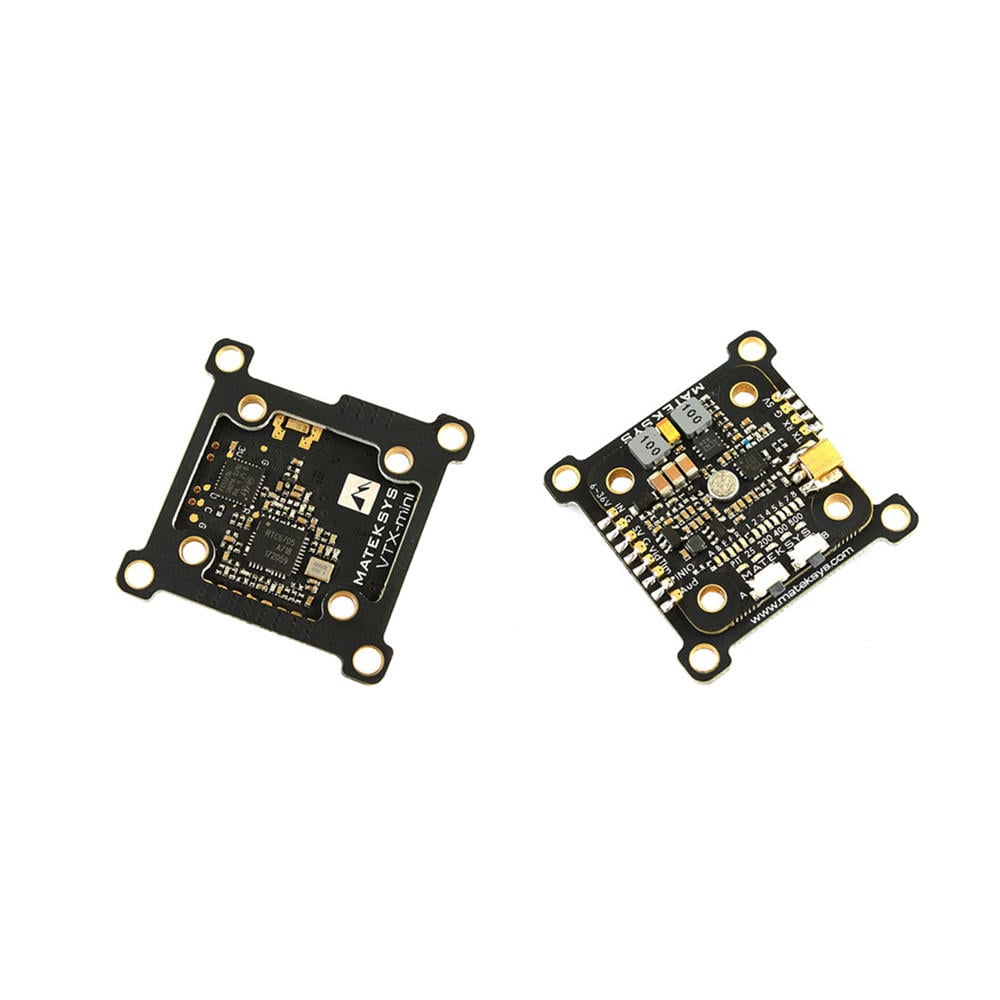

- 1x 20mm to 30.5mm conversion plate
