Explore the World of Precision with the MATEKSYS M9N-5883 GNSS & Compass GPS

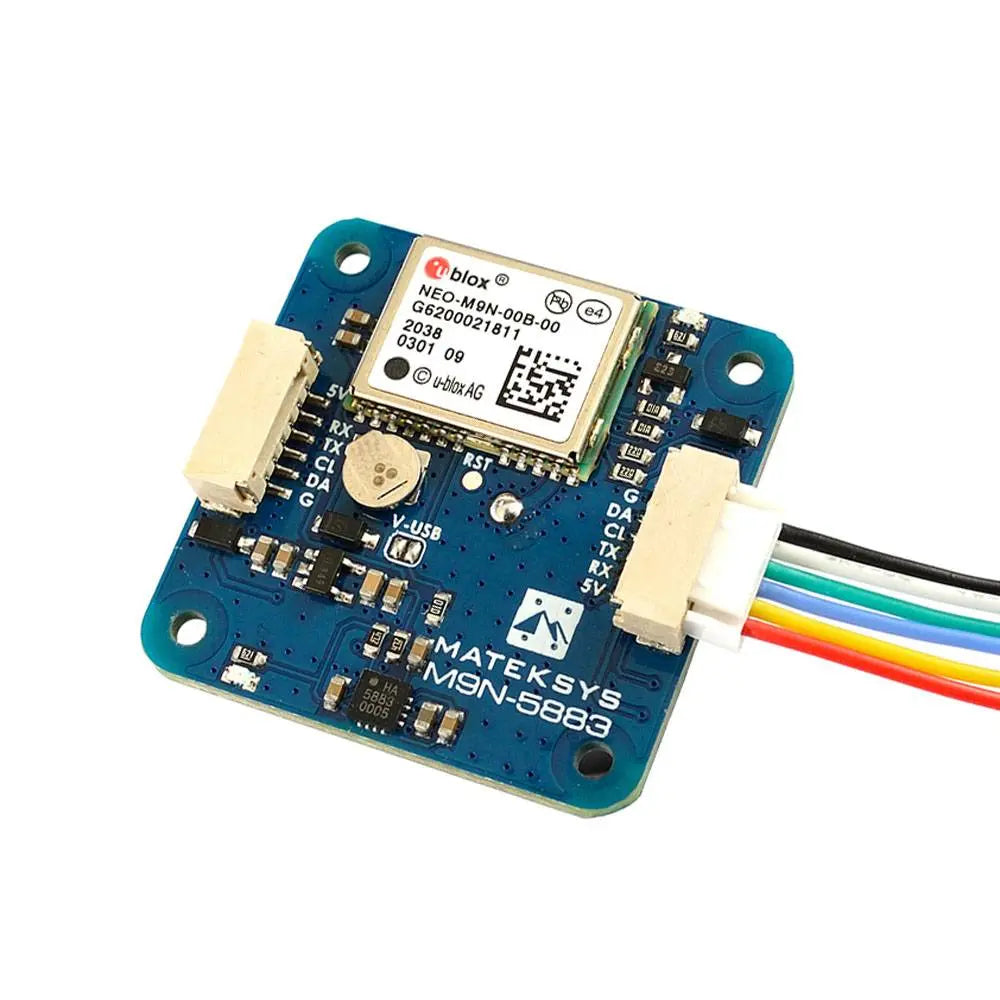

Product Overview Unlock the full potential of your navigation with the MatekSys M9N-5883 GNSS & Compass GPS. Featuring the advanced u-Blox NEO-M9N module, this device captures signals across multiple GNSS constellations—GPS, Galileo, GLONASS, and BeiDou—simultaneously. This means you get superior accuracy and faster lock times, making it ideal for applications requiring the highest level of navigation precision.
Key Features
- High-Performance GNSS Module : Equipped with the u-Blox NEO-M9N that supports concurrent reception from four major GNSS constellations.
- Integrated Magnetic Compass : Includes a QMC5883L compass, enhancing orientation accuracy.

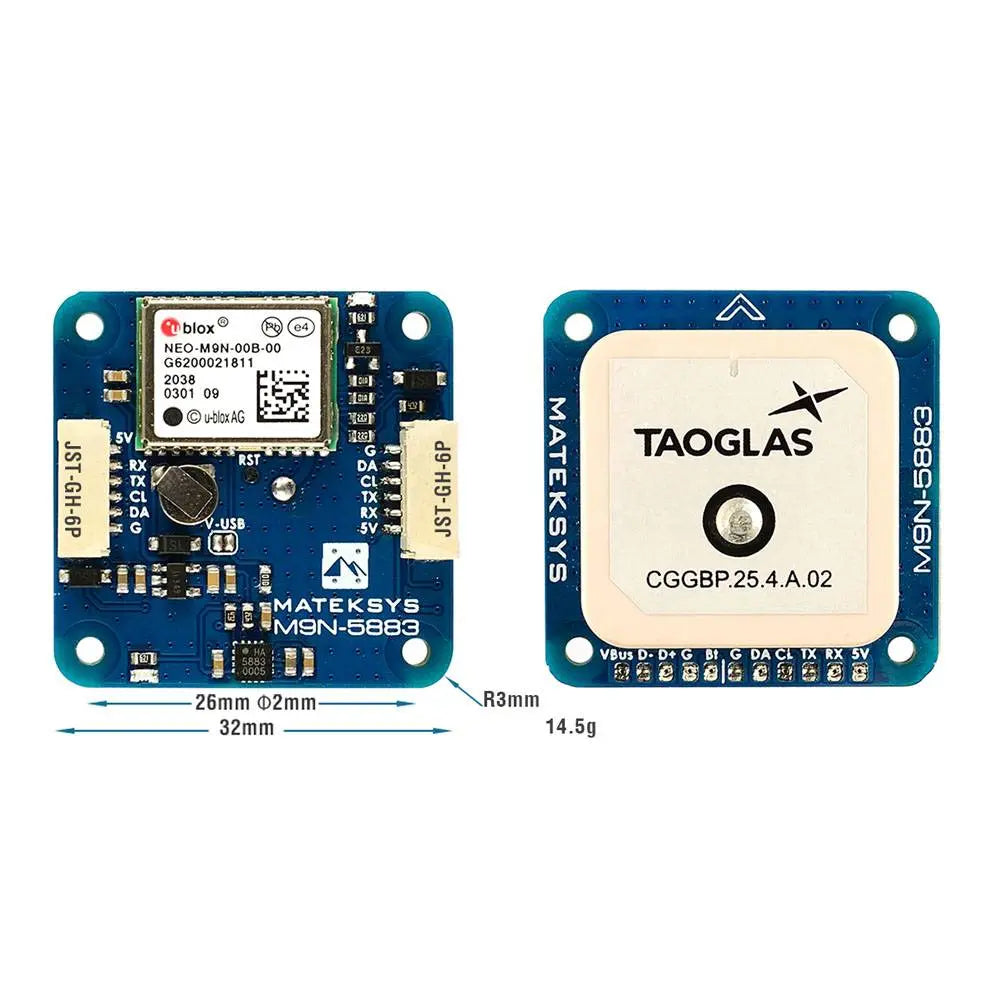

- Compact and Efficient : With dimensions of just 32mm x 32mm x 10mm and weighing only 14.5 grams, this GPS module is both lightweight and space-efficient, making it perfect for a wide range of applications.
- Enhanced Connectivity : Features UART and I2C interfaces for seamless integration with most flight controllers.
- Durable Design : Built to perform in a variety of environments with an operational temperature range of -20°C to 80°C.
- Visual Indicators : Includes a 3.3V power LED and a GNSS PPS LED, which blinks green when a 3D fix is established.
Specifications
- GNSS Receiver : u-Blox NEO-M9N

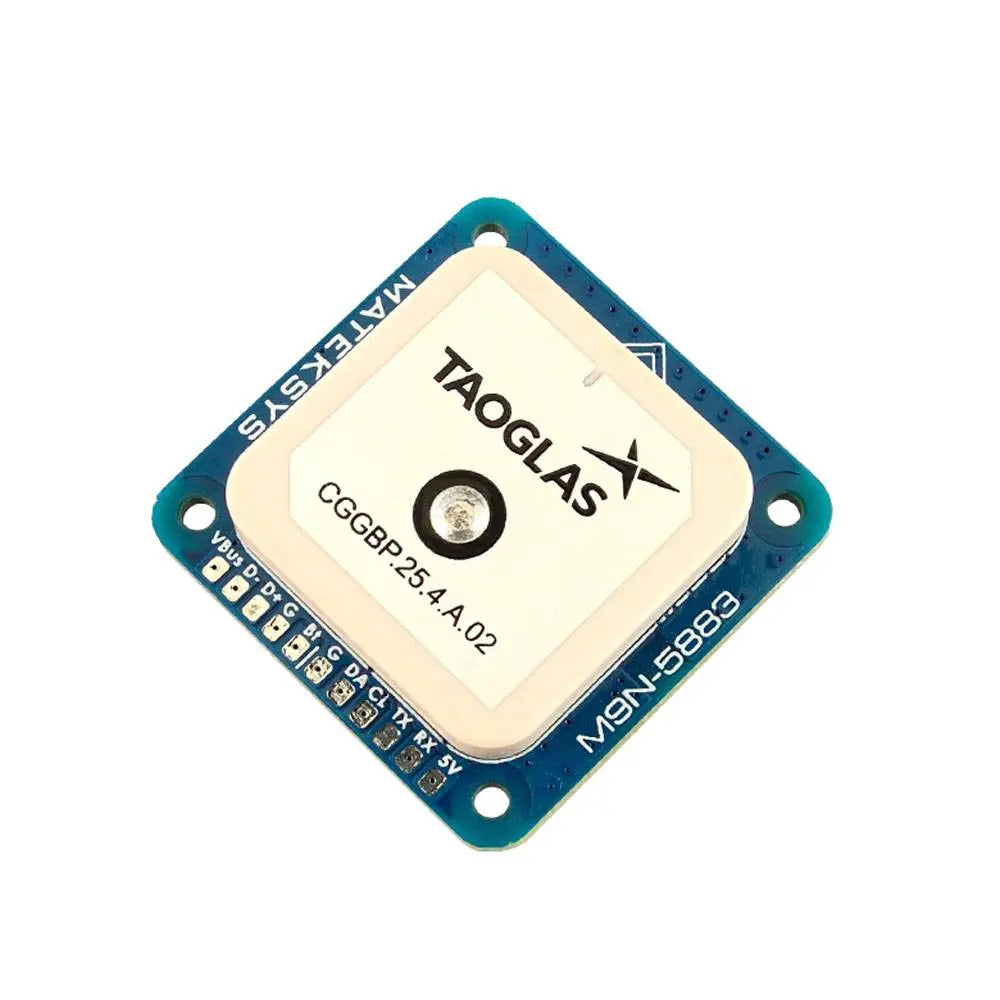

- Antenna : Patch antenna, 25x25x4 mm
- Voltage Input : 4~6V via a 5V pad/pin
- Power Consumption : 50mA
- Connectivity : UART and I2C interfaces, JST-GH-6P connector
In the Box
- 1 x M9N-5883 GNSS & Compass GPS module
- 1 x JST-GH-6P to JST-GH-6P 20 cm silicon wire
Installation and Compatibility
- Easy Integration : Connects directly to your flight controller with included wiring. Compatible with most protocols including Ublox and NMEA.
- Software Compatibility : Supports configurations via INAV, BetaFlight, and ArduPilot for versatile setup options.
Additional Information
- GPS Interference Caution : Ensure to keep the device at least 10 cm away from power lines and electronic interference sources for optimal performance.
- HD Camera Interference : For best GPS lock performance, turn off HD cameras during operation.
The MatekSys M9N-5883 is not just a component; it's your next step towards reliable and precise navigation. Whether you're piloting a UAV or integrating into other projects, this GPS module stands ready to deliver top-notch location tracking capabilities.
