Product Details

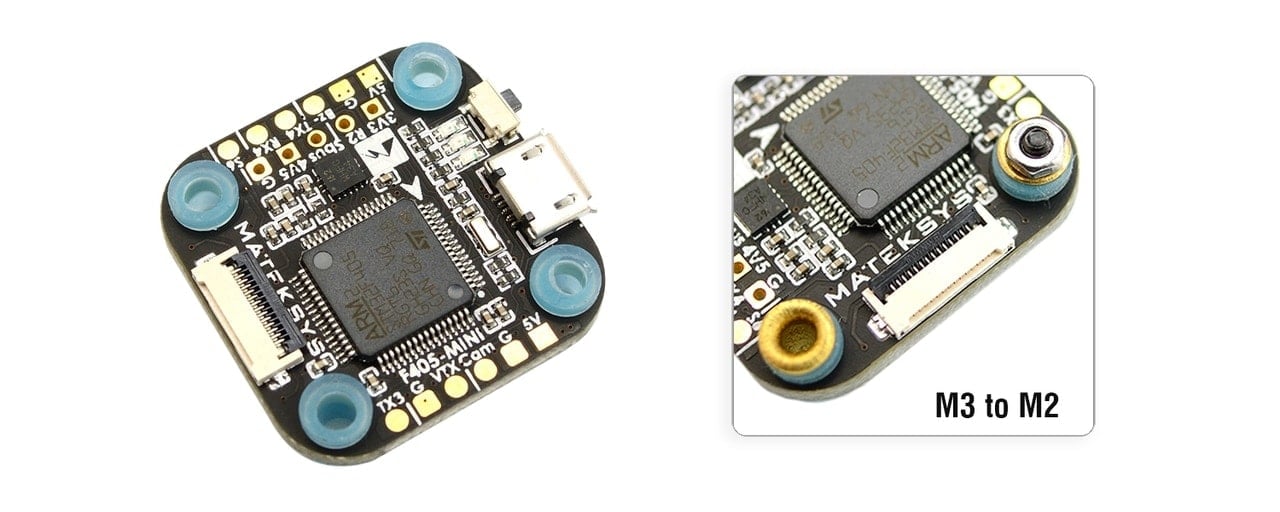

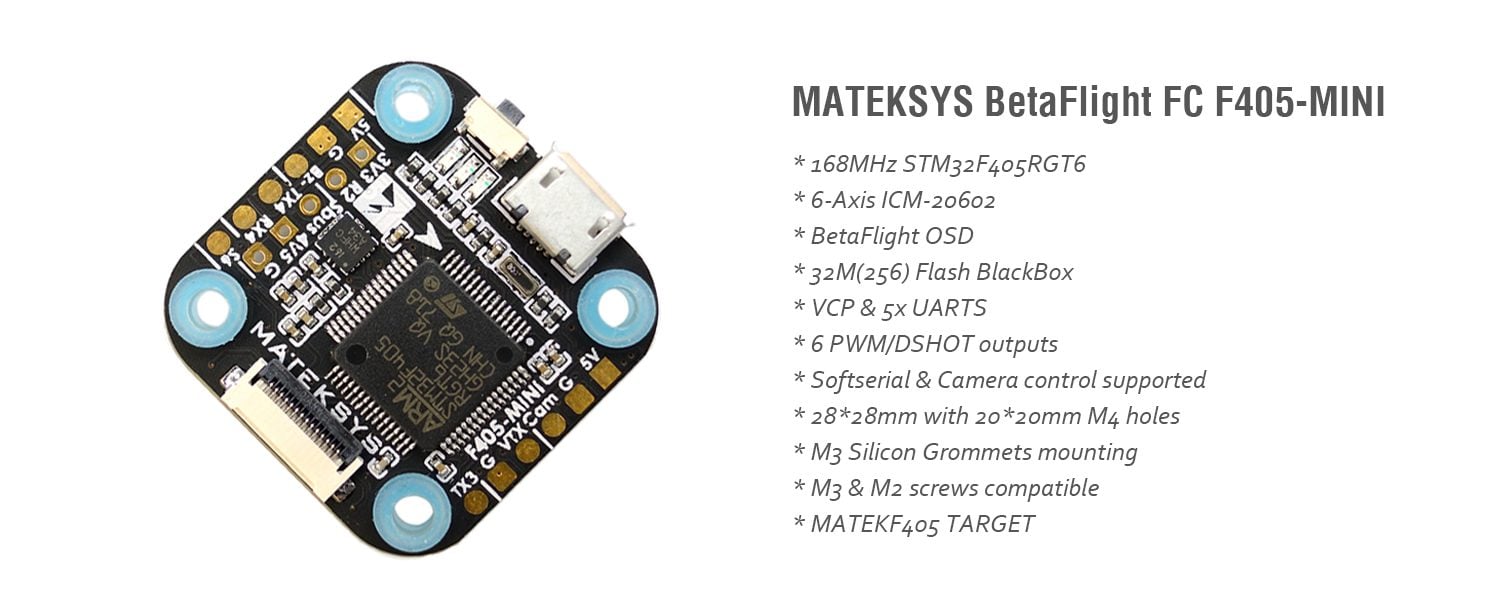

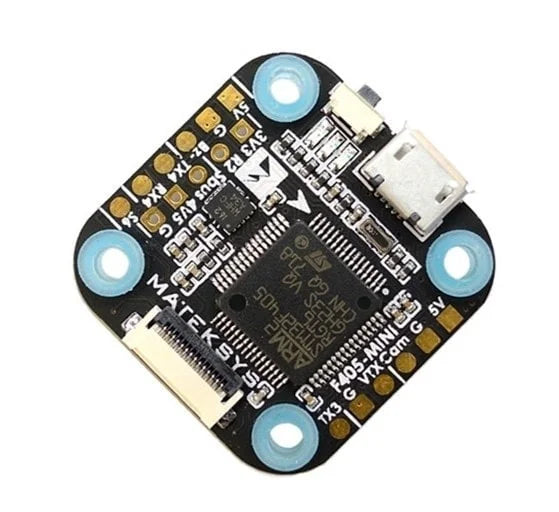

This is the F405 Mini BetaFlight flight controller from Matek. This mini flight controller is packed full of great features such as the 168MHz STM32F405 MCU and a 32K ICM20602 accelerometer/gyro (SPI) IMU. The F405-Mini also supports 32K gyro updates and 16K PID loops for super fast response times. It also comes with an in-built BetaFlight OSD and a blackbox. All this, packed into just 28x28mm.
Key Features:

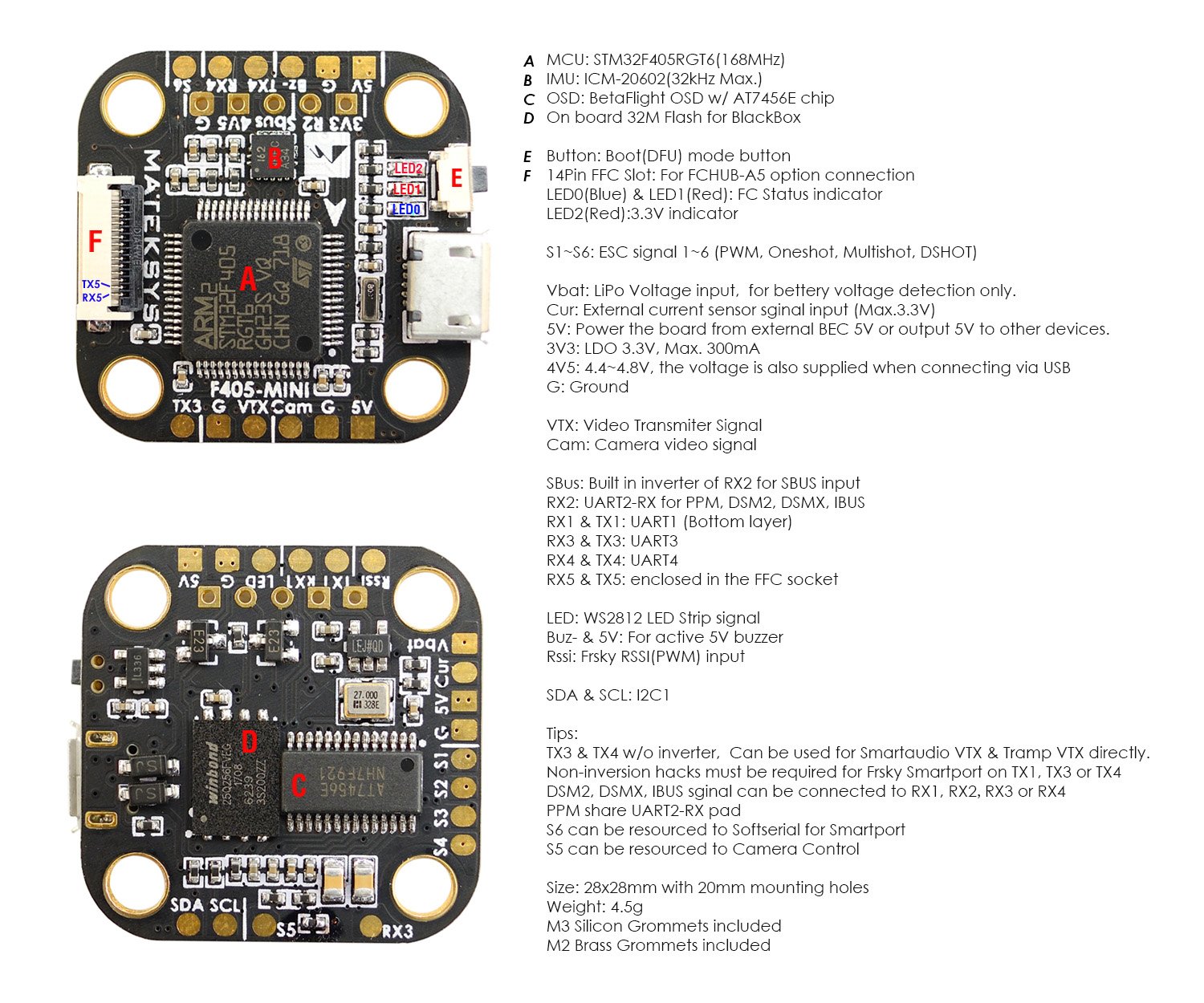

Specifications:
- MCU: 168MHz STM32F405
- IMU: 32K ICM20602 accelerometer/gyro (SPI)
- Support 32K Gyro update & 16K PID Loop
- OSD: BetaFlight OSD w/ AT7456E chip
- Blackbox: 32M(256) Flash
- VCP, UART1, UART2, UART3, UART4, UART5
- Built in inverter for SBUS input (UART2-RX)
- PPM/UART Shared: UART2-RX
- SoftSerial & Camera control supported on S5 & S6
- Battery Voltage Sensor: 1:10
- Current Sensor: No (FCHUB-A5 option)
- BEC 5V: No (FCHUB-A5 option)
- LDO 3.3V: Max.300mA for Spektrum RX
- I2C1 SDA & SCL available
- WS2812 Led Strip : Yes
- Beeper : Yes
- RSSI: Yes
- Dimensions: 28x28mm PCB with 20mm mounting holes
Features:
- 2 x LEDs for FC STATUS (Blue, Red)
- 6 x PWM / DShot outputs without conflict
- 5 x UARTs

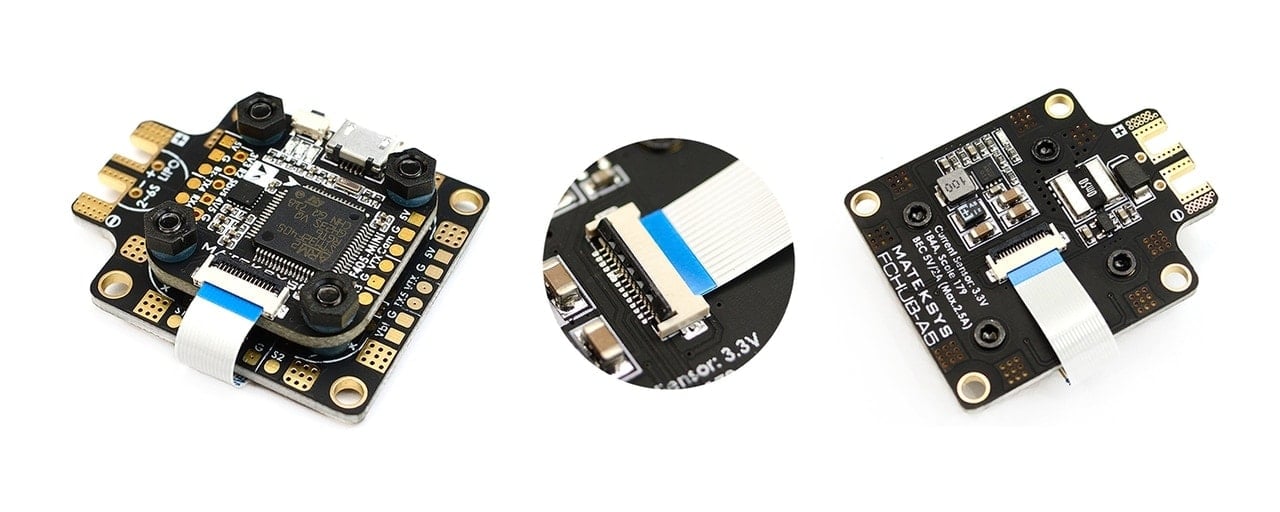

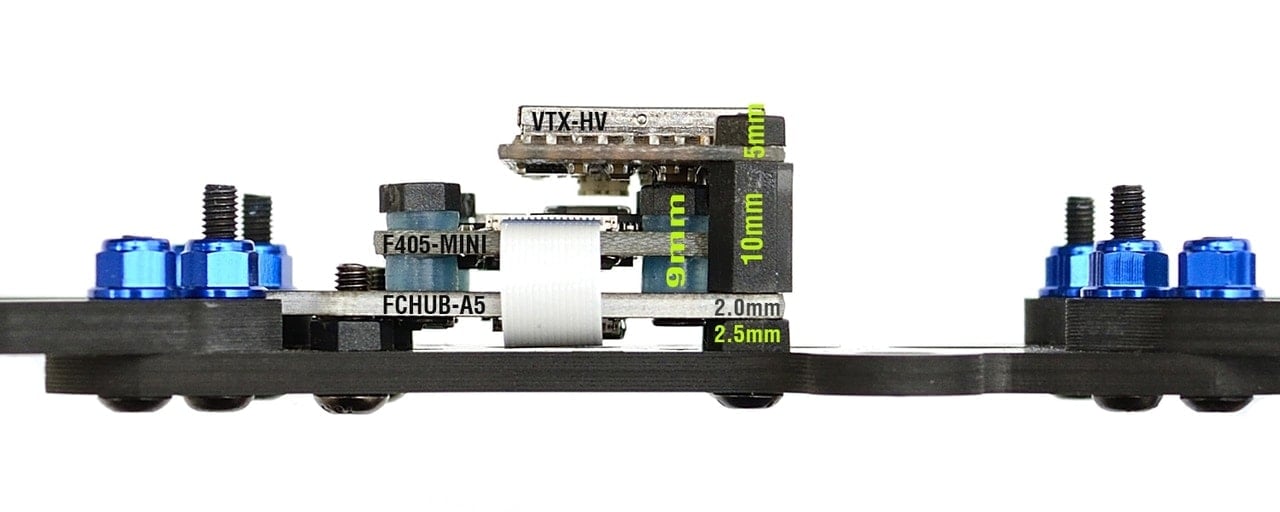

- 1 x 14pin top mounted FFC Slot for FCHUB-A5 connection

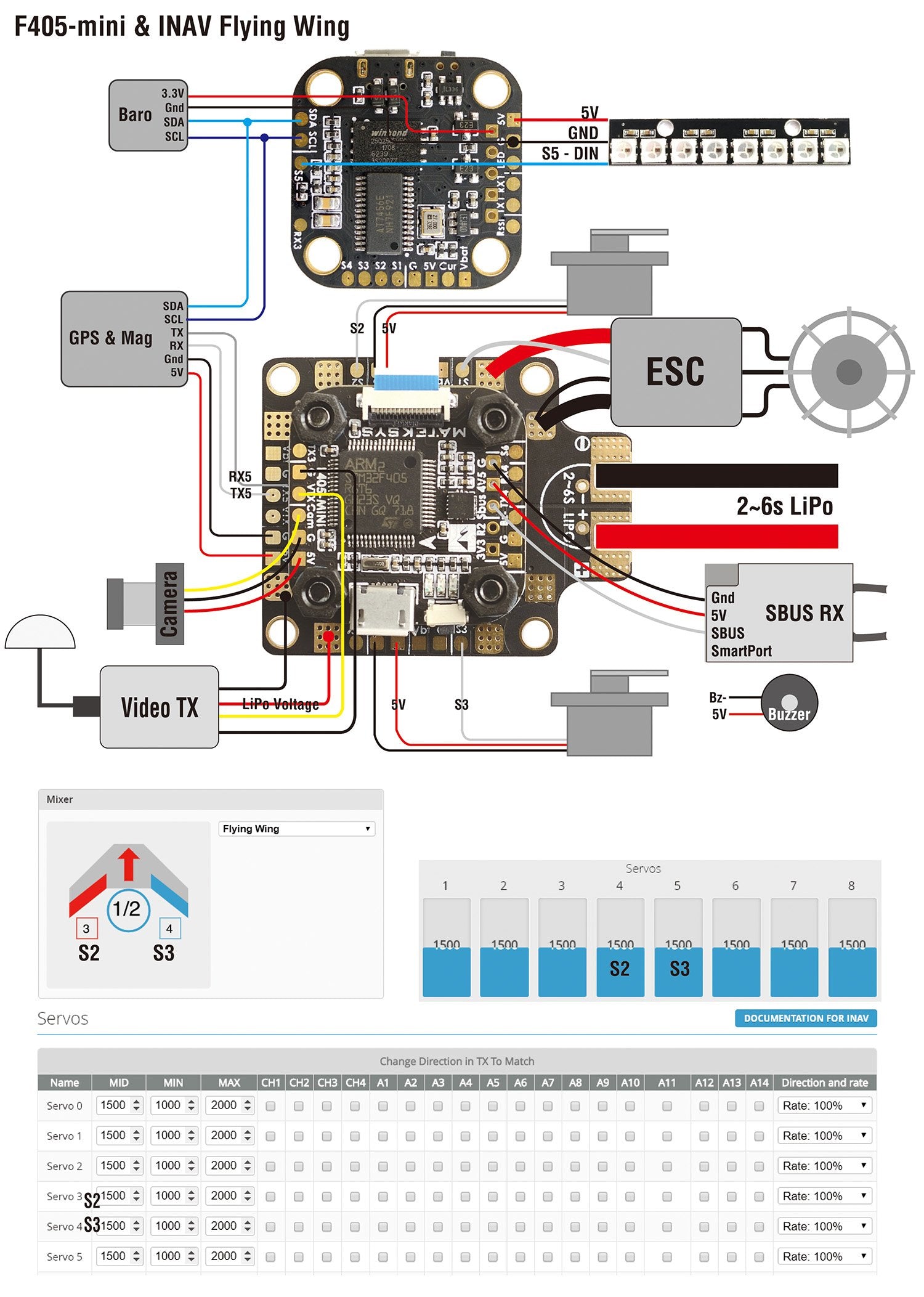

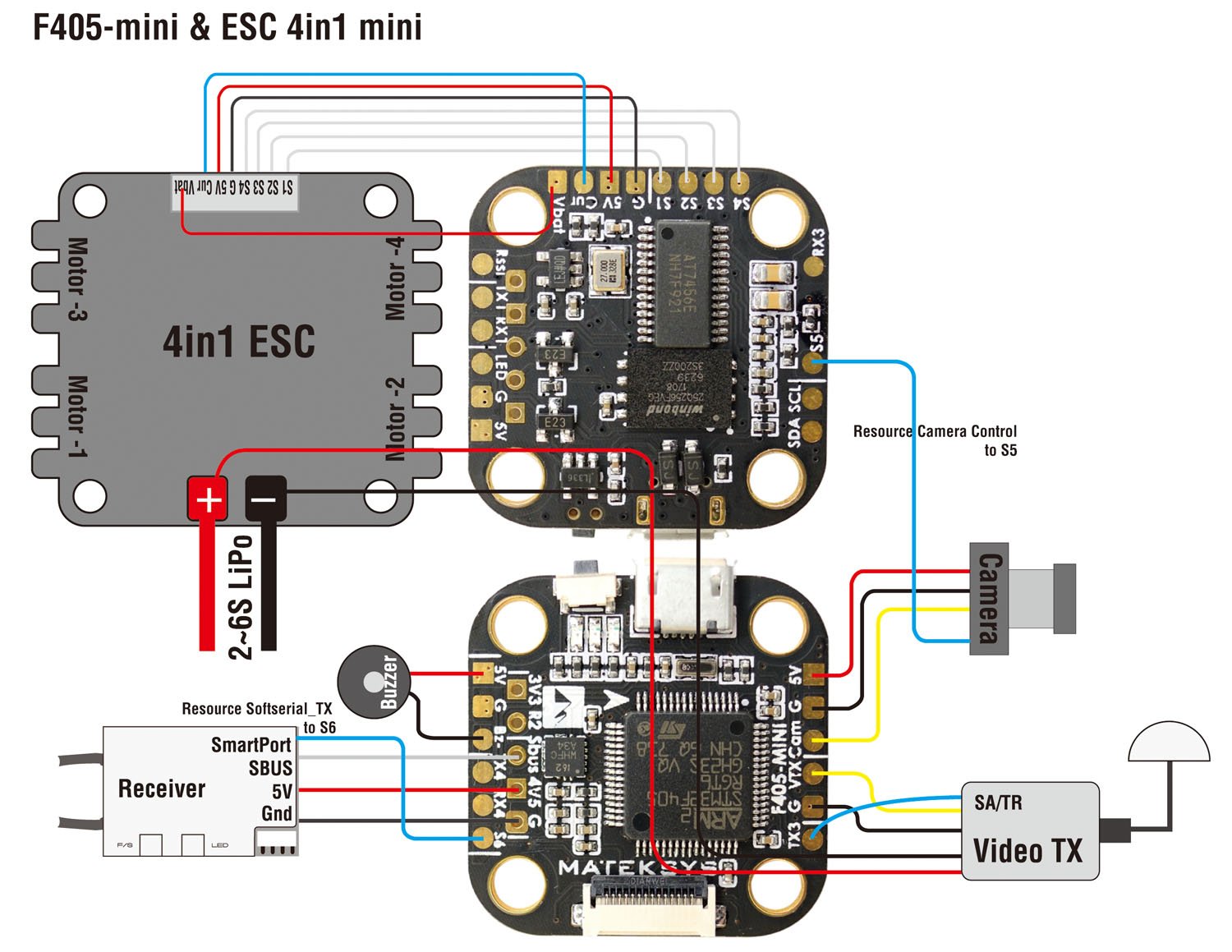

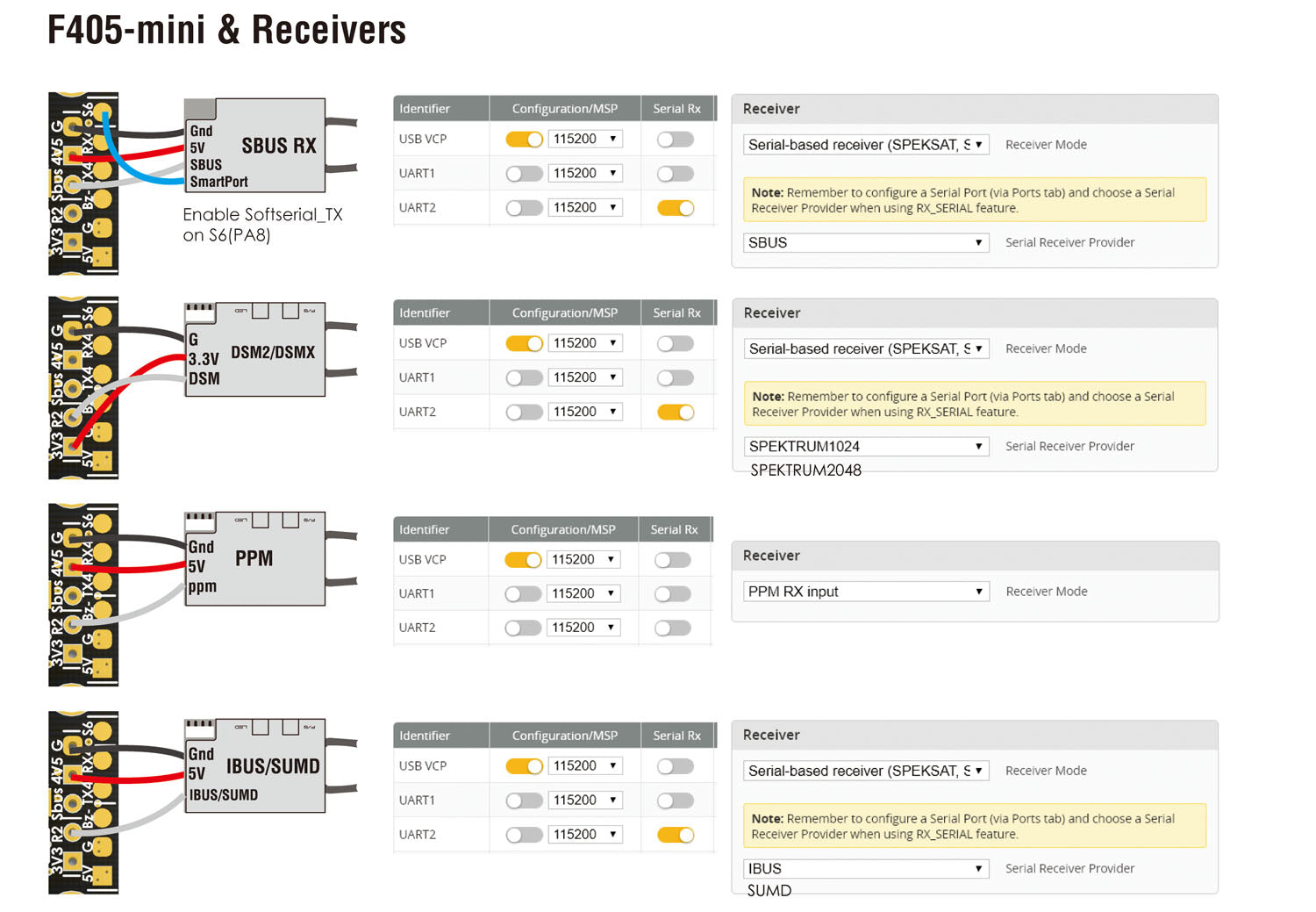

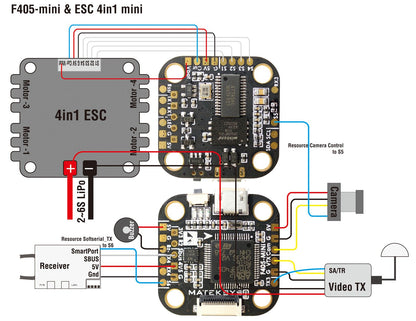

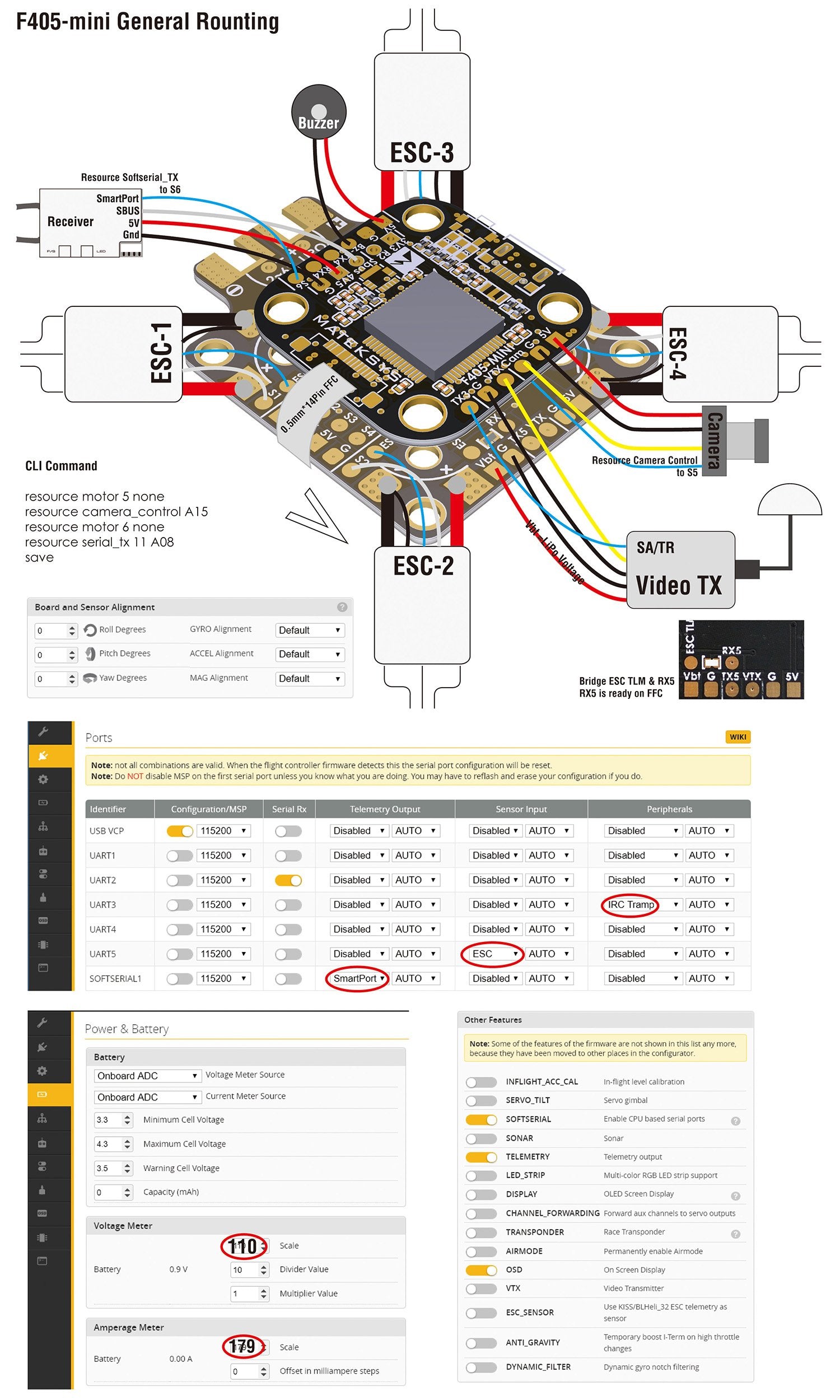

Connection Diagrams:
