Product Details
Meet the D500 Developer Kit, a state-of-the-art DTOF (Direct Time of Flight) Laser Ranging Sensor, boasting 360° omni-directional lidar capabilities. Perfect for robotics enthusiasts and developers, this sensor promises high accuracy, durability, and seamless integration into various robotic systems. With a compact and stylish design, the D500 is not just about performance but also aesthetic appeal.
Key Features
- DTOF Ranging Technology : Experience consistent ranging accuracy of ±30 mm within a 12m effective detection range. Leveraging DTOF technology, it measures distance based on the laser pulse's time-of-flight, ensuring precision regardless of distance.
- Long-Lasting Lifetime : Equipped with a brushless motor that operates quietly and without friction, guaranteeing a lifespan exceeding 10,000 hours.
- 360° Omni-Directional Scanning : Achieves comprehensive 360-degree environmental scanning, creating detailed contour maps and point cloud information for autonomous mapping and obstacle detection.

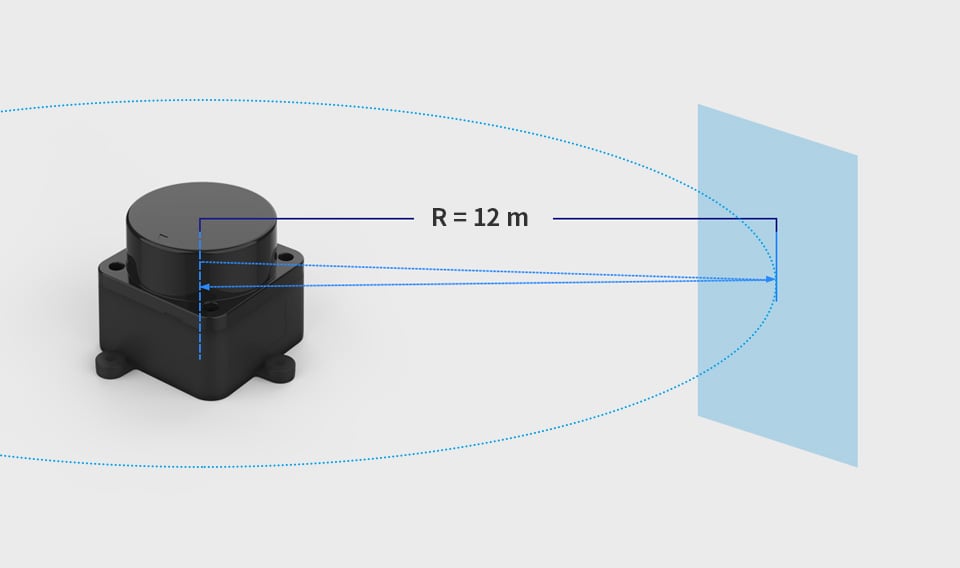

- 12m Ranging Radius : Ensures extensive area coverage for robot cruising and mapping.
- Anti-Strong Light Interference : Advanced optical design and powerful chip provide resistance to strong light environments up to 60,000 Lux, enabling accurate indoor and outdoor mapping.

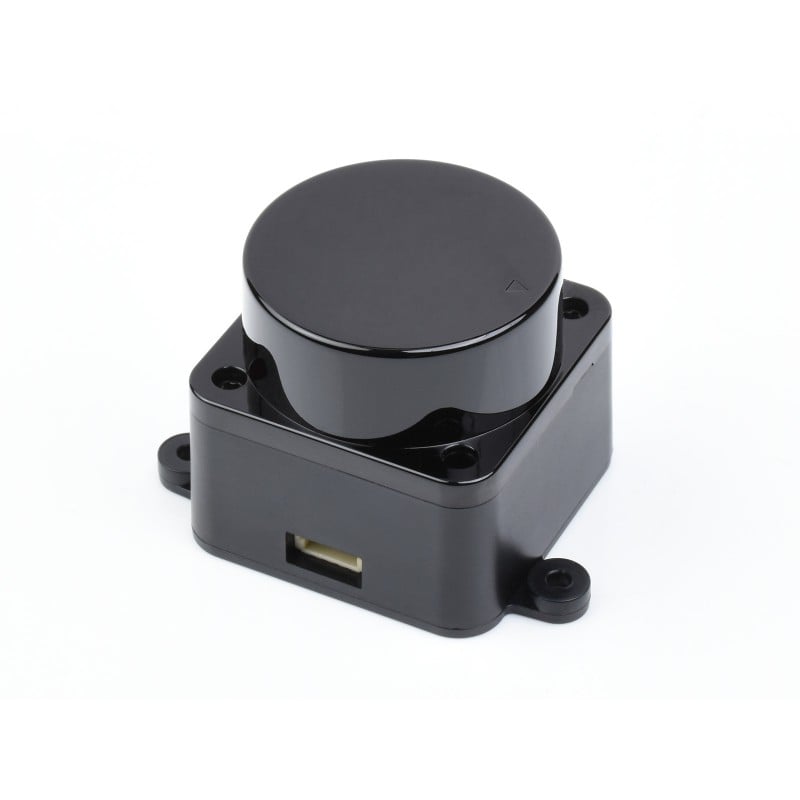

- Compact and Stylish Design : Features a sleek, compact structure that can be easily embedded in robots, enhancing passability and reducing size.
- Laser Safety : Complies with FDA Class 1 human eye safety rating, utilizing a low-power infrared laser emitter driven by modulated pulses for safe operation around humans and pets.
Specifications
- Ranging Distance : 0.03 ~ 12.00m
-
Ranging Average Accuracy
:
- ±10 mm (within 0.3 ~ 0.5m)
- ±20mm (within 0.5 ~ 2m)
- ±30mm (within 2 ~ 12m)
- Scanning Frequency : 6 ~ 13Hz (Typ 10Hz)
- Scanning Angle : 360°
- Ranging Frequency : 5000Hz
- Wavelength : 895 ~ 915 nm (Typ 905)
- Communication Interface : UART @230400
- Ambient Light Tolerance : 60KLux
- Power Supply : 5V
- Power Consumption : 1.45W
- Operating Current : 290mA
- Weight : 45g
- Operating Temperature : -10 ~ 45°C
- Lifetime : 10,000+ hours

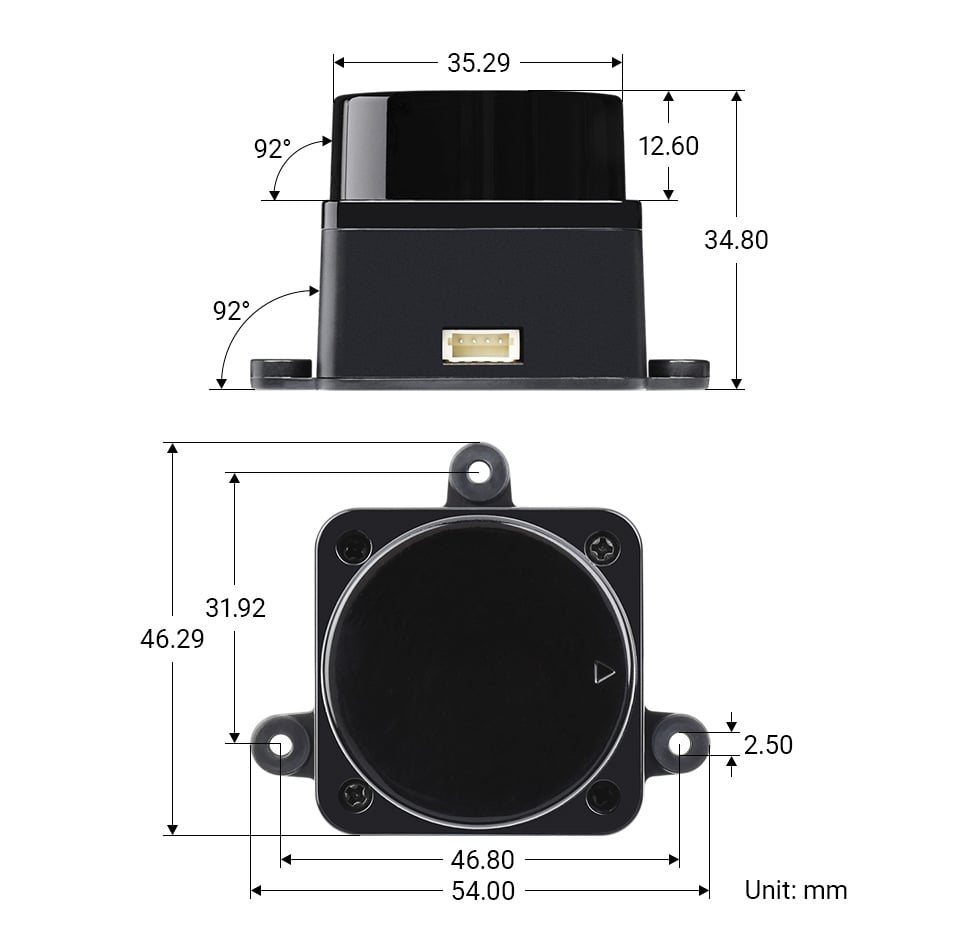

- Dimensions (L × W × H) : 54.00 × 46.29 × 35.00mm
What's in the Box?
- D500 Developer Kit
- DTOF Laser Ranging Sensor

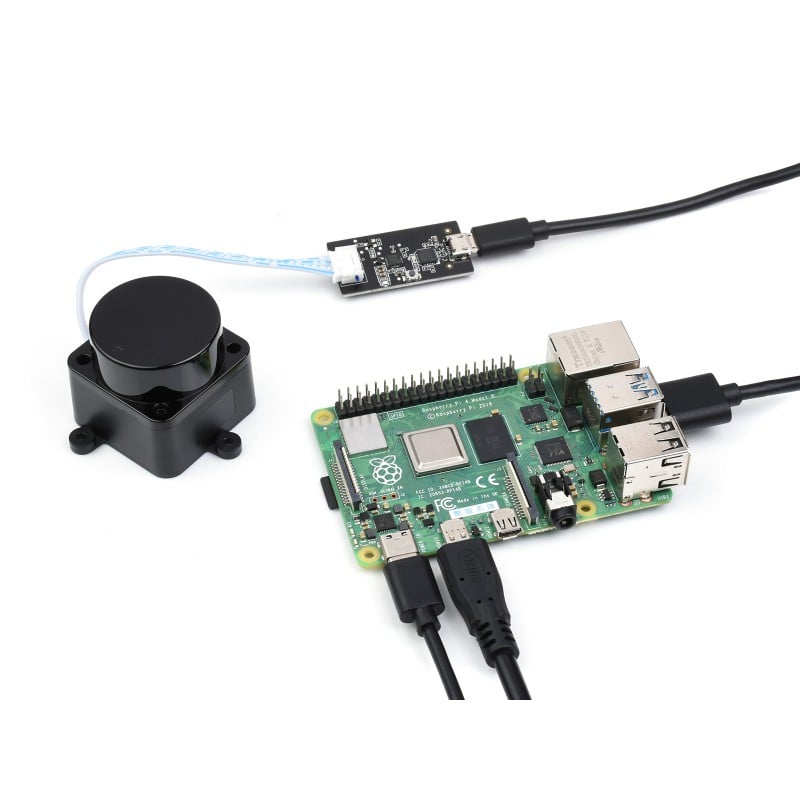

- UART Communication Cables
- Mounting Brackets
- User Manual
Note: Accessories may vary based on supply.
