Product Details
The F7-XSD equipped with MPU6000 has faster acceleration response; integrated 5V/2A, 9V/3A BEC, and integrated OSD.
Input voltage 2S-6S, comes with two independent BEC, supports mainstream SBUS, DSM2/DSMX, IBUS, TBS and other receivers on the market.
Specification
- Brand Name: JHEMCU

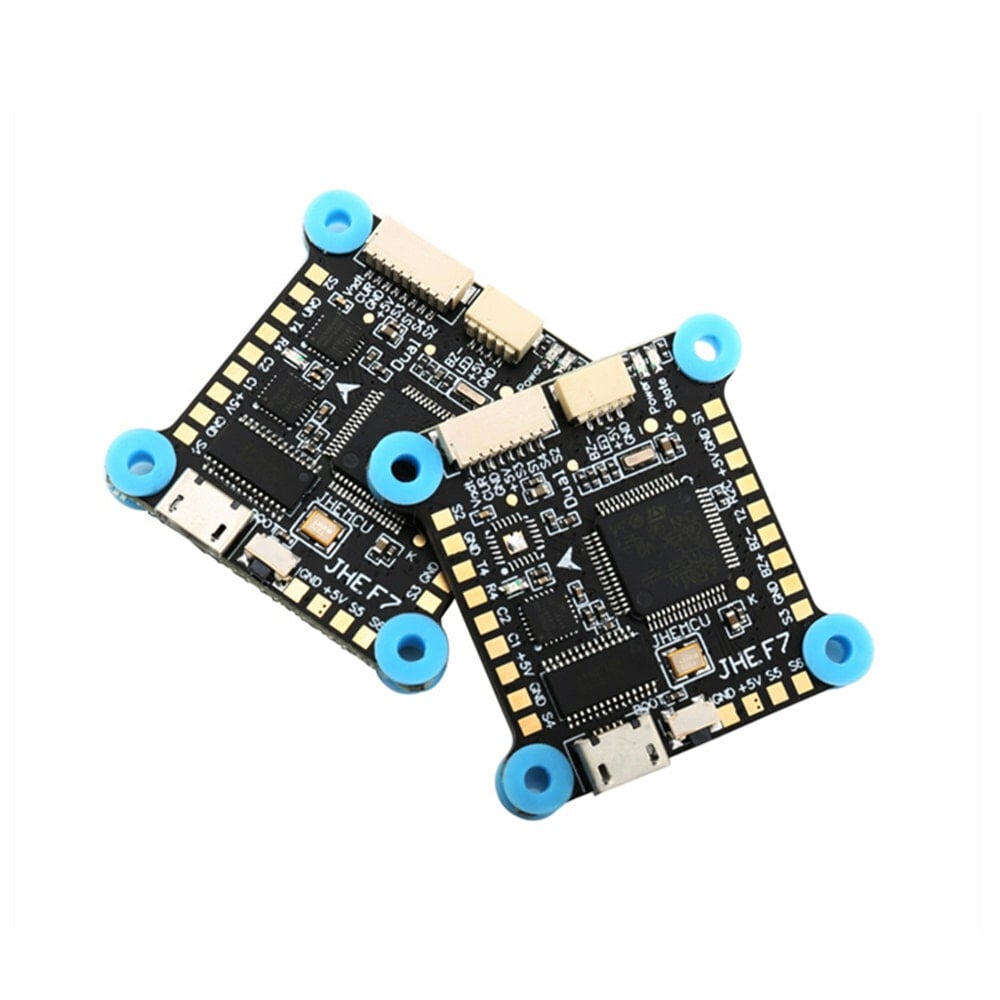

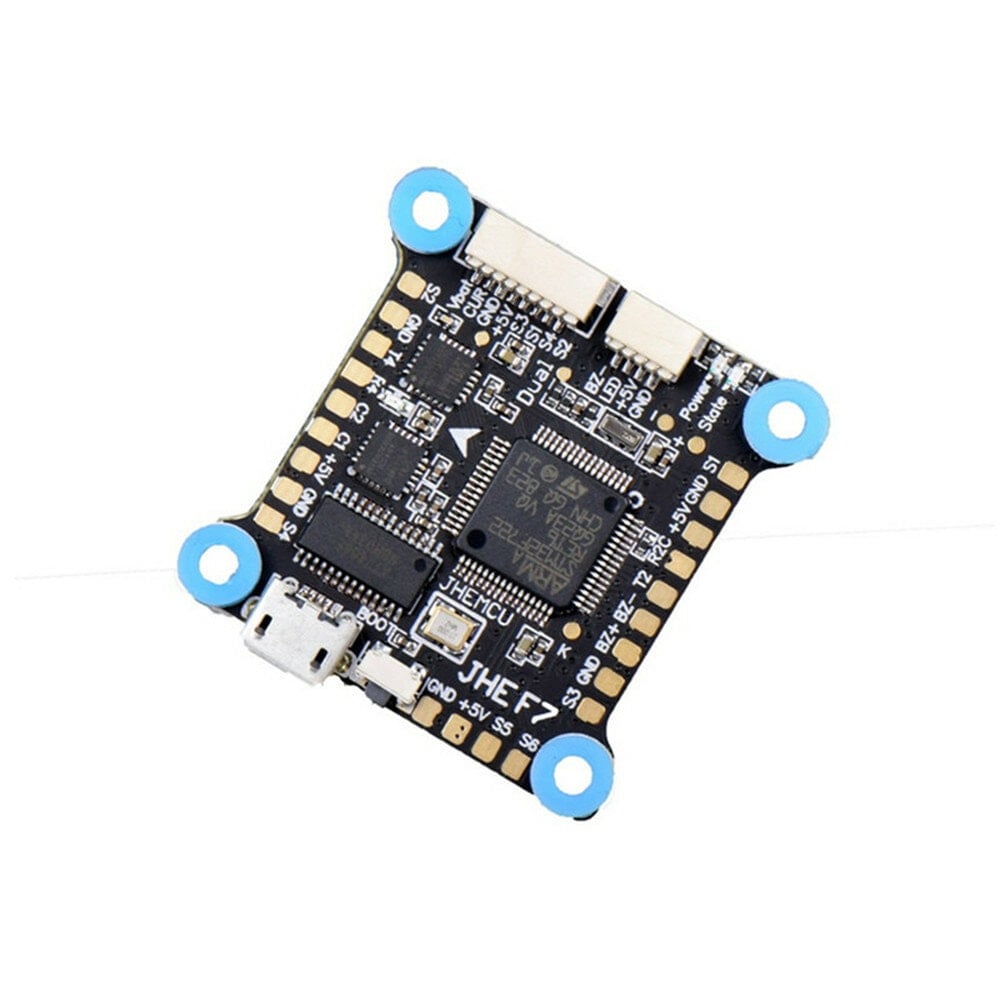

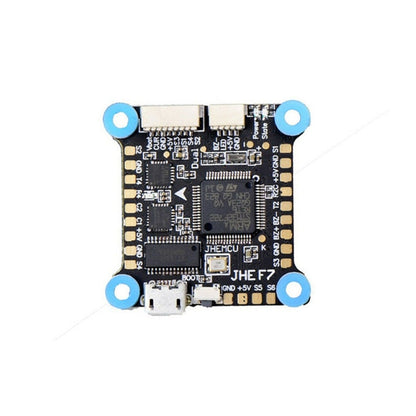

- Item Name: Dual Gyro F7 Flight Controller AIO OSD BEC
-
Optional Version:

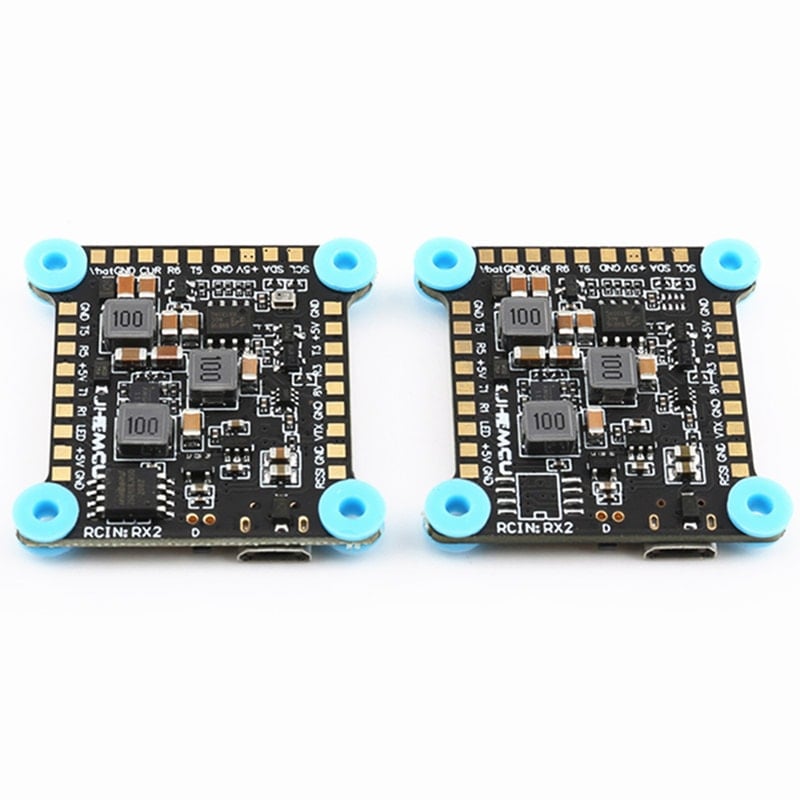

- Standard Version ( Without Barometer & Blackbox & MPU6000)
- Deluxe Version ( With Barometer & Blackbox)
- Input Voltage: 2-6S Lipo
- MCU: STM32F722RET6 216MHz
- IMU: MPU6000 & ICM20689, Dual Gyros (SPI) ;
- Standard Version Don't support MPU6000
- Baro: BMP280 ( ONLY Deluxe Version Having)
- OSD: AT7456E (SPI)
- Blackbox:16MB ( ONLY Deluxe Version Having)
- BEC 1 : 5V 2A ( for LED, Buzzer, Receiver etc.)

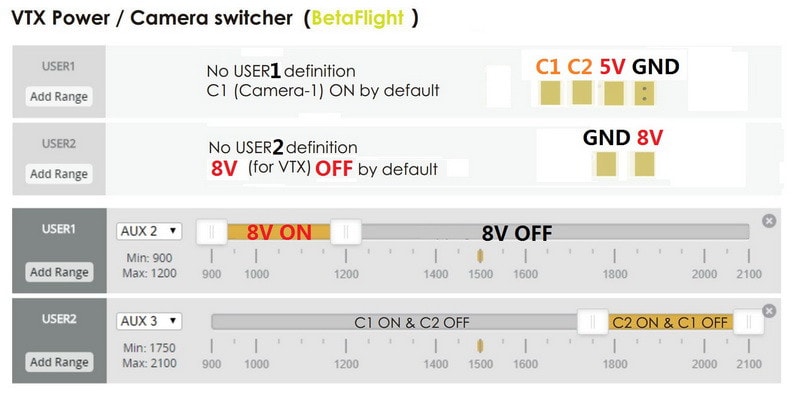

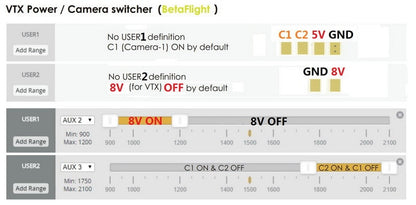

- BEC 2: 8V 3A ( for Camera, VTX, open/close it by USER2)

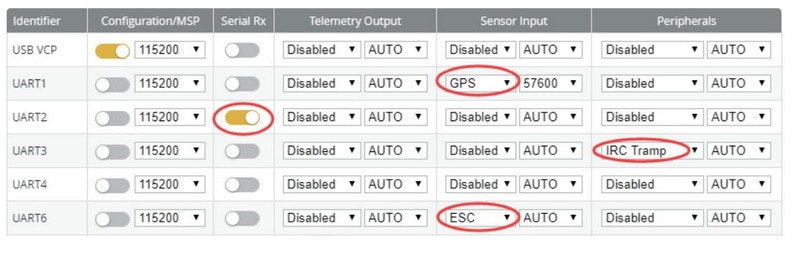

- UART Series: 6 UARTS ( UART1-UART6)
- Support Dual Camera Input ( C1, C2 for Video Input; C1 in default, can switch by USER1)
- Firemware: BetaFlight
- Size: 36x46mm
- Mounting Hole: 30.5x30.5mm

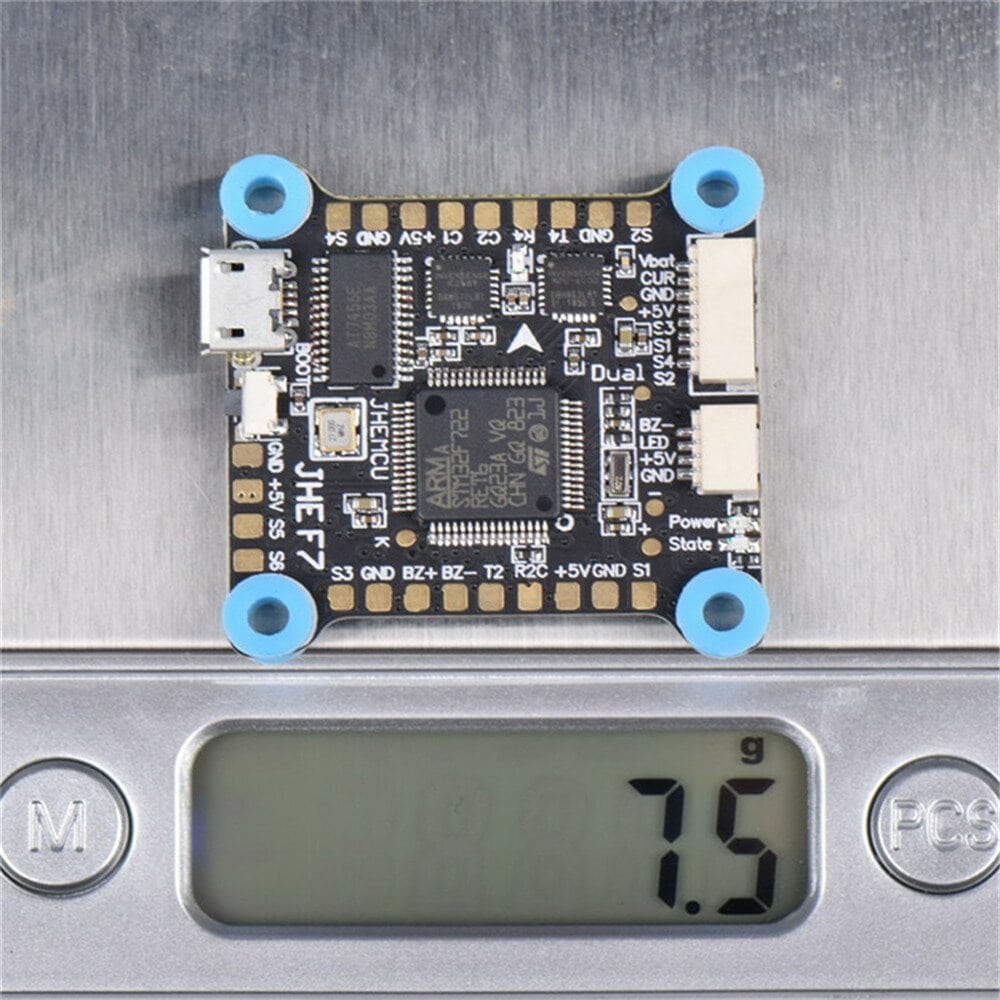

- Weight: 7.5g

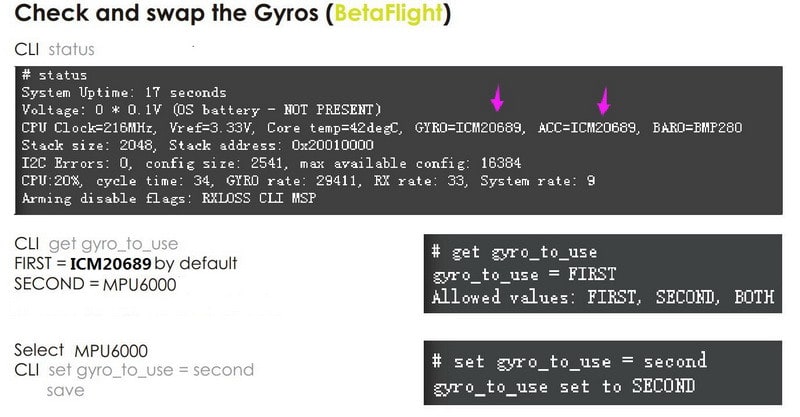

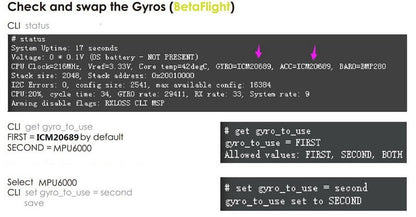

CLI commands to change gyro
status //
set gyro_to_use = FIRST //ICM20689
set gyro_to_use = SECOND //mpu6000
save //
Included
- 1x F7 Flight Controller Board
- 4x M3 Anti-vibration Standoff
