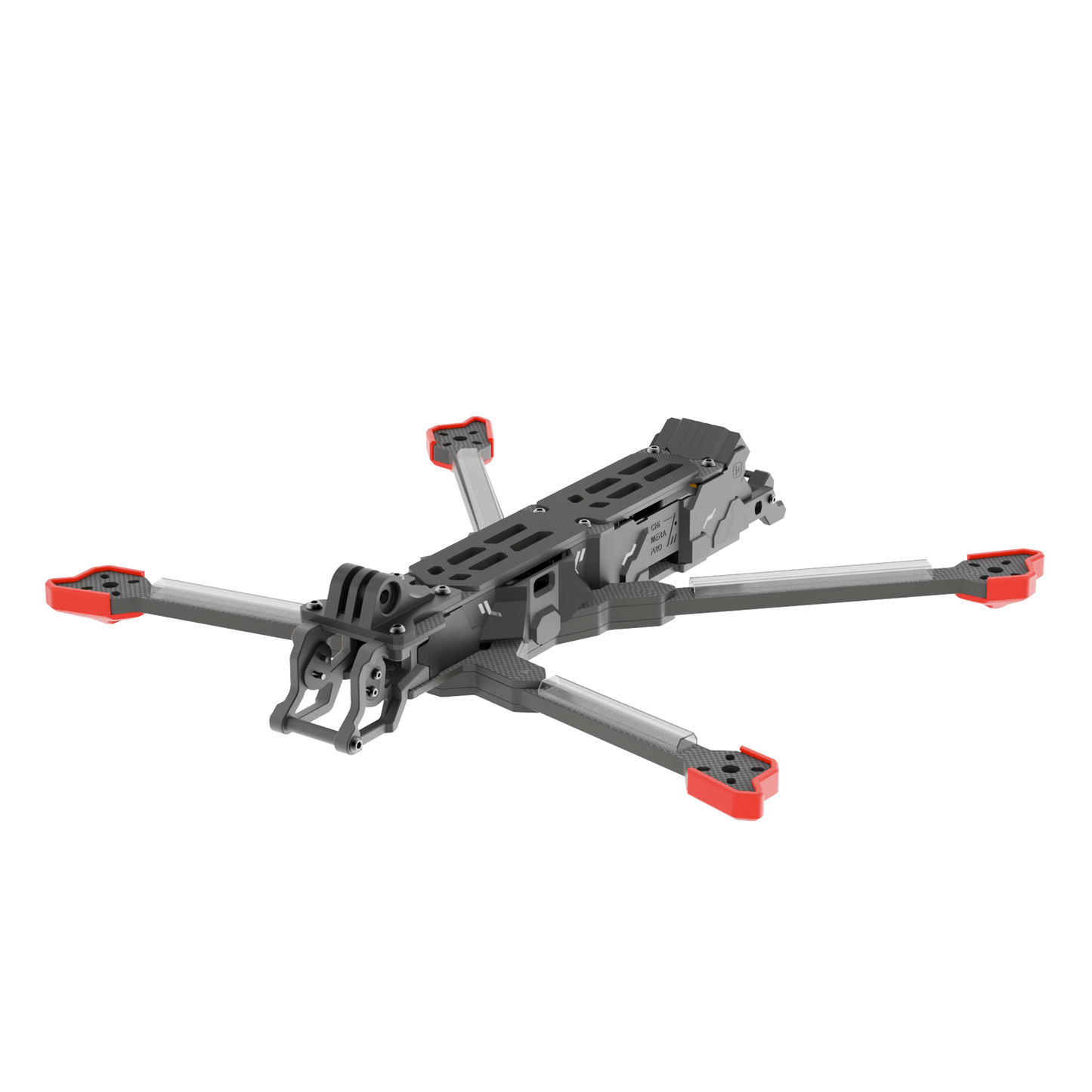

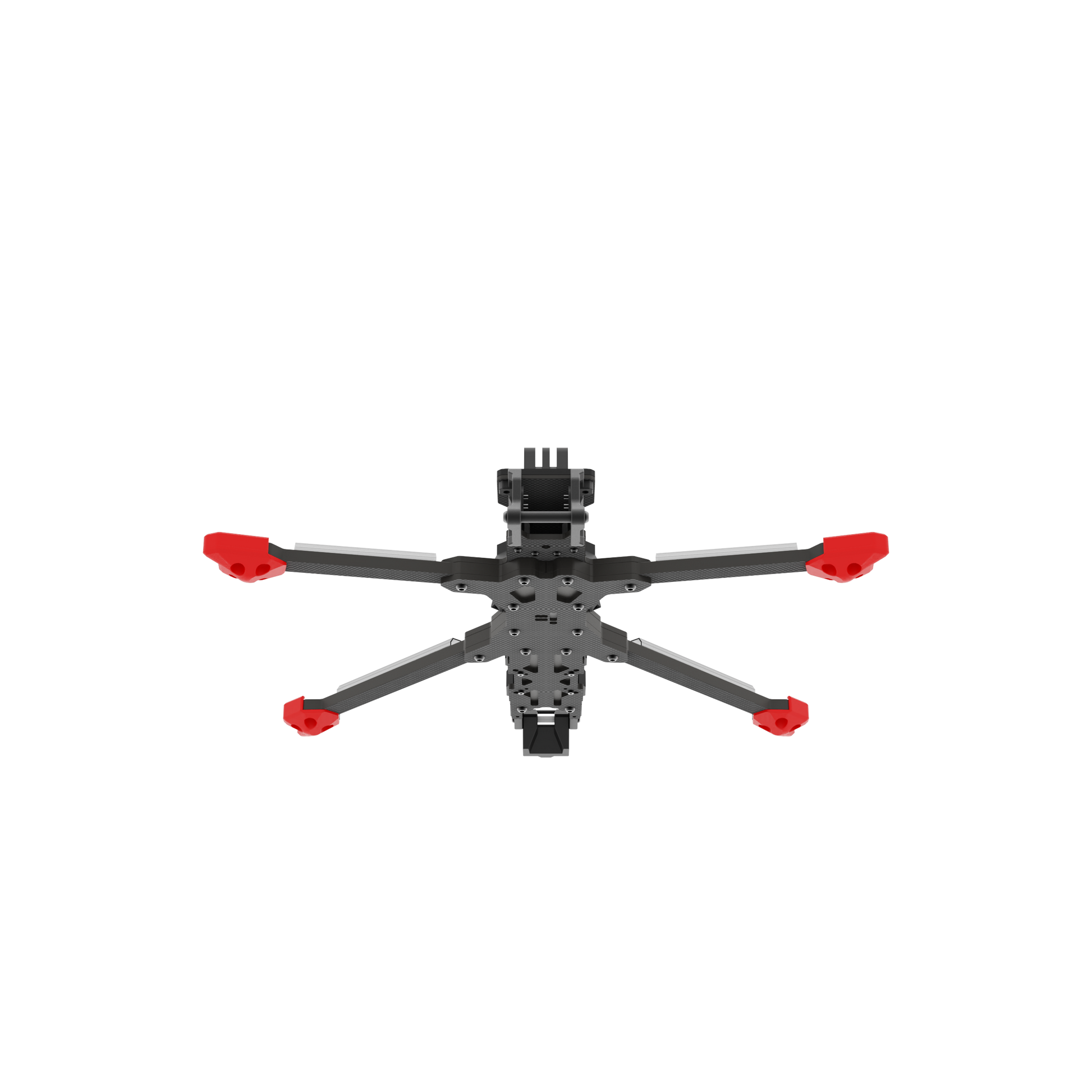

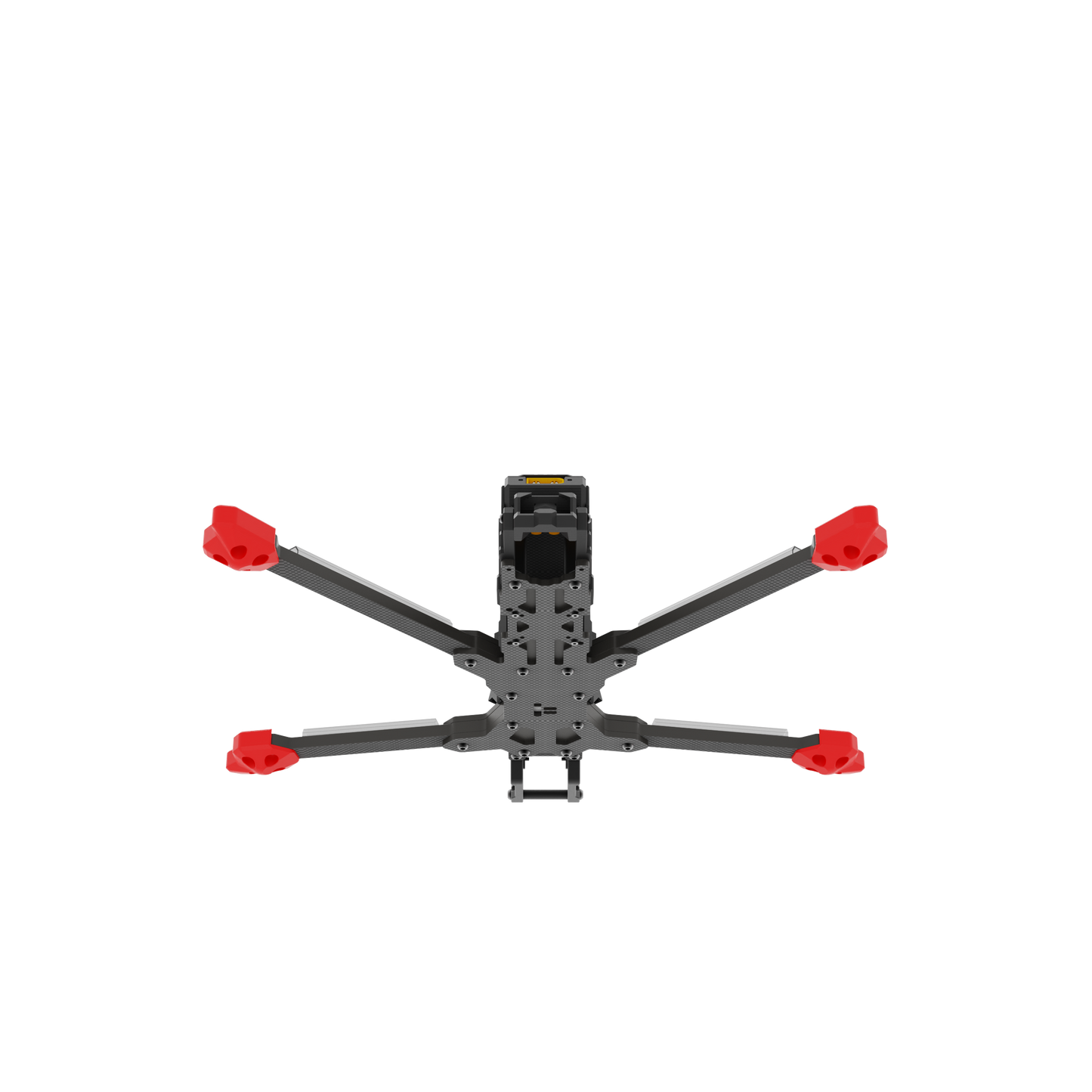

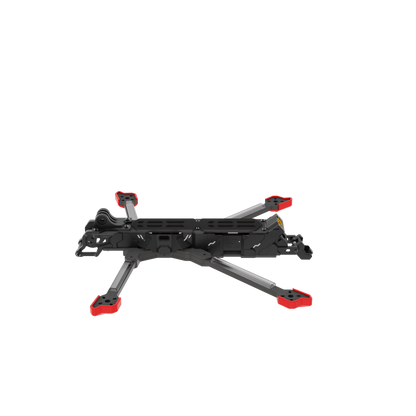

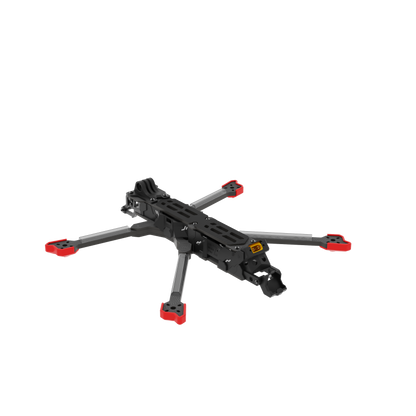

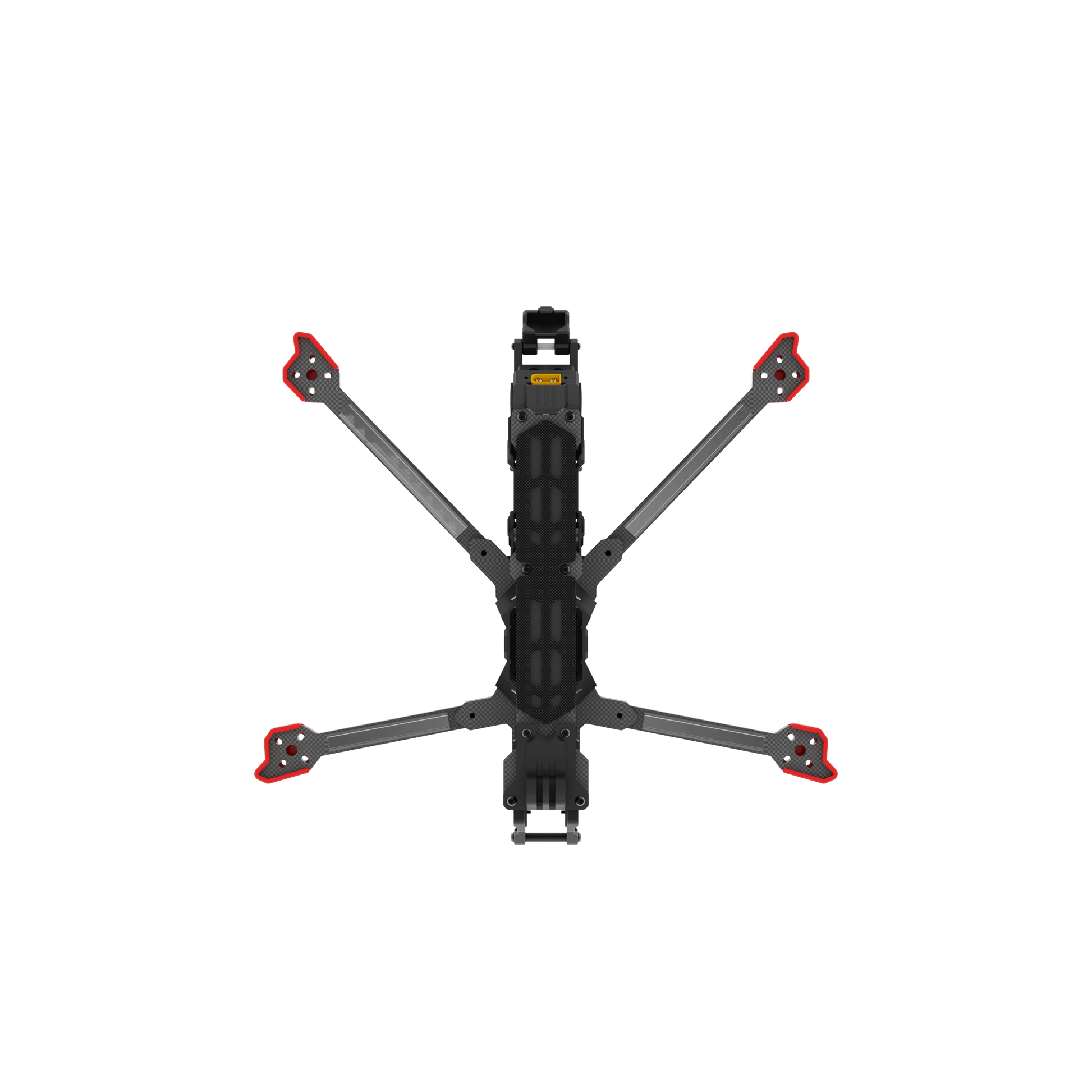

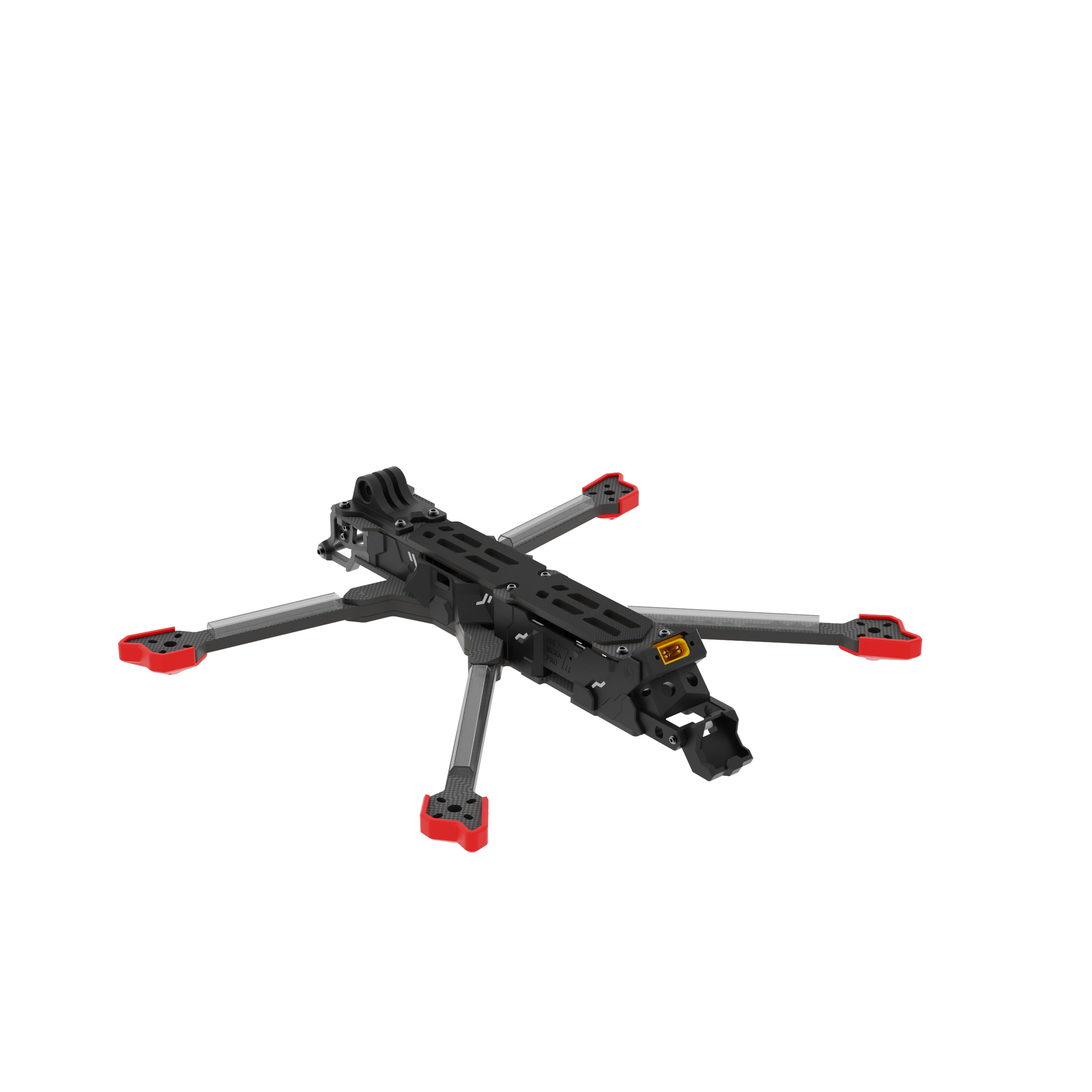

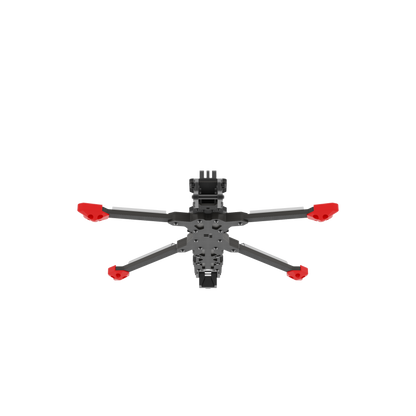

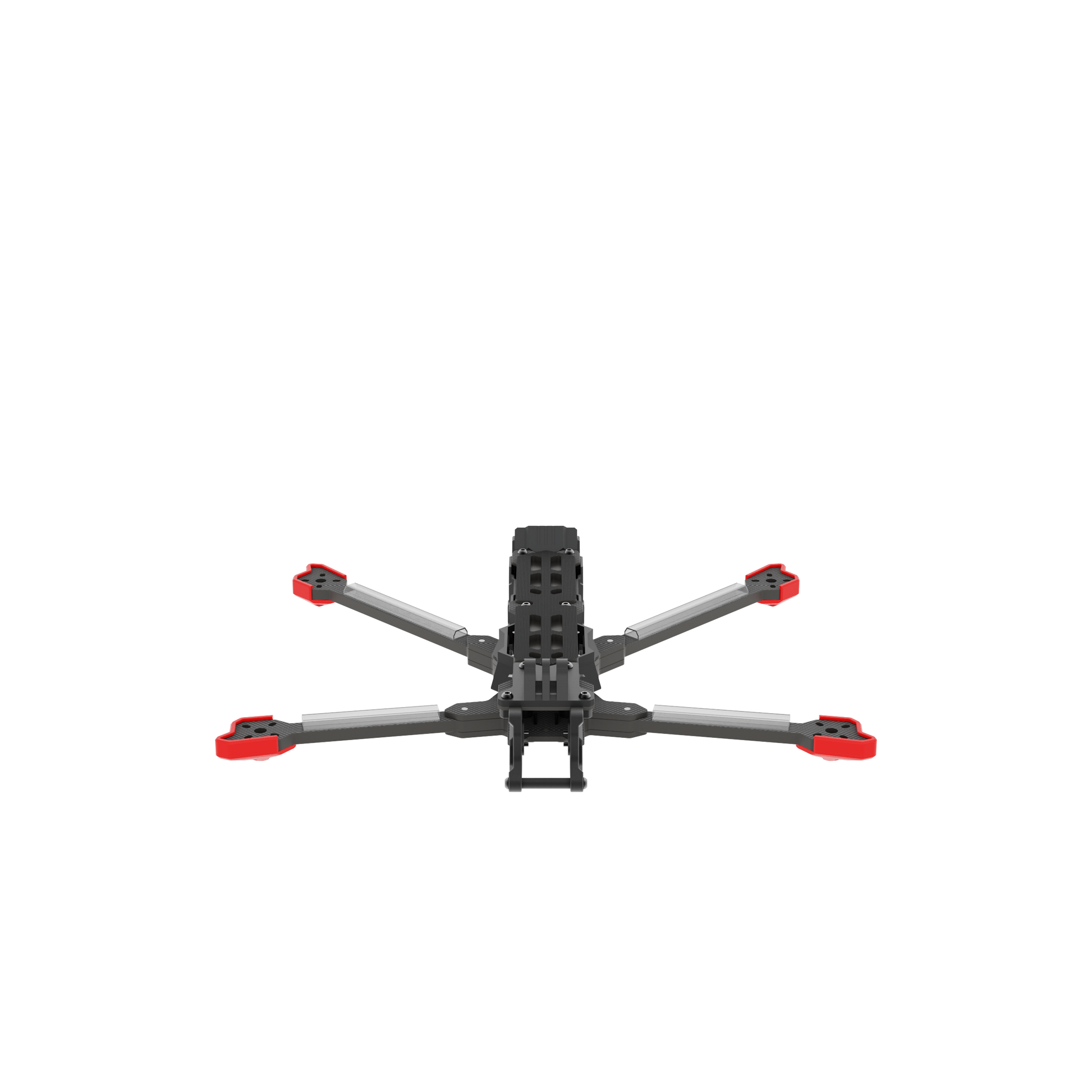

Introducing the iFlight Chimera7 Pro Long Range FPV Quadcopter Frame: Your Ticket to Sky-High Cinematic Excellence
Unleash your inner aerial cinematographer with the iFlight Chimera7 Pro, the ultimate 7.5" long-range quadcopter frame designed to make your FPV dreams come true! Glide gracefully along waterfronts or embark on daring journeys to the Swiss Alps - all while capturing breathtaking footage with unparalleled stability and flight time.
Built with ultra-stiff carbon to minimize resonance, this bad boy is powered by recommended 2806.5 motors for unbeatable 7.5" prop control. Whether you're into adrenaline-pumping action or slow cruising, the Chimera7 Pro has got you covered. Choose between top-mounted big batteries or even bigger bottom-mounted ones - 6 cells recommended, or 5 cells for a more leisurely pace. And no matter your flying style, Lipo or Lion packs will get the job done.
Key Product Highlights:
- DJI O3 HD Air Unit Digital Transmission: Upgraded from V1 to V2 for the ultimate aerial experience.
- Specially designed heatsink for DJI O3 Air Unit: Keep your equipment cool and your footage flawless.
- Enhanced camera mount with TPU damping inserts: Enjoy a wider field of view and an extra dose of cinematic smoothness.
And that's not all! The iFlight Chimera7 Pro also features new side panels, a dual 5.8G VTX antenna TPU mount, and a range of optional parts to make it uniquely yours. Trust us - with this quadcopter frame in your hands, you'll be the envy of all your FPV friends.
Don't just take our word for it - upgrade your Chimera7 Pro V1 and experience the difference for yourself. With a few simple tweaks (details provided), you'll be ready to soar like never before.
Features
- V1 to V2 was upgraded for the DJI O3 HD Air Unit Digital Transmission
- Specially Designed Heatsink for DJI O3 Air Unit
- New Camera Mount for a wider camera FOV with TPU damping inserts
- New Side Panels to perfectly fit the O3 Air Unit in the back
- New Dual 5.8G VTX Antenna TPU mount
- Latest Chimera7 Pro Frame Upgrades for Maximum Protection
Specifications

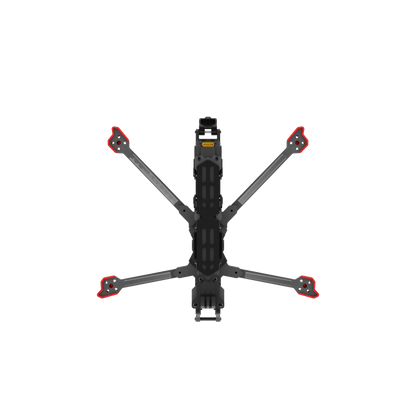

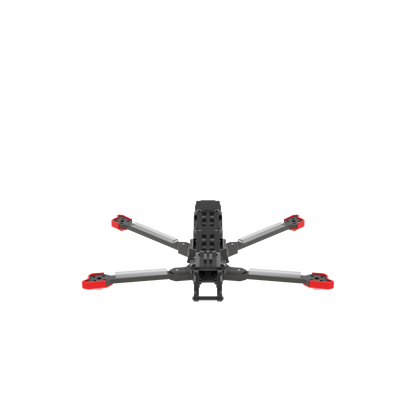

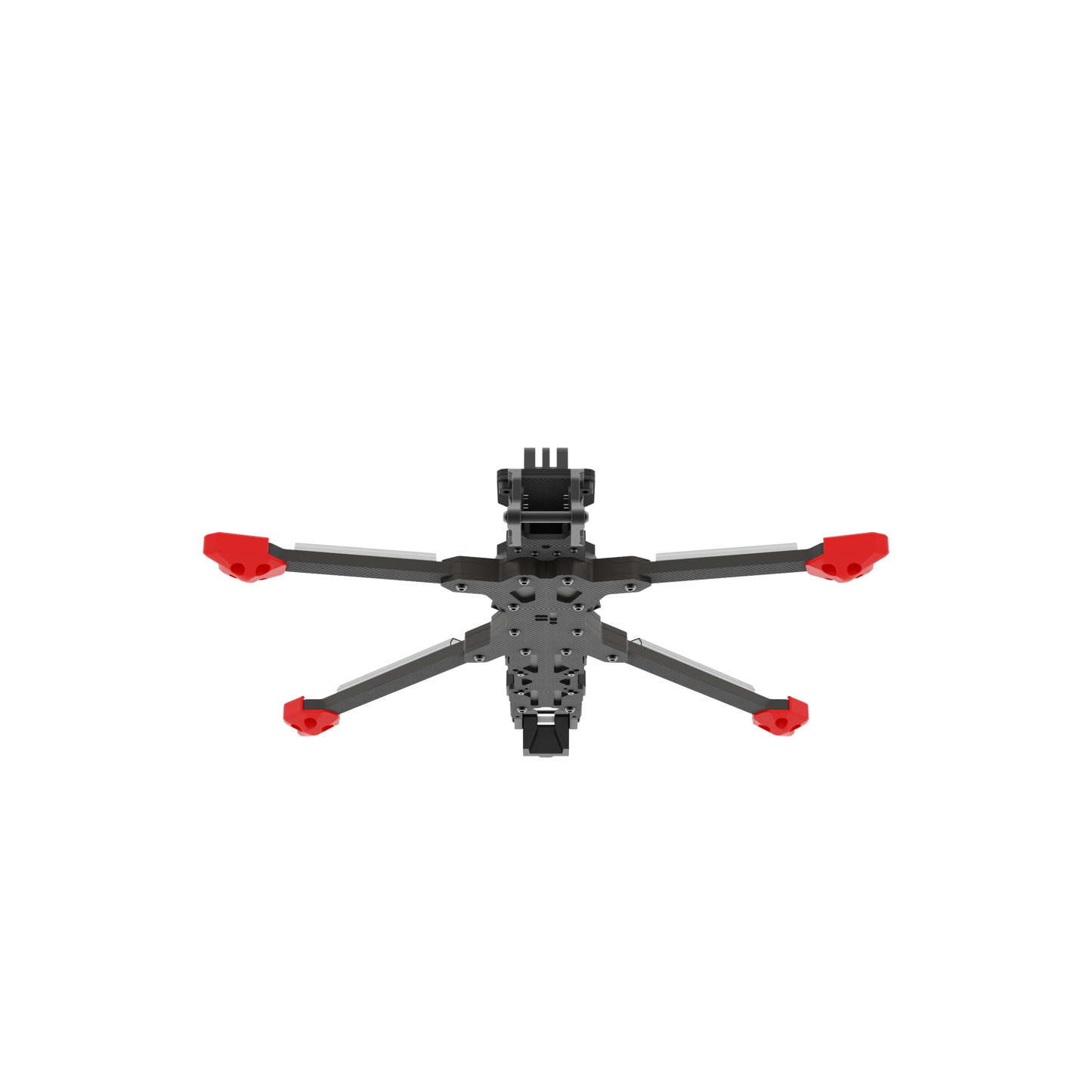

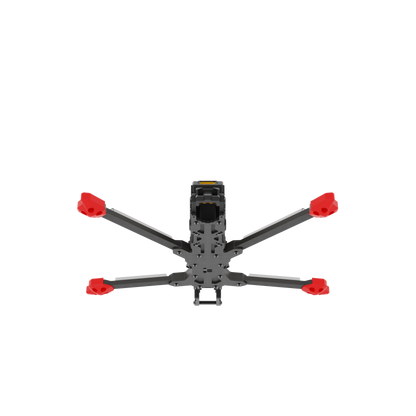

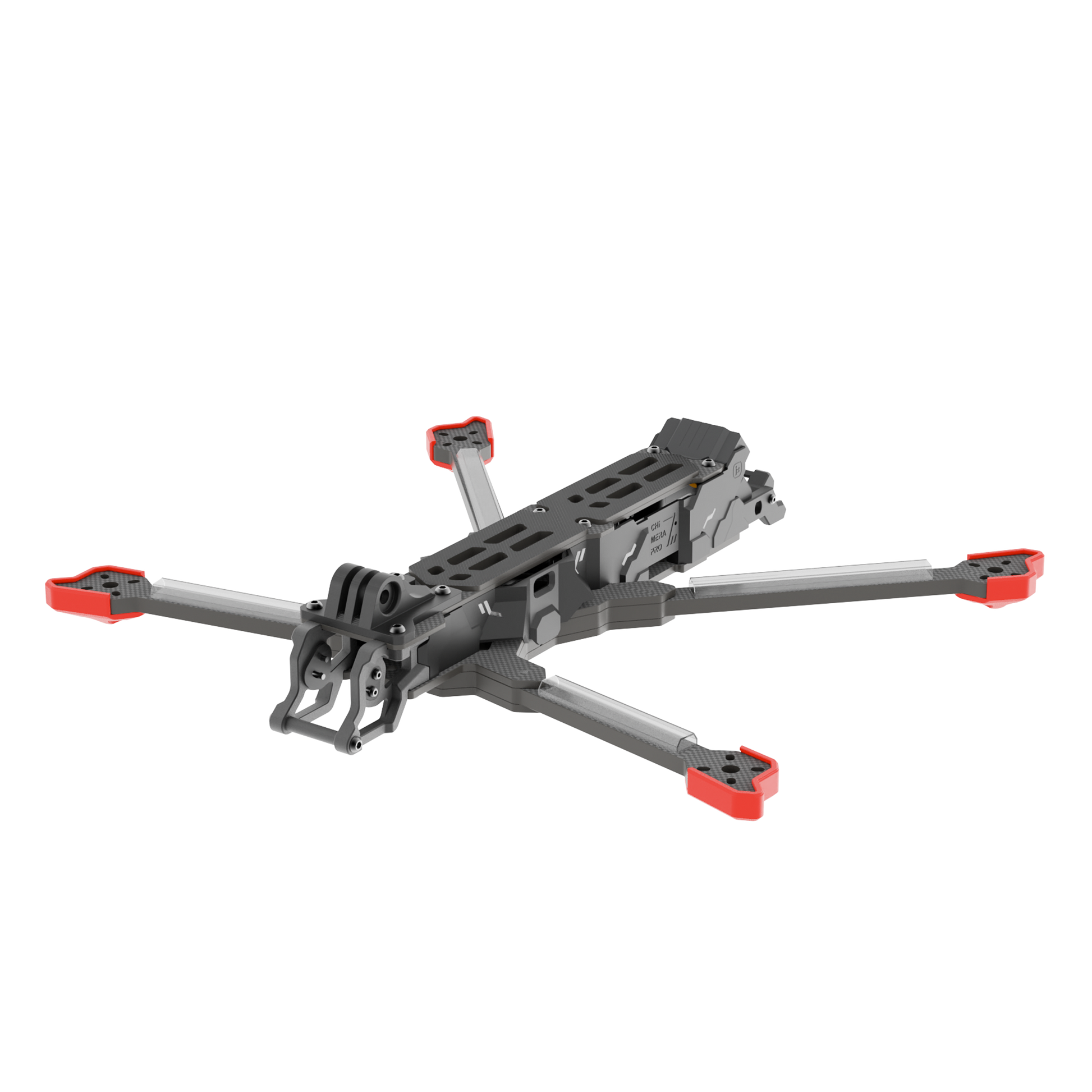

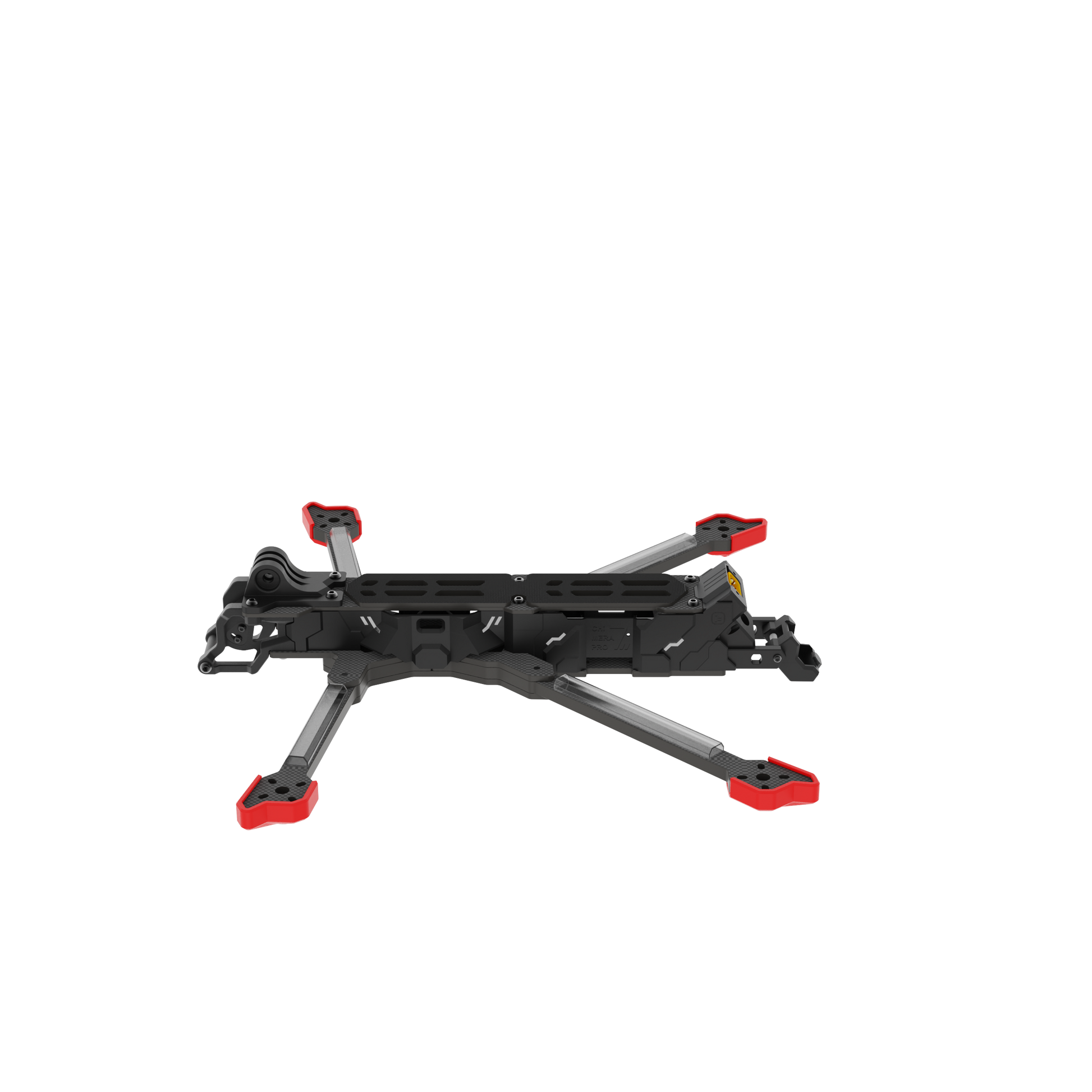

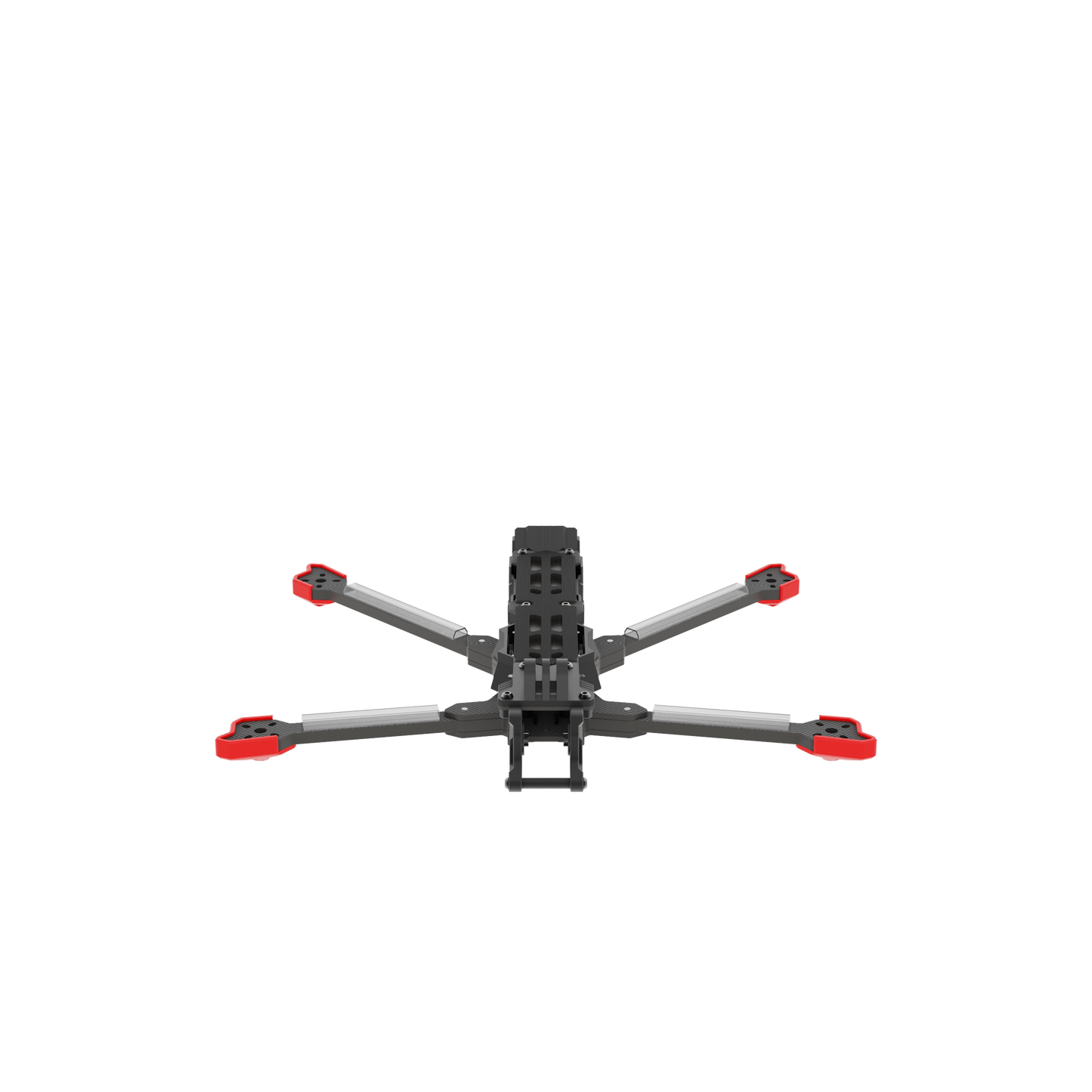

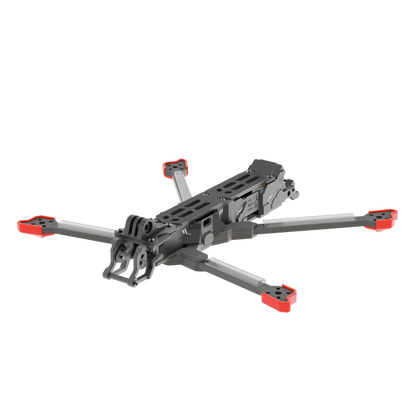

- Product Name：Chimera7 Pro V2 Frame Kit
- Wheelbase: 327mm
- Frame Dimension: L270*W199*H34 mm
- Frame Body Dimension: 34mm
- Arm Thickness: 6mm
- Bottom Plate Thickness: 3mm
- Top Plate Thickness: 2mm
- Upper Plate Thickness: 3mm
- Camera Plate Thickness: 3mm
- Motor Mounting: 16x16mm / 19*19mm
- VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
- Weight: 175grams (not including TPU parts)
Included
- 1 x Chimera7 Pro V2 Frame Kit
- 1x O3 MIPI Digital Video Cable 215mm
- 2x O3 IPEX to RP-SMA Antenna Pigtails
- 1 x O3 Dual Antenna TPU
- 1 x GoPro TPU Base Mount
- 1 x Screw Bag
- 4 x TPU Armguard
- 1 x Front Bumper TPU
- 1 x Rear Bumper TPU
- 2 x Anti-Slip Battery Pad
- 2 x Battery Strap (20*250mm)
