Product Details
FC Features
- Improved circuit design, better components, and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging
- With LC filter

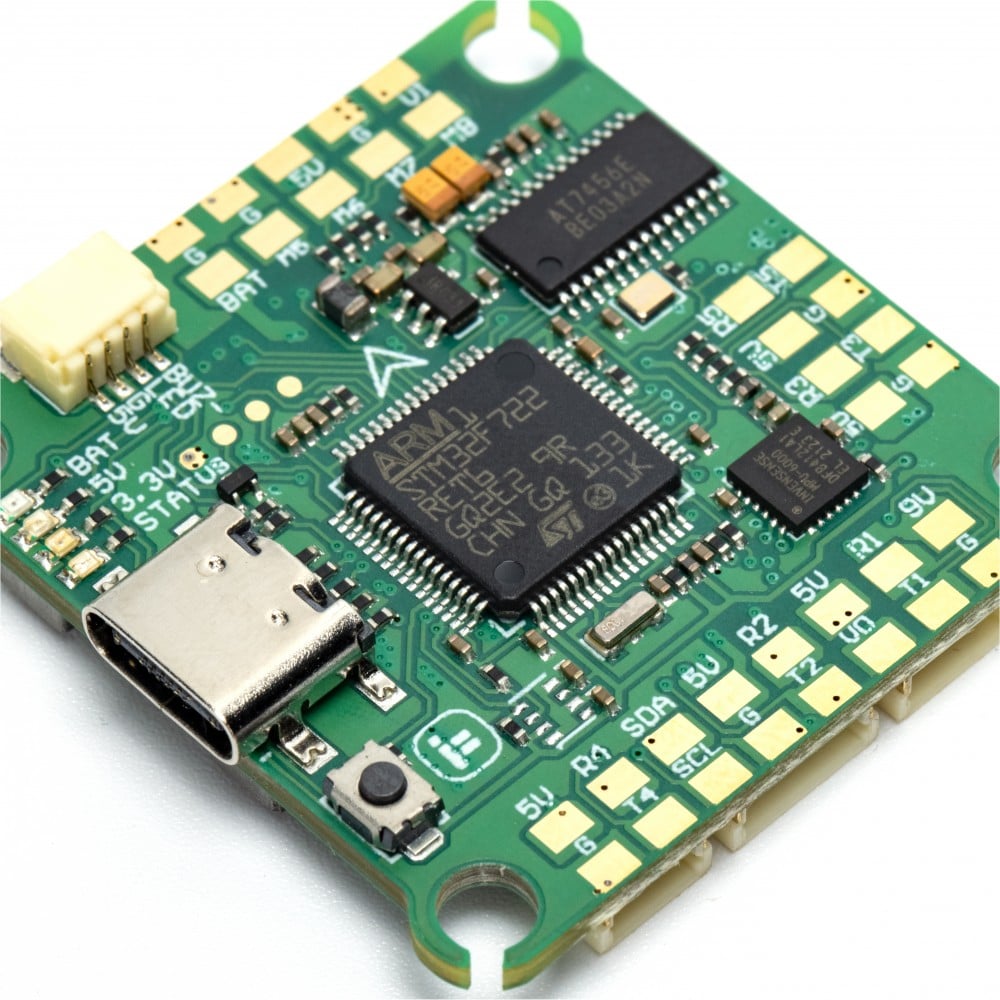

FC Specifications
- MCU: STM32 F722
- Gyro: BMI270
- Barometer: DPS310
- OSD Chip: AT7456E
- Flash: 32MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C serial: SDA / SLA pads
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFRC-IFLIGHT_BLITZ_F722
- Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
- Dimensions: 36.5*35 mm

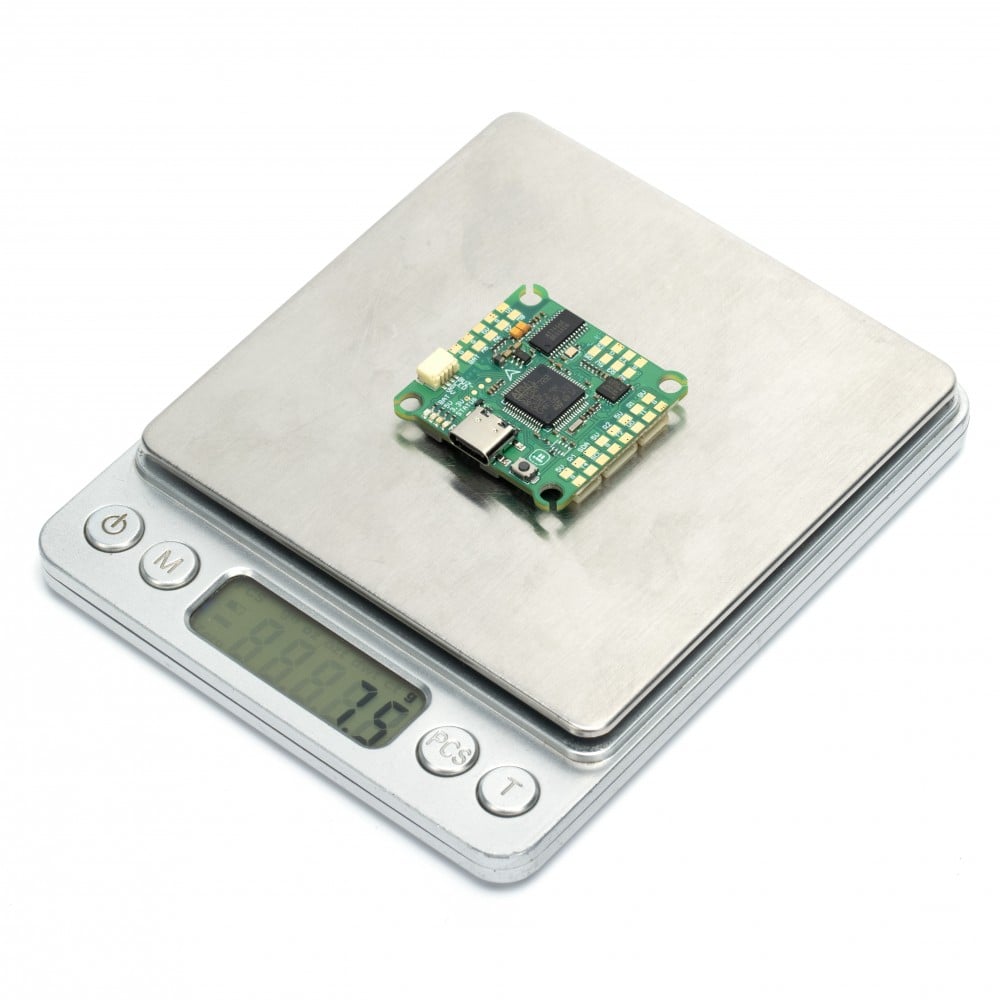

- Weight: 7.8g

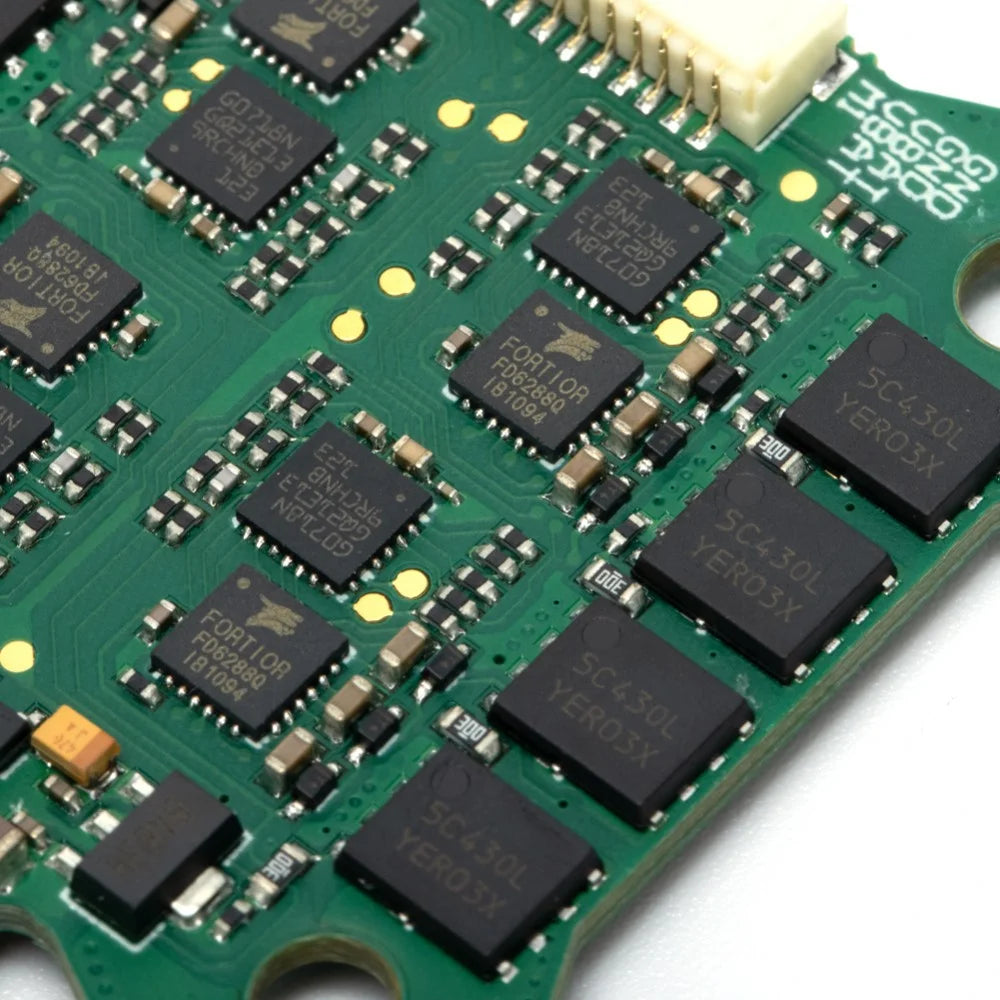

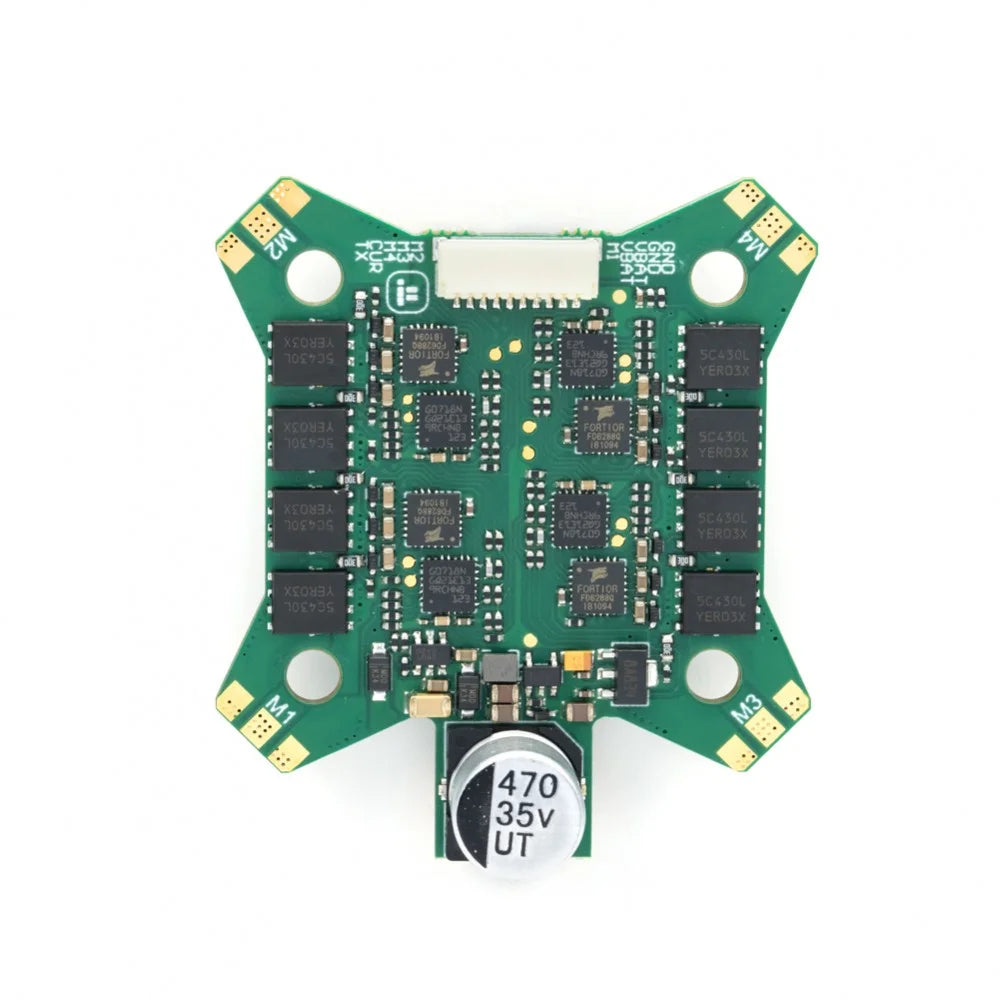

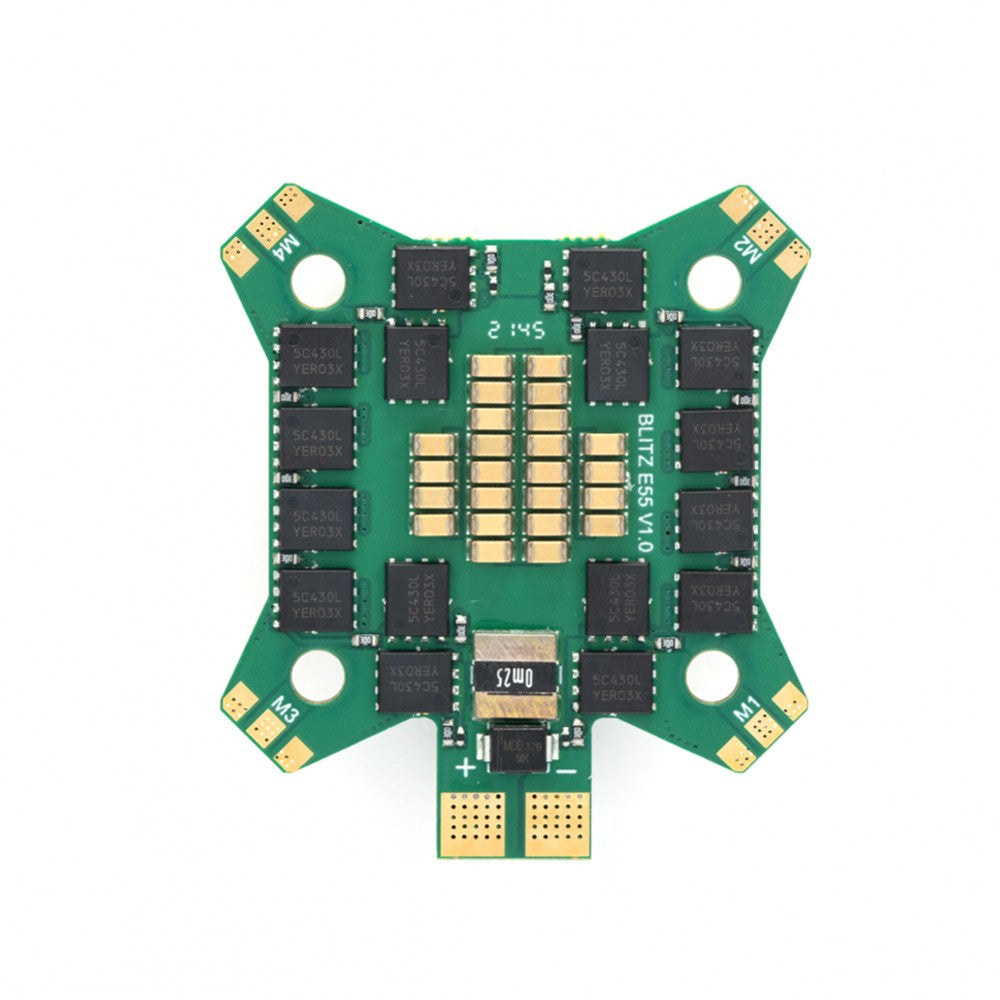

ESC Specification
- Mounting Holes: 30.5*30.5mm/Φ4mm
- Weight: 14.7g
- Supports 2-6S lipo input
- MCU：BB21
- Constant: 45 Amps
- Burst: 55 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 200
- Supports: DShot DShot150/300/600
Included

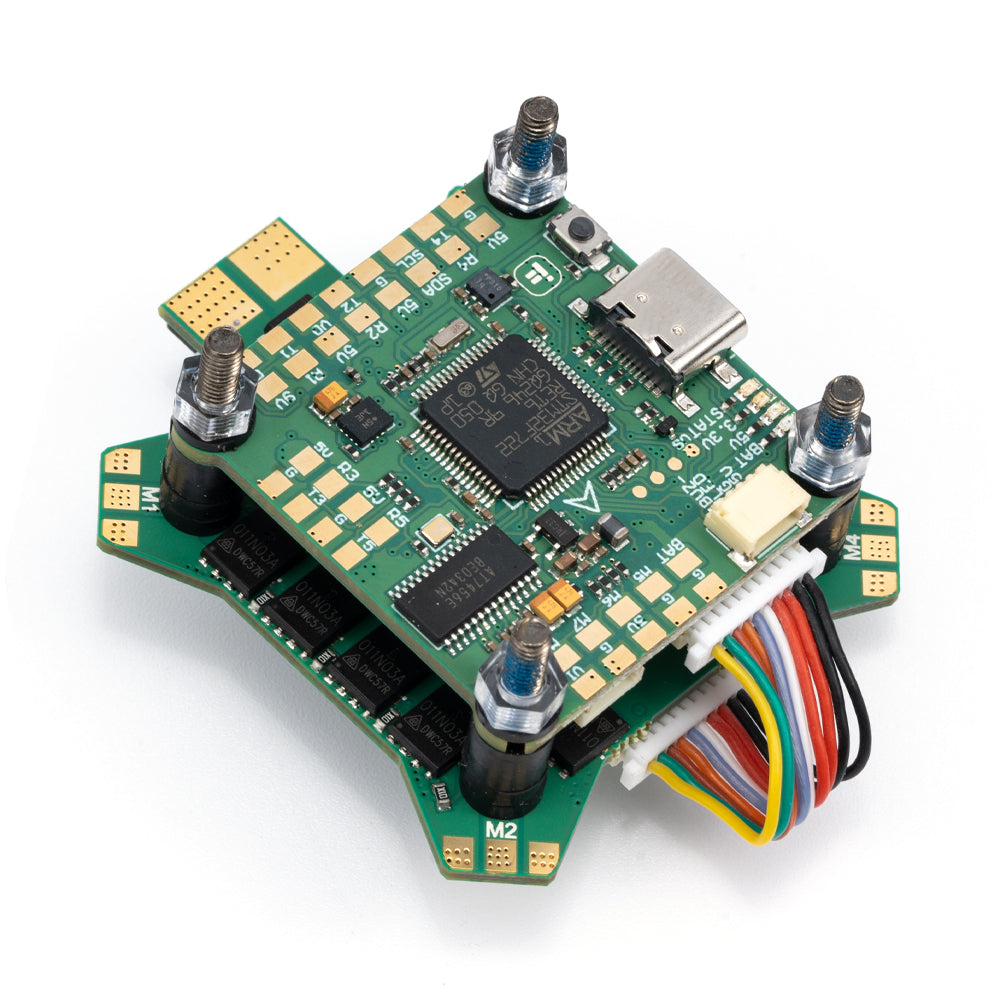

- 1pc BLITZ F7 V1.1 FLIGHT CONTROLLER
- 1pc BLITZ E45S 4-IN-1 2-6S ESC
- 1 set SILICON GROMMETS
- 1 set WIRE HARNESS FOR F7 FLIGHT CONTROLLER
