Product Details

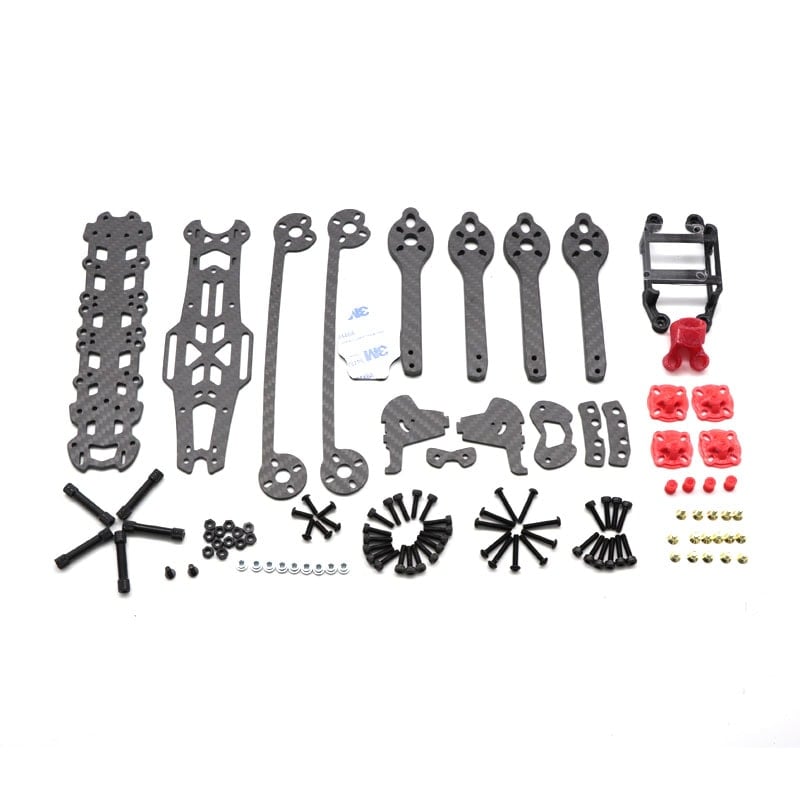

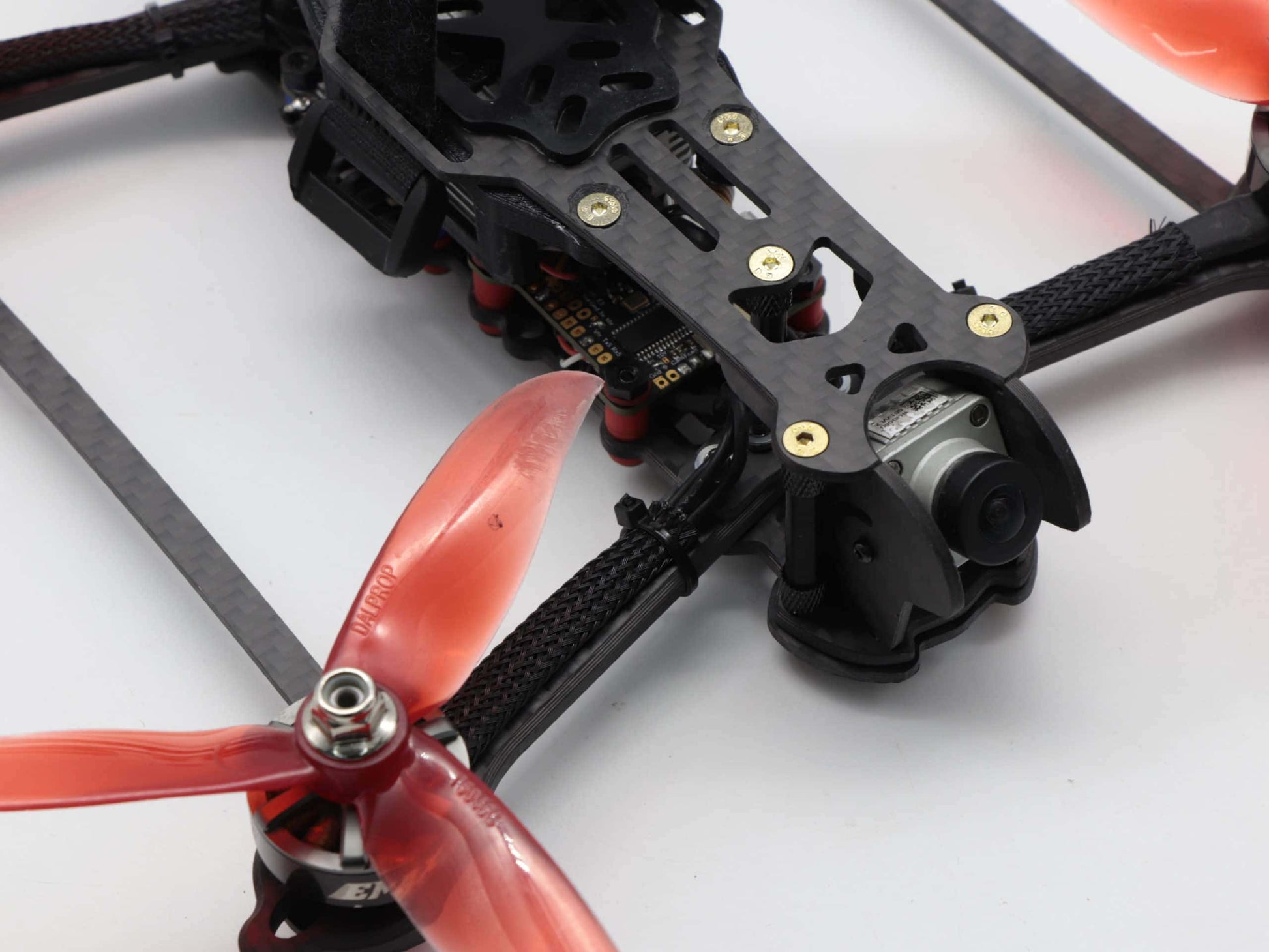

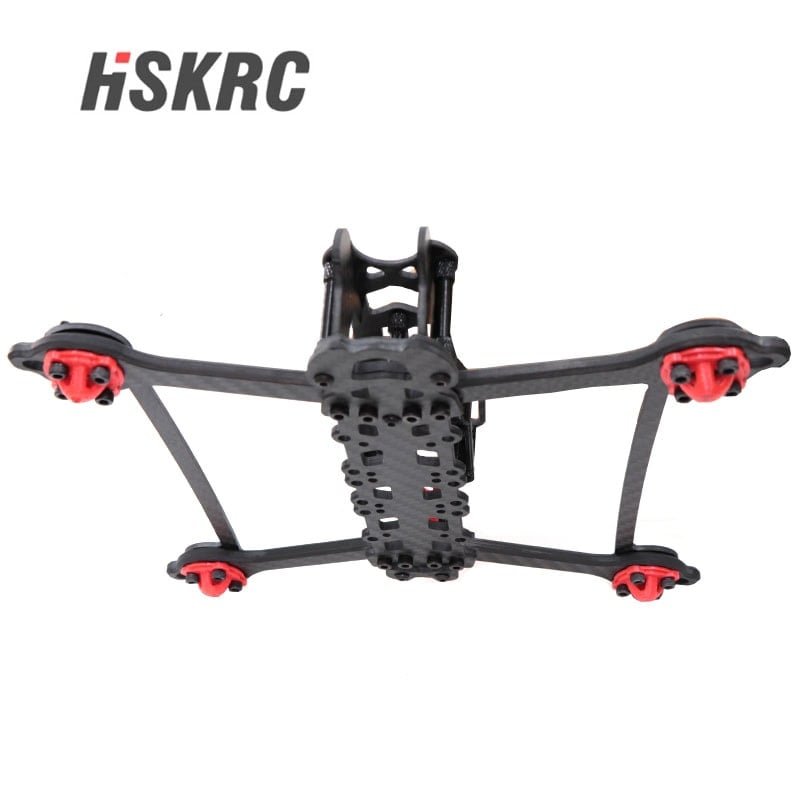

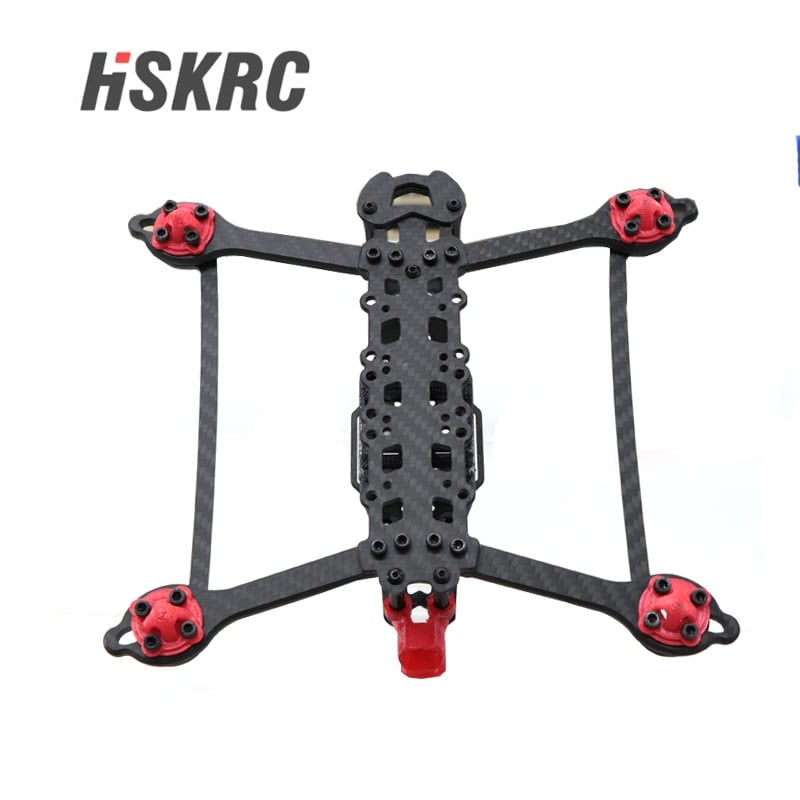

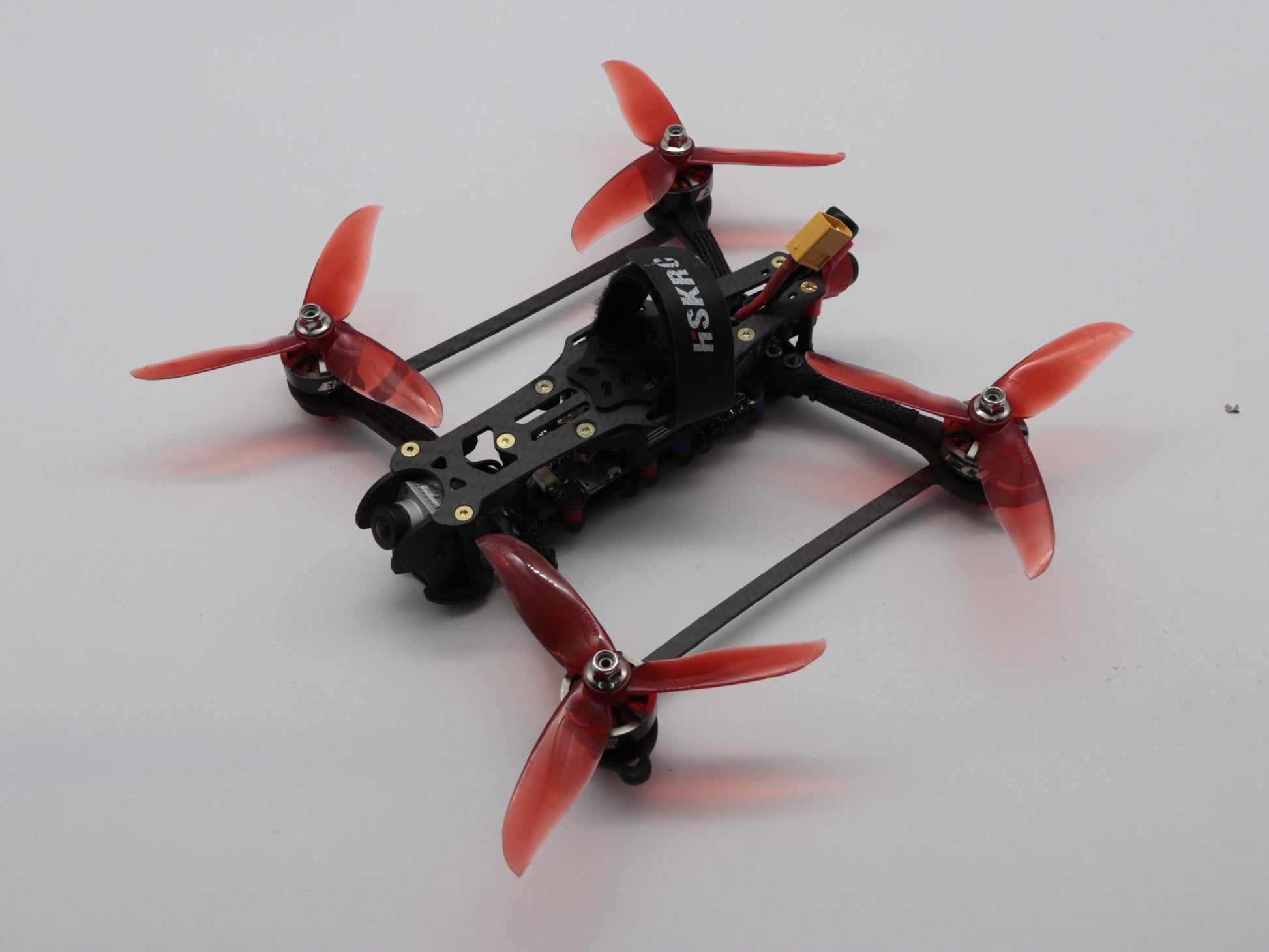

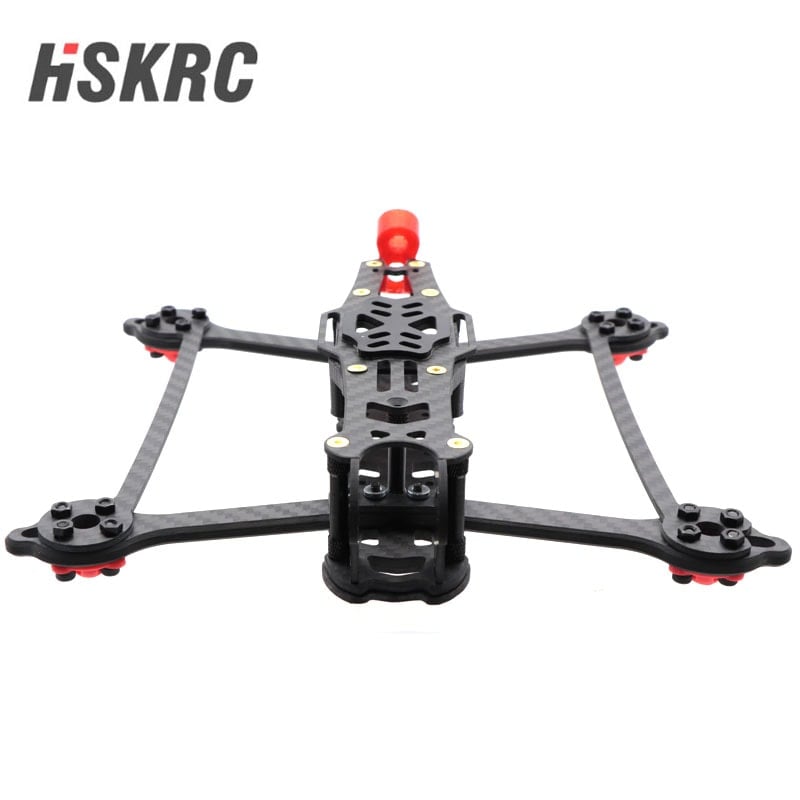

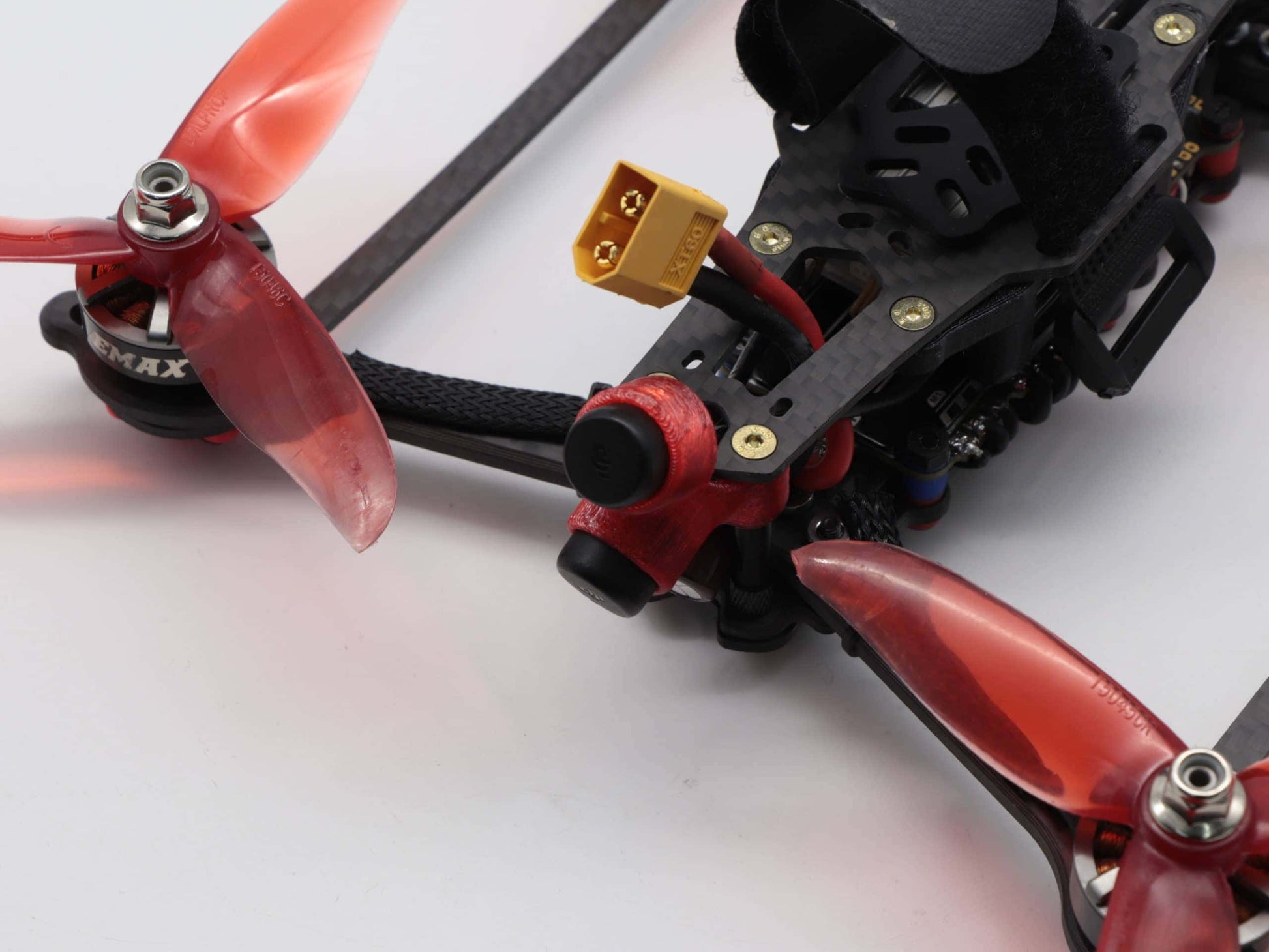

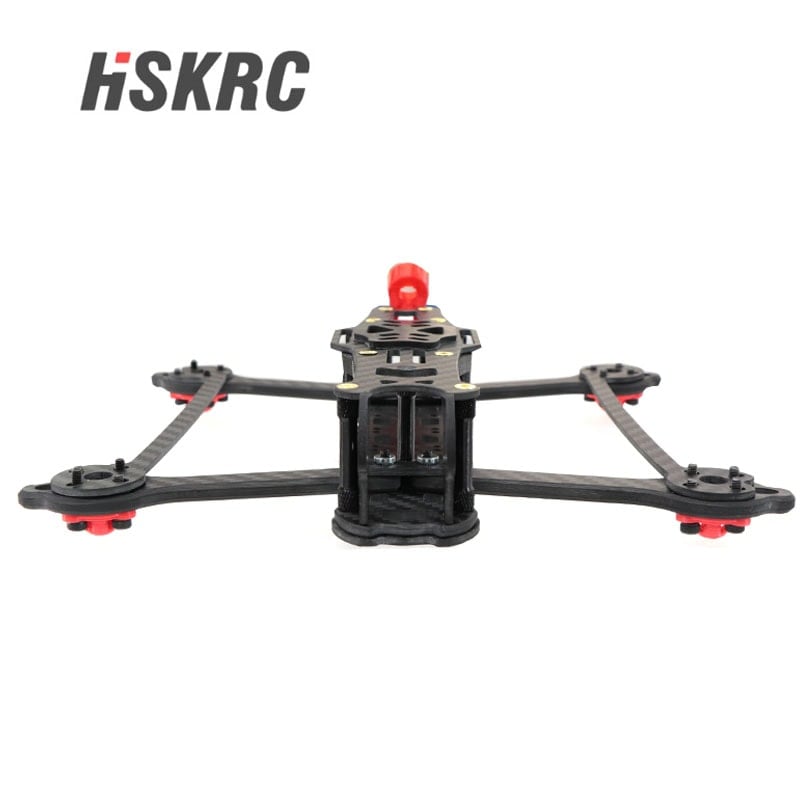

This HSKRC Brave is a freestyle H frame designed around the DJI HD FPV system. The Air unit is mounted in the center of the frame to ensure perfect balance and the H frame allows for loads of room to mount your 30x30 or 20x20 flight gear.
Specifications
- Brand Name: HSKRC
- Name: Brave HD5 225
- Rack Type: Type H
- Wheelbase: 225mm
- Arm thickness: 5.0mm
- Upper plate (top plate): 2.0mm
- Lower plate (bottom plate): 3.0mm
- Camera board thickness: 2mm
- Splint thickness: 2mm
- Front and rear protection plate thickness: 2mm
- Arm link thickness: 2mm
- Frame weight: approx. 145g
- Maximum support blades: 5 inches
- Camera mounting space: 20MM
- Flight Stack mounting options: standard 30.5mm x 30.5mm or 20mm x 20mm
- FPV Compatibility: DJI FPV Air Unit
