Product Details
Ever felt like your drone is acting like a teenager, lost and confused, searching for direction in the vast sky?
Navigational accuracy is crucial in FPV flying. We get it—nothing shatters your dream of the perfect flight more than a confused drone that thinks it's flying over the Atlantic when it's really hovering above Aunt Mildred's garden.
But hang on, Fly Boy and Fly Girl! What if we told you that your drone doesn't have to be a modern-day Magellan sailing into the abyss?
Gone are the days when you have to scream "Why can't you just ask for directions?" at your drone. GPS modules of yore were good, but let's be honest, they had the accuracy of a pirate's treasure map sketched on a bar napkin.

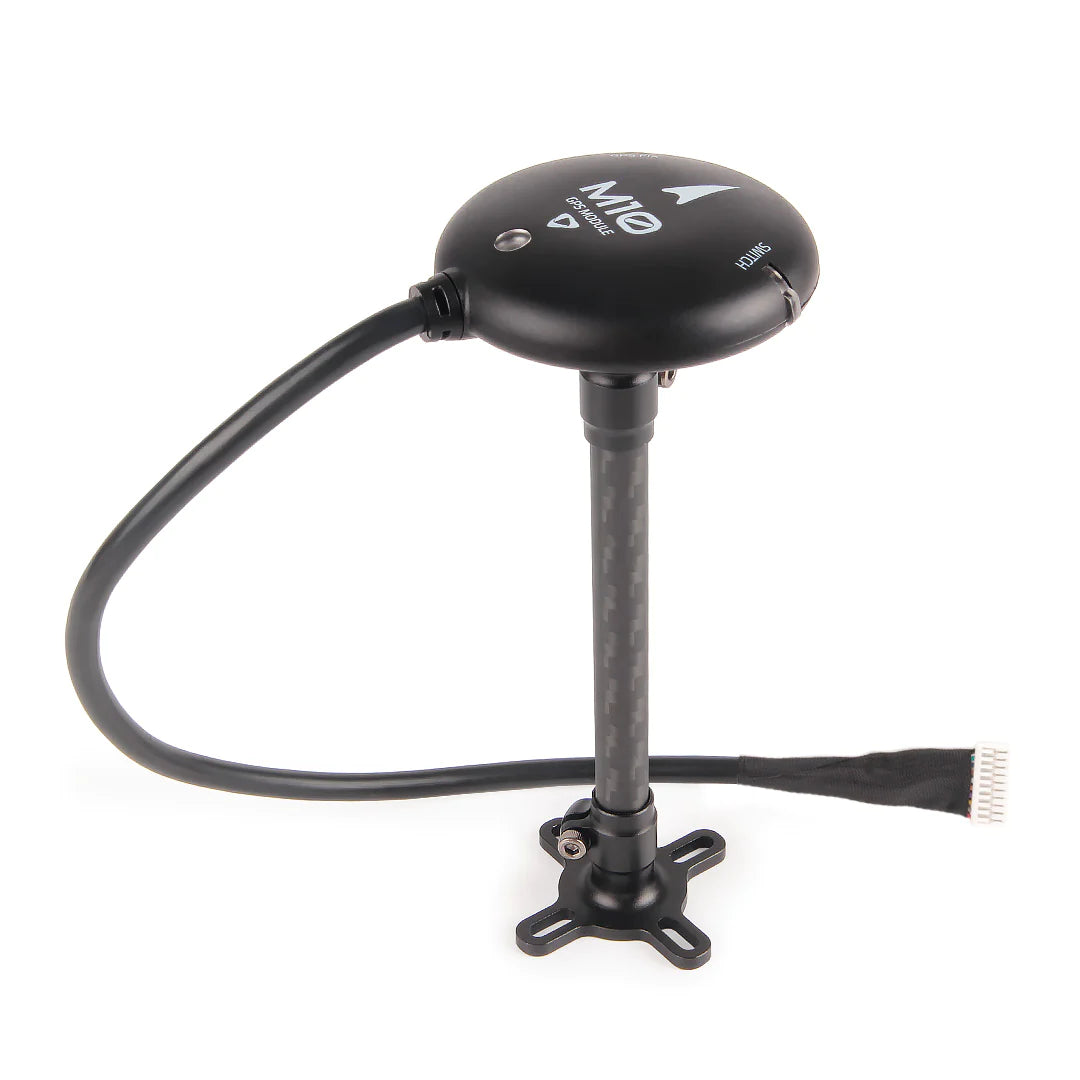

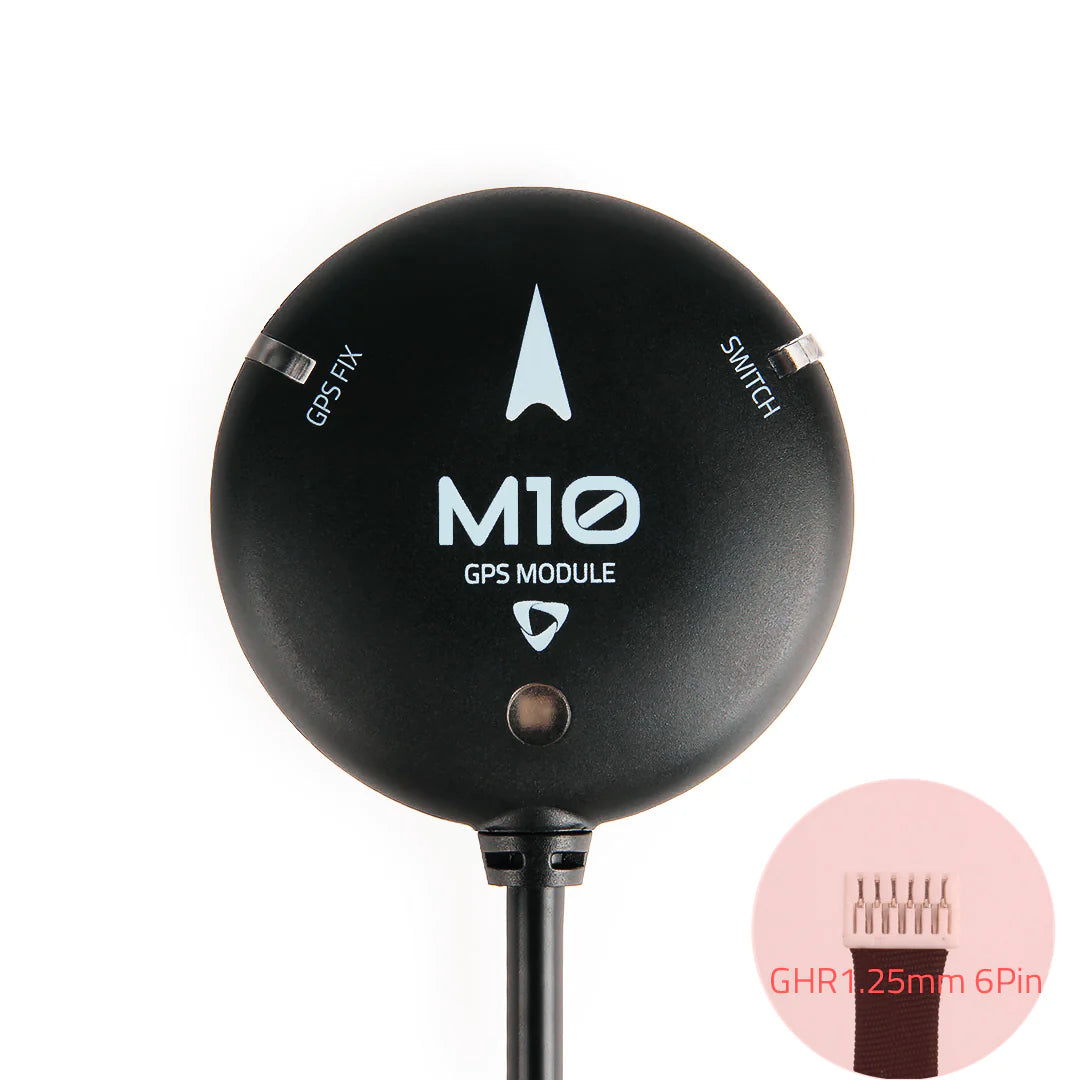

Say 'Hello!' to the Holybro M10 Secondary GPS Module—the GPS so accurate it could find a needle in a haystack... if haystacks were a thing in the sky.
Thanks to its u-blox M10 series-powered multi-constellation GNSS, this GPS Module doesn't just ask for directions—it gets VIP access to ALL the map rooms. GPS, Galileo, GLONASS, BeiDou—you name it!
🌟 Key Highlights:
- Captain Jack Sparrow's Compass: Features an IST8310 compass, so your drone always knows where its North Star is.
- Sonic Booms & Happy Tunes: Comes with an internal buzzer and safety switch because safety and melody are our middle names.
- Christmas in July: Ultra-bright UI RGB LED. It's not just eye-candy; it's eye-Christmas!
- Fast & Furious Positioning: With the high-gain 25 25 4mm antenna, your drone will know its place faster than Vin Diesel knows how to say "family."
📄 Technical Specifications:
| Holybro M10 GPS | Holybro M9N GPS | |
| GNSS Receiver | Ublox M10 | Ublox M9N |
| Number of Concurrent GNSS | Up to 4 GNSS | Up to 4 GNSS |
| BeiDou | BeiDou | |
| Galileo | Galileo | |
| GLONASS | GLONASS | |
| GPS | GPS | |
| QZSS | QZSS | |
| Frequency Band | GPS L1 | GPS L1 |
| Galileo E1 | Galileo E1 | |
| GLONASS L1 | GLONASS L1 | |
| BeiDou B1 | BeiDou B1 | |
| SBAS L1 | SBAS L1 | |
| QZSS L1 | QZSS L1 | |
| Compass | IST8310 | IST8310 |
| Output Protocol | UBX (U-blox) | UBX (U-blox) |
| NMEA | NMEA | |
| Accuracy | 2.0m CEP | 1.5m CEP |
| Nav. Update Rate | Up to 25 Hz (single GNSS), | Up to 25 Hz (4 concerrent GNSS) |
| Up to 10 Hz (4 concurrent GNSS) | ||
| GNSS Augmentation System | EGNOS, GAGAN, MSAS and WAAS | EGNOS, GAGAN, MSAS and WAAS |
| QZSS: L1S | QZSS: L1S | |
| Default Baud Rate | 115200 | 115200 |
| Input Voltage | 4.7-5.2V | 4.7-5.2V |

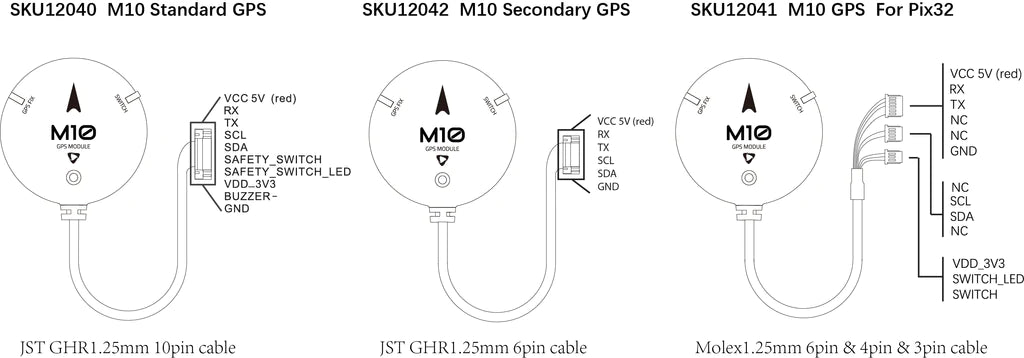

| Port Type | JST-GH-10P | JST-GH-10P |
| Antenna | 25 x 25 x 4 mm ceramic patch antenna | 25 x 25 x 4 mm ceramic patch antenna |
| Power consumption | Less than 200mA @ 5V | Less than 200mA @ 5V |
| Operating Temperature | -40~80C | -40~80C |
| Dimension | φ50 x14.4 mm | φ50 x14.4 mm |
| Weight | 32g | 32g |
| Cable Length | 26cm (42cm cable purchase separately) | 26cm (42cm cable purchase separately) |
| Other | Tri-color LED | Tri-color LED |
| Onboard Buzzer | Onboard Buzzer | |
| Safety Switch | Safety Switch | |
| LNA MAX2659ELT+ RF Amplifier | LNA MAX2659ELT+ RF Amplifier | |
| Rechargeable Farah capacitance | Rechargeable Farah capacitance | |
| Low noise 3.3V regulator | Low noise 3.3V regulator |
📲 Firmware Compatibility:
PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer are welcomed to this GPS party.

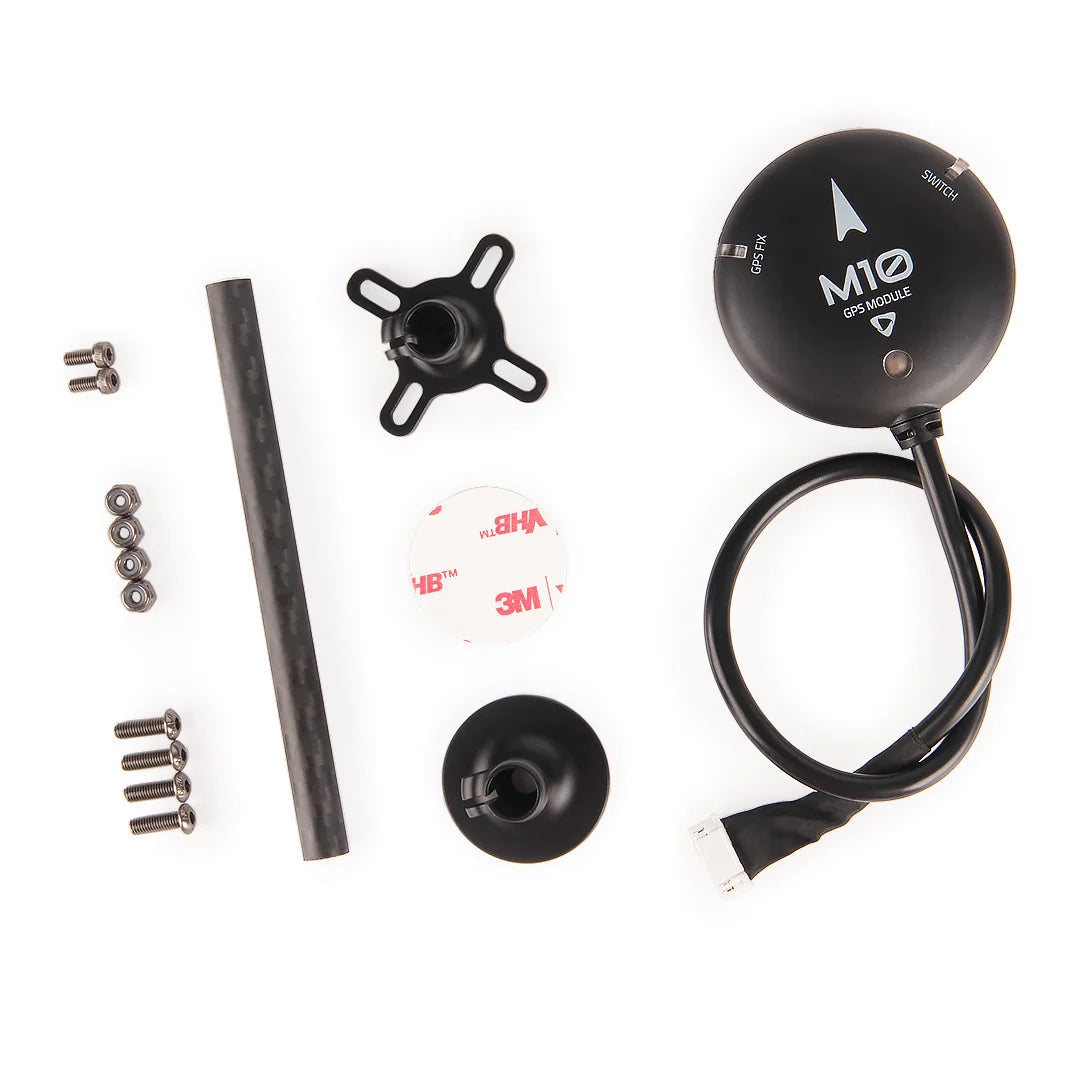

📦 What's in the Box:
1x M10 Secondary GPS Module
1x Fixed Carbon Fiber GPS mount
🎯 Compatibility 🎯
Perfect for the Pixhawk Standard Flight Controller 10pin "GPS Module" or "GPS1" input port.
