Product Details

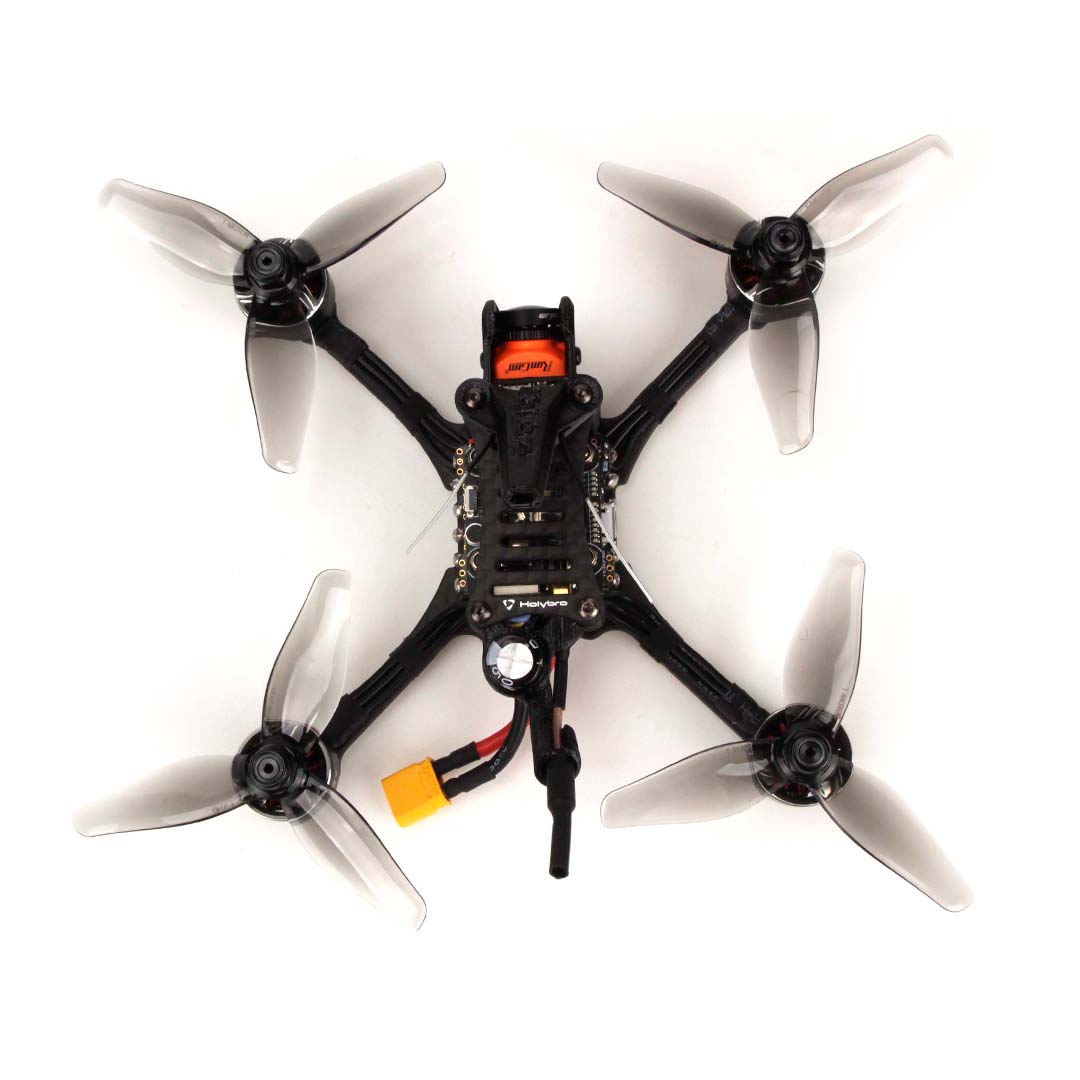

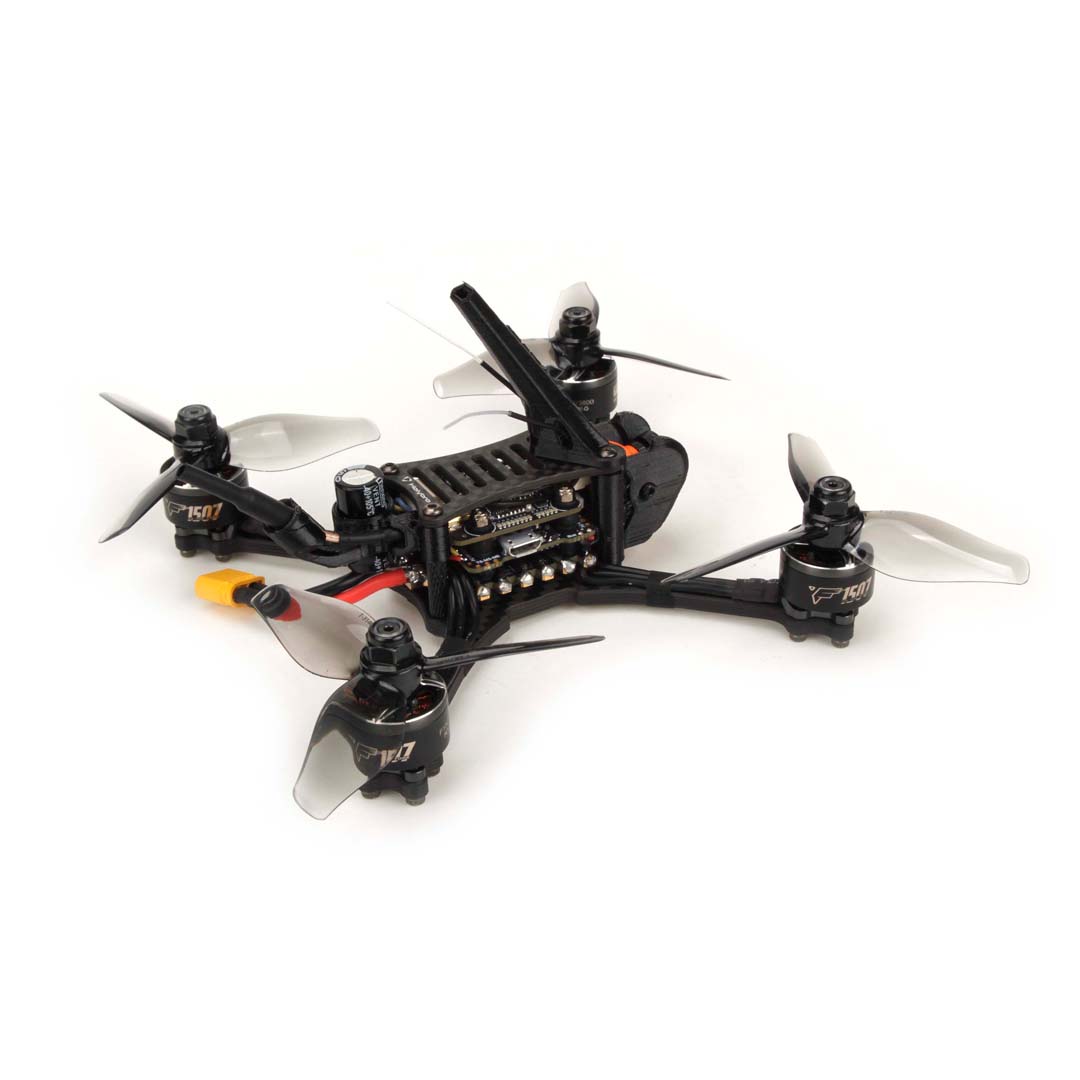

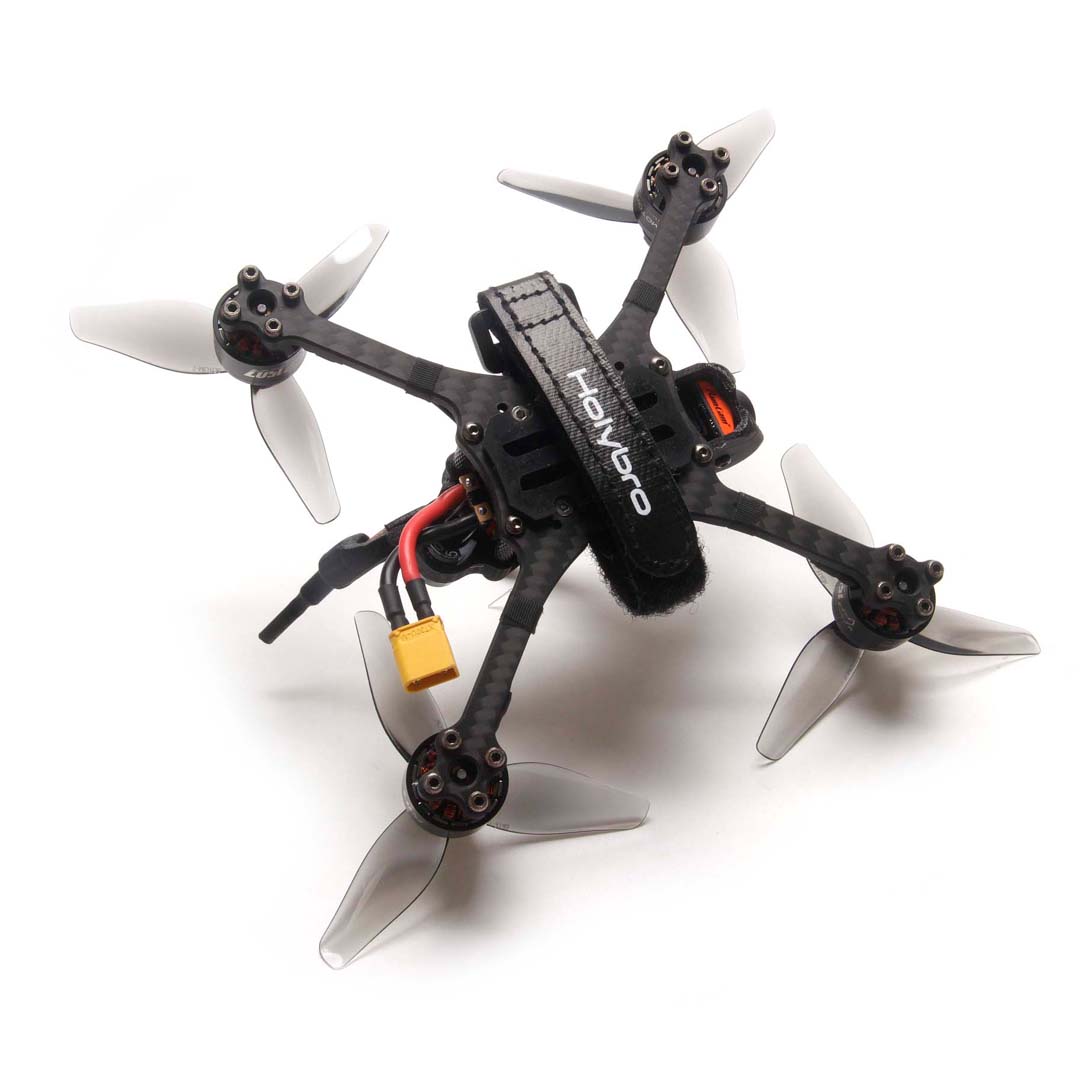

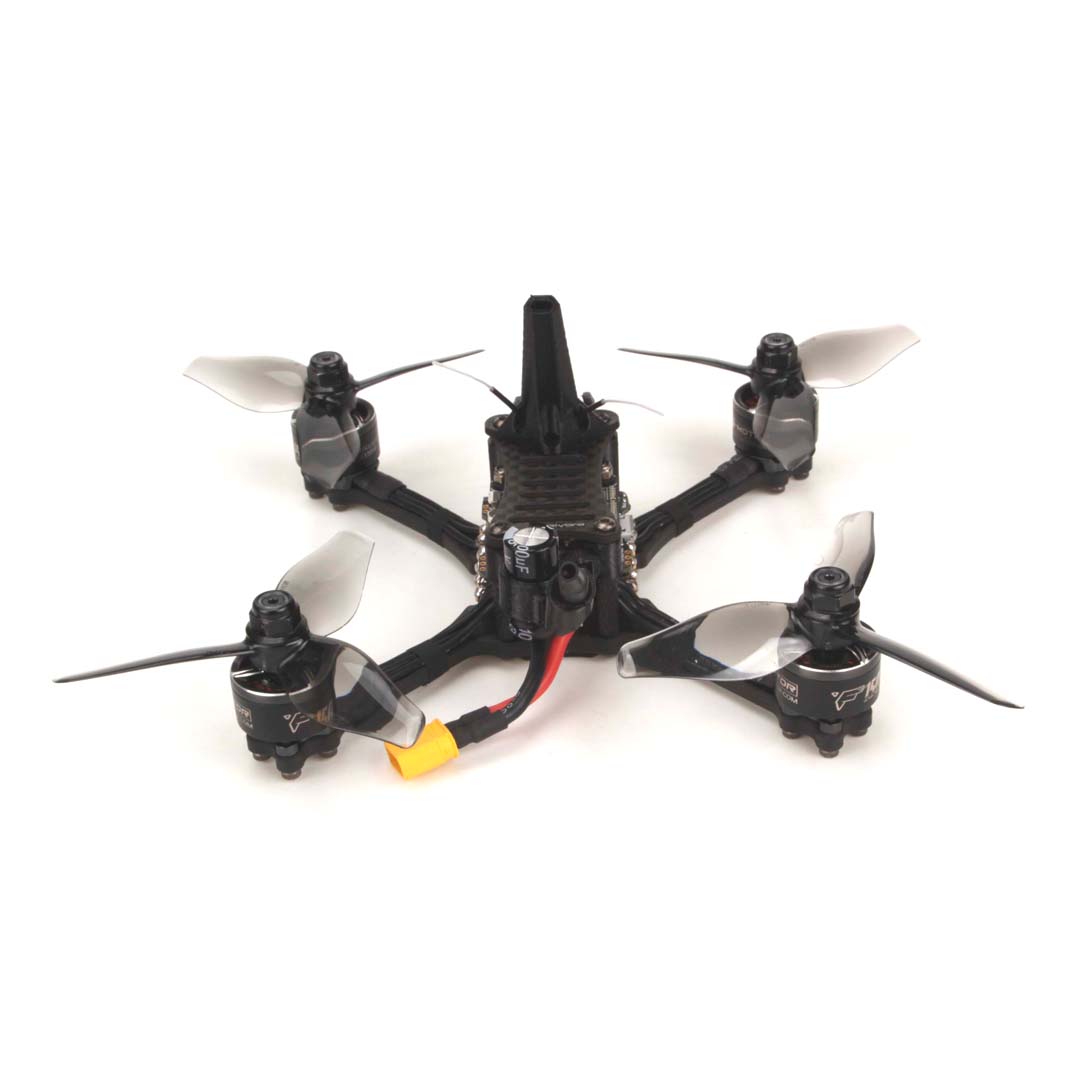

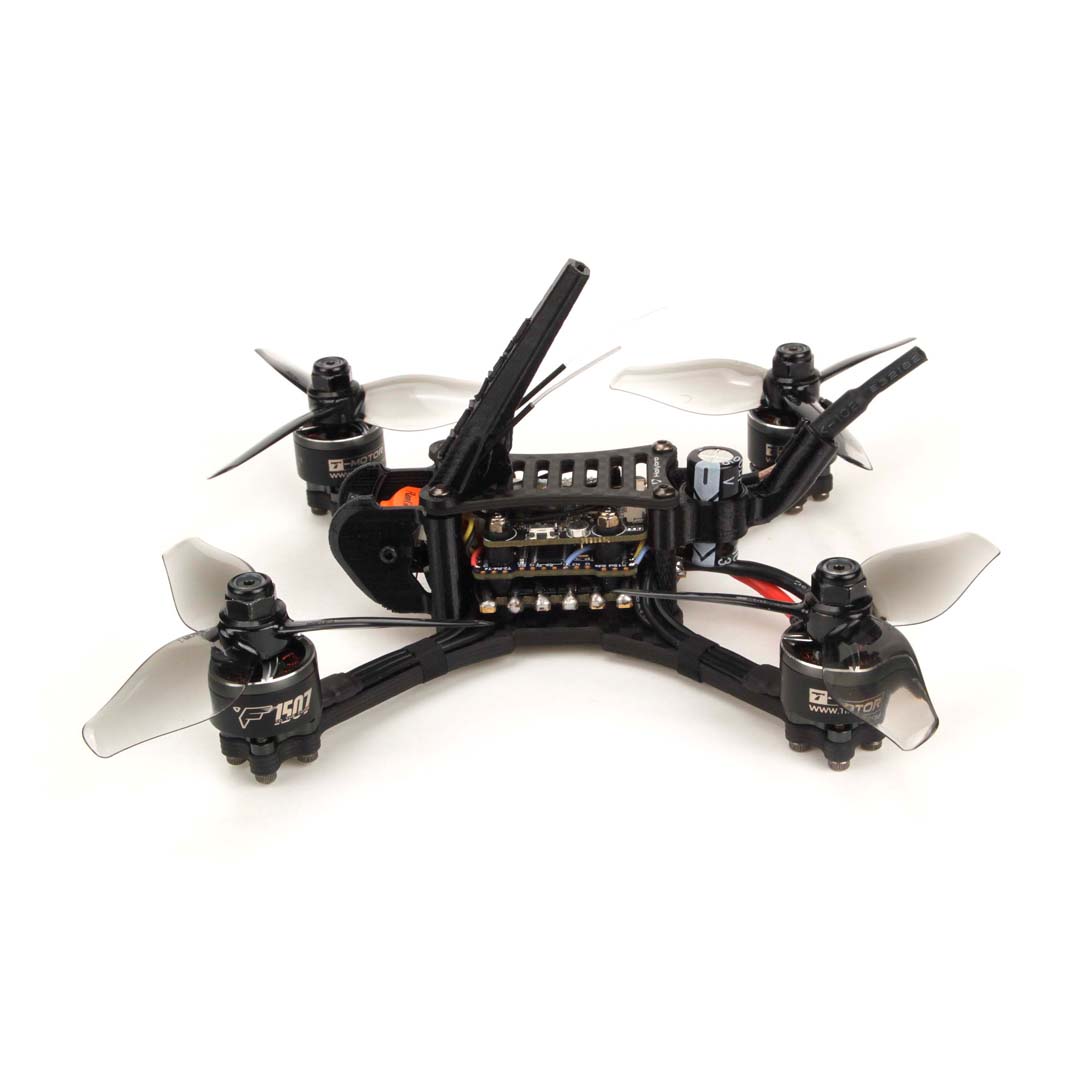

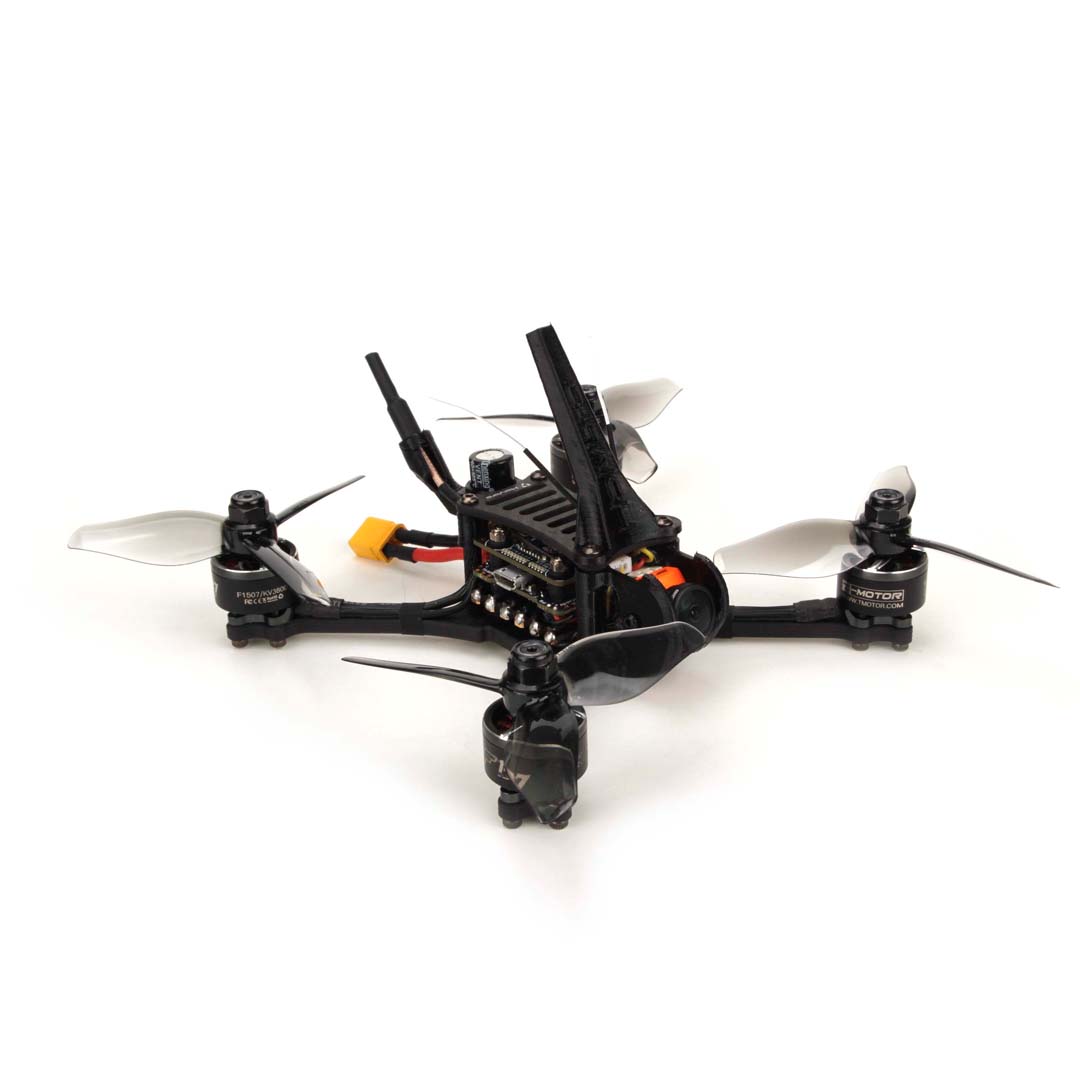

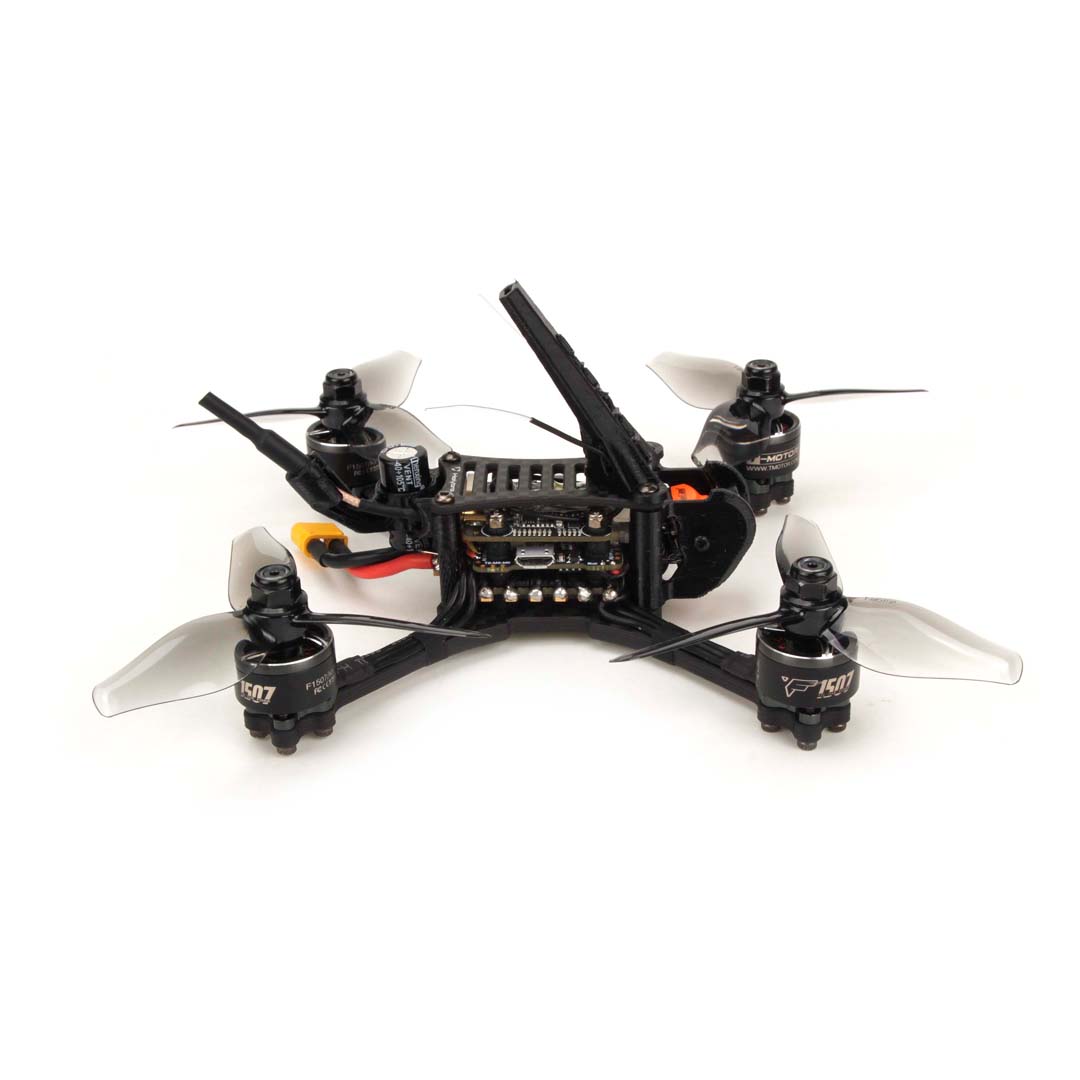

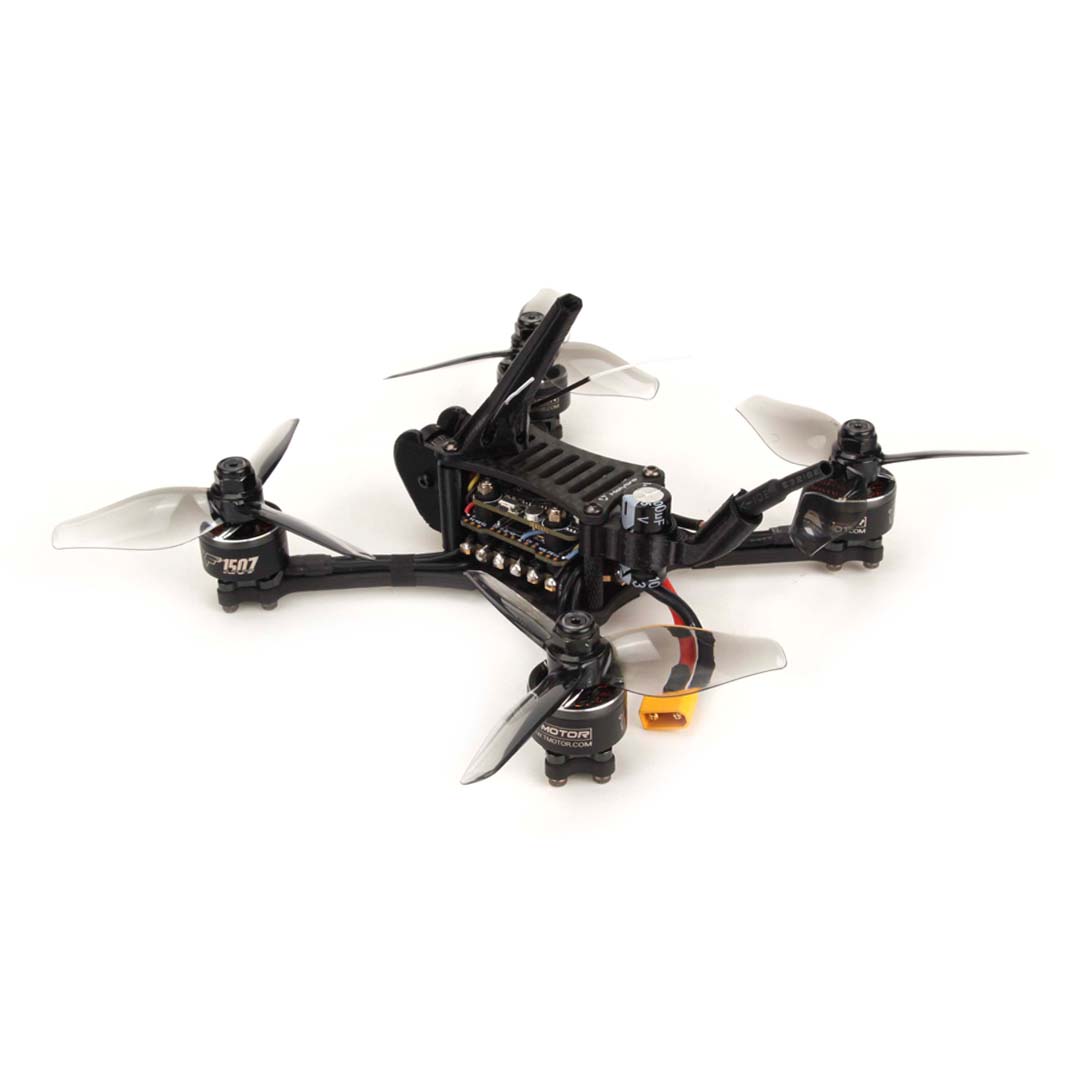

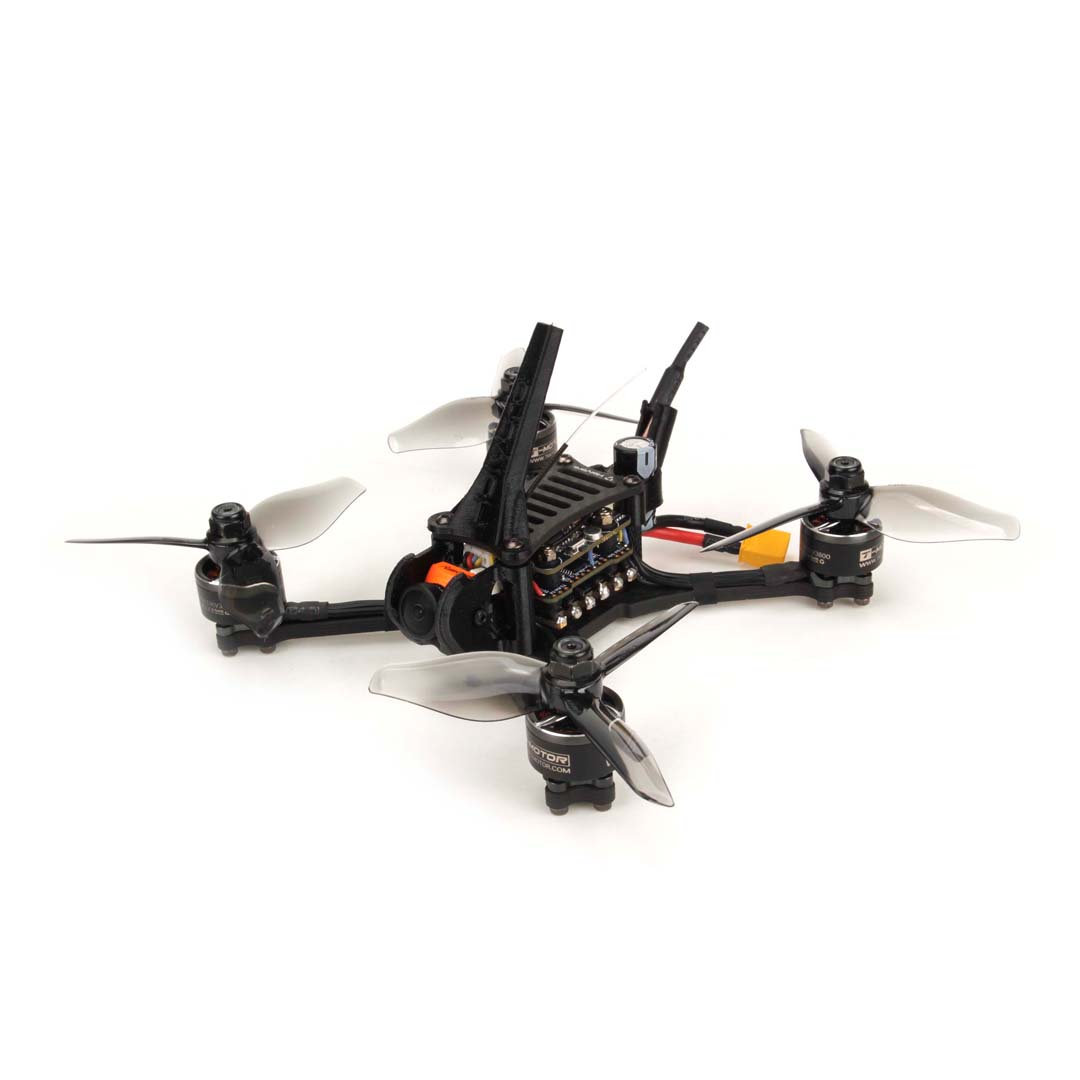

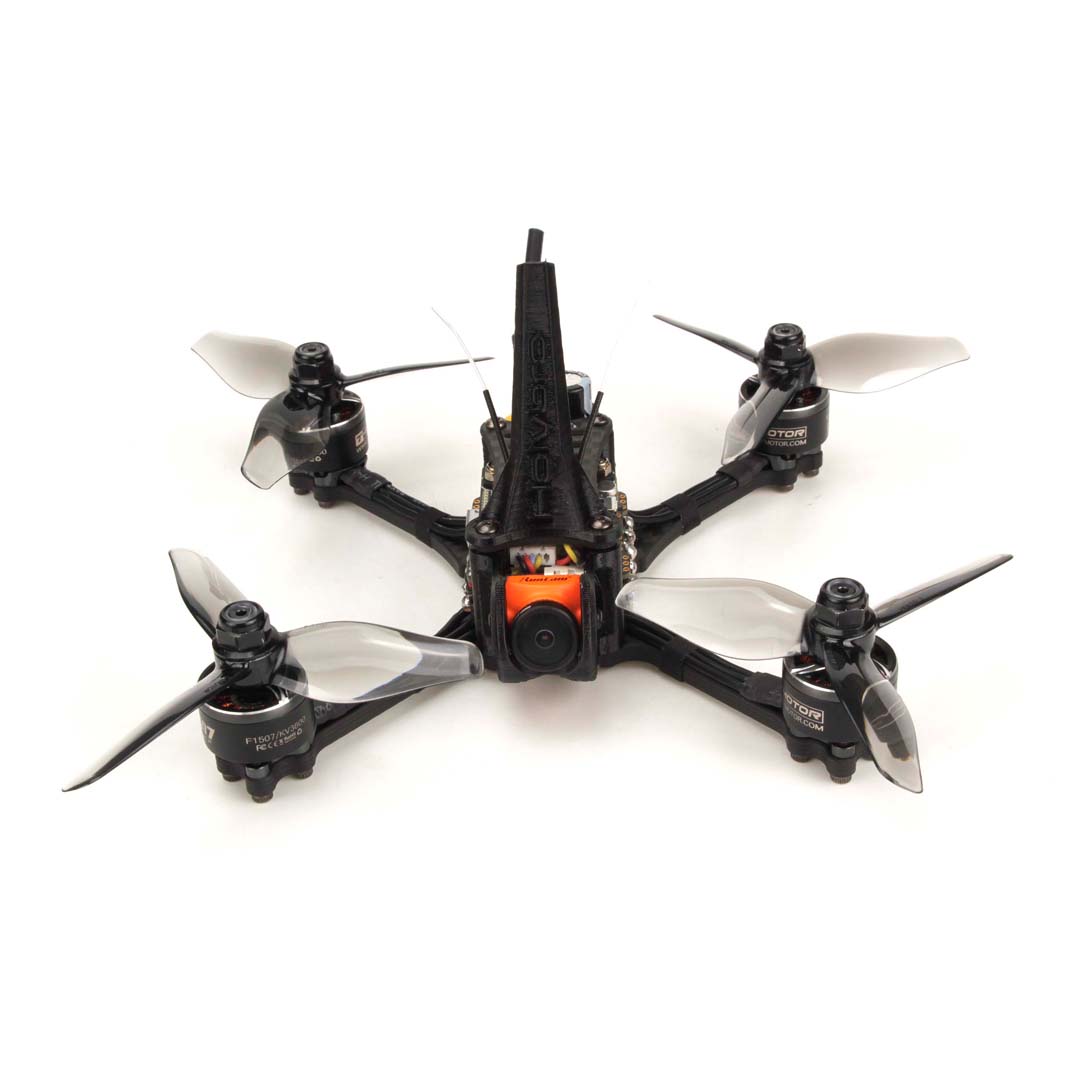

This is the Kopis Race, a sub250g 3" racing quadcopter designed for speed and agility.
Manual
3D print files
If you don't have your own 3D printer, we offer an affordable printing service her e
- Kopis Racing 3"-Camera mount
- Kopis Racing 3"-Shark fin Rx Antenna Holder
- Kopis Racing 3"-Vtx Antenna Mount
Features
- Frame:4mm 3k carbon fiber
- Flight Controller: Kakute F7 mini V3
- ESC: Tekko32 F3 4in1 35A mini ESC
- 5.8G VTx: Atlatl HV Micro

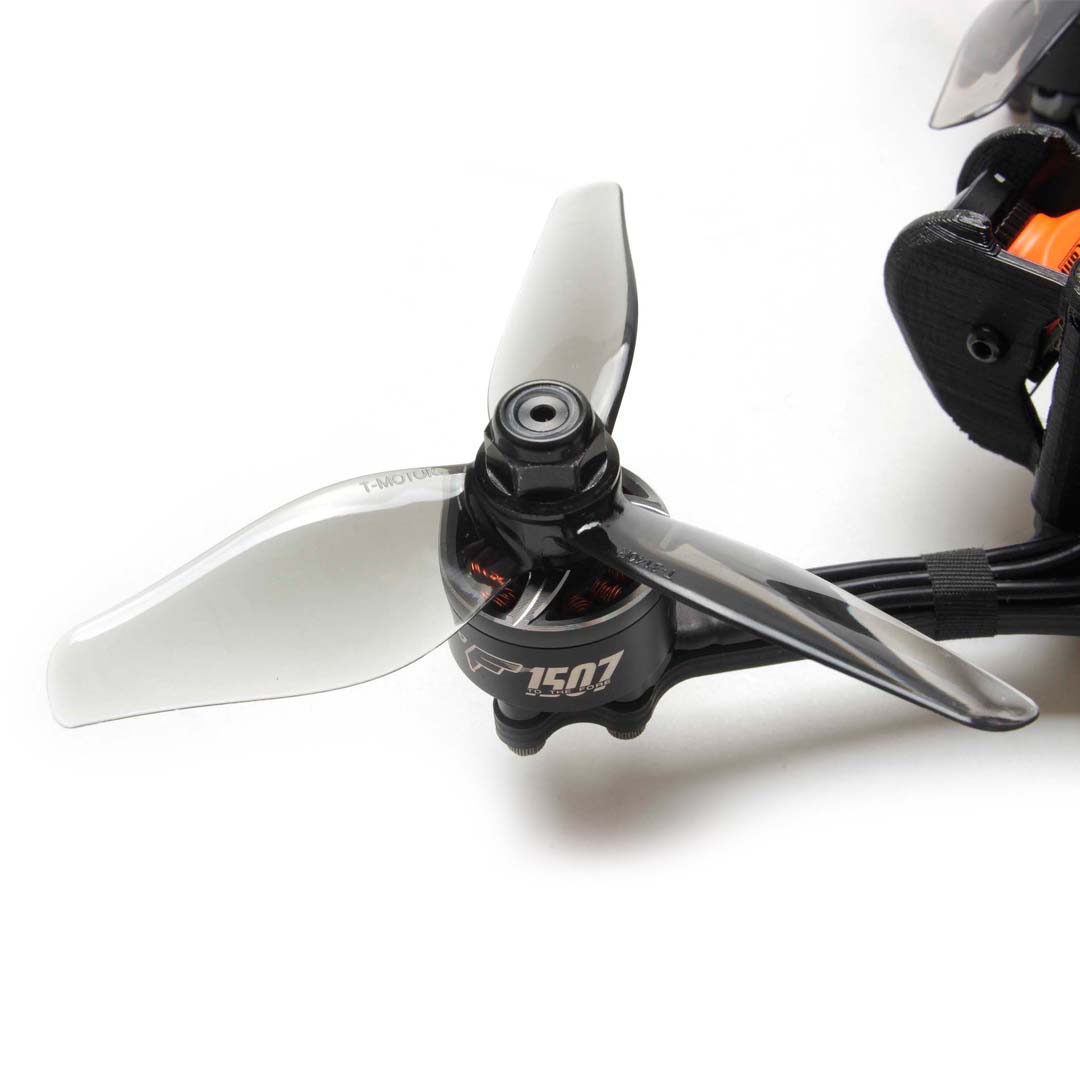

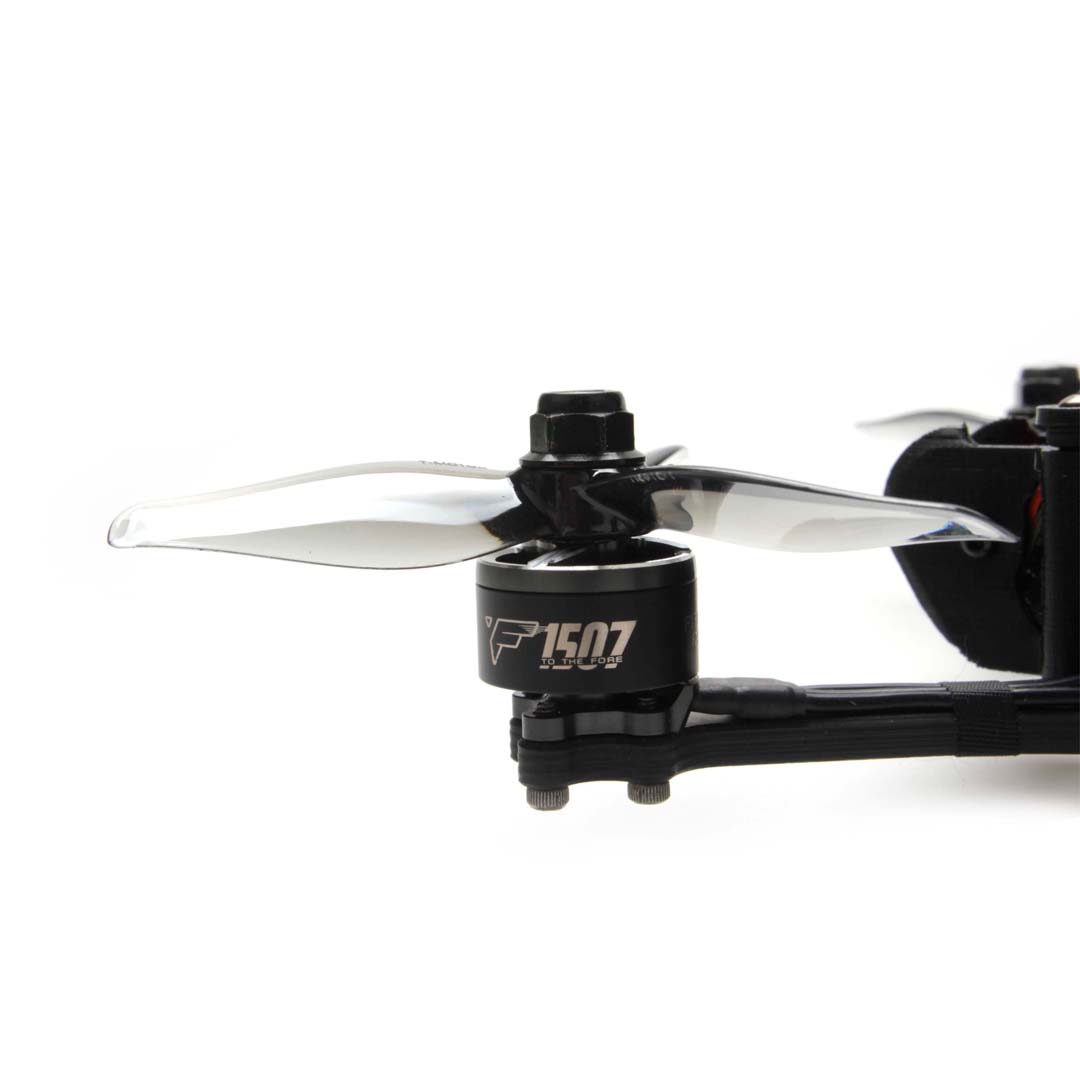

- Motor: F1507 KV3800
- Propeller: T3140
- FPV camera: RunCam Racer Nano 2
- Adjustable camera uptilt from 10 degrees to 90 degrees
- Buzzer included.
- Battery plug: XT30
- Wheelbase: 137mm
- Weight:145g
- Recommend battery: 850mAh 4s
Specifications
- MCU: STM32F722RET6 32-bit processor
- IMU: MPU6000 (SPI)
- Barometer: BMP280
- USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
- 5hardware UARTS (UART1,2,3,4,6)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
- Onboard 16Mbytes for Blackbox logging
Includes:
- 1x Kopis FPV racing drone
- 8x T3140 Propeller
- 1x TPU 3D Print
- 1x Battery strap(installed)
Still Required
- R/C Transmitter / Receiver
- FPV Goggles
- 850mAh 4S Lipo (at least 60C)
