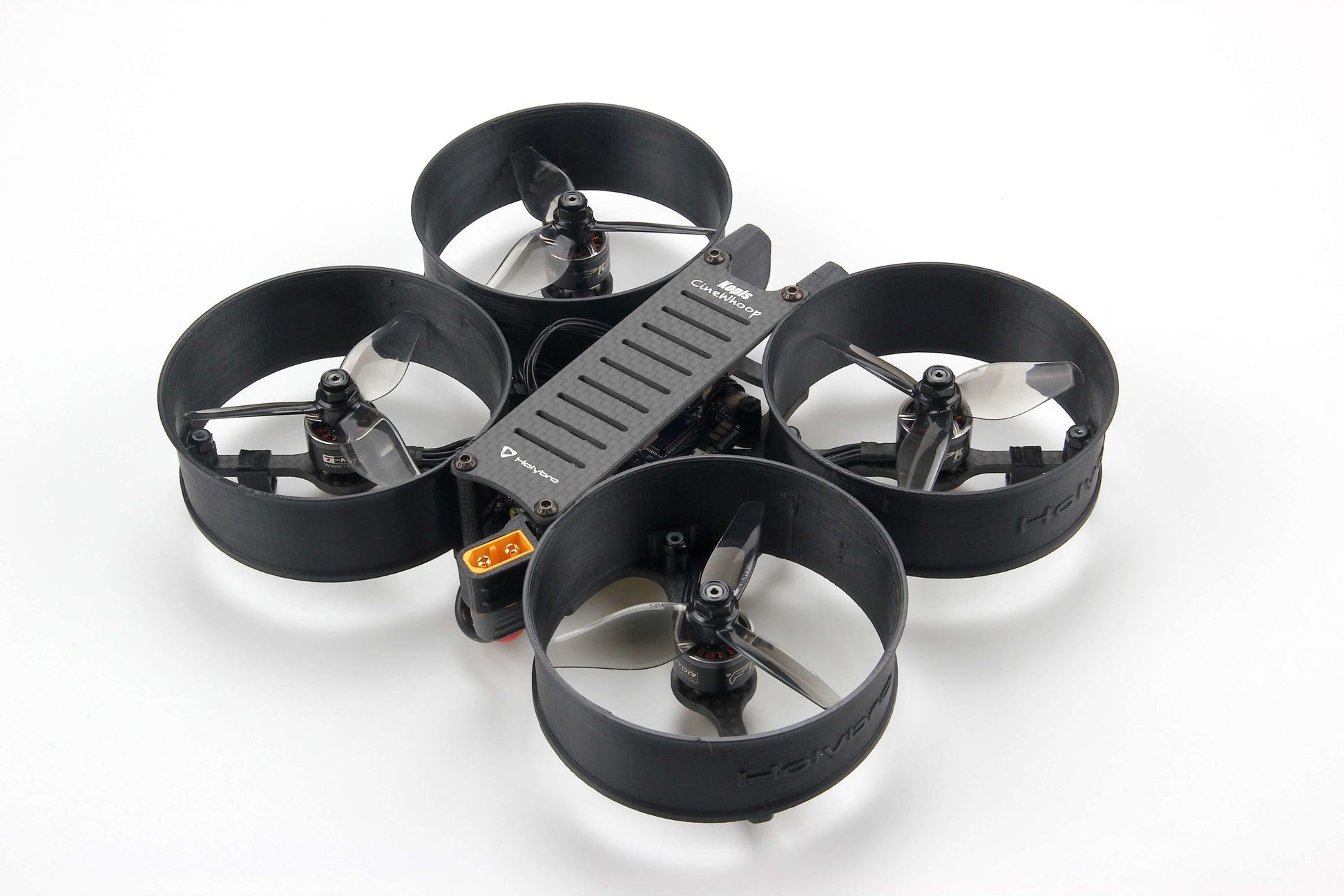

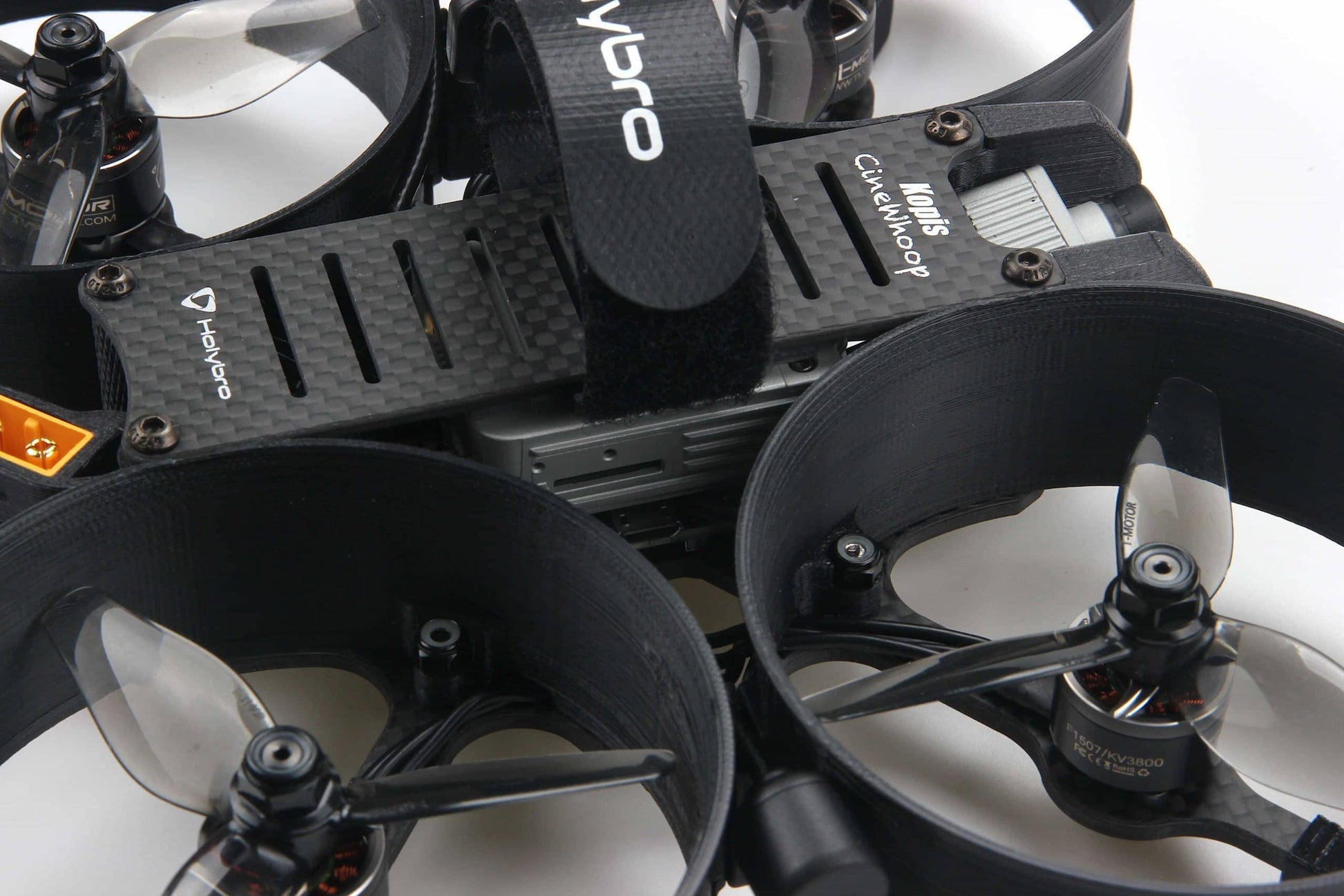

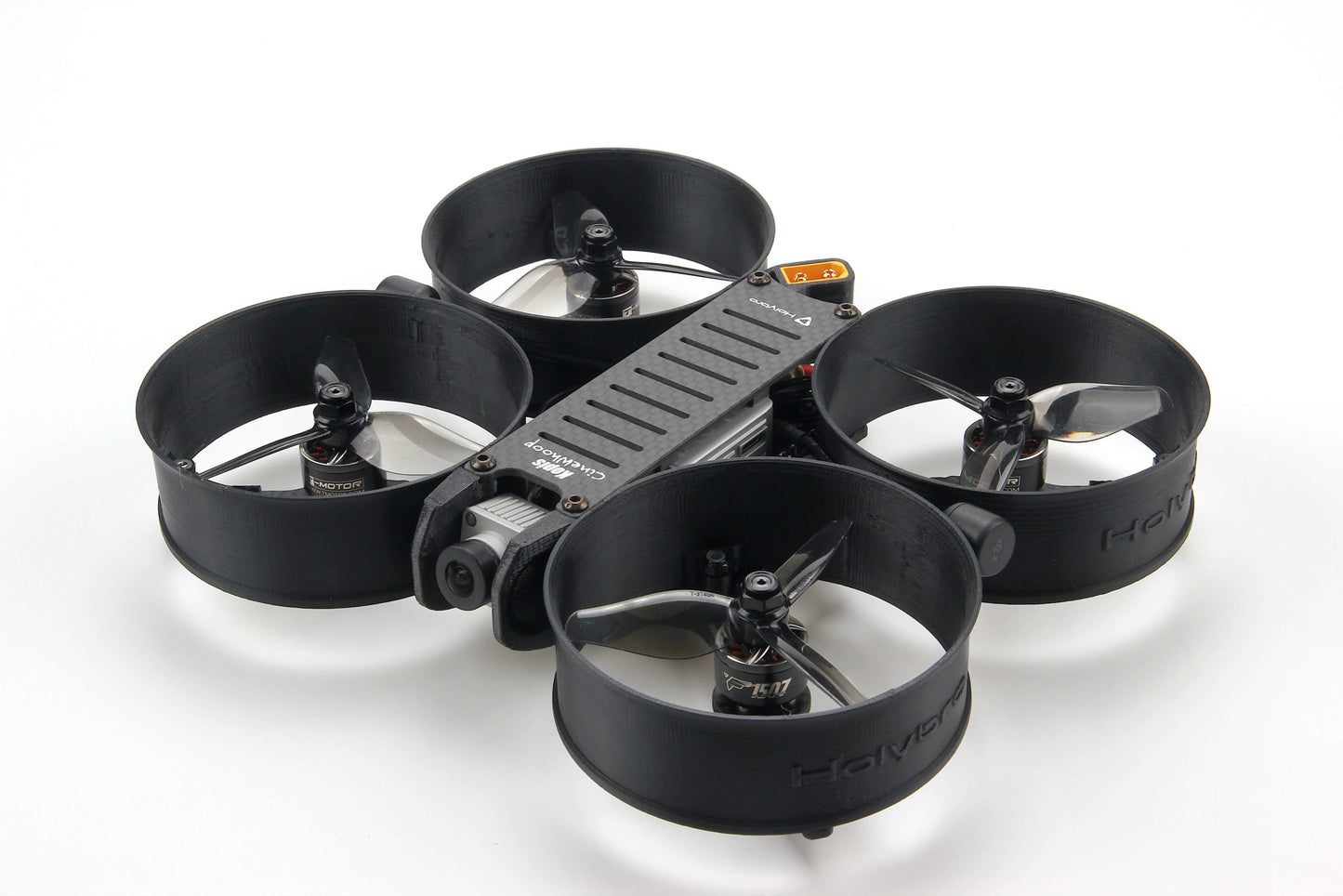

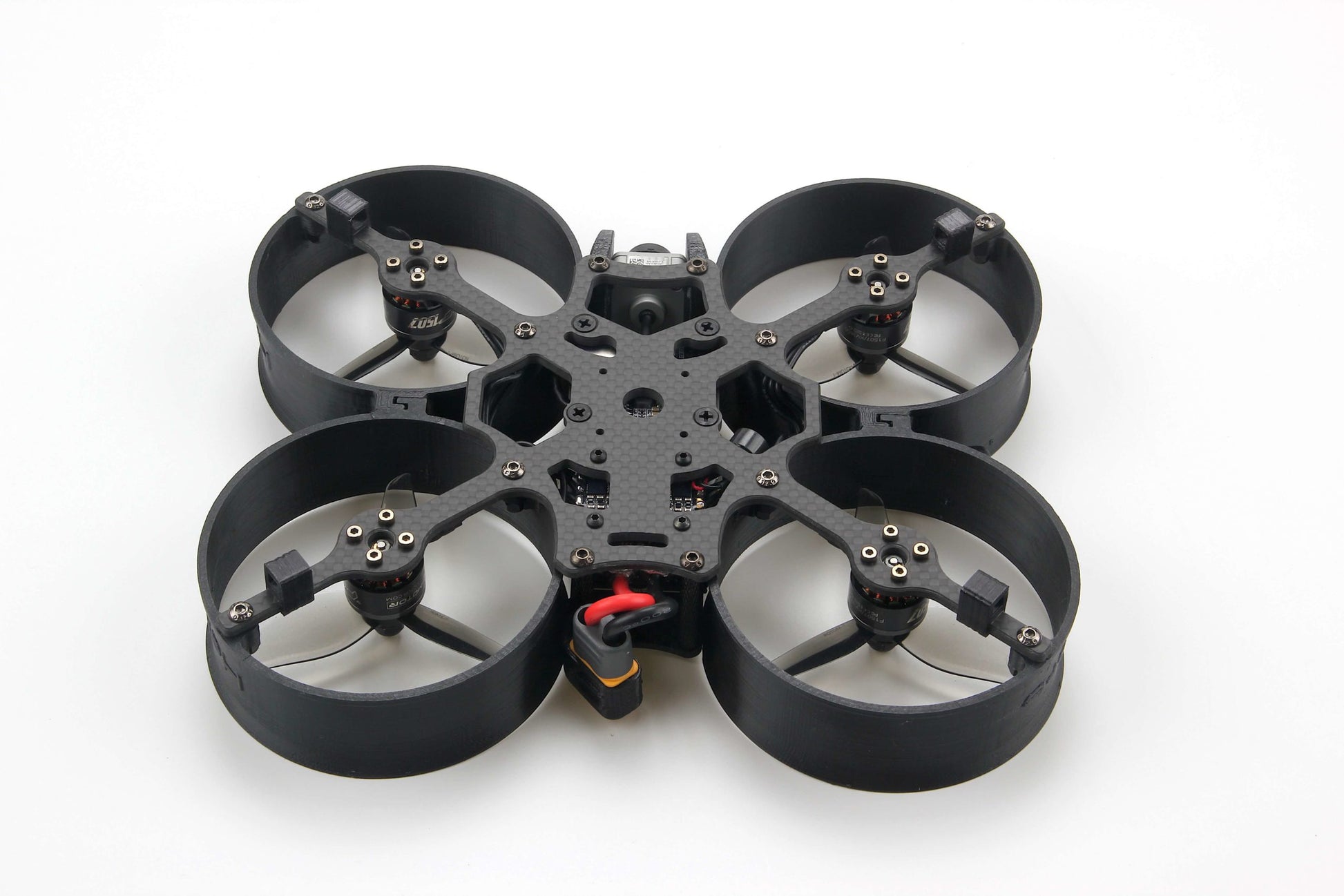

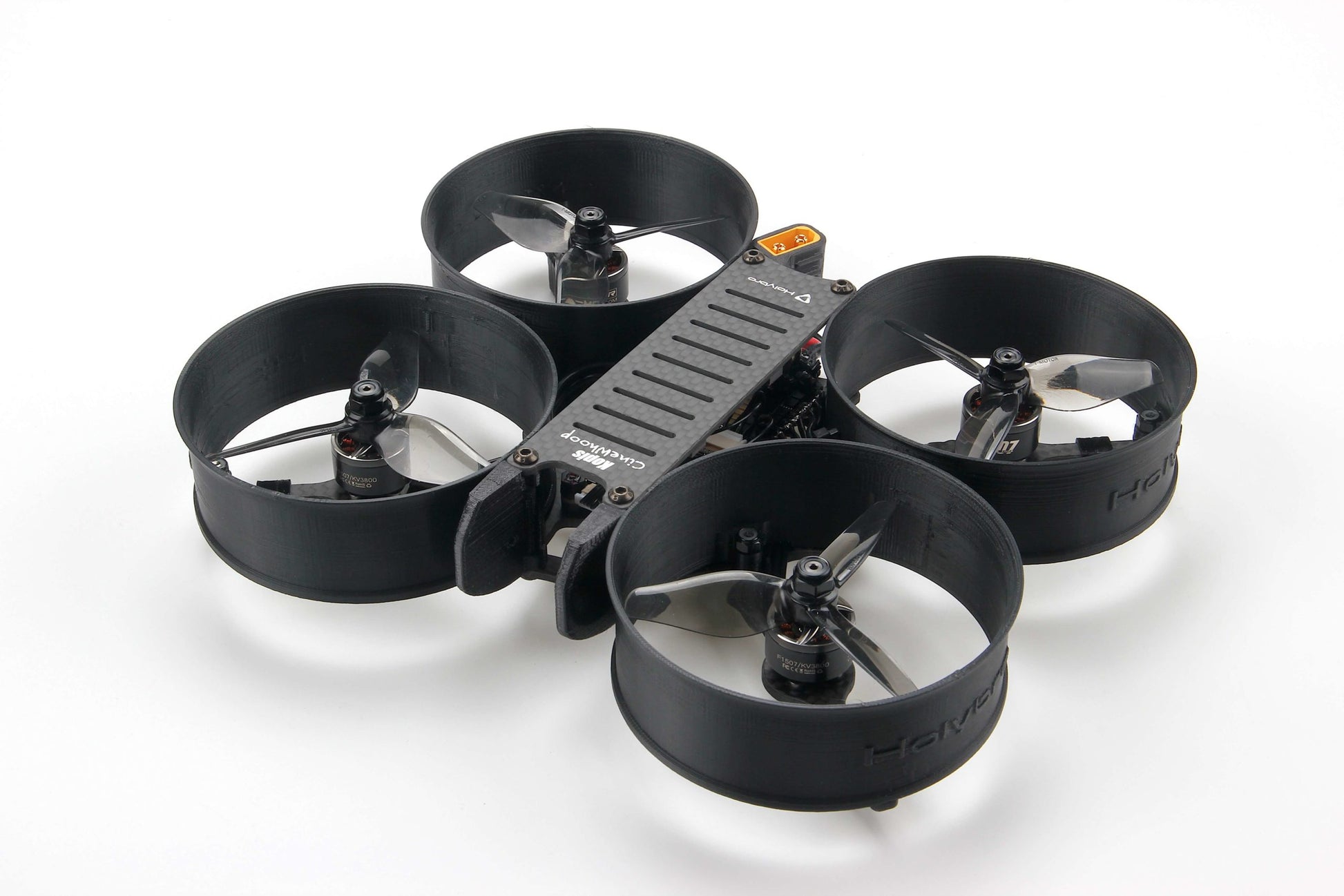

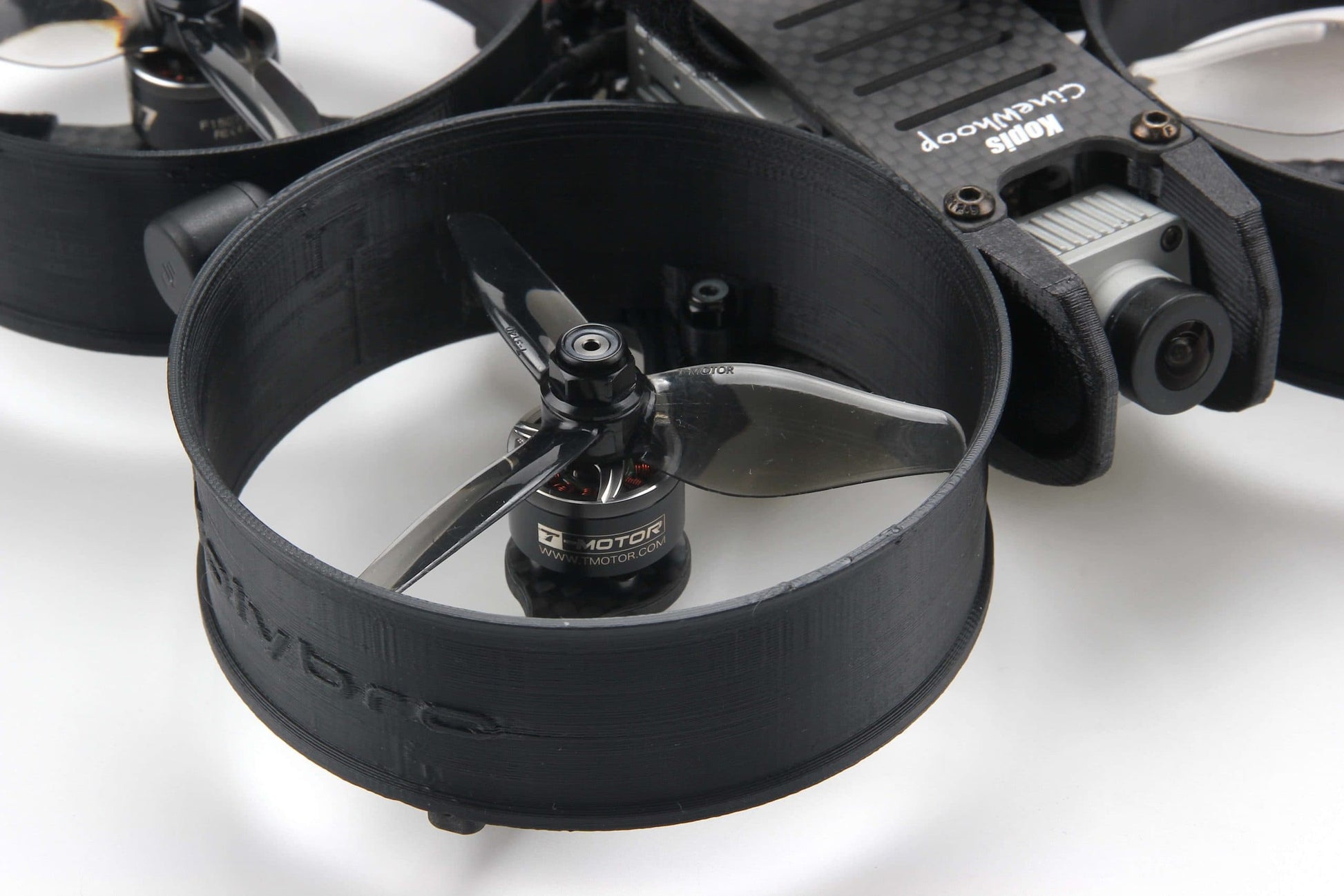

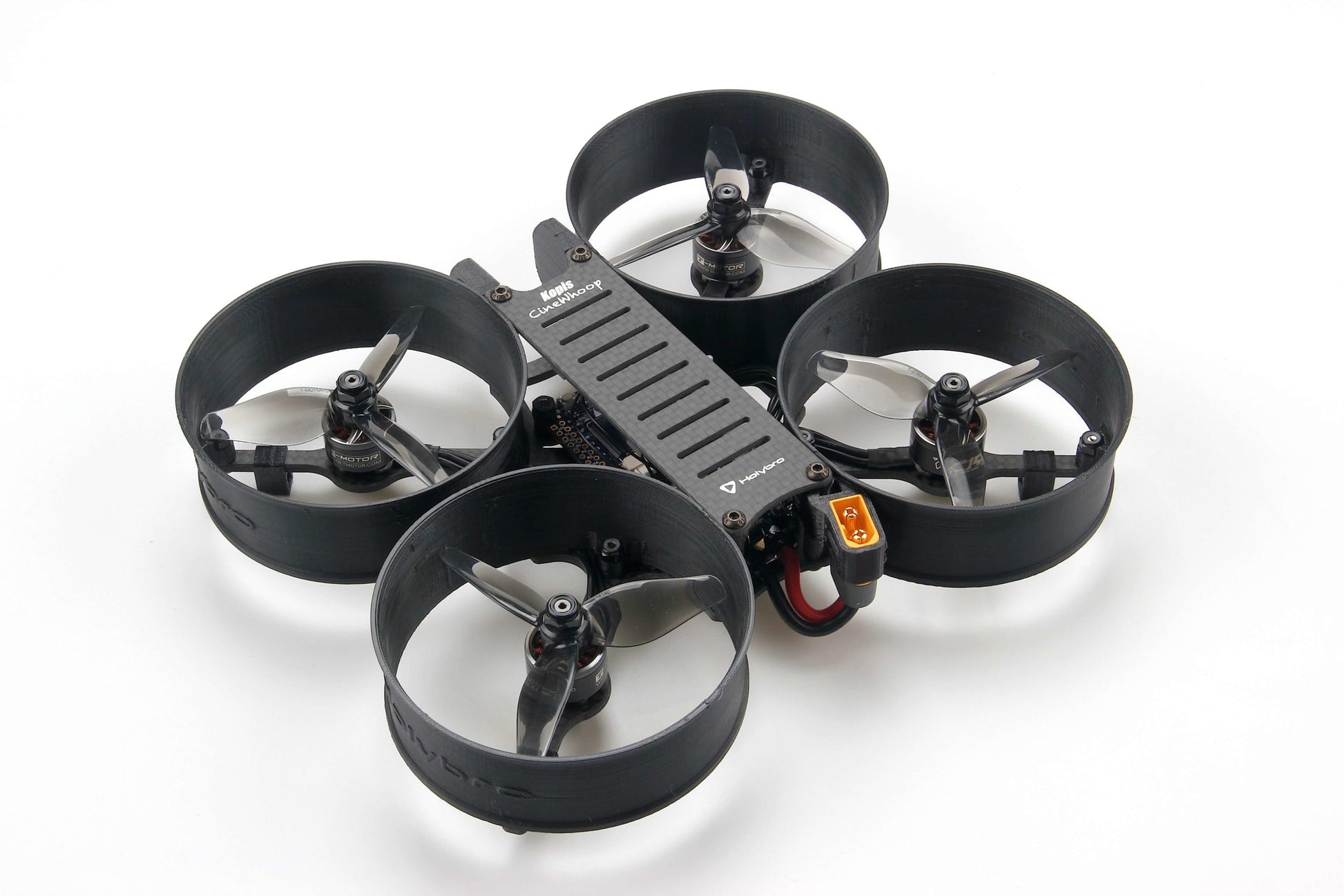

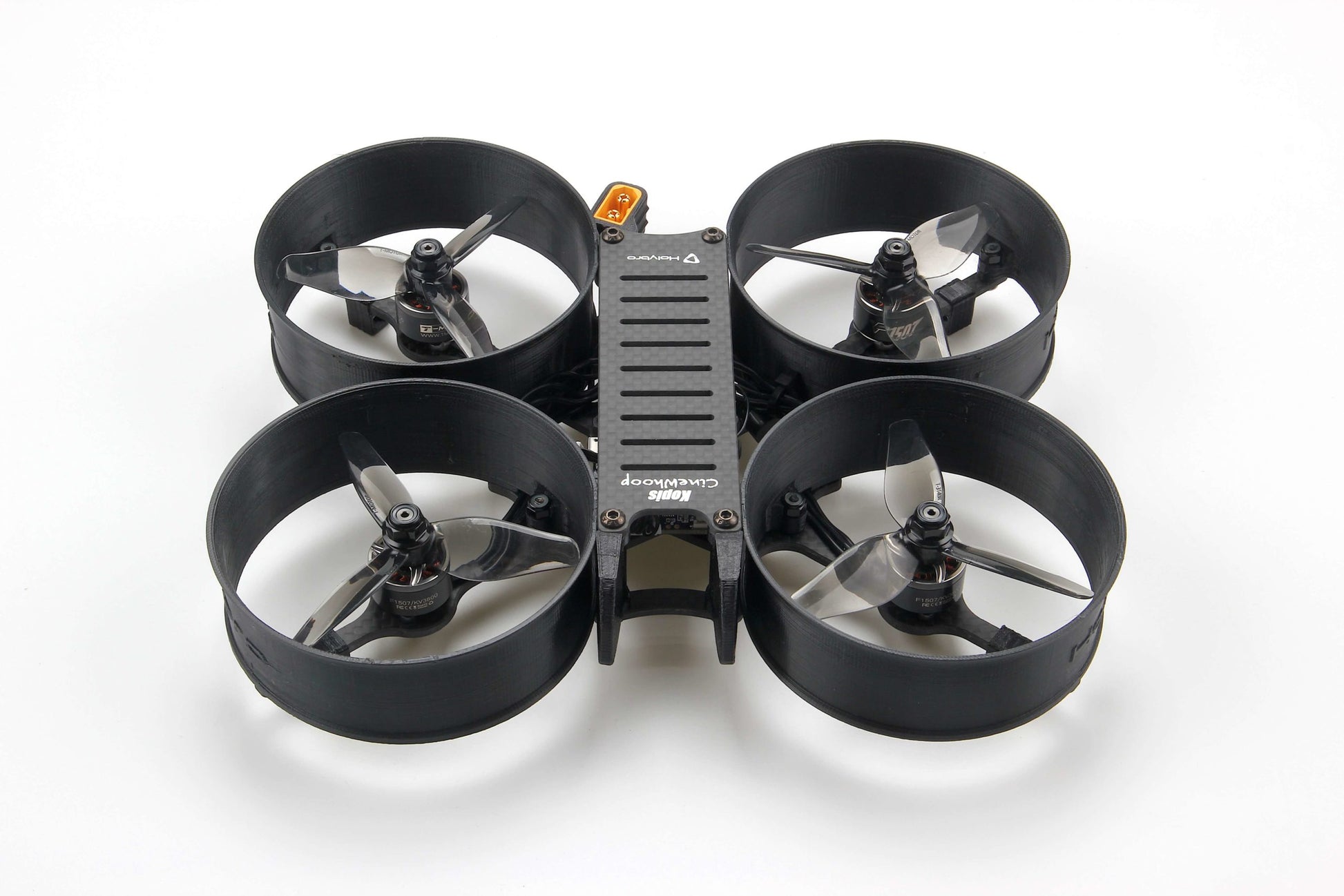

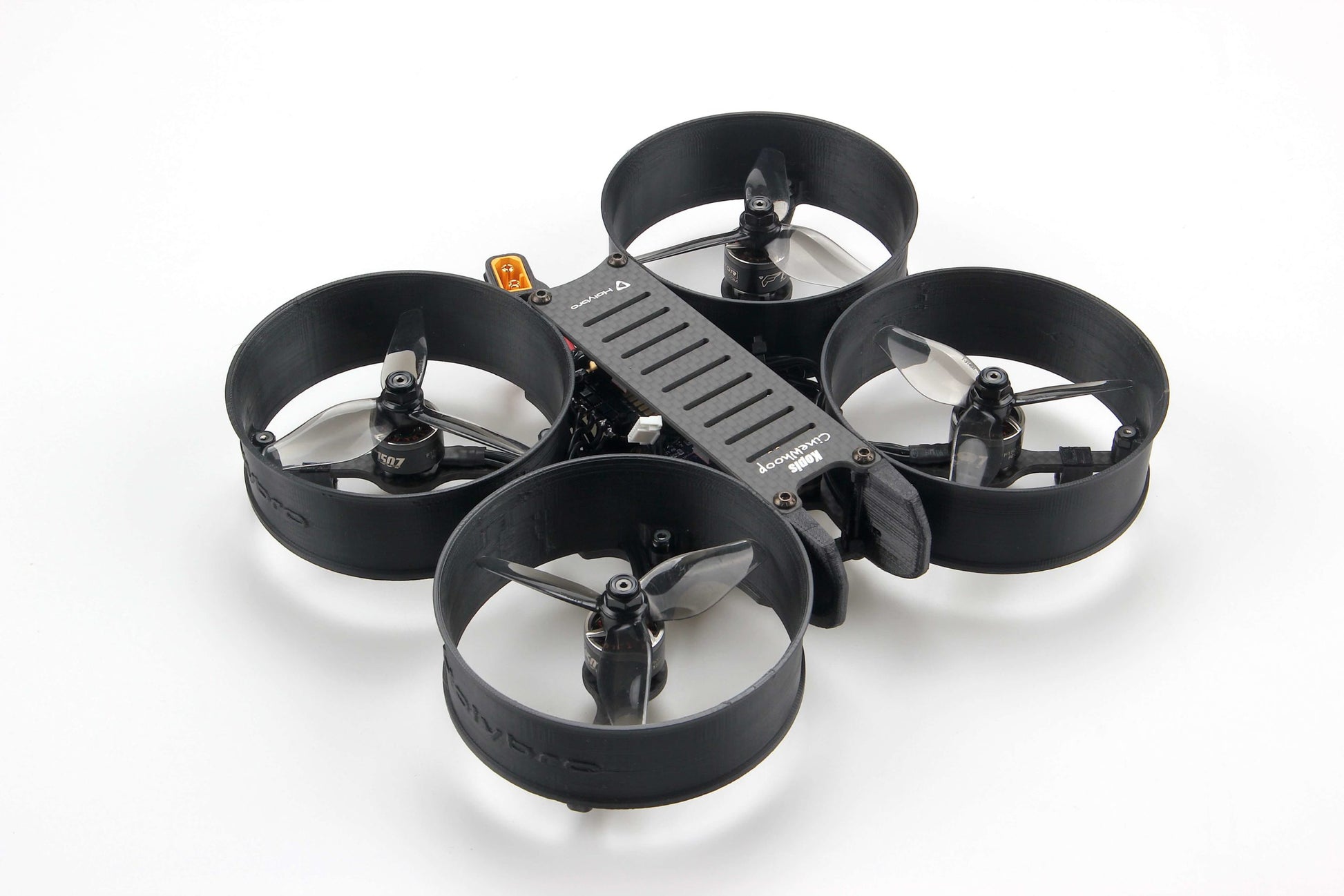

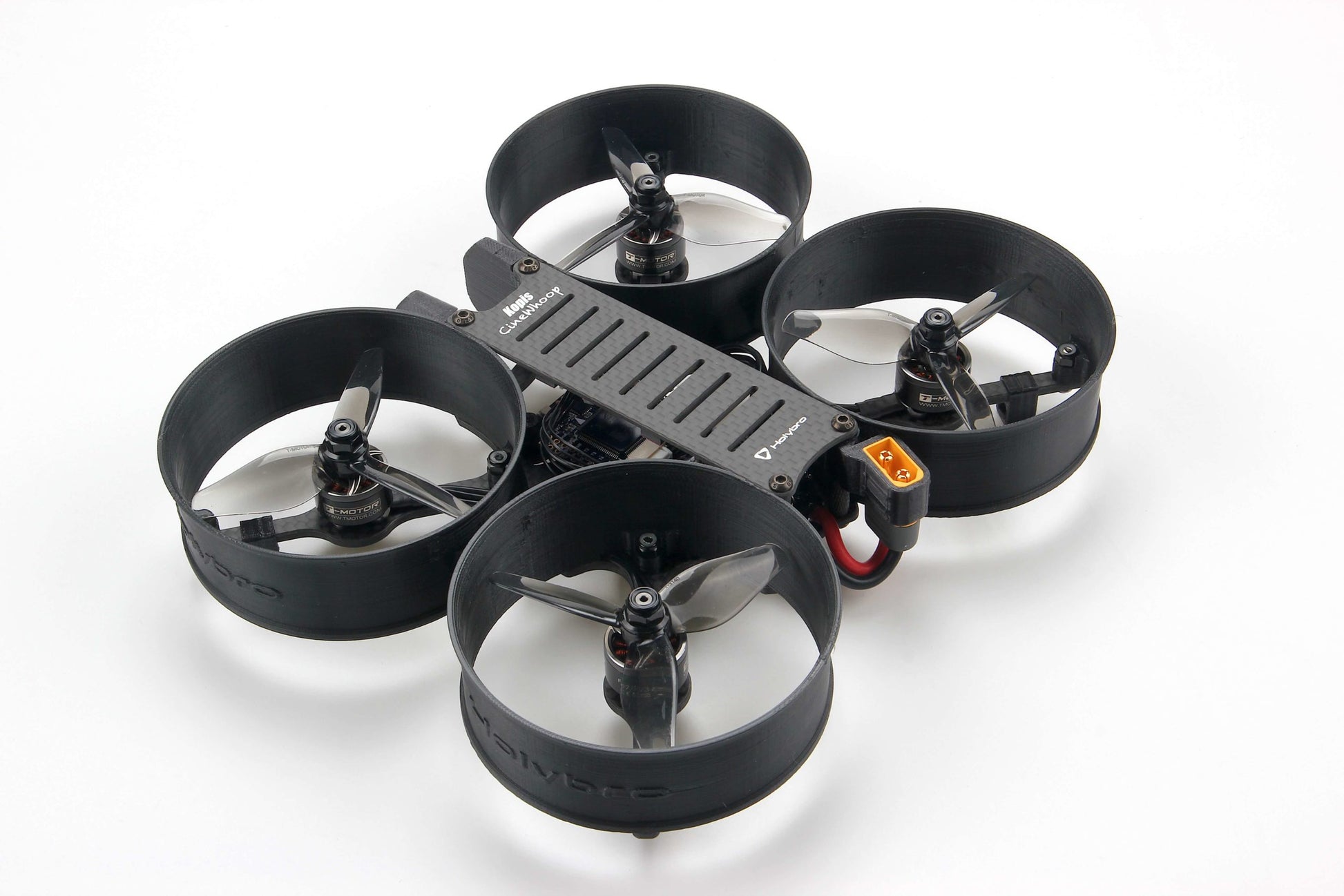

HolyBro Kopis CineWhoop HDV FPV Quadcopter BNF/PNP

\n
• \n MCU - STM32H743 32-bit processor running at 480 MHz\n
\n
• \n IMU - MPU6000\n
\n
• \n Barometer - BMP280\n
\n
• \n OSD - AT7456E\n
\n
• \n Onboard Bluetooth chip - ESP32-C3\n
  \n
  • \n SpeedyBee IOS & Android App Compatible\n
  \n
  • \n Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) and turn on automatically when the flight controller is locked (disarm).\n
  \n
  \n
\n
• \n 6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)\n
\n
• \n 9x PWM Outputs (8 Motor Output, 1 LED)\n
\n
• \n 2x JST-SH1.0_8pin port (4in1 ESCs, x8/Octocopter compatible)\n
\n
• \n 1x JST-GH1.5_6pin port (For HD System like Caddx Vista & Air Unit)\n
\n
• \n Battery input voltage: 7V to 42V\n
\n
• \n BEC 5V 2A Cont.\n
\n
• \n BEC 9V 1.5A Cont.\n
\n
• \n Mounting - 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets\n
\n
• \n Dimension - 35x35mm\n
\n
• \n Weight - 8g\n
\n

\n
• \n F4 MCU with BLHELI32 firmware\n
\n
• \n Maximum PWM output upto 96K (default 48K)\n
\n
• \n Amperage meter scale ratio has been adjusted to 168.\n
\n
• \n PWM input, TLM supported\n
\n
• \n Voltage output (VBAT)\n
\n
• \n NO output BEC\n
\n
• \n Supports oneshot / Multishot / Dshot PWM\n
\n
• \n Supports damped light\n
\n
• \n Supports 3-6S lipo input\n
\n
• \n Ext. cap needed for 6s (1000uf 35v for 6s usage.)\n
\n
• \n Mounting holes: 20x20mm(M3)\n
\n
• \n Size:30 x 39 mm\n
\n
• \n Weight: 7.2g\n
\n

\n VTx:Caddx Polar Vista Kit starlight Digital HD FPV system(Optional)\n

\n
• \n Weight:254g（included Caddx Polar Vista Kit）\n
\n
• \n Recommend battery: 650mah~1300mah 4s\n
