HDZero

HDZero Race V2 Shark Byte Digital HD VTX

HDZero Race V2 Shark Byte Digital HD VTX

HDZ3140

£67.95 GBP
£0.00 GBP £67.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

🇬🇧

Compliance Requirement

This product is capable of operating at power levels or on frequencies that require a specific licence or exemption to operate legally in the UK. As such, it is legally classified as Restricted / Amateur Radio Apparatus.

To purchase this item, you must confirm:

  • You understand this is not a standard consumer device.
  • You hold the necessary authorization (e.g. Amateur Radio Licence) to operate it.
View full details

Product Details

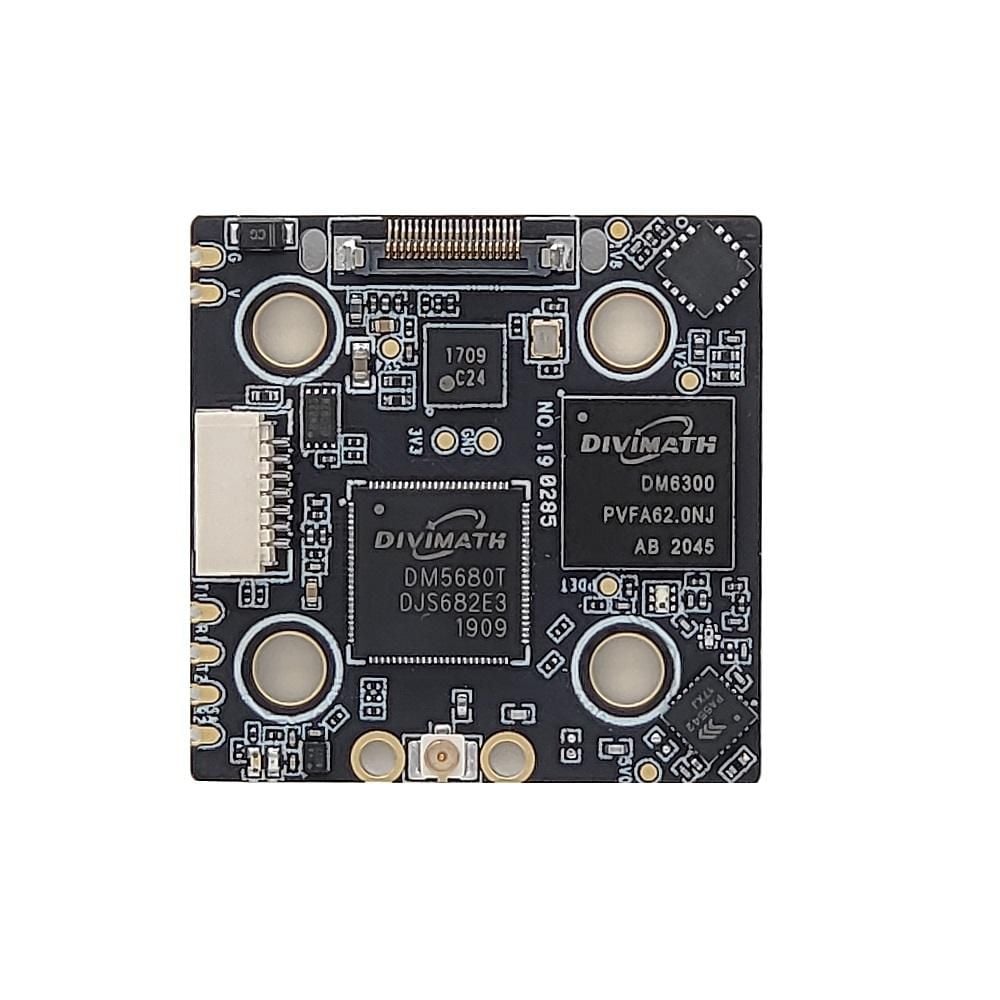

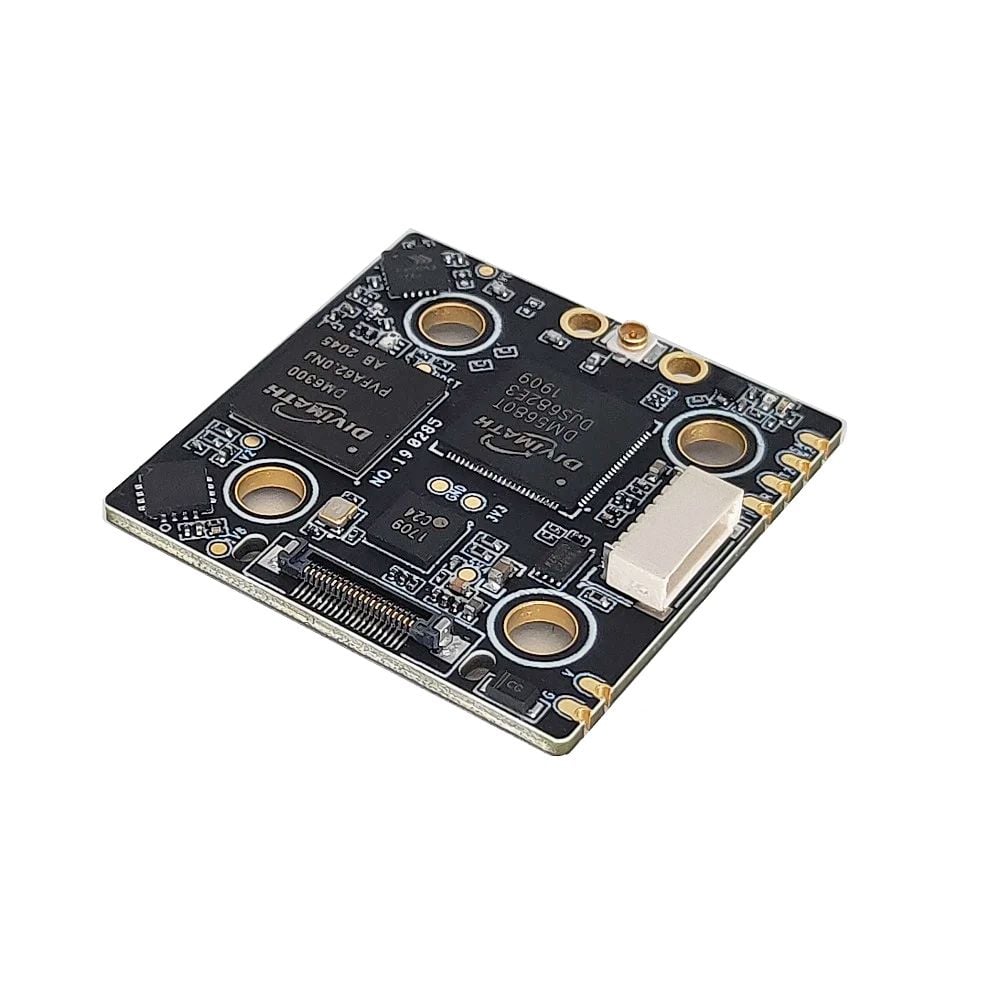

The HDZero Race VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. Compatible with the Shark Byte RX5.1 goggle module to transmit video. Designed for FPV racing, this VTX features 25/200mW adjustable power, 6s input and weighs only 6.2g.

Specifications

  • Model: HDZero Race V2
  • SKU：HDZ3140
  • Frequency: 5.8G
  • Resolution Default: 1280*720@60fps
  • RF power: 25mw/200mw
  • RF Connector: Secured U.FL
  • Interface: 4 lane MIPI CSI YUV422
  • Video Connector: 20 Position 0.30mm Pitch
  • Size: 34mm x 34mm x 6mm
  • Weight: 6.2g
  • Power: 410mA@12V
  • Power input: 7V-26V(2S-6S)
  • Mounting: 20mm x 20mm M4 with rubber grommets

Includes

  • 1x HDZero Race V2 Shark Byte Digital HD VTX
