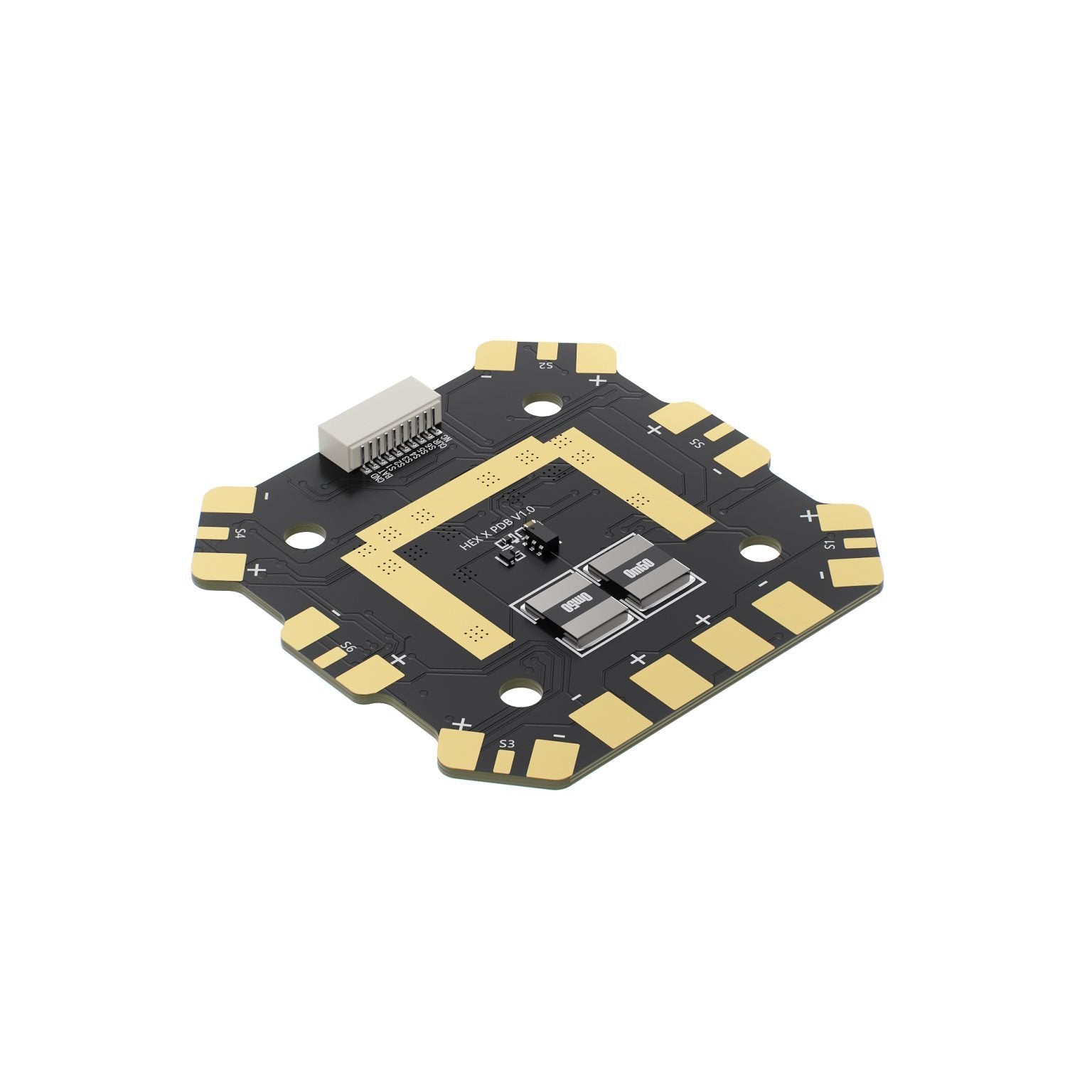

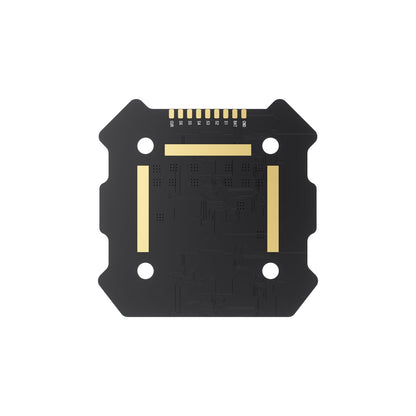

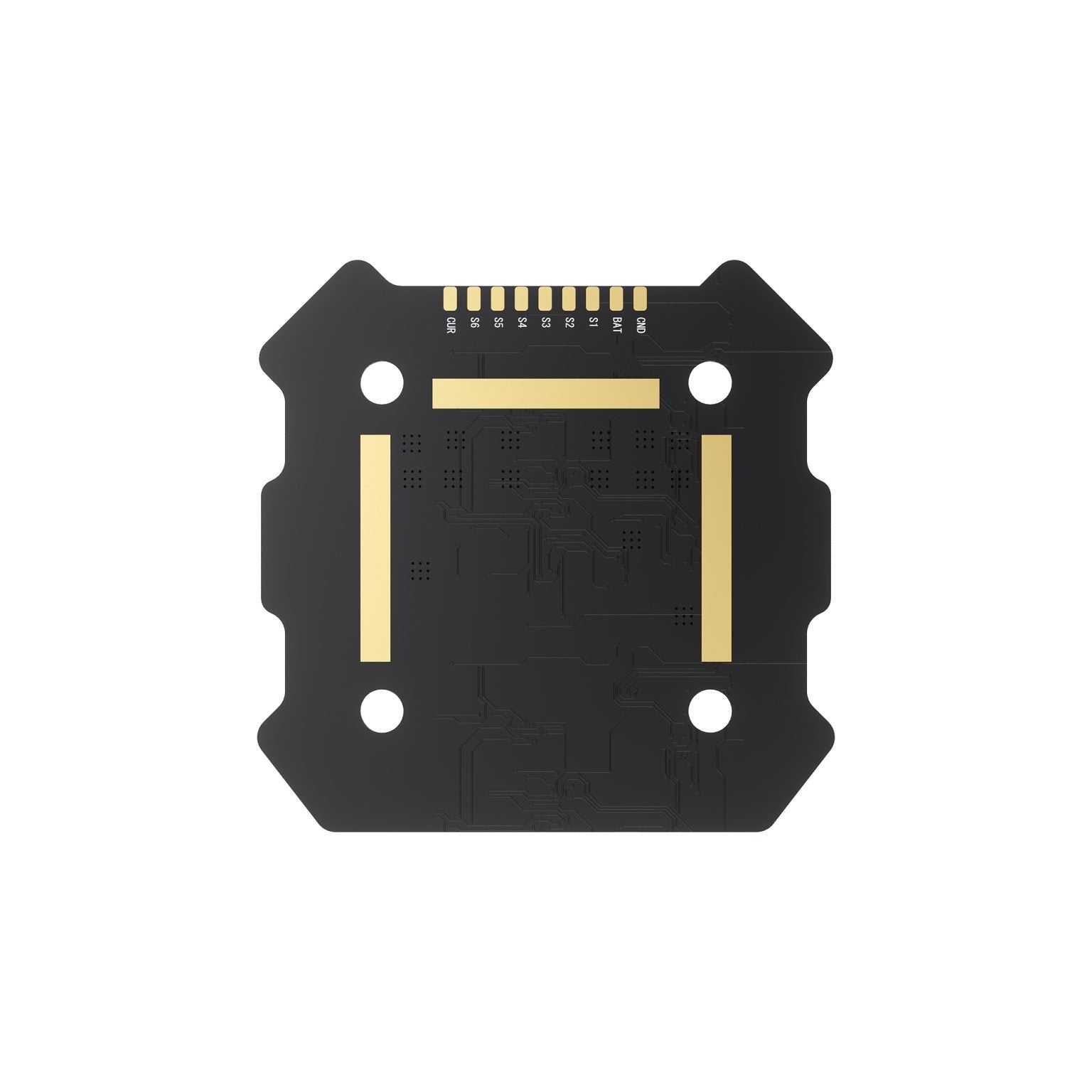

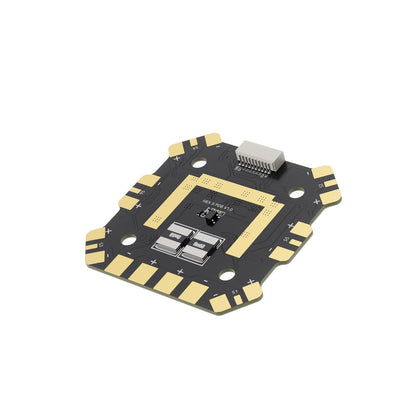

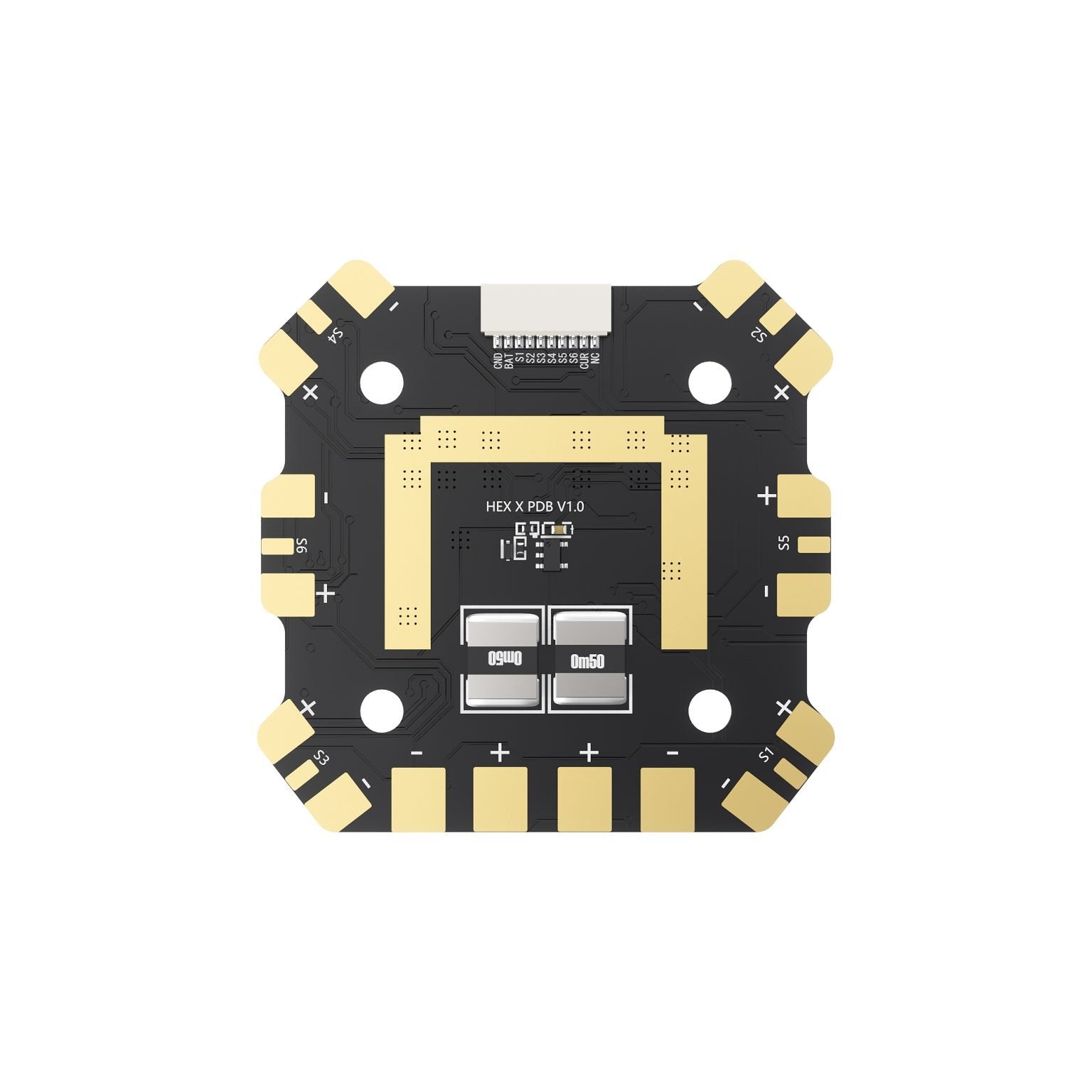

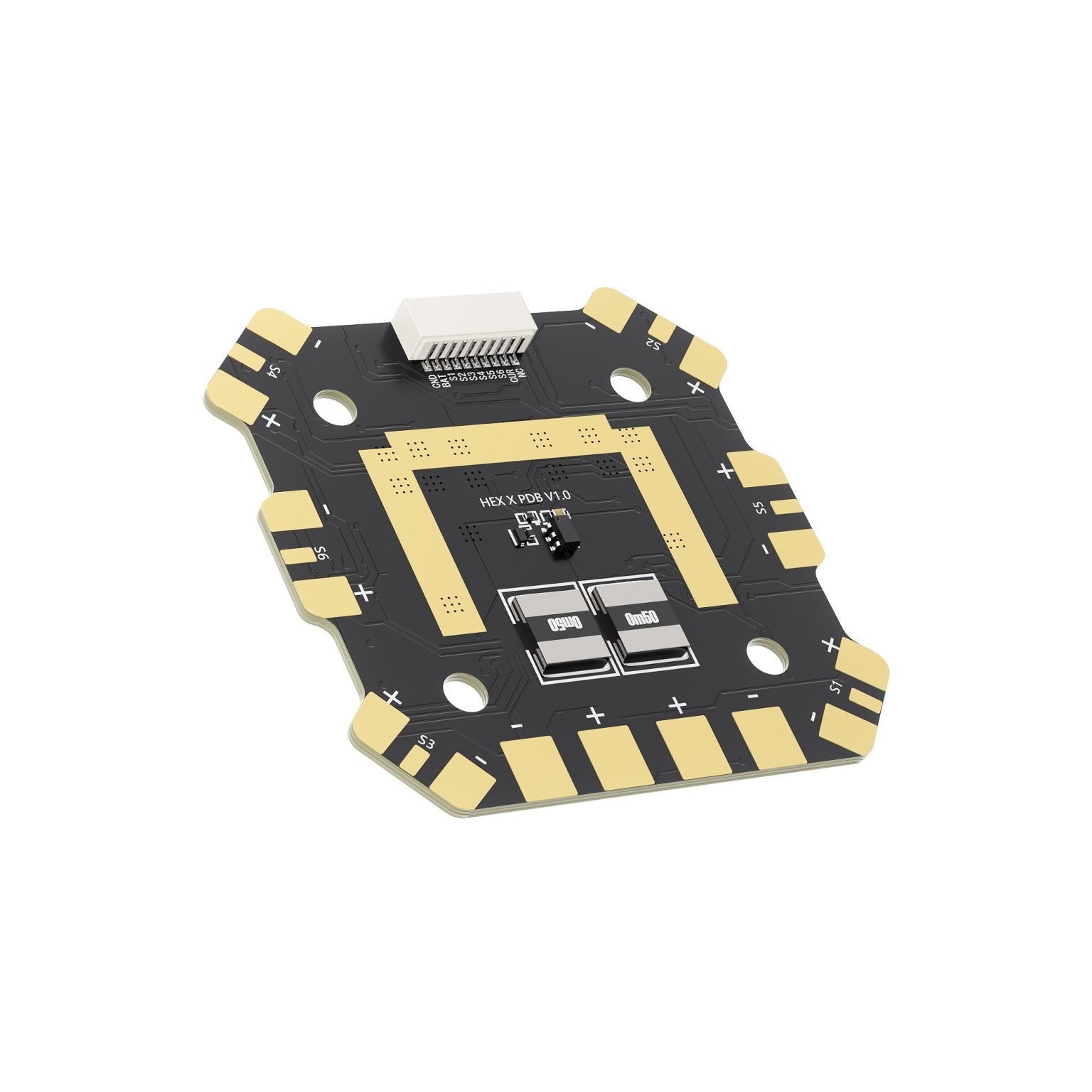

GEPRC Hexacopter PDB – Power Distribution Board

The GEPRC Hexacopter PDB is a robust 6-output power distribution board made for multi-rotor UAVs (especially hexacopters). It supports 3S–6S LiPo input, handles up to 60 A continuous, and includes all the hardware and connectors to get your power wiring tidy. (Yes, it’s real.)

Why You Want It

Messy wiring, weak traces, or lack of proper connectors ruin builds. This PDB gives you clean power rails to all six ESCs, with large copper pads, included capacitors, XT90 main power, and mounting options. It reduces wiring weight, improves reliability, and centralizes your power and signal passes. For hexacopters, that means fewer solder joints and less voltage drop. (Margins exist, but this helps.)

Specifications

• Input voltage: 3S to 6S LiPo
• Continuous current rating: 60 A
• Burst current (5 s): 65 A
• Dimensions: 53 × 53 mm
• Mounting holes: 30 × 30 mm spacing
• Weight: ~ 11.8 g
• Includes:
  • 2 × 50 V 2200 µF capacitors
  • XT90 + protective housing and 10 AWG silicone main wire
  • SH1.0-10P to 8P cable for FC ↔ PDB connection
  • 8 × M3×8 damping balls
• ESC signal protocol supported: DShot 150 / 300 / 600

What’s in the Box*

• 1 × GEPRC Hexacopter Power Distribution Board (PDB)
• 2 × 50V 2200μF Capacitors
• 2 × XT90+ Connectors with Protective Housing + 10AWG Silicone Wire
• 1 × SH1.0-10P to 8P EP-106 FC to PDB Connection Cable
• 8 × M3*8 Damping Balls

Disclaimer

*Connector types, wire lengths, or hardware may vary slightly by batch. Always verify polarity and do a continuity / insulation check before first use.
