Product Details
Specification
- Support protocol: DSM2/DSMX
- Output Signal configuration: SRXL(Set Spektrum2048/SRXL for the serial receiver provider)
- Antenna connector: I-PEX MHF3
- Antenna length: 70mm
- Input voltage: 3.6v~13v
- Input current: 100ma
- Channels: Max12ch(usually channel 12 is used for RSSI)
- Telemetry output:
- For the radio transmitter which come with Opentx and equipped with DSM2/DSMX module, the RSSI display as the value of Hold from the radio screen. And the input voltage is display as the value of A2 .
- Sensitivity: -101dBm
- Return transmission power: 18dBm
- Dimension: 20x12.4x5mm
- Weight: 1.2g
Included

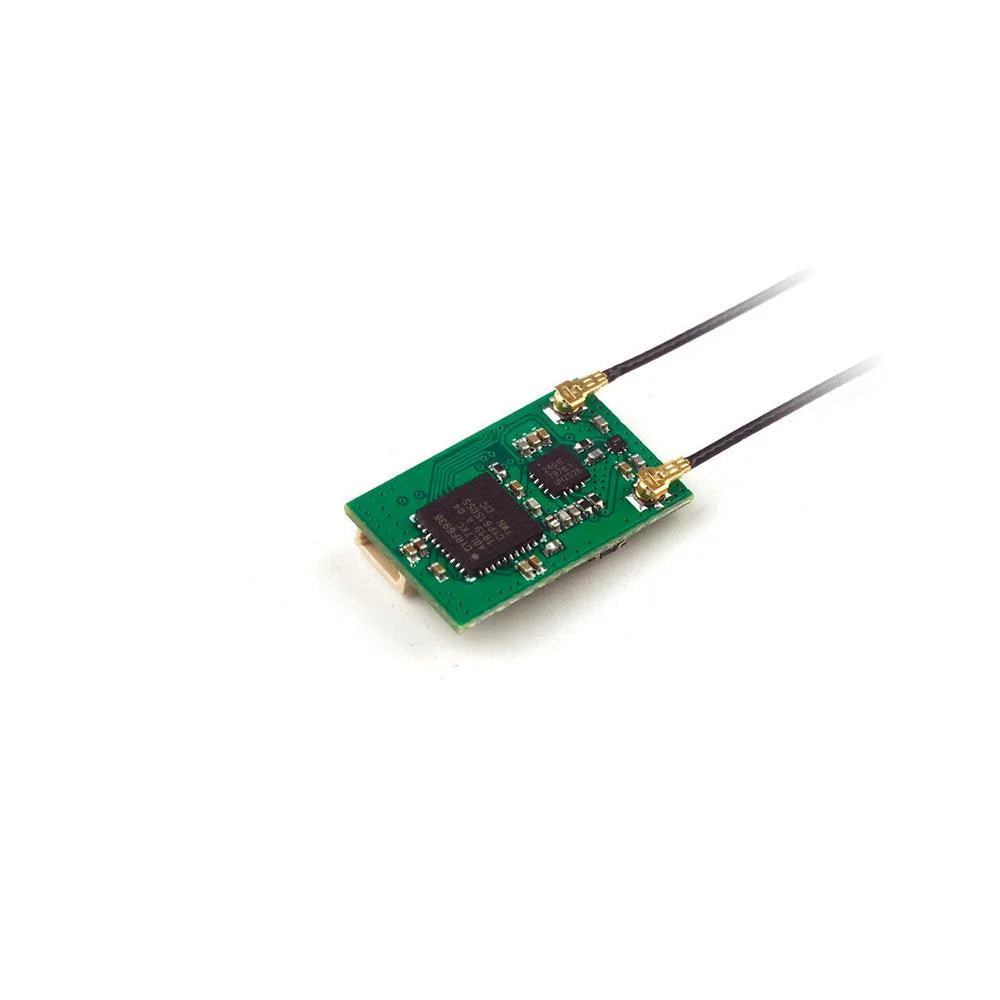

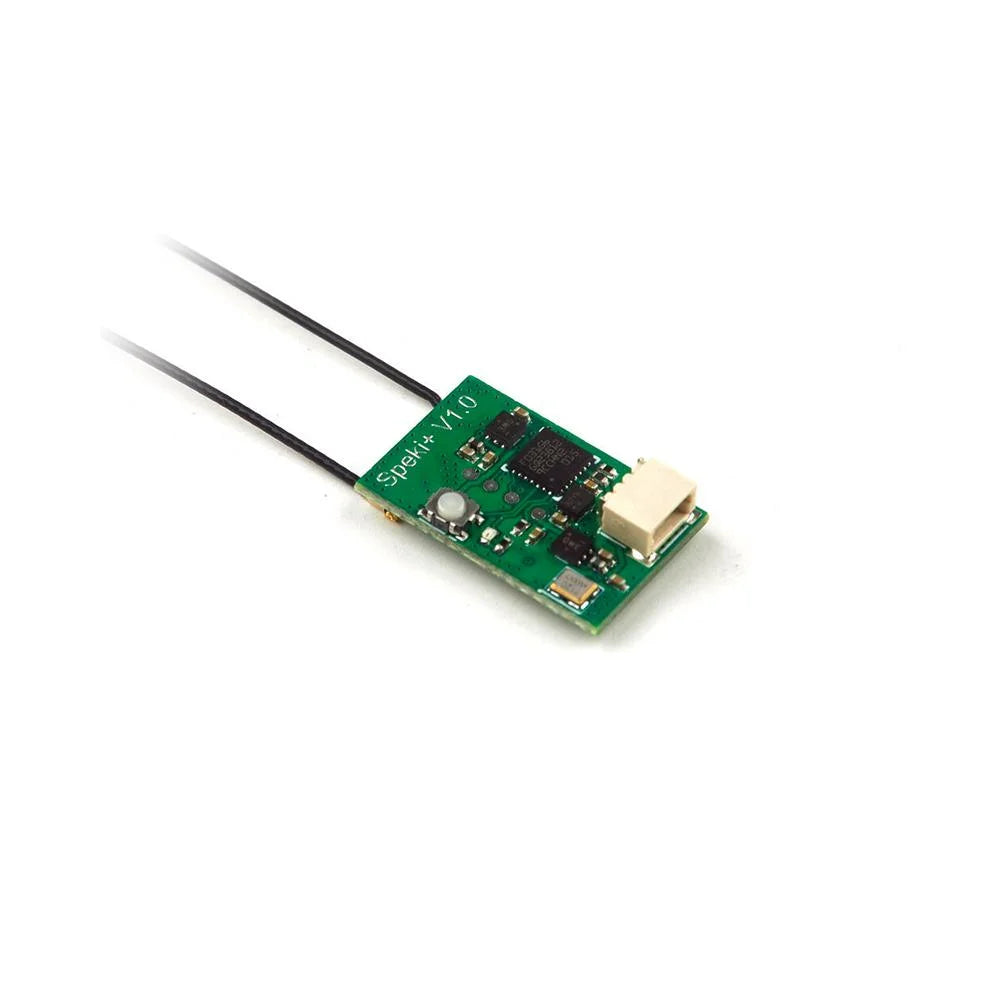

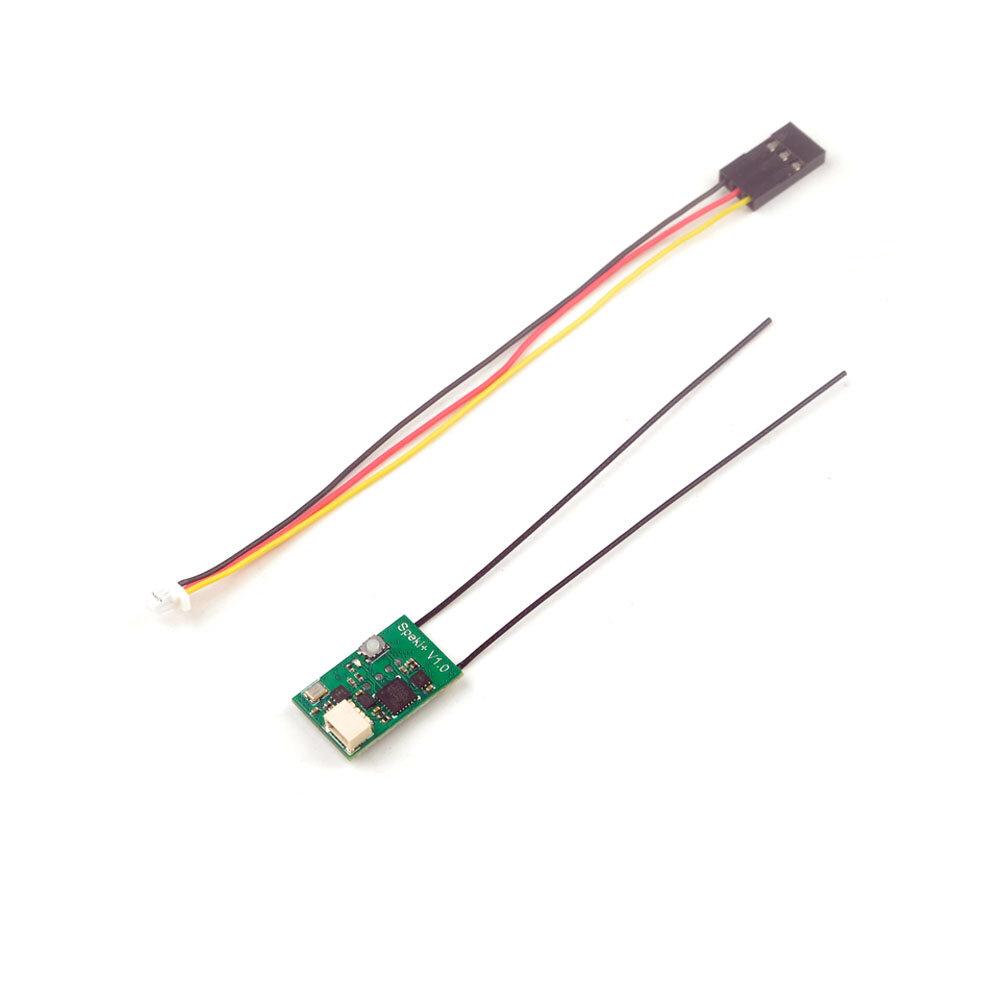

- HappyModel Speki+ 12CH SBUS DSM2/DSMX/SRXL Compatible 2.4GHz Micro RC Receiver
