Product Details
Happymodel have been working on innovations of Brushless Whoop for a few years. Just like many of you, we are particularly eager to have a 65mm FPV whoop carrying HD VTX. Teaming with HDZero, Runcam, Nick Burns, Mr Shutterbug, Ryan Quellet and many other enthusiasts, here the dream comes true finally!
&feature=emb_title
Specifications
- Brand: Happymodel
- Model: Mobula6 HDZero
- Frame wheelbase: 65mm

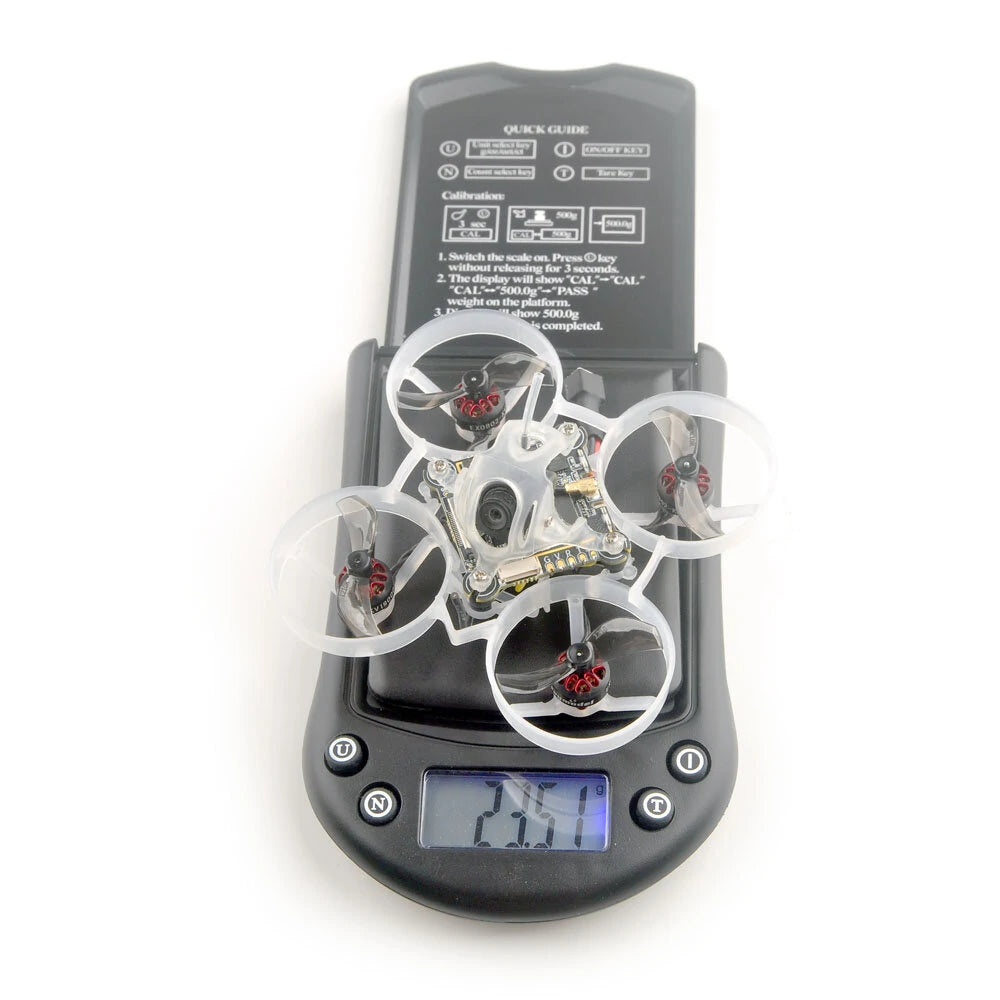

- Weight: 23.5 gram without battery
- Size: 80mm*80mm*50mm
-
Receiver option:
- SPI ELRS 2.4GHz
- SPI FRSKY 2.4GHz
- Compatible with 1S Lipo battery or Lihv battery PH2.0 Plug ( NOT Included)
|
Flight controller
SuperbeeF4 Lite ELRS/FRSKY |
SPI ELRS version Firmware target: CrazybeeF4SX1280
SPI FRSKY version Firmware target: CrazybeeF4FR MCU:STM32F411CEU6 (100MHz, 512K FLASH) Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection) Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in SPI Frsky/ExpressLRS receiver Built-in 5V 1A BEC Built-in voltage detection |
| Onboard 4in1 ESC |
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV (2.8v~4.35v) Currents: 5A continuous peak 6A (5 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_8.HEX Default protocol: DSHOT150/DSHOT300/DSHOT600 |
|
Onboard SPI ExpressLRS 2.4GHz RX
( ELRS 2.4G Version) |
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHzAntenna plug: IPEX Telemetry output Power: <12dBmReceiver protocol: SPI ExpressLRS Could bind with ELRS V2.0 firmware TX module |
|
Onboard Frsky SPI D8 /D16 2.4GHz RX
( Frsky Receiver Version) |
SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt) Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol |
| Motor |
Mode: EX0802 19000KV
Configu-ration:9N12P Stator Diamter:8mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm Weight(g):1.7g No.of Cells(Lipo):1S only |
| Gemfan 1219 Bi-blades Propeller |
Weight:0.19g
Material: PC Pitch:1 inchProps Dia:30mm Center Hole Dia:1mm |
| HDZero Nano Lite Camera |
Dimension: 14x16x11mm
Weight: 1.5gram 0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor Excellent low light performance Fov: 4:3: D:130° H:108° v:84° 16:9:D:122° H:108° V:65° |
| HDZero Whoop Lite VTX |
1S Input
25mW/200mW RF Output-SmartAudio Support 25.5x25.5 M2 Soft Mounting- Antenna Retention Removable Shielding Box- 32.5x32.5mm(29x29mm inner) 4.5grams/4mm Thickness (without shielding) |
Included
- 1x Happymodel Mobula6 HDZero FPV Drone
- 1x Spare Canopy
- 1x Screw driver
- 1x Propeller disassemble tool
