PLEASE NOTE: It is possible for the Mobula6 to lose bind and betaflight config if the battery is allowed to run too low - however this can be easily resolved to get back in the air again.
Please see here for more info.

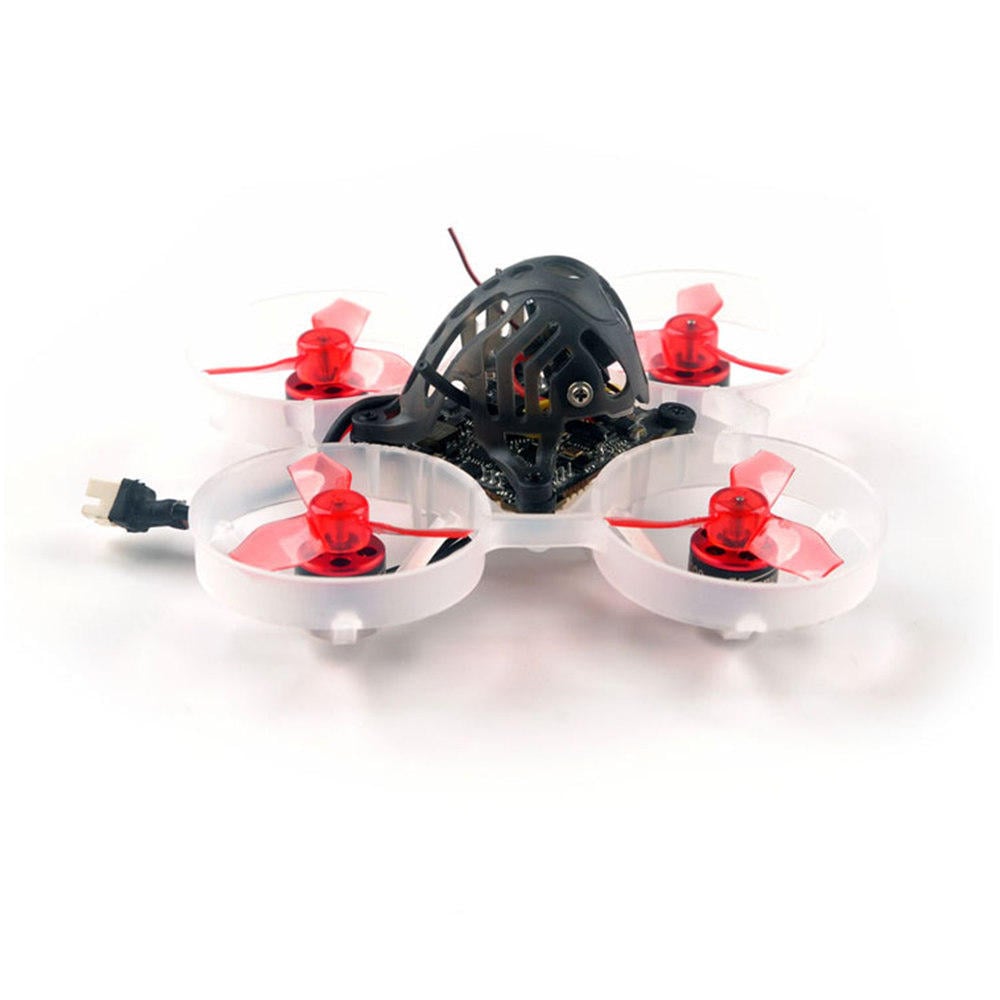

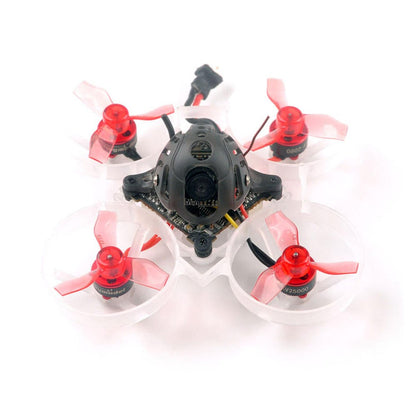

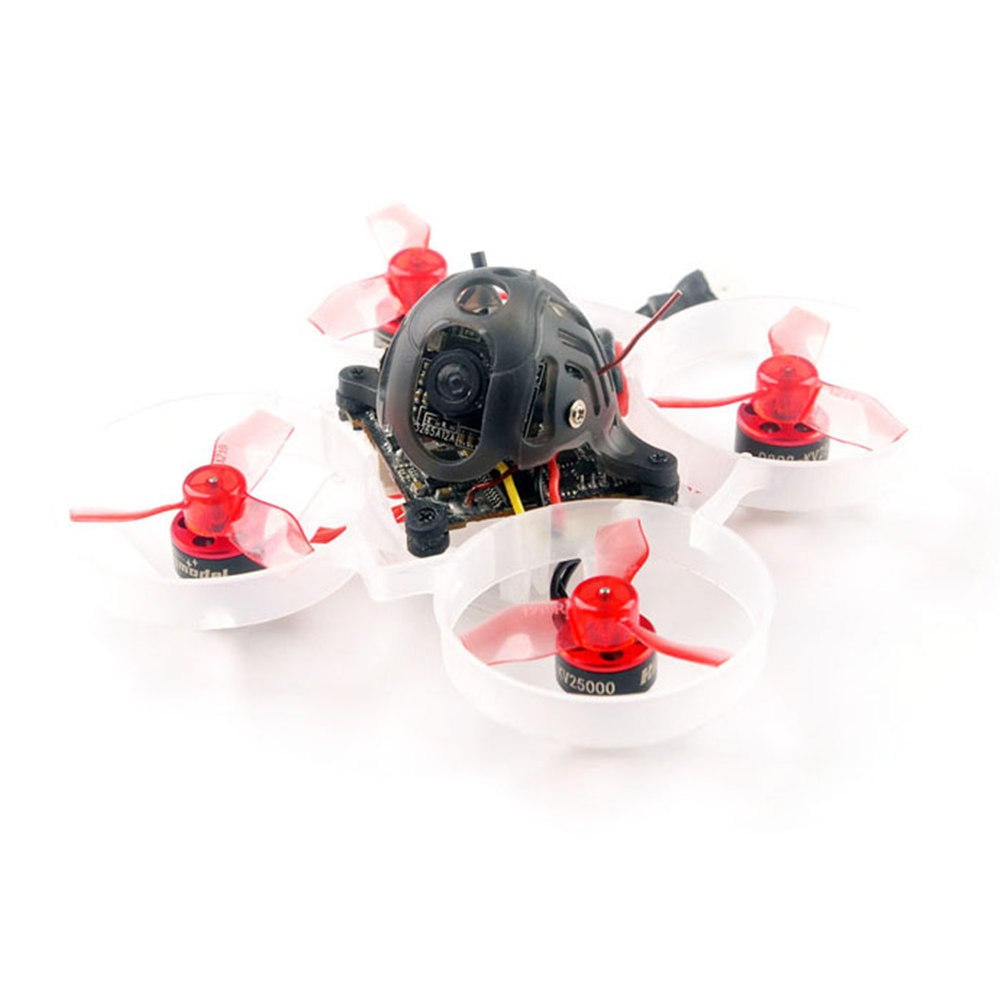

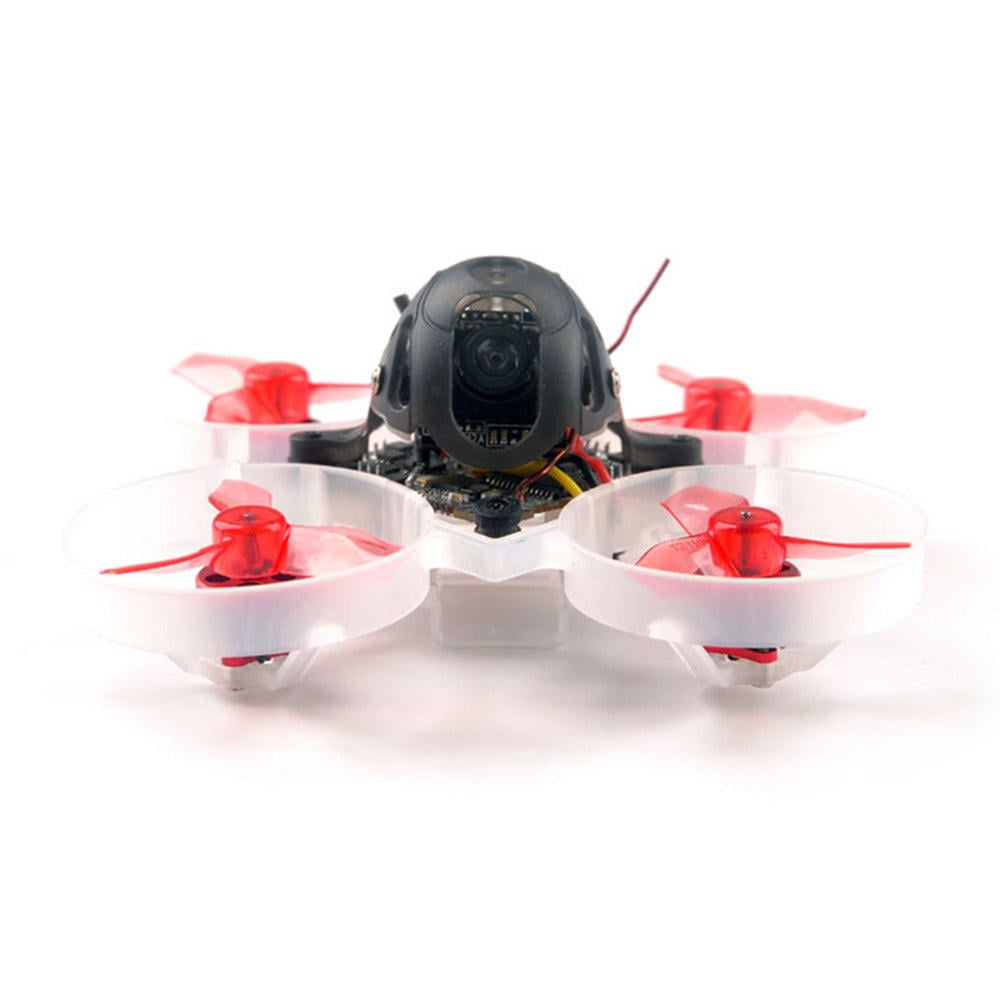

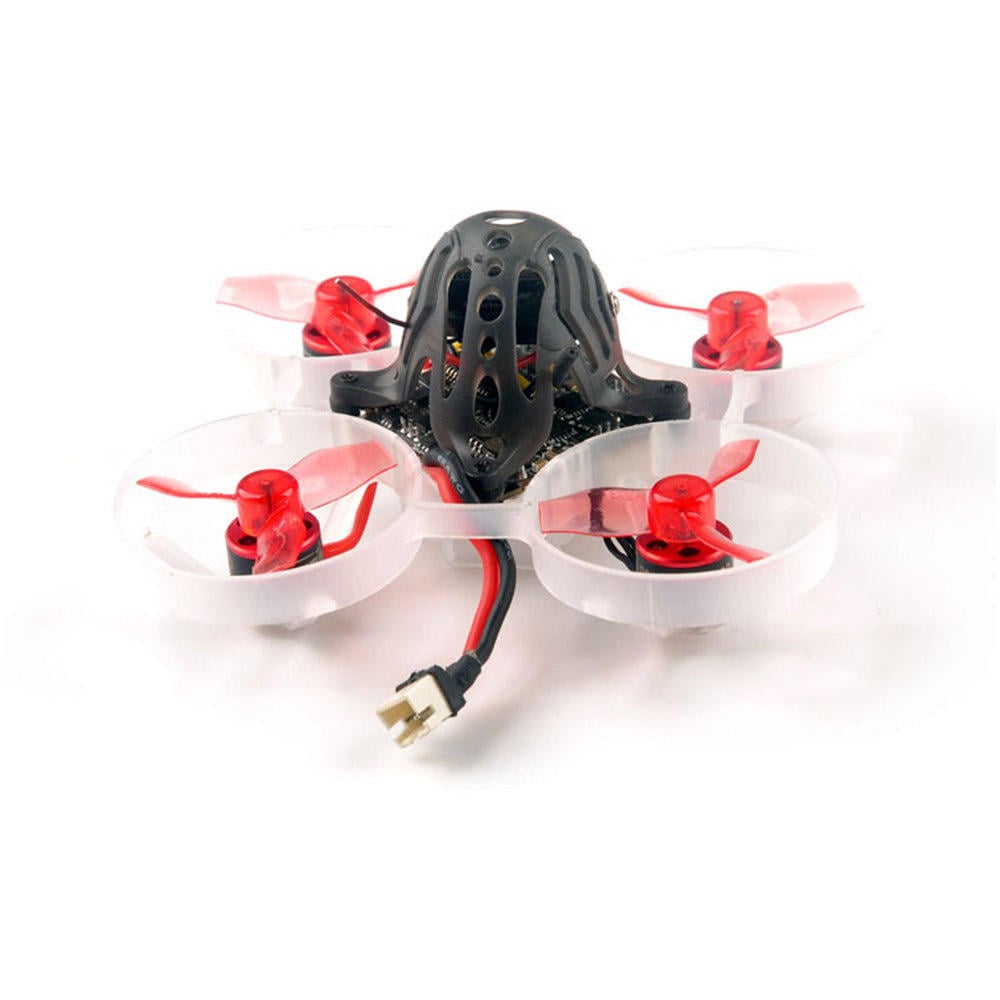

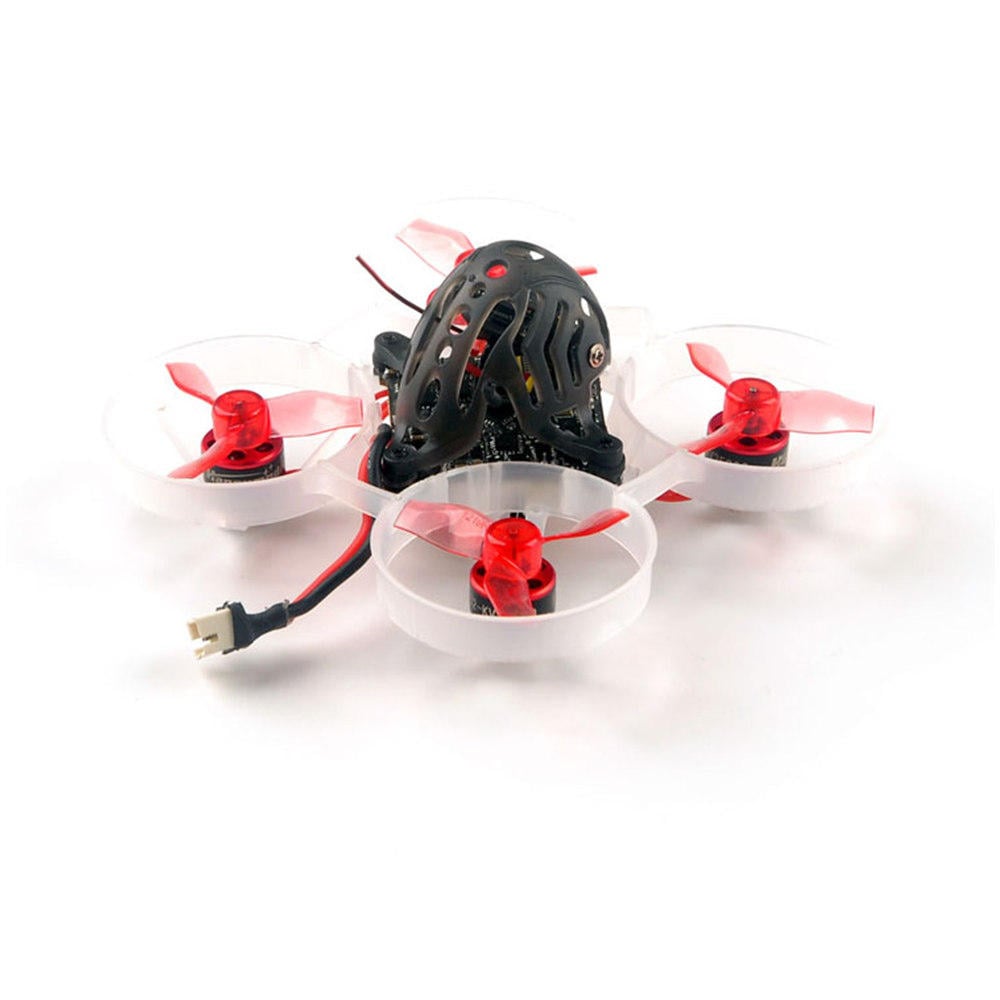

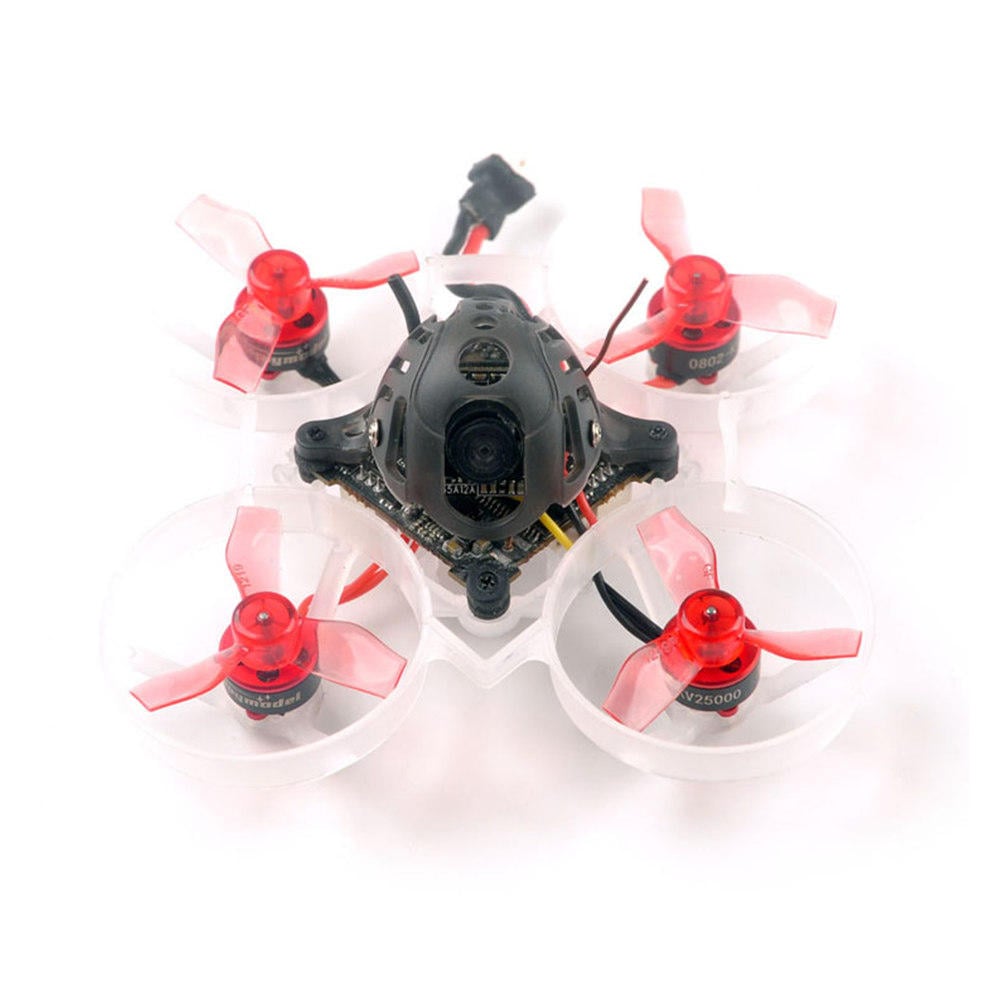

This is a 65mm brushless whoop from happymodel that weighs in at just 20g. It features the crazybee F4 Lite flight controller (4x5A ESC) that includes either a built in FRsky or Flysky receiver. The camera is the runcam nano 3, which is one of the best tiny FPV cameras you can get at this price point. If you are looking for alot of fun in a tiny package this is the brushless whoop for you.
Key Features
-
Crazybee F4 Lite Flight Controller with MPU6000 (1S lipo support)
-
The lightest tiny whoop at 20g
-
Strong injection moulded canopy
-
Runcam Nano 3 FPV camera
-
Includes batteries and charger
Specification
-
Brand Name: Happymodel
-
Model: Mobula6
-
Item Name: 65mm Crazybee F4 Lite 1S Brushless Whoop FPV Racing Drone BNF
-
Optional Version: Frsky Receiver ( Compatible with ACCST D8/D16, Recommend D8 mode)
Flysky Receiver ( Compatible with AFHDS and AFHDS-2A Flysky transmitter)
-
Drone Wheelbase: 65mm
-
Size: 80x80x37mm
-
Weight: 20g
Detailed Component Specifications
Crazyb
Crazybee F4 LiteFlight Controller
Built-in ESC & Receiver & VTX
|
Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
(Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection
|
|
Onboard Frsky Receiver Version
|
SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
|
|
Onboard Flysky Receiver Version
|
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m
Failsafe support
|
|
Onboard 5A BLheli_S 4in1 ESC
|
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600
|
|
SE0802 19000KV / 25000KV Motor
|
Model: SE0802
KV: 19000KV / 25000KV Motor
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.9g
No.of Cells(Lipo):1S only
|
|
Gemfan 1219 3-Blade Propeller
|
Brand Name: Gemfan
Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm
Quantity: 4 CW & 4 CCW
Weight:0.28g
|
|
Onboard 5.8G 40CH 25mW VTX
|
Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready
|
|
Runcam Nano 3 FPV Camera
|
Brand Name: Runcam
Model: Nano 3
Item Name: 1/3 CMOS 800TVL Camera
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm
|
|
Lipo Battery ( Included)
|
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 8g
Connector: PH2.0
Quantity: 4 PCS
|
|
|

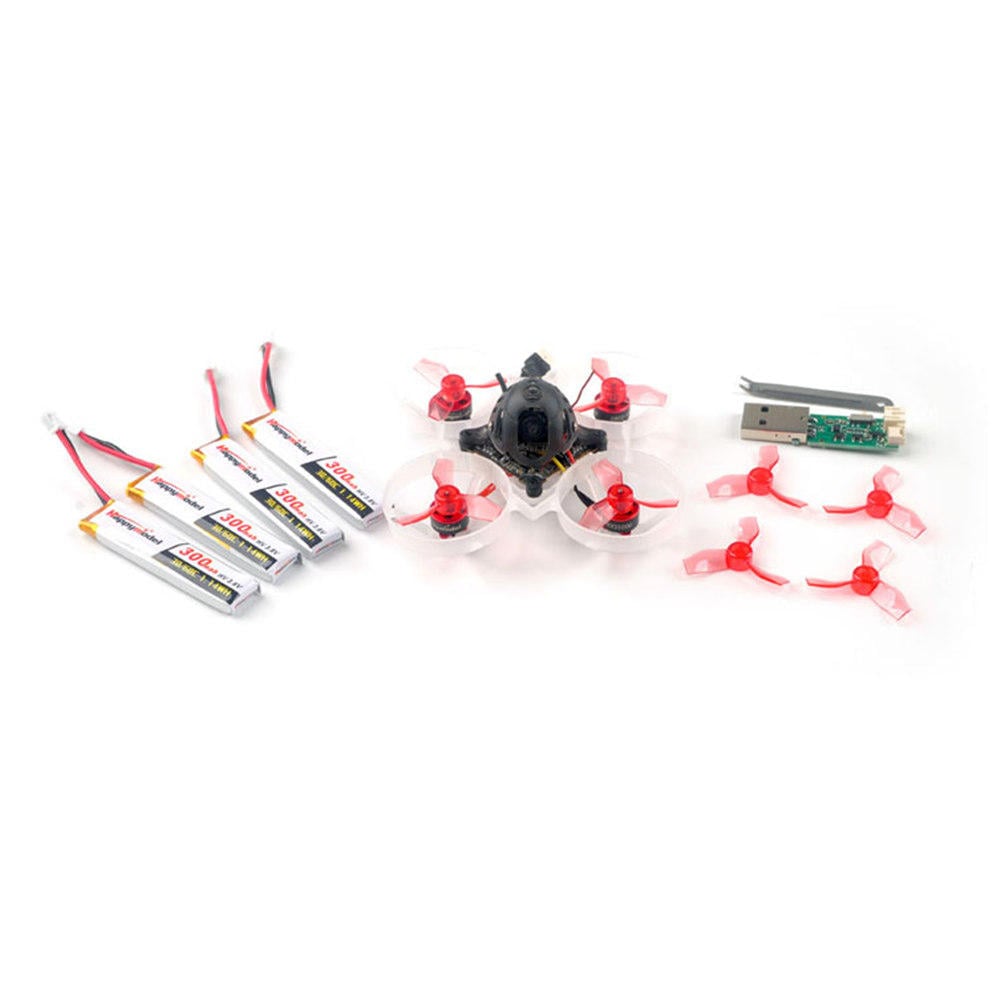

Included
-
1x Mobula6 1S FPV Racing Drone
4x 1S 300mAh 30C Lipo Battery
1x 1S Lipo/LIHV USB Charger
1x Propeller disassemble Tool
