Product Details

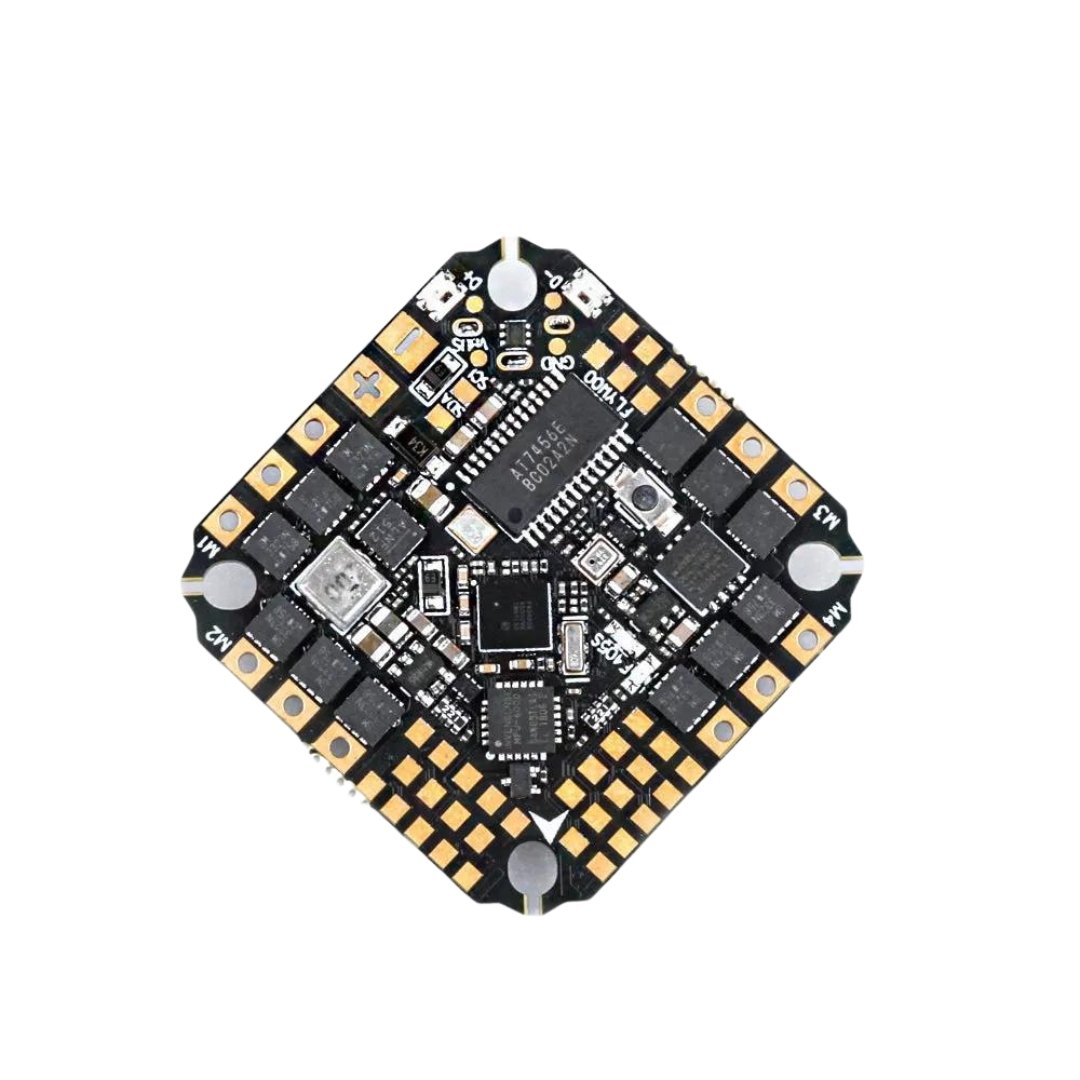

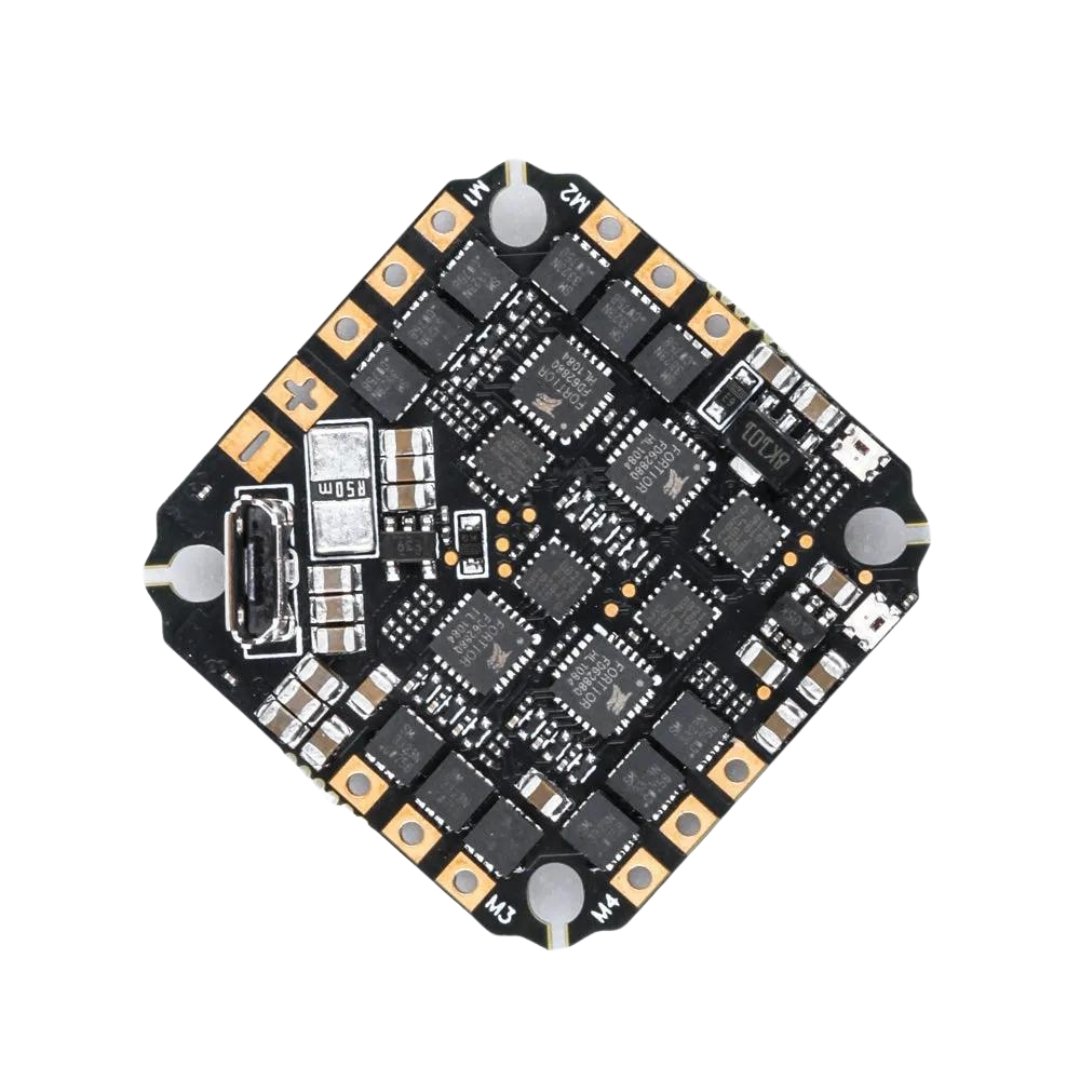

Unleash Your FPV Dreams: FLYWOO GOKU GN405 40A AIO Flight Controller
Ever thought your FPV setup could use a dash of super-saiyan? Enter the FLYWOO GOKU GN405 40A FC. This all-in-one beast is not just economical and durable but is the Swiss Army knife for the FPV enthusiast! Why settle for less when you can pilot your drone with the brain of a champion?
Smart, Tough, and Ready to Fly
Powered by the formidable F405 BGA MCU, the GOKU GN405 doesn't just manage your flight; it masters it. With an integrated 5V BEC, you can kiss power worries goodbye, and the onboard barometer keeps your flights as smooth as a zen master's mind.
Light Up the Sky
Equipped with a WS2812 LED, this controller turns your drone into a flying light show. Impress onlookers and add flair to your night flights—because who says you can't be both functional and fabulous?
Communication is Key
No more communication barriers! With six UART ports, this FC offers more connectivity than a social media influencer. SBUS, iBus, Spektrum, Crossfire—you name it, GOKU supports it. (PPM and PWM receivers need not apply.)
Keep Memories with Black Box
With an onboard 8MB for Blackbox logging, replay your epic flights and analyze your data like a drone detective. It's not just about flying; it's about refining your skills with every flight.
Specs That Don't Quit
- MCU: STM32F405 BGA 8bit processor
- IMU: MPU6000 (SPI)
- Barometer: SPL06
- Onboard LED：WS2812*4
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
- PPM and PWM receivers are not supported.
- Onbord 8Mbytes for Blackbox logging
- 5V Power Out: 2.0A max
- 3.3V Power Out: 0.5A max
- Dimensions: 33.5x33.5mm
- Mounting Holes: Standard 25.5/26.5mm square to center of holes
- Weight: 8.5g
-
Support BLHELI_S
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 - Input Voltage: 2-6S Lipo
- Continuous Current: 40A
- Firmware: BLHELI_S
Compact Powerhouse
At just 33.5x33.5mm and weighing a mere 8.5g, this controller fits into your setup with ease, making it a breeze to install. The standard mounting holes ensure it's as secure as Fort Knox.
What's in the Box?
- 1x FLYWOO GOKU GN405 40A AIO Flight Controller
Whether you're a seasoned pilot or just starting out, the FLYWOO GOKU GN405 40A FC is your co-pilot in the thrilling world of FPV. So why wait? It's time to elevate your drone experience with technology that's as sharp as your flying skills. Fly smart, fly FLYWOO.
