GOKU GM10 V3 GPS Series: Precision Meets Simplicity
Step into the future of navigation with the GOKU GM10 V3 GPS series! Boasting the state-of-the-art M10050 GNSS chip, this powerhouse offers ultra-accurate positioning and significantly faster star search speeds compared to its predecessor, the GM8 V2.
Why Choose GOKU GM10 Nano V3 GPS?
Designed for hassle-free use, the GOKU GM10 Nano V3 GPS with compass comes with a plug-and-play setup—no soldering required. This feature ensures even the least tech-savvy can enjoy precise navigation effortlessly. Whether you're an outdoor enthusiast or a professional, GOKU guarantees reliability, accuracy, and user-friendliness in every adventure.
Note: The GOKU GM10 V3 GPS uses the M10050 chip. It supports the Ublox protocol on BF4.3x firmware and the NMEA protocol on BF4.2x firmware and earlier. There is no performance difference between these protocols. Ensure to use firmware above 4.3.0 for Betaflight and the latest firmware above 5.0.0 for INAV with the 6.0.0 configurator.
Features
- Three GPS Modules: Ensures enhanced signal reception and reliability.

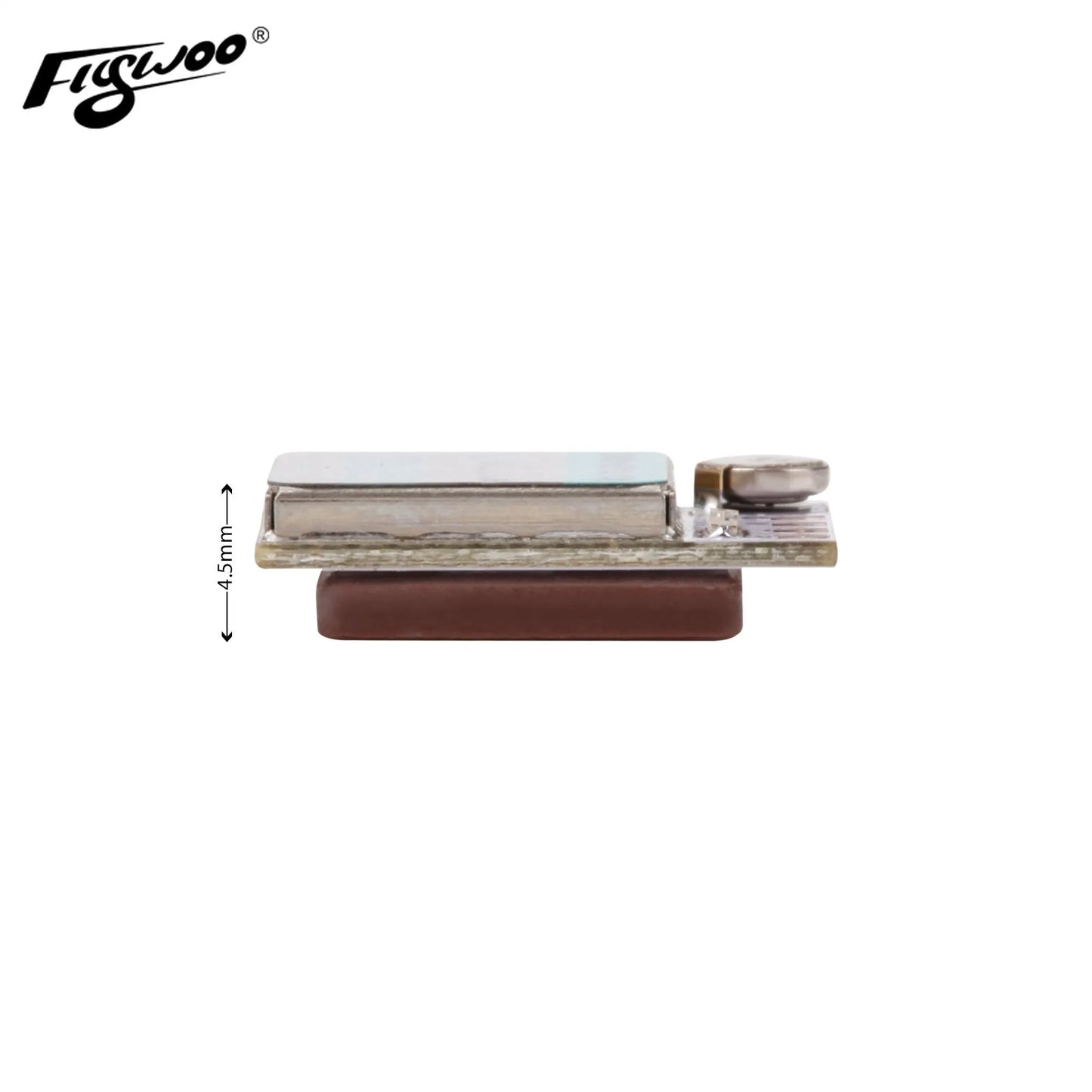

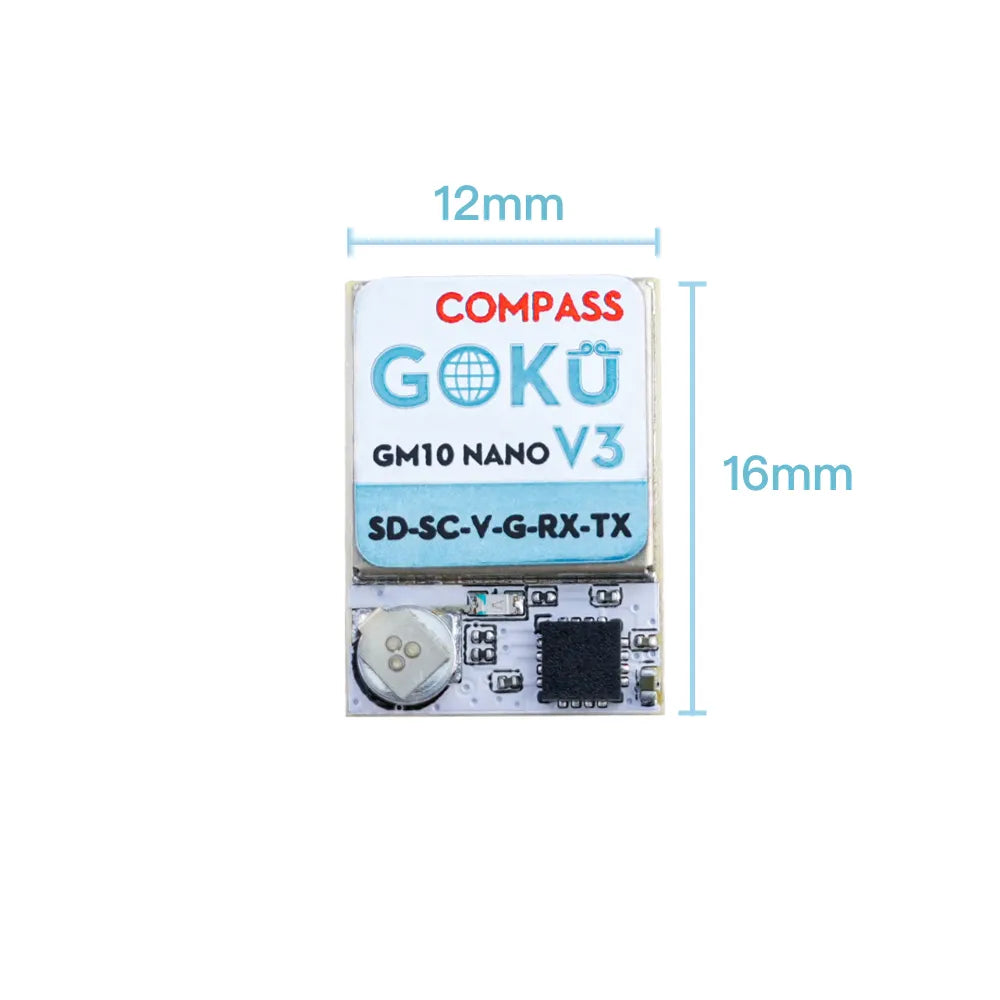

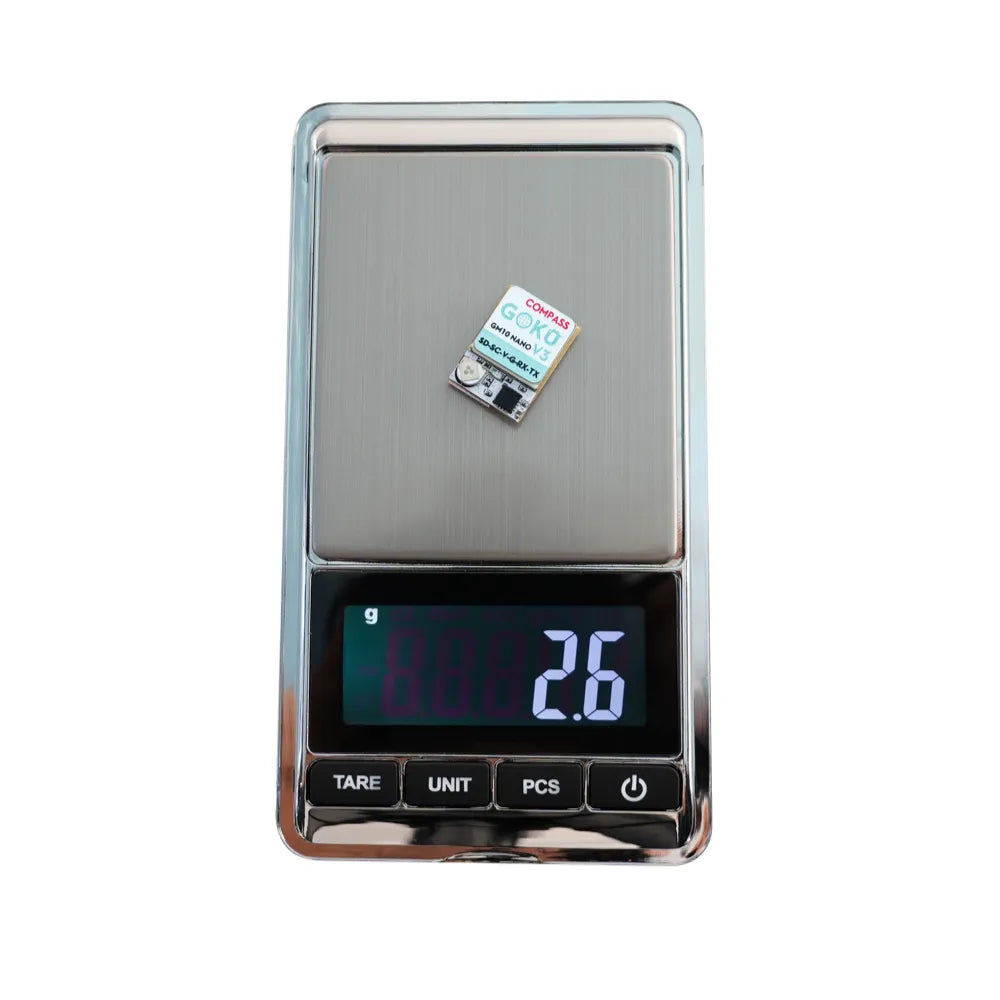

- Ultra-Lightweight Design: Weighing just 2.6g with a compact dimension of 12mm x 17mm x 5mm.
- Built-In Compass: Adds another layer of precision to your navigation.
- Easy Installation: Plug-and-play setup means no need for soldering.
Specifications
Electrical Characteristics
- Chipset: M10050 (Tenth Generation Chip)
- Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS
- Default Protocol: GPS, Galileo, BeiDou
- Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
- Channels: 72 Searching Channel
Sensitivity
- Tracking: -162dBm
- Reacquisition: -160dBm
Data and Update Rate
- Support Rate: 4800bps to 921600bps, Default 115200bps
- Data Level: TTL or RS-232, Default TTL level
- Data Protocol: BF4.3.X (UBLOX) / BF4.2.X (NMEA)
- Output Frequency: 1Hz-10Hz, Default 10Hz
Operational Limits
- Altitude: 50,000m Max
- Velocity: 500m/s Max
- Acceleration: Less than 4g
Power Consumption
- VCC: DC Voltage: 3.3-5V
- Operating Temp: -40°C to +85°C
- Storage Temp: -40°C to +105°C
Indicator
- PPS LED: Yellow. The PPS LED does not light up when GPS is not fixed; it flashes when fixed.

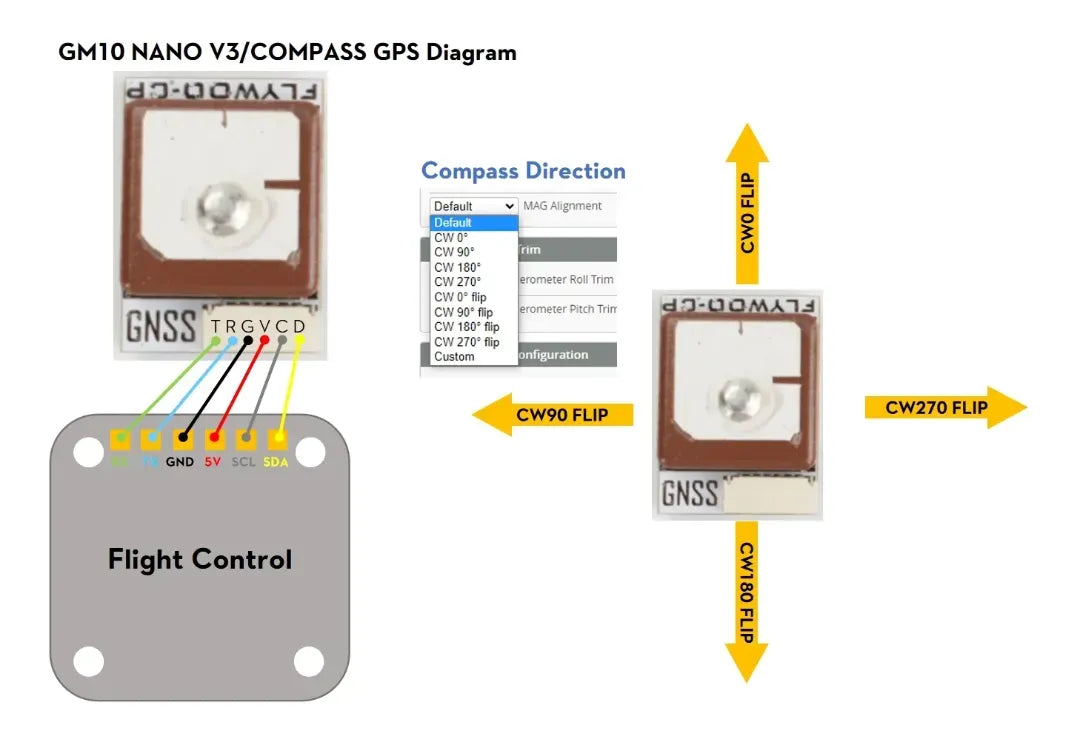

- Module's Pins: RX, TX, 3.3-5V, GND

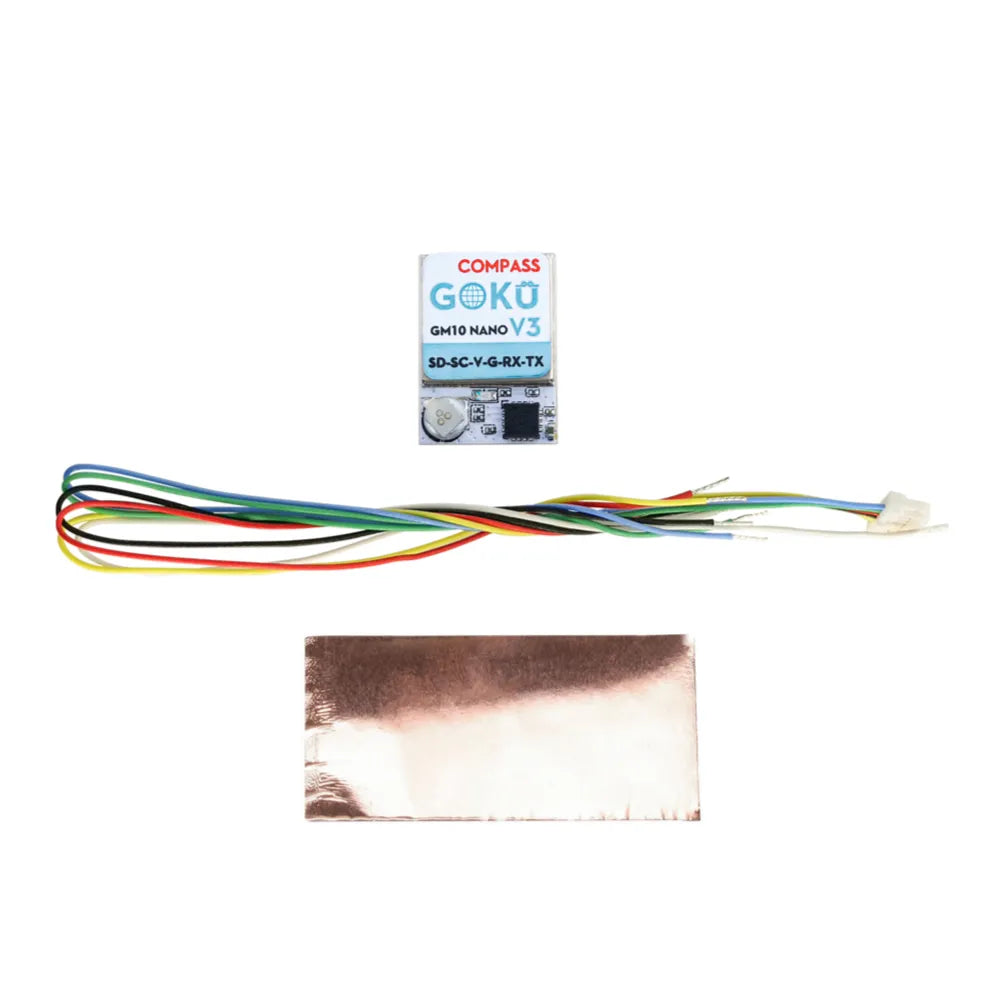

What's in the Box?
- 1x GM10 NANO V3 GPS w/compass
- 1x 100mm Cable
- 1x Copper Foil
Disclaimer: Accessories may vary based on supply.
