Product Details

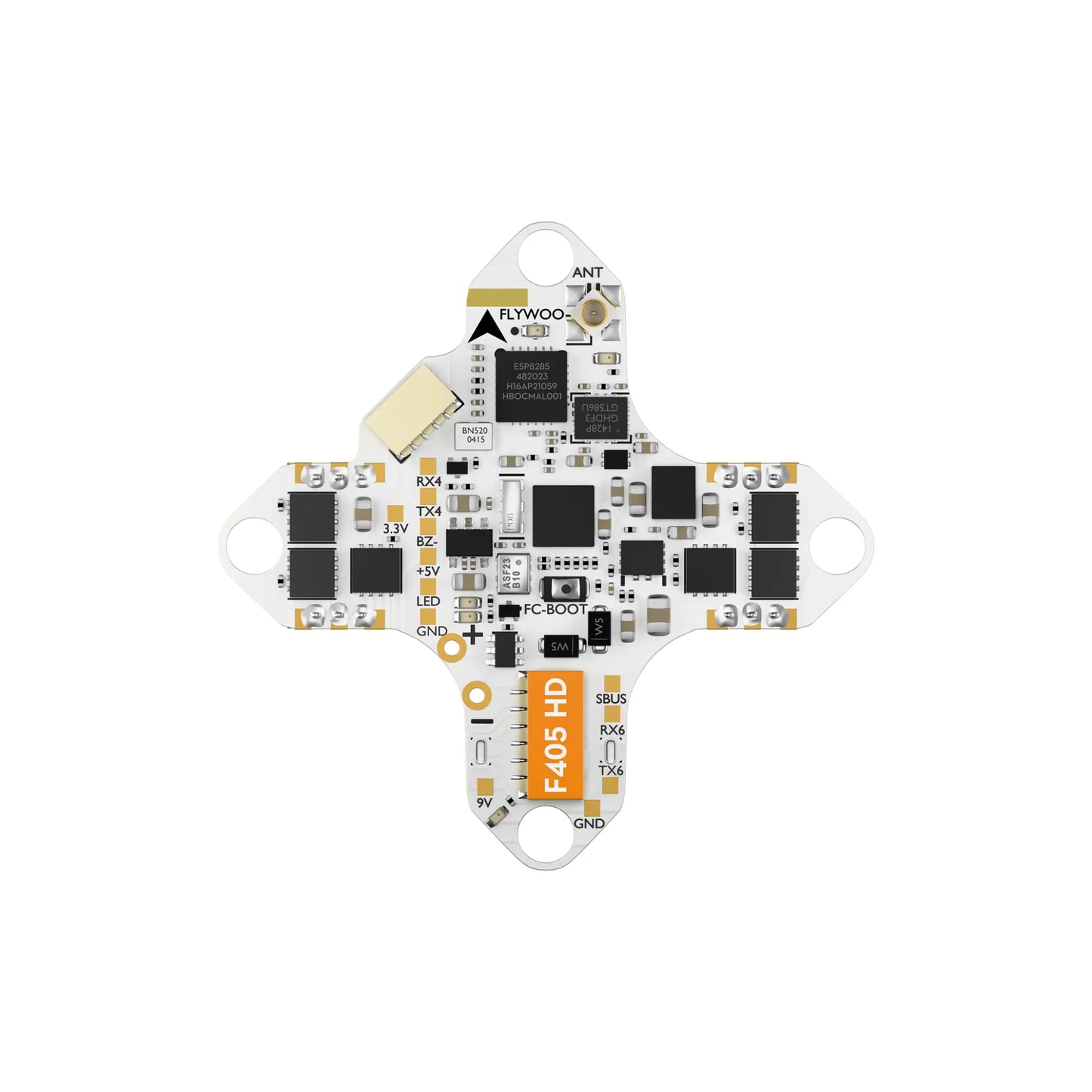

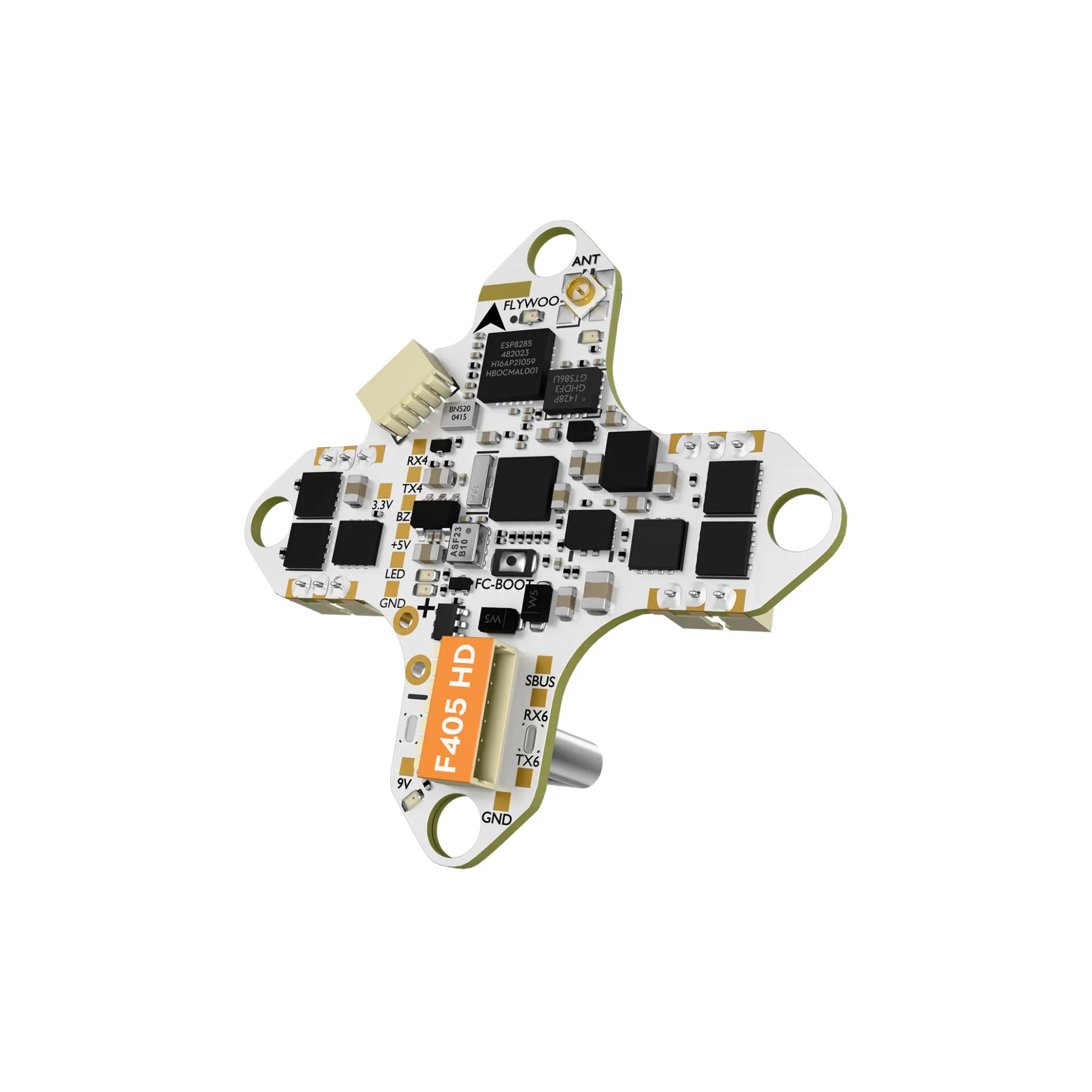

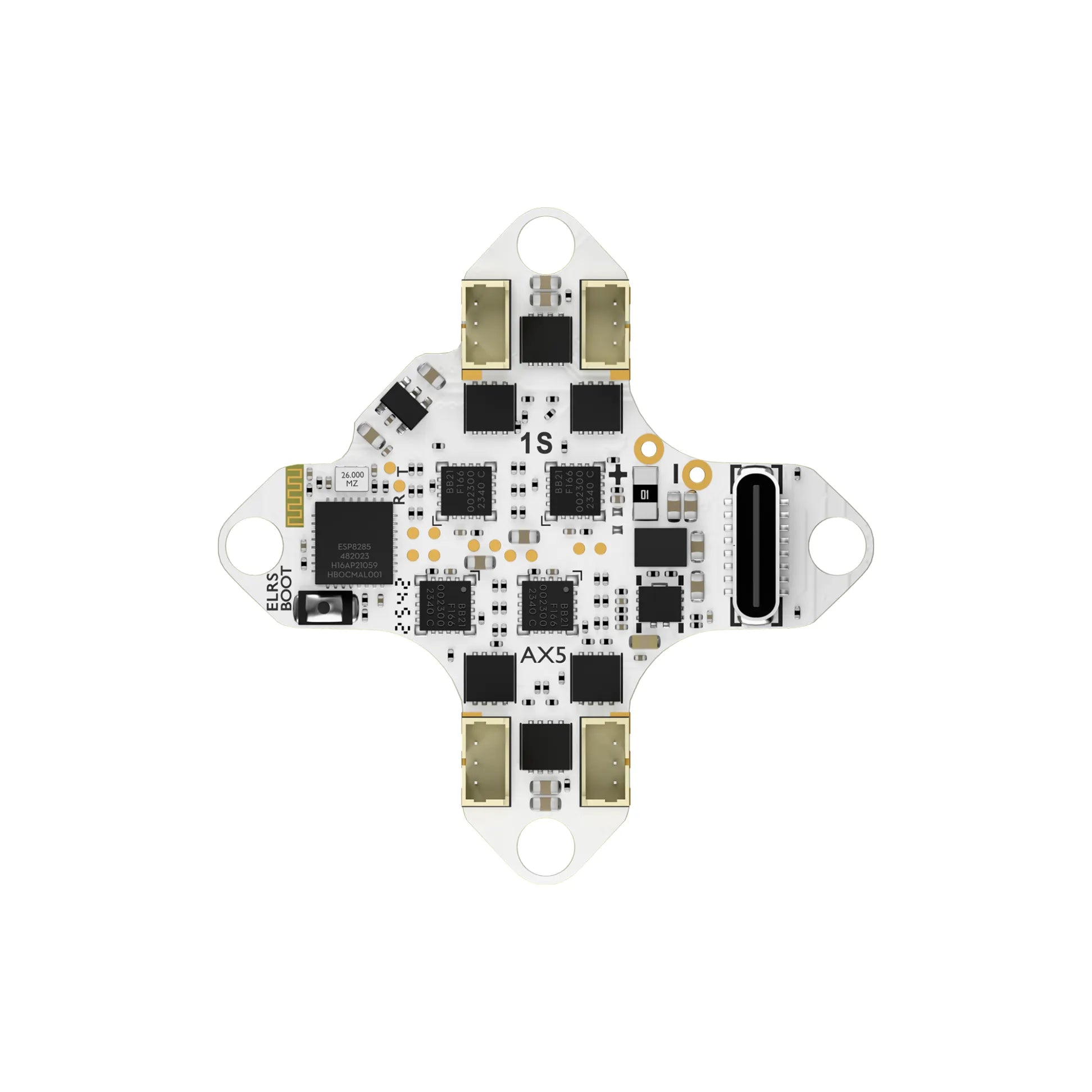

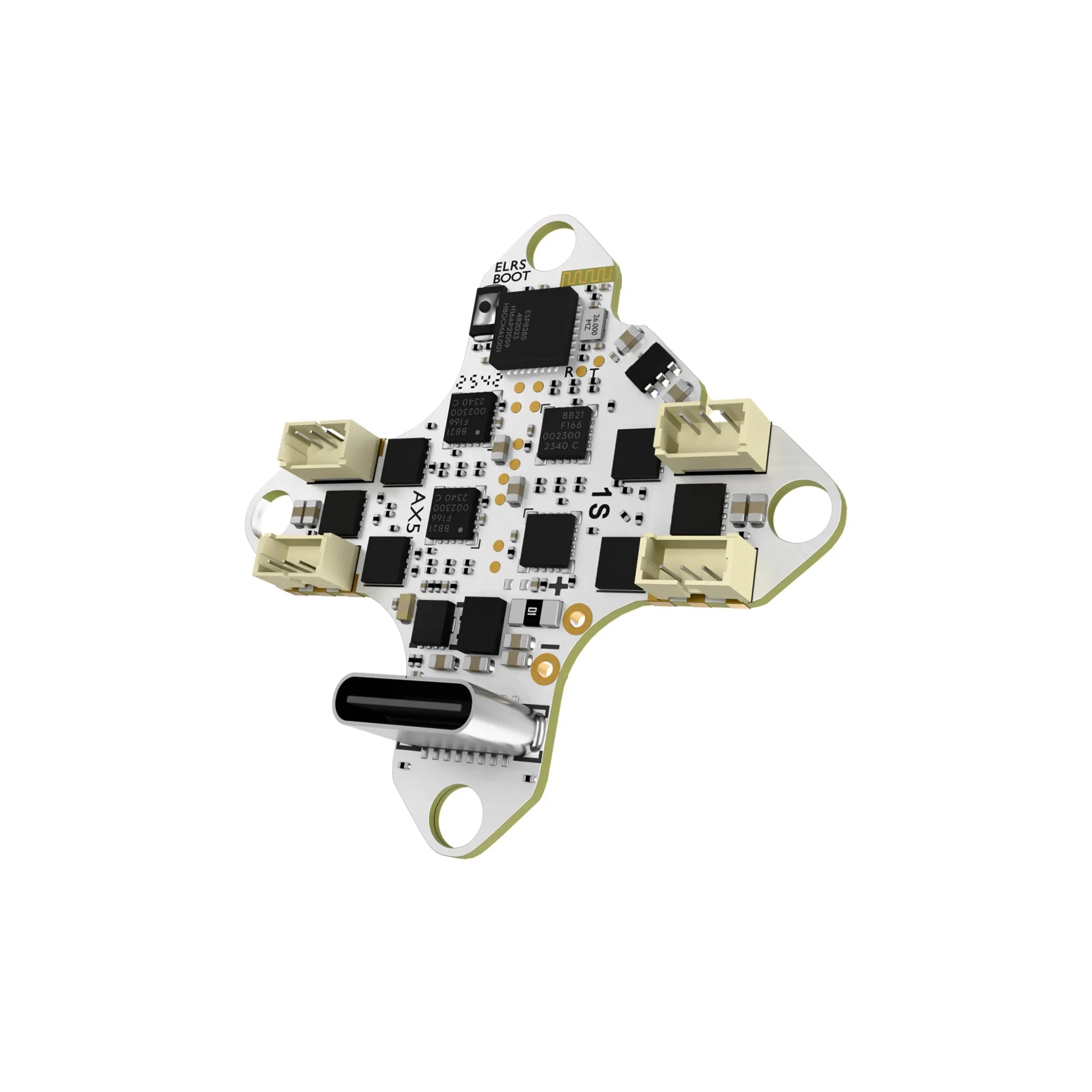

This is the GOKU F405 HD 1S 12A AIO Plug&Play for O4 / O4 Pro—the all-in-one brain and muscle for micros that want HD without the wiring spaghetti. SEO tax paid early: GOKU F405 HD AIO, 1S 12A AIO flight controller, O4 Pro AIO. If you’re skimming (respect): F405 MCU, 12A ESCs, 1S power, and it plugs straight into O4 like it was planned.
Why You Want It
Because micros deserve nice things too. This AIO pairs an F405 controller with stout 12A ESCs tuned for 1S builds, then removes the soldering drama with true Plug&Play for DJI O4 / O4 Pro. Translation: cleaner builds, fewer cold joints, and more time actually flying. It’s compact, HD-ready, and doesn’t pretend you want to troubleshoot at 1am.
Specifications
|
Product Name
|
GOKU F405 HD 1S 12A AIO
|
| MCU |
STM32F405BGA
|
| IMU |
ICM42688P
|
| Barometer |
SPL06
|
| Black Box |
No （Supports External Black Box ）
|
| OSD Support |
No
|
| UART |
UART2,UART3（For ELRS),UART4,UART5(SBUS),UART6
|
| Protocols |
CRSF, SBUS, iBus, Spektrum
|
| BEC |
5V3A \ 9V2A MAX
|
| RX |
Flywoo TCXO EL24E 2400 RX 3.x.x
|
| BF Firmware |
FLYWOOF405S_AIO
|
| INAV Firmware |
FLYWOOF405HD
|

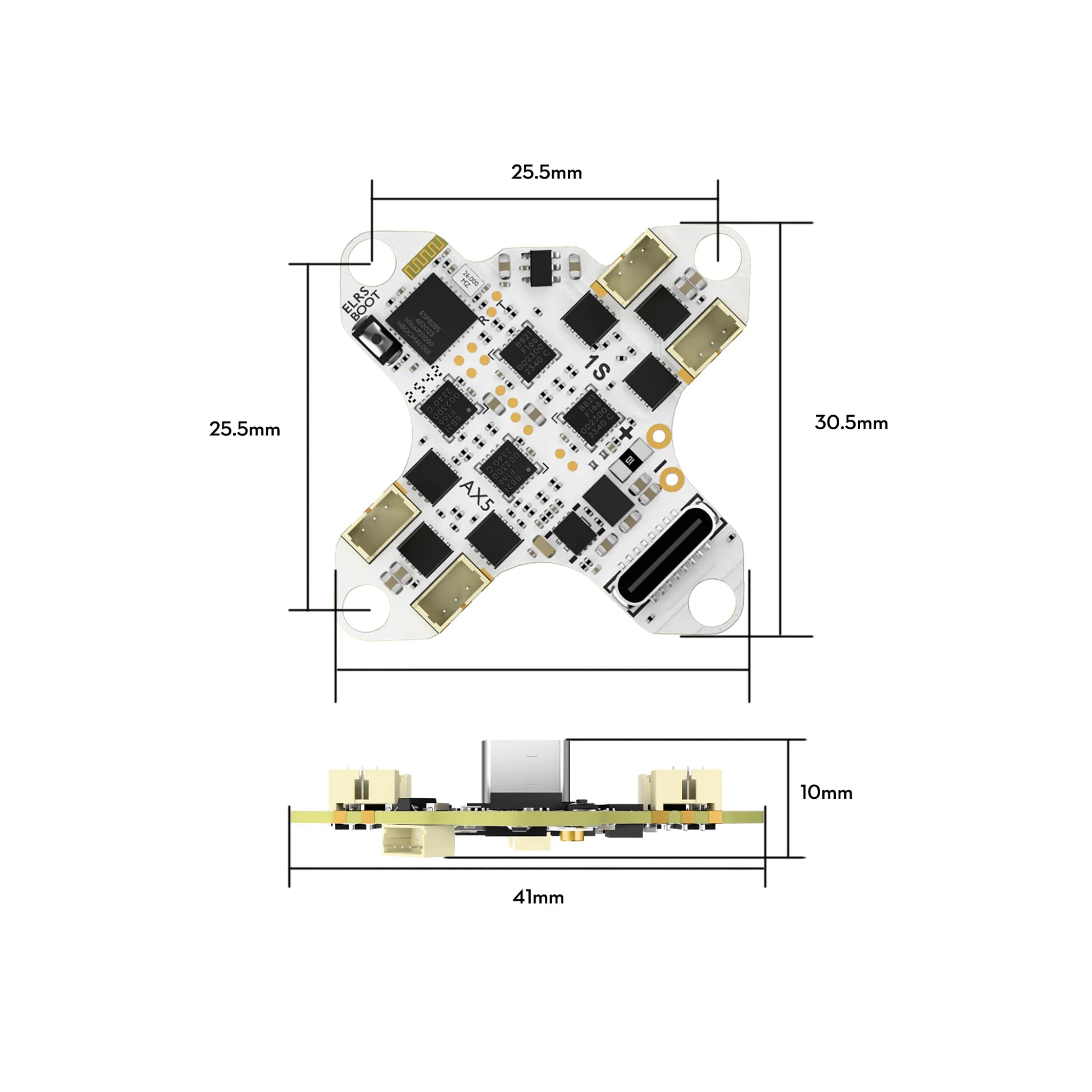

| Dimensions |
30.5*30.5mm*10mm
|
| Mounting Holes |
25.5*25.5mm
|

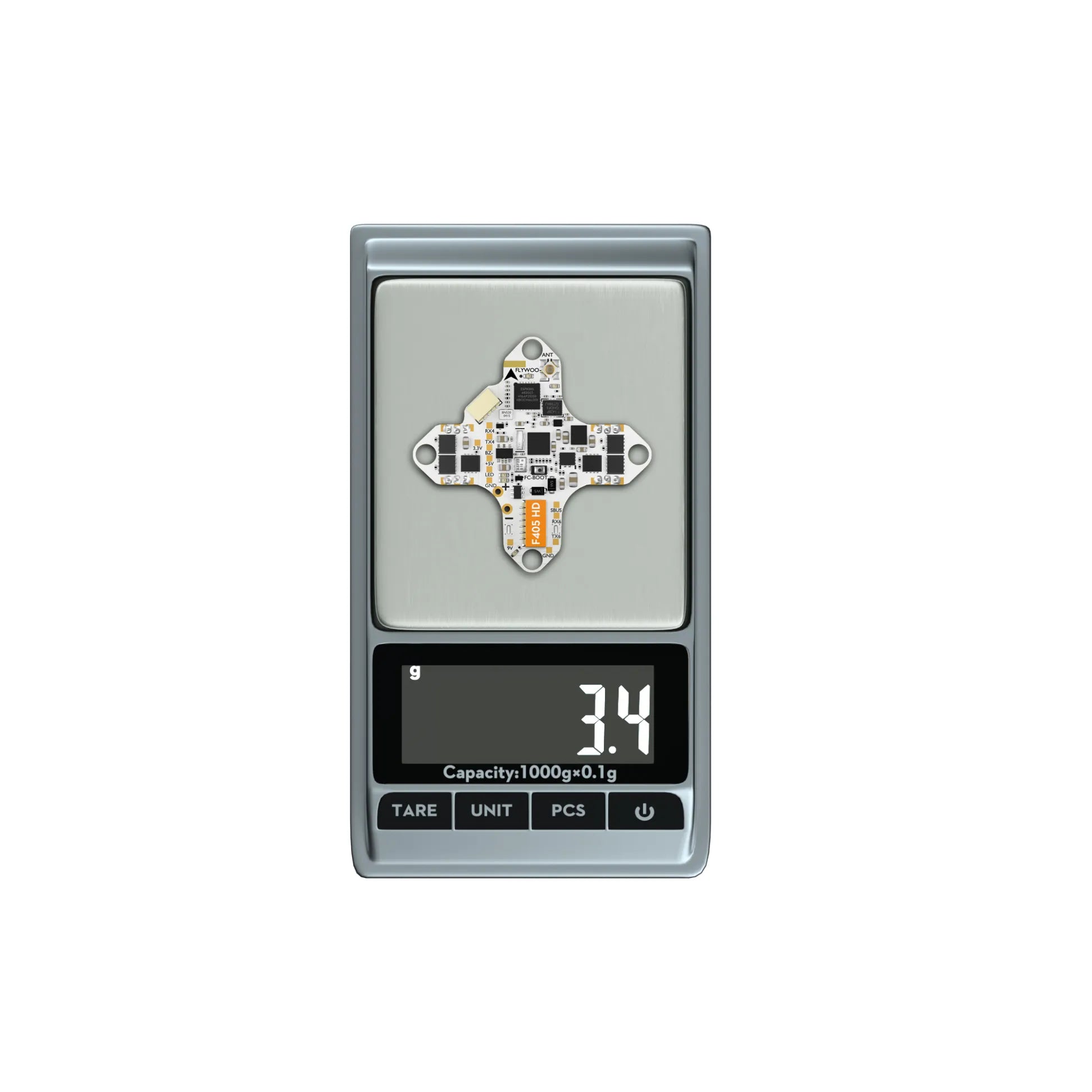

| Weight |
3.4g
|
|
Product Name
|
Onboard 4in1 ESC
|
| Power input |
1S Only
|
| Current |
12A continuous, 15A peak
|
| ESC firmware |
O_H_5_48KHz_V0.19.hex Bluejay firmware
|
| Digital signal protocol |
DShot300, DShot600
|
| Motor Connector |
JST1.25
|
| Battery connector |
A30
|

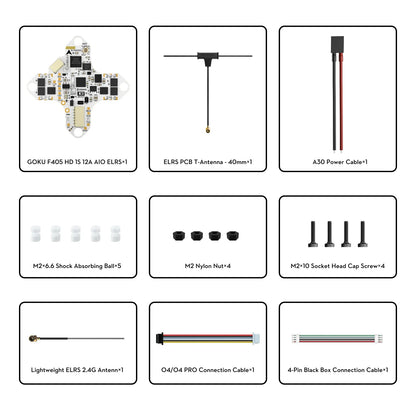

What’s in the Box*
- 1× GOKU F405 HD 1S 12A AIO
- Plug&Play cables that actually fit (wild)
Disclaimer
*Accessory list may change without notice. 1S power has limits—physics still wins. Supply chains are a myth, deal with it. 1S HD without the wiring circus. GOKU F405 12A AIO plugs into O4 and just works.
