Product Details

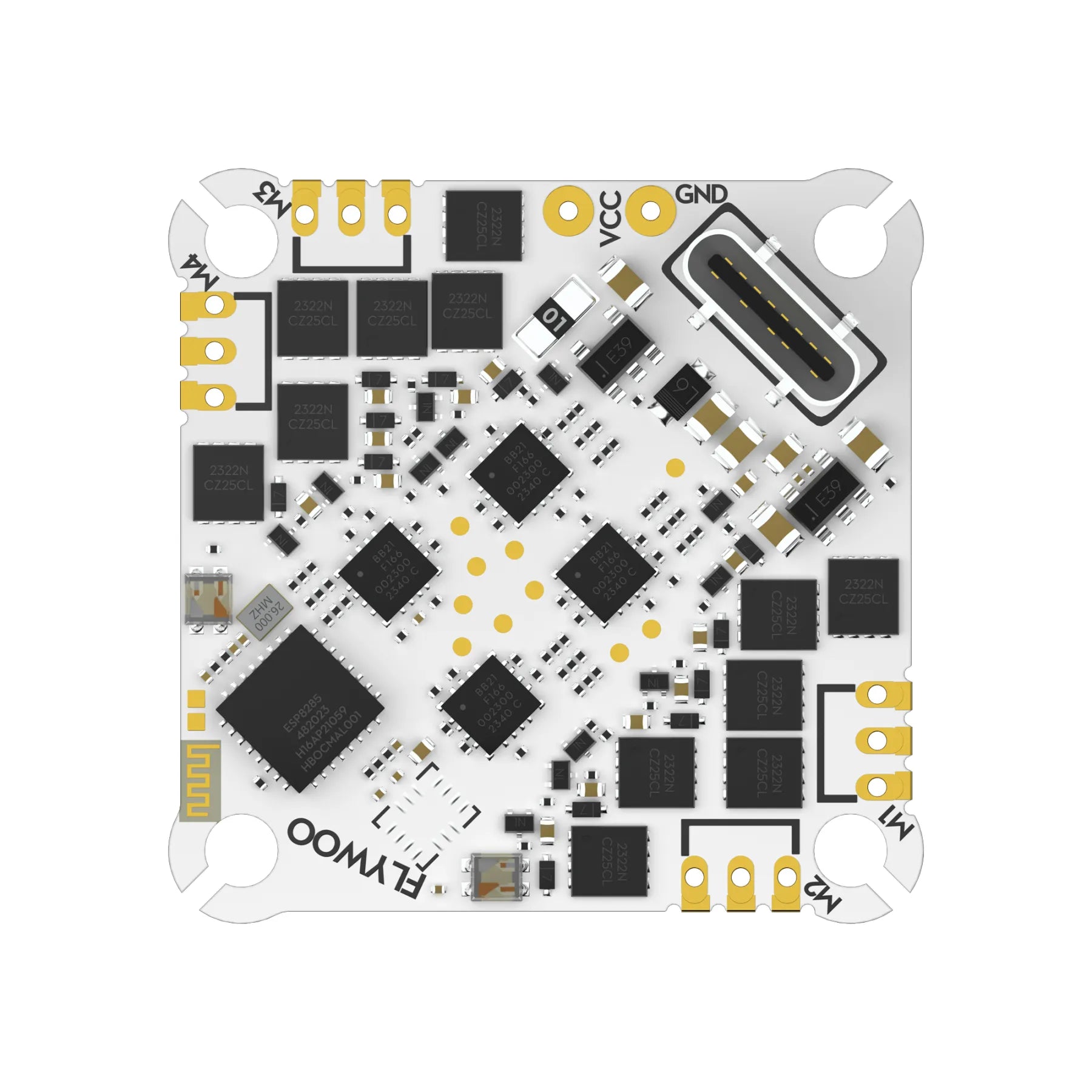

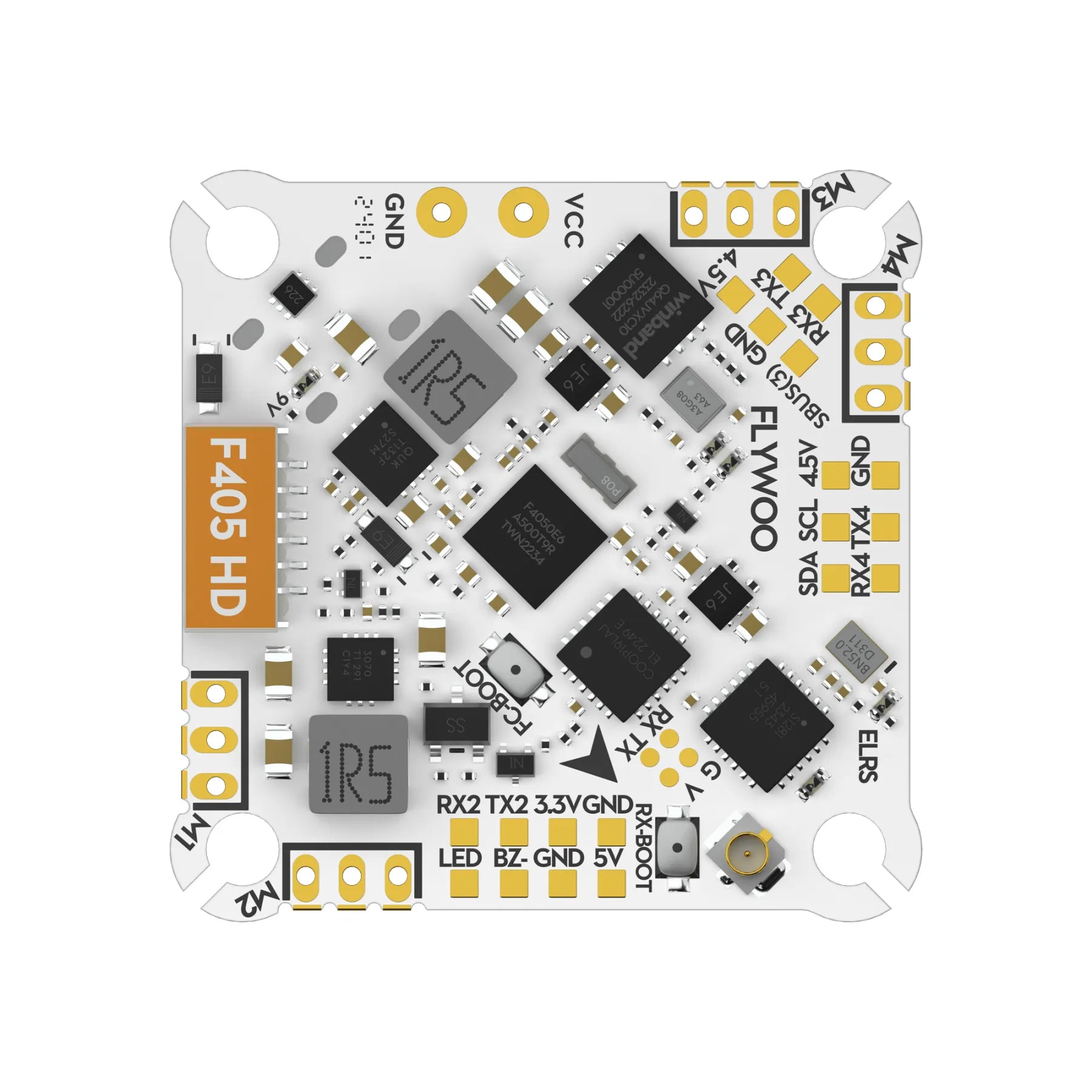

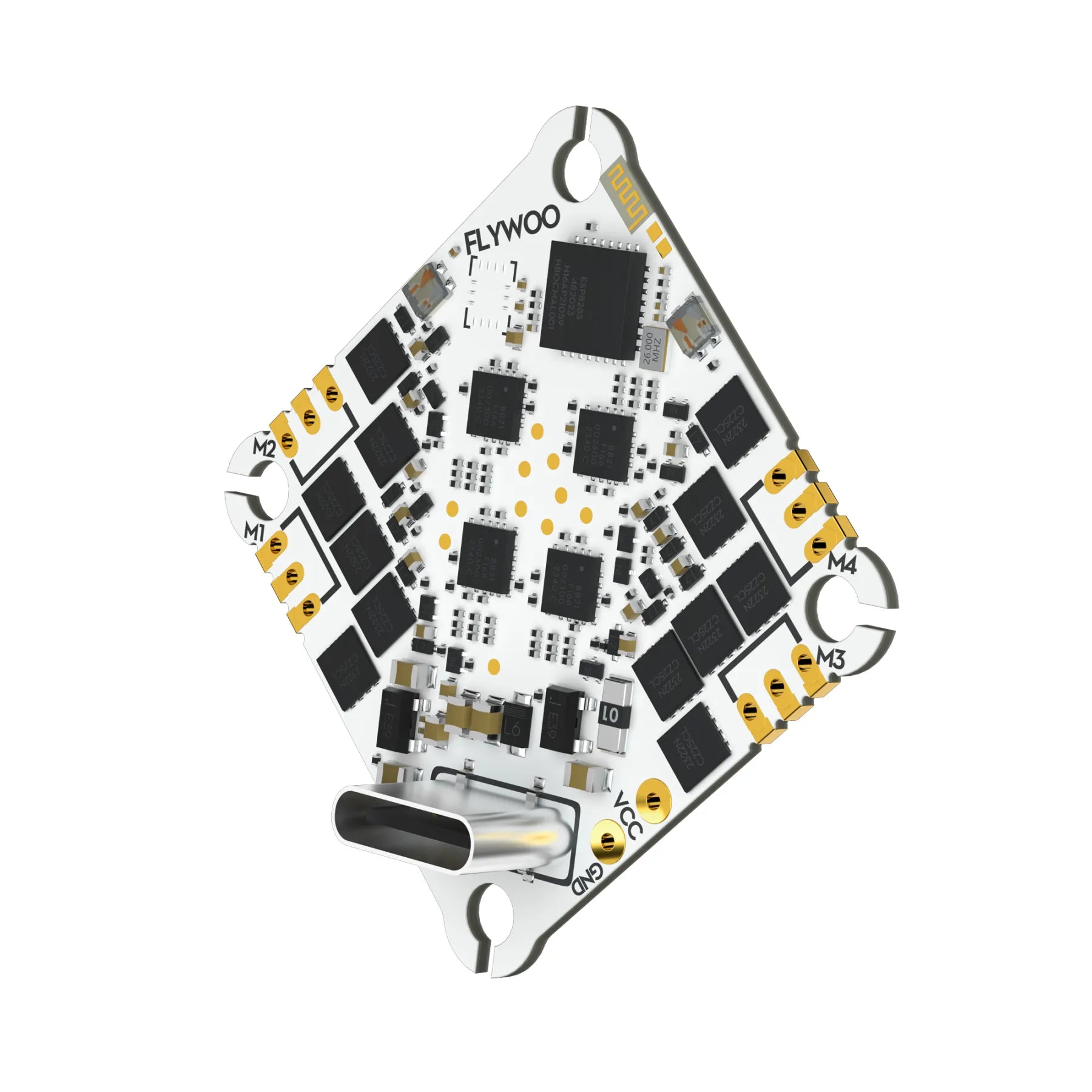

Unlock the full potential of your 1-2S HD micro drones with the GOKU F405 HD 1-2S 12A ELRS 2.4G AIO V2 , an all-in-one solution by Flywoo designed for high-performance FPV pilots. Built with the F405 BGA MCU , this flight controller offers a seamless digital experience with integrated features like Type-C connectivity , 9V 2A BEC , and a serial ELRS 2.4G receiver , making it perfect for HD VTX setups like the DJI O3 Air Unit.
With an array of UARTs, a barometer, an 8MB black box, and motor socket-style connections, it simplifies the entire setup process, from installation to maintenance. Plus, the 9V BEC module prevents voltage drops, ensuring smooth power delivery to the O3 Air Unit. Whether you're fine-tuning your build or flying out of the box, this versatile AIO board is engineered for efficiency and convenience.
Key Features:

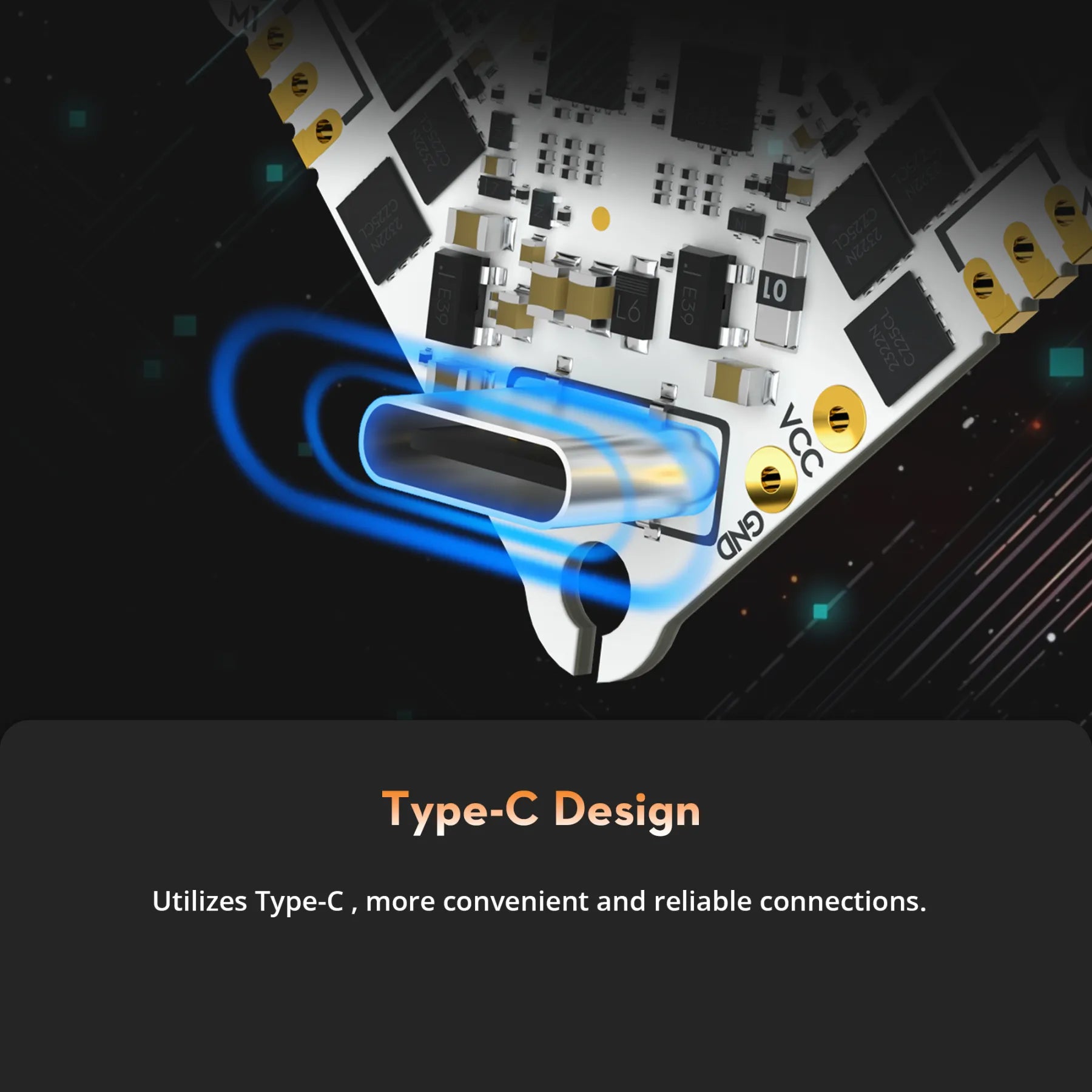

- Type-C Design : A convenient and reliable Type-C interface for easy data and power connections.

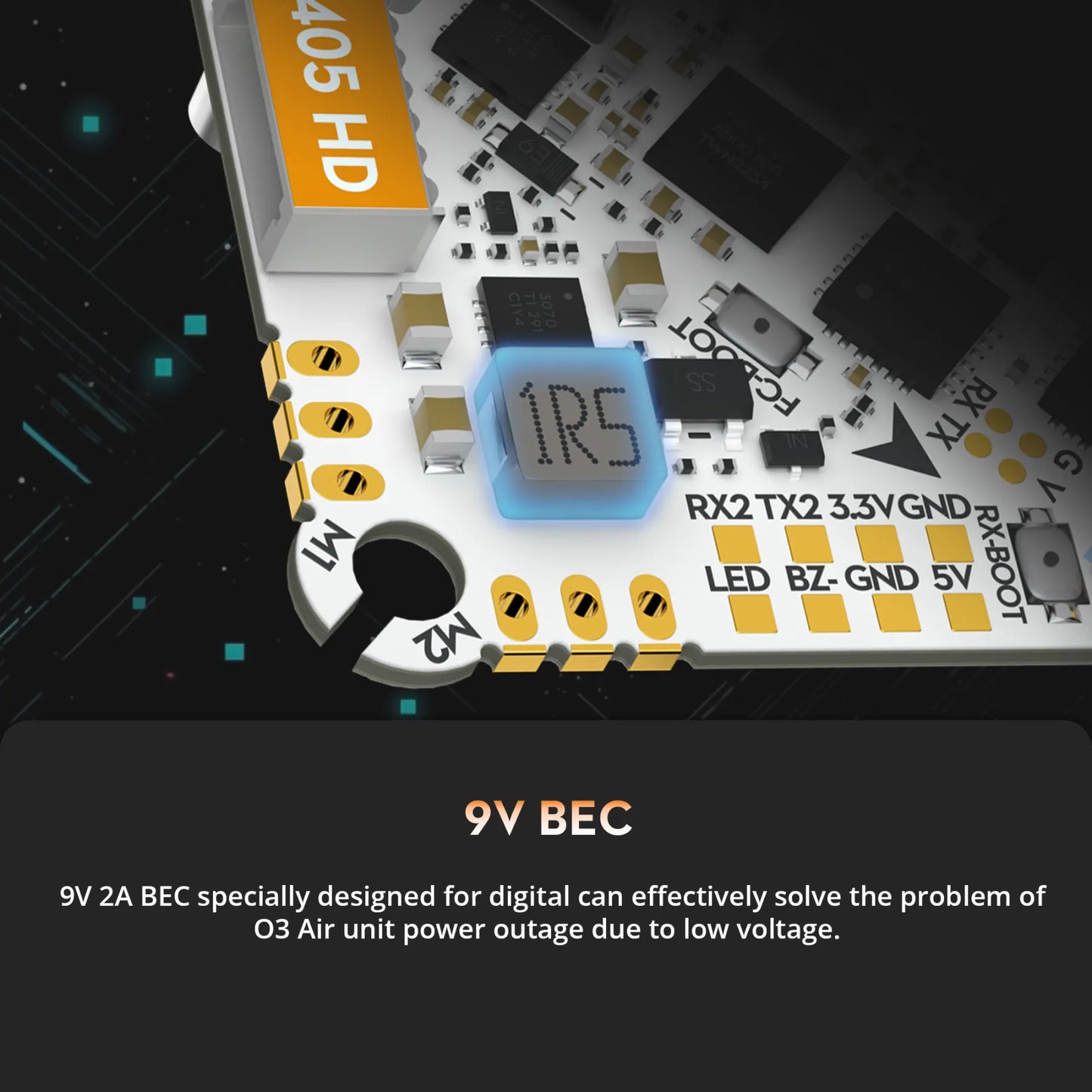

- 9V 2A BEC : Provides a steady 9V output, preventing power cuts to the DJI O3 Air Unit during intense flights.

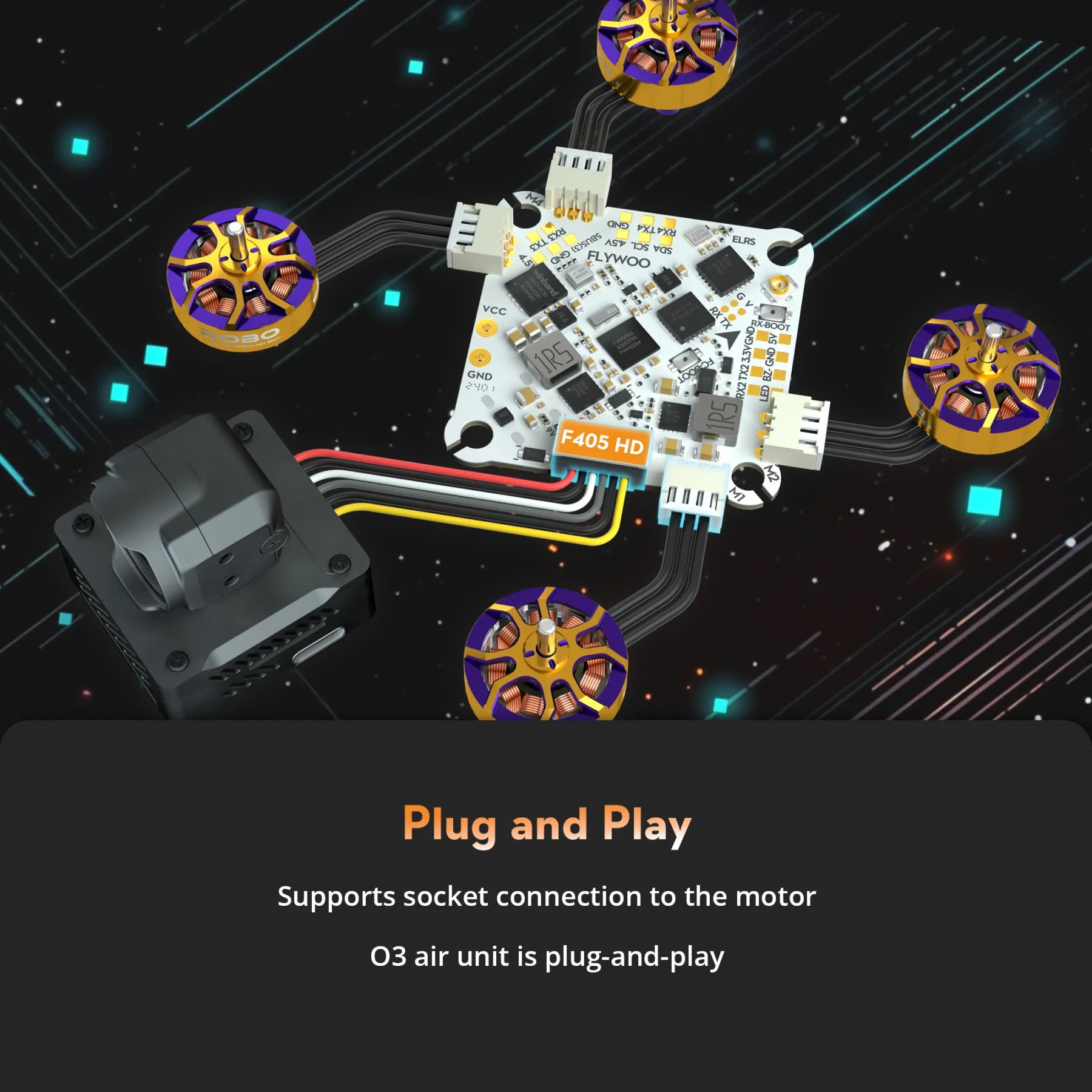

- Plug-and-Play O3 Compatibility : Quick installation for the DJI O3 Air Unit without the hassle of soldering.

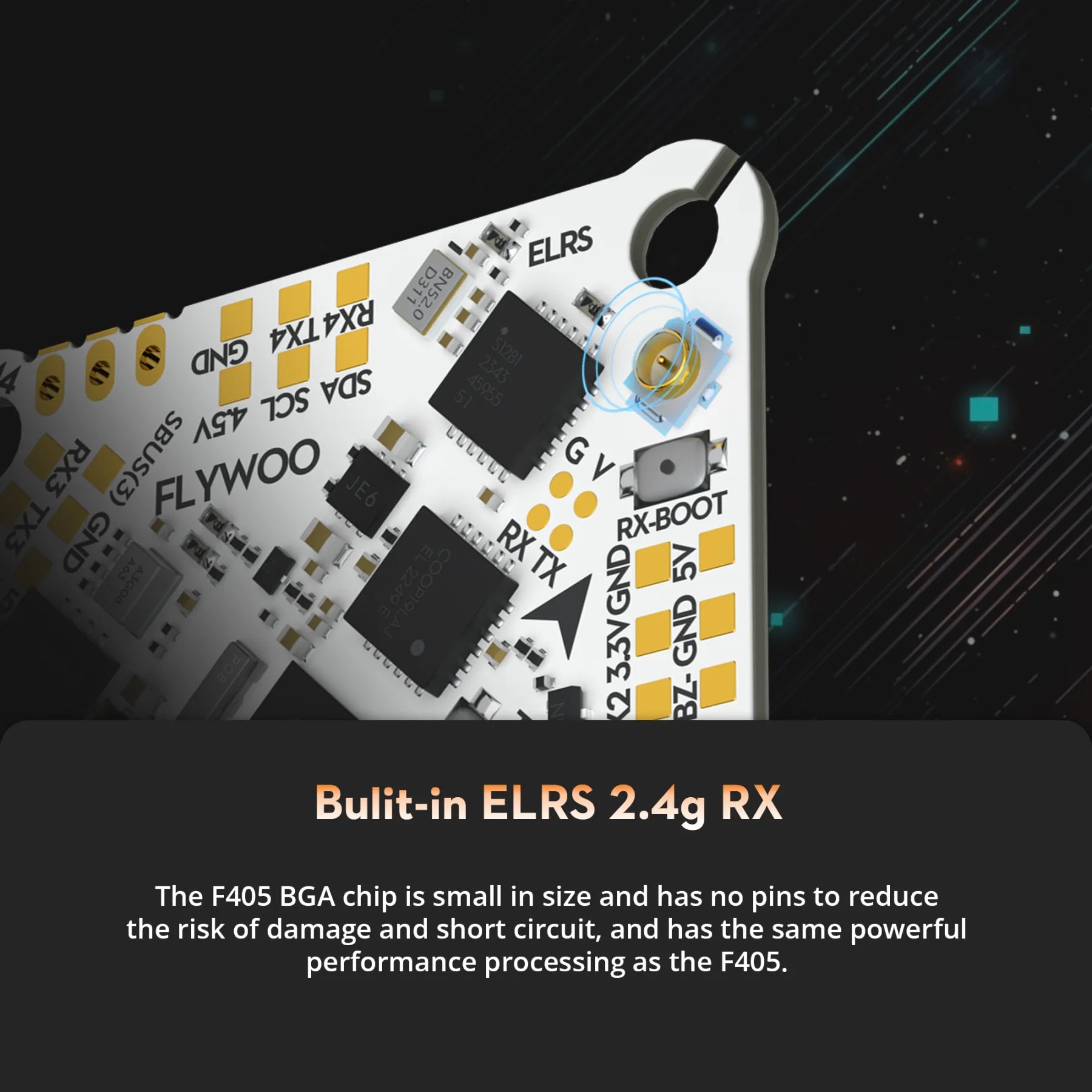

- Serial ELRS 2.4G Receiver : Integrated ELRS receiver for ultra-responsive, low-latency control.
- Motor Socket Connections : Simplifies motor installation and upgrades with socket-style connections.

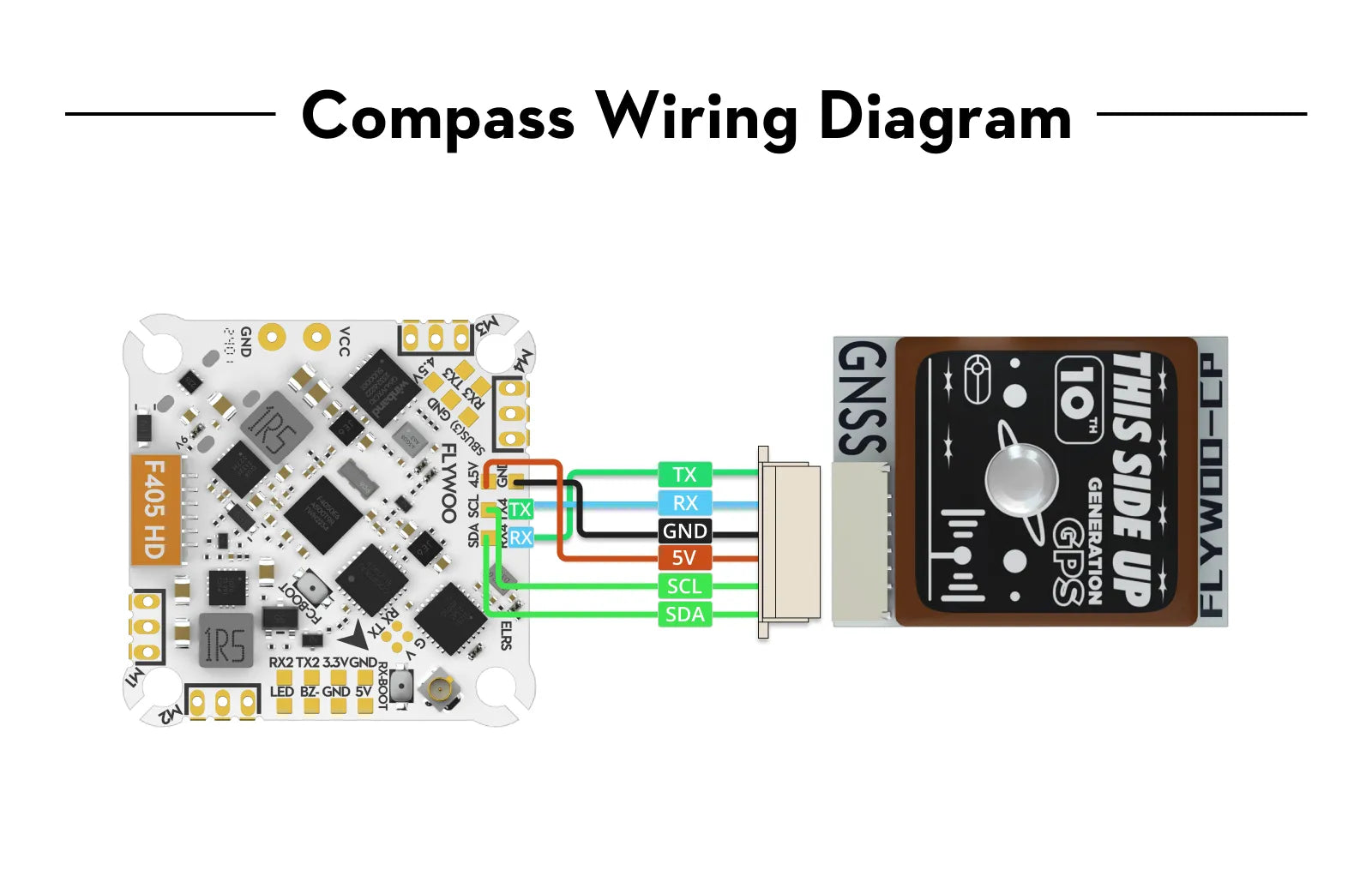

- Multifunctional Design : Includes 8MB black box, barometer, current sensor, 2 full UARTs, and a standard SBUS port for extra device compatibility like GPS, HD VTX, and external receivers.
Specifications:
- Flight Controller Firmware : FLYWOOF405S_AIO / INAV FLYWOOF405HD

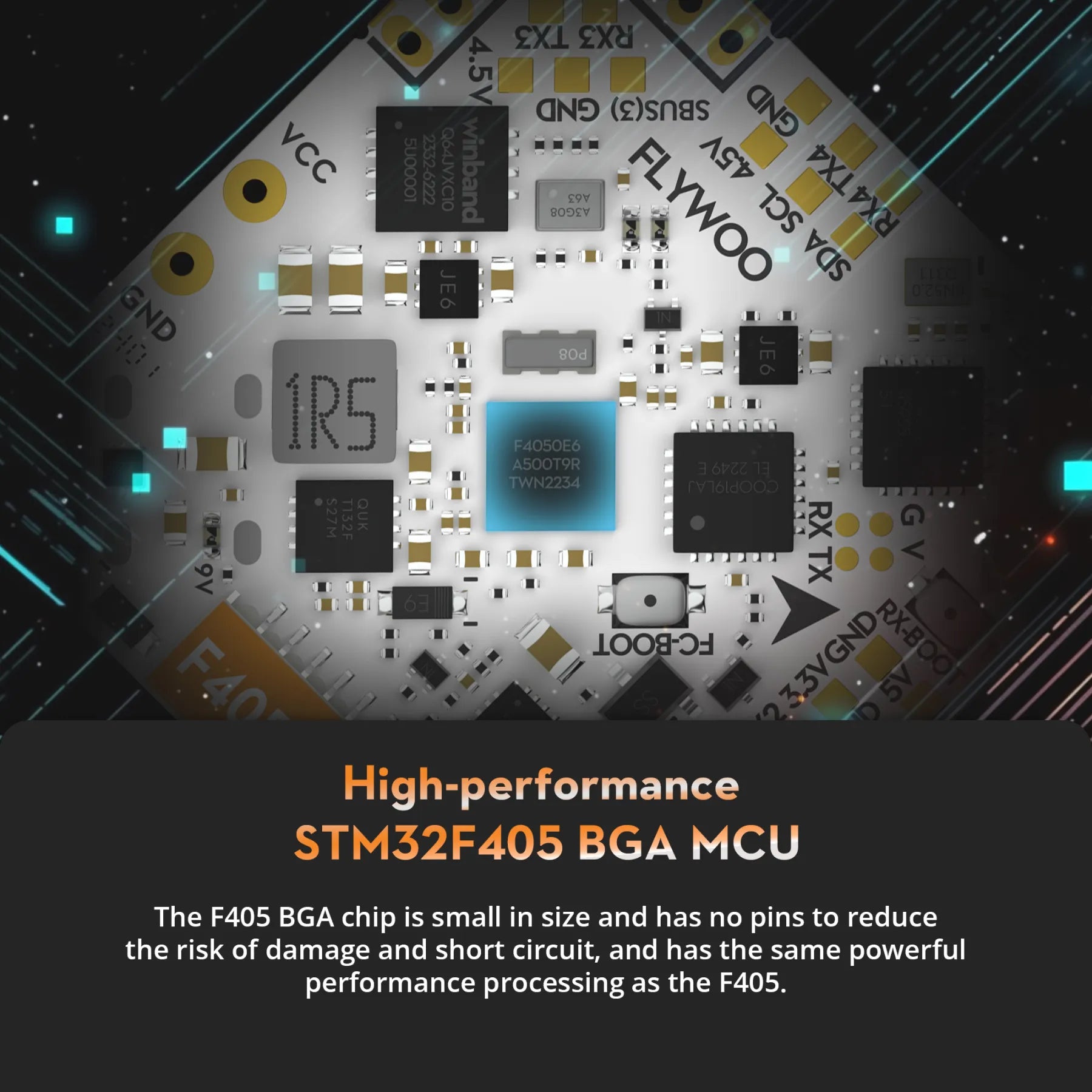

- MCU : STM32F405BGA
- BEC Output : 9V 2A / 5V 2A
- Flash Memory : 8MB black box
- Gyro : ICM42688P
- Barometer : DPS310/SPL06
- UARTs : 6 (supports GPS, HD VTX, external receivers)
- OSD : No

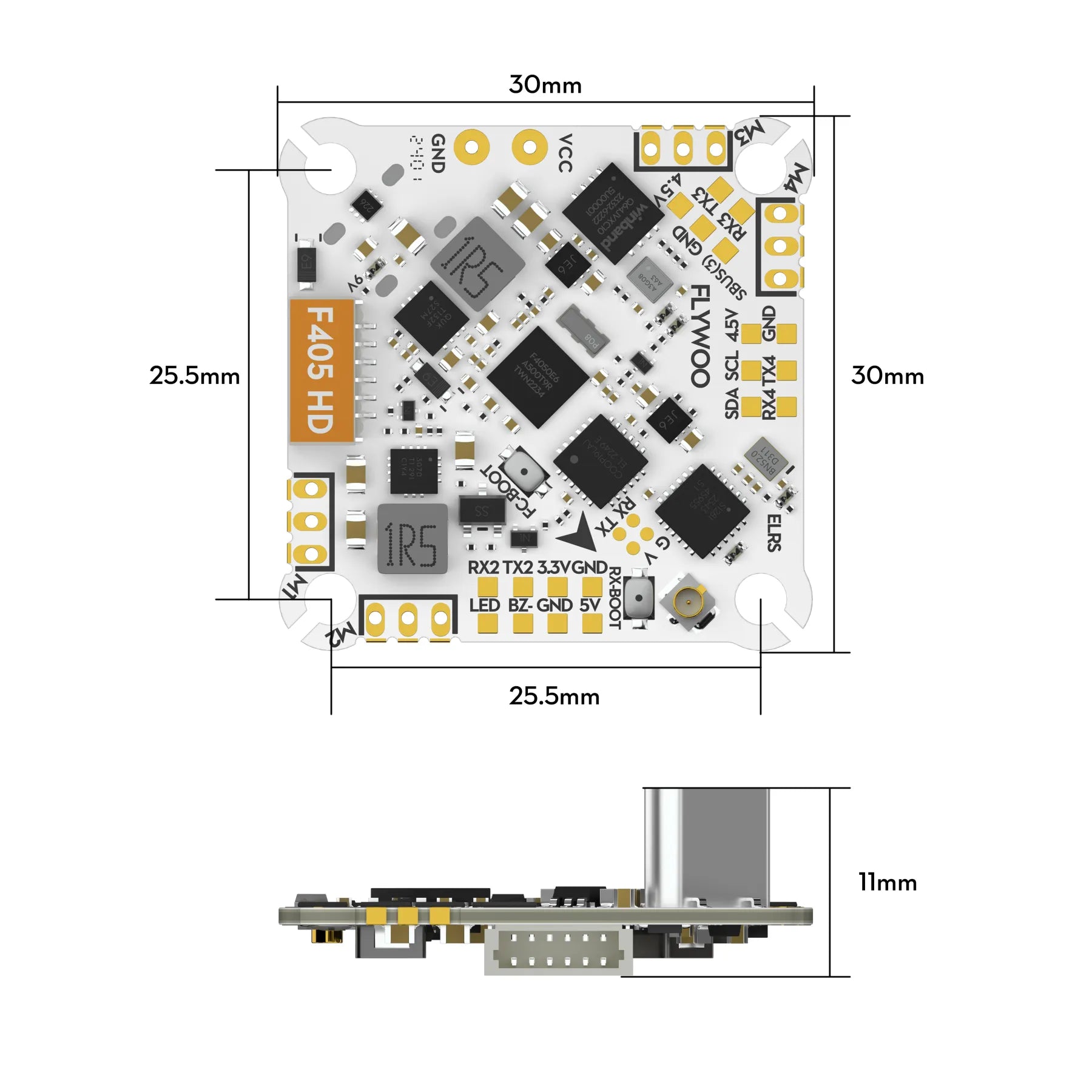

- Dimensions : 30x30mm
- Mounting Hole : 25.5x25.5mm, 3mm holes

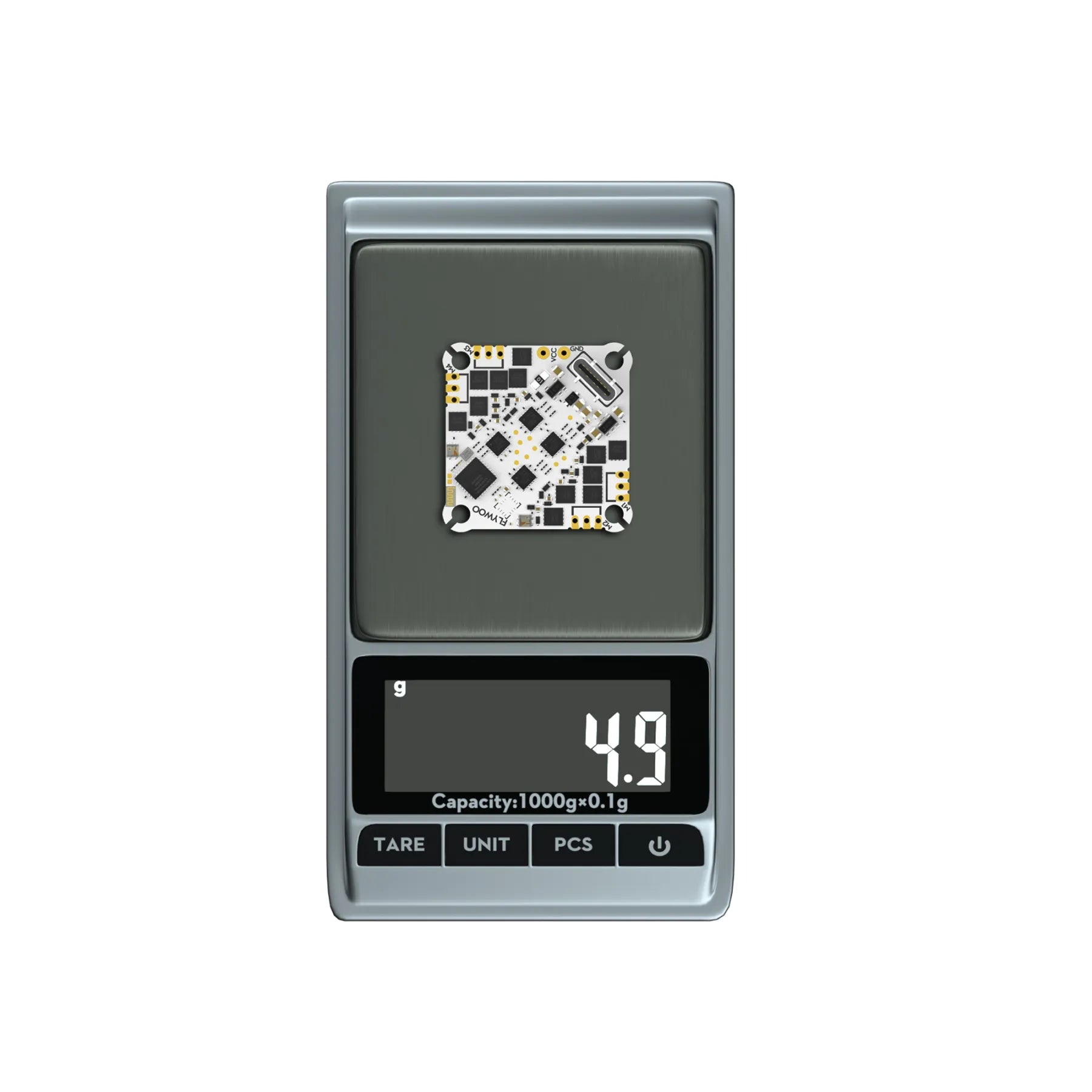

- Weight : 4.9g
- Input Voltage : 1-2S LiPo
- Built-in ESC : 12A BL_S 4in1 ESC with support for DShot, Multishot, Oneshot, RPM filtering

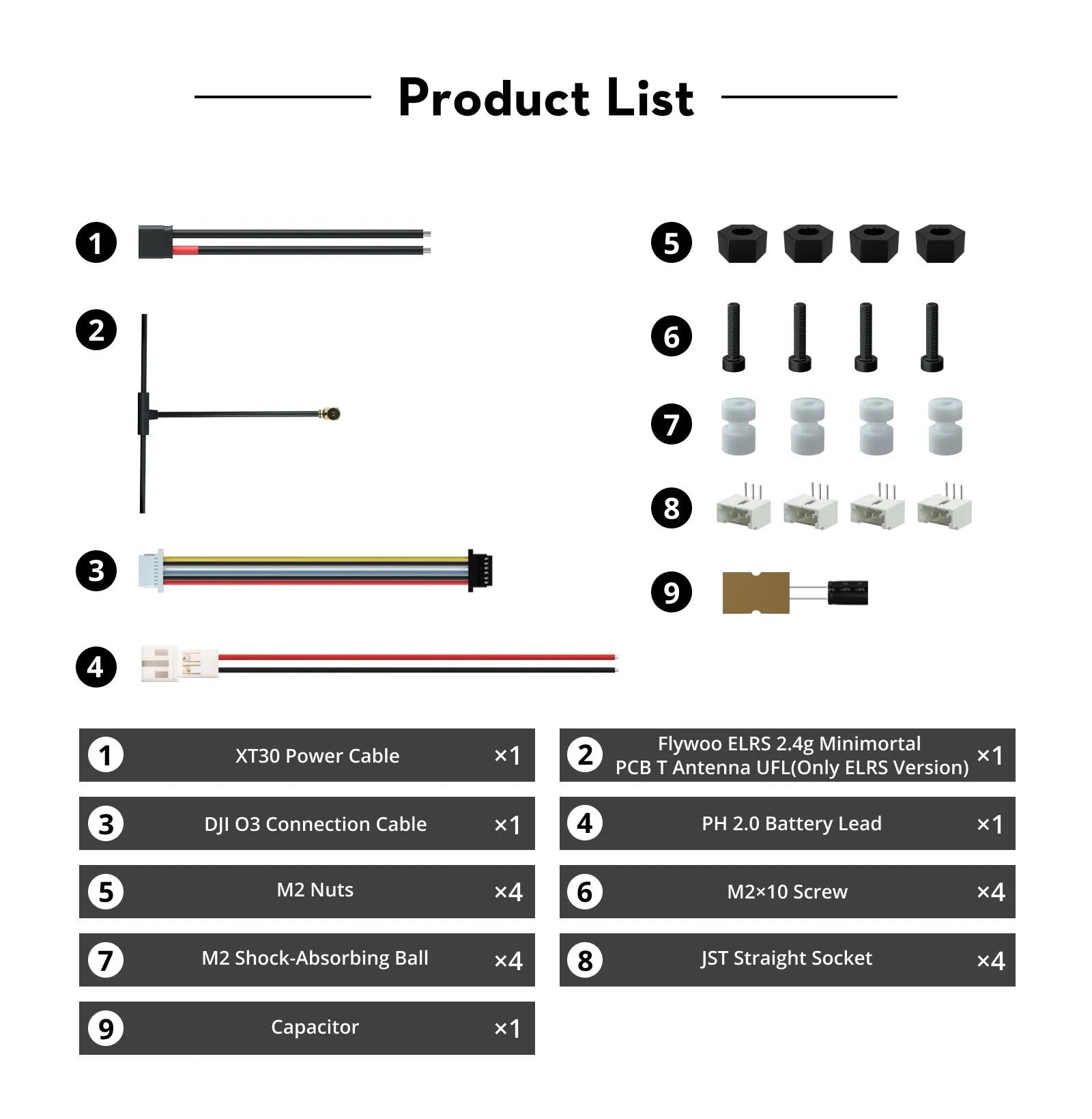

What's in the Box:
- 1x XT30 Power Cable
- 1x Flywoo ELRS 2.4G Minimortal T Antenna UFL (ELRS version only)
- 1x DJI O3 Connection Cable
- 1x PH 2.0 Battery Lead
- 1x Capacitor
- 4x JST Straight Socket
- 4x M2x10 screws
- 4x M2 nuts
- 4x M2 shock-absorbing balls
Note : Accessories may vary depending on supply.
