Next-Gen Powerhouse for Micro FPV Drones (ELRS, 400mW VTX)

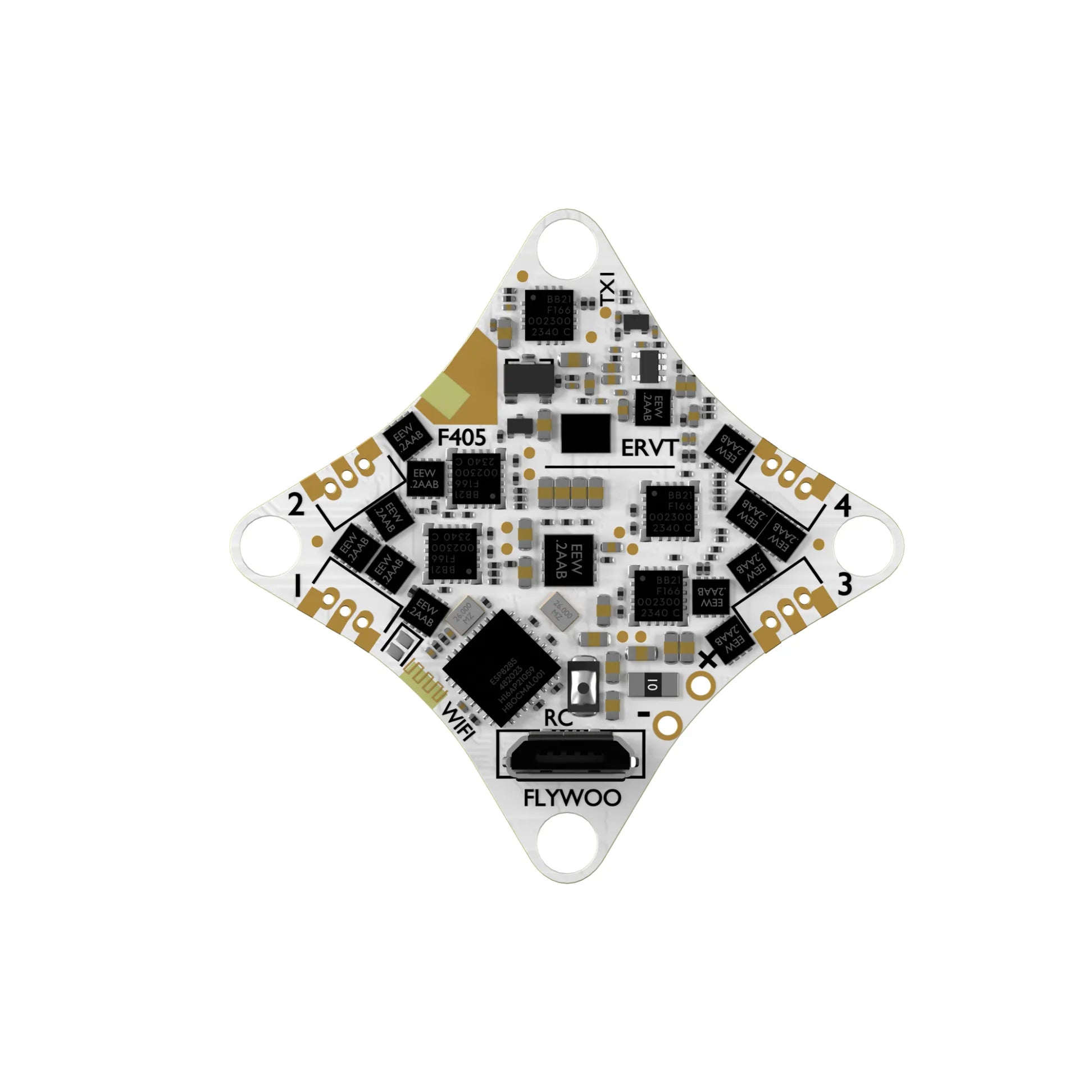

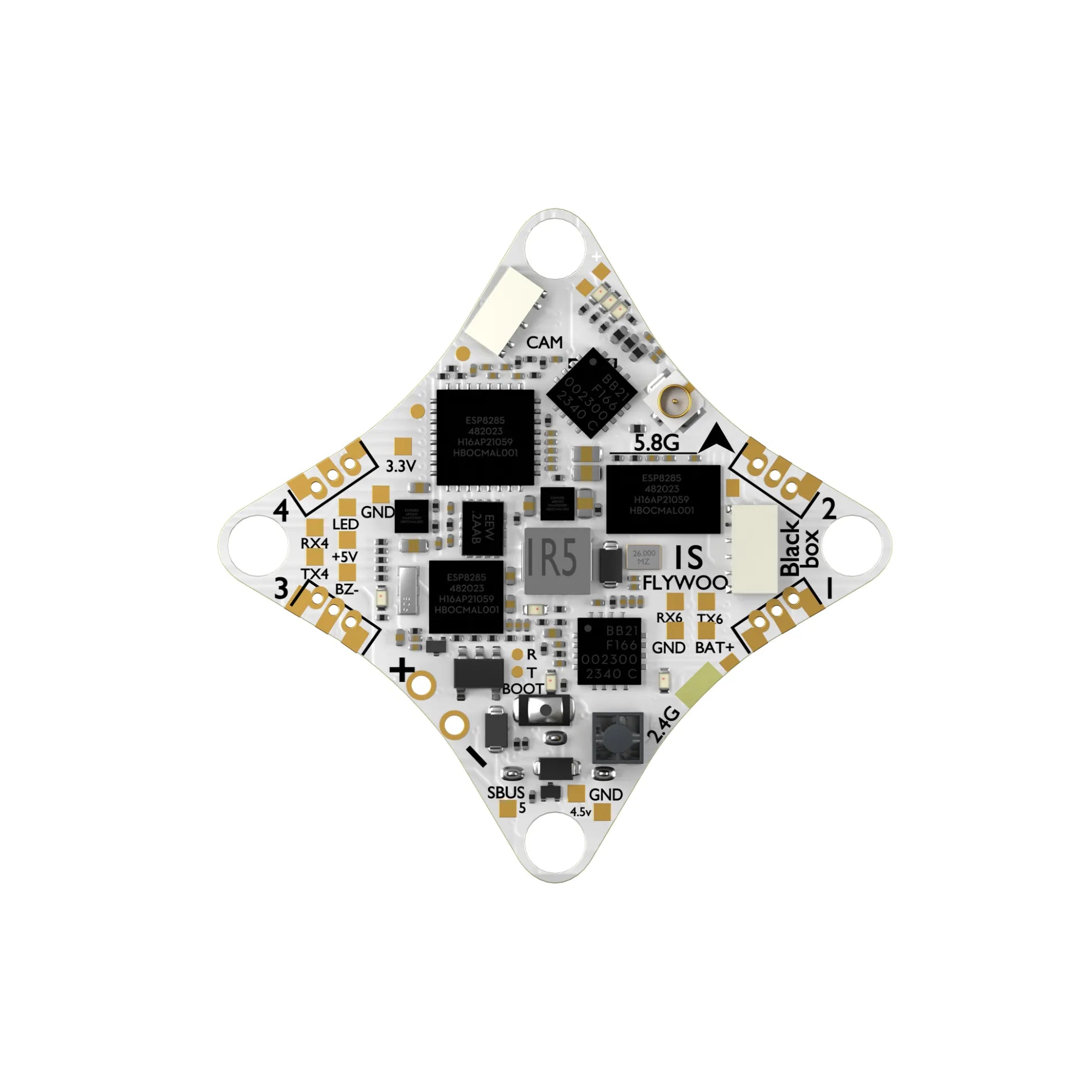

Revolutionize your 1S Tiny Whoop or micro FPV drone build with the GOKU F405 ERVT 1S 5A AIO Flight Controller ! This groundbreaking 5-in-1 board integrates a powerful Flight Controller (FC), 5A Electronic Speed Controller (ESC), switchable Video Transmitter (VTX), ExpressLRS Receiver (RX), and On-Screen Display (OSD) into a single, lightweight (4g) package.
At its core lies the advanced STM32F405BGA MCU , delivering a massive 68% increase in processing power compared to typical F411 chips found in other micro AIOs. This translates to lightning-fast response times, lower latency, and the ability to run complex filters - essential for competitive FPV racing and smooth freestyle acrobatics .
Designed for ease of use, the GOKU F405 ERVT features modular plug-and-play interfaces for motors, camera, and even an optional external blackbox recorder, minimizing soldering and build time. The onboard 5A BLHeli_S ESCs (supporting Bluejay firmware) provide reliable power for your 1S motors, while the integrated 2.4GHz ELRS 3.0 receiver offers incredible range and penetration.
Experience crystal-clear video with the powerful, onboard analog VTX , switchable from 0mW (Pit Mode) up to 400mW , controlled via IRC Tramp. The integrated pagoda-style antenna is optimized for 1S performance, aiming for excellent range and sub-50ms video latency. Searching for the ultimate 1S F405 AIO , a high-performance Whoop flight controller , or an ELRS AIO with 400mW VTX ? The GOKU F405 ERVT is your answer.
Key Features:
- True 5-in-1 Integration: FC, 5A ESC, 400mW VTX, ELRS RX, and OSD on one board.
- Unmatched F405 Processing Power: 68% faster than F411 for lower latency and advanced filtering.
- Plug-and-Play Ready: Solder-free connectors for motors, camera, and optional blackbox.
- Built-in ELRS 2.4GHz Receiver: Flywoo EL24E RX 3.0.0 for long range and reliable link.
- Powerful Switchable VTX: 0mW to 400mW output with IRC Tramp control and integrated antenna.
- Reliable 5A ESCs: Supports 1S LiPo input, 5A continuous current (8A peak), Bluejay compatible.
- Expandable: Supports optional Flywoo plug-and-play 512MB Blackbox module.
- Lightweight & Compact: Only 4g with a standard 25.5x25.5mm mounting pattern.
Specifications:
- MCU: STM32F405BGA
- IMU (Gyro): ICM42688P (4kHz capable)
- Barometer: No
- Black Box: No (Supports external Flywoo module up to 512MB via UART2)
- OSD Chip: AT7456E
- UART Ports: 6 (UART1 VTX, UART2 Blackbox, UART3 ELRS RX, UART4 Free, UART5 SBUS, UART6 Free)
- Supported RX Protocols: CRSF (Internal ELRS), SBUS, iBus, Spektrum
- BEC: 5V @ 2.0A Max
- Onboard Receiver: Flywoo EL24E 2.4GHz RX (Firmware: ExpressLRS V3.0.0)
- FC Firmware Target: FLYWOOF405S_AIO

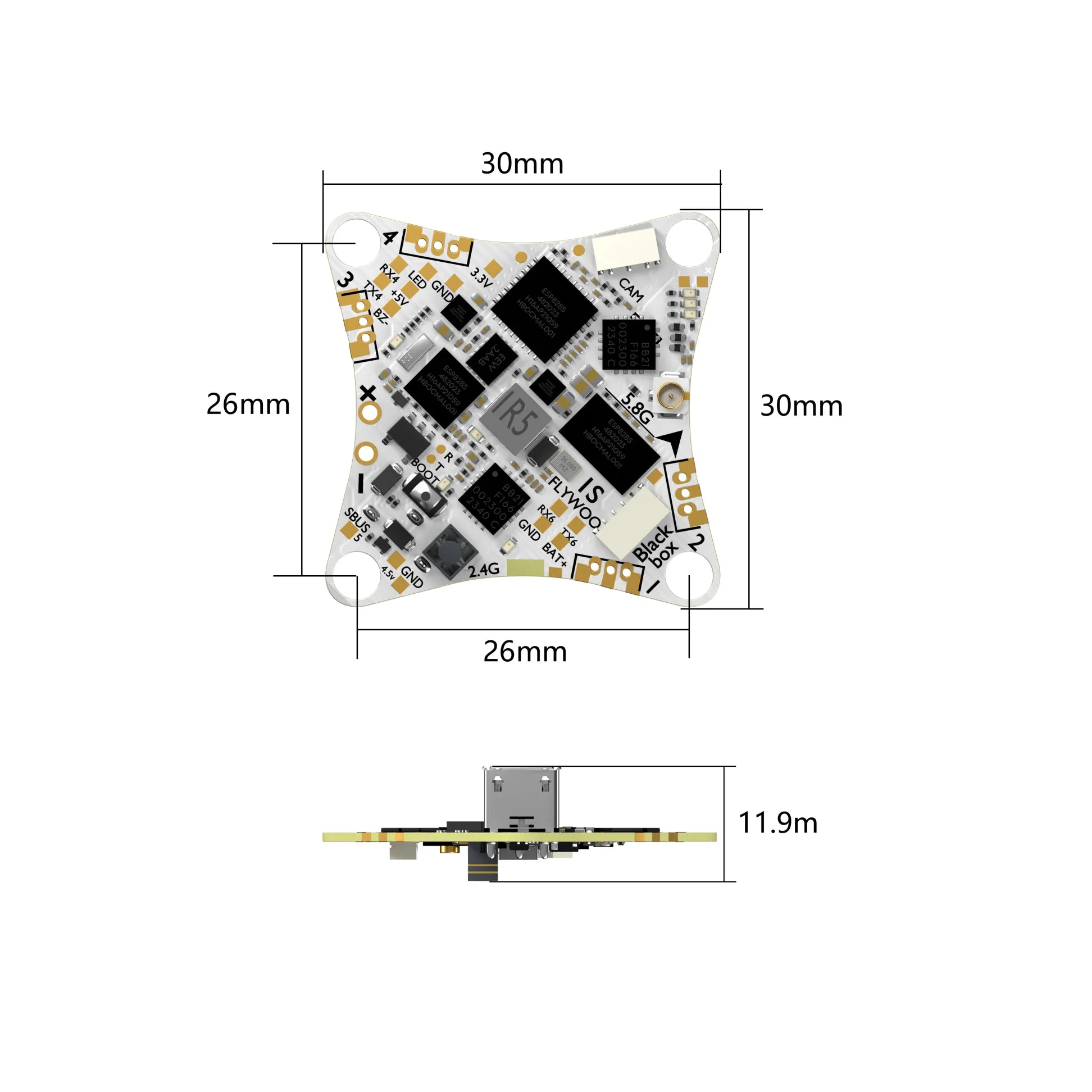

- Dimensions: 30.5mm x 30.5mm
- Mounting Holes: 25.5mm x 25.5mm (M2)

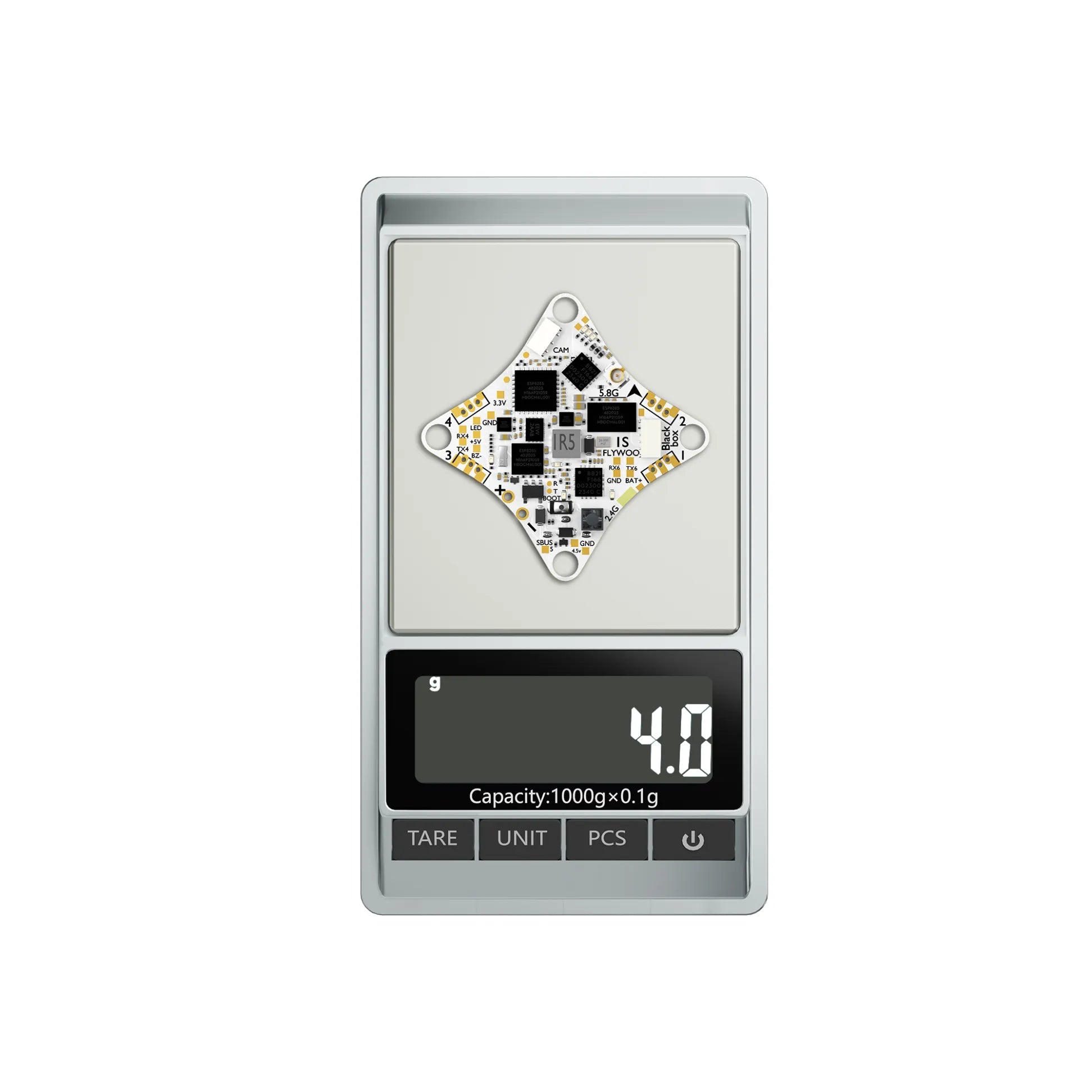

- Weight: 4g
-
Onboard 4-in-1 ESC:
- Input Power: 1S LiPo Only
- Continuous Current: 5A per motor
- Peak Current: 8A per motor
- ESC Firmware: Bluejay O_H_5_48KHz_V0.19.hex
- Protocol Support: DShot300, DShot600
- Motor Connector: JST1.25mm plug
- Battery Connector: A30 plug
-
Onboard Analog VTX:
- Output Power: Pit (0mW) / 25mW / 50mW / 100mW / 200mW / 400mW
- Frequency: 5.8GHz (40 Channels, including Raceband)
- Protocol: IRC Tramp
- Antenna: Integrated Pagoda-style
What's in the Box:
- 1x GOKU F405 ERVT 1S 5A 5-in-1 400mW ELRS AIO Board
- 1x A30 Power Cable Pigtail
- 1x JST-0.8 3-Pin Camera Cable (50mm)
- 1x Flywoo Blackbox Connector Cable
- 4x JST 1.25mm 3-Pin Vertical Motor Sockets (for board side)
- 4x M2x6.6mm Shock-Absorbing Rubber Grommets
Disclaimer: Please note: Included accessories such as cable lengths, connector styles, or grommet colors may vary slightly based on manufacturer supply and batch.
