Product Details
A whoop sized flight controller with its layout optimised for toothpick builds with full support for 2-4S input. The JHE GHF packs a 20A ESC using new MOSFETS to be more robust to voltage spikes compared to other flight controllers in this class. Furthermore, the motor headers are not pre-soldered making it easier for those who prefer to direct solder their motors.
Key Features
- ESC output current 25A continuous current, 4 independent current outputs

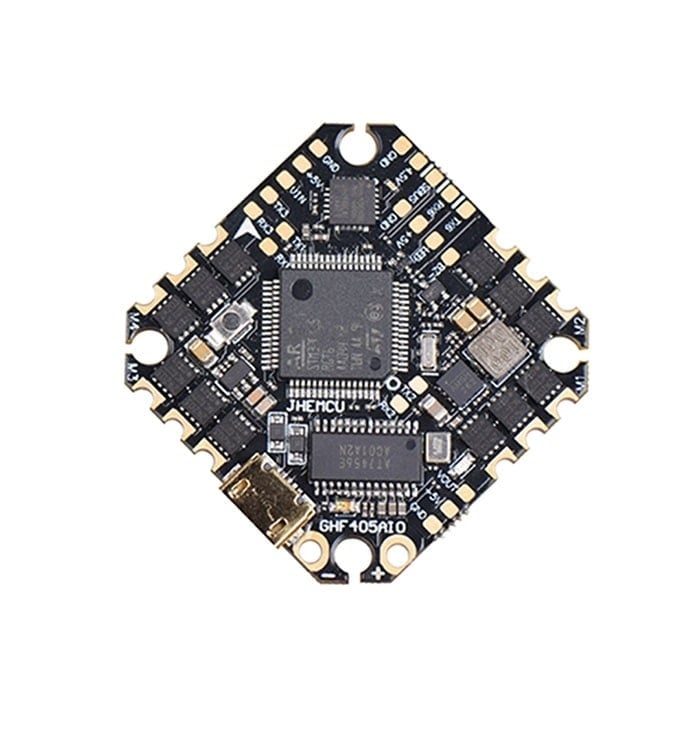

- The USB port is installed on the side, you have more installation possibilities while still having access to the USB port

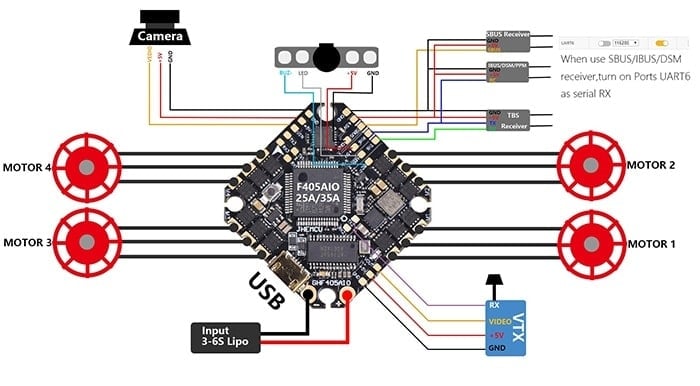

- Reserve common function interface pads, UART port has 4 channels (UART1, UART2, UART3, UART6).

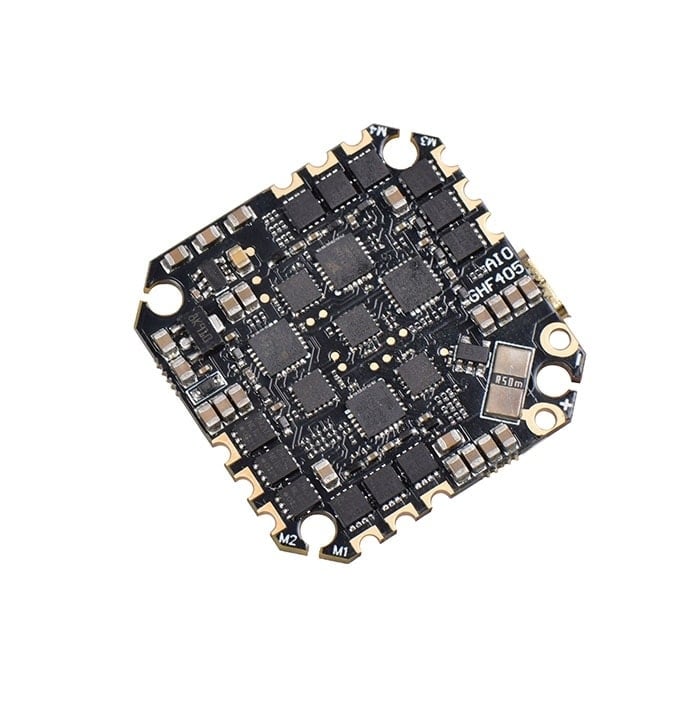

- Half-hole motor pad, support large current output
- Integrated Betaflight F405 processor flight control, OSD BEC and 25A ESC, support 3-6S battery
Specification
- Brand Name: JHEMCU
- Model: GHF405AIO
- Item Name: JHEMCU GHF405 BLHELI_S 25A 3-6S AIO for Racing Toothpick
- ESC: 25A or 35A BLheli_S depending on option selection
- Size: 32.5x32.5mm
- Mounting Hole: 25.5x25.5mm
- Weight: 6.3g
- CPU: STM32F405
- MPU: MPU6000 ( SPI)
- Firmware: Betaflight MATEKF411 ( MK41)
- Built-in Betaflight OSD ( AT7456E)
- Built-in Current Sensor
- Support WS2812 LED

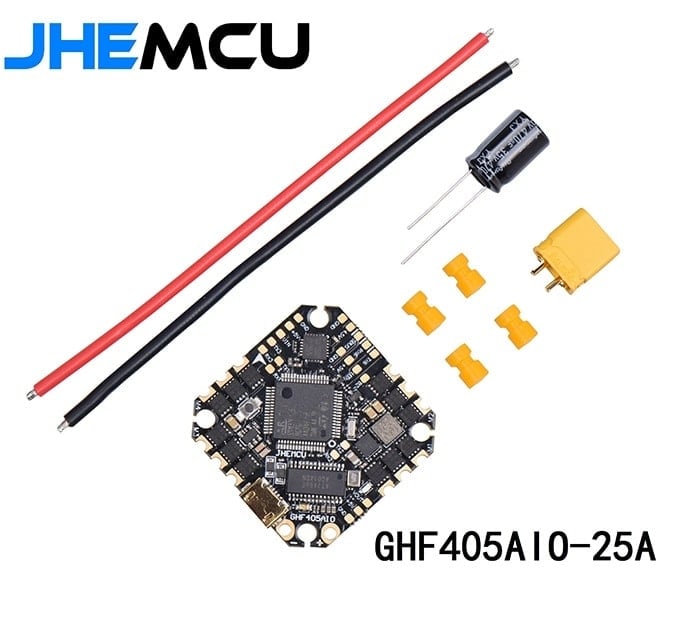

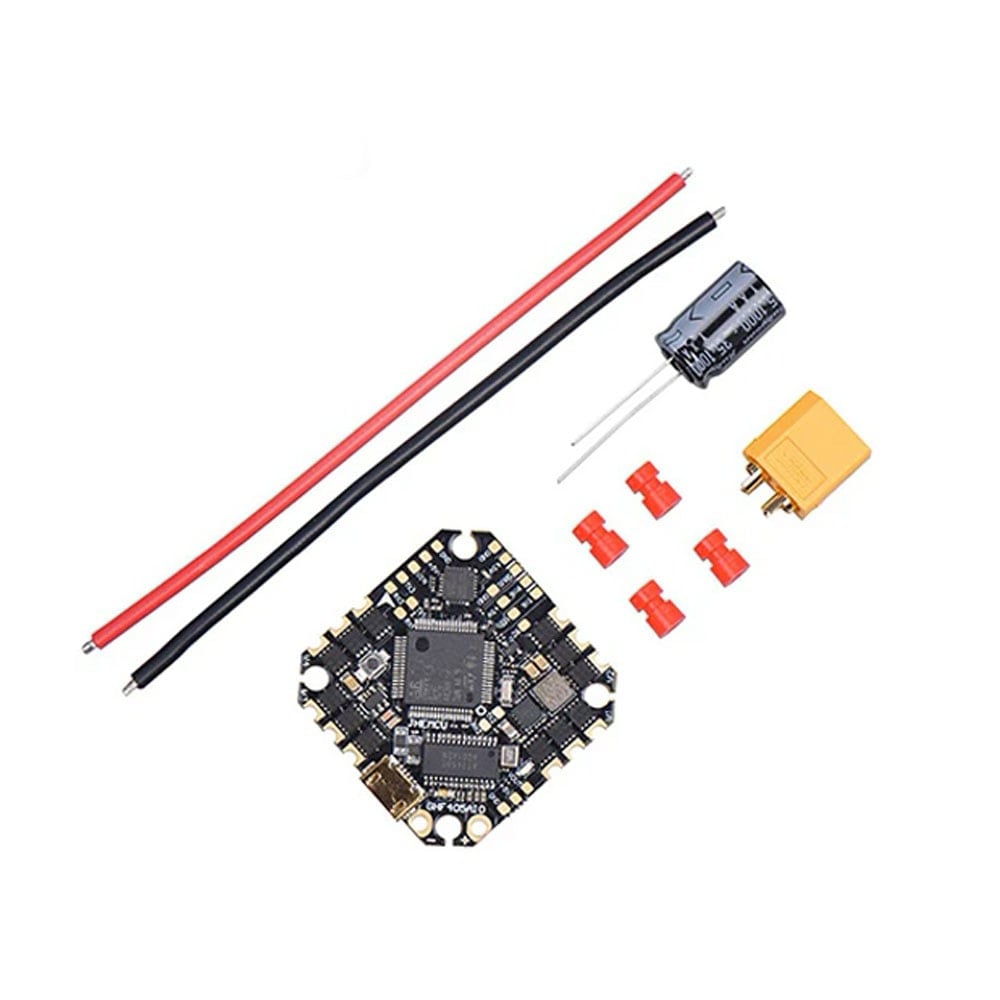

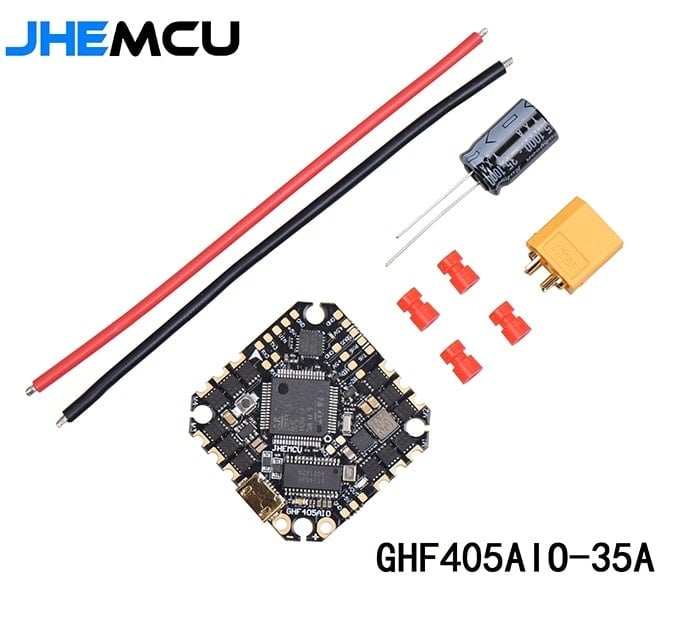

Included
- 1x F4 GHF405AIO
-
1x Battery Connector
- XT30 with 25A version
- XT60 with 35A version
- 4x Anti-vibration Standoffs
