Product Details

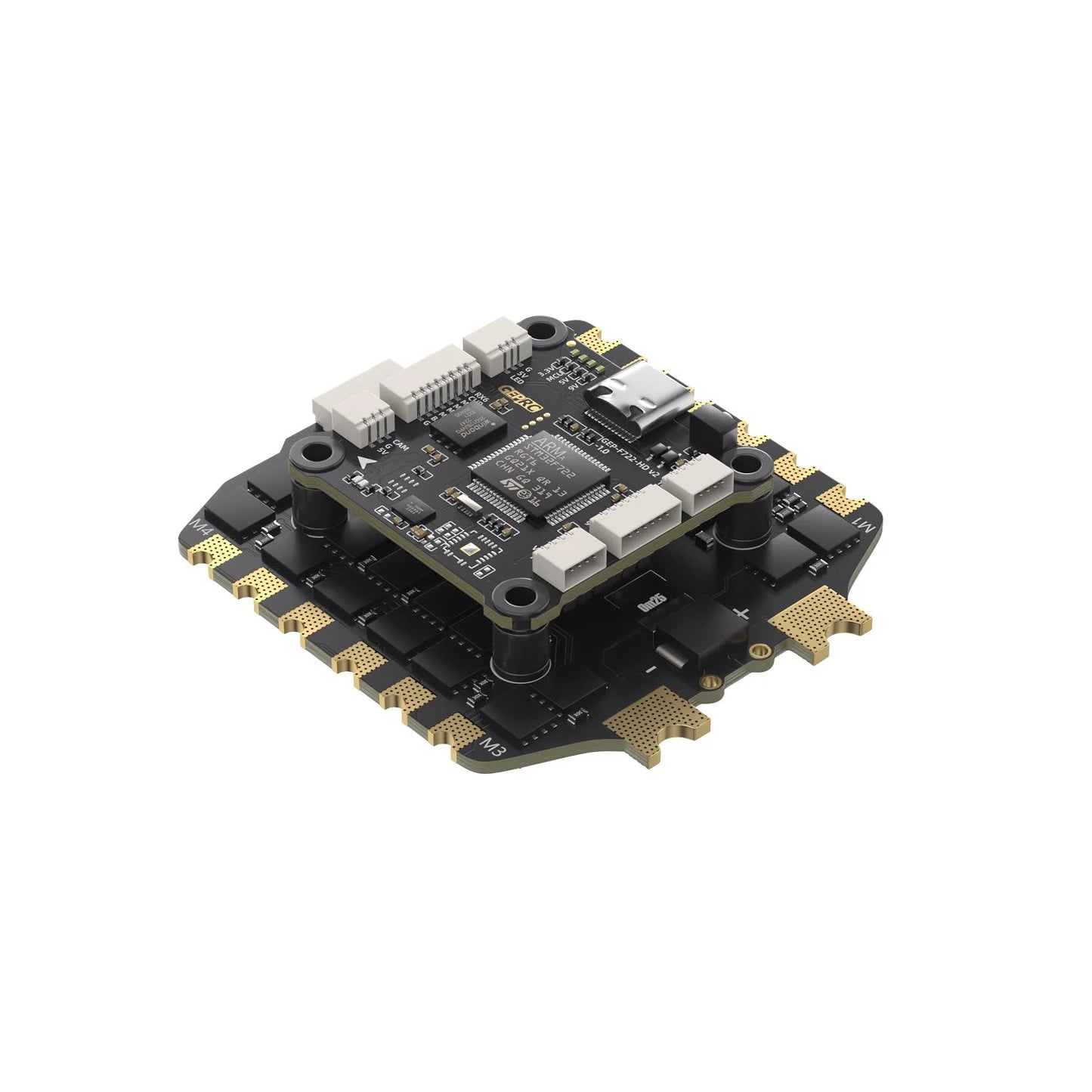

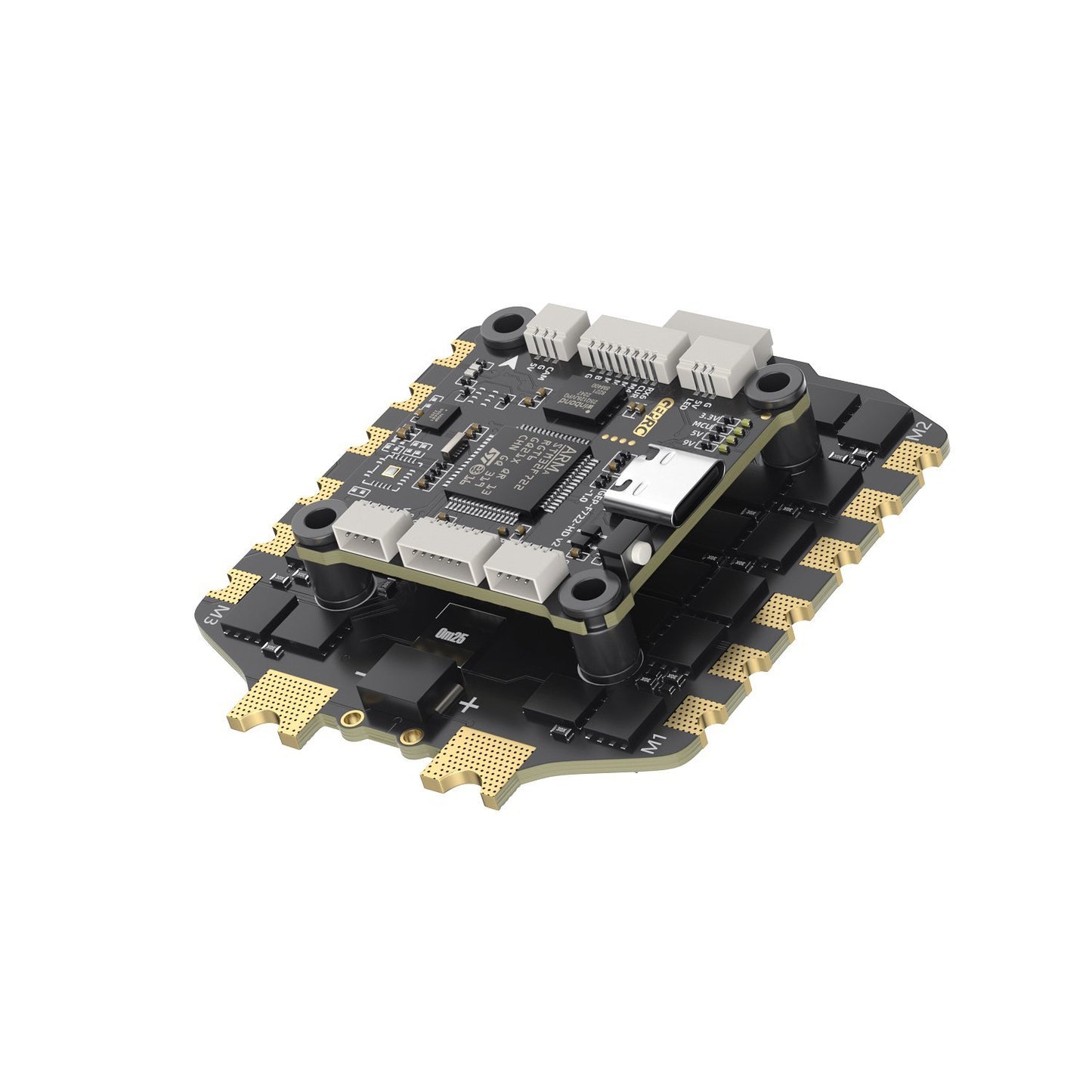

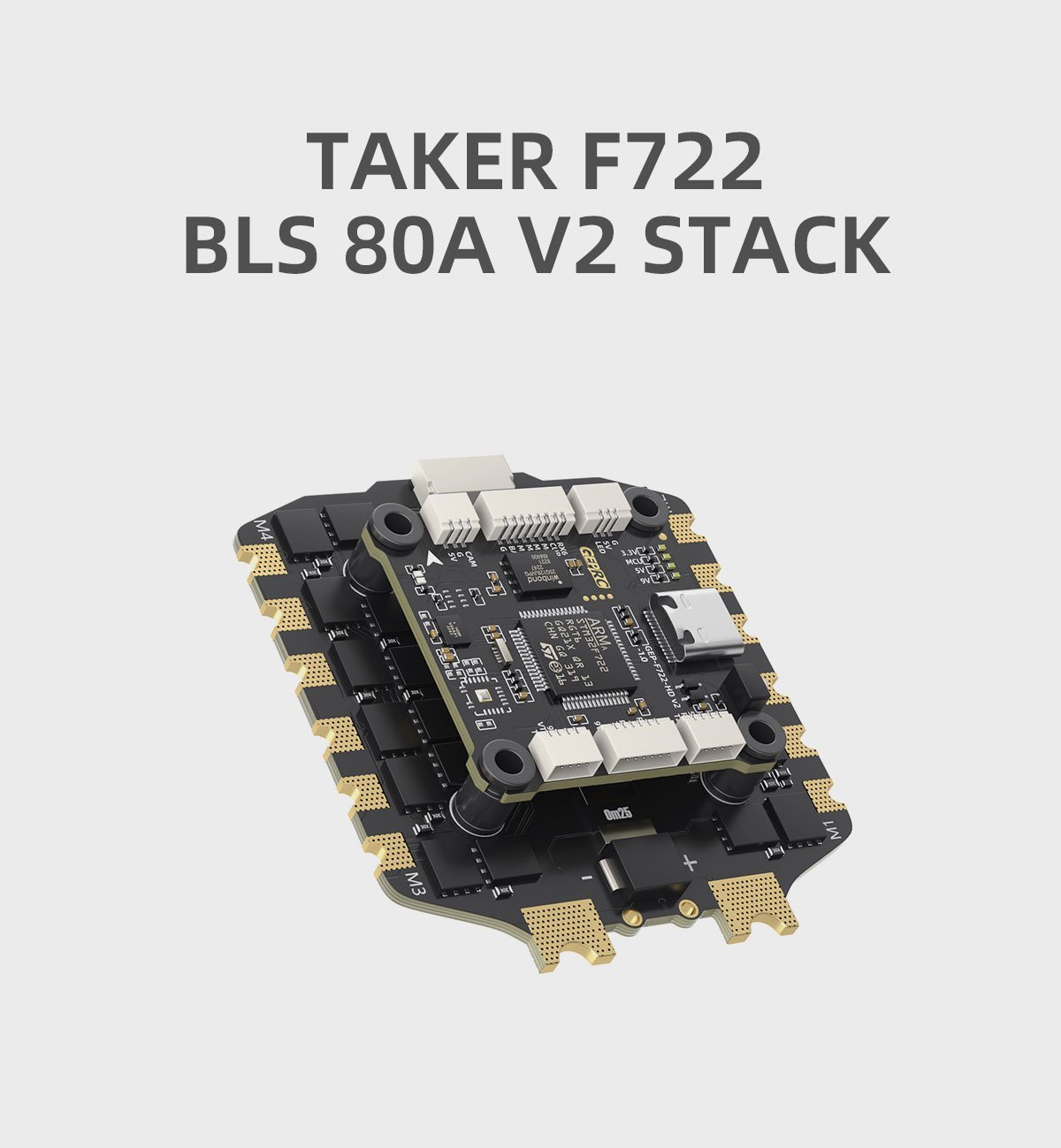

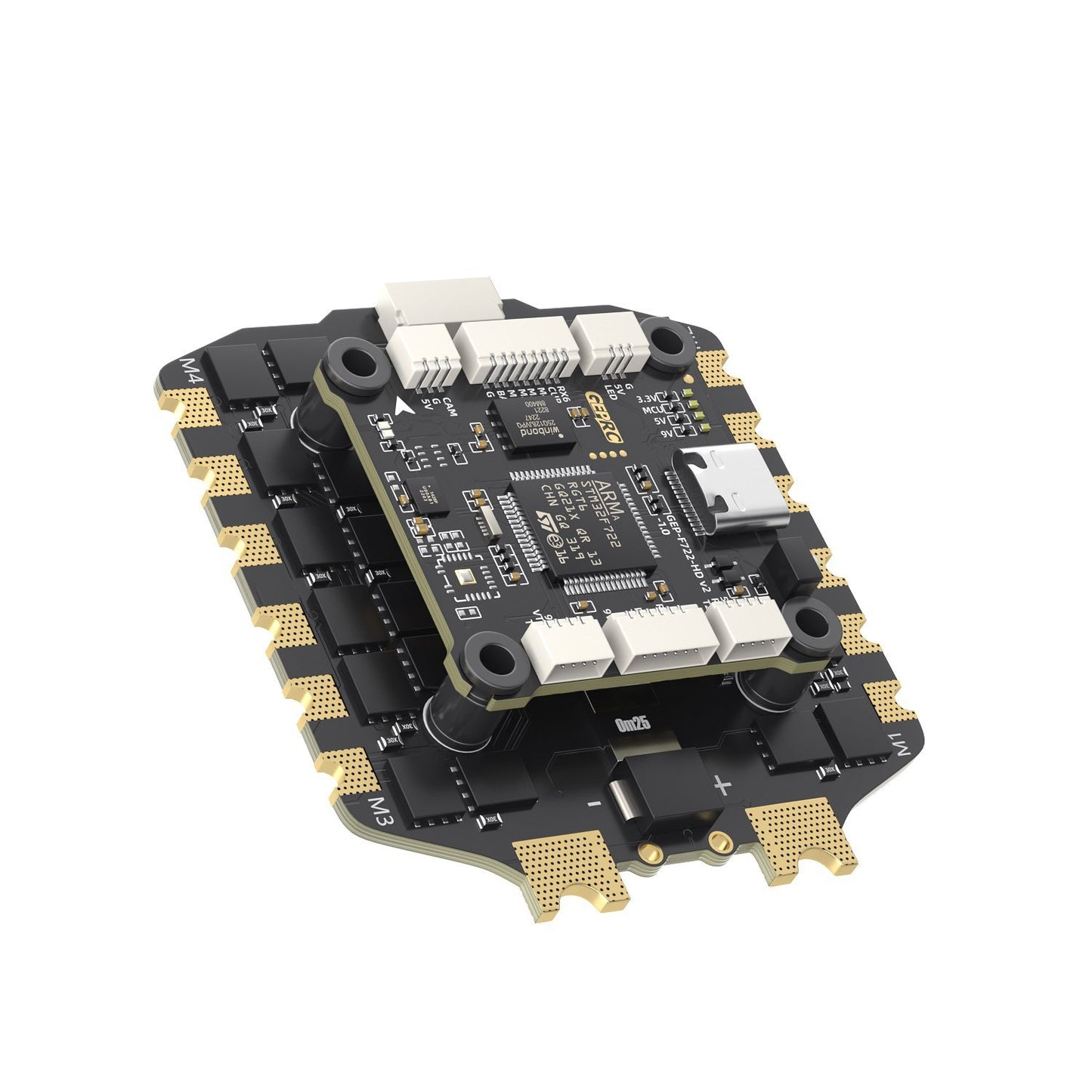

GEPRC Taker F722 BLS 80A V2 Stack
Take your drone flying to the next level with the GEPRC Taker F722 BLS 80A V2 Stack . Built for pilots who demand both power and precision, this stack features the reliable STM32F722 chip and the latest 42688-P gyroscope for ultra-stable flight control. With 16M black box storage, you can easily log and analyze flight data to fine-tune your performance. The integrated LC filter ensures smooth, clean power delivery to keep your signals sharp and interference-free. Designed for easy installation, this stack also includes direct compatibility with DJI Air Units for a plug-and-play setup. The TAKER H80_BLS 80A 4-in-1 ESC, equipped with dual MOSFETs, provides plenty of current to handle your most power-hungry flights—perfect for keeping your quad agile and responsive. This stack is built for pilots who want high-end, silky-smooth flight performance, whether you're racing, freestyling, or exploring new heights.
Key Features:
- STM32F722 Chip for high-speed processing and reliable performance
- ICM42688-P Gyroscope for ultra-smooth, stable flight control
- 16M Black Box for flight data logging and analysis
- Integrated LC Filter to prevent noise and ensure smooth power delivery
- Type-C USB Interface for easy connection and firmware updates
- Direct DJI Air Unit Compatibility for hassle-free setup
- TAKER H80_BLS 80A 4-in-1 ESC with dual MOSFETs for high current and stable flight performance
- Simple Installation with shock absorbers for improved gyro stability
- 9V@2.5A + 5V@3A Dual BEC for powering accessories
Specifications:

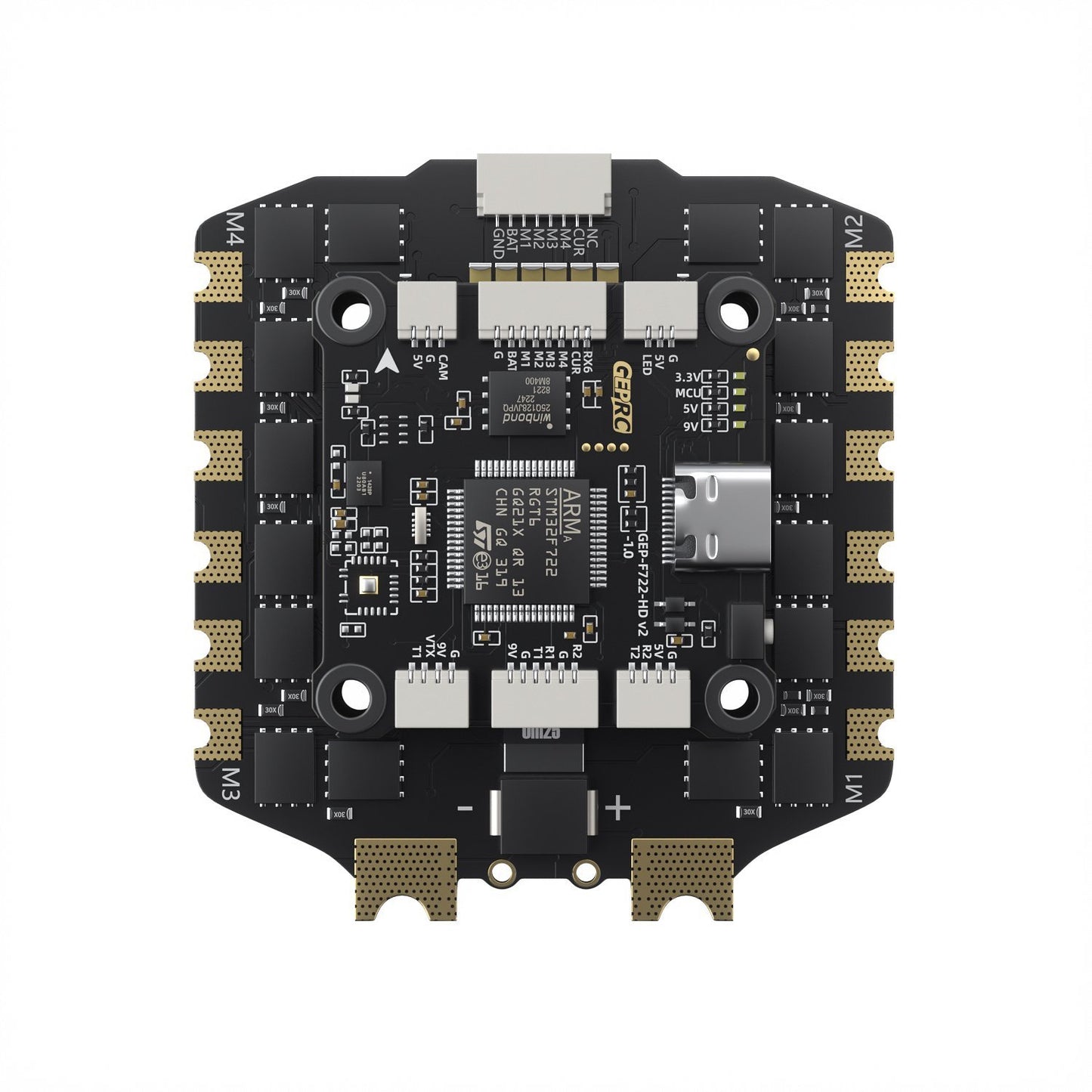

GEP-F722-HD V2 Flight Controller
- MCU : STM32F722
- IMU : ICM42688-P (SPI)
- Black Box : 16M onboard storage
- Air Unit Connection : Direct plug-in for DJI Air Unit
- Barometer : Supported
- OSD : BetaFlight OSD with AT7456E chip
- BEC : 9V@2.5A + 5V@3A dual independent BEC
- Input Voltage : 3-6S LiPo
- Mounting : 36.85 × 36.85mm (30.5 × 30.5mm hole spacing, φ4mm holes reduced to φ3mm with silicone shock absorbers)
- Weight : 8.1g

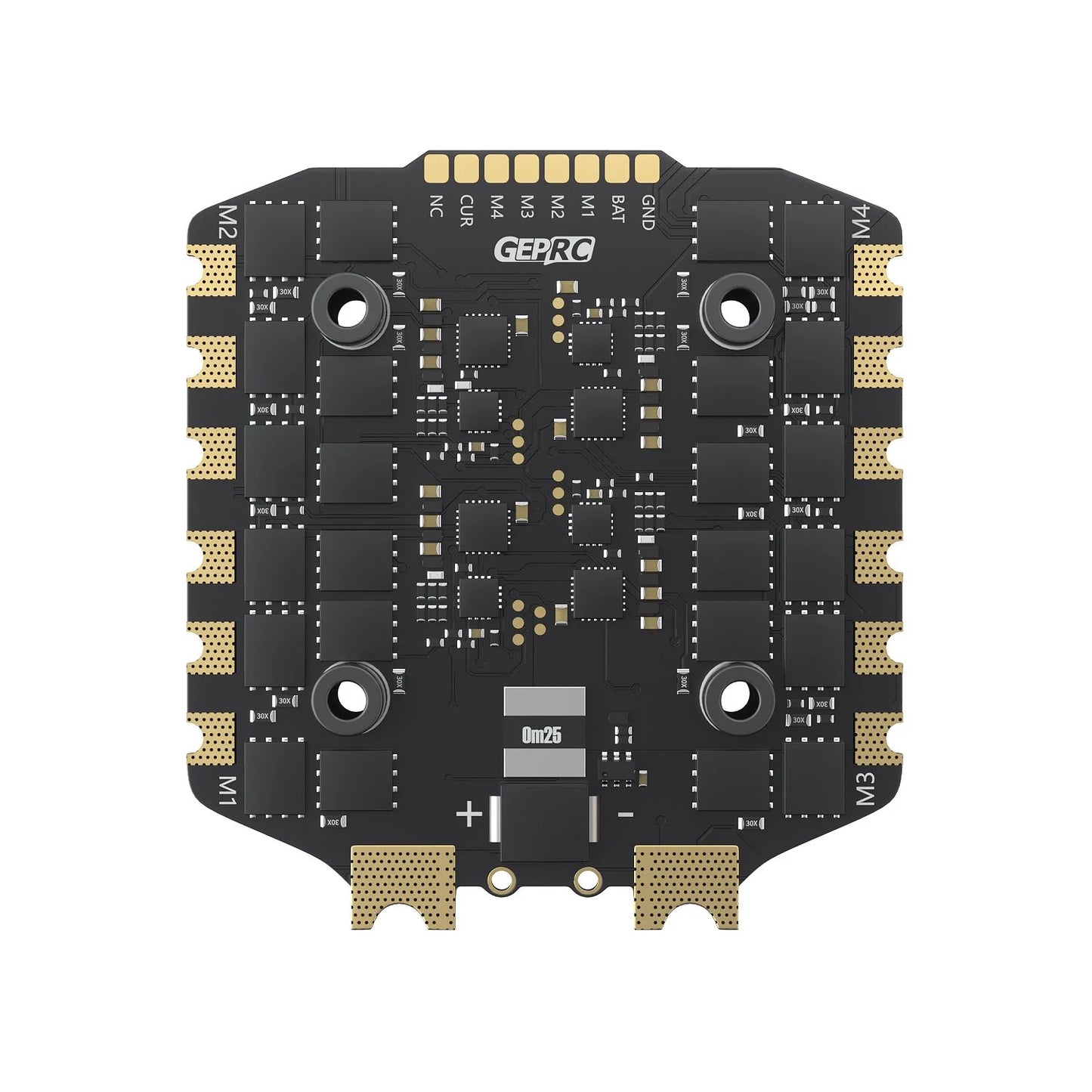

TAKER H80_BLS 80A 4-in-1 ESC
- Input Voltage : 3-6S LiPo
- Continuous Current : 80A
- Burst Current : 85A (5 seconds)
- Ammeter : Supported
- Dshot Protocols : 150/300/600
- Size : 56.3 × 61.1mm (30.5 × 30.5mm hole spacing, φ4mm holes reduced to φ3mm with silicone shock absorbers)
- Weight : 28.1g
What's in the Box:
- 1 x GEPRC F722-HD V2 Flight Controller
- 1 x TAKER H80_BLS 80A 4-in-1 ESC
- 1 x Capacitor
- 1 x DJI Air Unit Adapter Cable
- 1 x Flight Controller Adapter Cable
- 1 x XT60 Power Cable
- 4 x M3*30 Screws
- 4 x M3*25 Screws
- 8 x Nylon Nuts
- 8 x Silicone Grommets
- 2 x SH1.0 4-pin Silicone Cables
- 1 x Camera Connection Cable
Note: Included accessories may vary based on supply.
