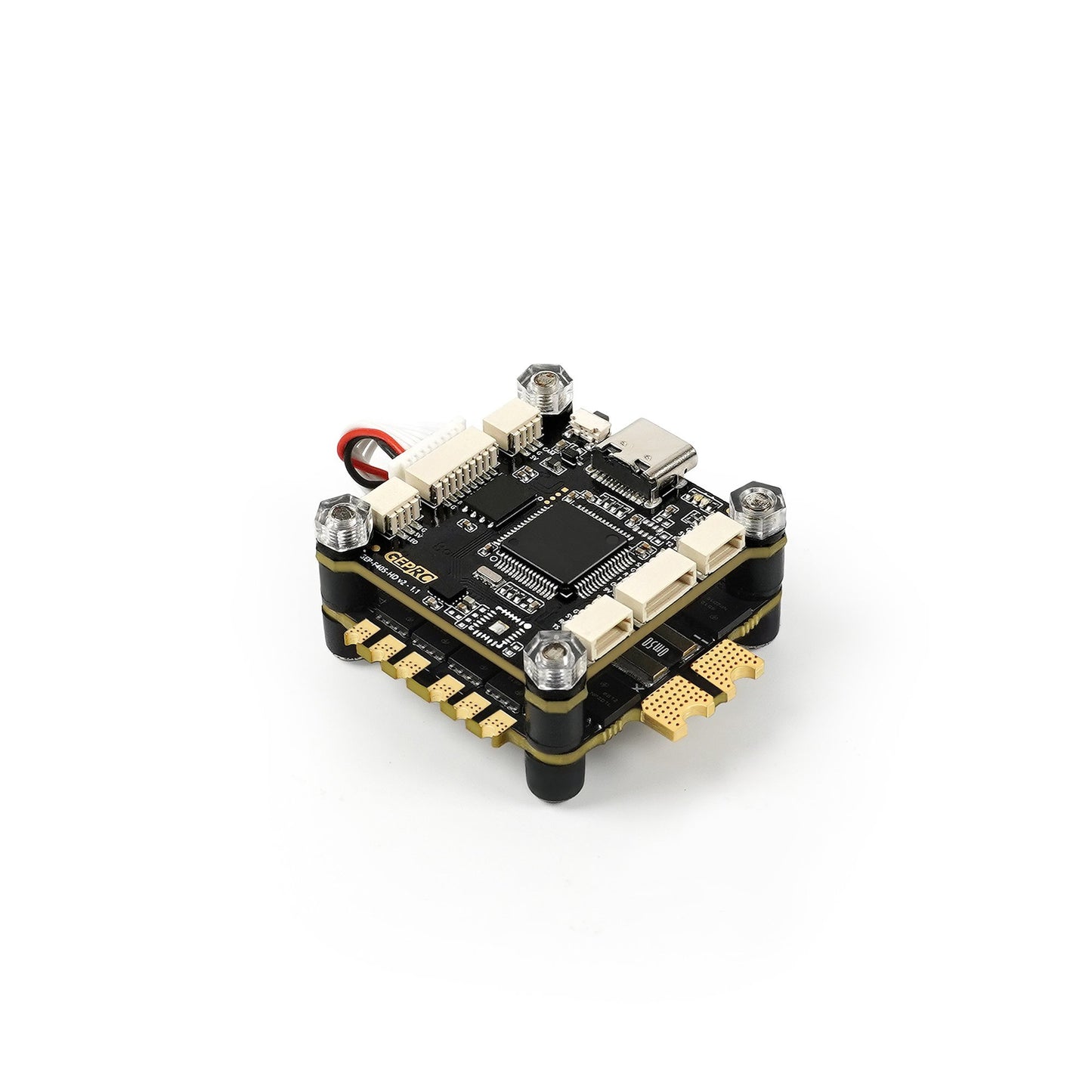

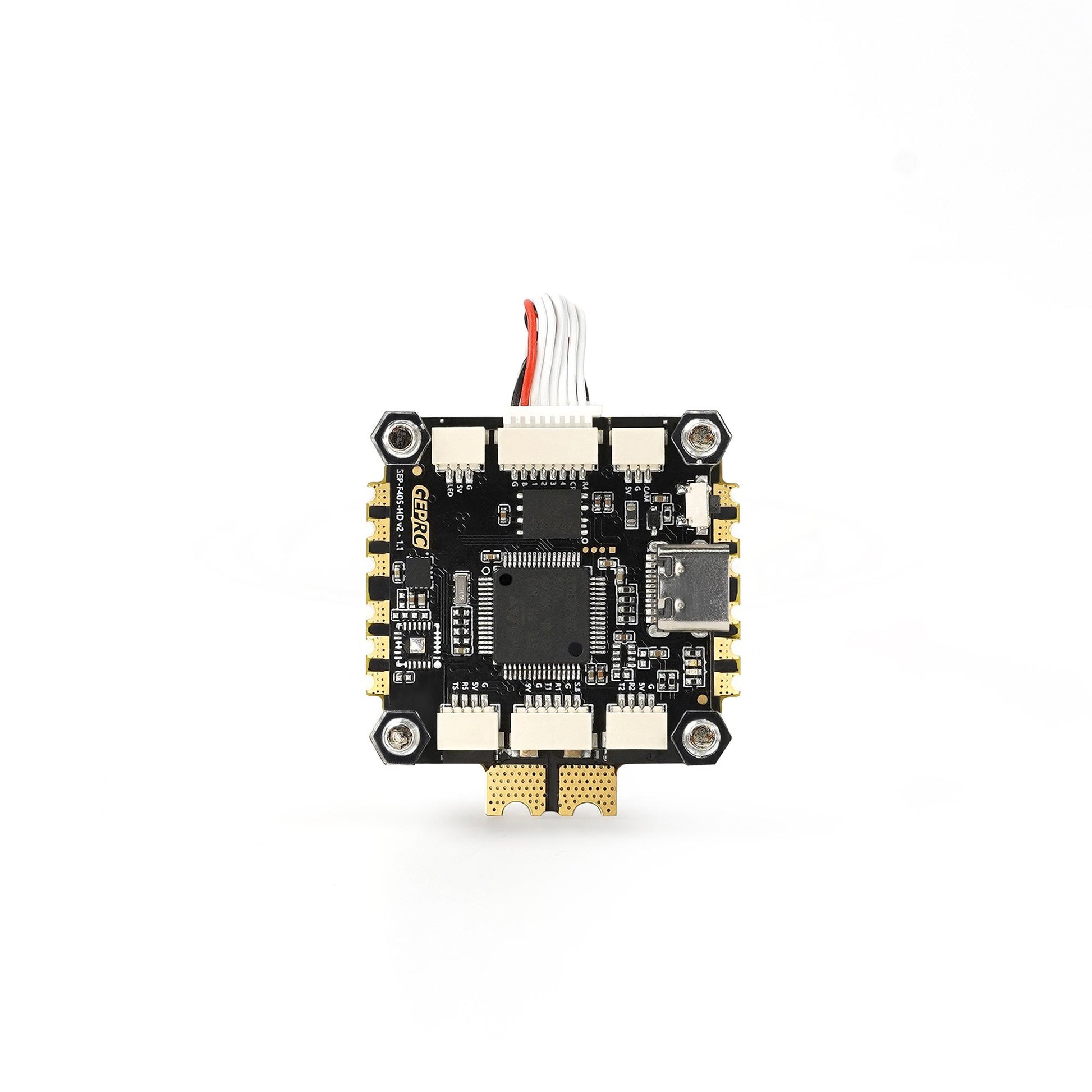

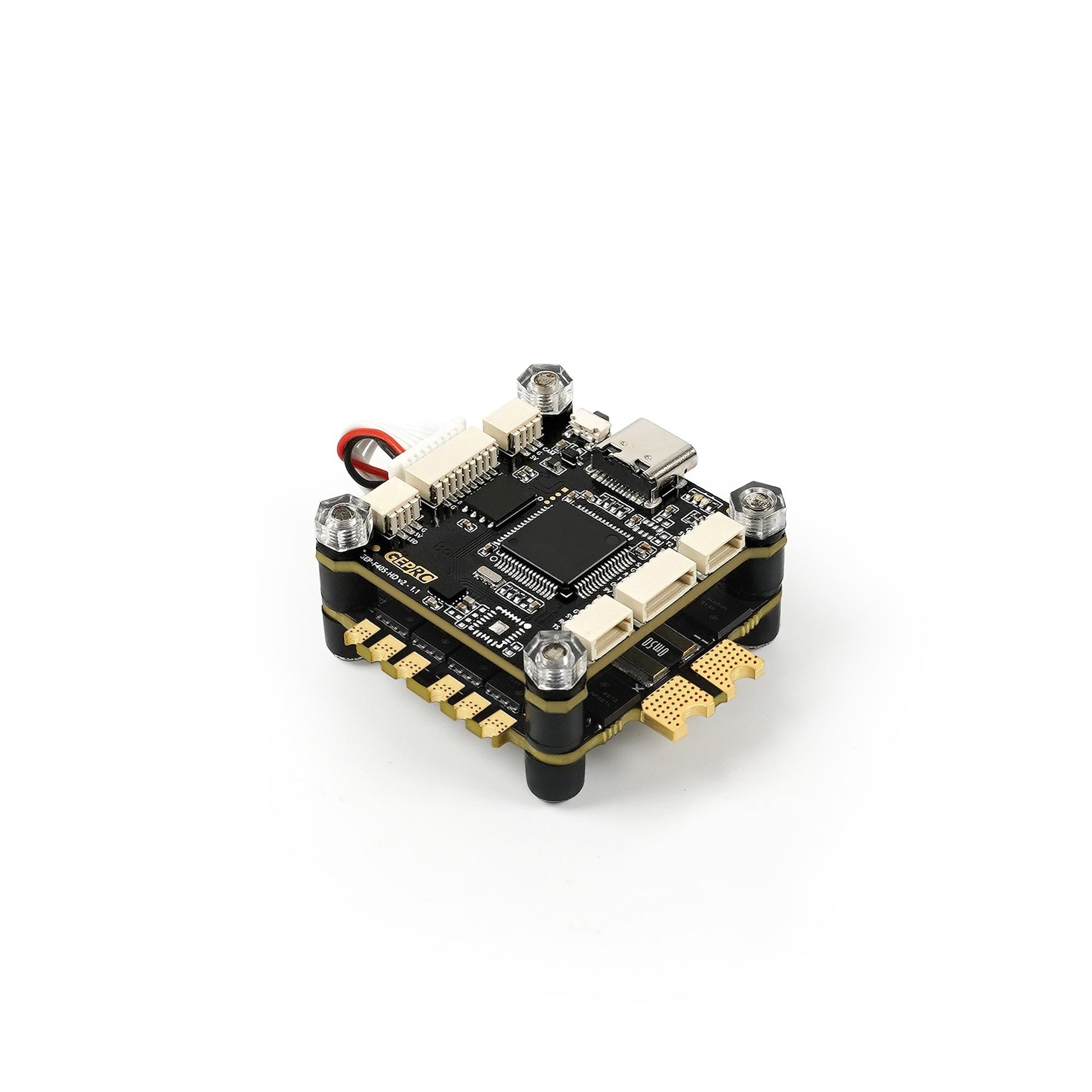

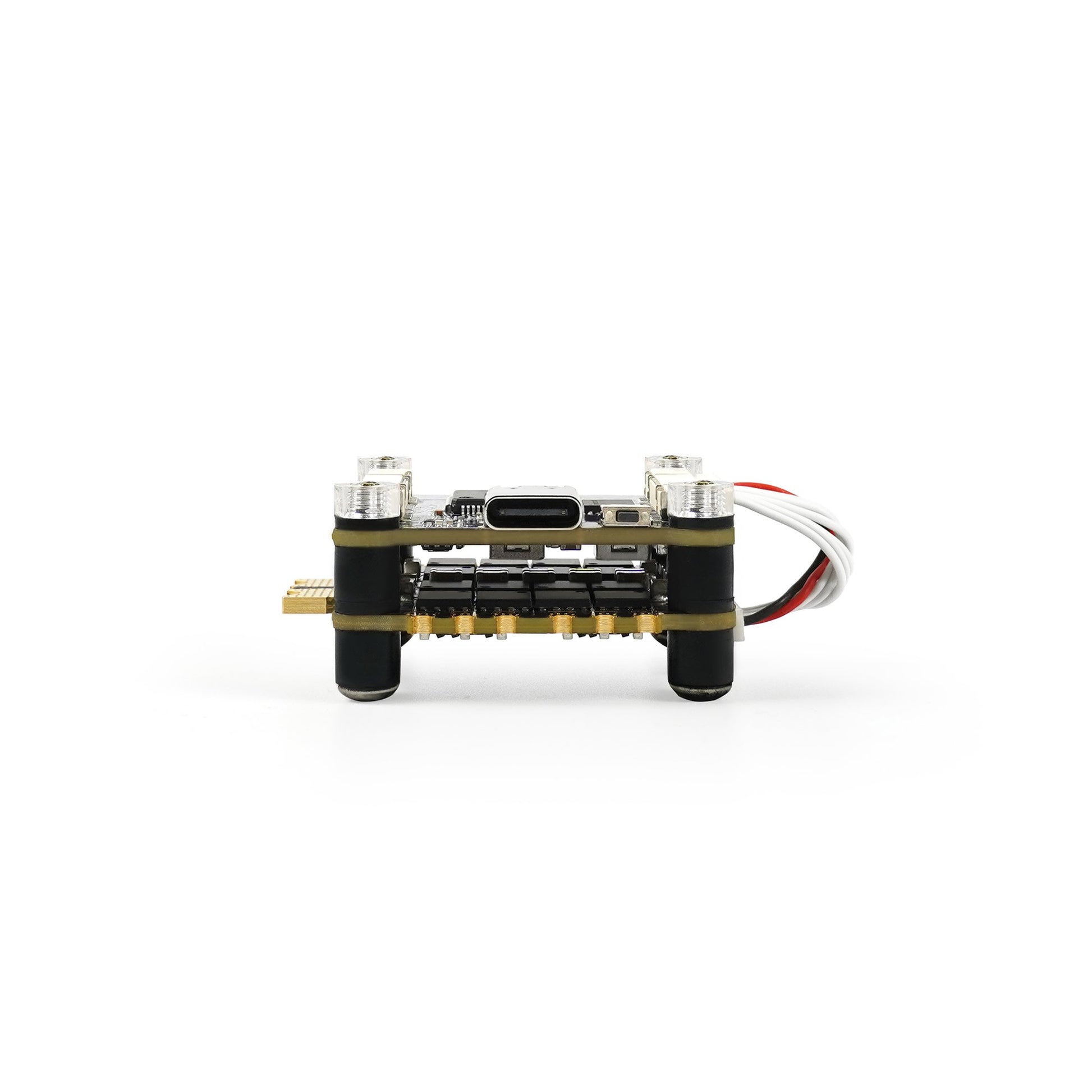

Elevate your drone game with the GEPRC TAKER F405 BLS 50A STACK, a state-of-the-art system that marries the pinnacle of flight control technology with seamless DJI Air Unit integration. Crafted for the discerning pilot, this stack boasts a formidable STM32F405 chip and the precision of an ICM42688-P gyroscope, ensuring your flights are nothing short of extraordinary.
Key Highlights:
-
Advanced Control:
Powered by the renowned STM32F405 chip, ensuring rapid response and unparalleled flight control.
-
Precision Gyroscope:
The latest ICM42688-P gyroscope at your service, offering unmatched stability and a silky-smooth flying experience.
-
Effortless Integration:
Direct plug-in capability with the DJI Air Unit for a hassle-free setup, leaving soldering woes in the dust.
-
Enhanced Durability:
Upgraded with a type-C USB connector, significantly extending the life of your connections.
-
Robust Power:
Equipped with a dual independent BEC of 9V 2.5A + 5V 3A, providing a stable power supply to all your external devices.
-
Smooth Power System:
The GEP-BLS50A-4IN1 ESC not only supports up to 55A burst current but also ensures that every maneuver feels fluid and responsive.
Specifications at a Glance:
FC Specs
-

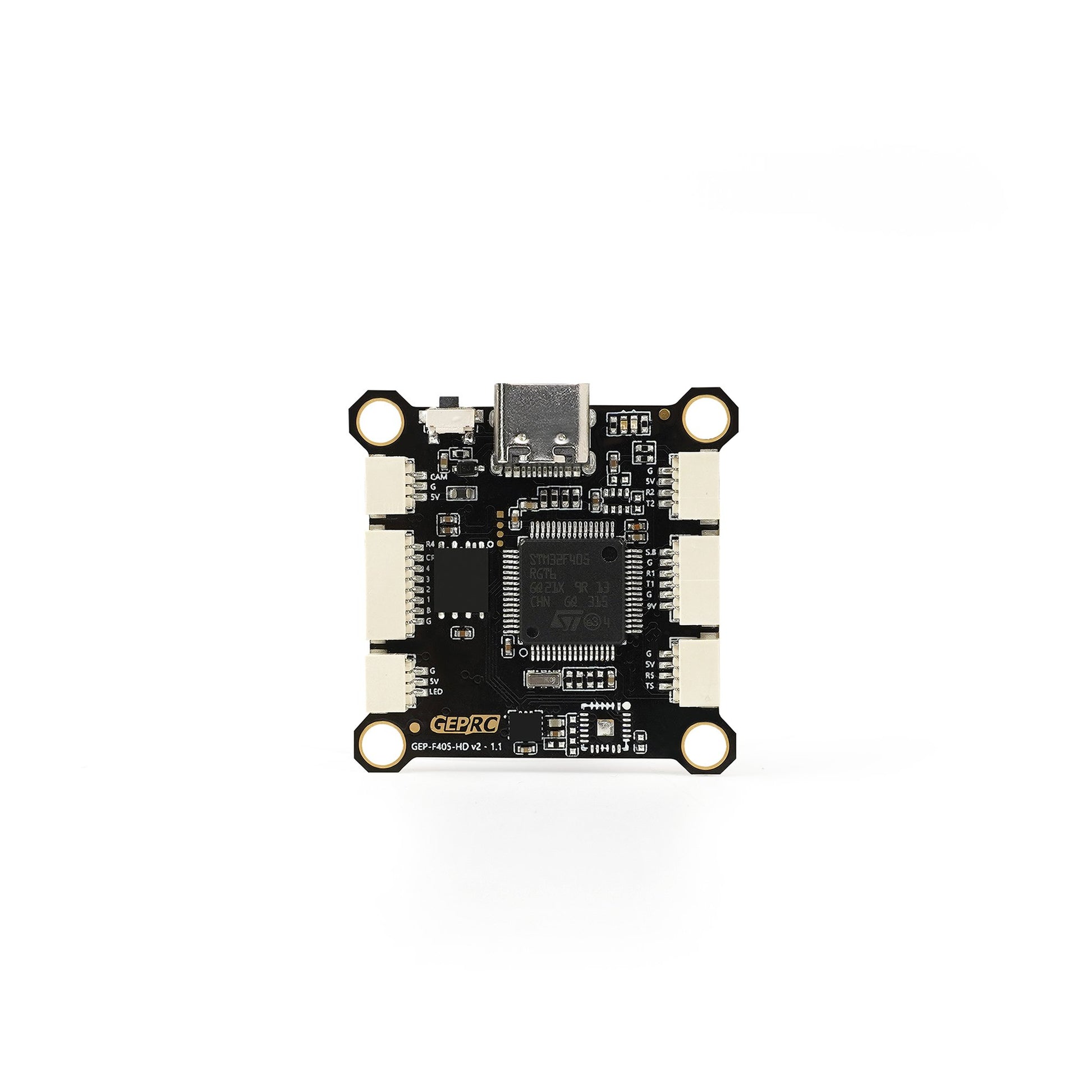

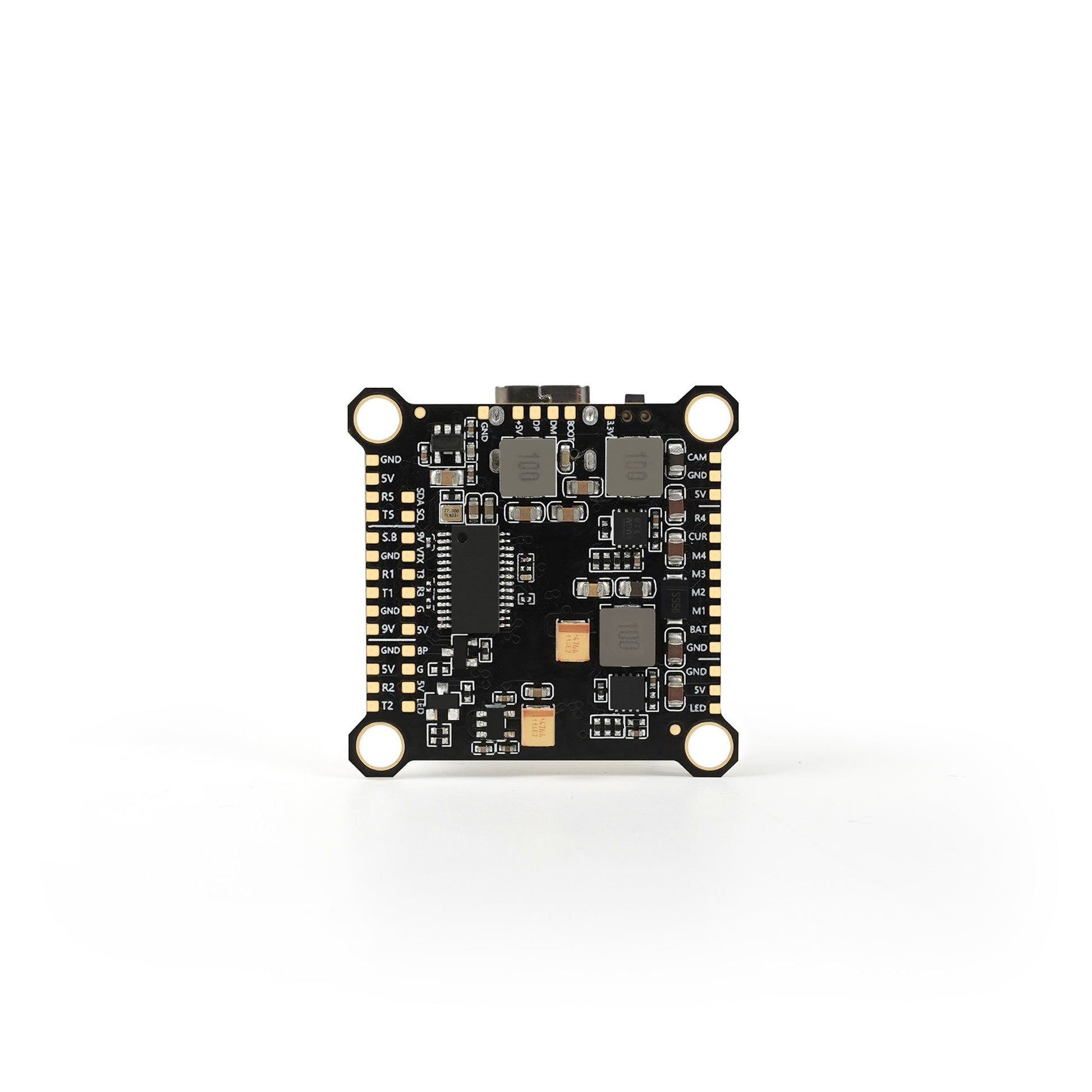

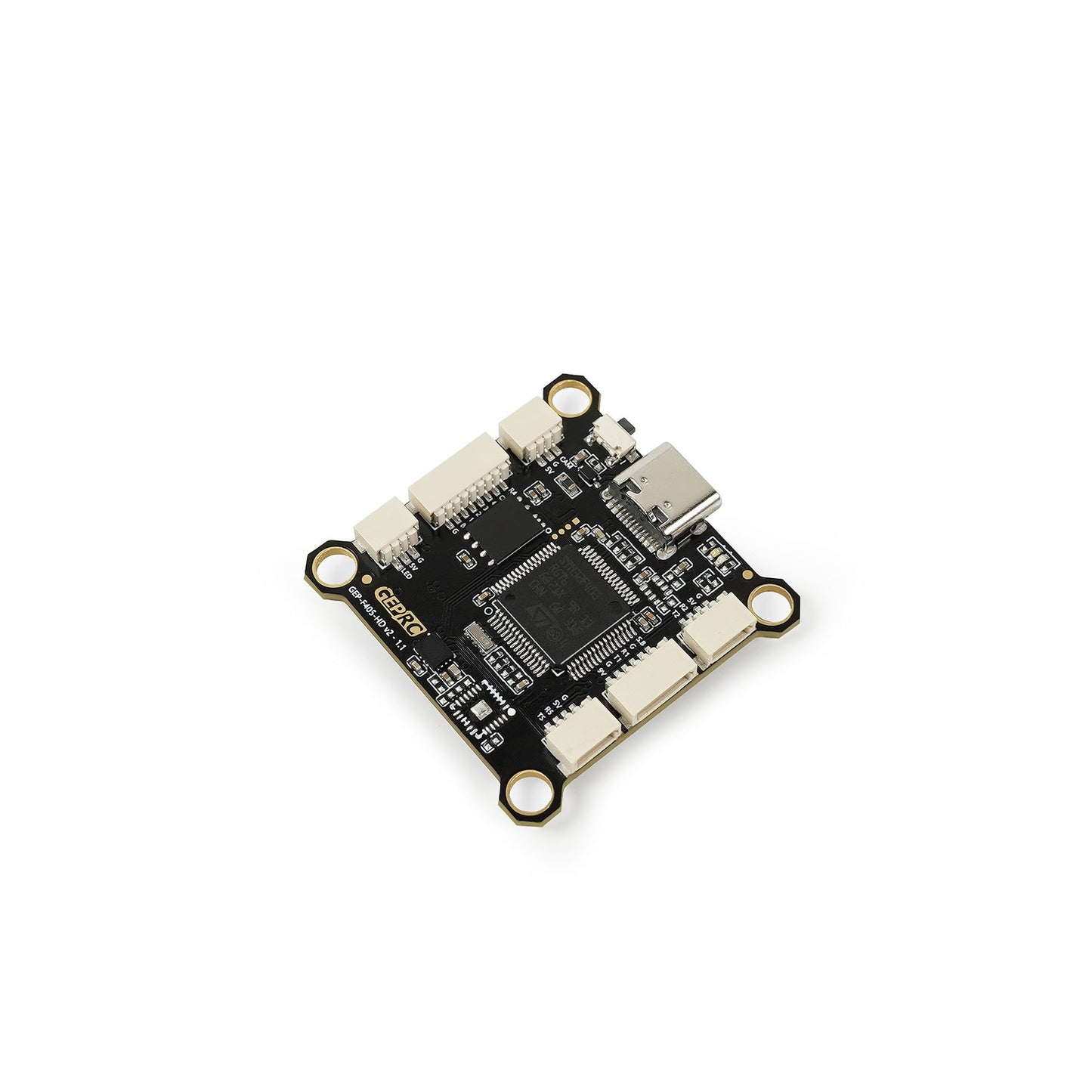

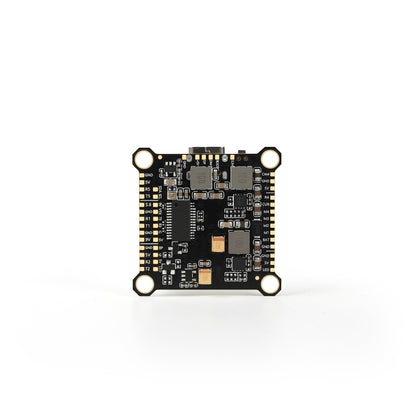

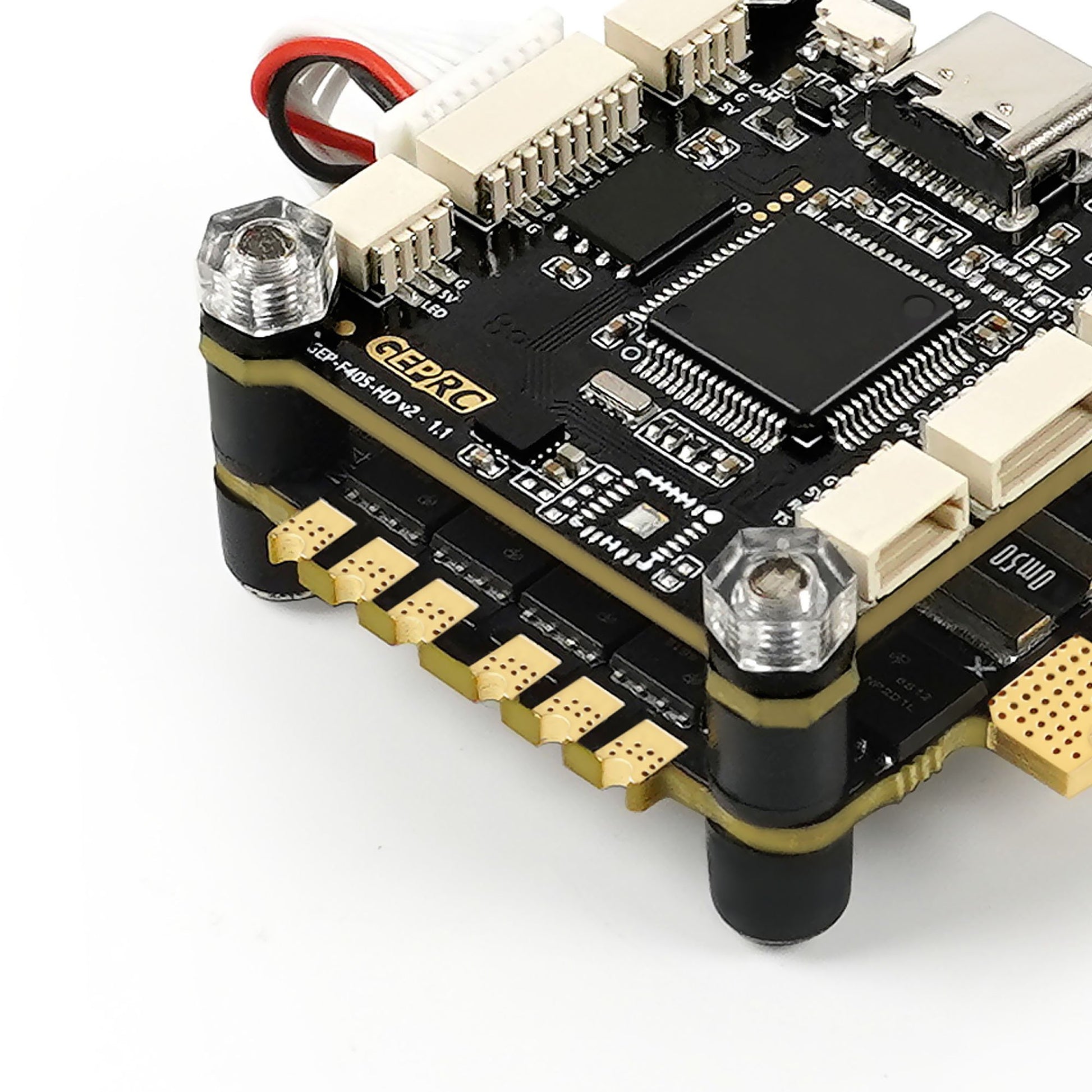

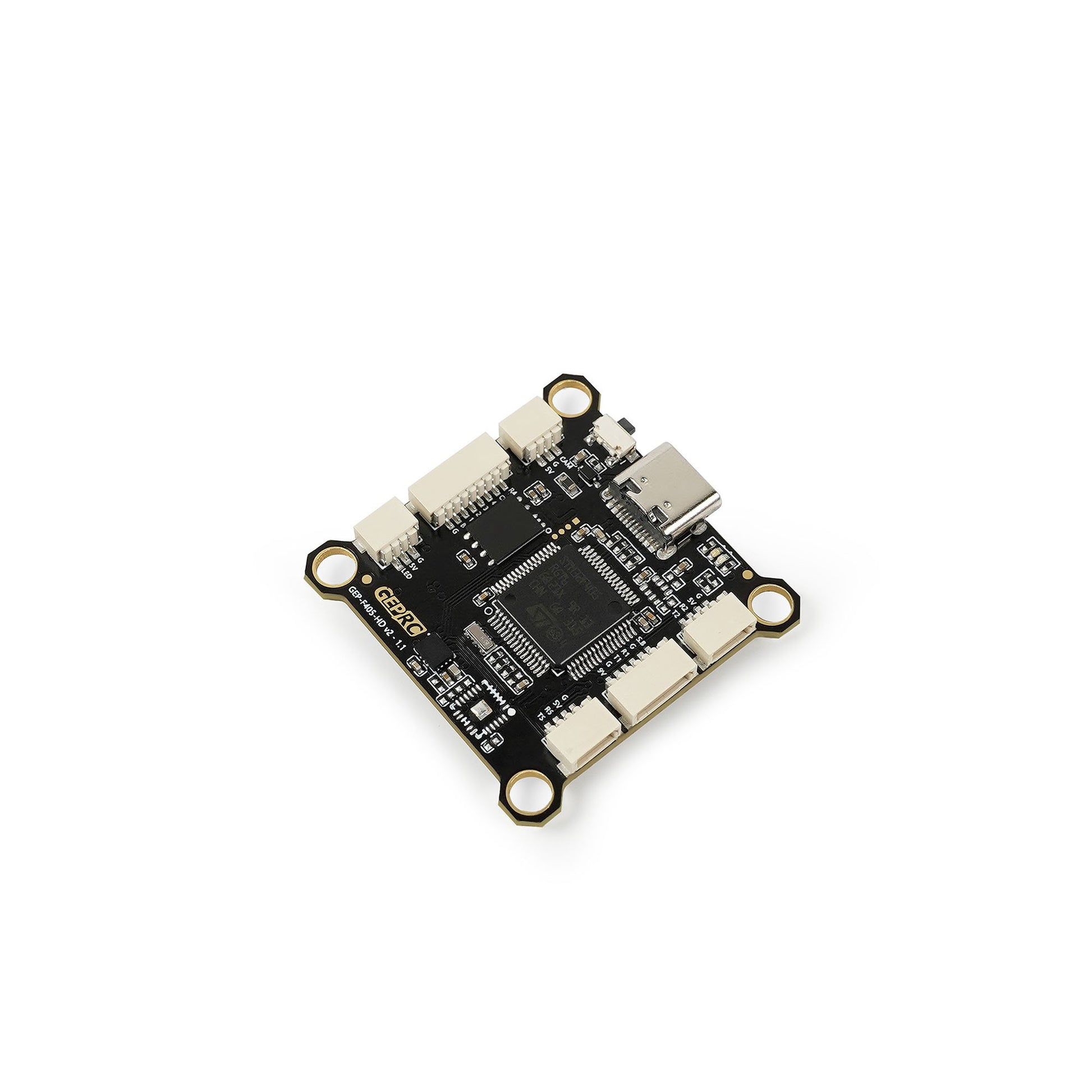

GEP-F405-HD v2 Flight Controller
-
MCU: STM32F405
-
IMU: ICM42688-P(SPI)
-

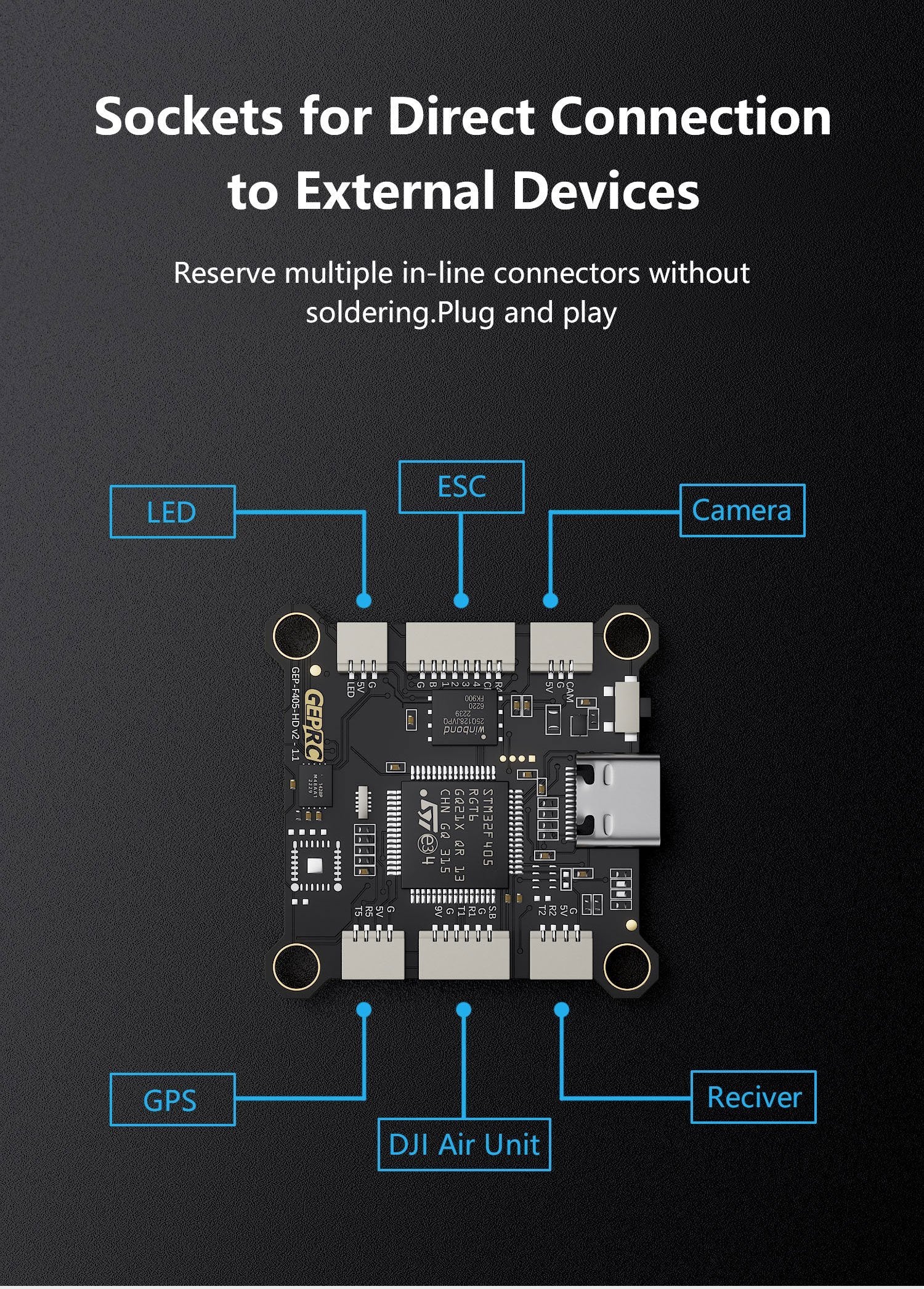

Air Unit Connection: Direct plugging into DJI Air Unit
-
Black Box: 16M onboard
-

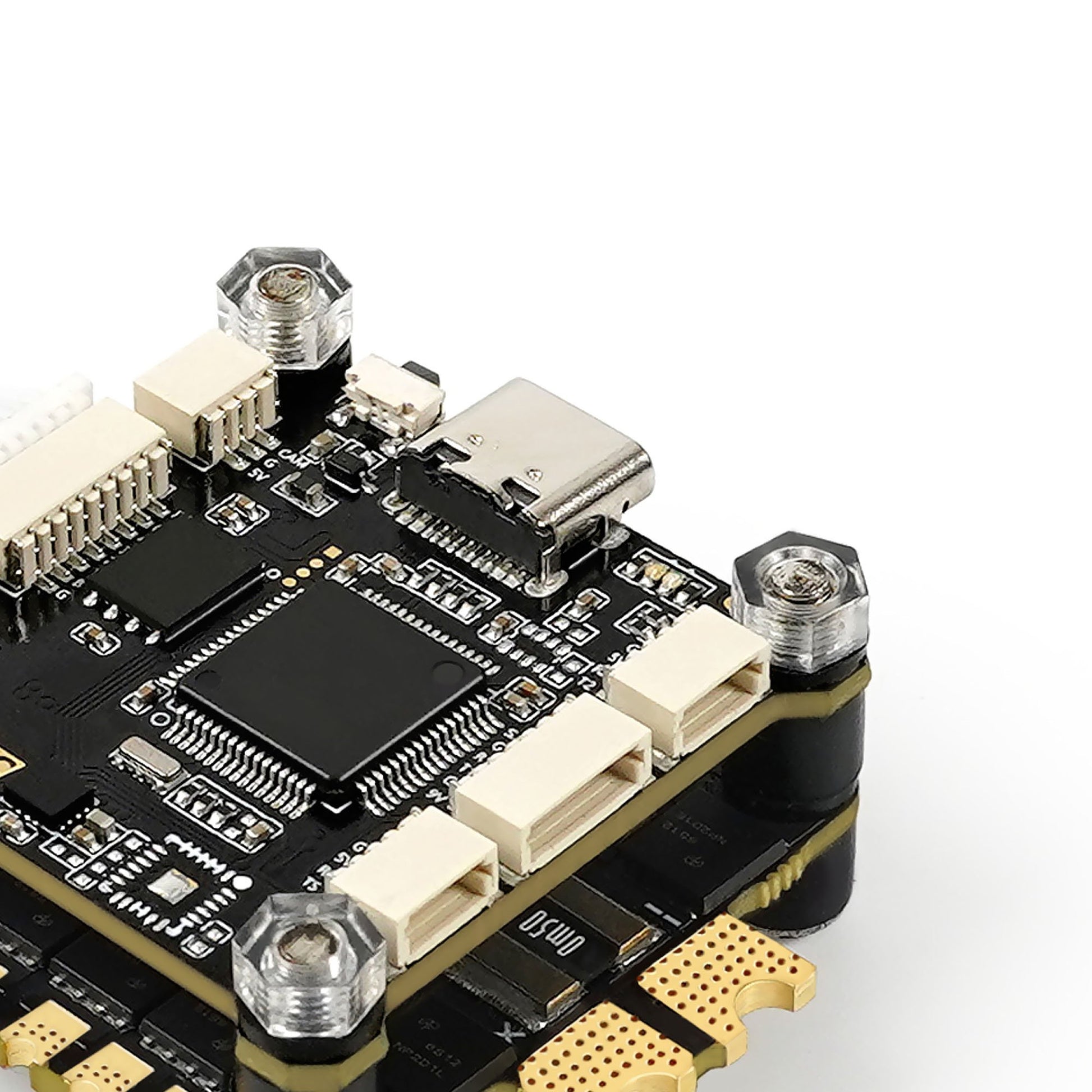

USB Connector: Type-C
-
OSD: BetaFlight OSD w/ AT7456E chip
-
BEC: 5V,9V dual BEC
-
Firmware Target: GEPRCF405
-

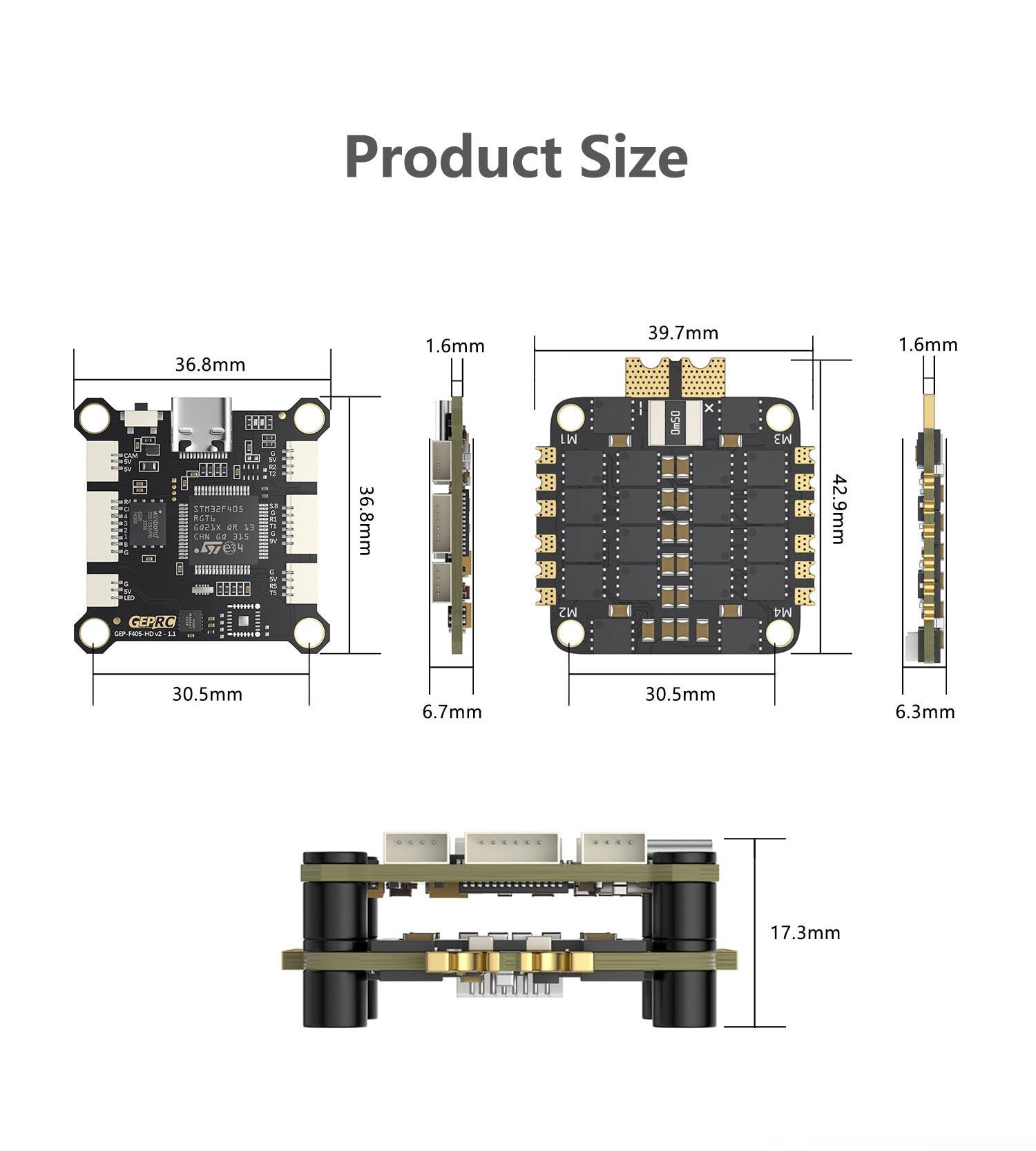

Size: 36.8×36.8mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
-
Input Voltage: 3-6S LiPo
-
UART: 6
-
Power Filter: Integrated LC filter
-
Weight: 7.7g
ESC Specs
-

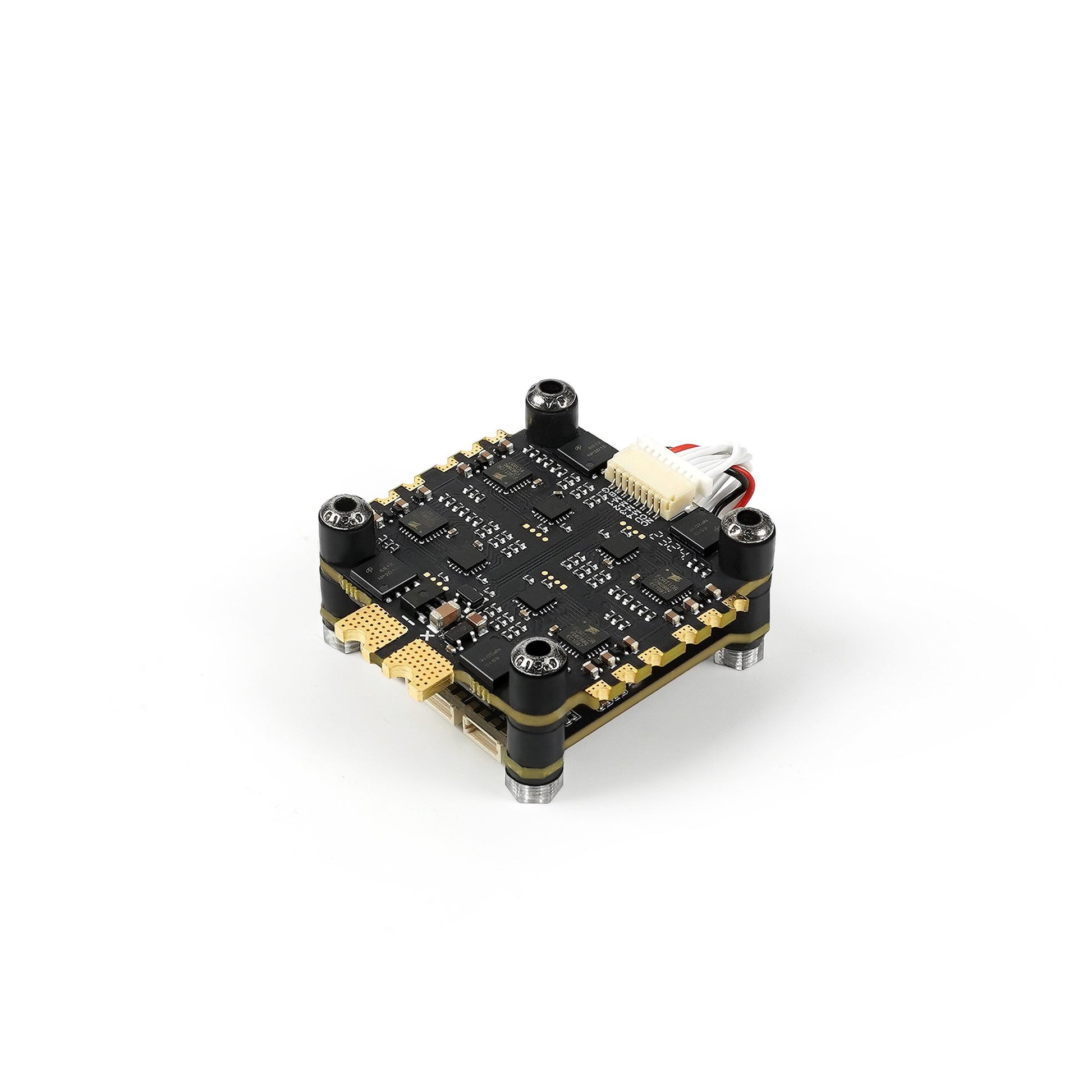

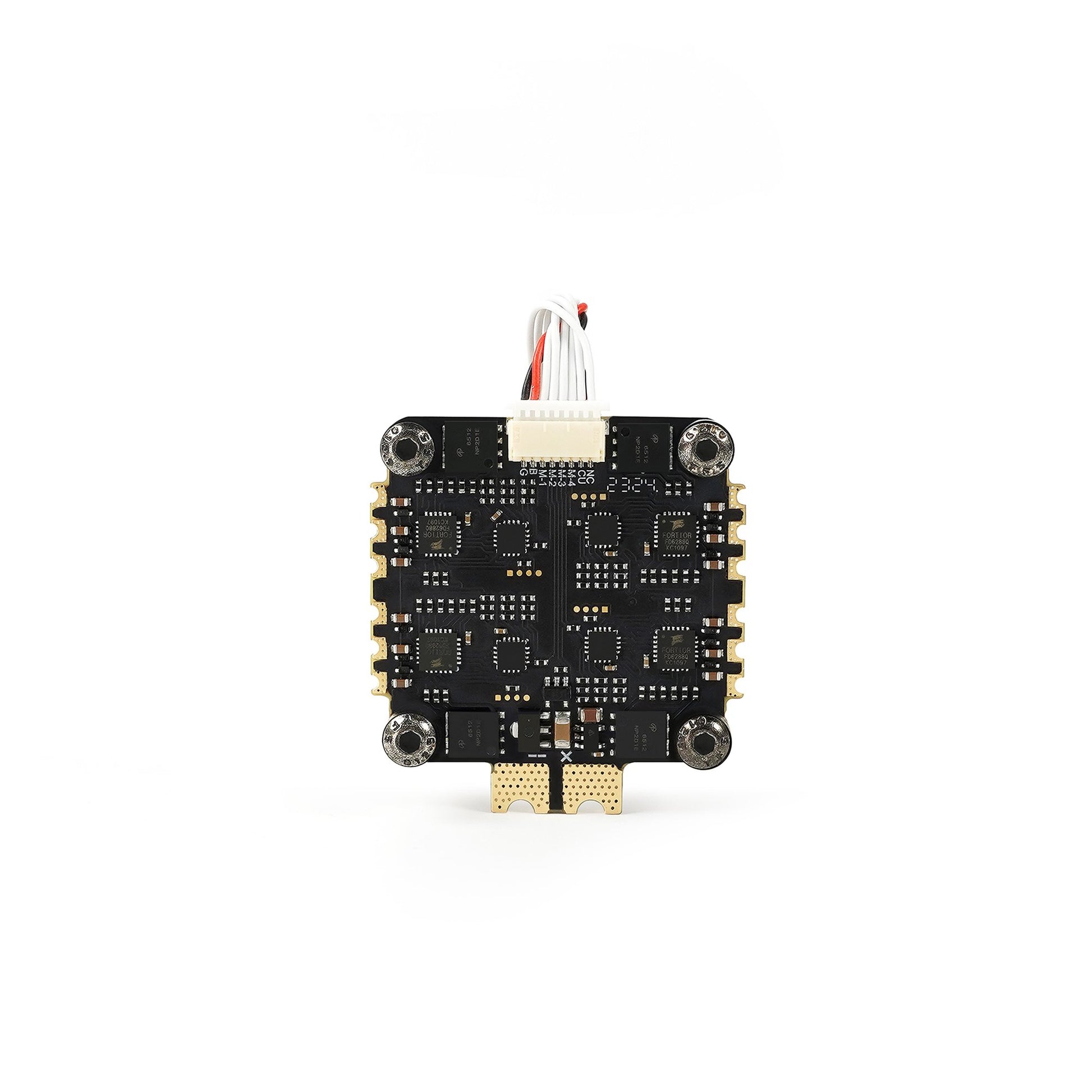

GEP-BLS50A-4IN1 ESC
-
Input Voltage: 3-6S Lipo
-
Galvanometer: Support
-
Continuous Current: 50A
-
Burst Current: 55A（5s）
-
Support Protocol: Oneshot125/Oneshot42/Mulishot modes/Dshot 150/300/600
-
Size: 42.9×39.7mm, hole30.5×30.5mm
-
Weight:13.7g
-
Target: G_H_30
Package Includes:
-
Flight Controller
-
ESC
-
Accessories
The GEPRC TAKER F405 BLS 50A STACK is more than just a flight controller; it's your ticket to transcending the ordinary, offering a fusion of power, precision, and ease that caters to the needs of the most demanding FPV pilots. Get ready to experience flight on a whole new level.
